Applicable Model: MVT600/T1/T3

MEITRACK Camera User Guide
Copyright © 2014 Meitrack Group All rights reserved. - 2 -
Change History
File Name
MEITRACK Camera User Guide
Creator
Evan Lee
Project
MVT600/T1/T3
Creation Date
Update Date
2012-07-06
2013-06-26
Sub Project
Accessories User Manual
Page
8
Version
V1.4
Confidential
External Documentation

MEITRACK Camera User Guide
Copyright © 2014 Meitrack Group All rights reserved. - 3 -
Contents
1 Copyright and Disclaimer...............................................................................................................................................................- 4 -
2 Application.....................................................................................................................................................................................- 4 -
3 Product Function and Specifications .............................................................................................................................................- 4 -
3.1 Product Function ................................................................................................................................................................- 4 -
3.2 Specifications......................................................................................................................................................................- 4 -
4 Main Device and Accessories ........................................................................................................................................................- 4 -
5 Outward Appearance.....................................................................................................................................................................- 5 -
6 First Use .........................................................................................................................................................................................- 5 -
6.1 Physical Installation ............................................................................................................................................................- 5 -
6.2 Connection Terminal ..........................................................................................................................................................- 5 -
7 Feature ..........................................................................................................................................................................................- 6 -
7.1 Setting Photographed Events .............................................................................................................................................- 6 -
7.2 Instruction of Snapshot ......................................................................................................................................................- 7 -
8 Note...............................................................................................................................................................................................- 8 -

MEITRACK Camera User Guide
Copyright © 2014 Meitrack Group All rights reserved. - 4 -
1Copyright and Disclaimer
Copyright © 2014 MEITRACK. All rights reserved.
MEITRACK and are trademarks that belong to Meitrack Group.
The user manual may be changed without prior notification.
This user manual, or any part thereof, may not be reproduced for any purpose whatsoever without the written authorization of
Meiligao (MEITRACK), or transmitted in any form, either electronically or mechanically, including photocopying and recording.
In no event shall Meiligao (MEITRACK) be liable for direct, indirect, special, incidental, or consequential damages (including but
not limited to economic loss, personal injury, and loss of asset and property) arising out of the use or inability or illegality to use
the product or documentation.
2Application
RS232 interface terminal
For picture-taking
3Product Function and Specifications
3.1 Product Function
To output JPG format photos
Remote photographs
RS232 universal interface
3.2 Specifications
Item
Description
Dimension
62 x 51 x 51mm
Weight
200g
Normal Standby Power Consumption
25mA
Operating Temperature
-20℃~55℃
Operating Humidity
5%~95%
Operating Voltage
5V
Internal Resistance
3.6R
Pixels
30 W
Baud Rate
115200bps
4Main Device and Accessories
Camera
2G TF Card
4P to 8P Cable

MEITRACK Camera User Guide
Copyright © 2014 Meitrack Group All rights reserved. - 5 -

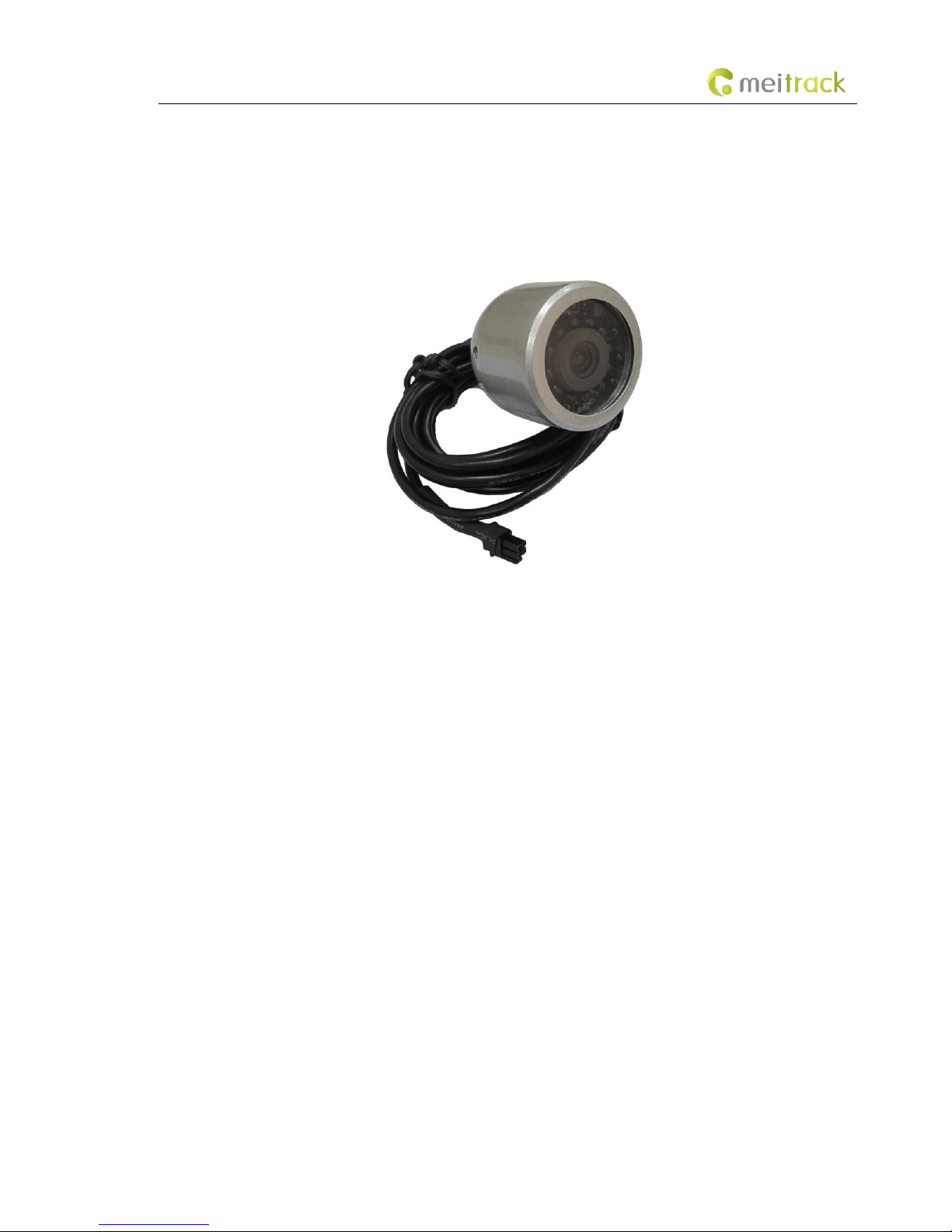

5Outward Appearance
6First Use
6.1 Physical Installation
Camera and Vehicle: according to customers’ need to install.
6.2 Connection Terminal
1. Insert the camera interface into tracker’s dedicated interface
MVT600 dedicated interface is as follows:

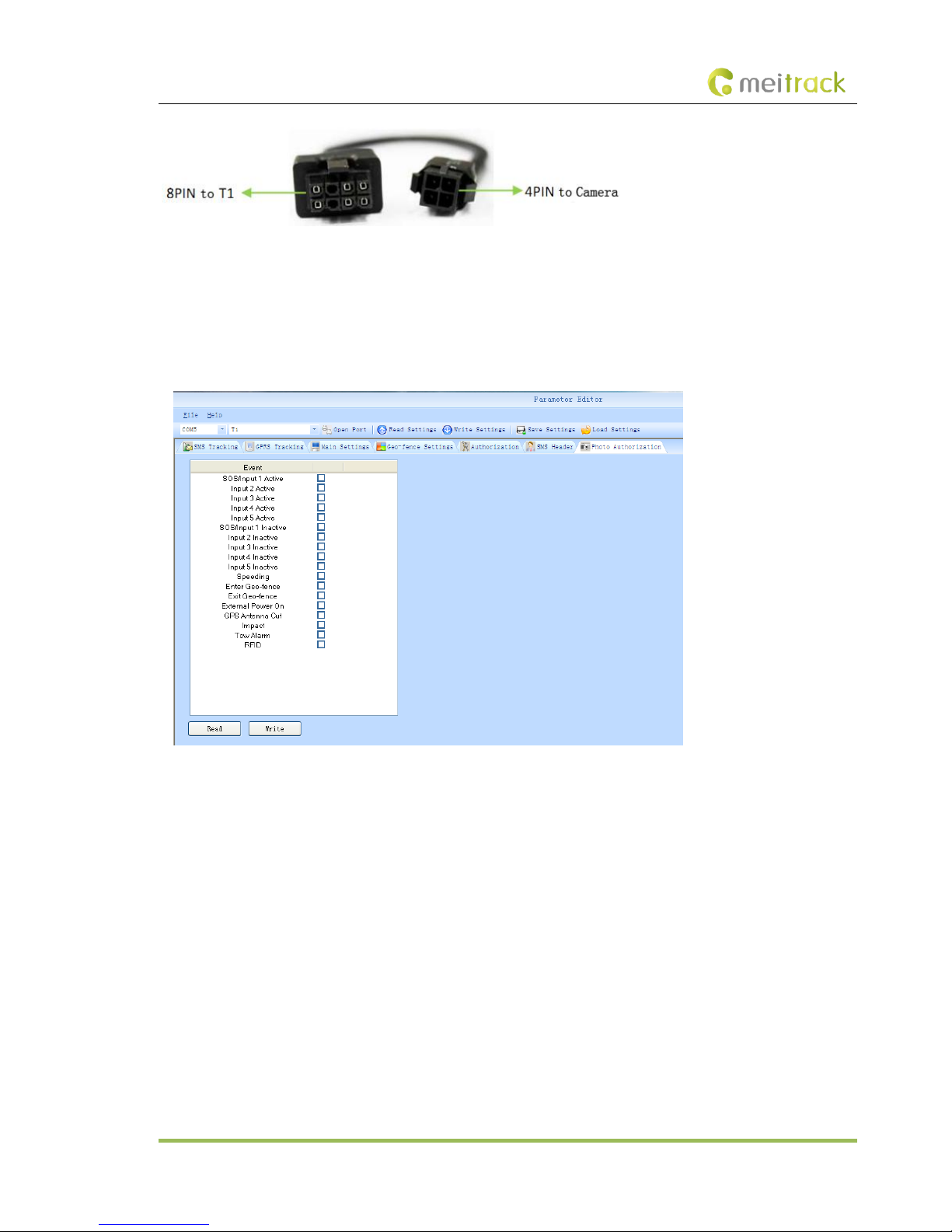

2. T1 dedicated interface is as follows:
Shot
Interface

MEITRACK Camera User Guide
Copyright © 2014 Meitrack Group All rights reserved. - 6 -
7Feature

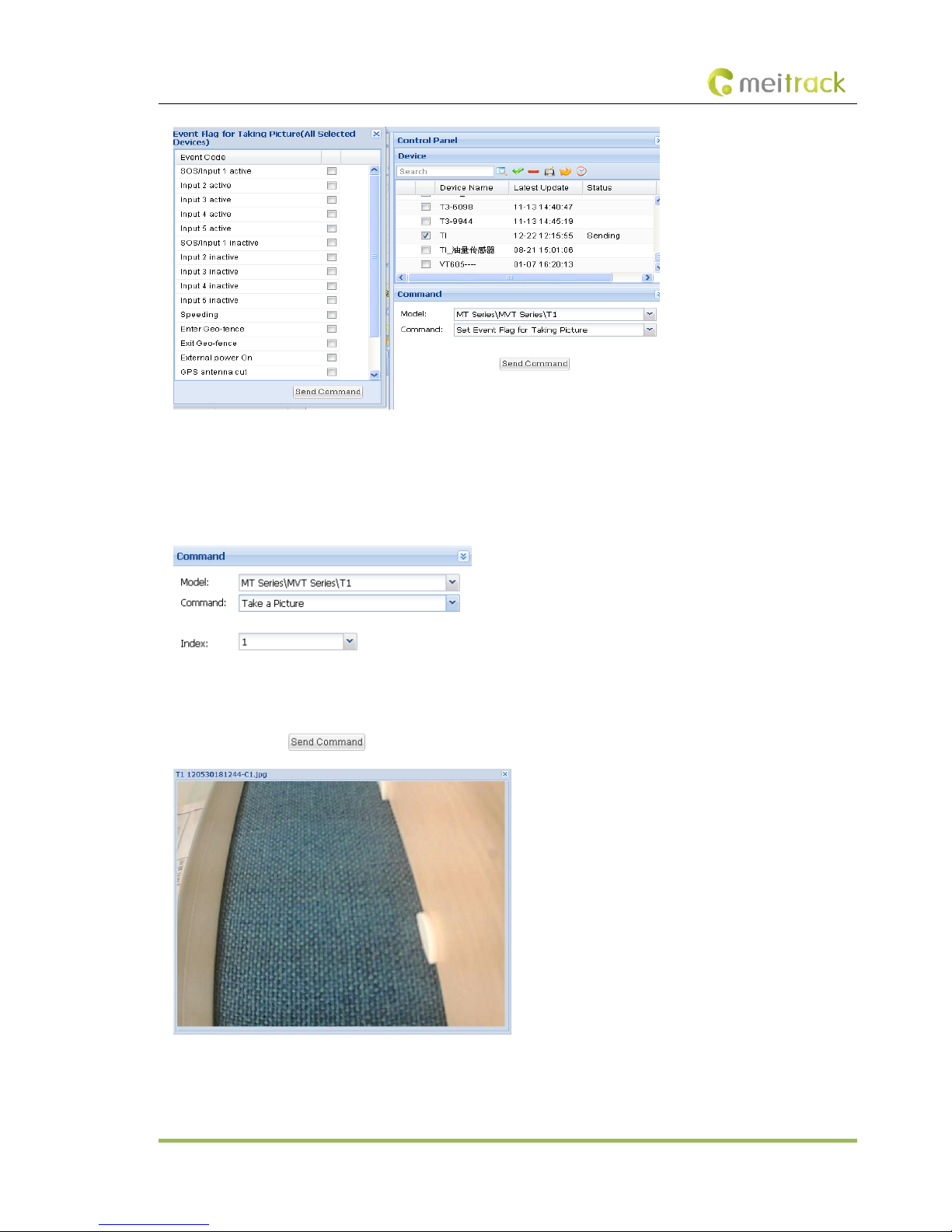

7.1 Setting Photographed Events
1. Connect to MEITRACK Parameter Editor to view and set the photographed event.
2. It is able to connect the platform, and commands will be sent through the platform for setting photographed events, trigger
the event will be able to take pictures.
When photographing events, the camera will shoot a photo storage TF card. View photos as needed in the platform, issued
command through the platform under the instruction: “Get photos name”, and that is able to get photos.

MEITRACK Camera User Guide
Copyright © 2014 Meitrack Group All rights reserved. - 7 -
7.2 Instruction of Snapshot
1. Device connect to the platform, select the command “Snapshot”, “ NO.1” to send a snapshot command, the device will be
uploaded to the platform to take a photo.

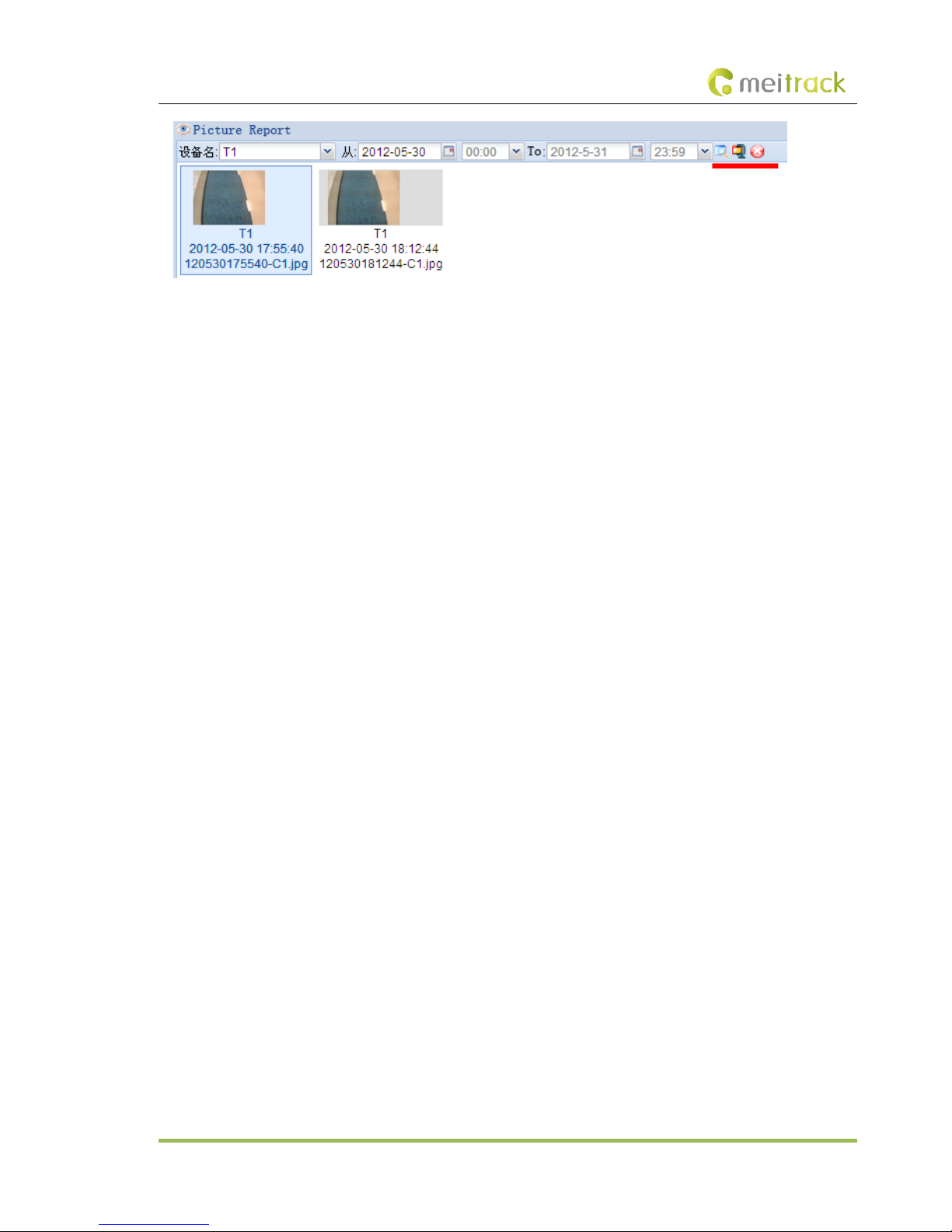

2. Through the query statements photos statement, select the device, based on the date you can view, download and delete
upload photos to the server.

MEITRACK Camera User Guide
Copyright © 2014 Meitrack Group All rights reserved. - 8 -
8Note
1. Please confirm the TF card format FAT32.
2. Please confirm MVT600 is connected to an external power supply.
3. Please make sure the SIM card is GPRS data can be uploaded.
4. Please make sure that the T1 cable is properly connected to cable.
Please do not hesitate to email us at [email protected] if you have any questions.
