Melaco Flick&Click C90 User manual

Flick&Click_C90 - demo module ASSEMBLY INSTRUCTIONS
more info:
www.melaco.com.pl www.flickandclick.eu
assembly
instructions
Flick&Click_C90
demo module
MELACO sp. z o.o.
Ciepielowska 9,
67-100 Nowa Sól, Poland
oce: [phone]
sales: [phone]
[email protected]

included
MODULE ELEMENTS
instruction
HOW TO ASSEMBLE A MODULE
Side walls (2 pcs.)
Top and bottom panel, one marked with an arrow
A
B
▶
▶
Back wall marked with an arrowC▶
Dismantling pins (2 pcs.)D▶
B
B
AD A
A
clickclick
fig. 1
fig. 2
clickclick
fig. 3
fig. 4
ASSEMBLY OF ELEMENTS
DOES NOT REQUIRE
THE USE OF TOOLS

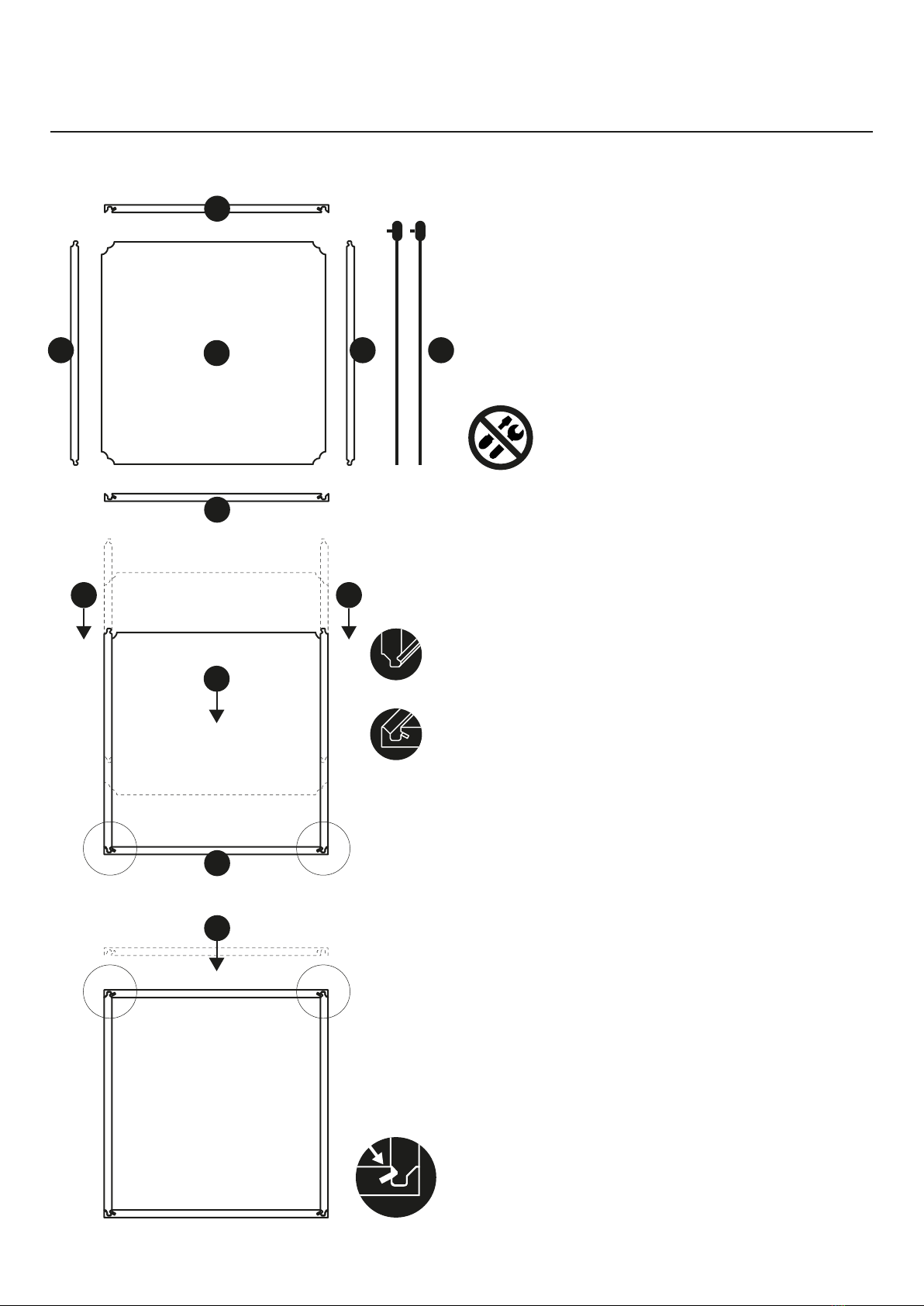

1 Unpack the elements and sort them by dimensions (fig. 1).
2 Take the panel marked with an arrow (B↑).
3 Place the panel (B↑) on an even, horizontal surface, with
anti-scratch material first..
4 The element has a cut for the rear wall.
Arrange it so that it is closer to you.
5 Take the next side (A) of the cabinet, check where the cut is.
6 Make sure that the cut is on the same side as in the first
element! Press the element gently to match the male click
to the female click or vice versa (depending on the element
in your hand).
7 You will hear a click when you fold it properly. This means
that the elements have been connected.
8 If necessary, align the parts so that the leading edges
meet evenly.
9 Take the other side (A) and repeat the operation for the other
side. You have received a U-shaped piece with a cut on one
side (fig. 2).
10 Take the back wall (C↓) and slide it into the cut so that the
element surface is flush with the cabinet edges and the
arrow is pointing towards the arrow on the panel(B↑) (fig. 3).
11 Time for the second panel (B) of the module. Connect it
simultaneously with the male clicks on both sides of the
module (A), making sure that the rear wall fits into the rebate
(fig. 3).
12 The module is ready!
13 The module can be disassembled using specially designed
pins (D).
14 The module is disassembled in the reverse order, first placing
both pins (D) in the triangular indentation of the rim (B), on
the right and left sides (fig. 4).
B↑
B↑
C↓
C↓
A
Female click
Male click
