Memorex MPD8600 - Sports CD Player User manual

User’s Guide
Personal FM
Stereo Compact
Disc MP3 Player
MPD8600
Before operating this product,
please read these instructions completely.

SAFETY PRECAUTIONS
1
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DANGEROUS VOLTAGE:
The lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated dangerous
voltage within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
ATTENTION:
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the appliance.
DANGER:
This product utilizes a Class 1 laser to read compact discs. This
laser Compact Disc Player is equipped with safety switches to
avoid exposure when the CD door is open and the safety interlocks
are defeated. Invisible and hazardous laser radiation when open
and interlock failed or defeated. Avoid direct exposure to beam.
Please do not attempt to defeat or bypass the safety switches.

SAFETY PRECAUTIONS (CONTINUED)
2
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. The user
could lose the authority to operate this equipment if an unauthorized
change or modification is made.
INFORMATION:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

SAFETY PRECAUTIONS (CONTINUED)
3
SURGE PROTECTORS:
It is recommended to use a surge protector for AC connection.
Lightning and power surges ARE NOT covered under warranty for
this product.
• Do not open the CD compartment while the CD is rotating.
• Always keep the CD compartment closed when not in use.
• Keep all foreign objects out of the CD compartment.
• Place the unit on a stable surface.
• Avoid installing the unit in locations described below:
• Places exposed to direct sunlight or close to heat-radiating
appliances such as electric heaters.
• On top of other stereo equipment that radiate too much heat.
• Places lacking ventilation or dusty places.
• Places subject to constant vibration.
• Humid or moist places.

Dear Customer:
Selecting fine audio equipment such as the unit you’ve just purchased is only the start
of your musical enjoyment. Now it’s time to consider how you can maximize the fun
and excitement your equipment offers. This manufacturer and the Electronic Industries
Association’s Consumer Electronics Group want you to get the most out of your
equipment by playing it at a safe level. One that lets the sound come through loud and
clear without annoying blaring or distortion and, most importantly, without affecting
your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher
volumes of sound. So what sounds “normal” can actually be loud and harmful to your
hearing. Guard against this by setting your equipment at a safe level BEFORE your
hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future.
After all, we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment.
Since hearing damage from loud noise is often undetectable until it is too late, this
manufacturer and the Electronic Industries Association’s Consumer Electronics Group
recommend you avoid prolonged exposure to excessive noise. This list of sound levels
is included for your protection.
4

Decibel
Level Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet
THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE:
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet engine
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
5
A
S
S
O
C
I
A
T
I
O
N
EST. 1924
E
L
E
C
T
R
O
N
I
C
I
N
D
U
S
T
R
I
E
S
EIA
We
LISTENING
For A Lifetime
Want You

LOCATION OF CONTROLS
6
1
2
6
5
4
3
7
14
16
13
15
12
11
8
10
9
1. PROG (Program) Button
2. EQ/NAVI (Navigation) Button
3. Stop (■)/Power Off Button
4. Skip/Search/Tuning Up ( ) Button
5. Play/Pause ( )/Power On Button
6. Skip/Search/Tuning Down ( )
Button
7. MODE/Radio On Button
8. VOLUME/Radio Preset –/+ Buttons
9. Headphones Jack
10. Hold Switch
11. DC 4.5V Jack (Side of Unit)
12. LINE OUT Jack (Side of Unit)
13. CD Compartment
14. CD Door OPEN Switch
15. Display
16. Battery Compartment (Under CD
Compartment Door)
–+

This CD player requires either two (2) “AA” cell standard batteries (not
included) or the AC adapter (not included).
BATTERY INSTALLATION
The low battery indicator ( ) will light in the
display when batteries are low (when using battery
power) and need replacing.
1. Open the battery compartment door under the
CD compartment Door by pushing the latch in
and and then lifting it. To prevent the
possibility of losing the cover, it cannot be
removed.
2. Insert two (2) “AA” cell batteries (not included) according to the polarity
diagram inside the battery compartment. Alkaline batteries are
recommended for the longest playing time.
INSTALLATION
7
–
+
–
+
–
+
–
+
BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated
next to the battery compartment. Reversed batteries may cause damage to the
device.
3. Do not mix different types of batteries together (e.g. Alkaline, Rechargeable and
Carbon-zinc) or old batteries with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to
prevent damage or injury from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat
and rupture. (Follow battery manufacturer’s directions.)

AC OPERATION
To operate the unit using AC power, connect an AC adapter (not included) to an AC
outlet having 120V, 60Hz AC only. Plug the small end into the DC 4.5V jack on the
side of the unit and connect the other end into the AC outlet. The batteries are
automatically disconnected when the AC adapter is used.
CAUTION: When not using AC power, disconnect the AC adapter from the wall
outlet by pulling the plug (not the cord). Do not touch the AC adapter with wet hands.
Fully insert the plug without exposing any part of the blade.
DC 4.5V
HOLD SWITCH
Slide the HOLD switch until “HOLD” appears in the display and no buttons can be
pressed. After three seconds, “HOLD” will disappear in the display. If you press any
button, “HOLD” will appear in the display again to indicate the button is disabled.
This is useful when jogging/walking. Slide the HOLD switch to the off position to
cancel the Hold function.
–+
INSTALLATION (CONTINUED)
8
Sound Through a Home Audio System
By using a home audio connection cable (not included), superb sound can be
heard through your home audio system. Before making any connections, turn off
the power to all equipment.
Plug a connection cable (not included) between the LINE OUT jack on the side of
the CD player and the amplifier’s AUX or CD input jack. (Do not connect it to the
amplifier’s PHONO jack.)
NOTE: If the radio interferes with TV reception, move the unit away from the TV
or turn off the power to this unit.

OPERATION
9
Plug the headphones into the Headphones jack.
Press the Play/Pause ( )/Power On button ❶
to turn the unit on. If a CD is in the CD
compartment, press the Stop (■)/Power Off
button ❷once to stop playback, otherwise
continue to step 2.
1
2
1
TO LISTEN TO THE RADIO
Press the MODE/Radio On button to enter
the FM Radio mode. Press the MODE button
repeatedly to select STEREO or MONO. If
FM reception is weak/noisy, select Mono, in
this case the reception will be monaural.
2
Press and release the Skip/Search/Tuning
❶ or ❷ button to tune a station;
“Manual” will appear in the display. For
rapid search tuning, press and hold the
Skip/Search/Tuning ❶ or ❷
button for one second, then release; “Auto
Seek” will appear in the display.
2
1
3
To adjust the volume, press and hold the
VOLUME/Radio Preset –/+ buttons for one
second; “VOLUME” will appear in the display.
Within three seconds, press the VOLUME/Radio
Preset –/+ buttons to adjust the volume. If you do
not press the VOLUME/Preset –/+ for one second
first, “PRESET” will appear in the display. If you
then press the VOLUME/Radio Preset –/+ buttons,
the Memory Preset will increase or decrease, not
the volume.
4
CONTINUED ON THE NEXT PAGE

OPERATION (CONTINUED)
10
To change back to the CD mode, press
the Play/Pause ( )/Power On button.
5
To turn the radio off, press the Stop
(■)/Power Off button.
6
ANTENNAS
FM – The headphones act as an antenna for FM. Extend the headphone wire
for best FM reception.
AUTO SCAN
Press and hold the Skip/Search/Tuning or button for approximately 1
second and the unit will automatically search for the next available station.

OPERATION (CONTINUED)
11
Tune a desired station as described in
the previous section. Press the PROG
button; the memory number will blink
and PROG indicator will appear.
1
TO SET AND RECEIVE A STATION INTO MEMORY
Within five seconds, repeatedly press and
release the VOLUME/Radio Preset –/+
buttons to select a Memory Preset (up to 30
memories).
2
Press the PROG button again to confirm.
3
To receive a Memory Preset, press the
VOLUME/Radio Preset –/+ buttons until the
desired preset appears in the display.
4

OPERATION (CONTINUED)
12
Open the CD compartment lid by sliding the
CD Door OPEN switch. Gently press a disc,
label side up, onto the spindle until it locks in
place. Close the CD compartment lid.
1

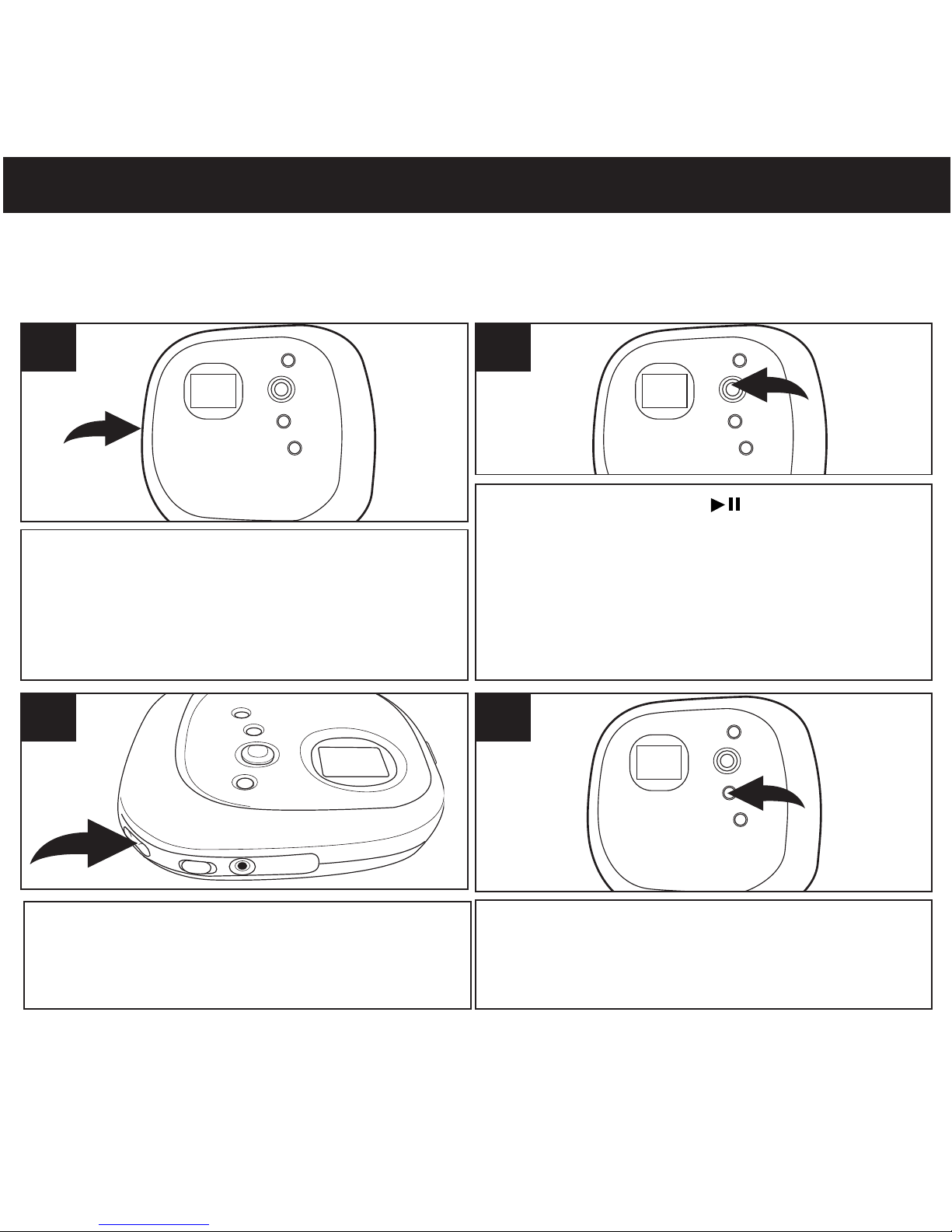

TO INSERT AND PLAY A CD
This CD player is designed to play all kinds of Audio Discs, WMA and MP3 CD ROMS, such as
CD recordables and rewritables. Do not try to play CDI, CDV, DVD or computer CDs in this unit.
Press the Play/Pause ( )/Power On button
to turn the unit on; the total tracks (and folders,
if using MP3) will appear in the display. Then,
the unit will automatically start playing the CD;
the current track and elapsed playing time (CD
information and folder will also appear, if using
MP3) will appear in the display.
2
Adjust the volume as desired using the
VOLUME/Radio Preset –/+ buttons.
3
Adjust the EQ/NAVI button to cycle through
the EQ settings: FLAT, CLASSIC, JAZZ,
ROCK and POP.
4
CONTINUED ON THE NEXT PAGE

OPERATION (CONTINUED)
13
When the disc is through playing, it will
stop. Press the Stop (■)/Power Off button
to stop the disc before it is finished. Press
the Stop (■)/Power Off button again to turn
the unit off.
5
CD PLAYBACK NOTES:
• See page 20 for more information on MP3’s.
• When recording (“burning”) CDs, make sure the session is “finalized”, or simply record
(“burn”) only one session. You can find more information in your recorder’s manual.
• This unit is capable of playing standard CDs or 3” singles; no adapter is required.
• If a disc is inserted incorrectly, dirty, damaged or not present at all, “no disc” will appear
in the display.
• If a disc is not recorded properly, a disc error will occur.
• Playback will stop when you open the CD compartment, but it is not recommended to
open the compartment before the Stop (■)/Power Off button is pressed.
• If there is no activity for 60 seconds, the unit will turn itself off to save the batteries.
• It may take 10 to 30 seconds for the player to read an MP3 CD and begin playback,
depending on the number of tracks burned on the CD.
• The EQ function is only available for CD playback.

OPERATION (CONTINUED)
14

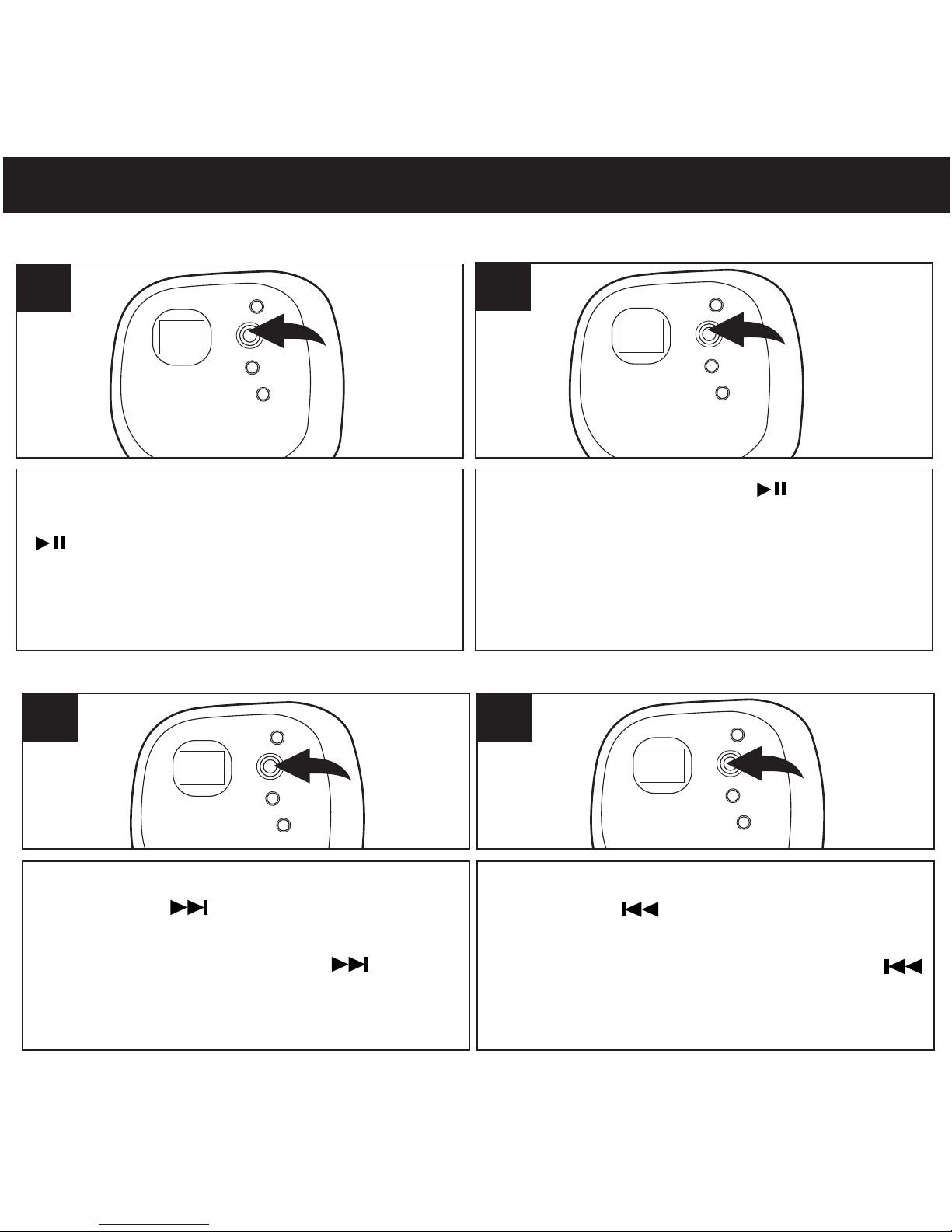

During CD playback, if you wish to pause
the disc momentarily, press the Play/Pause
( )/Power On button. Playback will stop
but the disc continues to spin and “PAUSE”
will appear and the elapsed time will flash
in the display.
1
Press the Play/Pause ( )/Power On
button again to release pause and resume
playback. The sound returns and the
elapsed time in the display stops flashing.
2
TO PAUSE A CD
During playback, press and release the
Skip/Search button once to advance
the player to the beginning of the next track.
Press the Skip/Search button
repeatedly to advance the player to higher
number tracks.
1
FORWARD/REVERSE SKIP TRACK
During playback, press and release the
Skip/Search button once to move the
player back to the beginning of the currently
playing track. Press the Skip/Search
button repeatedly to move the player back
to lower numbered tracks.
2

OPERATION (CONTINUED)
During playback, depress and hold either
the Skip/Search ❶ or ❷ button to
move the player forward or backward within
a track to locate a specific musical
passage. The player will move forward or
backward at high speed as long as the
buttons are depressed. When you release
the Skip/Search ❶ or ❷ button,
normal playback will resume.
2
1
1

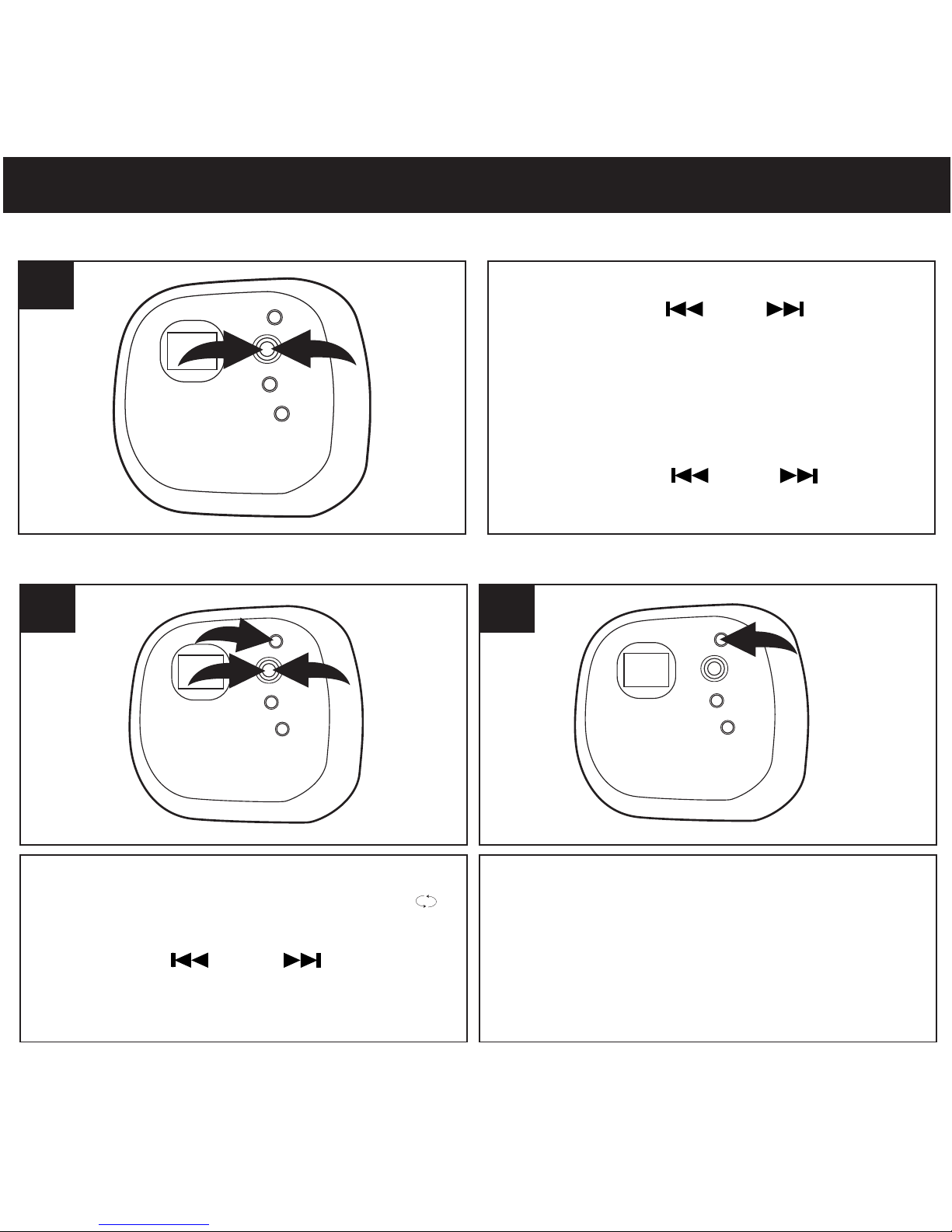

HIGH-SPEED MUSIC SEARCH
To repeat a single track, press the MODE
button ❶ once while playing a CD; “ ”
will appear in the display. Press the
Skip/Search ❷ or ❸ button to
select the specific track that you wish to
repeat.
1
3
2
1
1
REPEAT PLAYBACK OF ONE TRACK
The specific track you selected will be
repeated continuously. To cancel Repeat
playback, press the MODE button until the
Mode indicator disappears.
2
15

OPERATION (CONTINUED)
16

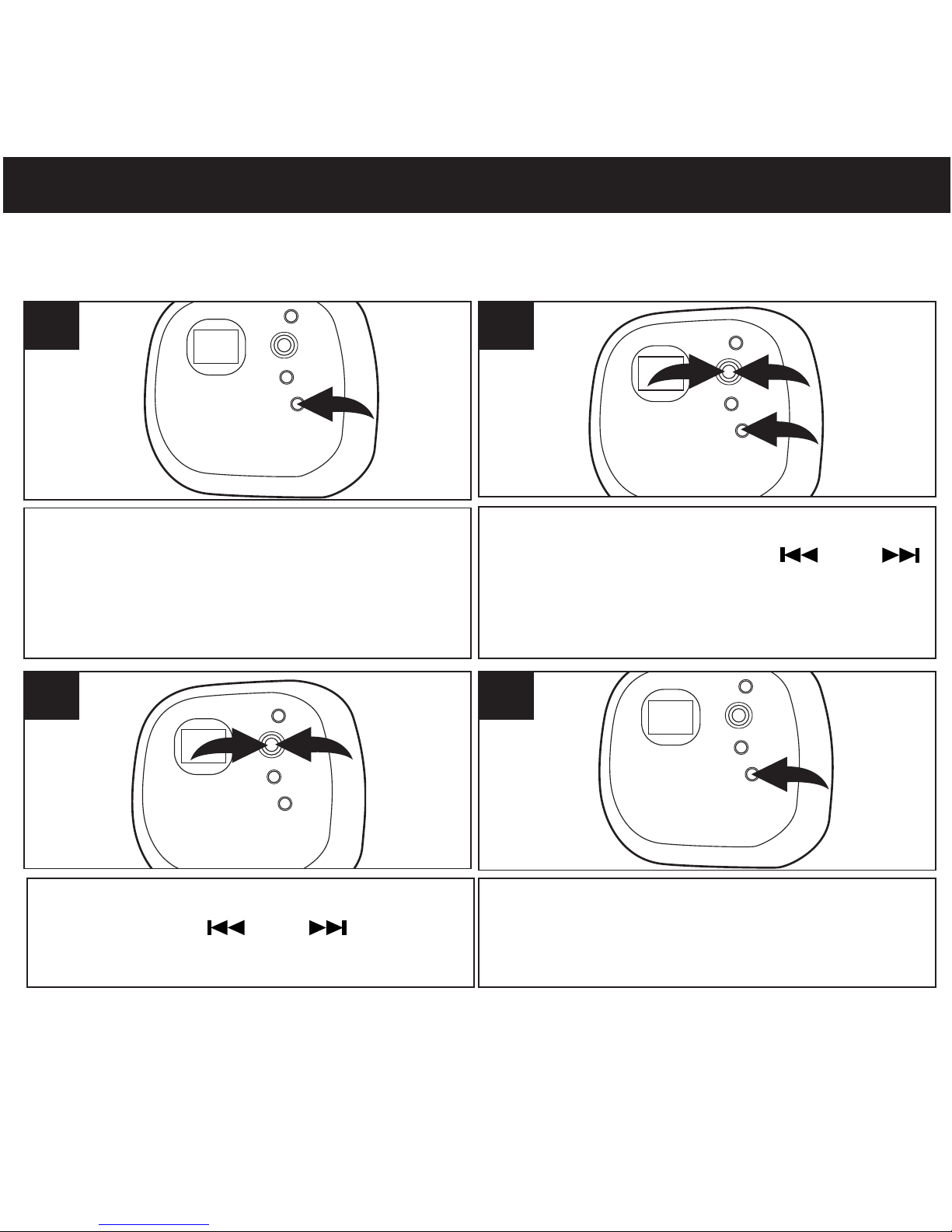

To repeat all files in a folder/album (MP3
CD only), press the MODE button twice
while playing a CD; “ ” will appear in
the display.
ALBUM
1
REPEAT PLAYBACK OF A FOLDER/ALBUM (MP3 w/folders only)
All files in the selected folder/album will be
repeated continuously. To cancel Repeat
playback, press the MODE button until the
Mode indicator disappears. See page 20 for
more info on MP3 format.
2
To repeat all the tracks on the CD, press
the MODE button twice (three times if
playing an MP3) while playing a CD;
“ ” will appear in the display.
ALL
1
REPEAT PLAYBACK OF ALL TRACKS
All tracks on the disc will be repeated
continuously. To cancel Repeat playback,
press the MODE button until the Mode
indicator disappears.
2

OPERATION (CONTINUED)
17

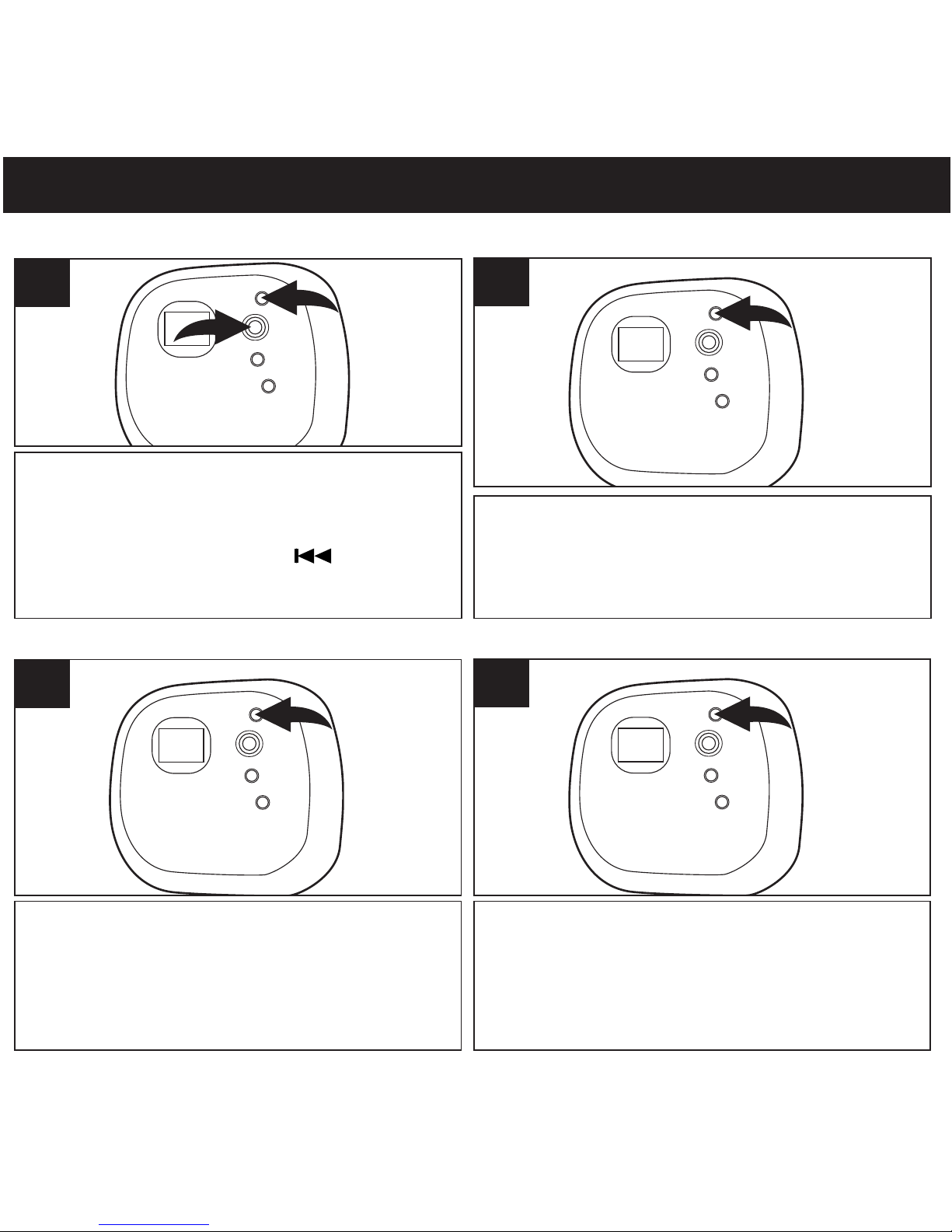

To randomly playback the tracks on CD,
press the MODE button four times (five
times if playing an MP3) while playing a
CD; “RAND” will blink in the display.
1
TO RANDOMLY PLAY BACK A CD
The unit will play all the tracks in random
order. When all the tracks have been played,
the unit will stop. To cancel Random
playback, press the MODE button until the
Mode indicator disappears.
2
Press the MODE button ❶ three times
(four times if playing an MP3) while playing
a CD; “INTRO” will blink in the display.
Press the Skip/Search ❷ button;
“INTRO” will light solid in the display.
1
2
1
INTRO PLAYBACK (Will play the first 10 seconds of each track)
The first 10 seconds of all tracks on the disc
will be played in sequence. To cancel Intro
playback, press the MODE button until the
Mode indicator disappears.
2

OPERATION (CONTINUED)
18

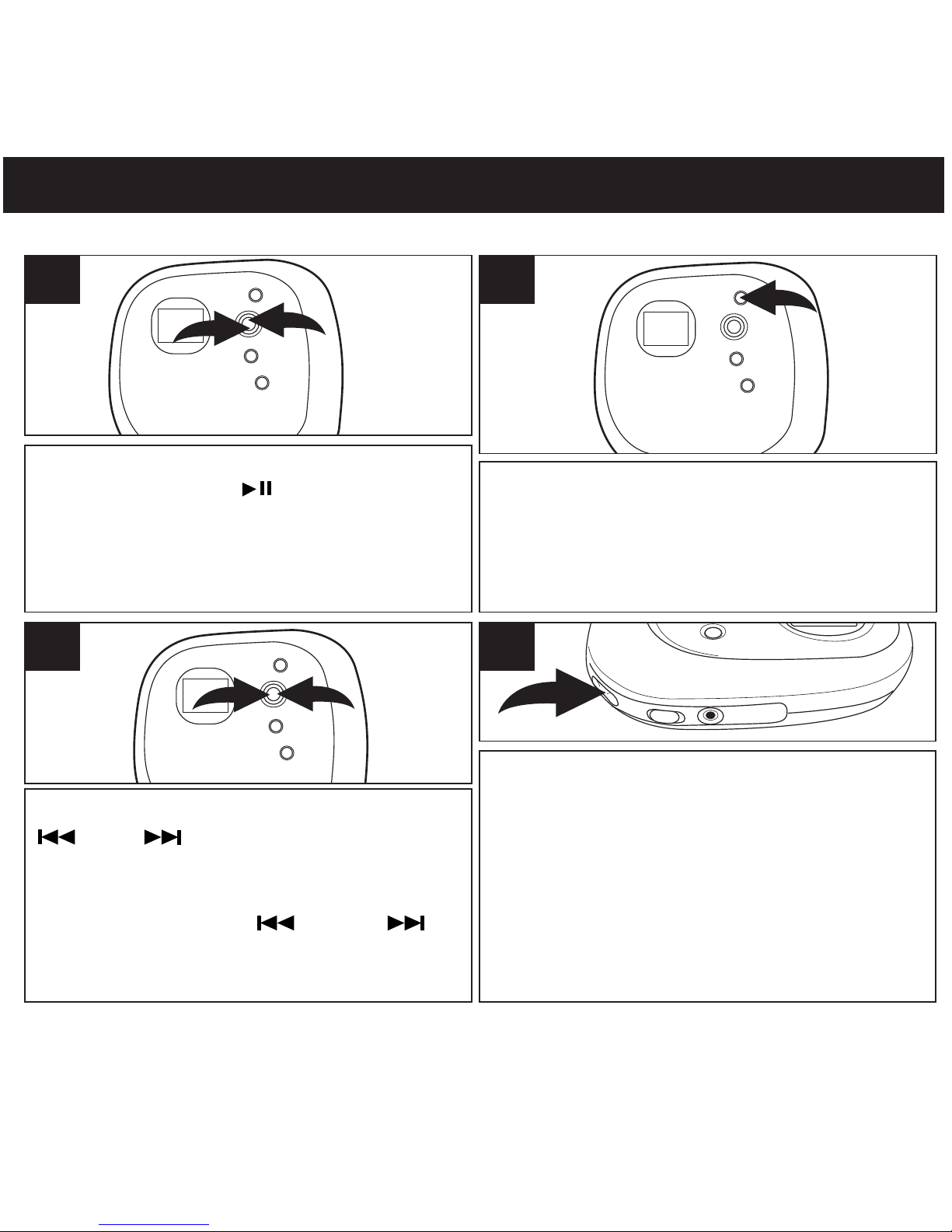

TO PROGRAM THE MEMORY (UP TO 64 TRACKS)
Programming is the ability to preselect the order in which a series of tracks will be played.
While in the Stop mode, press the PROG
button. The track number will blink and “P-
01” will appear in the display. (If using an
MP3, the folder number will blink.)
1
If using an MP3/WMA, select the desired
folder using the Skip/Search ❶ or
❷ button. Press the PROG button ❸ to
confirm.
2
3
1
2
Select a track to be programmed using
the Skip/Search ❶ or ❷ button.
2
1
3
Press the PROG button to memorize
the track.
4
CONTINUED ON THE NEXT PAGE

OPERATION (CONTINUED)
19
Repeat steps 2 through 4 to program
additional tracks up to a maximum of 64
tracks.
2
1
5
Press the Play/Pause ( )/Power On
button to begin program playback; “PROG”
will appear in the display.
6
NOTES ON PROGRAM PLAYBACK
• Press the Stop (■)/Power Off button while in the Program mode or change the CD to
clear the memory.
• The program memory will be saved, even if the power is turned off or if the CD door is
opened without changing the CD.
• You can review the program by pressing the PROG button repeatedly while in the Stop
mode.
• To add a track to the program memory, simply press the PROG button, and the display
will show the next available memory number, then continue as per the steps on the
previous page.
• Press the Stop (■)/Power Off button to stop the program before it is finished (the
program memory will be kept).
• Each file may be stored in the program memory as many times as desired (up to 64 files).
• You can scroll through the program while it is playing using the Skip/Search or
button.
