Memory-map Bike 250 User manual

Bike 250
User Manual

Memory-Map Bike 250
Safety Precautions
Use the power adapter included with the package, using power adapters other than the one provided will
result in malfunction and could prove dangerous.
About the power adapter:
1. Do not use the power adapter in a wet environment. When hands and feet are wet, do not touch the
power adapter.
2. While using the power adaptor, ensure that the area is well ventilated. Do not let paper or other
material cover the power adaptor, as this will interfere with cooling. Do not use the power adaptor
whilst it is in a bag.
3. Do not attempt to repair the device. If device is damaged or is in a wet environment, replace the
device immediately.
4. It is not recommended to charge from a PC because the PC power voltage is not enough to supply
the device.
Warranty Information
This warranty applies to parts and services that are manufactured and sold through SNOOPER. The
warranty length is one year from date of purchase (starting from the date on the sales receipt). Under
normal user operation, SNOOPER provides free repair services.
SNOOPER is not responsible for providing repairs or replacements of any software; SNOOPER does not
provide any warranty service for third party software/hardware.
Important instructions
1. Note: This warranty does not cover damage or malfunction from the below causes: unauthorized
disassembly/modification of unit, abuse or incorrect usage, accidental and other unpreventable
causes, operation under variables mentioned that are different from those in this product user
manual, using parts not made or sold by SNOOPER, or repairs done by anyone other than
SNOOPER and authorized retail/service providers.
2. Expendable parts are not covered in the warranty.
3. SNOOPER is not responsible for any program, data, or portable storage media damages or loss.
Please contact your local SNOOPER authorized service provider to learn more about geographical
limitations, proof of purchase requests, response time agreements, and other specific maintenance
service requests.

Memory-Map Bike 250
Copyright Information
No part of this manual, including the products and software described in it, may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form or by any mean, without
the express written permission of SNOOPER Technology, Inc.
Copyright, All Rights Reserved.
RF Exposure Warning
This equipment must be installed and operated in accordance with provided instructions and the antenna(s)
used for this transmitter must be installed to End-users and installers must be provided with antenna
installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Memory-Map Bike 250
Table of Contents
TABLE OF CONTENTS.................................................................................4
GETTING STARTED......................................................................................1
FEATURES ............................................................................................1
UNIT OVERVIEW....................................................................................2
BUTTONS..............................................................................................3
ACCESSORIES. .....................................................................................4
CHARGING THE BATTERY.......................................................................5
CONNECTING TO A PC...........................................................................6
INSTALLING BIKE MOUNT. ......................................................................7
USING THE MEMORY-MAP BIKE 250......................................................9
TURNING ON/OFF THE SYSTEM..............................................................9
MENU...................................................................................................9
ON SCREEN DISPLAY. ............................................................................9
STATUS ICONS. ...................................................................................12
FUNCTIONS AND OPERATIONS..............................................................14
SPORT MODE. ....................................................................................14
HISTORY. ............................................................................................15
ALERT. ...............................................................................................17
GENERAL SETTING..............................................................................18
SETTING. ............................................................................................22
Initial setup.....................................................................................24
TROUBLESHOOTING.................................................................................27
SPECIFICATIONS........................................................................................29

Memory-Map Bike 250
1
Getting Started
Congratulations on purchasing the Memory-Map Bike 250.
The Memory-Map Bike 250 is a compact, lightweight device with GPS finder and calorie calculation
designed for sporting use, plus GPS coordinates record storage to calculate CO2emissions saved and
calories expended from not driving.
Features
GPS positioning
Auto flip page
Automatic shutdown within set time when no signal is detected.
‘Place Finder’ function capable of leading the user to up to 5 recorded locations.
3 Sport modes for calorie calculation
Auto Log function starts log as soon as the satellite signal is fixed
One touch POI recording
Multi-language support
Support both metric and imperial unit
Support time zone setting
Support both 12:00 and 24:00 time format

Memory-Map Bike 250
2
Unit Overview.
Front View
Rear View
Left View
Mini USB Port
Down button
Mounting slot
LCD Screen
Left
Backlight/
Menu Power/ Record
Right button
Up

Memory-Map Bike 250
3
Buttons.
Use the Buttons for basic functions.
Icon Main Menu Menu Mode
Power/ Record OK
Turns the unit on and off.
Press this button to start
recording; press it again to
pause recording.
Backlight/ Menu Exit
Long press to activates the
backlight; short press to
enter menu mode.
Exits the submenu.
►
POI Select/ Right
Press the key to set a POI. Press the key to confirm and save.
Press to move the cursor to the
right.
◄
Save Exit/ Left
Press the key to save. Press the key to exit.
Press to move the cursor to the
left.
▼
Page Down Down
Flip page down. Press to move the cursor to the
down
▲
Page Up Up
Flip page up. Press to move the cursor to the
up.

Memory-Map Bike 250
4
Accessories.
Check the box for the following supplied accessories. If any is missing, contact your supplier immediately.
Memory-Map Bike
250
USB cable Quick Guide
Bike mount kit

Memory-Map Bike 250
5
Charging the Battery.
Using the AC Charger (Not included. Available as an optional extra)
1. Plug the mini USB plug of the AC charger into the mini USB port on the top of the handset.
2. Plug the AC charger into a wall outlet.
When charging, the Power indicator shows . After charging is complete, the Power indicator shows .

Memory-Map Bike 250
6

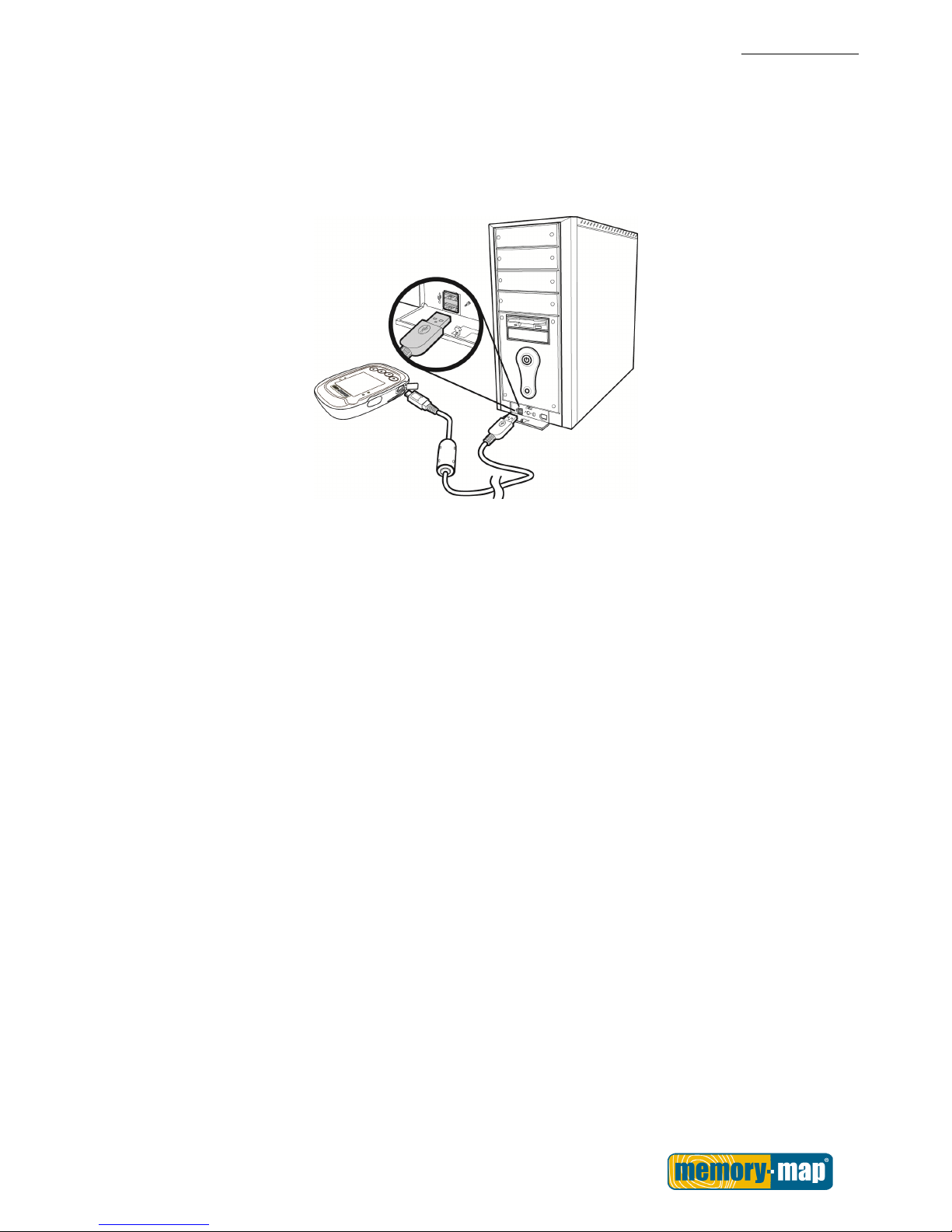

Connecting to a PC.
1. Connect the mini USB plug (smaller) of the USB cable to the mini USB port on the top of the system.
2. Connect the USB plug (larger) or the USB cable to a USB port on your computer.

Memory-Map Bike 250
7
Installing Bike Mount.
You can install the bike mount and the GPS on the left or right side of the handlebar or on the stem.
3. Attach the bracket to the bracket holder.
4. Thread the two cable ties through the slots of the bracket holder.
5. Place the rubber pad under the bike mount and attach the bike mount securely to the bike stem using the
two cable ties.

Memory-Map Bike 250
8
6. Slide in the GPS on top of the bike mount until it snaps into place.
※
Cable ties are reusable.
Push here to release

Memory-Map Bike 250
9
Using the Memory-Map Bike 250.
Turning on/ off the system.
Press and hold the Power button until the opening screen appears on the LCD screen.
Press the Power button until the LCD screen turns off.
Menu.
This section explains how to open and navigate the menu. Press the Menu button to open or exit the menu.
Main Menu: the Main Menu consists of 5 options. Use the Up/Down button to move to the option and press
SEL►button to enter the submenu.
Submenu: press the SEL►button to move up, or down within the menu to select an item or adjust an item
and press SEL►button to accept the selected item.
On screen display.
The on-screen display changes to show different navigation information when you flip the pages by pressing
the Up▲/ Down▼page button or by enabling the automatic flip function.
Speed and Distance: displays current speed
and distance.
Time and Running Time: displays current
time and running time.

Memory-Map Bike 250
10
Max and Average Speed: displays your max
and average speed.
Altitude: displays altitude variation.
Calorie information: displays lap calorie and
today calorie consumed.
Place Finder: display the direction and
distance to the stored coordinates.
The user may use this function as a tool for
“geocaching”, when activated, it will display
the direction and distance to the hidden
“geocaches”.
Finder Usage:
User A uses the Finder function to record the location of his or her hotel during a trip. After sightseeing, user
B easily finds the location of and return to his or her hotel.
Finder List
Press the Left ◄button in the Place Finder
function to configure the Finder list, with 5
fields for coordinates.
1. Use the Up▲/Down▼button to select the
desired item.
2. Press the SEL►key to enter the
coordinate page.
Inside the coordinate page, use the

Memory-Map Bike 250
11
Down▼button to edit the coordinate
name.
During the editing function, use the
Up/Down/Left/Right button to edit
the name; English letters only.
Press OK ●key to save the
setting.
Select “Yes” and press the SEL►
key to enter the ‘set coordinates’
page.

Memory-Map Bike 250
12
Edit Coordinates
Press Right►Key to display the current
coordinates and the specified coordinates
from the Finder list.在
1. Use the Up▲/Down▼button to switch
between points in the Finder list.
2. Press EDIT ►button to enter edit point
page, you can edit the coordinates stored
in the Finder List.
Use the Left◄/ Right ►button to
change between list coordinates. Use
the Up▲/Down▼button to change
between numbers.
Press OK ●key to save the setting.
Status icons.
Status icons show sport mode, auto flip page, POI, backlight, satellite status, memory mode, and battery
information.
Sport mode for calorie calculation. It also indicates that Log is started. When sport mode icon disappeared,
the Log is stopped or paused.
Sport mode icons:
Biking mode
Running mode
Walking mode
Vehicle mode
Auto fliip icons:
Auto flip function is on
POI icon:
POI has been recorded; it will be on for five seconds and then disappear

Memory-Map Bike 250
13
Backlight icon:
Backlight switch is on
Satellite mode icons:
Satellites is fixed
The device is trying to fix the satellites
Memory status icons:
Memory mode: indicates the memory is in overwrite mode
Full stop mode: indicates the remaining memory capacity
Battery status icons:
Battery is in full status
Battery is in charging status
Battery is done charging
Battery low message appears every 5 minutes. Press any key to disable the alert

Memory-Map Bike 250
14
Functions and Operations.
Read this section to learn how to set up and use the GPS.
Sport Mode.
There are Biking, Running, Walking and Vehicle mode for choosing.
1. Press the Menu button to enter Main
Menu. Press SEL►button to enter Sport
mode.
2. Use the Up▲/Down▼button to move to
the desired sport mode.
3. Press SEL►button to confirm and save.
※In Vehicle mode, calorie calculation is disabled.

Memory-Map Bike 250
15
History.
History function allows you to review log status for odometer, distance, time, maximum speed, average
speed, calorie burned, and altitude variation. Maximum 10 records can be saved in device memory.
1. Press the Menu button to enter Main
Menu.
2. Use the Up▲/Down▼button to move to
History. Press SEL►button to enter
History function.
3. Press the Up▲/Down▼button to switch
between menu pages.
Odometer
Displays Odometer 1, Odometer 2 and the
total mileage.
※Resetting each of Odometer 1 or 2 does
not affect the total mileage.
History Record
indicates which record the user is
currently viewing.
Maximum 10 records can be saved in device
memory.
Use the Up▲/Down▼button to switch
between data pages.
To write-protect specific records:
1. On the history recode page, press LOCK
►button.
2. Select “Yes” and press SEL►to confirm.
3. When the screen shows means the
recode is write-protected.
To unlock write-protect:
1. On the lock history recode page, press
UNLOCK ►button.
2. Select “Yes” and press SEL►to confirm.

Memory-Map Bike 250
16
