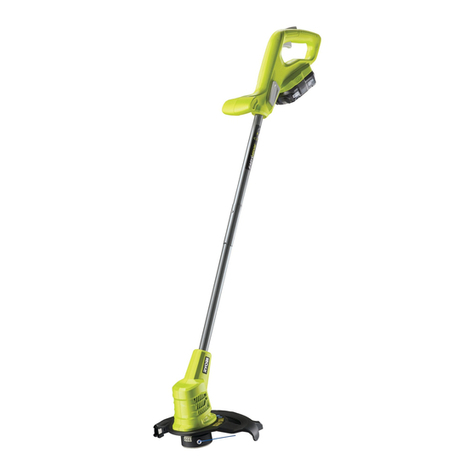

Menards String Trimmer User manual

1
KNOW YOUR STRING TIMMER (See Fig. 1)
The safe use of this product requires an understanding of the information on the tool and in this

product, familiarize yourself with all operating features and safety rules.
CORD RETAINER
A convenient cord retainer helps keep the extension cord connection secure during string trimmer
operation.
EDGER GUIDE
The easily mounted edger guide allows the string trimmer to perform as an edger.
FRONT HANDLE
The string trimmer is equipped with a front handle assembly for ease of operation and to prevent
loss of control.
GRASS DEFLECTOR

ROTATING REAR HANDLE
The rotating rear handle on the string trimmer can be locked in two different positions for ease of
use when edging.
TELESCOPING BOOM

FEATURES
TELESCOPING
BOOM COUPLER
EDGING COUPLER
GRASS
DEFLECTOR
ROTATING
REAR
HANDLE
SWITCH
TRIGGER
CORD
RETAINER
ADJUSTABLE
FRONT HANDLE
Fig. 1
EDGE GUIDE
TELESCOPING
SHAFT

2
ATTACHING GRASS DEFLECTOR (See Fig. 2 - 3.)
1. Remove supplied screw with a phillips screwdriver from the trimmer head.
2.
3.
4.
5.Install supplied screw and tighten by turning clockwise with a phillips screwdriver.
W A R N I N G
If any parts are damaged or missing, do not operate this product until the parts are replaced.
Failure to heed this warning could result in serious personal injury.
W A R N I N G
Do not attempt to modify this product or create accessories not recommended for use with this
leading to possible serious personal injury.
W A R N I N G
Do not connect to power supply until assembly is complete. Failure to comply could result in
accidental starting and possible serious personal injury.
UNPACKING
•This product requires assembly.
•Carefully remove the product and any accessories from the box. Make sure that all items
listed in the packing list are included.
•Inspect the product carefully to make sure no breakage or damage occurred during shipping.
•Do not discard the packing material until you have carefully inspected and satisfactorily
operated the product.
•If any parts are damaged or missing, please call 1-888- 266-7096 for assistance.
PACKING LIST
•Trimmer Assembly
•
•Operator’s Manual
ASSEMBLY

3

WARNING
If any parts are damaged or missing, do not operate this product until the parts are replaced.

WARNING
Do not attempt to modify this product or create accessories not recommended for use with this


WARNING
Do not connect to power supply until assembly is complete. Failure to comply could result in

STARTING/STOPPING THE TRIMMER (See Fig. 4 - 5.)
Attach the outlet end of an extension cord to the plug on the rear of the string trimmer.
NOTE: Use only approved outdoor extension cords.
Route the extension cord through the slot located on the rear of the string trimmer housing
and place underneath the cord retainer.
To start the string trimmer, press the switch trigger.
To stop the string trimmer, release the switch trigger.
If any parts are damaged or missing, please call 1-888- 909-6757 for assistance.
Fig. 3
Fig. 2
SLIDE
OVER HEAD
AND
TURN COUNTER
CLOCKWISE SCREW
HOLE
SCREW
SLOTS
TABS
LOCK
WASHER
WASHER
GRASS
DEFLECTOR

4
OPERATING THE TRIMMER (See Fig. 6)
FOLLOW THESE TIPS WHEN USING THE STRING TRIMMER:
Hold the trimmer with your right hand on the rear handle and your left hand on the front
handle.


Fig. 4 Fig. 5
SWITCH
TRIGGER
ATTACH OUTLET END
OF EXTENSION CORD
HERE
CORD
WARP
OUTLET
END
PROPER OPERATING
POSITION
Fig. 6

5

Trimmer should be held at a comfortable position with the rear handle about hip height.
Cut tall grass from the top down. This will prevent grass from wrapping around the shaft
housing and string head
IF GRASS BECOMES WRAPPED AROUND THE STRING HEAD:
Stop the trimmer.
Unplug the string trimmer.
Remove the grass.
WARNING
Always hold the string trimmer away from the body keeping clearance between the body and the
string trimmer. Any contact with the string trimmer cutting head while operating can result in serious

ADVANCING STRINGS
NOTE: The trimmer is equipped with an auto-feed head. Bumping the head to try to advance the line will
damage trimmer and void warranty.
With the trimmer running, release the switch trigger.
Wait two seconds, and press the switch trigger.
NOTE: The strings will extend approximately 1/4 in. with each stop and start of the switch trigger until the
strings reach the length of the grass deector blade.
Resume trimming.
ADVANCING THE STRINGS MANUALLY
Disconnect the string trimmer from the power supply, then push the spool retainer button in
while pulling on strings to manually advance the strings.
CUT OFF BLADE

strings until they are trimmed to length by the cut-off blade. Advance strings whenever you hear

best performance and keep strings long enough to advance properly.
OPERATION

6
CUTTING TIPS (See Fig. 7)
Keep the trimmer tilted toward the area being cut; this is the best cutting area.
The string trimmer cuts when passing the unit from left to right. This will avoid throwing debris
at the operator. 
Use the tip of the string to do the cutting; do not force string head into uncut grass.
Wire and picket fences cause extra string wear, even breakage. Stone and brick walls, curbs,
and wood may wear strings rapidly.
Avoid trees and shrubs. Tree bark, wood moldings, siding, and fence posts can easily be
damaged by the strings.
Fig. 7
DIRECTION
OF
ROTATION
BEST CUTTING
AREA
DANGEROUS
CUTTING AREA
OPERATION
TELESCOPING BOOM (See Fig. 8)
The boom can be extended or shortened for ease of use.
Unplug the string trimmer.
Unscrew telescoping boom coupler and slide to desired position.
Tighten telescoping boom coupler.
ROTATING REAR HANDLE (See Fig. 9)
Unplug the string trimmer.
Pull up edging coupler and turn handle end counterclockwise.
Release edging boom coupler when handle has been rotated 180°.

7
OPERATION
EDGING (See Fig. 9 - 11.)
The rotating handle can be used in combination with the edger guide for edging sidewalks and

EDGER
GUIDE
Fig. 10 Fig. 11
Fig. 8
TELESCOPING
BOOM
COUPLER
Fig. 9
PULL UP
EDGING COUPLER
TO ROTATE
ROTATING
REAR
HANDLE
