E-class
Operator’s Manual
E320
E430
E55AMG
E300
E 320
E430
E55AMG

2
Product information
Kindly observe the following in your own best interests:
We recommend using Mercedes-Benz original parts as well as conversion parts and accessories explicitly approved by us for
your vehicle model.
We have subjected these parts to a special test in which their reliability, safety and their special suitability for Mercedes-Benz
vehicles have been determined.
We are unable to make an assessment for other products and therefore cannot be held responsible for them, even if in individual cases
an official approval or authorization by governmental or other agencies should exist. Use of such parts and accessories could
adversely affect the safety performance or reliability of your vehicle. Please do not use them.
Mercedes-Benz original parts as well as conversion parts and accessories approved by us are available at your Mercedes-Benz
authorized dealer where you will receive comprehensive information, also on permissible technical modifications, and where
proper installation will be performed.
Printed in the U.S.A.
We reserve the right to modify the technical details of the vehicle as given in the data and illustrations of
this Owner's Manual. Reprinting, translation and copying, even of excerpts, is not permitted without our
prior authorization in writing.
Press time 09/30/98 MBNA/TI

3
Operator's manual
Our company and staff congratulate you on the purchase of your new Mercedes-Benz.
Your selection of our product is a demonstration of your trust in our company name. Further, it exemplifies your desire to own an
automobile that will be as easy as possible to operate and provide years of service.
Your Mercedes-Benz represents the efforts of many skilled engineers and craftsmen. To ensure your pleasure of ownership, and for
your safety and that of your passengers, we ask you to make a small investment of your time:
• Please read this manual carefully before putting it aside. Then return it to your vehicle where it will be handy for your reference.
• Please abide by the recommendations contained in this manual. They are designed to acquaint you with the operation of your
Mercedes-Benz.
We extend our best wishes for many miles of safe, pleasurable driving.
Daimler-Benz Aktiengesellschaft

4
Introduction
This Owner's Manual contains a great deal of useful information. We urge you to read it carefully and familiarize yourself with the
vehicle before driving.
For your own safety and longer service life of the vehicle, we urge you to follow the instructions and warnings contained in this
manual. Ignoring them could result in damage to the vehicle or personal injury to you or others. Vehicle damage caused by failure to
follow instructions is not covered by the Mercedes-Benz Limited Warranty.
Your vehicle may have some or all of the equipment described in this manual. Therefore, you may find explanations for optional
equipment not installed in your vehicle. If you have any questions about the operation of any equipment, your authorized Mercedes-
Benz dealer will be glad to demonstrate the proper procedures.
Owner's Service and Warranty Information
The Owner's Service and Warranty Information Booklet contains detailed information about the warranties covering your Mercedes-
Benz, including:
• New Car Limited Warranty,
• Emission System Warranty,
• Emission Performance Warranty,
• California and Massachusetts Emission Control System Warranty (California and Massachusetts only),
• State Warranty Enforcement Laws (Lemon Laws).
Important Notice for California Retail Buyers of Mercedes-Benz Automobiles
Under California law you may be entitled to a replacement of your vehicle or a refund of the purchase price, if Mercedes-Benz of
North America, Inc. or its authorized dealer fails to conform the vehicle to its express warranties after a reasonable number of repair
attempts during the period of one year or 12 000 miles from original delivery of the vehicle. A reasonable number of repair attempts is
presumed for a retail buyer (1) if the vehicle is out of service by reason of repair of substantial nonconformities for a cumulative total
of more than 30 calendar days or (2) the same substantial nonconformity has been subject to repair four or more times and you have
at least once directly notified us in writing of the need to repair the non-conformity and have given us an opportunity to per-
form the repair ourselves. Notifications should be sent to the nearest Mercedes-Benz Regional Office listed in the Owner's
Service and Warranty Information Booklet.

5
Maintenance
The Service Booklet describes all the necessary maintenance work which should be performed at regular intervals.
Always have the Service Booklet with you when you take the vehicle to your authorized Mercedes-Benz dealer for service. The
service advisor will record each service in the booklet for you.
Roadside Assistance
The Mercedes-Benz Roadside Assistance Program provides factory trained technical help in the event of a breakdown. Calls to the
toll-free Roadside Assistance number:
1-800-FOR MERCedes (in the U.S.A.) 1-800-387-0100 (in Canada)
will be answered by Mercedes-Benz Customer Assistance Representatives 24 hours a day, 365 days a year.
For additional information refer to the Mercedes-Benz Roadside Assistance Program brochure in your glove box.
Change of Address or Ownership
If you change your address, be sure to send in the "Change of Address Notice" found in the Owner's Service and Warranty
Information booklet, or simply call the Mercedes-Benz Customer Assistance Center (in the U.S.A. only) at 1-800-FOR-MERCedes. It
is in your own interest that we can contact you should the need arise.
If you sell your Mercedes, please leave all owner's literature with the vehicle to make it available to the next owner.
If you bought this vehicle used, be sure to send in the "Notice of Purchase of Used Car" found in the Owner's Service and Warranty
Information booklet, or call the Mercedes-Benz Customer Assistance Center (in the U.S.A. only) at 1-800-FOR-MERCedes.

6
Operating Your Vehicle Outside the U.S.A. or Canada
If you plan to operate your vehicle in foreign countries, please be aware that:
• service facilities or replacement parts may not be readily available,
• unleaded gasoline for vehicles with catalytic converters may not be available; the use of leaded fuels will damage the catalysts,
• gasoline may have a considerably lower octane rating, and improper fuel can cause engine damage.
Certain Mercedes-Benz models are available for delivery in Europe under our European Delivery Program. For details, consult your
authorized Mercedes-Benz dealer or write to:
Mercedes-Benz of North America, Inc. European Delivery Department One Mercedes Drive Montvale, NJ 07645
In Canada write to:
Mercedes-Benz Canada, Inc. European Delivery Department 849 Eglinton Avenue East Toronto, Ontario M4G 2L5
We continuously strive to improve our product, and ask for your understanding that we reserve the right to make changes in design
and equipment. Therefore, information, illustrations and descriptions in this Owner's Manual might differ from your vehicle.
Optional equipment is also described in this manual, including operating instructions wherever necessary. Since they are special-order
items, the descriptions and illustrations herein may vary slightly from the actual equipment of your vehicle.
If there are any equipment details that are not shown or described in this Owner's Manual, your authorized Mercedes-Benz dealer will
be glad to inform you of correct care and operating procedures.
The Owner's Manual and Service Booklet are important documents and should be kept with the vehicle.

7
The First 1000 Miles (1500 km)
The more cautiously you treat your vehicle during the break-in period, the more satisfied you will be with its performance later on.
Therefore, drive your vehicle during the first 1000 miles (1500 km) at moderate vehicle and engine speeds.
During this period, avoid heavy loads (full throttle driving) and excessive engine speeds.
Avoid accelerating by kickdown. It is not recommended to brake the vehicle by manually shifting to a lower gear. We recommend
that you select positions "3", "2" or "1" only at moderate speeds (for hill driving).
After 1000 miles (1500 km) speeds may be gradually increased to the permissible maximum.
Check Regularly and Before a Long Trip
See last page.
Maintenance
Approximately 30 days or 2 000 miles (2 000 km) prior to the next recommended service, the remaining distance or days are
displayed in the multifunction indicator. See Flexible Service System (FSS) in Index.
We strongly recommend that you have your vehicle serviced by your authorized Mercedes-Benz dealer, in accordance with the
Service Booklet.
Failure to have the vehicle maintained in accordance with the Service Booklet may result in vehicle damage not covered by the
Mercedes-Benz Limited Warranty.
Radio Transmitters
Warning!
Never operate radio transmitters equipped with a built-in or attached antenna (i.e. without being connected to an external
antenna) from inside the vehicle while the engine is running. Doing so could lead to a malfunction of the vehicle's electronic
system, possibly resulting in an accident and personal injury.
Radio transmitters, such as a portable telephone or a citizens band unit should only be used inside the vehicle if they are connected to
an antenna that is installed on the outside of the vehicle.
Refer to the radio transmitter operation instructions regarding use of an external antenna.

8
Introduction Rear Passenger Compartment Steering Lock 62
Adjustable Air Outlet 28 Combination Switch 64
Product information 2Car keys 29 Headlamp Cleaning System 65
Operator's manual 4Start Lock-out 30 Exterior Lamp Switch 66
Consumer Information 162 Central Locking System 31 Night Security Illumination 67
Problems with your vehicle 163 Radio Frequency and Inside Rear View Mirror 67
Reporting Safety Defects 163 Infrared Remote Control 31 Exterior Rear View Mirror 68
Index 166 Mechanical Keys 34 Ashtrays 70
Doors 35 Lighter 71
Instruments and controls Central Locking Switch 36 Sun Visors 71
Trunk 38 Illuminated Vanity mirrors 71
Instruments and Controls 10
Power Window and Sliding/Pop-Up Roof 39 Interior Lighting 72
Instrument Cluster 12 Anti-Theft Alarm System 40 Storage Compartments 73
Indicator Lamp Symbols 13 Power Seats, Front 42 Cup Holder 73
Catalytic Converter 15 Multicontour Seat 45 Sliding Pop-Up Roof 74
Starting and Turning Off Gasoline Engine
16 Heated Seats 46 Power Windows 75
Diesel Engine 17 Adjusting Steering Wheel 47 Parcel Net 76
Driving Instructions 18 Arm Rest, Rear Bench 47 Trunk Lid Release Switch 77
First Aid Kit 47 Rear Window Sunshade 77
Operation Head Restraints, Rear 48 Instrument Lamps 78
Cargo Tie-Down Hooks 48 Display Illumination 78
Automatic Climate Control 24 Shelf below Rear Window 48 Trip Odometer 78
Basic Setting – Automatic Mode 25
Seat belts and Supplemental Restraint
System (SRS) 49 Clock 78
Defogging Windows 26 Seat belts 49 Garage Door Opener 79
Defrosting 26
BabySmart Airbag Deactivation System 53 Cellular telephone 80
Rear Window Defroster 26
Self Test 53
Air Recirculation 27
Emergency tensioning retractor (ETR) 54 Driving
Activated Charcoal Filter 27 Airbag 55
Front Center Console Compart. Ventilation 28 Child Restraint 60 Drinking and driving 82

9
Parking Brake 82 Winter Driving 105 Manual Release of Fuel Filler Flap 142
Driving off 82 Snow Chains 106 Roof Rack 143
Automatic Transmission 83 Traveling Abroad 106
MERCEDES-BENZ Spare Part Service 143
Cruise Control 88 Layout of Poly-V-Belt Drive 144
Multifunction Indicator Practical Hints
Language Selection 90 Technical Data. Fuels,
Multiple Malfunctions 90 Hood 108 Coolants, Lubricants etc.
Temporarily Switching off 90 Checking Coolant Level 109 Consumer Information
Defective 90 Adding Coolant 109
Charge Indicator Lamp 91 Checking Engine Oil Level 110 Identification Labels 146
Low Engine Oil Level Warning Lamp 91 Bleeding of Diesel Fuel System 111 Warranty Coverage 147
Engine Oil Consumption 91
Automatic Trans. Fluid Level
111 Technical Data E 300 Diesel 148
Fuel Reserve and Fuel Cap Placement Trunk Lamp 112 E 320 150
Warning 91 Spare Wheel, Vehicle Tools, E 430 152
Tachometer 92 Storage Compartment 112 E 55 AMG 154
Outside Temperature Indicator 92 Stowing Thongs in the Vehicle 112 Fuels, Coolants, Lubricants etc. 156
Coolant Temperature Gauge 92 Vehicle Jack 113 Capacities 156
Low Engine Coolant Level Warning Lamp 93 Wheels 113 Engine Oils 158
Low Windshield and Headlamp Changing Wheels 117 Engine Oils Additives 158
Washer Fluid Level Warning Lamp 93 Tire in Inflation Pressure 119 Air Conditioner Refrigerant 158
Exterior Lamp Failure Indicator Lamp
94 Exterior Lamps 120 Brake Fluid 158
Brake Pad Wear Indicator Lamp 94 Battery 127 Vehicle with Gasoline Engine
Brake Warning 94 Fuses 129 Premium Unleaded
Flexible Service System (FSS) 95 Jump Starting 130 Gasoline 159
Antilock Brake System (ABS) 97 Towing the Vehicle 131 Fuel Requirements 159
Brake Assist System (BAS) 98 Cleaning and Care of the Vehicle 134 Gasoline Additives 159
Electronic Traction System (ETS) 99 Electronic Main Key, Remote Control 138 Vehicle with Diesel Engine
Acceleration Stability Program (ASR)
100 Front Head Restraint 140 Diesel Fuels 160
Electronic Stability program (ESP) 104 Rear Seat Cushion 141 Coolants 161
Emission Control 104
Emergency Operation of Sliding/Pop-Up Roof 141 Service and Literature 171
On-Board Diagnostic System 104 Replacing Wiper Blades Insert 142 Check Regularly Before a Long Trip 172

10

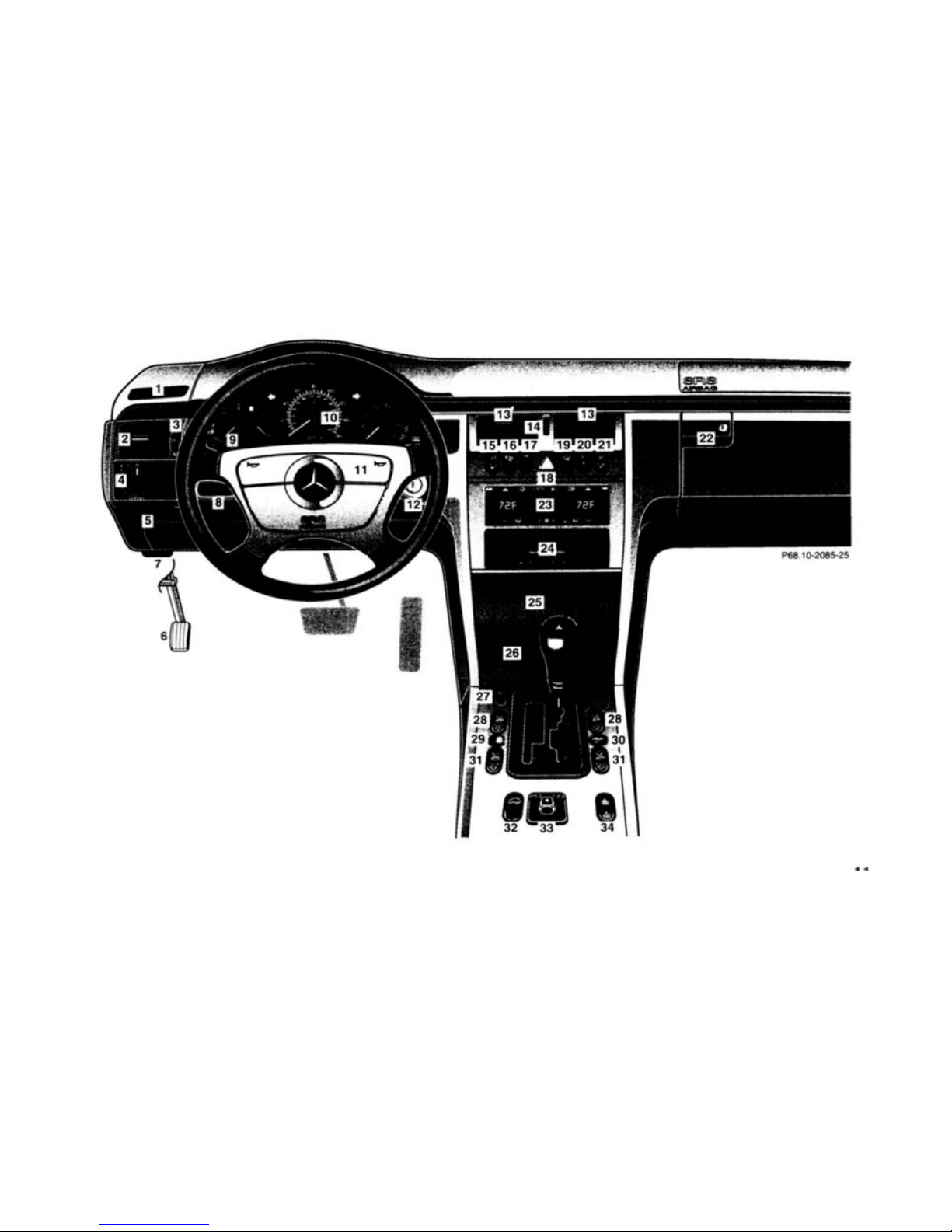

Instruments and Controls
For more detailed descriptions see Index For adjustment of air outlets, refer to Automatic Climate Control (see Index).
1Side defroster outlet 19 Hazard warning flasher switch
2Side air outlet, adjustable 20
Central locking switch Indicator lamp for antitheft alarm system
3Air volume control for side outlet 21 Right front seat heater switch
4Exterior lamp switch 22
Glove box (illuminated with key in steering lock position 1 or 2)
5Parking brake release 23
Automatic climate control, Rear window defroster switch
Activated charcoal filter switch
6Parking brake pedal 24 Audio system
7Hood lock release 25 Storage/eyeglasses compartment
8Combination switch 26 Ashtray with lighter
9Cruise control switch 27 ASR or ESP control switch
10 Instrument cluster 28 Power window switches, front doors
11 Horn, airbag 29 Power window safety, rear doors
12 Gasoline engine: Steering lock with ignition/starter switch 30 Airbag Off indicator lamp
13 Diesel engine: Steering lock with preglow/starter switch 31 Power window switches, rear doors
13 Center air outlet, adjustable 32 Trunk lid release switch
14 Air volume control for center outlet 33 Mirror adjustment switch
15 Left front seat heater switch 34 Rear window sunshade switch
16 Headlamp washer switch
17 Rear seat heater restraint switch
