Mercedes-Benz smart crossblade User manual

smart crossblade operating instructions
(Supplementary operating instructions)

Footloose and fancy free >>
Be it the sun, blue sky or the desire to break out of the daily grind, the most uncompromising smart ever built provides pure open air
enjoyment with no roof, no doors, and no windscreen.
These quick reference operating instructions show you all that the crossblade can do. They contain important tips on how to best
operate the vehicle and show you what you can do to keep potential risks down to an absolute minimum for yourself and others. Keep
in mind thatthis handyguide inno wayacts asa substitute forthe mainsmartoperating instructions. This isespecially true forwarning
signs.
Once you have familiarised yourself with the instructions and the vehicle, a maximum of driving pleasure awaits you!
Danger!
We want to protect you and your
passenger.
Forthisreason,itisessentialto
read the sections marked with
this symbol.
Environment!
We want to safeguard our
environment.
Forthisreason,itisessentialto
read the sections marked with
this symbol.
>Equipment: The installed
equipment specification
description is the valid one for
your crossblade.
Use original smart accessories
and spare parts only.
>Resale: Should you sell your
smart please be sure to pass on
these operating instructions.

>Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others. - 1
Opening and closing the crossblade
How to open and close the crossblade
The driver and passenger side door bars
are opened and closed manually.
To open the door bar:
쮿Pull the release lever on the underside
of the door bar.
> The door bar swings upward.
To close the door bar:
쮿Push the door bar downwards and latch
it into the lock.
> The door bar must audibly latch with a
”double click”.
>Note!
If the door bar is not properly locked, a
warning sound is triggered when you start
off.
Danger of injury!
Do not hold onto the door bars when
entering and exiting the vehicle. This
can lead to injuries.
>Important!
- Please grease the door bar locks at
regular intervals to ensure proper
operation.
- Note that the door bar grease can
smudge objects that rub up against it.

2 - >Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others.
Adjusting the mirrors
Adjusting the mirrors
Ensure that the outside mirrors are
correctly set every time before you start
driving. Only then can the driver be sure
that the view to the rear is unobstructed.
>Note!
The adjustment lever is found on the
underside of the door bar.

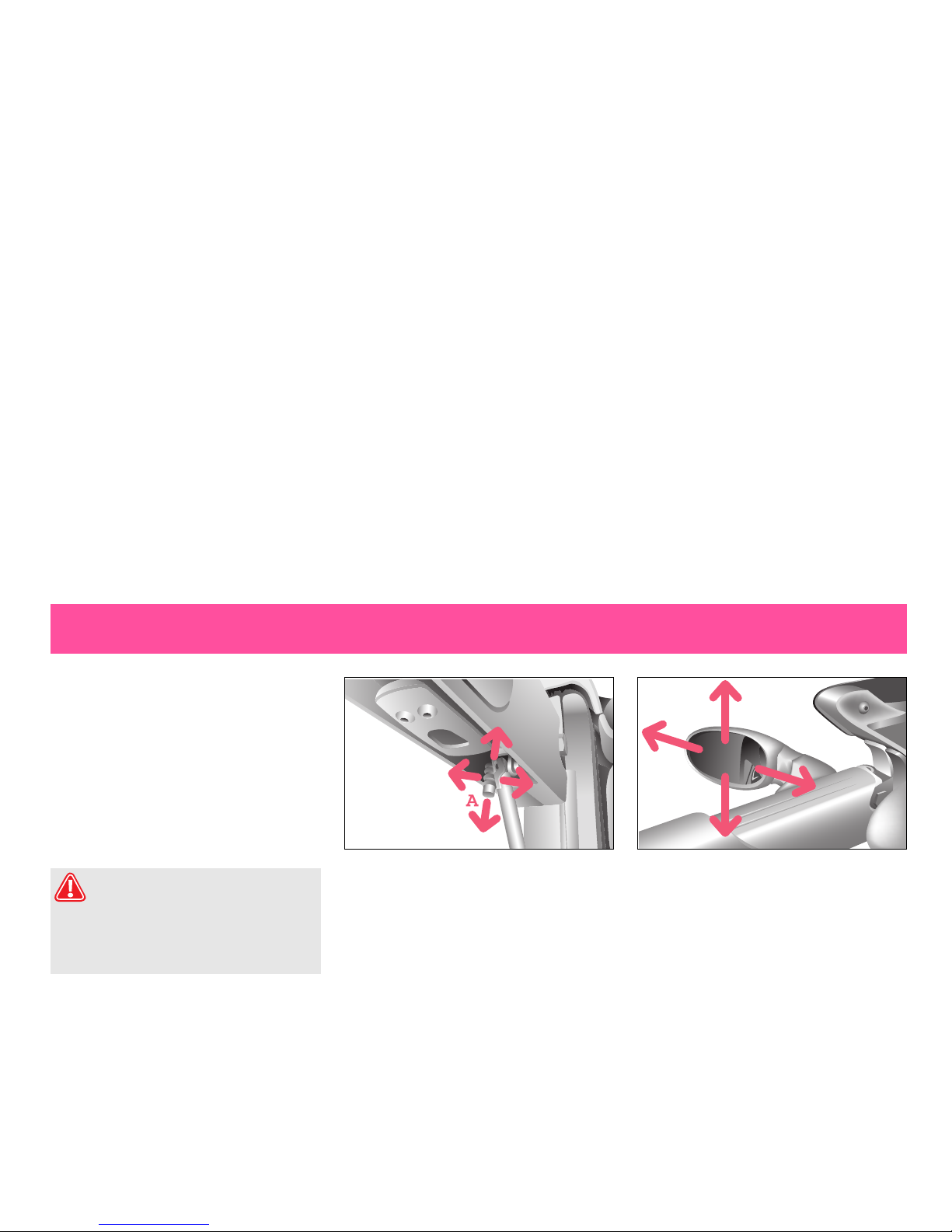

How to adjust the outside mirrors
쮿Adjust the outside mirrors by turning
lever (A).
Danger of accident!
The mirror curvature causes the
fieldofvisiontobedistorted.Vehiclesin
the rear view mirror may appear to be
smaller and further away than they really
are.

>Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others. - 3

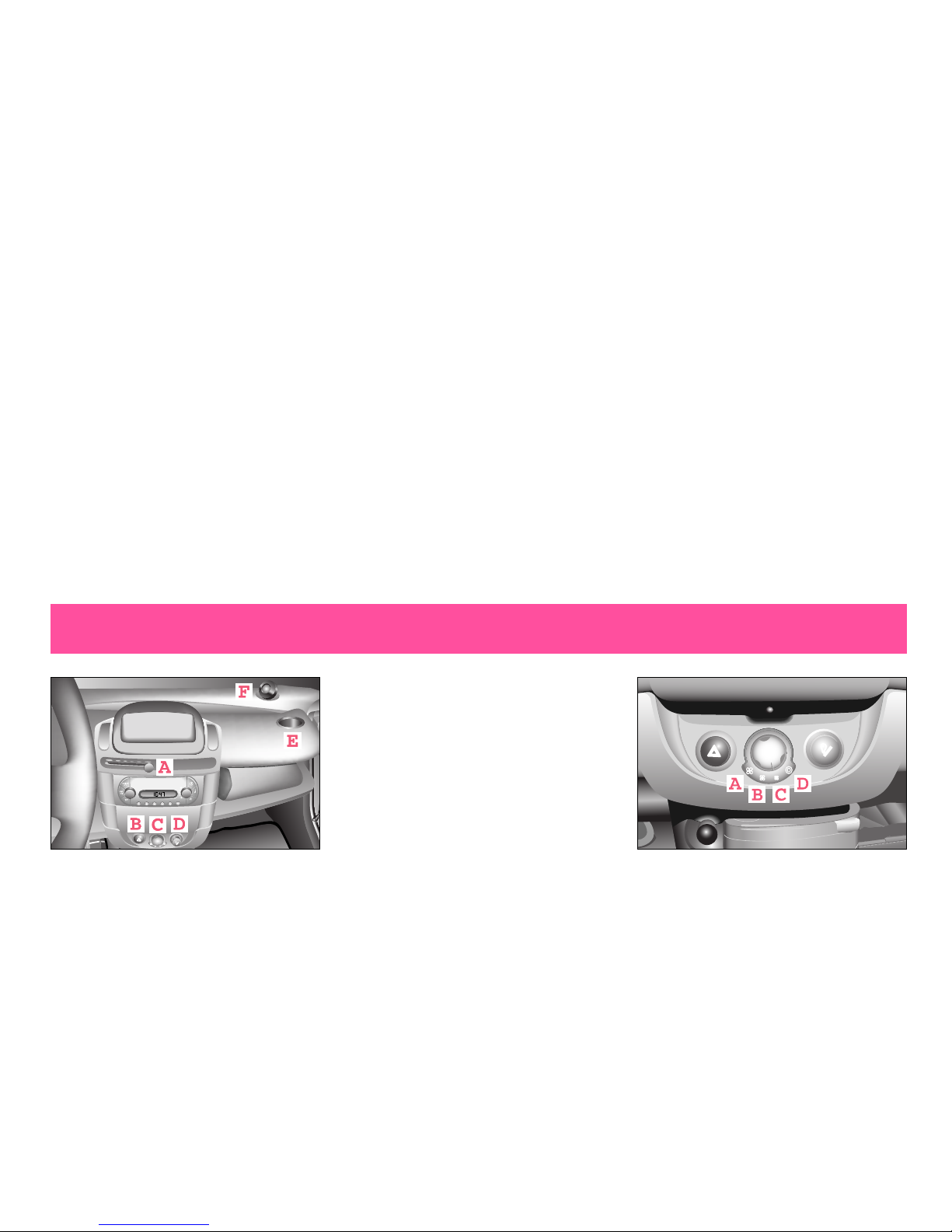

Centre console and cockpit
A Heater
B Hazard warning lights
C Blower
D Cigarette lighter
ECupholder
F Loudspeakers (sound package)
How to use the hazard warning lights
쮿To switch on the hazard warning lights,
press the red switch (B).
>Thiscauses:
- all six turn signal lights to start
flashing,
- theturnsignalindicatorlight(when
the ignition is switched on)
- thehazard warninglight switchalso
to flash.
쮿To switch the hazard warning lights off
press the red switch again. How to switch the blower on
You can set the blower to four different
levels by turning the control knob.
쮿Position A
> Maximum setting
쮿Position B
> Middle setting
쮿Position C
>Slowsetting
쮿Position D
>Bloweroff
ABCD

4 - >Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others.
Driving
>Important driving notes!
쮿Drain openings are found in the driver
and passenger seats as well as in the
floor pan so that rain will not collect
on the seat surfaces or in the footwell.
쮿Ensure that the drain holes are clean
and not covered up. Only then can
rainwater freely flow out of the
vehicle.
쮿Never drive with the wind deflector
open; see page 7.
쮿Please put all loose objects away in the
provided stowage compartments prior
to driving. The airstream created inthe
cabin when driving can especially blow
out paper and other lightweight
objects.
쮿For your safety, wear a suitable pair of
protective glasses when driving. A
helmet with a visor will protect your
head from airborne rocks and similar.
Danger of accident!
The crossblade and its safety
systems are intended for use on
surfaced roads only. Driving the
crossblade over any other type of terrain
introduces an increased accident hazard.
In order to avoid this risk, ensure that you
only drive on surfaced roads.
Danger of accident!
Wateranddirtinthedriverfootwell
can lead to the floor mats sliding
and getting caught in between the
pedals. This could lead to an accident.
Therefore, remove any water and dirt
that may have accumulated (especially on
the seats and in the footwell) each time
before you start driving. Ensure that the
pedals have a free range of motion (i.e.
nothing is blocking them) and that the
floor mats cannot slide.

>Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others. - 5
Driving
Driving in the rain
쮿The crossblade is not designed to be
driven in the rain for extended
periods of time.
쮿If you happen to be driving when it is
raining, protect the driver-side
airbag in the steering wheel and the
controls in the centre console by
fitting both covers. Also do this when
parking in the rain.
> You will find both covers in the
drawer in the centre console.
After driving in the rain
- Park the crossblade in a dry and well-
ventilated garage.
- Also be sure to dry off the covers and
the tarpaulin; see page 9.
>Notes on child restraint systems!
- The child restraint systems are only
intended to be used when it is not
raining.
- When using the child restraint system,
pay attention to the airbag indicator
lamp.
Danger of injury!
Always protect the driver-side
airbag with the provided cover when
the vehicle is exposed to the rain. This will
ensure that the airbag retains its
functionality.
Danger of injury!
For your own safety, wear a
suitable pair of protective glasses or a
helmet with a visor when driving.
Dust, rocks and other airborne objects
could be thrown into your face,
distracting and injuring you. This could
ultimately lead to a car accident.

6 - >Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others.
Loading

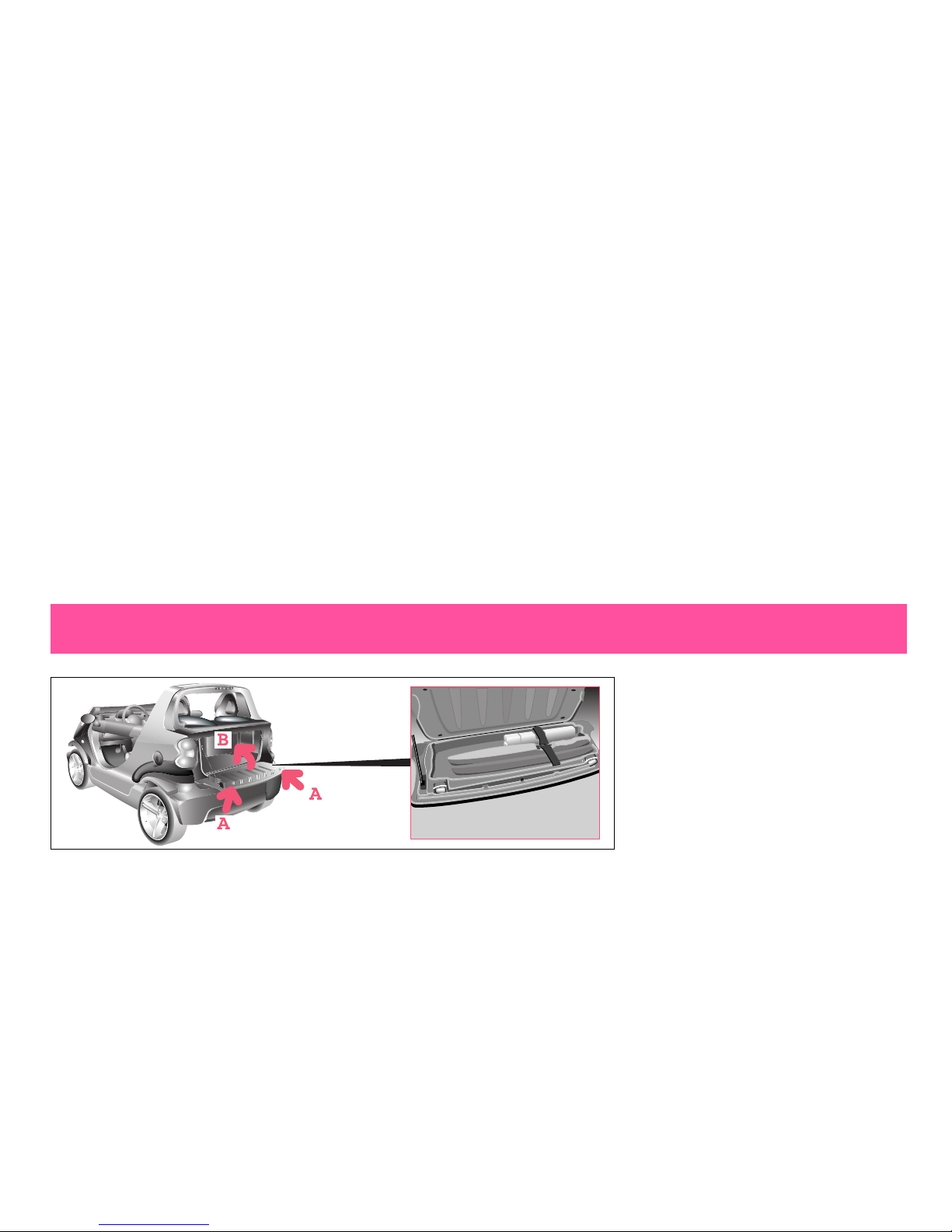

Opening the tailgate
After opening the crossblade with the
radio remote control, you can unlock the
tailgate in the door handle recess (A).
The tailgate can also be opened
mechanically from the outside.
>Important!
Do not place any objects behind the seats
on the luggage compartment.
What you are permitted to load
쮿Luggage compartment volume:
>122l
쮿Gross weight limit:
>250kg
쮿Luggage compartment load weight:
>max.50kg
Reducing the load
- Optional extras and accessories
increasethecurbweight;thisresultsin
a payload reduction.
> Please study the operating
instructions for each individual
accessory part!
Danger of injury!
Objects on the passenger seat
should always be secured in such a way
that they will not distract the driver
during the journey.
Environment!
Unnecessary ballast increases
gross vehicle weight and increases fuel
consumption.
Danger of injury!
Loaded objects must always be
properly tied down. In the event of a
sudden full application of the brakes or in
an accident they could penetrate into the
passenger compartment.
Danger of accident!
Pulling a trailer with the smart
poses increased danger of an accident
and can reduce the longevity of the
vehicle, which is why the manufacturer
does not approve the smart for towing a
trailer. Never use your smart to tow a
trailer.

>Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others. - 7
Wind deflector

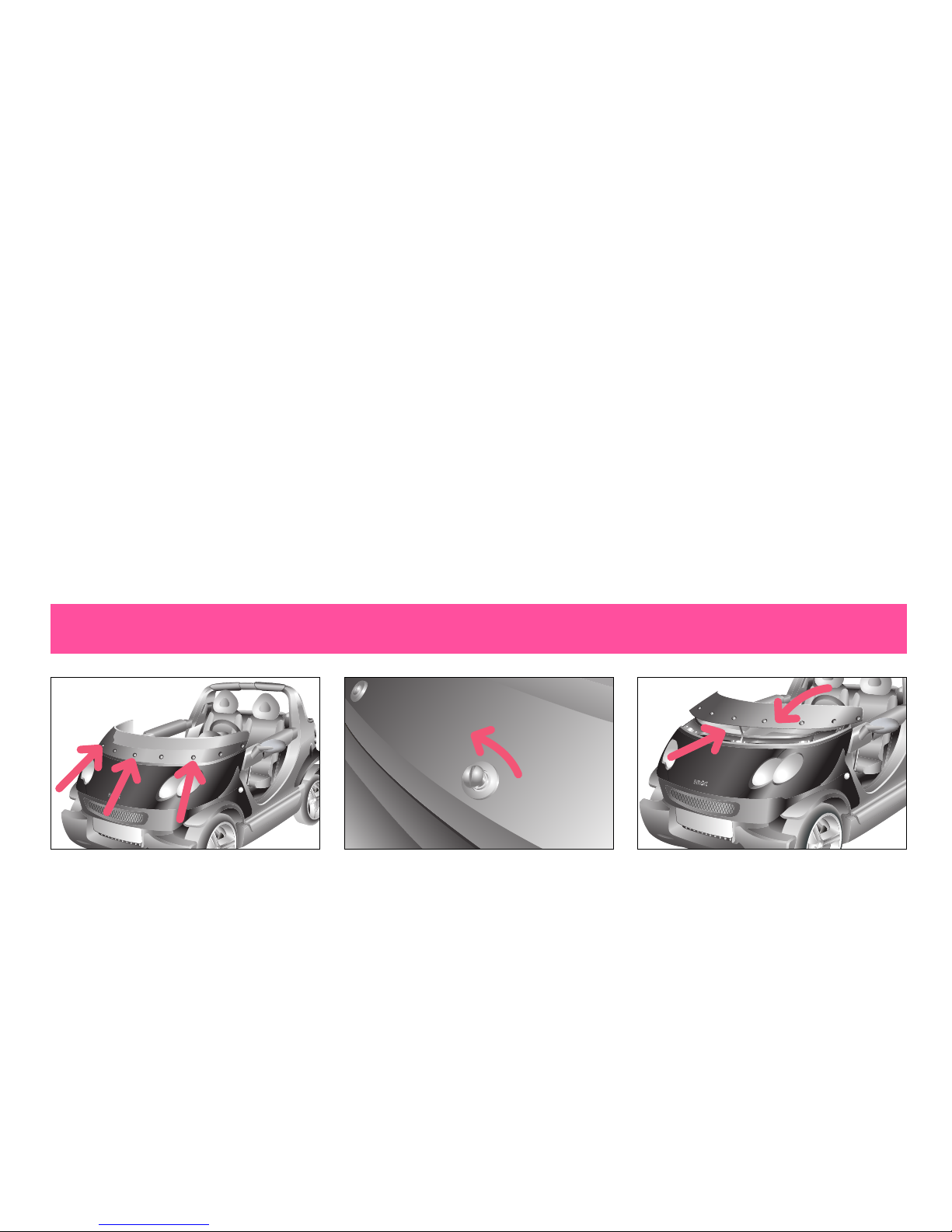

Opening the wind deflector
Using both openings under the wind
deflector, you can check the filling
capacities of
- the coolant (A),
- the brake fluid (B),
and top them up if necessary.
This is something you should do at regular
intervals.
>Note!
Never drive with the wind deflector open.
쮿Turn the three screw plugs in anti-
clockwise direction (90 degrees).
> The wind deflector is now unlocked
and can be flipped upward.
쮿Pull the centre joint of the holding
linkage forward until it stops.
Closing the wind deflector
쮿Firmly hold the wind deflector with one
hand.
쮿Push the linkage backward on the
centre joint using the other hand.
쮿Fold down the wind deflector.
쮿Turn the three screw plugs in clockwise
direction (90 degrees) until tight.

8 - >Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others.
Putting on the tarpaulin

>Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others. - 9
Putting on the tarpaulin
The tarpaulin serves to protect your
parked crossblade from bad weather.
However, it is not designed to act as a
permanent shelter from the rain.
Where to find the tarpaulin
- The tarpaulin is found in the luggage
compartment of your crossblade.
- It is contained in a special water-tight
bag.
- The bag is attached to the underside of
the luggage compartment cover with
push buttons.

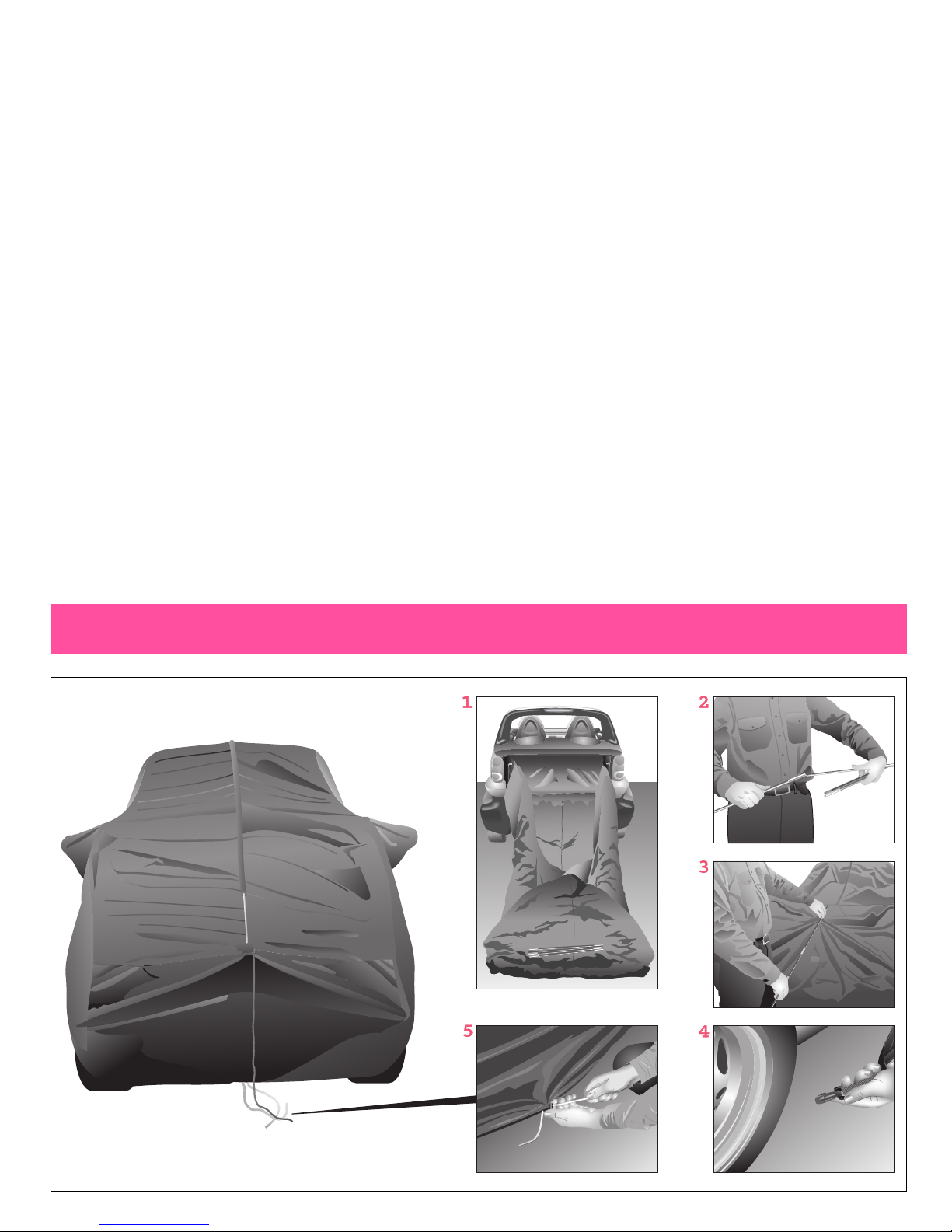

Putting on the tarpaulin
1
쮿Open the tailgate.
쮿Open the velcro fastener.
쮿Remove the tarpaulin from the bag and
unfold it.
> The back end remains attached to the
bag via the velcro fastener.
2
쮿Put the linkage together.
3
쮿Pull the tarpaulin over the entire
vehicle.
> The outside mirrors must be covered
with the provided bags.
쮿Slide the linkage throughthe channel of
the tarpaulin.
쮿Insert the ends of the linkage into the
front and back ends of the bag to draw
tension.
4
쮿Hook the tensioning straps onto the
rocker panel.
5
쮿Pull the tensioning straps forward
together.
쮿Close the tailgate.
> The tarpaulin is wedged into the
closed tailgate.
Danger of accident!
The pooling of substantial
quantities of water in the vehicle could
impair electronic systems and increase
the danger of an accident occurring.
Therefore, ensure that the tarpaulin is
pulled taught over the interior
compartment of the crossblade during
bad weather. Always take steps to
prevent substantial quantities of water
collecting inside the crossblade.

10 - >Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others.
Stowing the tarpaulin

>Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others. - 11
Stowing the tarpaulin
How to stow the tarpaulin
1
쮿Open the tailgate.
쮿Takethelinkageout ofthetarpaulinand
place it directly behind your
crossblade.
쮿Fold in the tarpaulin on the right and
left sides.
2
쮿Fold in the tarpaulin to approx. the
halfway point.
쮿Place the folded linkage on the
tarpaulin.
3
쮿Neatlyrollinthetarpaulinuntilitrests
on the tailgate door.
> The width of the roll should be the
same as that of the tailgate.
4
쮿Stow the tarpaulin in the provided
protective bag and close the velcro
fastener.
쮿Close the tailgate.
>Note!
Only place a clean and dry tarpaulin back
into the bag.

12 - >Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others.
Hazard warning triangle
Where to find the hazard warning triangle
쮿Open the tailgate.
쮿Press both release buttons (A) on the
inside of the tailgate.
쮿Fold the cover of the stowage space
upwards (B).
> The hazard warning triangle is
secured in the stowage room via a
velcro strip.
>Note!
The stamped in information signs on the
inside of the storage room do not apply to
the crossblade.

>Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others. - 13
Breakdown set and battery
Breakdown set
This smart original part is either an
optional extra ex works or can be
retrofitted as an original smart
accessory at your local smart Center.
The breakdown set is located in the
passenger-side footwell.
>Note!
Please also observe country and vehicle-
specific regulations for smart original
parts.
쮿Remove the floor mat.
쮿Undo the velcro strip on the lower
section of the cover.
쮿Take the cover out.
> The breakdown set is located under the
cover.
Battery
The battery is located under the footrest
in the passenger-side footwell.
쮿Remove the floor mat and the cover as
described for the breakdown set.
쮿Remove the lower section of the
footrest.
쮿Unscrew the mounting plate from the
upper footrest.
쮿Remove the upper section of the
footrest.
Installing the footrest and cover
Installation occurs in reverse order.
Carefully reassamble the parts.

14 - >Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others.
All the smartcare products for looking
after your car are available at your local
smart Center.
Exterior
components Specialties Lightly soiled, manual washing
Heavily soiled
manual washing Never
Matte painted
plastic parts
Powder coated single-
coat paint finish
Car shampoo concentrate,
insect remover for insect
remains
Car shampoo concentrate,
hard wax, insect remover
for insect remains Do not use any hard
wax or polish except
on high-gloss plastic
body parts.
Never use aggressive
paintcleaner,machine
polish, abrasive
cleanser, acidic,
highlyalkalineagents,
abrasive sponges,
high-pressure or hot-
water cleaning
equipment.
Bumpers, rocker
panels
Pitted, painted plastic
parts
Car shampoo concentrate,
insect remover for insect
remains
Car shampoo concentrate,
hard wax, insect remover
for insect remains
High-gloss plastic
parts (body panels)
Body panels with base
coat or clear coat or
clear coat only
Repair possibility with
clear paint touch-up
pencil
Car shampoo concentrate,
insect remover for insect
remains, hard wax, polish
Car shampoo concentrate,
insect remover for insect
remains, hard wax, polish
Wheels Two-layer metallic paint
(high-gloss)
Car shampoo concentrate,
rim care
Car shampoo concentrate,
rim care
Care instructions

>Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others. - 15
Care instructions
Exterior
components Specialties Lightly soiled, manual washing
Heavily soiled, manual
washing Never
Wind deflector
(windshield) Polycarbonate
Car shampoo concentrate,
insect remover for insect
remains
Car shampoo concentrate,
insect remover for insect
remains See previous page
Tarpaulin Nylon Damp, clean cloth, light
soap solution
Lukewarm water and car
shampoo concentrate
Interior
components Specialties Lightly soiled, manual washing
Heavily soiled, manual
washing Never
Seats Plastic (resistant
synthetic)
Light soap solution, clean
cloth with lukewarm water
Soap solution, car shampoo
concentrate Use solvent
Plastic parts Use a colour-fast cloth damp, clean cloth, cockpit
spray
Damp, clean cloth, cockpit
spray Scour or use solvents
Artificial leather
seat covers —Clean cloth with lukewarm water
Damp, clean cloth, car
shampoo concentrate
Acidic agents, stain
remover etc.

16 - >Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others.
Things you need to know
Thetechnicaldataisvalidforallstandard
equipped vehicles.
We recommend that you use original smart
parts and accessories.
Engine specifications crossblade
Rated output (kW) 52
At engine speed (rpm) 5470
Nominal torque (Nm)/overboost 108
At engine speed (rpm) 2200-3500
Number of cylinders 3
Valves per cylinder 2
Spark plugs per cylinder 2
Total displacement (cm³) 599
Engine weight acc. to DIN 70020 A (kg) 59
Maximum climbing capacity at gross vehicle weight 20 %
Technical data

>Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others. - 17
Technical data
Fuel consumption in accordance with
EU directive 1999/100/EU
The following data were evaluated in
accordance with the European Union
Directive (1999/100/EU). All data are valid
for basic version vehicles with catalytic
converter.
In practice fuel consumption may lie
higher than the values determined and
cited in the EU guidelines (1999/100/EU),
as under everyday use different
operating conditions may prevail, such as
for instance individual driving styles,
additional equipment, different road
surfaces and weather conditions.
The fuel consumption values given by the
EU Directive (1999/100/EU) serve solely
as a means of comparison at certain given
conditions.
You local smart Center will gladly provide
you with details.
Fuel consumption in accordance with 1999/100/EU
crossblade
softip/softouch
Urban (l/100 km) 6,2
Extra urban (l/100 km) 5,3
Combined (l/100 km) 5,7
Driving range (km) 579
Exhaust emission system/exhaust emission standard/oxidation catalytic converter EU3 3-way catalytic converter EU3
CO2emissions (g/km) 137

18 - >Important!
Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others.
Technical data
Tyres and rims
>Note on smart tyres and rims!
- Use only rims and tyres approved by
MCC smart GmbH.
> This way you ensure that your smart
handles perfectly and is fully safe.
- Change your tyres in good time - in
autumn - to winter tyres.
- The vehicle operating approval status
is rendered null and void if other rim/
tyre sizes are used.
- Replace worn tyres in good time.
- Every smart Center will be more than
willing to provide you with details and
information concerning the rims and
tyres recommended for your smart.
>Note!
Freedom of motion can only be guaranteed
if the manufacturer's recommended rims
and tyres are used. Other rim and tyre
sizes may damage the braking system.
Tyres and rims
crossblade
Summer driving With non-skid chains
Tyres, front 195/40 R 16 145/65 R 15
Tyres, rear 215/35 R 16 175/55 R 15
Rims, front 6.5 J x 16 ET 24 4 x 15 ET 27
Rims, rear 7 J x 16 ET -20 5.5 x 15 ET 1
