Before driving
Introduction 2
Instrumentation 3
Controls and features 23
Seating and safety restraints 57
Starting and driving
Starting 77
Driving 82
Roadside emergencies 94
Servicing
Maintenance and care 107
Capacities and specifications 142
Reporting safety defects 148
Index 149
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company.
Copyright r1997 Ford Motor Company
Contents
1

ICONS
Indicates a warning. Read the
following section on Warnings for a
full explanation.
Indicates vehicle information related
to recycling and other
environmental concerns will follow.
Correct vehicle usage and the
authorized disposal of waste
cleaning and lubrication materials are significant steps towards
protecting the environment.
WARNINGS
Warnings provide information which may reduce the risk of personal
injury and prevent possible damage to others, your vehicle and its
equipment.
BREAKING-IN YOUR VEHICLE
There are no particular breaking-in rules for your vehicle. During the
first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is
necessary to give the moving parts a chance to break in.
If possible, you should avoid full use of the brakes for the first 1 600 km
(1 000 miles).
INFORMATION ABOUT THIS GUIDE
The information found in this guide was in effect at the time of printing.
Ford may change the contents without notice and without incurring
obligation.
Introduction
2

Instrumentation
3

BAS
SEEK
TUNE
VOL - PUSH ON
HI
LO F
S
OFF
E
CHECK
ENGINE
AIR
SUSP OD OFF
BRAKE
TEMP OIL
VOLTS FUEL
MPH km/h
10
20
30
40 50 60 70 80 90
100
11 0
120
20
40
60
80 100 120 140
160
180
200
HH
LC
FH
L<FUEL FILL DOOR
NORM A/C
MAX A/C
OUTSIDE TEMP
12
CD
AM
FM
R.DEF.
AUTO
LAMP 0FF
PANEL
DIM
PUSH INTERIOR
P R N D 2 1
OFF
ON
RSM
SET
ACC
COAST

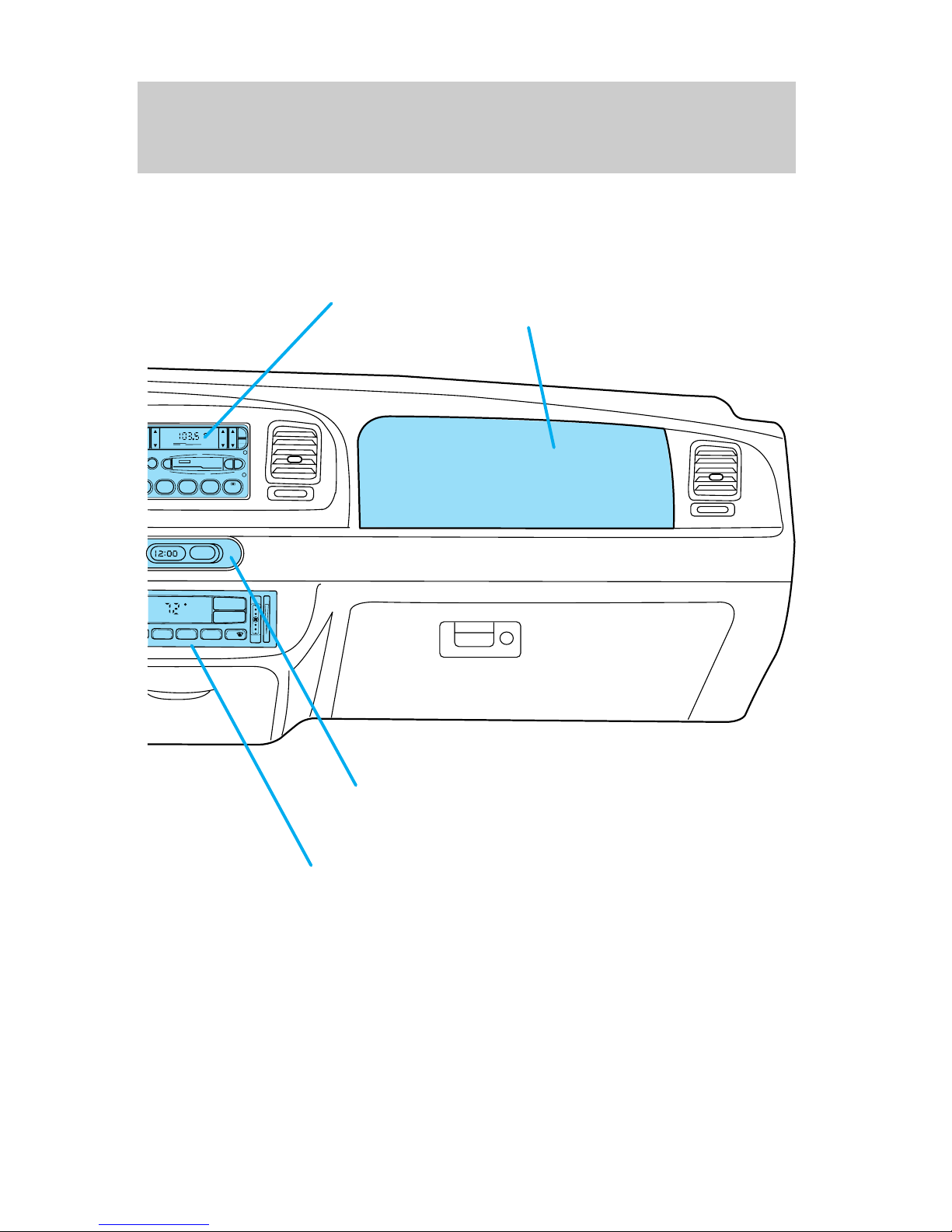

Driver side air
bag
(pg. 67)
Instrument
cluster
(pg. 22)
Rear window
defroster control
(pg. 24)
Tilt steering
wheel lever
(pg. 35)
Instrument panel
dimmer switch
(pg. 23)
Headlamp control
(pg. 23)
Speed control*
(pg. 36)
Gearshift lever
(pg. 87)
Turn signal and
wiper/washer
control
(pg. 34)
*if equipped
Instrumentation
4

S
VENT FLOOR FLR•DEF DEF
HI
LO
AUTOMATIC
OFF
F
AUTO
REW
SIDE 1-2
FF
SCAN
EJ
TREB BAL FADE
3456
f
w
DOLBY B NR
FM1
ST
CLK
TAPE
AMS
HM
Electronic sound
system
(pg. 33) Passenger side air
bag
(pg. 67)
Climate control
systems
(pg. 25)
Clock
(pg. 33)
Instrumentation
5

WARNING LIGHTS AND CHIMES
Standard instrument cluster
Optional instrument cluster
Low fuel
Illuminates when the fuel level is
low. The lamp will also illuminate
when the ignition is turned to ON
and the engine is off.
Check engine
Your vehicle is equipped with a
computer that monitors the engine’s
emission control system. This
system is commonly known as the
On Board Diagnostics System (OBD
E
LOW
FUEL CHECK ENGINE
AIR
SUSP OD OFF
BRAKE AIR
BAG
TEMP OIL
VOLTS FUEL
MPH km/h
10
20
30
40 50 60 70 80 90
100
11 0
120
20
40
60
80 100 120 140
160
180
200
HH
LC
FH
L<FUEL FILL DOOR
TRAC
CNTL
0000000
0
000
+–
F
E
/
2
1
N
O
R
M
H
C
LTR
GAL
TO
EMPTY
km/h
MPH
km
S
CHECK
ENGINE
AIR
BAG
SPEED CONTROL
P R N D 2 1
CHECK
TRUNK AJAR LTR/100 km
AIR SUSPENSION
OVERDRIVE OFF DOOR AJAR
LOW
WASHER
FLUID
DIST TO
EMPTY
TRIP
A
AVG
ECON
TRIP
B
INST
ECON
AVG
SPEED
km
MILES
/GAL
LOW
FUEL
CHECK
ENGINE
Instrumentation
6

II). This OBD II system protects the environment by ensuring that your
vehicle continues to meet government emission standards. The OBD II
system also assists the service technician in properly servicing your
vehicle.
The Check Engine indicator light illuminates when the ignition is first
turned to the ON position to check the bulb. If it comes on after the
engine is started, one of the engine’s emission control systems may be
malfunctioning. The light may illuminate without a driveability concern
being noted. The vehicle will usually be drivable and will not require
towing.
What you should do if the check engine light illuminates
Light turns on solid:
This means that the OBD II system has detected a malfunction.
Temporary malfunctions may cause your Check Engine light to
illuminate. Examples are:
1. The vehicle has run out of fuel. (The engine may misfire or run
poorly.)
2. Poor fuel quality or water in the fuel.
3. The fuel cap may not have been properly installed and securely
tightened.
These temporary malfunctions can be corrected by filling the fuel tank
with good quality fuel and/or properly installing and securely tightening
the gas cap. After three driving cycles without these or any other
temporary malfunctions present, the Check Engine light should turn off.
(A driving cycle consists of a cold engine startup followed by mixed
city/highway driving.) No additional vehicle service is required.
If the Check Engine light remains on, have your vehicle serviced at the
first available opportunity.
Light is blinking:
Engine misfire is occurring which could damage your catalytic converter.
You should drive in a moderate fashion (avoid heavy acceleration and
deceleration) and have your vehicle serviced at the first available
opportunity.
Instrumentation
7

Under engine misfire conditions, excessive exhaust temperatures
could damage the catalytic converter, the fuel system, interior
floor coverings or other vehicle components, possibly causing a fire.
Air bag readiness
Momentarily illuminates when the
ignition is turned ON. If the light
fails to illuminate, continues to flash
or remains on, have the system
serviced immediately.
Safety belt
Momentarily illuminates when the
ignition is turned to the ON position
to remind you to fasten your safety
belts. For more information, refer to
the Seating and safety restraints
chapter.
Brake system warning (if equipped)
Momentarily illuminates when the
ignition is turned to the ON position
and the engine is off. If brake
warning lamp does not illuminate at
this time, seek service immediately.
Also illuminates when the parking brake is engaged. Illumination after
releasing the parking brake indicates low brake fluid level and the brake
system should be inspected immediately.
Anti-lock brake system (ABS) (If equipped)
Momentarily illuminates when the
ignition is turned on and the engine
is off. If the light does not illuminate
momentarily at start up, remains on
or continues to flash, the ABS needs
to be serviced. With the ABS light on, the anti-lock brake system is
disabled and normal braking is still effective unless the brake warning
light also remains illuminated with parking brake released.
AIR
BAG
!
BRAKE
ABS
Instrumentation
8

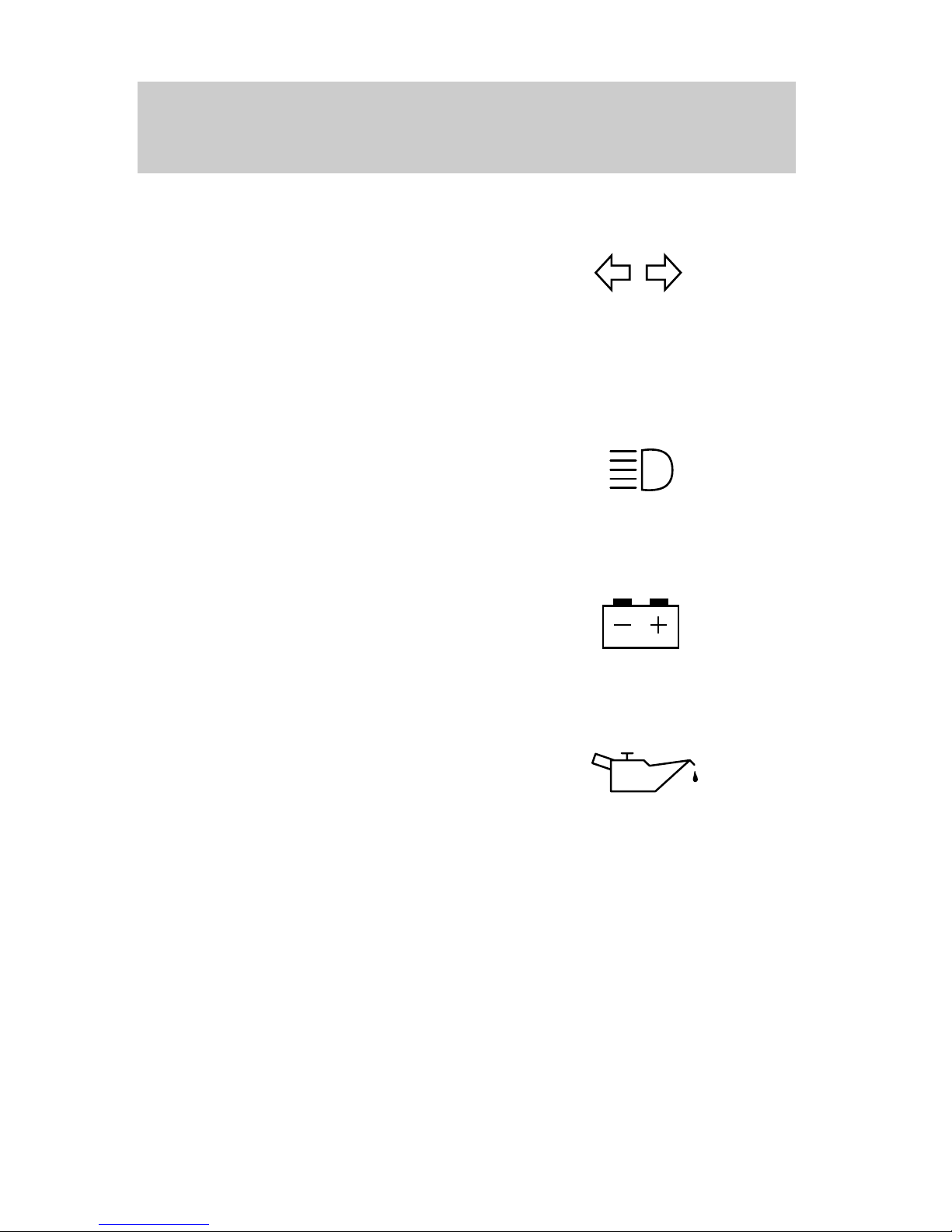

Turn signal
Illuminates when the left or right
turn signal or the hazard lights are
turned on. If one or both of the
indicators stay on continuously or
flash faster, check for a burned-out
turn signal bulb. Refer to Exterior bulbs in the Maintenance and care
chapter.
High beams
Illuminates when the high beam
headlamps are turned on.
Charging system
Illuminates when the ignition is
turned to the ON position and the
engine is off. The light also
illuminates when the battery is not
charging properly, requiring
electrical system service.
Engine oil pressure (if equipped)
Illuminates when the oil pressure
falls below the normal range. Stop
the vehicle as soon as safely
possible and switch off the engine
immediately. Check the oil level and
add oil if needed. Refer to Engine oil in the Maintenance and Care
chapter.
This lamp also illuminates when the ignition is turned to ON and the
engine is off.
Instrumentation
9

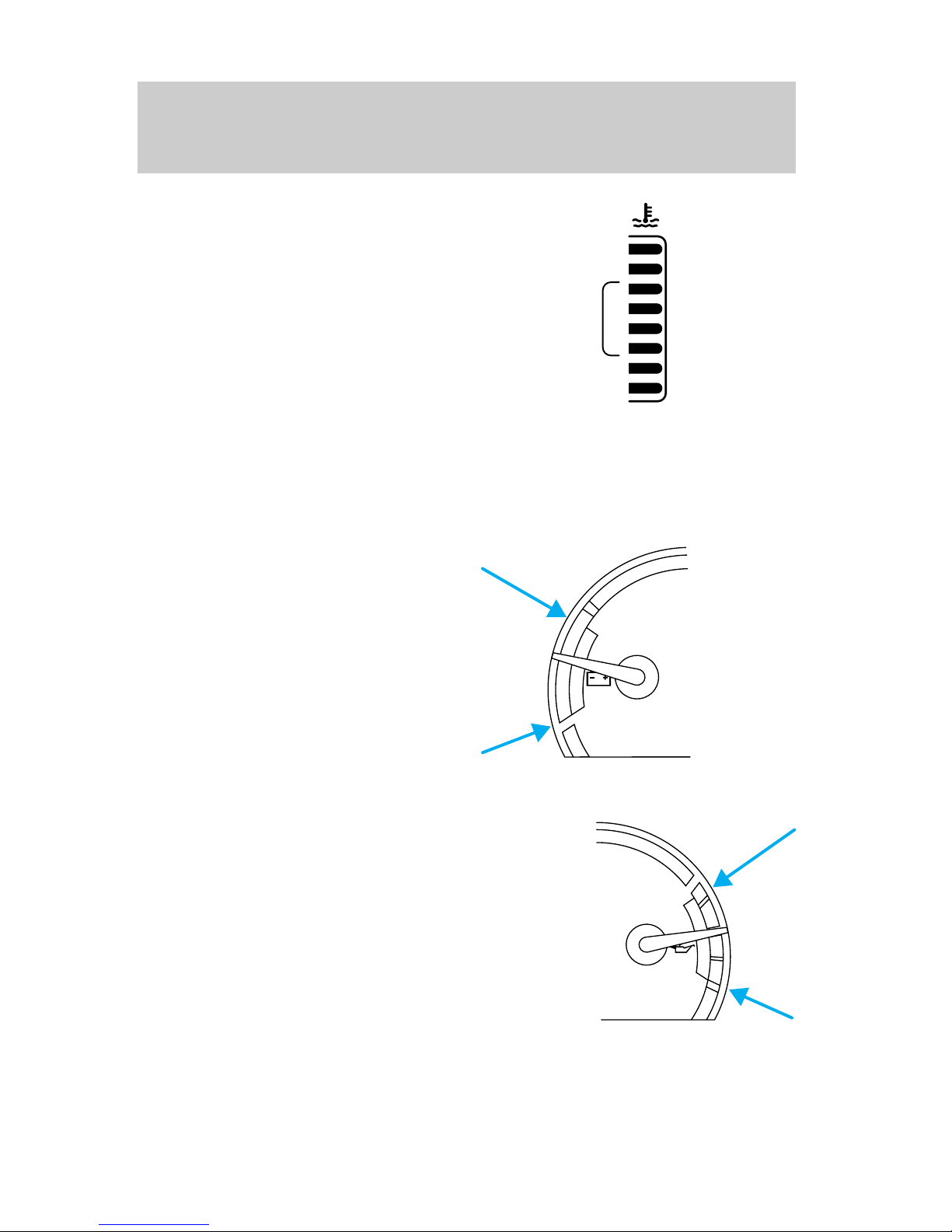

Engine coolant temperature
Illuminates when the engine coolant
temperature is high. Stop the
vehicle as soon as safely possible,
switch off the engine and let it cool.
Never remove the coolant
recovery cap while the
engine is running or hot.
Refer to Engine coolant in the Maintenance and care chapter. If light
stays on or continues to turn on after the vehicle warms up, have your
vehicle serviced.
This light also illuminates briefly when the ignition key is turned to ON.
Air suspension (if equipped)
This light tells you if the air
suspension needs repair or if the air
suspension switch is OFF. For
information on the air suspension
system, refer to the Driving
chapter.
O/D off
Illuminates when the transmission
control switch has been pushed.
When the light is on, the
transmission does not shift into
overdrive. If the light does not come
on when the transmission control switch is depressed or if the light
flashes when you are driving, have your vehicle serviced.
AIR
SUSP
O/D
OFF
Instrumentation
10

Traction ControlYactive (if equipped)
Flashes when the Traction Controly
system begins applying and
releasing the brakes and adjusting
the engine characteristics to limit a
wheelspin condition. It will be lit for
a minimum of four seconds or for
the duration of the Traction
Controlyevent.
If the Traction Controlyindicator
comes on or stays lit, either:
•the Traction Controlysystem needs service, or
•the customer has disabled the system using the traction control
switch.
For more information, refer to the Driving chapter.
Safety belt warning chime
Chimes to remind you to fasten your safety belts.
For information on the safety belt warning chime, refer to the Seating
and safety restraints chapter.
Supplemental restraint system (SRS) warning chime
For information on the SRS warning chime, refer to the Seating and
safety restraints chapter.
Key-in-ignition warning chime
Sounds when the key is left in the ignition in the OFF/LOCK or ACC
position and either front door is opened.
Headlamps on warning chime
Sounds when the headlamps or parking lamps are on, the ignition is off
(and the key is not in the ignition) and either front door is opened.
Turn signal chime
Sounds when the turn signal lever has been activated to signal a turn.
TRAC
CNTL
Instrumentation
11

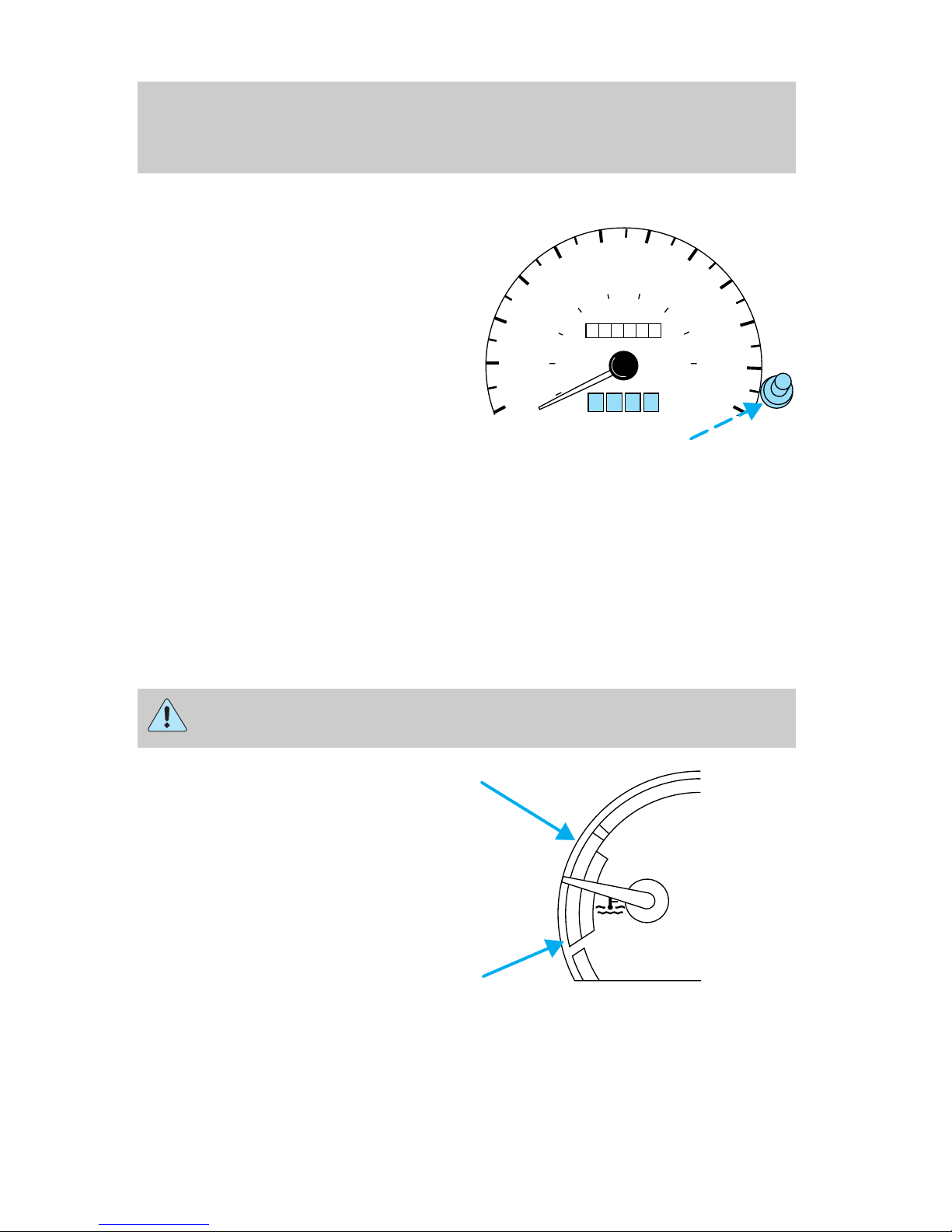

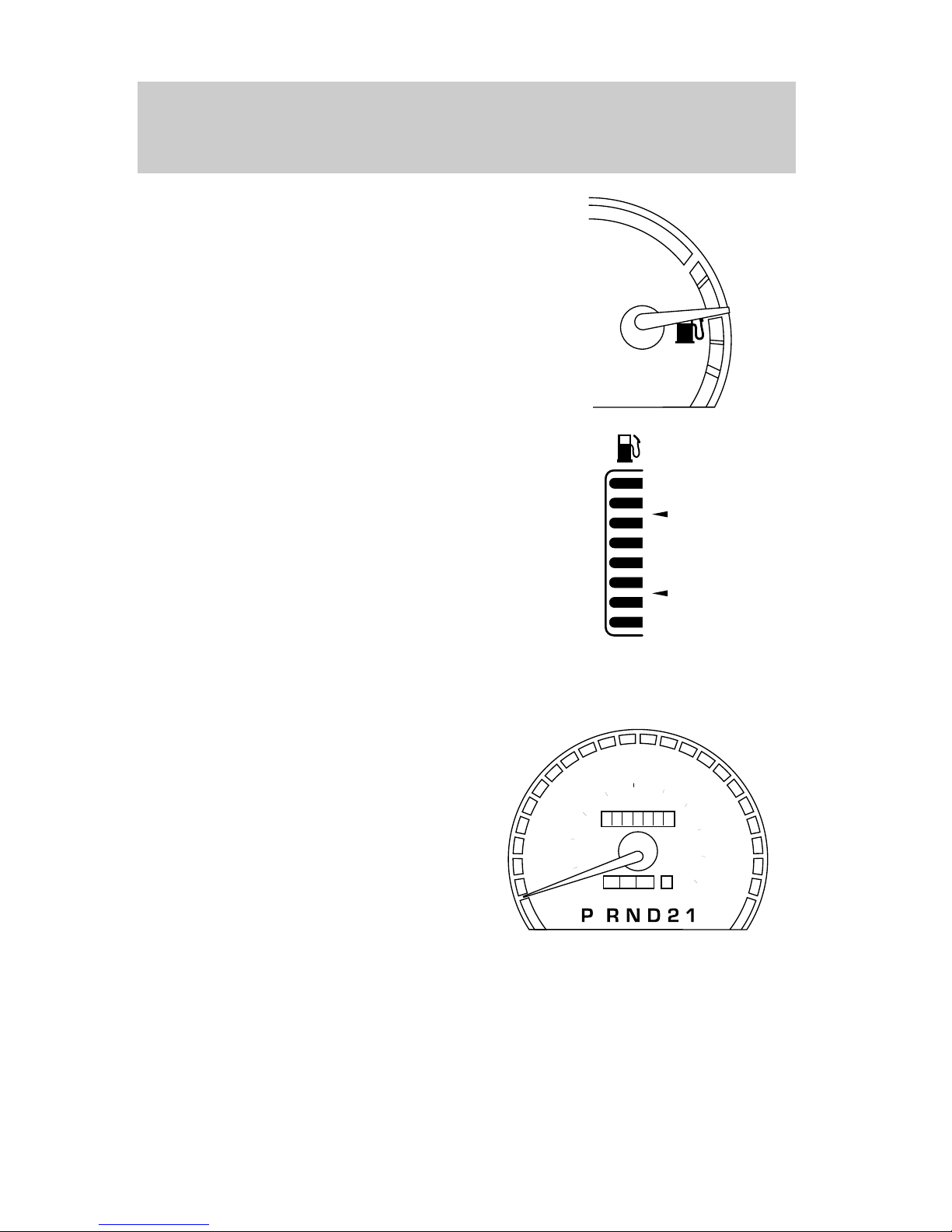

GAUGES
Standard instrument cluster gauges
Optional instrument cluster gauges
Fuel gauge
Displays approximately how much fuel is in the fuel tank (when the key
is in the ON position). The fuel gauge may vary slightly when the vehicle
is in motion. The ignition should be in the OFF position while the vehicle
is being refueled. When the gauge first indicates empty, there is a small
amount of reserve fuel in the tank. When refueling the vehicle from
empty indication, the amount of fuel that can be added will be less than
the advertised capacity due to the reserve fuel.
E
LOW
FUEL
TRAC
CNTL CHECK ENGINE
AIR
SUSP OD OFF
BRAKE AIR
BAG
TEMP OIL
VOLTS FUEL
MPH km/h
10
20
30
40 50 60 70 80 90
100
11 0
120
20
40
60
80 100 120 140
160
180
200
HH
LC
FH
L<FUEL FILL DOOR
0000000
0
000
+–
F
E
/
2
1
N
O
R
M
H
C
LTR
GAL
TO
EMPTY
km/h
MPH
km
S
CHECK
ENGINE
AIR
BAG
SPEED CONTROL
P R N D 2 1
CHECK
TRUNK AJAR LTR/100 km
AIR SUSPENSION
OVERDRIVE OFF DOOR AJAR
LOW
WASHER
FLUID
DIST TO
EMPTY
TRIP
A
AVG
ECON
TRIP
B
INST
ECON
AVG
SPEED
km
MILES
/GAL
Instrumentation
12

•Standard instrument cluster
•Optional instrument cluster
Speedometer
Indicates the current vehicle speed.
•Standard instrument cluster
E
FUELF
F
E
/
2
1
MPH km/h
10
20
30
40 50 60 70 80 90
100
11 0
120
20
40
60
80 100 120 140
160
180
200
0000000
0000
Instrumentation
13

•Optional instrument cluster
Odometer
Registers the total kilometers
(miles) of the vehicle.
•Standard instrument cluster
•Optional instrument cluster
Refer to Electronic Message Center for information on how to switch
the display from metric to English measurements.
km/h
MPH
km
S
MPH km/h
10
20
30
40 50 60 70 80 90
100
11 0
120
20
40
60
80 100 120 140
160
180
200
0000000
0000
km/h
MPH
km
S
Instrumentation
14

Trip odometer
Registers the kilometers (miles) of
individual journeys. To reset,
depress the control.
Refer to electronic message center for Trip A and Trip B features on the
optional instrument cluster.
Engine coolant temperature gauge
Indicates the temperature of the engine coolant. At normal operating
temperature, the needle remains within the normal area (the area
between the “H” and “C”). If it enters the red section, the engine is
overheating. Stop the vehicle as soon as safely possible, switch off the
ignition and let it cool. Refer to Engine coolant in the Maintenance
and care chapter.
Never remove the coolant recovery cap while the engine is
running or hot.
•Standard instrument cluster
0000
20
30
40
50 60 70 80
90
100
110
120
10 20
40
60
80
100 120
140
160
180
MPH
km/h
000000
TEMP
H
C
Instrumentation
15

•Optional instrument cluster
This gauge indicates the temperature of the engine coolant, not the
coolant level. If the coolant is not at its proper level or mixture, the
gauge indication will not be accurate.
Battery voltage gauge (if equipped)
This gauge shows the battery
voltage when the ignition is in the
ON position. If the pointer moves
and stays outside the normal
operating range (as indicated), have
the vehicle’s electrical system
checked as soon as possible.
Engine oil pressure gauge (if equipped)
This shows the engine oil pressure
in the system. Sufficient pressure
exists as long as the needle remains
in the normal range (the area
between the “H” and “L”).
If the gauge indicates low pressure,
stop the vehicle as soon as safely
possible and switch off the engine
immediately. Check the oil level.
Add oil if needed (refer to
Checking and adding engine oil in the Maintenance and care
N
O
R
M
H
C
VOLTS
H
L
OIL
H
L
Instrumentation
16

chapter). If the oil level is correct, have your vehicle checked at your
dealership or by a qualified technician.
ELECTRONIC MESSAGE CENTER
The electronic message center only
works when the ignition is in the
ON position.
The message center allows you to:
•see problems such as door ajar,
air suspension, trunk ajar, washer
fluid low
•see how many kilometers/miles
you can drive before running out
of fuel
•see when overdrive has been deactivated
•monitor the average fuel economy
•monitor the instantaneous fuel economy
•check the distance traveled during a trip on either Trip A or Trip B
•monitor the average speed
Selectable features
Reset
Press this control to reset the
selected message center function to
zero. The only functions which can
be reset are:
•AVG ECON
•TRIP A or TRIP B
•AVG SPEED
CHECK
TRUNK AJAR LTR/100 km
AIR SUSPENSION
OVERDRIVE OFF DOOR AJAR
LOW
WASHER
FLUID
DIST TO
EMPTY
TRIP
A
AVG
ECON
TRIP
B
INST
ECON
AVG
SPEED
km
MILES
/GAL
RESET E/M SELECT
Instrumentation
17

E/M
Press this control to switch the
electronic instrument cluster display
and the message center display from
metric to English units.
Select
Each press of the SELECT control
will select a different function.
Press the right side of the control to
advance the function to the right,
and press the left side of the control
to advance the function to the left.
To reset any function:
1. Push either the right or left side
of the SELECT control to choose
the desired function.
2. Press the RESET control and the
selected message center function
will be reset to zero.
Message center functions
DIST TO EMPTY (DTE)
This function estimates
approximately how far you can drive
with the fuel remaining in your tank
under normal driving conditions.
RESET E/M SELECT
RESET E/M SELECT
RESET E/M SELECT
DIST TO
EMPTY
TRIP
A
AVG
ECON
TRIP
B
INST
ECON
AVG
SPEED
Instrumentation
18

Remember to turn the ignition OFF when refueling your vehicle.
Otherwise, the display will not show the addition of fuel for a few miles.
At least 9.5 liters (2.5 gallons) of fuel must be added for the fuel gauge
to immediately show the new fuel level.
The DTE function will flash for 5 seconds and sound a tone for 1 second
when you have approximately:
•80 km (50 miles) left before you run out of fuel
•40 km (25 miles)
•16 km (10 miles)
The message center will remain in
the DTE function until the SELECT
control is pressed to change
functions.
Displayed DTE will not be equal to
AVG ECON multiplied by the FUEL
REMAIN value. DTE is calculated
using a method that considers the
fuel economy of the last 800 km
(500 miles) driven.
If “CO” or “CS” is displayed, there is a problem with the fuel indication
system and you should contact your dealer for service as soon as
possible.
AVG ECON (average fuel economy)
Select this function to display your
average fuel economy in liters/100
km or miles/gallon.
If you calculate your average fuel
economy by dividing miles traveled by gallons used, your figure may be
different than displayed for the following reasons:
•your vehicle was not perfectly level during fill-up
•differences in the automatic shut-off points on the fuel pumps at
service stations
•variations in top-off procedure from one fill-up to another
•rounding of the displayed values to the nearest 0.1 liter (gallons)
RESET E/M SELECT
DIST TO
EMPTY
TRIP
A
AVG
ECON
TRIP
B
INST
ECON
AVG
SPEED
Instrumentation
19
