merten 160 REG-K User manual

As at 09/02 1
Chapter 1: System components
1. 1 Power supplies
Power supply 160 REG-K
Art. no. 683329
Power supply 160 REG-KChapter 1:System componentsArt. no.683329As at 09/021.1Power supplies
1. Fu n c t i o n 1
2. Installation 2
3. Technical Data 2
4. Settings in the EIB Tool Software (ETS) 3
The power supply makes the energy available for the
bus devices on a line. At least one power supply is re-
quired per bus line.
The power supply (PS) provides a stabilised safety ex-
tra-low voltage (SELV) of DC 29 V ± 1 V. The max. out-
put current is 160 mA. If the bus devices are evenly
distributed on the line, it is possible to operate up to 32
bus devices on a line with the standard power con-
sumption of 5 mA. The max. cable length between the
power supply and the furthest bus device is 350 m.
The bus devices on the connected line can be reset via
a slide switch on the power supply (under the hinged
cover next to the bus terminal). The state (RESET) is in-
dicated via the red LED (RESET) on the device.
|The disconnection of a line (RESET) should be
carried out for at least 30 seconds.
The bus voltage is connected by setting the slide
switch to the "ON" position. The green LED (RUN) indi-
cates that the power supply is ready for operation.
If the output current is too high, the red overcurrent
LED (I>Imax) lights up or flashes. In the event of a short
circuit between the red and black conductors of the
bus cable, the green LED (RUN) is extinguished or flas-
hes.
|Once the short circuit has been rectified, the po-
wer supply must be switched to the RESET sta-
te for approx. 5 seconds.
Meaning of the LEDs
Power supply 160 REG-K
Colour
light grey
Article no.
683329
Table of Contents
instabus
Merten
Spannungsversorgung
160 REG-K
6833 29
AC 230V 50Hz
L
I>Imax.
RUN
ON RESET
N
160 mA
50 Hz
230V 29V=
- 5 ... 45˚C
AKKU 12V
B
L
+-
BUS
1. Function
RUN I>Imax RESET State
green off red Slide switch in OFF or RESET
position
green off off Normal mains operation with
I<Imax
green red off Mains operation with I>Imax,
the bus voltage is maintained
flashes
green
flas-
hes
red
off Mains operation with I>>Imax,
the bus voltage has failed or
there is a short circuit
off off off Short circuit during mains
operation

As at 09/02 2
Chapter 1: System components
1. 1 Power supplies
Power supply 160 REG-K
Art. no. 683329
The INSTABUS power supply is mounted on a DIN rail
EN 50022-35. A data rail is not required. The bus con-
nection is carried out via the bus connecting terminal
supplied with the device. The cable cover is then
placed over the bus connecting terminal to guarantee
the safety clearance of the bus cable to the 230 V ca-
bles. A maximum of 4 core pairs can be connected to
a bus connecting terminal. All the devices that are
mounted next to the power supply must at least be
equipped with basic insulation.

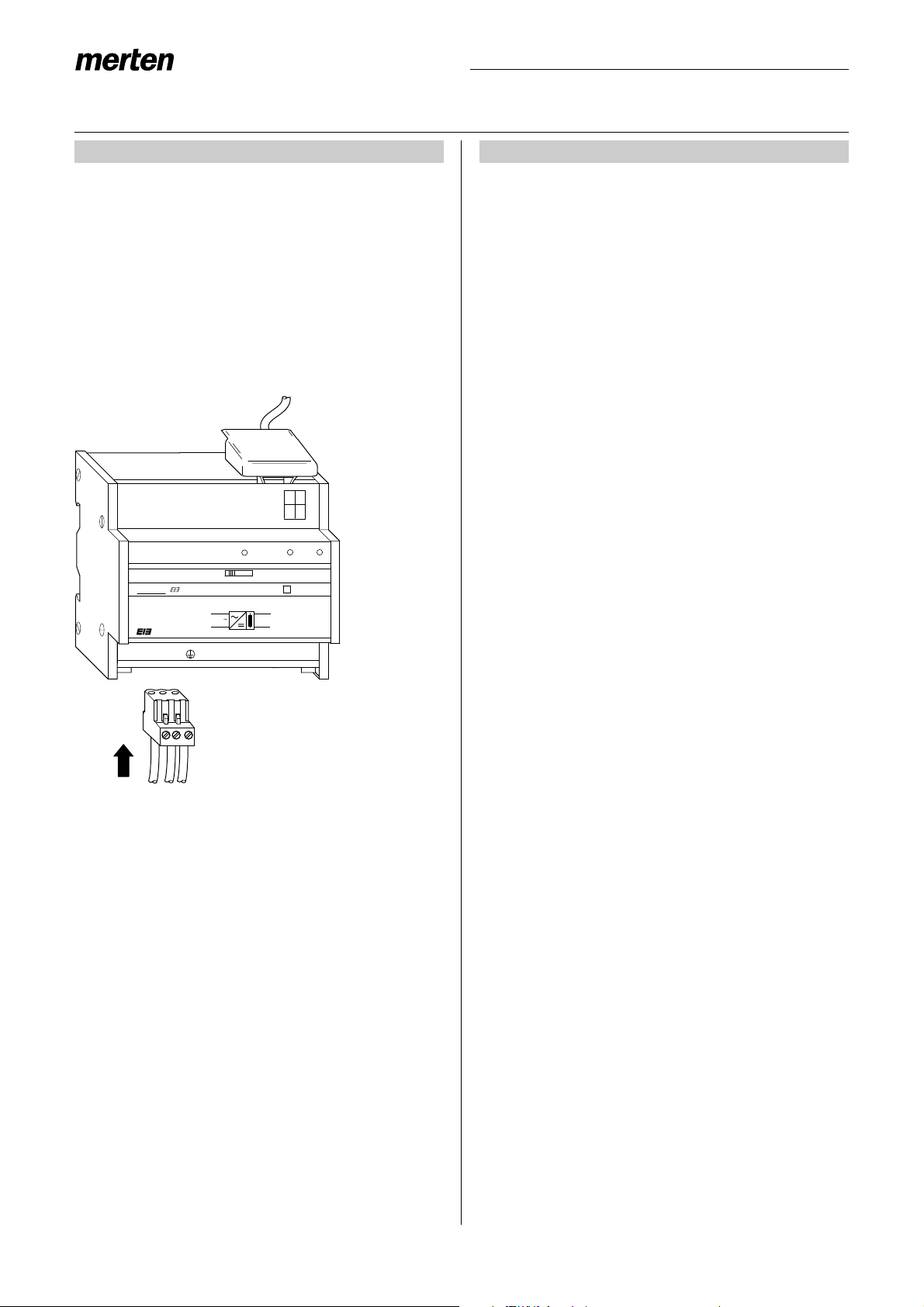

Connection of the power supply REG-K
The mains voltage connection is carried out via plug-in
terminals with screw connection. The cables can be
screwed onto the plug-in terminal before installing the
device and then inserted at a later date.
2. Installation
L N PE
instabus
Merten
Spannungsversorgung
160 REG-K
6833 29
AC 230V 50Hz
L
I>Imax.
RUN
ON RESET
N
160 mA
50 Hz
230V 29V=
- 5 ... 45˚C
B
L
+-
BUS
3. Technical Data
Mains input
Input voltage: AC 230 V +6%/-10%, 50 Hz
Output voltage: DC 29 V ± 1 V, SELV
Residual ripple: < 50 m Vss
Output current: DC 160 mA, short-circuit-
proof
Stored energy time
(at nominal current): > 100 ms
Ambient temperature
Operation: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Max. humidity: 93 %
Connections
Mains and PE: Plug-in terminal with screw
connection for max. 0.5-
2.5 mm
Bus: Plug for bus connecting ter-
minal
Display elements: Green LED for error-free
operation (RUN)
Red LED for short circuit on
the line or excessive device
load (l>lmax)
Red LED for monitoring
purposes when the voltage
is interrupted by pressing
the slide switch (RESET)
Operating elements: Slide switch behind the hin-
ged cover for interrupting
the voltage and for reset-
ting the bus devices con-
nected to the line
EC guidelines: corresponds to low voltage
guideline 73/23/EEC,
corresponds to EMC guide-
line 89/336/EEC
Dimensions: 90x90x65 mm (HxWxD)
Device width: 5 modules = 90 mm

As at 09/02 3
Chapter 1: System components
1. 1 Power supplies
Power supply 160 REG-K
Art. no. 683329
Connection example
Selection in the product database
APower supply 160 REG-K
Bblack
Cred
4. Settings in the EIB Tool Software (ETS)
Manufacturer: Merten
Product family: 1.1 System devices
Product type: 1.1.01 Power supply
Media type: Twisted Pair
Product name: Power supply 160 REG-K
Order number: 683329
L
+ -
Bus
N
PE
LNPE
C
B
A
