Metal Man FC130i User manual

www.MetalManGear.com Toll Free Help 888-762-4045
FC130i
OWNER’S MANUAL
05/2019
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.

Page of 24
2
WARRANTY
METAL MAN WORK GEAR CO
EFFECTIVE JANUARY 1, 2013
LIMITED WARRANTY
This warranty applies to the original purchaser and is subject to the terms and conditions listed below. This Limited Warranty is for
new equipment sold after the above date, providing coverage for defects in material and workmanship at the time it is shipped from
the factory.
Limited to the warranty periods below, Metal Man Work Gear Co will repair or replace the item under warranty that fails due to
defects in material and workmanship. Metal Man Work Gear must be notified within 30 days of the failure, so as to provide
instructions on how to proceed with the repair of your welder and warranty claim processing. Warranty period begins at the time the
welder is purchased from and Authorized Reseller of Metal Man Work Gear Co. products. Keep your receipt as proof of
purchase.
Warranty Periods
Limited Warranty is divided into three categories. No Warranty, 90 days and 3 year.
No Warranty
Normal wear items, MIG gun parts (contact tips, nozzle, contact tip adapter, MIG gun liner), drive roll, electrode holder, ground
clamps, Plasma torch parts (nozzle, electrode, diffuser, cover) are considered consumable items and are not covered under
warranty.
90 days
Parts for Metal Man Work Gear welding carts and welding cabinets. This warranty covers the absence of or defective parts.
1 year
This 1 year warranty covers parts and Labor on items such as: transformer, reactor, rectifier, solenoid valve, PC Board, switches,
controls, gas valve, drive motor, drive system other than drive roll and any other component that requires the removal of the sheet
metal to access.Any shipping related to warranty repair is the responsibility of the customer.
Voiding Warranty
Warranty does not apply to: Shipping Damage, Misuse and abuse of the unit, alteration of the unit in any way.
Warranty Claim
This is a parts and labor warranty. Do not return your unit to the retailer you purchased it from. Retain your receipt in the case
a warranty claim is needed. No warranty will be provided without the original receipt from an authorized reseller of Metal Man Work
Gear Products. To make a warranty claim, call our welder help line at 888-762-4045, M-F 8:00 am to 5:00 PM Central time or email
[e-mail].

Page of 24
3
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all instructions listed
below may result in serious injury.
CAUTION: Do not allow persons to operate or assemble this unit until they have read
this manual and have developed a thorough understanding of how this unit works.
WARNING: The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could occur. It must be
understood by the operator that common sense and caution are factors which cannot be built into
this product but must be supplied by the operator.
WARNING: This product can expose you to chemicals including Lead, which is known to
the State of California to cause cancer and birth defects or other reproductive harm. For more
information go to www.P65warnings.ca.gov
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY CONSIDERATIONS
1.1 Your Welding Environment
-Keep the environment you will be welding in free from flammable materials.
-Always keep a fire extinguisher accessible to your welding environment.
-Always have a qualified person install and operate this equipment.
-Make sure the area is clean, dry and ventilated. Do not operate the welder in humid, wet or poorly
ventilated areas.
-Always have your welder maintained by a qualified technician in accordance with local, state and
national codes.
-Always be aware of your work environment. Be sure to keep other people, especially children,
away from you while welding.
-Keep harmful arc rays shielded from the view of others.
-Mount the welder on a secure bench or cart that will keep the welder secure and prevent it from
tipping over or falling.
1.2 Your Welder’s Condition
-Check ground cable, power cord and welding cable to be sure the insulation is not damaged.
Always replace or repair damaged components before using the welder.
-Check all components to ensure they are clean and in good operating condition before use.
1.3 Use of Your Welder
Do not operate the welder if the output cable, electrode, torch, wire or wire feed system is wet. Do
not immerse them in water. These components and the welder must be completely dry before
attempting to use them.

Page of 24
4
-Follow the instructions in this manual.
-Keep welder in the off position when not in use.
-Connect ground lead as close to the area being welded as possible to ensure a good ground.
-Do not allow any body part to come in contact with the welding wire if you are in contact with the
material being welded, ground or electrode from another welder.
-Do not weld if you are in an awkward position. Always have a secure stance while welding to
prevent accidents. Wear a safety harness if working above ground.
-Do not drape cables over or around your body.
-Wear a full coverage helmet with appropriate shade (see ANSI Z87.1 safety standard) and safety
glasses while welding.
-Wear proper gloves and protective clothing to prevent your skin from being exposed to hot metals,
UV and IR rays.
-Do not overuse or overheat your welder. Allow proper cooling time between duty cycles.
-Keep hands and fingers away from moving parts and stay away from the drive rolls.
-Do not point MIG gun at any body part of yourself or anyone else.
-Always use this welder in the rated duty cycle to prevent excessive heat and failure.
1.4 Specific Areas of Danger, Caution or Warning
Electrical Shock
Electric arc welders can produce a shock that can cause injury or death. Touching
electrically live parts can cause fatal shocks and severe burns. While welding, all metal
components connected to the wire are electrically hot. Poor ground connections are a hazard, so
secure the ground lead before welding.
-Wear dry protective apparel: coat, shirt, gloves and insulated footwear.
-Insulate yourself from the work piece. Avoid contacting the work piece or ground.
- Do not attempt to repair or maintain the welder while the power is on.
-Inspect all cables and cords for any exposed wire and replace immediately if found.
-Use only recommended replacement cables and cords.
-Always attach ground clamp to the work piece or work table as close to the weld area as possible.
-Do not touch the welding wire and the ground or grounded work piece at the same time.
-Do not use a welder to thaw frozen pipes.
Fumes and Gases
-Fumes emitted from the welding process displace clean air and can result in injury or
death.
-Do not breathe in fumes emitted by the welding process. Make sure your breathing air is clean and
safe.
-Work only in a well-ventilated area or use a ventilation device to remove welding fumes from the
environment where you will be working.
-Do not weld on coated materials (galvanized, cadmium plated or containing zinc, mercury or
barium). They will emit harmful fumes that are dangerous to breathe. If necessary use a ventilator,
respirator with air supply or remove the coating from the material in the weld area.
-The fumes emitted from some metals when heated are extremely toxic. Refer to the material safety
data sheet for the manufacturer’s instructions.
-Do not weld near materials that will emit toxic fumes when heated. Vapors from cleaners, sprays
and degreasers can be highly toxic when heated.

Page of 24
5
UV and IR Arc Rays
The welding arc produces ultraviolet (UV) and infrared (IR) rays that can cause injury to
your eyes and skin. Do not look at the welding arc without proper eye protection.
-Always use a helmet that covers your full face from the neck to top of head and to the back of each
ear.
-Use a lens that meets ANSI standards and safety glasses. For welders under 160 Amps output,
use a shade 10 lens; for above 160 Amps, use a shade 12. Refer to the ANSI standard Z87.1 for
more information.
-Cover all bare skin areas exposed to the arc with protective clothing and shoes. Flame-retardant
cloth or leather shirts, coats, pants or coveralls are available for protection.
-Use screens or other barriers to protect other people from the arc rays emitted from your welding.
-Warn people in your welding area when you are going to strike an arc so they can protect
themselves.
Fire Hazards
Do not weld on containers or pipes that contain or have had flammable, gaseous or liquid
combustibles in them. Welding creates sparks and heat that can ignite flammable and
explosive materials.
-Do not operate any electric arc welder in areas where flammable or explosive materials are
present.
-Remove all flammable materials within 35 feet of the welding arc. If removal is not possible, tightly
cover them with fireproof covers.
-Take precautions to ensure that flying sparks do not cause fires or explosions in hidden areas,
cracks or areas you cannot see.
-Keep a fire extinguisher close in the case of fire.
-Wear garments that are oil-free with no pockets or cuffs that will collect sparks.
-Do not have on your person any items that are combustible, such as lighters or matches.
-Keep work lead connected as close to the weld area as possible to prevent any unknown,
unintended paths of electrical current from causing electrical shock and fire hazards.
-To prevent any unintended arcs, cut wire back to ¼" stick out after welding.
Hot Materials
Welded materials are hot and can cause severe burns if handled improperly.
-Do not touch welded materials with bare hands.
-Do not touch MIG gun nozzle after welding until it has had time to cool down.
Sparks/Flying Debris
Welding creates hot sparks that can cause injury. Chipping slag off welds creates flying
debris.
-Wear protective apparel at all times: ANSI-approved safety glasses or shield, welder’s hat and ear
plugs to keep sparks out of ears and hair.

Page of 24
6
Electromagnetic Field
-Electromagnetic fields can interfere with various electrical and electronic devices such as
pacemakers.
-Consult your doctor before using any electric arc welder or cutting device
-Keep people with pacemakers away from your welding area when welding.
-Do not wrap cable around your body while welding.
-Wrap MIG gun and ground cable together whenever possible.
-Keep MIG gun and ground cables on the same side of your body.
Shielding Gas Cylinders Can Explode
High pressure cylinders can explode if damaged, so treat them carefully.
-Never expose cylinders to high heat, sparks, open flames, mechanical shocks or arcs.
-Do not touch cylinder with MIG gun.
-Do not weld on the cylinder
-Always secure cylinder upright to a cart or stationary object.
-Keep cylinders away from welding or electrical circuits.
-Use the proper regulators, gas hose and fittings for the specific application.
-Do not look into the valve when opening it.
-Use protective cylinder cap whenever possible
1.5 Proper Care, Maintenance and Repair
-Always have power disconnected when working on internal components.
- Do not touch or handle PC board without being properly grounded with a wrist strap. Put PC board
in static proof bag to move or ship.
-Do not put hands or fingers near moving parts such as drive rolls of fan
USE AND CARE
Do not modify this unit in any way. Unauthorized modification may impair the function and/or
safety and could affect the life of the equipment. There are specific applications for which the
this unit was designed.
Always check of damaged or worn out parts before using this unit. Broken parts will affect
the unit’s operation. Replace or repair damaged or worn parts immediately.
Store idle. When this unit is not in use, store it in a secure place out of the reach of children.
Inspect it for good working condition prior to storage and before re-use.
TECHNICAL SPECIFICATIONS
Item
Description
Power Supply
120V, 20A, 60 HZ, Single Phase
No-Load Voltage
42 Volts DC
Output Range
50 - 125 Amp DC, Peak 130 Amp DC
Duty Cycle
30% @ 90A
Suggested Wire
Flux Core Wire
Wire Diameter
.030 - .035
Dimensions
17.7" x 8.3" x 15.4"
Weight
25 lbs.

Page of 24
7
DESCRIPTION
METAL MAN FC130i 120 volt input, 130 amp DC output flux core only wire feed welders is
economical and easy to use. It requires no shielding gas and welds 8 gauge to 3/16" mild steel
materials with .030" or .035" flux core wires on 4" or 8" spools. This unit features a dialed voltage
range, a set up chart, a cooling fan, trigger activated arc, overload protection, 8-1/2 ft torch with
Tweco style series 11 replacement parts and 6 ft ground cable and clamp. The FC130i is ideal for
use when welding mild steel 18 gauge to 3/16” for light industrial applications (FOR USE WITH
FLUX CORE WIRE ONLY).
ON/OFF Switch
(Not displayed) In the “OFF” position no power is being supplied to the torch. In the “ON” position
power is supplied to the Inverter Engine and control circuit.
Voltage Setting
Set output voltage. Refer to the “set up” chart inside the wire feed compartment.
Wire Speed Control
Adjustment of the wire feed speed (amperage).
Ground Cable and Clamp
The ground cable and clamp are attached to the work piece to complete the circuit allowing the flow
of current needed to weld.
Voltage
Setting
Wire Speed
Control
Ground Cable
And Clamp
Torch
Power Light
Power
Cord
Chipping hammer
with brush
Extra Contact Tips
Alarm Light

Page of 24
8
Welding Cable and Torch
The welding wire is driven through the welding cable and torch to the work piece. It is attached to
the drive system; the gun trigger activates the drive motor.
Power Indicator
When the machine is turned on, the power indicator will be on.
Alarm Indicator
When the thermal indictor is on, it shows the machine is overloaded and the internal temperature is
too high. Weld output will turn off automatically, but the fan will still be working. When the internal
temperature is decreased, the overload light will turn off and the machine will be ready to weld.
Power Cord
The power cord connects the welder to the 120 volt power supply. Plug the 23 amp plug into a 120
volt/20 amp receptacle to supply power to the welder.
ASSEMBLY
INSTALLING THE HANDLE
1. Line up the holes in the handles with the holes on the top of the welder.
2. Place a lock washer then a washer onto the welder handle screws.
3. Insert screws with the washers through the holes on the welder handle and into the top of the
welder and tighten.
INSTALLATION
Electrical Shock
• High voltage danger from power source! Consult a qualified electrician for proper
installation of receptacle. This welder must be grounded while in use to protect the operator
from electrical shock.
• Do not remove grounding prong or alter the plug in any way. Use only the supplied plug
between the welder’s power cord and the power source receptacle. Make sure the POWER
switch is OFF when connecting your welder’s power cord directly to a properly grounded
120 VAC, 60 Hz, single phase, 20 amp input power supply.
1. POWER REQUIREMENT 120V - AC single phase 120V (110-130V) 50/60 Hz fused with a 20
amp time delayed fuse or circuit breaker is required. DO NOT OPERATE THIS UNIT if the
ACTUAL power source voltage is less than 110 volts AC or greater than 130 volts AC.
2. EXTENSION CORD - We do not recommend an extension cord because of the voltage drop
they produce. This drop in voltage can affect the performance of the welder. If you need to use
FRONT

Page of 24
9
an extension cord, it must be a size #12 or larger. Check with a qualified electrician and your
local electrical codes for your specific area. Do not use an extension cord over 25 ft. in length.
3. INSTALL THE WIRE ROLLER - The wire roller has been factory installed. However, check to
make certain the correct wire groove is in place to accommodate the size of wire you are using.
Open the wire feed compartment. Adjust the drive roller according to the following steps, see
following picture about the wire feeder structure:
a.Open the door to the welder drive compartment
b.Remove the drive tension by loosening the drive tension adjusting knob (1) and lifting the
Drive Tension Adjustor away from the Drive Tension Arm (2). Lift the Drive Tension Arm
away from the Drive Roller (3).
c.If there is wire already installed in the welder, roll it back onto the wire spool by
hand-turning the spool clockwise. Be careful not to all the wire to come out of the rear
end of the inlet guide tube without holding onto it or the wire spool will unspool itself. Put
the end of the wire into the hole on the outside edge of the wire spool and bend it over to
hold the wire in place. Remove the spool of wire from the drive compartment of the
welder.
d.Rotate the Drive Roller Cap (3) counterclockwise and remove it from the Drive Roller.
e.Pull the Drive Roller off of the Drive Roller shaft.
f. Based on the wire diameter select the correct groove. When installing the drive roller,
the number stamped on the drive roller for the wire size you are using should be facing
you. Push the Drive Roller onto the Drive Roller Shaft.
g.Reinstall the Drive Roller Cap and lock in place by turning it clockwise.
h.Close the door to the welder drive compartment.
4. INSTALL THE WIRE - We recommend the usage of .030 Flux CoreWire on this unit. However,
.035 Flux Core wire may also be used. Only Flux Core Welding Wire should be used with this
unit.
a.Select welding wire - Both four-inch or eight-inch wire spools of .030 or .035 shelf shielding
Flux-Core wire can be used on this welder. Only steel, from 18 gauge up to 3/16 inch
thick can be welded with this unit.

Page of 24
10
NOTE:
- Metal thinner than 18 gauge cannot be welded with this machine. Attempting to do so will
cause burn through in the metal you are intending to weld.
- Do not use rusty wire. Remove any wire that is rusty. If the whole spool is rusty, discard it
and use another roll.
b.Installing the wire
Electrical Shock
•Electric shock can cause injury or death! Always turn the POWER switch OFF and
unplug the power cord from the AC power source before installing wire.
NOTE:
- Before installing, make sure that you have removed any old wire from the torch assembly. This will
help to prevent the possibility of the wire jamming inside the gun liner.
- Be very careful when removing the welding nozzle. The contact tip on this welder is live whenever
the torch trigger is pulled. Make certain POWER is turned OFF.

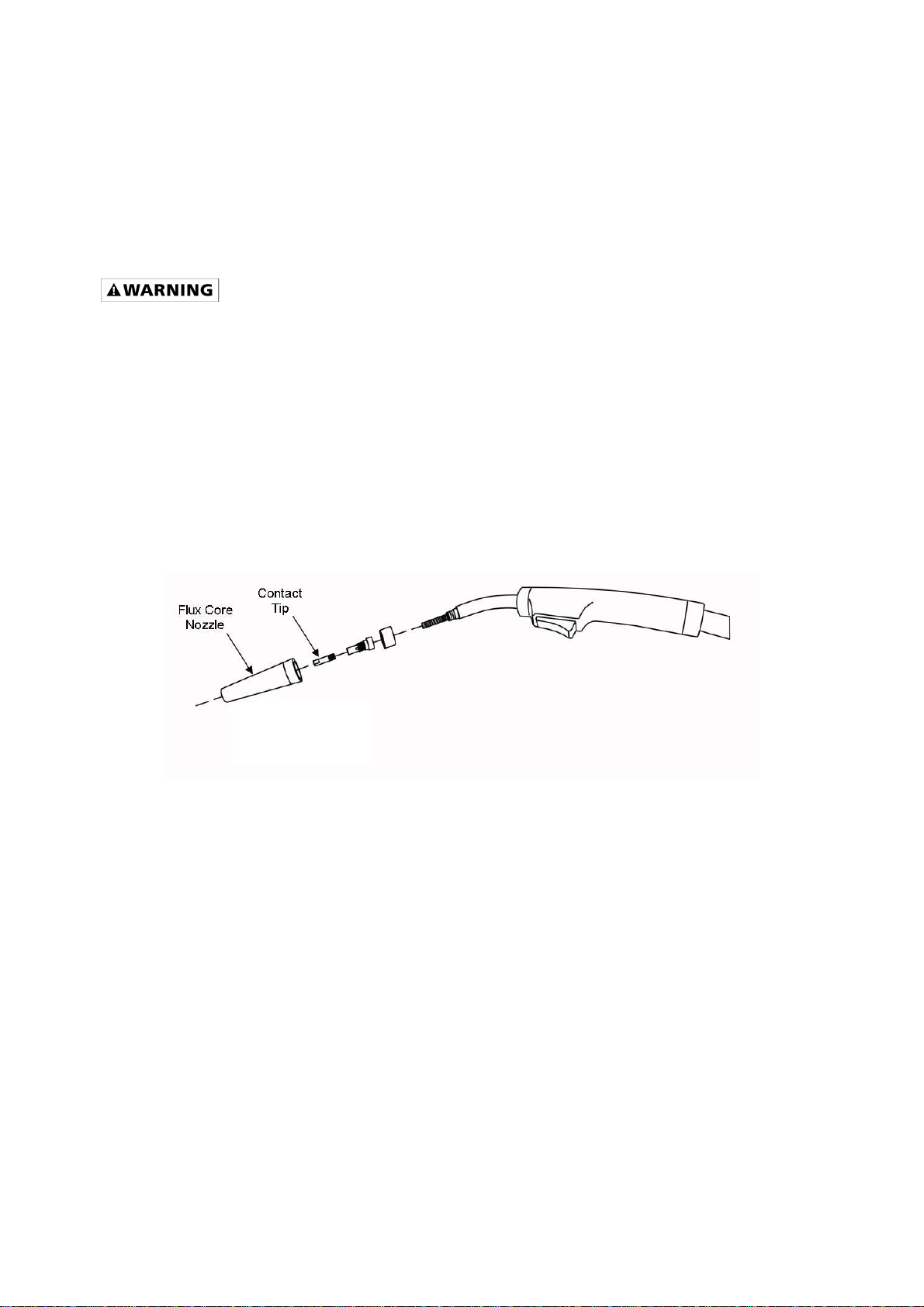

c.Remove the nozzle and contact tip from the end of the torch assembly.
d.Make sure the proper groove on the drive roller is in place for the wire installed. If not,
change the drive roller as described in Section 3.
e.Remove the packaging from the spool of wire and then identify the leading end of the wire
secured on the edge of the spool. DO NOT UNHOOK IT AT THIS TIME.
f. Place the spool on the spool hub so the wire will pull off the BOTTOM of the spool. The
welding wire should always come off the BOTTOM of the spool into the drive
mechanism. See following figure.

Page of 24
11
g.The welder can use either 4 inch or 8 inch spools. See the following figure for additional
reference. The wing nut controls the tension on the spool.
h.Setting the wire spool tension. a) Turn the spool of wire with one hand. b) Increase the
spool tension by tightening (turn clockwise) the wing nut while turning the spool. Turn the
spool while tightening the wing nut until the spool slows down and you feel a slight drag.
Stop tightening the wing nut, you may need to repeat these steps until proper spool
tension is achieved.
NOTE:
- If TOO MUCH tension is applied to the wire spool, the wire will slip on the drive roller or will
not be able to feed at all. If TOO LITTLE tension is applied, the spool of wire will want to
unspool itself when the trigger is released. Readjust the spool tension using the wing nut as
necessary to correct for either problem.
i. With the welder disconnected form the power source, remove the leading end of the wire
from the spool. Hold on to it securely, so as not to allow unspooling or tangling of the
wire as it will result in tangled wire and feeding problems.
j. Cut off any bent portion of the wire using a wire cutter.
k.Loosen the tension adjusting knob holding the drive tension arm in place and lift the
tension arm up off the drive roller.
8 Inch
4 Inch

Page of 24
12
l. Insert the wire into the inlet guide tube, feed it across the drive roller and into the torch
assembly about six inches.
-Make certain that the welding wire is actually going into the torch liner. If not, the wire will jam up in
the mechanism.
m. Line the wire up with the correct groove in the drive roller. Place the drive tension arm
back above the drive roller.
n. Place the drive tension adjustment arm back in place.
o. Tighten (turn clockwise) the drive tension adjusting knob until the tension roller is
applying enough force on the wire to prevent it from slipping in the drive rollers. DO NOT
OVER TIGHTEN.
p. NOW YOU CAN LET GO OF THE WIRE.
q.Plug in the welder power cord and turn the welder ON. Set the Voltage switch to the
voltage setting recommended for the gauge metal that is to be welded. Refer to the
set-up chart on the back side of the drive compartment door.
-The welding wire is electrically hot when the power is on and the torch trigger is activated.
r. Set the WIRE SPEED control to the middle of the wire speed range.
s. Straighten the MIG torch cable and pull the trigger in the gun handle to feed the wire
through the torch assembly. When at least one inch of the wire sticks out past the end of
the torch, release the trigger.
t. Turn the Power Switch to the OFF position.
u.Select a contact tip stamped with the same diameter as the wire being used.
NOTE: - Due to inherent variances in flux cored welding wire, it may be necessary to use a contact tip
one size larger than your flux core wire if wire jams occur.
v.Slide the contact tip over the wire (protruding from the end of the torch). Thread the
contact tip into the end of the torch and hand-tighten securely.
w. Install the nozzle on the torch assembly.
x.Cut-off excess wire that extends past the end of the nozzle more than 1/4 inch.
y.Turn the welder ON.
5. SETTING THE DRIVE ROLL TENSION
•Arc flash can injure eyes! To reduce the risk of arc flash, make certain that the wire coming
out of the end of the torch does not come in contact with the work piece, ground clamp, or
any grounded material during the drive tension setting process or arcing will occur.

Page of 24
13
a. Press the trigger on the torch.
b. Turn the drive tension adjustment knob clockwise until the wire seems to feed
smoothly without slipping.
OPERATION
•High voltage danger from power source! Consult a qualified electrician for proper
installation of receptacle. This cutter must be grounded while in use to protect the operator
from electrical shock.
•Do not remove grounding prong or alter the plug in any way. Use only the supplied plug
between the welder’s power cord and the power source receptacle. Make sure the POWER
switch is OFF when connecting your welder’s power cord directly to a properly grounded
120 VAC, 60 Hz, single phase, 20 amp input power supply.
1. POWER SWITCH
The power switch supplies electrical current to the welder. Whenever the power switch is in the ON
position, the welding circuit is activated. ALWAYS turn the power switch to the OFF position and
unplug the welder before performing any maintenance.
2. VOLTAGE SETTING KNOB
The voltage setting knob controls the welding voltage/heat. This unit has a voltage knob selection of
A-J for voltage control. Refer to the label inside the welder side door for recommended voltage
setting knob for your welding job.
3. WIRE SPEED CONTROL
The wire speed control adjusts the speed at which the wire is fed out of the welding torch. The wire
speed needs to be closely matched (tuned-in) to the rate at which it is being melted off. Some things
that affect wire speed selection are the type and diameter of the wire being used, the heat setting
selected, and the welding position being used. Refer to the label inside the welder side door for
recommended wire speed settings for your welding job.
NOTE: The wire will feed faster without an arc. When an arc is being drawn, the wire speed will
slow down.
4. HOLDING THE TORCH
The best way to hold the welding torch is the way it feels most comfortable to you. While practicing
with your new welder, experiment holding the torch in different positions until you find the one that
seems to work best for you.
5. POSITION OF THE TORCH TO THE WORK PIECE
There are two angles of the torch nozzle in relation to the work piece that must be considered when
welding.
5.1. Angle can vary, but in most cases the optimum angle will be 60 degrees, the point at which the
torch angle is parallel to the work piece. If angle A is increased, penetration will increase. If angle A
is decreased, penetration will decrease also.
5.2. Angle B can be varied for two reasons: to improve the availability to see the arc in relation to

Page of 24
14
the weld puddle and to direct the force of the arc.
6. DISTANCE FROM THE WORK PIECE - If the nozzle is held off the work piece, the distance
between the nozzle and the work piece should be kept constant and should not exceed 1/4 inch or
the arc may begin sputtering, signaling a loss in welding performance.
7. TUNING IN THE WIRE SPEED - This is one of the most important parts of wire welder operation
and must be done before starting each welding job or whenever the voltage setting, or wire diameter
is changed.
EXPOSURE TO A WELDING ARC IS EXTREMELY HARMFUL TO THE EYES AND SKIN!
Prolonged exposure to the welding arc can cause blindness and burns. Never strike an arc
or begin welding until you are adequately protected. Wear flame-proof welding gloves, a
heavy long sleeved shirt, trousers without cuffs, high topped shoes, and an ANSI approved
welding helmet.
7.1 Connect the Ground Clamp to a scrap piece of the same type of material which you will be
welding. It should be equal to or greater than the thickness of the actual work piece, and free of oil,
paint, rust, etc.
7.2 Select a heat setting.
7.3 Hold the torch in one hand. Hold the wire just off the work piece. (See HOLDING THE TORCH
section if you are uncertain of the angle at which you will be welding.)
7.4 Set the wire feed speed based on the thickness of material and the set-up chart on the back
side of the wire feeder door.
7.5 Lower your welding helmet. Pull the trigger on the torch and let the wire feed into the work
piece to start an arc. Then begin to drag the torch toward you.
7.6 LISTEN! If the arc is sputtering, increase the wire speed slightly and try again. Continue
increasing the wire speed adjustment until you achieve a smooth buzzing sound. If the wire seems
to "pound" into the work piece, decrease wire speed slightly and try again. Use the wire speed
control to slightly increase or decrease the heat and penetration for a given voltage setting by
increasing or decreasing the wire speed slightly. Repeat this tune-in procedure if you select a new
voltage setting, a different wire diameter, or a different roll of wire.
8. WELDING TECHNIQUES
EXPOSURE TO A WELDING ARC IS EXTREMELY HARMFUL TO THE EYES AND SKIN!
Prolonged exposure to the welding arc can cause blindness and burns. Never strike an arc
or begin welding until you are adequately protected. Wear flame-proof welding gloves, a
heavy long sleeved shirt, trousers with out cuffs, high topped shoes, and an ANSI approved
welding helmet.

Page of 24
15
ELECTRIC SHOCK CAN CAUSE INJURY OR DEATH! To prevent ELECTRIC SHOCK, do not
perform any welding while standing, kneeling, or lying directly on the grounded work piece.
8.1 Moving the torch
Torch travel refers to the movement of the torch along the weld joint and is broken into two elements:
Direction and Speed. A solid weld bead requires that the welding torch be moved steadily and at the
right speed along the weld joint. Moving the torch too fast, too slow, or erratically will prevent proper
fusion or create a lumpy, uneven bead.
Travel direction is the direction the torch is moved along the weld joint in relation to the weld
puddle. The torch is either PUSHED into the weld puddle or PULLED away from the weld puddle.
For most welding jobs you will pull the torch along the weld joint to take advantage of the greater
weld puddle visibility.
Travel speed is the rate at which the torch is being pushed or pulled along the weld joint. For a
fixed heat setting, the faster the travel speed, the lower the penetration and the lower and narrower
the finished weld bead. Likewise, the slower the travel speed, the deeper the penetration and the
higher and wider the finished weld bead. As a good rule of thumb, the thickness of a cross-section
of the weld bead should be approximately the same thickness as the thinnest material you are
welding.
8.2 Types of welding beads
As you become more familiar with your new welder and better at laying some simple weld beads,
you can begin to try some different weld bead types.
The STRINGER BEAD is formed by traveling with the torch in a straight line while keeping the wire
and nozzle centered over the weld joint. See following figure.
The WEAVE BEAD used when you want to deposit metal over a wider space than would be
possible with a stringer bead. It is made by weaving from side to side while moving with the torch. It
is best to hesitate momentarily at each side before weaving back the other way.

Page of 24
16
8.3 Welding position
FLAT POSITION is easiest of the welding positions and is most commonly used. It is best if you can
weld in the flat position if at all possible, as good results are easier to achieve.
HORIZONTAL POSITION is performed very similarly to the flat weld except that angle B (see
HOLDING THE TORCH) is such that the wire, directed more toward the metal above the weld joint
is to help prevent the weld puddle from running downward while still allowing slow enough travel
speed. A good starting point for angle B is about 30 degrees DOWN from being perpendicular to the
work piece.
VERTICAL POSITION It is easier for many people to pull the torch from top to bottom. It can be
difficult to prevent the puddle from running downward. Pushing the torch from bottom to top may
provide better puddle control and allow slower rates of travel speed to achieve deeper penetration.
When vertical welding, angle B (see HOLDING THE TORCH) is usually always kept at zero, but
angleAwill generally range from 45 to 60 degrees to provide better puddle control.

Page of 24
17
OVERHEAD POSITION is the most difficult welding position. Angle A (see HOLDING THE TORCH)
should be maintained at 60 degrees. Maintaining this angle will reduce the chances of molten metal
falling into the nozzle. Angle B should be held at zero degrees so that the wire is aiming directly into
the weld joint. If you experience excessive dripping of the weld puddle, select a lower heat setting.
Also, the weave bead tends to work better than the stringer.
8.4 Multiple pass welding
Butt Weld Joints: When butt welding thicker materials, you will need to prepare the edges of the
material to be joined by grinding a bevel on the edge of one or both pieces of the metal being joined.
When this is done, a “V” is created between the two pieces of metal, that will have to be welded
closed. In most cases, more than one pass or bead will need to be laid into the joint to close
the “V.”
Laying more than one bead into the same weld joint is known as a multiple-pass weld.
The illustrations in following figure show the sequence for laying multiple pass beads into a single
“V” butt joint.
NOTE:
WHEN USING SELF-SHIELDING FLUX-CORE WIRE it is very important to thoroughly chip and
brush the slag off each completed weld bead before making another pass or the next pass will be of
poor quality.
Fillet Weld Joints. Most fillet weld joints, on metals of moderate to heavy thickness, will require
multiple pass welds to produce a strong joint. The following figure will show the sequence of laying
multiple pass beads into a T fillet joint and a lap fillet joint.

Page of 24
18
8.5 Spot welding
There are three methods of spot welding: Burn-Through, Punch and Fill, and Lap. Each has
advantages and disadvantages depending on the specific application as well as personal
preference.
1. The BURN-THROUGH METHOD welds two overlapped pieces of metal together by burning
through the top piece and into the bottom piece. With the burn-through method, larger wire
diameters tend to work better than smaller diameters. Wire diameters that tend to work best, with
the burn-through method are 0.035 inch self-shielding flux-core wire. Do not use 0.030 inch
self-shielding flux core wires when using the burn-through method unless the metal is VERY thin or
excessive filler metal build-up and minimal penetration is acceptable. Always select a HIGH heat
setting with the burn-through method and tune in the wire speed prior to making a spot weld.
2. The PUNCH AND FILL METHOD produces a weld with the most finished appearance of the three
spot weld methods. In this method, a hole is punched or drilled into the top piece of metal and the
arc is directed through the hole to penetrate into the bottom piece. The puddle is then allowed to fill
up the hole leaving a spot weld that is smooth and flush with the surface of the top piece. Select the
wire diameter, heat setting, and tune in the wire speed as if you were welding the same thickness
material with a continuous bead.
3. The LAP SPOT METHOD directs the welding arc to penetrate the bottom and top pieces, at the
same time, right along each side of the lap joint seam. Select the wire diameter, heat setting, and
tune in the wire speed as if you were welding the same thickness material with a continuous bead.

Page of 24
19
8.6 SPOT WELDING INSTRUCTIONS
1. Select the wire diameter and heat setting recommended above for the method of spot welding
you intend to use.
2. Tune in the wire speed as if you were going to make a continuous weld.
3. Hold the nozzle piece completely perpendicular to and about 1/4 inch off the work piece.
4. Pull the trigger on the torch and release it when it appears that the desired penetration has been
achieved.
5. Make practice spot welds on scrap metal, varying the length of time you hold the trigger, until a
desired spot weld is made.
6. Make spot welds on the actual work piece at desired locations.
MAINTENANCE
•Maintain your FC130i. It is recommended that the general condition of any FC130i be
examined before it is used. Keep your FC130i in good repair by adopting a program of
conscientious repair and maintenance. Have necessary repairs made by qualified service
personnel.
•Periodically clean dust, dirt, grease, etc. from your welder.
•Every six months, or as necessary, remove the cover panel from the welder and air-blow any
dust and dirt that may have accumulated inside the welder.
•Replace power cord, ground cable, ground clamp, or electrode assembly when damaged or
worn.
TROUBLESHOOTING
SYMPTOM
POSSIBLE CAUSE
CORRECTIVE ACTION
Unit Does Not Power Up
Unit Is Not Plugged In
Plug in Unit
Input Power Circuit Breaker Not On
Reset Input Power Circuit Breaker
The Main Power Switch Is Not Working
Replace Main Power Switch
Wire Drive Motor Does Not Turn
Loose or Bad Fuse
Locate the Fuse Holder inside the wire
compartment. Tighten fuse or replace.
Wire Feed Speed Control at Zero
Increase Wire Feed Speed Control
Trigger Is Not Mashed
Wire Will Feed Only When Trigger Is
Mashed
Wire Drive Motor Is Damaged
Replace Wire Drive Motor
Wire Feeds Inconsistently
Torch Liner is plugged
Clear or replace torch liner
Wire Diameter may vary on spool of wire
causing the wire to catch in the contact
tip.
Increase the contact tip one size.
Too Much or Too Little Wire Tension
See Installing the Wire Section
Too Much or Too Little Drive Roll Tension
See Setting Drive Roll Tension Section
Drive Roll is Worn
Replace Drive Roll
Can Not CreateAnArc
Work Piece is Painted or Rusty
Remove All Paint and Rust
Ground Clamp Is Connected Where
There Is Paint or Rust
Remove All Paint and Rust So Ground
Clamp Is Connected To Bare Metal
Ground Clamp Is Not Electrically
Connected to The Work Piece
Make Certain the Ground Clamp Is
Connected to The Work Piece
Trigger Is Not Mashed
This Unit Is Not Electrically Hot Until You
Mash The Torch Trigger
For technical questions contact the technical help line at 888-762-4045

Page of 24
20
ELECTRICAL DIAGRAM
