Meteor Nordic Season GG501702 User manual

ASSEMBLY, USE
AND INSTRUCTION MANUAL
Meteor EN
READ THE OPERATING INSTRUCTIONS
BEFORE USING THE APPLIANCE.
FOR OUTDOOR USE ONLY.
!
GG501702
EDITION
Black
6+1

Warnings.................................................................3
Technical data .........................................................4
Gas category............................................................4
Explotion drawing .................................................... 5
Parts list ................................................................ 6
Hardware................................................................7
Assembly instructions ................................................8
Gas leak test ......................................................... 20
Connecting gas .......................................................21
Before using the grill................................................22
Grilling tips............................................................23
Lighting instructions ................................................24
Warnings ...............................................................25
Maintenance ..........................................................26
Cleaning ...............................................................26
Troubleshooting ....................................................27
Consumer Contact .................................................28
Contents
2

WARNINGS
!Failure to follow the instructions provided can imply a risk of
serious injury to personnel and xed installations.
!Some grill parts can be sharp, we recommend wearing gloves
when assembling and lifting. Sharp edges can cause injury.
!The grill is intended for outdoor use only in well-ventilated areas.
Never grill in enclosed spaces or under a roof, due to the danger of the
lack of oxygen.
!Accessible parts of the grill become very hot during use.
Keep children and others who need supervision at a safe distance.
!Do not move the grill while in use or connected to the gas bottle.
Shut off the gas on the regulator after use and disconnect from the
gas bottle.
! Modication of the grill can cause danger and will invalidate
the warranty.
!Never keep the gas bottle under the grill when in use. Gas leaks
can cause serious damage. Place the gas bottle by the side of the grill
during use.
! Do not place the grill cover or other ammable material in the
compartment under the grill when it is in use or hot.
!Do not use lava stones, charcoal or briquettes.
!Clean the grill regularly and thoroughly.
!
3

Technical data - Meteor 6+1
Total effect: 20,22 kW
(main burner heat input 6 x 2,88 kW)
Total gas consumption: 1472 g/h.
Hose and regulator (not included):
Must be approved according to
EN standard.
Gas bottle (not included): Use standard
bottle approved for use in the Nordic
Region, 10/11 kg recommended. Even
though butane and propane gas can be
used, we recommend propane for use in
the Nordic Region. Approved hoses and
regulators are available from most outlets
selling gas equipment.
NB!
Gas hoses used for this product must
not exceed 150 cm in length.
Gas information 0359-16
This product is produced according to EUROPEAN GAS APPLIANCE
STANDARD EN498 AND EN484 and is CE certied.
H: 128 cm
L: 154 cm
D: 58 cm
USE IN
COUNTRIES VALVE SIZE GAS TYPE GAS CATEGORY
BE, CY, CZ, DK,
EE, FI, FR, HU, IT,
LT, NL, NO, SE, SI,
SK, RO, HR, TR,
BG, IS, LU, MT
0.84 mm
G30(butan),
G31(propan) and
mixture of these, LPG
28~30 mbar
I3B/P(30)
4

Explotion drawing
5

Parts list
When ordering spare parts, please use
the code from parts list found here.
Code Part QTY += Pre-assembled
HOOD
A1 Hood (Pre-Assembled to Body) 1+
A2 Hood Handle 1+
A3 Warming Rack 1
BODY
B1 Barbecue Body 1
B2 Burner 6+
B3 Control Panel 1+
B4 Knob 6+
B5 Flame Tamer 6
B6 Cooking Grill 2
B7 Drip Tray Left Bracket 1
B8 Drip Tray Right Bracket 1
B9 DrIp Tray 1
B10 Ignition Button 1
TROLLEY
C1 Side Burner Shelf 1
C2 Side Burner Shelf Panel 1
C3 Side Shelf 1
C4 Side Shelf Panel 1
C5 Side Burner Grid 1
C6 Knob Bezel 1
C7 Side Burner Knob 1
C8 Side Burner 1
C9 Left Front Leg 1
C10 Left Rear Leg 1
C11 Right Front Leg 1
C12 Right Rear Leg 1
C13 Side Panel 4
C14 Upper Body Support 1
C15 Storage Box Handle 1
C16 Storage Box 1
C17 Front Panel 1
C18 Bottom Panel 1
C19 Axle 1
C20 Wheel 1
C21 Wheel Hubcap 1
C22 Electronic Ignition Assembly 1
C23 Heat Shield 1
HARDWARE
D1 ST4.0x10 Screw 30 
D2 M4 Step Bolt 4
D3 M4x10 Bolt 3
D4 M6 Nut 12 
D5 M6x15 Bolt 16 
D6 M6x40 Bolt 16 
D7 Locknut 2
6

Hardware
The following screws and nuts are
supplied with the grill and must be tted.
7

1

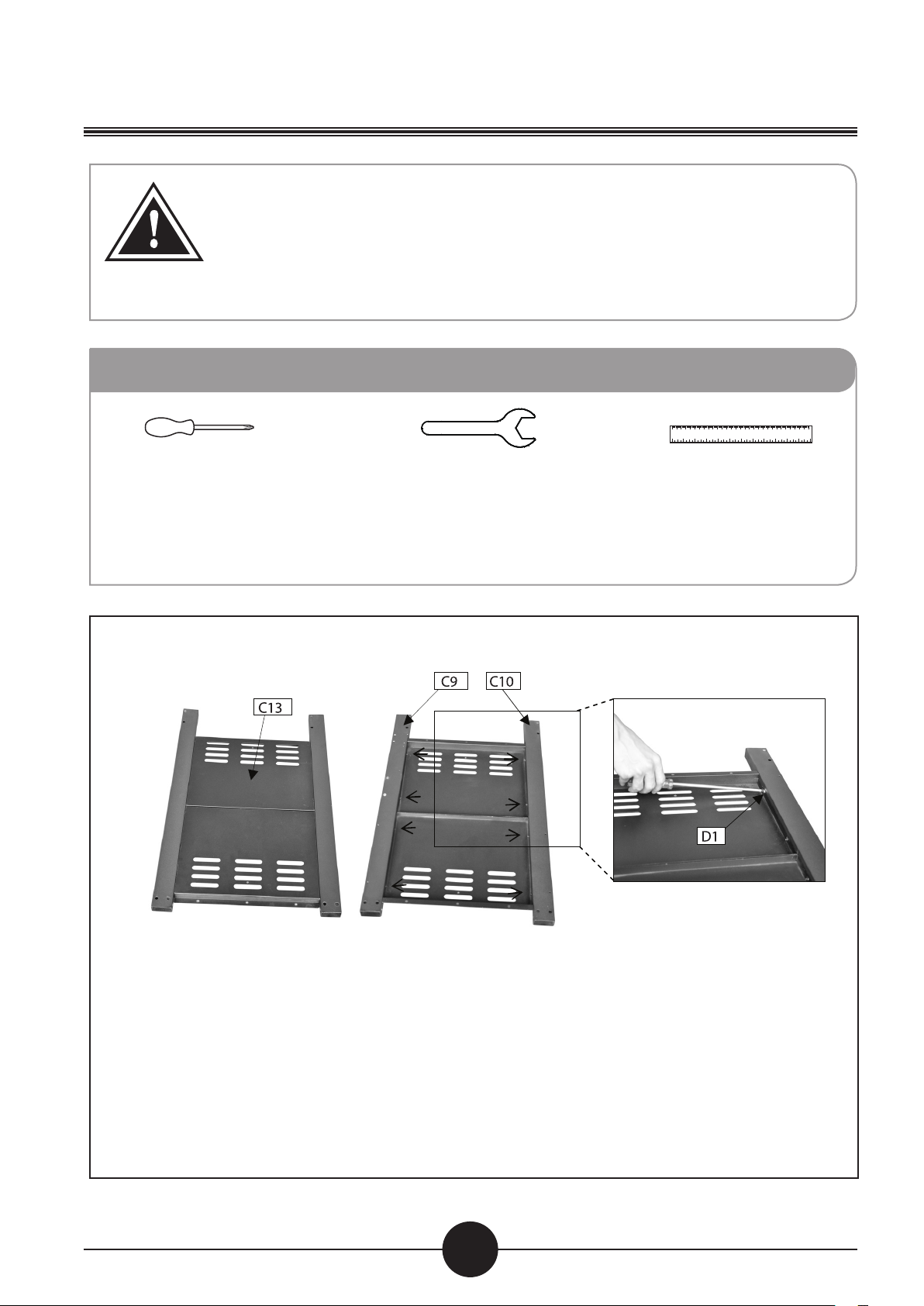

Attach the Left Legs (C9,C10) to the Side Panels (C13) using ST4.0x10
Screws (D1x8pcs) as shown.
1
TOOLS FOR ASSEMBLING (NOT INCLUDED)
Assembly instructions
0102030405060708090 100 110 120 130 140 150
0123456
0102030405060708090 100 110 120 130 140 150
0123456
Medium size at blade or
Philips/cross-point screwdriver
Adjustable spanner or
metric spanner set
Ruler
01 02 03 04 05 06 07 08 09 0 100 110 120 130 140 150
01 23 45 6
NB!
Exercise caution when using electric tools –
their strength can damage the screws.
Please follow these instructions step by step.
We recommend two people to assemble the
grill to avoid heavy lifting.
8

Attach the Left Legs (C11,C12) to the Side Panels (C13) using ST4.0x10
Screws (D1x8pcs) as shown.
2
3
Attach the left cabinet panel assembly (C9, C10, C13) and right cabinet panel
assembly (C11, C12, C13) to the Bottom Panel (C18) using M6x40 Bolts
(D6x8pcs) and M6 Nuts (D4x8pcs) as shown.
9

4

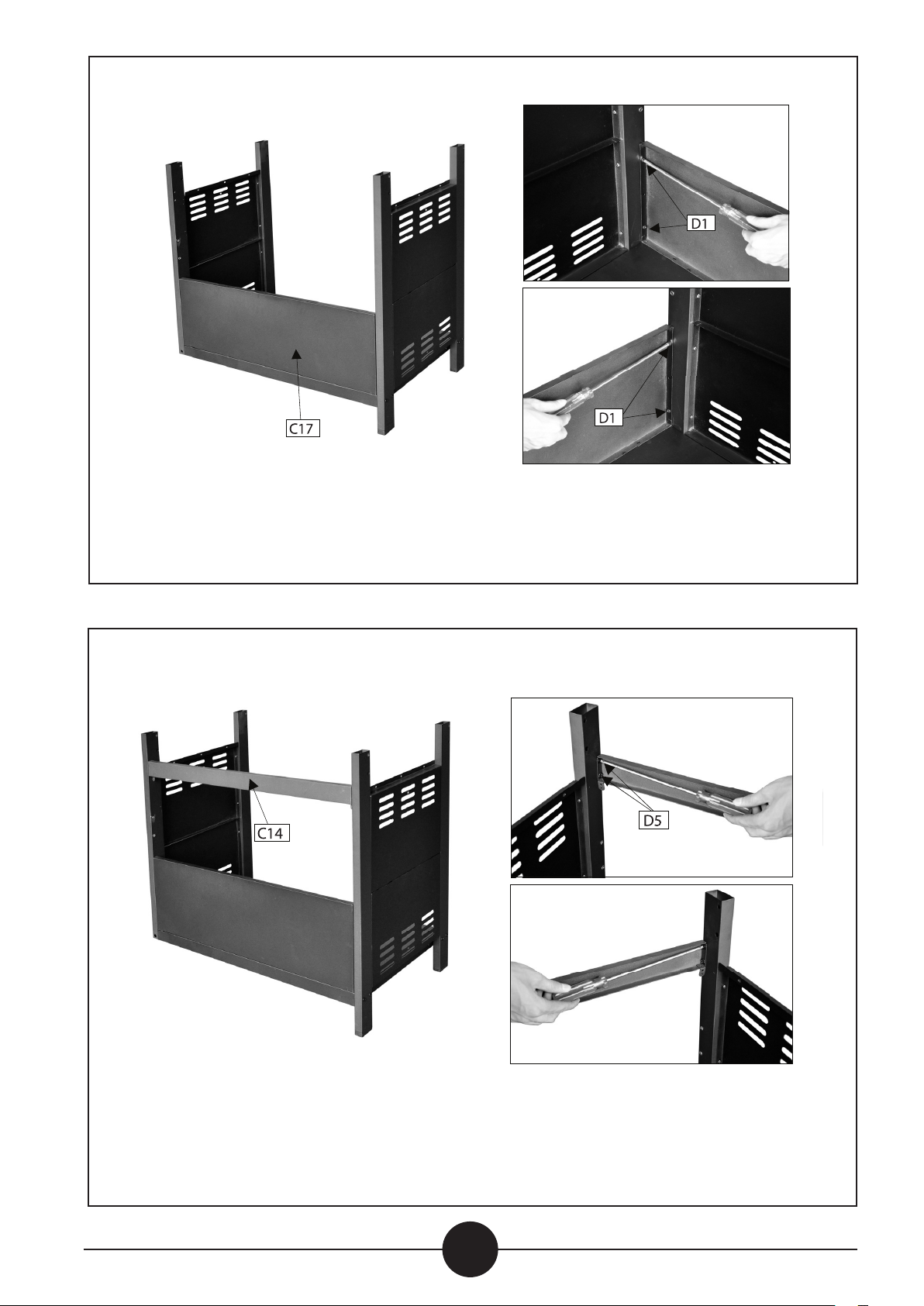

Install Front Panel (C17) between left / right front legs using ST4.0x10 Screws
(D1x4pcs).
5
Attach the Upper Body Support (C14) to the front legs using M6x15 Bolts
(D5x4pcs) as shown.
10

7
Attach Drip Tray Left Bracket (B7) to the right legs using ST4.0x10 Screws
(D1x2pcs) as shown. Repeat above process for Drip Tray Right Bracket (B8).
6
Install the storage box (C16) between left / right front legs using M4 Step Bolts
(D2x4pcs) as shown.
11

9
Remove the retaining bolts from Storage Box Handle (C15), and then attach it
onto Storage Box (C16) using the retaining bolts.
8
Fix the Electronic Ignition Assembly (C22) and Heat Shield (C23) to the front
left leg by inserting two ST4.0x10 Screws (D1x2pcs) through the electronic
ignition assembly and heat shield and screwing into the front left leg.
12

Unscrew the Locknuts (D7) from both ends of the Axle (C19).
Slide the axle through the corresponding holes in the left legs. Slide the
Wheels (C20) over each end of the axle. Secure the wheels into place with the
locknuts. Place the wheel Hubcaps (C21) onto the outsides of the wheels.
10
Carefully place the Barbecue Body (B1) onto the cabinet structure and x using
M6x40 Bolts (D6x8pcs) as shown.
WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE
HAS NOT
BEEN PROPERLY SEATED. THIS MAY RESULT IN INJURY OR DAMAGE TO
YOUR BARBECUE.
CAUTION! Care must be taken to ensure the hood or lid does not fall open
unexpectedly or becomes damaged when it is set on the ground.
11
13

Attach Side Burner Shelf Panel (C2) onto Side Burner Shelf (C1) using M6x15
Bolts (D5x2pcs) and M6 Nuts (D4x2pcs).
Press the knobs (B4)onto valve stems as shown.
12
13
14

Attach the side burner shelf assembly to the barbecue body using ST4.0x10 Screw
(D1x2pcs) and M6x15 Bolts (D5x4pcs) as shown.
Attach the side burner valve and Knob Bezel (C6) onto side burner shelf using
M4x10 Bolts
(D3x2pcs) as shown. Press the Side Burner Knob (C7) onto side burner valve stem.
15
14
15

Attach Side Shelf Panel (C4) onto Side Shelf (C3) using M6x15 Bolts
(D5x2pcs) and M6 Nut (D4x2pcs) as shown.
Feed the venturi tube of the Side Burner (C8) through the hole in bottom of
the side burner shelf, and x it onto side burner shelf using a M4x10 Bolt
(D3x1pcs) as shown. Make sure that the end of venturi tube is set over the gas
outlet of side burner valve. Connect the electronic wire onto the electrode.
16
17
16

Attach the side shelf assembly to the barbecue body using ST4.0x10 Screw
(D1x2pcs) and M6x15 Bolts (D5x4pcs) as shown.
18
Connect the wires to the electronic ignition assembly as shown in the
diagram in the next step.
Insert the electronic ignition battery (not supplied) into the battery
compartment, ensuring the battery is correctly installed according to the (+)
(-) markings.
19
Electronic Ignition Assembly Diagram
17

Place the Side Burner Grid (C5) onto the side burner shelf.
NOTE: Make sure the base of cooking utensil to put on the side burner is
larger than 150mm and smaller than 220mm.
Attach the Warming Rack (A3) to barbecue body as shown.
Carefully lay the Flame Tamer (B5) into the barbecue body ensuring it lies
level within the body. Lay the Cooking Grill (B6) into place.
20
21
18

Insert the Drip Tray (B9) by sliding it underneath the barbecue body.
22
ASSEMBLY IS NOW COMPLETE.
PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND
MAINTENANCE. ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK
TESTED BEFORE USING THE BARBECUE.
Leak test annually, and whenever the gas bottle is removed or replaced.
23
19

8
If there are still gas leaks after repeated attempts, contact your dealer.
7
IF BUBBLES APPEAR, SWITCH OFF THE GAS SUPPLY AND REPAIR THE
PROBLEM. PERFORM A NEW LEAK TEST. DO NOT USE THE GRILL BEFORE YOU
ARE SURE THAT THERE ARE NO LEAKS.
6Open the gas tap on the regulator and carefully check for bubbles appearing anywherethe liquid has been applied.
1Make a mixed solution (½ water and ½ liquid detergent / soap).
2
Ensure that there are no naked ames,
heat sources and cigarettes in the vicinity
when performing a leak test.
3
Check that all controls on the grill are in the
”OFF” position.
4
Set the regulator to the ”OFF” position and connect it
to the gas bottle.
5Apply the liquid to all joints and connections on the gas bottle, regulator, the entire hose and all valves on the grill.
ALL JOINTS AND CONNECTIONS MUST NOW BE
LEAK TESTED BEFORE USING THE GRILL.
Leak test annually, and whenever the gas bottle is removed or replaced.
Always perform a leak test in a well-ventilated area.
!NB!
NEVER USE AN OPEN
FLAME TO PERFORM
A GAS LEAK TEST
IMPORTANT! GAS LEAK TEST
!
20
