MECABLITZ 50 MZ-5
Operating Instructions

2
Contents
Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1. Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. Preparing the flashgun for use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Attaching the control unit and the flashgun to the camera. . . . . . . . . . . . . . . 7
2.2 Power supply and battery warning indicator . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Replacing and charging the battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Switching the flashgun on and off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3. TTL flash mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1 TTL Easy-Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4. Automatic flash mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5. Manual flash mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6. Bounced flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.1 Bounced flash with secondary reflector switched on . . . . . . . . . . . . . . . . . . 19
6.2 Bounced flash in automatic and TTL flash modes . . . . . . . . . . . . . . . . . . . . 19
6.3 Bounced flash in manual flash mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7. Cordless remote control mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.1 Cordless Metz TTL remote control mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.2 Cordless Metz automatic remote control mode . . . . . . . . . . . . . . . . . . . . . . 24
8. Winder mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8.1 Using the winder facility in manual flash mode . . . . . . . . . . . . . . . . . . . . . . 25
8.2 Using the winder facility in automatic and TTL flash mode. . . . . . . . . . . . . . 25
9. Working with partial light output levels. . . . . . . . . . . . . . . . . . . . . . . . . . 26
9.1 Partial light output levels in automatic flash mode. . . . . . . . . . . . . . . . . . . . 26
9.2 Partial light output levels in manual flash mode . . . . . . . . . . . . . . . . . . . . . 26
9.3 Macrophotography (close-ups) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
10. Stroboscopic flash mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11. Fill-in flash in daylight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
11.1 Fill-in flash in automatic mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
11.2 Fill-in flash in manual mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
11.3 Fill-in flash in TTL mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
12. Working with user programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
13. Special functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
13.1 AF measuring beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
13.2 Auto-check display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
13.3 Warning displays and audible warning signals. . . . . . . . . . . . . . . . . . . . . . . 35
13.4 The buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
13.5 Locking the controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
13.6 Changing over the distance dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
13.7 The zoom reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Contents
13.7.1 The Ex-Zoom mode (extended zoom) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
13.8 The „Rapid“ function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
13.9 The ML function (modelling light) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
14. Exposure corrections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
14.1 Exposure correction in automatic flash mode . . . . . . . . . . . . . . . . . . . . . . . 41
14.2 Exposure correction in TTL flash mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
15. Parallax compensation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
16. Trouble-shooting hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
17. Care and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
18. Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
19. Special accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
3

Foreword and general instructions
Congratulations on purchasing this Metz flashgun, and thank you for your confidence in Metz
equipment.
It is only natural that you should want to use your flashgun straight away. However, it will be
well worth your while to study these Operating Instructions beforehand to ensure that you can
operate the flashgun effectively and without any problems.
Please also open the back cover page with the illustrations.
This flashgun can be used with:
• All cameras with a hot shoe
• All cameras with accessory shoe without hot-shoe contact, and with a synchronizing cable
• System cameras
Optimal adaptation to your camera is achieved by using an SCA adapter. The enclosed
SCA 300/3000tablewillindicatetheadapteryourequireforyourparticularcameramodel.This
tablealso indicatesthe special flash functions that can thenbe completedby thegiven system.
Brief survey of the operating functions:
Configuration Operating modes possible
• 50 MZ-5 with 301 standard base: Automatic flash mode, ch. 4, p. 14
Manual flash mode, ch. 5, p. 16
Metz automatic remote control, ch. 7.2, p. 24
Stroboscopic mode, ch. 10, p. 28
• 50 MZ-5 with SCA 300 adapter: Automatic flash mode, ch. 4, p. 14
TTL flash mode*, ch. 3, p. 10
TTL Easy Mode*, ch. 3.1, p. 10
Manual flash mode, ch. 5, p. 16
Metz TTL remote mode*, ch. 7.1, p. 22
Metz automatic remote mode, ch. 7.2. p. 24
Stroboscopic mode, ch. 10, p. 28
*If the camera performs this function.
• 50 MZ-5 with SCA 3000 adapter: Automatic flash mode, ch. 4, p. 14
TTL flash mode*, ch. 3, p. 10
TTL Easy Mode, ch. 3.1, p. 10
Manual flash mode, ch. 5, p. 16
Metz TTL remote mode, ch. 7.1, p. 22
Metz automatic remote mode, ch. 7.2. p. 24
Stroboscopic mode, ch. 10, p. 28
The SCA 3000 adapter is the most convenient link to your camera! The ISO, zoom and aperture
data are transmitted, depending upon the camera configuration!
4

Foreword and general instructions
General operating instructions
The subsequent instructions are of a general nature. The procedures identified by red numbers
must be completed when using a system camera in conjunction with an SCA 3000 adapter.
All steps identified by red numbers and • are completed with the 301 standard base.
All steps identified with an asterisk * must be additionally adjusted, depending upon the given
type of camera.
When manual settings are necessary on the control unit it is always first necessary to press the
corresponding button assigned to the given function. The symbol of the selected function will
flash for approx. 5 seconds. The value of the function has to be changed with the + buttons
during these 5 seconds, otherwise the existing value will be retained
.Example: The zoom setting is to be changed.
1.Press the manual zoom control button (32) - Zoom will flash for approx. 5
seconds.
2.As long as zoom is flashing press the + button (24) to raise the value, e.g. from
50 to 70. Zoom stops flashing after 5 seconds and the changed value is stored.
NOTE: These instructions show illustrations of the LC display. The distances indicated in
these illustrations are only examples and not binding!
5

1. Safety Instructions
• NEVER fire a flash in the immediate vicinity of the eyes!
Flash fired directly in front of the eyes of a person or animal can damage the retina
and lead to severe visual disorders - even blindness!
• Never open or short-circuit rechargeable batteries!
• Do not expose batteries to excessive heat, for instance sunshine, etc.!
• Never throw exhausted batteries on a fire!
• Do not expose the flash unit and charger to dripping and splashing water!
• Protect the flashgun against excessive heat and humidity! Do not store the flashgun in
the glove compartment of a car!
•Never cover the ventilation slots and intake openings on the flashgun!
A built-in cooling fan is automatically switched on when the temperature inside the
flashgun exceeds 40°C.
•As a result of the high light energy of a series of flashes shot with full light output in
quick succession, the diffuser becomes intensely heated in zoom positions of 35 mm
and less. In such an event the flash recycling time is automatically extended in order
to protect the mecablitz against overheating.
• Never place material that is impervious to light in front of, or directly on, the reflector
screen. The reflector screen must be perfectly clean when a flash is fired. The high
energy of the flash light will burn the material or damage the reflector screen if this is
not observed!
• NEVER dismantle the flashgun! DANGER: HIGH VOLTAGE!
There are no components inside the flashgun that can be repaired by a layperson.
• To remove the control unit’s cable, press the gray
release button against the cable’s plug while
pulling out the cable.
6
➩
➮

2. Preparing the flashgun for use

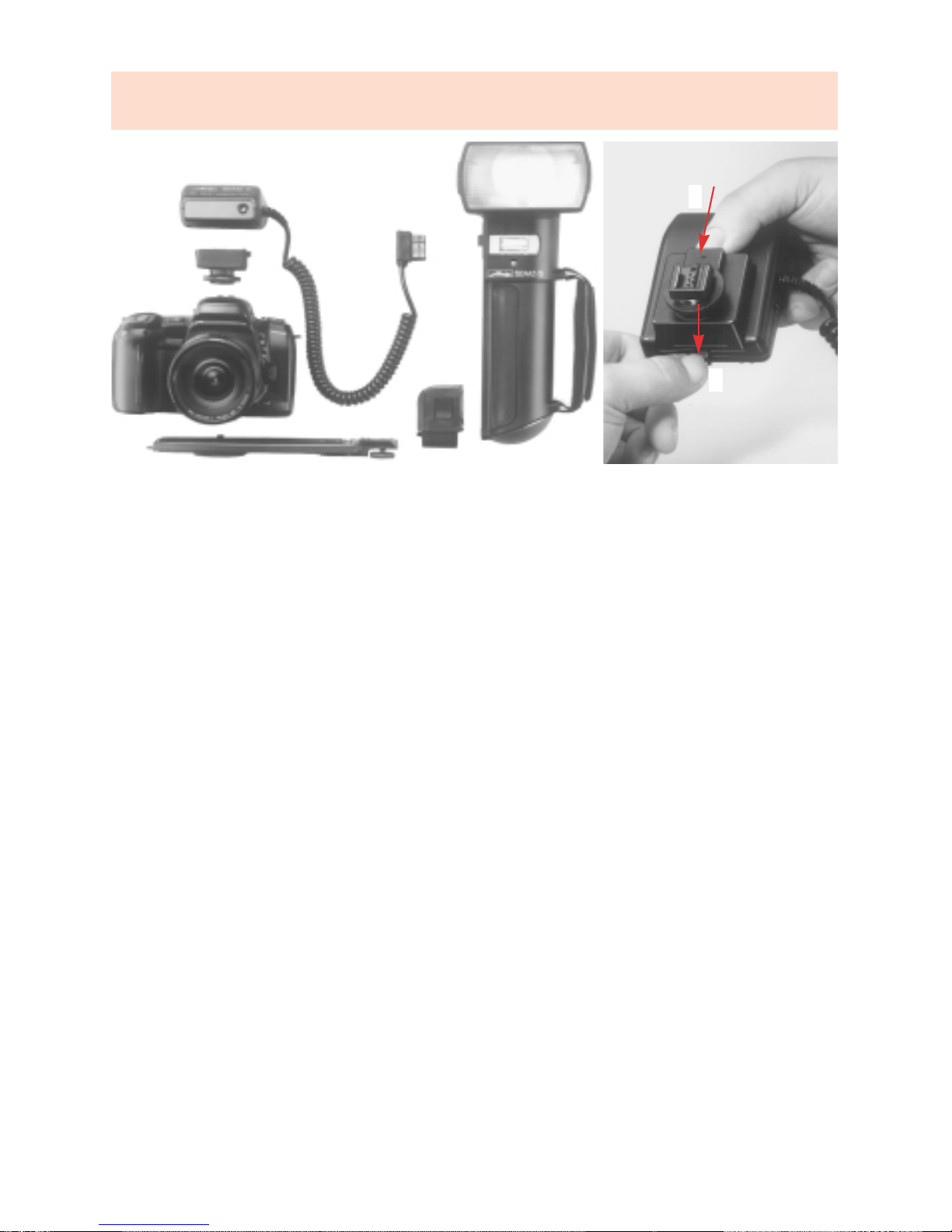

Fig. 1: Mounting the components, and removing the standard base or SCA adapter
2.1 Attaching the control unit and the flashgun to the camera
The control unit can only be mounted on the camera with the 301 standard base (5) or with
an SCA-300 or SCA-3000 adapter (Special Accessories).
Always switch off the camera and the flashgun before mounting or removing the
flashgun. The red-light adapters (see also ch. 7, p. 20) of the SCA 300 System, as
well as the SCA 356 and the TTL Multiconnector SCA 305 A, can only be used if the
SCA 300 D spacer is mounted between the adapter and the control unit.
Push the control unit, with attached adapter or 301 standard base, into the camera’s accessory shoe
and clamp into position with the knurled nut (6). Insert the plug of the control unit’s cable into the
flashgun’s handle.The control unit is fitted with the 301 standard base for simple flash synchronization.
Mounting the flashgun:
•Fasten the camera bracket (8) with the bracket screw (7) to the camera’s tripod bush.
•Press the unlocking catch (14) on the Nicad battery, and turn the battery cover (10) anti-
clockwise until the 1st lock-in position is reached.
•Insert the holder block of the camera bracket into the guiding groove of the flashgun.
•Fasten the holder block with the locking screw (9).
•Turn the battery cover (10) clockwise until it is once again locked. The rectangular projection
then covers the opening of the guiding groove.
Removing the control unit, the standard base or the SCA adapter:
To remove the control unit’s cable, press the gray release button against the
cable’s plug while pulling out the cable.
1Push the locking lug upwards towards the control unit.
2Remove the standard base or SCA adapter
7
2
1
☞
☞

2. Preparing the flashgun for use

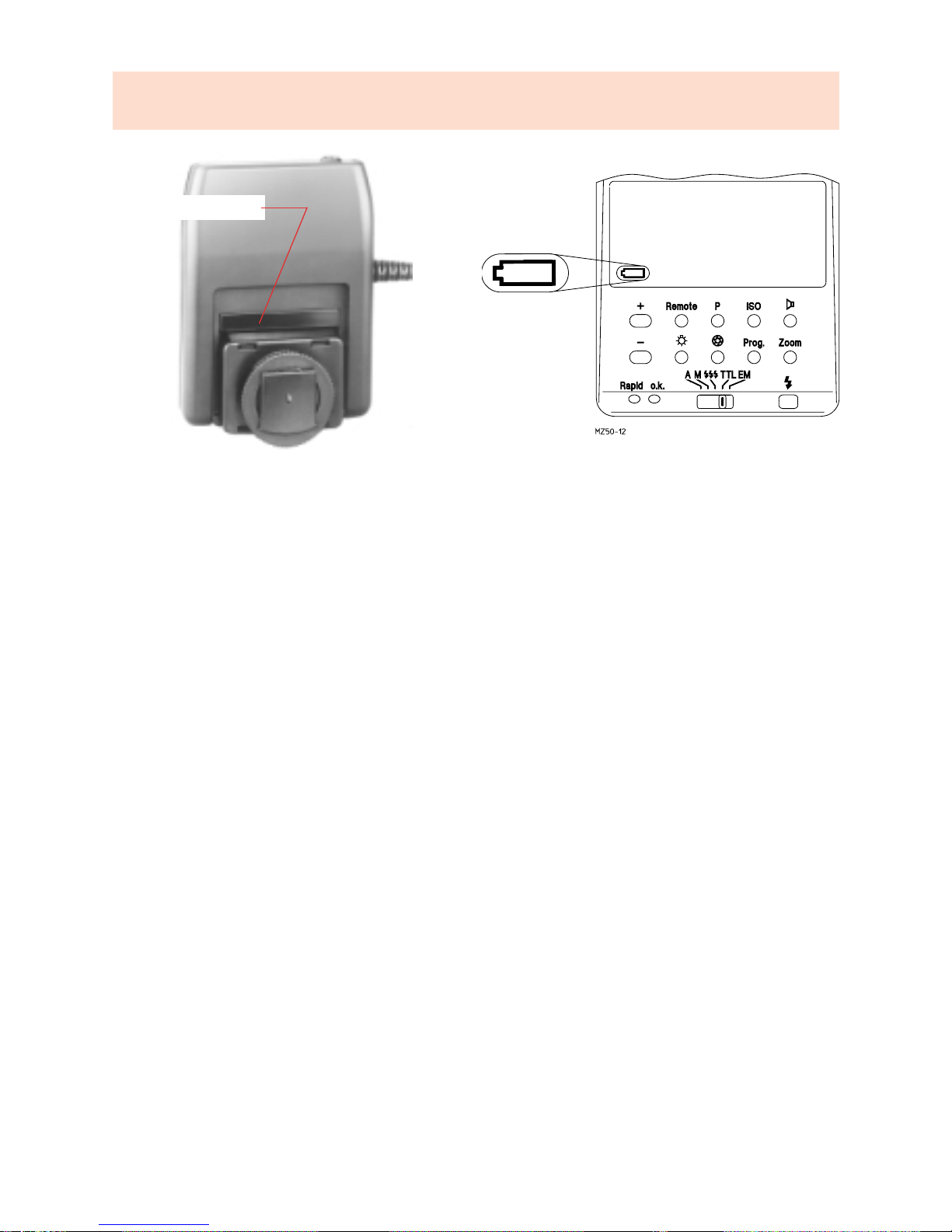

Fig. 2a: Battery cover Fig. 2b: Battery warning indicator
Attaching the standard base or SCA adapter:
• Take hold of the battery cover (fig. 2a, only when using the SCA 3000 adapter) in the middle
and unclip.
• Push in the SCA adapter or the 301 standard base all the way in.
The control unit is automatically synchronized with the camera when it is inserted in the
camera’s accessory shoe.
Synchronization of cameras without hot shoe is possible with a synch cable (36-50, short or
36-51. 1 m long, Special Accessories) in the socket of the 301 standard base.
2.2 Power supply and battery warning indicator
The flashgun can only be operated with a Metz NiCad Battery Pack 50-40 or the Power Pack
P 50 (optional accessory). A charger for the Metz battery pack is supplied with the flashgun.
The battery warning light only comes on when the Battery Pack 50-40 is being used. The
operating light (17) in the handle starts flashing when the battery is exhausted, and the battery
warning light on the LC display becomes illuminated.
The flashing battery symbol (fig. 2b) on the LC display indicates that the Nicad
battery is almost exhausted.
Spent batteries must not be thrown into the dustbin! Contribute to the protection
of the environment and discard spent batteries at the appropriate disposal points!
2.3 Replacing and charging the battery

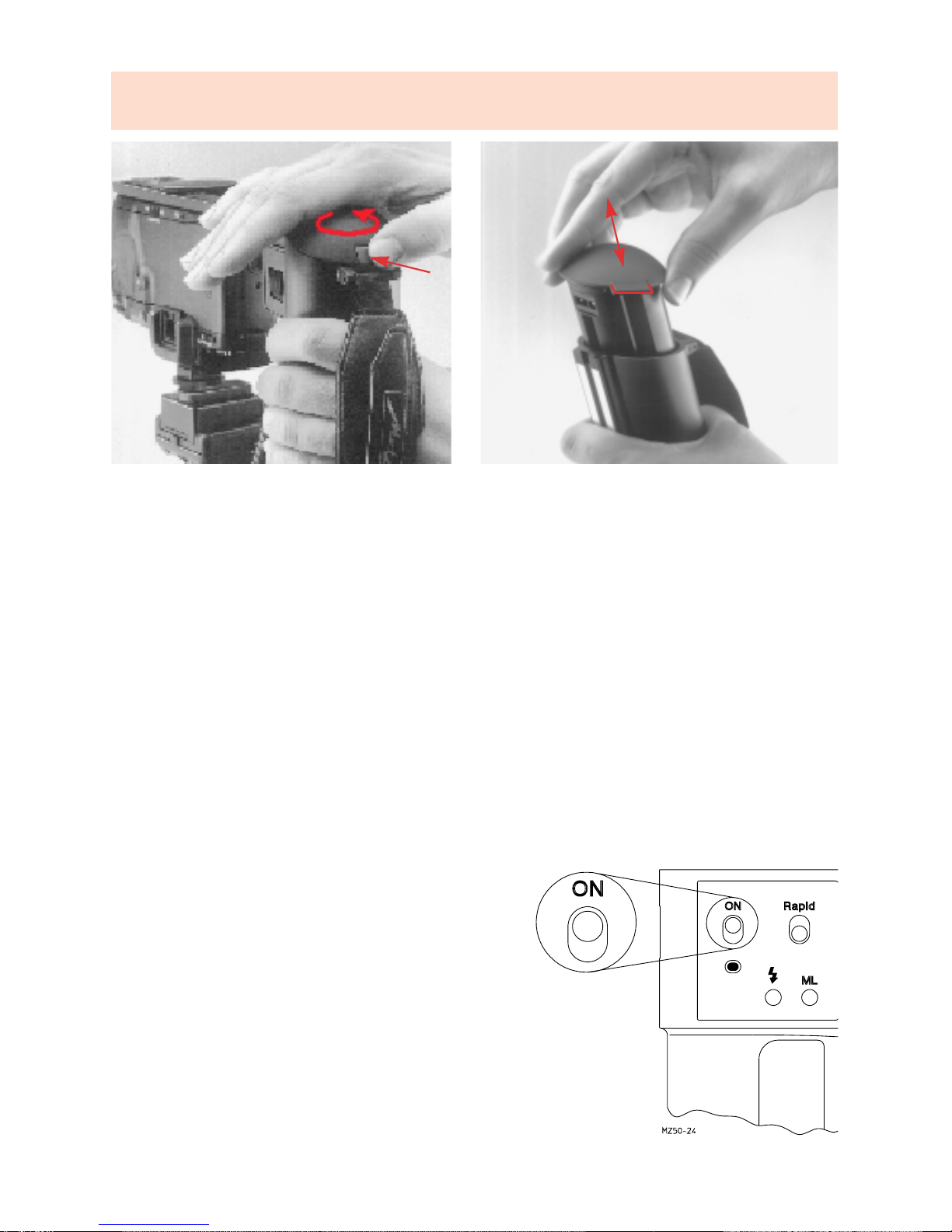

• Switch off the flashgun with the main switch (16).
• Press the unlocking catch (14) on the Nicad battery; turn the battery cover (10) by 45° anti-
clockwise until it becomes audibly disengaged at the 2nd lock-in position, and remove.
8
battery cover
☞
☞

2. Preparing the flashgun for use
Fig. 3: Unlocking and inserting the battery
• Connect the charger to the charging socket of the NiCad battery, and then plug into the mains.
- The charger's timer is switched on when the device is plugged into the mains.
- The red LED remains illuminated all the while the battery is being charged.
- After approx. 6 hours the charger is switched over to trickle charging.
- A flashing red LED (4 sec. "ON", 20 sec. "OFF") indicates that the battery is in trickle
charge mode and is ready for operation.
• Turn the battery cover (10) anti-clockwise until the 2nd lock-in position is reached before the
battery is returned to the handle.
• For insertion the battery’s charging socket must be inside the extension of the aluminium rail
of the handle.
• After insertion turn the battery cover clockwise and lock in position.
To identify an exhausted battery: Turn the battery cover clockwise until the stop point is
reached.
Toidentifyanewlychargedbattery:Turnthebattery coveranti-clockwiseuntilthestoppoint
is reached.
2.4 Switching the flashgun ON and OFF
The flashgun is switched on with the main switch
(16). The flashgun is permanently on in the ON
position, and the operating light (17) shines. Push
the main switch (16) to the lower position to switch
off.
9

3. TTL flash mode

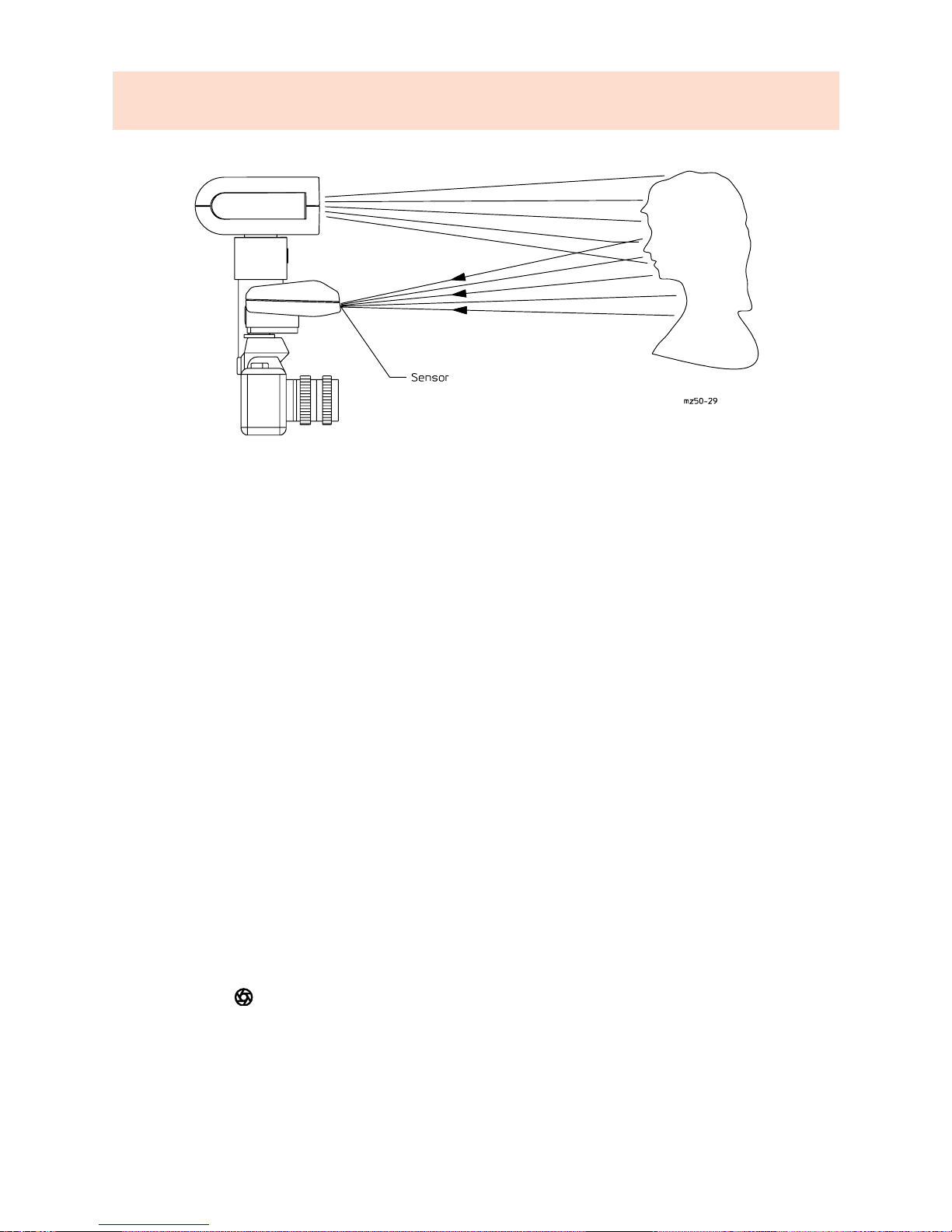

Fig. 4: Measuring method for TTL mode
Perfect flash exposures can be shot in a simple manner in the TTL mode.
The exposure readings in TTL mode are made by the sensor built into the camera (fig. 4). This
sensor measures the light reaching the film through the camera lens. As soon as the film has
been exposed by the correct amount of light an electronic control circuit within the camera
transmits a stop signal to the control unit, and the flash is instantly cut out.
The advantage of this flash mode is that all factors influencing the exposure of the film (filters,
change of aperture and focal length with zoom lenses, extensions for close-ups, etc.) are
automatically taken into account.
The mecablitz 50 MZ-5 offers two TTL flash modes: the TTL Mode and the TTL Easy Mode.
The TTL flash mode is only possible with cameras that feature this function. The
control unit must be fitted with a corresponding SCA adapter (see „SCA 3000
System“ instructions and SCA survey table) for this purpose.
A film must be loaded in the camera to test the TTL functions.
Exposure corrections may be necessary with pronounced differences in contrast,
for instance dark objects in snow (see ch. 14, p. 41).
3.1 TTL Easy flash mode (EM = Easy Mode)
This is the simplest way to operate the mecablitz in TTL flash mode. All buttons on the control
unit are locked, with the exception of the LCD light (27) and the manual firing button
(35).
In TTL Easy-Mode with the SCA 300 adapter, the zoom position is constantly adjusted to 28 mm to
ensure that the subject is always adequately illuminated.
In TTL Easy-Mode with the SCA 3000 adapter, the zoom setting is matched to the focal length of the
lens, and the distance range is indicated, provided that the camera supplies the zoom information.
10
☞
☞

3. TTL flash mode

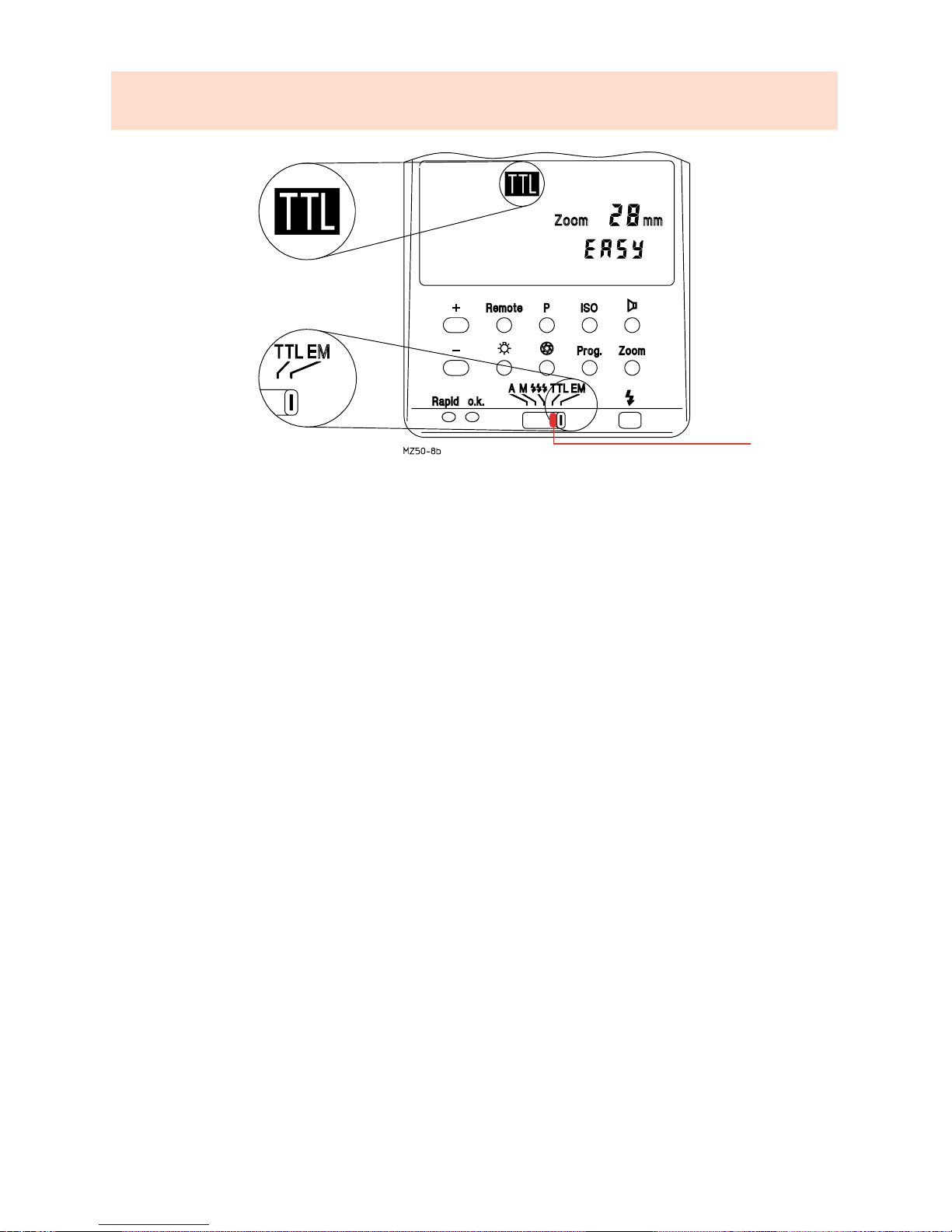

Fig. 5: Adjusting procedure for TTL Easy-Mode
☞We recommend the TTL Easy-Mode when using an SCA 300 adapter. Distance
indication in the LC display is not possible in this mode.
Adjusting procedure for TTL Easy-Mode:
• Adjust the camera according to the manufacturer’s operating instructions.
• Fit the control unit (2) to the corresponding SCA adapter, and mount on the camera.
• Switch on the flashgun with the main switch (16).
1Adjust the operating mode selector (28) to EM.
11
1

3. TTL flash mode

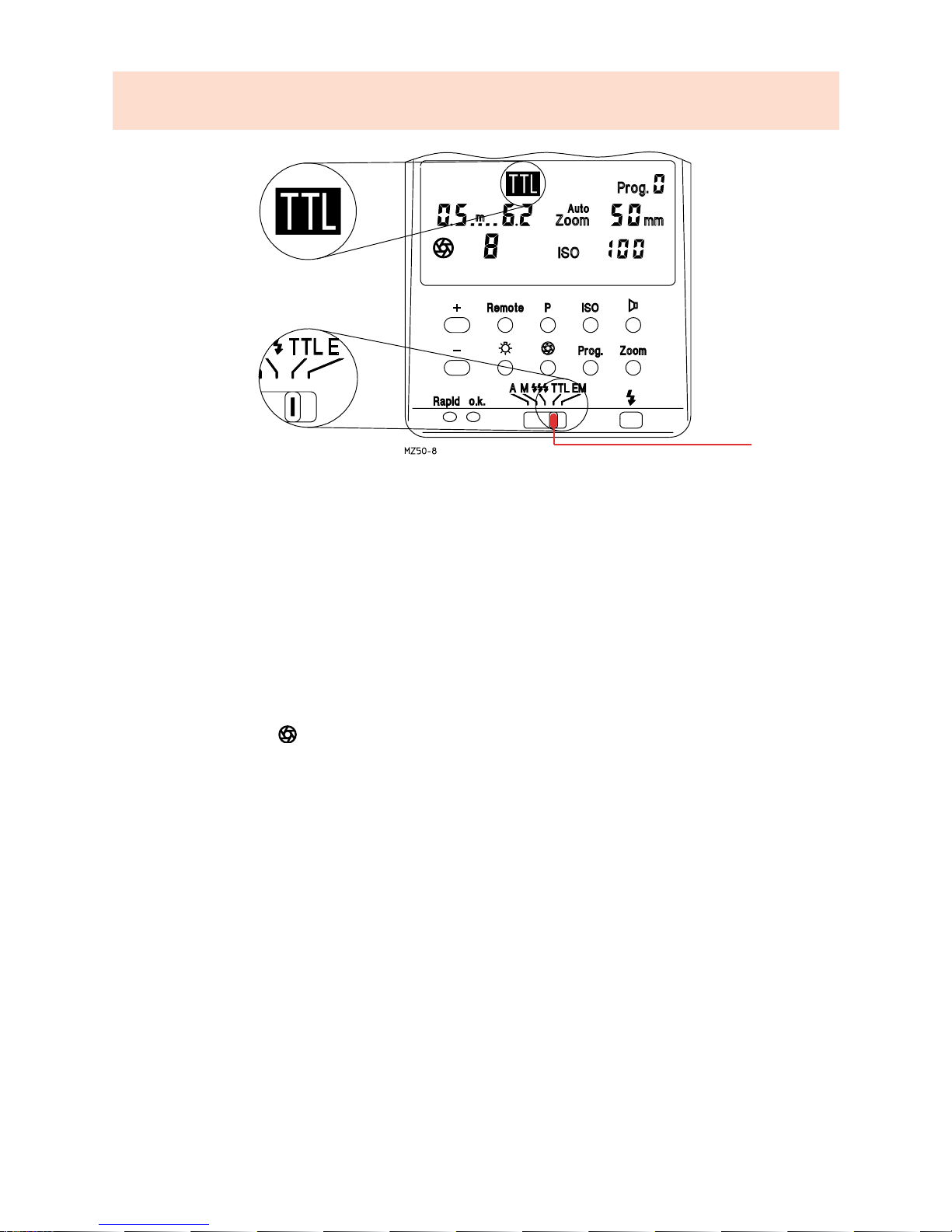

Fig. 6: Adjusting procedure for TTL flash mode
Adjusting procedure for TTL flash mode:
•Adjust the camera according to the manufacturer’s operating instructions.
•Fit the control unit to the corresponding SCA adapter, and mount on the camera.
•Switch on the flashgun with the main switch (16).
1Adjust the operating mode selector (28) to TTL.
• *Press the ISO button (30), and adjust the film speed with the +or -button (24).
• *Press the Zoom button (32), and adjust with the +or -button (24) the zoom value that was
selected for the camera’s lens.
• *Press the button (34), and use the +or -button (24) to adjust the aperture until the
subject is located in the middle third of the indicated distance range. Set the resulting
aperture also on the camera.
• If required press button P (29), and adjust the partial light output with the +or -button (24)
(for Winder Mode see ch. 8, p. 25). * Must be additionally adjusted on some cameras.
On some cameras the data for ISO and aperture are transferred to the control unit
by way of the SCA 3000 adapter and cannot be changed manually.
12
1
☞

Notes
13

4. Automatic flash mode
Fig. 7: Measuring procedure for automatic flash mode
In the automatic flash mode the sensor (4) of the control unit measures the light reflected from
the subject. The flash is cut off as soon as sufficient light has been emitted for a correct
exposure.
In this manner there is no need to calculate and adjust a new aperture when the distance is
changed, provided that the subject remains within the indicated automatic flash range.
The sensor (4) of the control unit must be directed at the subject, regardless of the direction at
which the main reflector (1) is pointing. The sensor has a measuring angle of approx. 25°, and
it only measures the light emitted by the attached flashgun.
Partial light output levels can also be adjusted in automatic flash mode (see ch. 9.1, p. 26).
Between six and twelve working apertures are available in the automatic flash mode,
depending upon the adjusted ISO film speed (Table 2 of the Technical Data).
Adjusting procedure for automatic exposure control:
•Adjust the camera according to the manufacturer’s operating instructions.
•Switch on the flashgun with the main switch (16).
1Adjust the operating mode selector (28) to A.
•*Press the ISO film speed button (30), and adjust the film speed with the +or -button (24).
•*Press the Zoom button (32), and adjust with the +or -button (24) the zoom value that
was selected for the camera’s lens.
•Press button (34), and use the +or -button (24) to adjust the aperture until the subject
is located in the middle third of the indicated distance range. Set the resulting aperture also
on the camera.
•If required press button P (29), and adjust the partial light output with the +or -button (24)
(see ch. 9, p. 26) * Must be additionally adjusted on some cameras.
14

4. Automatic flash mode
Fig. 8: Adjusting procedure for automatic flash mode
Some cameras automatically transmit the ISO, aperture and zoom values to the
control unit also in the auto flash mode if an SCA 3000 adapter is used. No
settings have to be adjusted on the control unit where this is the case.
The permissible distance range and the corresponding aperture appear on the LC display.
The subject should be located within the middle third of this distance range as
this gives the electronic control sufficient scope for compensation should this be
necessary.
There is a certain measure of overlap between the individual working apertures. As a result of
this overlap it is always possible to place the subject within the middle third of the range.
CAUTION with zoom lenses!
Due to their design they can cause a loss of light in the order of up to one f-stop.
Furthermore, the effective aperture can also vary, depending upon the adjusted
focal length. This must be compensated by manually correcting the aperture
setting on the control unit!
15
1
☞
☞
☞

5. Manual flash mode
Fig. 9: Shot with direct flash light
In this mode the flashgun will emit its full power, provided that partial light output has not been
adjusted.
Adaptation to the picture shooting situation is by setting the corresponding aperture on the
camera.
A single value for the flash-to-subject distance appears on the LC display while in manual flash
mode.
If the displayed value does not coincide with the actual distance, then the aperture and/or
partial light output level have to be changed accordingly (see ch. 9.2, p. 26).
The decisive points for partial light output are:
•The distance to the subject
•The required aperture
•The ISO film speed
•The zoom setting of the reflector
The fine scaling of the partial light output levels ensures that the flash-to-subject
distance can be adjusted in very small increments.
16
☞

5. Manual flash mode
Fig. 10: Adjusting procedure for manual flash mode
Adjusting procedure for the manual flash mode:
• Adjust the camera according to the manufacturer’s operating instructions.
• Switch on the flashgun with the main switch (16).
1Adjust the operating mode selector (28) to M.
• *Press the ISO button (30), and adjust the film speed with the +or -button (24).
• *Press the Zoom button (32), and adjust with the +or -button (24) the zoom value that
was selected for the camera’s lens.
2Press button (34)
3Change the aperture on the flashgun with the +or -button (24) so that the required
distance is indicated on the LC display. Adjust this aperture value also on the camera.
•If required, press button P (29), and adjust the partial light output with the +or -button
(24) (see ch. 9, p. 26).
Some cameras automatically transmit the aperture, ISO and zoom values if an SCA
3000 adapter is used. In such a case the aperture on the camera must be
continuously changed until the required distance is indicated on the LC display of
the control unit.
* Must be additionally adjusted on some cameras.
17
1
2
3
☞

6. Bounced flash

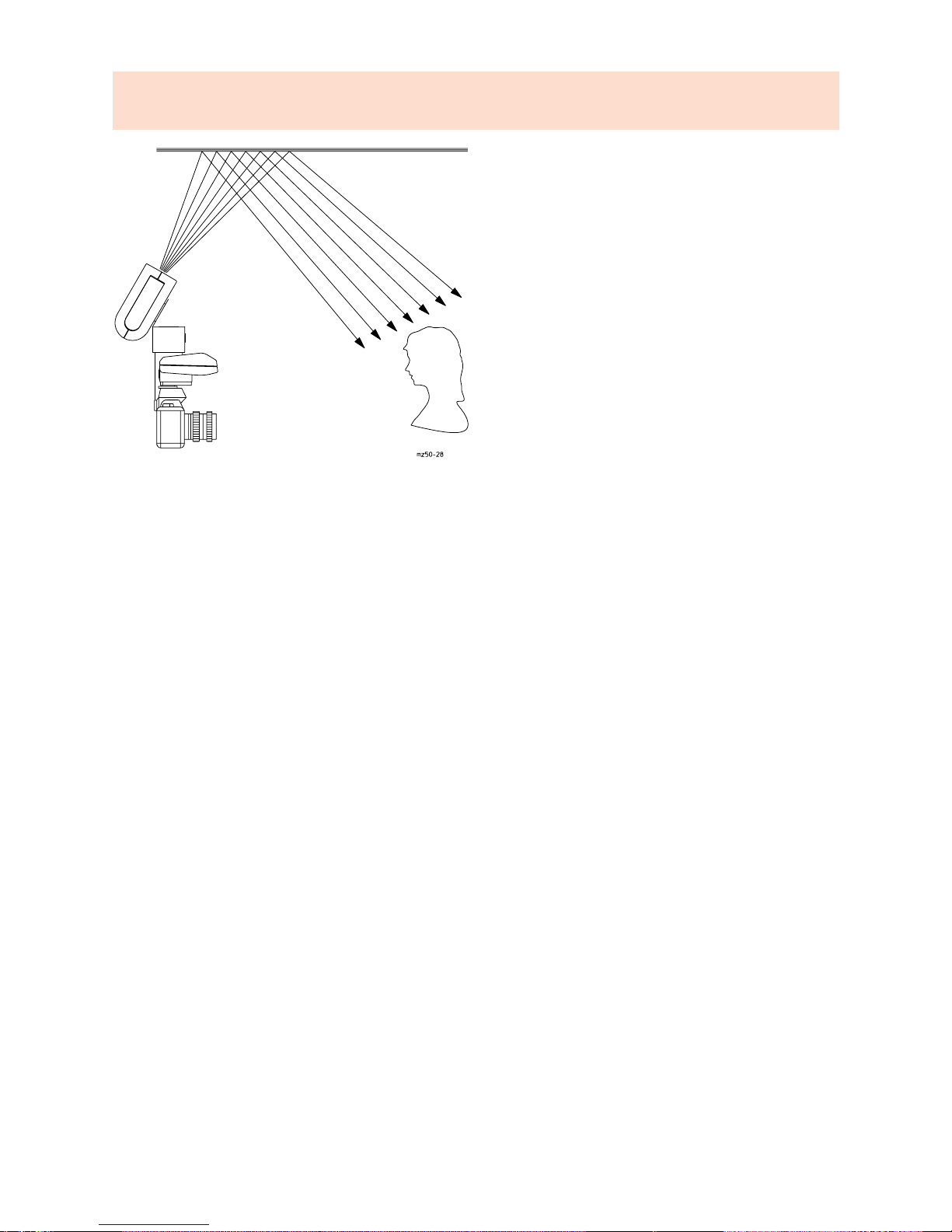

Fig. 11: Bounced flash (The photo was shot with the flash bounced off the right-hand wall)
Photos shot with full frontal flash are easily recognized by their harsh, dense shadows. This is
often associated with a sharp drop of light from the foreground to the background.
This phenomenon can be avoided with bounced flash because the diffused light will produce
a soft and uniform rendition of both the subject and the background. For this purpose the main
reflector(1)isturnedinsuchamannerthattheflashisbouncedoffasuitablereflectivesurface
(e.g. ceiling or walls of a room).
For this reason the reflector can be turned vertically and horizontally. The vertical lock-in
positions for bounced flash are:
• 60°, 75° and 90° (simply tilt the reflector to the required angle)
The head can be swivelled horizontally by 270°, and locks into position at 90° and 180°.
The distance values on the LC display disappear as soon as the reflector is tilted
upwards or turned horizontally. This is because the spatial conditions and degree
of reflection do not allow the specification of definite distances.
When swivelling the main reflector (1) it is essential to ensure that it is turned by a sufficiently
wide angle so that direct light can no longer fall on the subject. Therefore, always swivel the
reflector to at least the first lock-in position.
The diffused light bounced back from the reflective surfaces results in a soft illumination of the
subject.
Thereflectingsurface mustbewhite or haveaneutral colourandit must notbe structured (e.g.
wooden beams in the ceiling) as this could cast shadows. For colour effects just select
reflective surfaces in the required colour.
Use of the secondary reflector (11) is advantageous to avoid disturbing dense shadows with
bounced flash, for instance under the eyes and nose with portraits.
18
☞

6. Bounced flash
Fig. 12: Bouncing the flash with switched-on secondary reflector
6.1 Bounced flash with secondary reflector switched on
The secondary reflector (11) provides frontal fill-in light in increments of 1/4, 1/2 and 1 with
bounced flash.
The use of the secondary reflector is only expedient with bounced flash. The
secondary reflector will only flash when the main reflector has been turned or
tilted.
The secondary reflector (11) is switched on or off with switch (21). Symbols on the LC
display indicate that the secondary reflector (11) has been switched on (fig.12).
Whenthe secondaryreflector is activated, 90% of the lightwill beemitted bythe mainreflector
(1), and approx. 10% by the secondary reflector (11). The quoted percentages may vary
somewhat when flash with partial light output is adjusted, and the secondary reflector (11)
switched on. Light output can be reduced to 1/2 or 1/4 with switch (21) when the light output
of the secondary reflector (11) is too high.
6.2 Bounced flash in automatic and TTL flash modes
Itisadvisabletocheckpriortoexposurewhetherthelightissufficientfortheselectedaperture.
Please refer to ch. 13.2, p. 34, for the corresponding procedure.
6.3 Bounced flash in manual flash mode
The required camera aperture in the manual flash mode is best established with an exposure
meter. Observe the following rule of thumb if an exposure meter is not available:
guide number
Camera aperture = light distance x 2
to establish the guide value for the f-stop that can then be varied by +1 f-stop for the actual
exposure.
19
☞

7. Cordless remote control
20
50 MZ-5 50 MZ-5
50 MZ-5
Slave
Control unit
adj. to TTL SCA 300 D
only with
SCA 312/2AF
SCA 332/2AF
SCA 333/2AF
SCA 346/2AF
SCA 356
SCA 374/2AF
SCA 381/2AF
SCA 300 D
only with
SCA 312/2AF
SCA 332/2AF
SCA 333/2AF
SCA 346/2AF
SCA 356
SCA 374/2AF
SCA 381/2AF
SCA 300 D
only with
SCA 312/2AF
SCA 332/2AF
SCA 333/2AF
SCA 346/2AF
SCA 356
SCA 374/2AF
SCA 381/2AF
SCA 3_ _
50 MZ-5
Control unit
adj. to A Control unit
adj. to A
TTL remote control
Master flash (Controller)Slave
‘A’ remote control
Metz remote control
Remote control
Minolta remote control
50 MZ-5
Control unit
adj. to TTL
SCA 3_ _ _
SCA 3_ _
SCA 3_ _
Control unit
adj. to TTL
SCA 3_ _ _
40 MZ . .
adj. to TTL 40 MZ . .
adj. to TTL
40 MZ . .
adj. to TTL
SCA 3_ _ _
Minolta
flash Minolta
control unit
Minolta
camera
SCA 301
SCA 3080
50 MZ-5
Slave 40 MZ . .
adj. to TTL
SCA 3080 SCA 3301
50 MZ-5 40 MZ . .
adj. to TTL
SCA 3301
