ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions for Models EX20 / EX30 / EXB20/30 that should be followed
during installation and maintenance of the UPS batteries.
cThis equipment can be operated by any
individual, with no previous training;
cCAUTION: Risk of electric shock, even
with unit disconnected from AC power
source. Hazardous voltage still may be
present through operation from battery.
The battery supply should be disconnected
at the plus and minus terminals using the
quick disconnect connectors of the battery
when maintenance or service work inside
the UPS is necessary.
cThe UPS contains voltages which are
potentially hazardous. All repairs should
be performed by qualified service
personnel only;
cdo not attempt to power the UPS from
any receptacle other than a 2-pole 3-wire
grounded receptacle;
cdo not place Pulsar near water or in
environment of excessive humidity;
cdo not allow liquids or any foreign objects
to get inside Pulsar;
cdo not block air vents in the back of
Pulsar;
cdo not plug household appliances such as
hair dryers to Pulsar receptacles;
cdo not place Pulsar in direct sunlight or
close to heat-emitting source;
cCAUTION: do not dispose of battery or
batteries in a fire. The battery may explode;
cCAUTION: do not open or mutilate the
battery or batteries, released electrolyte is
harmful to the skin and eyes. It may be toxic;
cCAUTION: a battery can present a risk of
electric shock and high short circuit current.
The following precautions should be
observed when working with batteries:
vremove watches, rings or other metal
objects,
vuse tools with insulated handles,
vwear rubber gloves, boots and safety
glasses;
cplease dispose of the packaging in
accordance with the applicable legislation.
cthe AC power receptacle should be near
the equipment and easily accessible. To
isolate Pulsar from AC input, remove the
input power cord from the AC power
receptacle;
cif Pulsar is to be stored for a long time, it
is recommended to recharge the batteries
(by connecting AC power source to Pulsar,
switch "ON" or "OFF"), once a month for 24
hours to avoid a full batteries discharge;
cPulsar contains batteries that should be
disposed of or recycled in accordance with
local applicable laws;
cprior to installation, store Pulsar in a dry
location;
cstorage temperatures must be between
–4°F (-20°C) and +113°F (+45°C);
cservicing of batteries should be performed
or supervised by personnel knowledgeable
of batteries and the required precautions.
Keep unauthorized personnel away from
batteries;
cwhen replacing the batteries, use the
same number and the following type of
batteries:
vPulsar EX20: 8 x 12V - 6.5Ah,
vPulsar EX30 : 8 x 12V - 7.2Ah;
c~: alternating current supply symbol;

iv Pulsar EX : 51032278XT/AB MGE UPS SYSTEMS
ENGLISH
introduction
In critical situations, count on MGE UPS
SYSTEMS Pulsar EX20 and EX30
uninterruptible power supplies (UPS). Their
protection keeps your data intact and
accessible.
Pulsar EX20 and EX30 UPSs ensure top
quality power around the clock, and continue
operations during power failures. An
intelligent microprocessor detects any
operating anomalies of the UPS and triggers
an alarm if corrective action is necessary.
In addition to the high-technology aspect of
these UPSs, you can count on backup from
our staff, a team of specialists, around the
corner from you, throughout the world. It’s
no accident that MGE UPS SYSTEMS is the
world leader in UPS protection. The UPS
shall provide power factor correction to
prevent harmonic distorsions and current
created by non-linear critical loads from
polluting the incoming AC line.
UPS includes:
cbatteries,
cpower factor correction / battery charger,
cDC to DC converter,
cDC to AC Converter,
cbypass switch,
cinput/output filters.
The MGE Pulsar UPS is capable of
providing the following modes of operation:
cON LINE MODE which is the primary
mode of operation in which the critical load
is continuously supplied by the inverter and
protected from all forms of power line
disturbances:
ranging from atmospheric phenomena, to
nearby devices generating interference such
as elevators, photocopy machines and
machine tools, not to mention human errors,
like the accidental pulling out of power cords
or tripping of circuit breakers. The
consequences of these disturbances on
computer systems range from data losses to
hardware damage (power supplies, hard
disks).
Pulsar EX20 and EX30 are specially
designed to protect network servers and all
other interconnection devices that are
sensitive to electrical disturbances.
Pulsar EX20 and EX30 add fault-tolerance
to the utility supplying your sensitive
equipment.
Pulsar EX20 and EX30 are designed as
compact units and feature very quiet
operation. They can be installed under a
desk, and can also be installed in a rack
(see "options").
Pulsar EX20 and EX30 provide a stable
supply of clean power, long back-up time
during a utility outage (see table) and vast
information and control possibilities
according to the configuration selected.
Pulsar EX20 and EX30 On-Line technology
provides maximum protection and
availability of your workstations, server, and
network communication devices.
Pulsar EX20 and EX30 offer many functions
and characteristics designed to simplify
power management:
cautomatic battery test carried out
periodically. In the event of a fault, a LED
provides advance warning for battery
replacement;
cBYPASS MODE which is a default mode
in the event of an inverter failure or overload
in which the critical load is supplied AC
through EMI/RFI filter:
application of Pulsar EX20 and
EX30:
Network servers and interconnection
devices are very sensitive to electrical
disturbances of all types, including outages,
voltage sags, brownouts, spikes, etc. The
origins of the disturbances also vary,
critical
system
AC
IN
EMI
filter
power
factor
corrector
rectifier
charger
DC / DC
micro
control and
DC to AC
inverter
monitored
batteries
critical
system
AC
IN
EMI
filter
power
factor
corrector
rectifier
charger
DC / DC
micro
control and
DC to AC
inverter
monitored
batteries

MGE UPS SYSTEMS Pulsar EX : 51032278XT/AB v
cfront panel LEDs signal all types of faults
and alarms;
cBar graph continuously indicates the
battery charge level or the critical load
power level;
cPulsar EX20 and EX30 are environment
friendly: all components are recyclable and
an electronic power-saver device reduces
power consumption if the UPS is not active
for a period exceeding 5 minutes while on
battery back-up;
cEX Driver software provides rapid startup
of Pulsar EX20 and EX30 using the EX
Tuner configuration module. This module
adapts Pulsar EX20 and EX30 to user
preferences (battery test frequency, startup
and shutdown sequences, setting of battery
thresholds, etc.). Operation and monitoring
are ensured by the UPS Manager 3.1
module operating under Windows 3.1.
EX Driver connects to the RS 232 port on
the Pulsar EX20 and EX30 (see
"communication" section for further details);
cSolution-PacTM is a CD-ROM which
contains all the tools needed to supervise
your UPS.
options
crack installation kit: this kit is used to
install Pulsar EX20 and EX30 in a 19-inch
rack;
cUM Sensor environment measurement
unit: compatible with SNMP and UPS
Manager 2 Unix and OS/2, or Solution
PacTM, this unit measures the temperature
and the relative humidity in the room where
the Pulsar is installed. Eight relay contacts
are provided to transmit signals to an
administration platform, in the form of
voltage-free contacts to enable monitoring of
(fire alarm, climate control fault, intrusion,
etc.);
cbattery extension module: Pulsar
EXB20/30 battery extension modules
lengthen the battery time of the Pulsar
EX20/EX30 to meet your requirements;
cisolation transformer: input line cord
plugs into the Pulsar EX30 output
receptacle. Rating is 120V AC input, 208V/
240V AC 2.75 kVA output;
cmaintenance bypass switch: enables
the user to continue supplying ac power to
the load while performing routine or
emergency maintenance.
additional communications
options:
ccommunication cables: these cables are
used for the file-closing utilities offered by a
number of network operating systems. They
are available for Novell NetWare, Microsoft
Lan Manager and Windows NT, IBM Lan
Server, Artisoft LANtastic, Banyan Vines,
Apple System 7, IBM AS400 and many
others;
cUPS Manager 2 communication
software: this software can be used for
automatic file closing on one or more
servers, as well as for remote UPS
shutdown and interrogation of all Pulsar
EX20 and EX30 operating parameters. It is
available for Novell NetWare, Microsoft Lan
Manager, IBM Lan Server, the main Unix
systems on the market (SCO, AIX, HP/UX,
OSF 1, etc.) VAX UMS and many others;
cSNMP administration: Merlin Gerin has
the most complete offering for the
administration of a group of UPSs using the
SNMP protocol with different network-
connection modules (UM Link adaptor or
proxy UM Agent software), supervision
modules (dedicated software under
Windows UM View or application for NMS
platforms such as HP OpenView or Novell
NMS) and a file-closing module (UM Client).
The MGE UPS SYSTEMS offering complies
with RFC 1628 specifications (IETF) and
was certified by the InterWorking Labs
during the Test Summit in June 1994;
cSNMP card: this card, inserted into your
unit, makes your UPS SNMP-compatible in
any environment;
cstatus information card: this option
provides you with 5 voltage-free contacts: on
battery, on by-pass, low battery, load on
UPS.
Contact your dealer for further information
on these options.

vi Pulsar EX : 51032278XT/AB MGE UPS SYSTEMS
software supplied with
Pulsar EX20 and EX30
To meet the different operating
environments of your UPS, Pulsar EX
includes 2 MGE UPS SYSTEMS software
programs:
cEX-Driver software for Windows (on 3.5"
diskettes);
cSolution-PacTM network software (on CD-
ROM).
EX-Driver for Windows
EX Driver for Windows provides
communication with the UPS from a simple
Windows workstation. EX-Driver is
compatible with Windows 3.1x and Windows
95, for communication with the UPS via a
serial connection for various needs:
cpersonalization of the UPS operating
mode: the EX-Tuner utility, can be used to
change certain UPS operating parameters if
the standard factory settings are not ideal for
the operating conditions.
It is possible to modify the output voltage,
battery-test frequency, startup and shutdown
sequences, operation of automatic by-pass,
etc.;
cUPS monitoring from a Windows
workstation and system safety:
EX-Driver, UPS Manager 3 software, can
display the UPS status, warn the user if a
problem arises, and provide automatic
shutdown.
The many possibilities available include:
vsupervision of operating parameters
through a graphic interface (display of
battery charge level, remaining battery time
and UPS load level). These values can be
recorded periodically in a log file,
vmessages to the user in case of power
outage or UPS problem and recording of
events in a log file,
vduring long-term power outages,
automatic shutdown of the system and of
the UPS, followed by automatic restart of the
UPS (system reboot) on return of utility
power,
vPowerShareTM functions.
Solution-PacTM for networks and
multi-station systems
Novell Netware, Windows NT, OS/2 Lan
Server, SCO Unix, etc.)
Protection by UPS is only complete and
effective if combined with powerful software
functions which warn users and the operator
of any power supply problem, automate
system shutdown, supervise and remotely
control the UPSs. MGE UPS SYSTEMS
created Solution-PacTM for this purpose.
Solution-PacTM combines all these functions
in a single CD-ROM, usable in local or
remote mode (SNMP), and covering the
main network environments.
Solution-PacTM is the ideal solution for
protecting networks and multistation
systems.
Solution-PacTM on a single CD-ROM
contains everything needed to safeguard
one or more systems and to supervise one
or more UPSs from a local or remote station.
Solution-PacTM includes SNMP UM-Agent,
UM-Client system shutdown software, and
UM-Console supervision software.
Solution-PacTM is a powerful and upgradable
software tool which provides all the
supervision, control and safety functions
associated with a UPS:
vgraphic display of the UPS,
vremote control of the UPS and output
receptacles,
vuser alarm of problems,
vrecording of events in log files,
vautomatic system shutdown and restart,
vlocal or remote supervision of UPSs and
ancillary devices,
vtransmission of UPS information and
alarms to any SNMP supervisor.

Pulsar EX20 / EX30 / EXB20/30 presentation
présentation de Pulsar EX20 / EX30 / EXB20/30
presentación de Pulsar EX20 / EX30 / EXB20/30
general contents / sommaire général / sumario general
Pulsar presentation............................................................................................................................. 3
présentation de Pulsar
presentación de Pulsar
english....................................................................................................................................................................... 11
getting started / operation
français.................................................................................................................................................................... 19
mise en service / exploitation
español..................................................................................................................................................................... 27
puesta en servicio / explotación
Pulsar EX : 510322378T/AB
MGE UPS SYSTEMS 12
Pulsar EX : 51032278XT/ABMGE UPS SYSTEMS

3Pulsar EX : 51032278T/AB MGE UPS SYSTEMS 4Pulsar EX : 51032278T/AB MGE UPS SYSTEMS
Pulsar EX20/EX30 Pulsar EX20/EX30
front view / vue avant / vista delantera rear view / vue arrière / vista trasera
%
!
…
…
…
…
…
%
…
–
+
–
+
1a
1b
1f
2
3
1c
1d
1e
16
18
Pulsar EXB20/30
rear view / vue arrière / vista trasera
CIRCUIT
BREAKER
120Vdc/40A
19
23
Volt: 96Vdc == 20A
Volt: 96Vdc == 20A
22
20
21
solution-pac
17
CIRCUIT
BREAKER
30A/125V-T
INPUT
U-TALK
10
12
13
5
I max 15A
Vac OUT
SITE WIRING
FAULT
8
11
EXT. BATTERY
96V == 20A
Vac OUT
I max. 30A
FUSE
15A120V-T
FUSE
15A120V-T
FUSE
15A120V-T
10
6
7b
7a
7c
?
p
r
e
s
s
r
e
s
e
t
?
p
r
e
s
s
r
e
s
e
t
?
p
r
e
s
s
r
e
s
e
t
9
MGE UPS SYSTEMS
ATTN: CUSTOMER SUPPORT SERVICES
1660 SCENIC AVENUE
COSTAMESA, CA 92626
PLACE
STAMP
HERE
14

MGE UPS SYSTEMS Pulsar EX: E-51032278XT/AB 11
contents
getting started ..................................................................................................................12
location......................................................................................................................................12
preliminary checks ....................................................................................................................12
connections ...............................................................................................................................12
communication .......................................................................................................................... 13
operation .............................................................................................................................14
starting up with utility power present .........................................................................................14
starting up with out utility power ................................................................................................ 15
operation on battery ..................................................................................................................16
overload ....................................................................................................................................17
operating anomalies..................................................................................................................17

12 Pulsar EX: E-51032278XT/AB MGE UPS SYSTEMS
P
UT
I max 15A
Vac OUT
Vac OUT
I max. 30A
FUSE
15A 120V-T
FUSE
15A 120V-T
FUSE
15A 120V-T
7b
7a
?
p
r
e
s
s
r
e
s
e
t
?
p
r
e
s
s
r
e
s
e
t
?
p
r
e
s
s
r
e
s
e
t
8
to computer
loads
U
IT
ER
5
V-T
INPUT
5
I max 15A
15A
120V T
FUSE
15A 120V-T
FUSE
15A 120V-T
?
p
r
e
s
s
r
e
s
e
t
?
p
r
e
s
s
r
e
s
e
t
utility power
receptacle
getting started
location
cobserve the safety rules indicated at the
beginning of this document.
preliminary checks
ccheck that the "on/off" button " " on the
front is not pushed in;
ccheck that rating shown on the rating label
corresponds to the input voltage
specification and power requirement of the
load.
connections
cconnect the AC input cord to the utility
power outlet.
cconnection of the Pulsar EXB20/30
battery extension module (optional):
vcheck that the button "on/off" " " on the
front of the Pulsar EX20/EX30 is not pushed
in,
vdisconnect the input connection cord,
vflip the circuit-breaker of the battery unit to
the right (position "O"),
vconnect the battery connection cord to the
DC connector of the battery module and
connect to the Pulsar EX20/EX30,
vif the installation has 2 battery modules,
connect the second cord to the DC
connector of the second module and to the
first module,
vthe use of connectors is strictly limited to
connecting the battery modules to the
Pulsar EX20/EX30. Any other connection to
these connectors is prohibited and risks
damaging the battery, not covered by
warranty,
vto start, flip the battery circuit-breaker to
the left (position "I"),
vif your installation is operated with MGE
UPS SYSTEMS software, update your
battery configuration with EX Tuner.
cconnect the computer loads to output
sockets 7a or 7b .
Note 1: following connection, the battery
automatically charges, whenever plugged in.
Note 2: the batteries will provide full back-up
time after approximatively 8 hours of
recharge time.
Note 3: if site wiring fault LED 8is lit and
buzzer sounds, line/neutral connections are
reversed.

MGE UPS SYSTEMS Pulsar EX: E-51032278XT/AB 13
communication
cthe U-Talk communication port, at the rear
of the Pulsar, delivers information in the
form of an RS232 series link supported by
the communication protocol exclusive to
MGE UPS SYSTEMS.
The Solution-PacTM programs use the data
made available by this protocol.
option 1

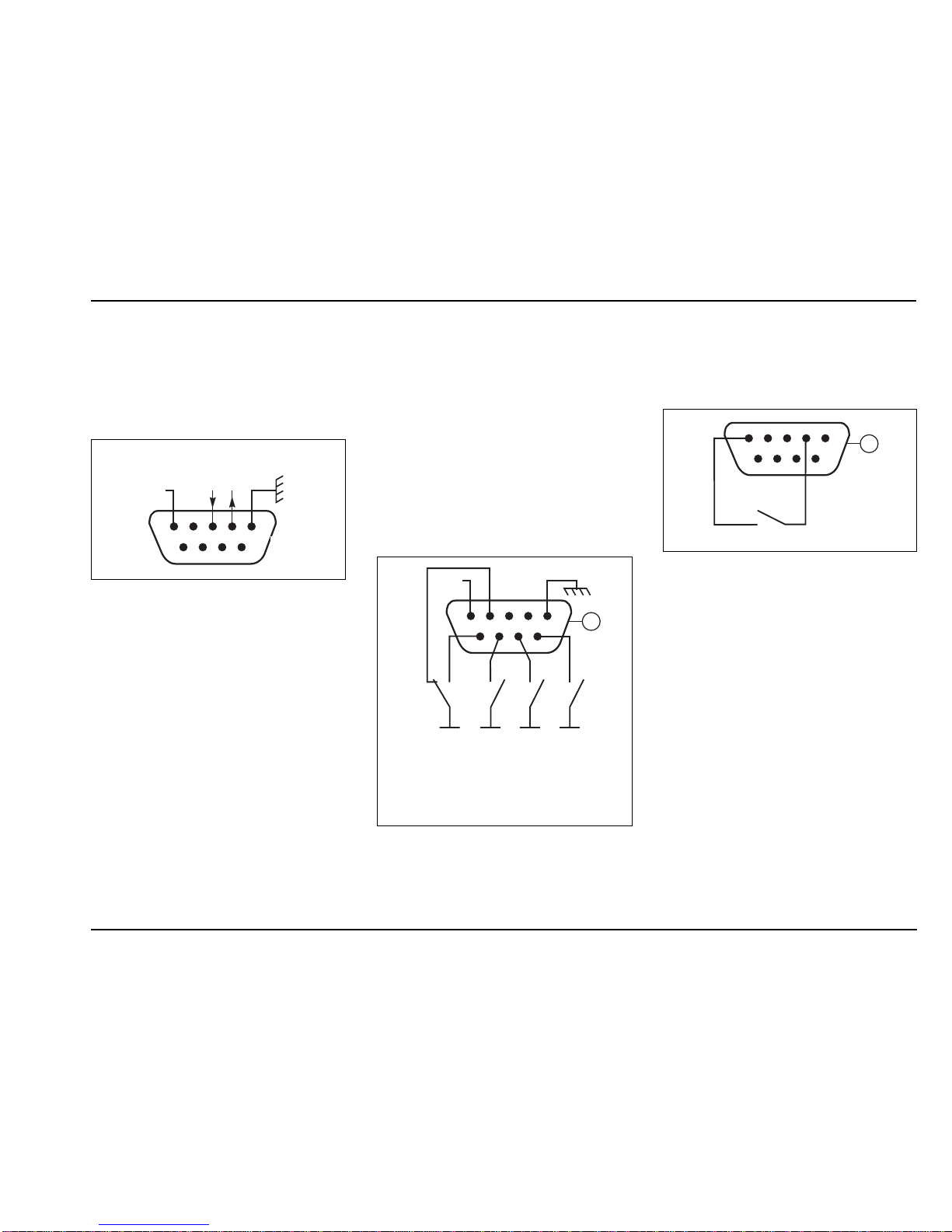

cstatus information card: after the card is
installed in the rear of the Pulsar,
communication port transmits the status
information on a SUB-D 9-pin female
connector using the following pinouts:
1- ground,
2- remote power off,
4- normal operation,
5- common,
6- operation on utility power,
7- low battery warning,
8- load supplied by UPS,
9- operation on battery.
With the EX Driver software program you
can set up Pulsar EX to suit your user
conditions (EX Tuner), supervise your UPS
and safeguard your system (UPS Manager
3.1). To install EX Driver, connect the serial
cable supplied to COM1 to COM4 (set up by
EX Tuner) series port of your computer
equipped with Windows 3.1 on the one end,
and to the serial Pulsar EX connector on the
other end. Insert the disk and type A:\Install.
Follow the installation instructions on the
screen. You may then use 2 software
programs :
vEX Tuner to set up Pulsar EX,
vUPS Manager 3.1 to supervise and
safeguard your system.
11
54321
9876
0V RD TD
standard port
12
54321
9876
0V
0V
n.o.
n.c.
0V
n.o.
0V
n.o.
0V
n.o.
Relay breaking capacity:
Vmax = 25V DC
Imax = 10mA
n.o. : normally open,
n.c. : normally closed.
Note for remote power off information:
Remove first J1 jumper on the status
information board, then link your remote
power off switch S1 between pins 2 and 5.
Follow instructions from user's manual of the
optional board for installation.
cswitch ON: normal operation,
cswitch OFF: unit stops immediatly.
12
54321
9876
S1
option 2
cSNMP card: after the card is installed in
the rear of the Pulsar, the communication
port transmits information supported by the
SNMP protocol on an RJ45 or BNC
connector.
Contact your sales agent for further details.

14 Pulsar EX: E-51032278XT/AB MGE UPS SYSTEMS
operation

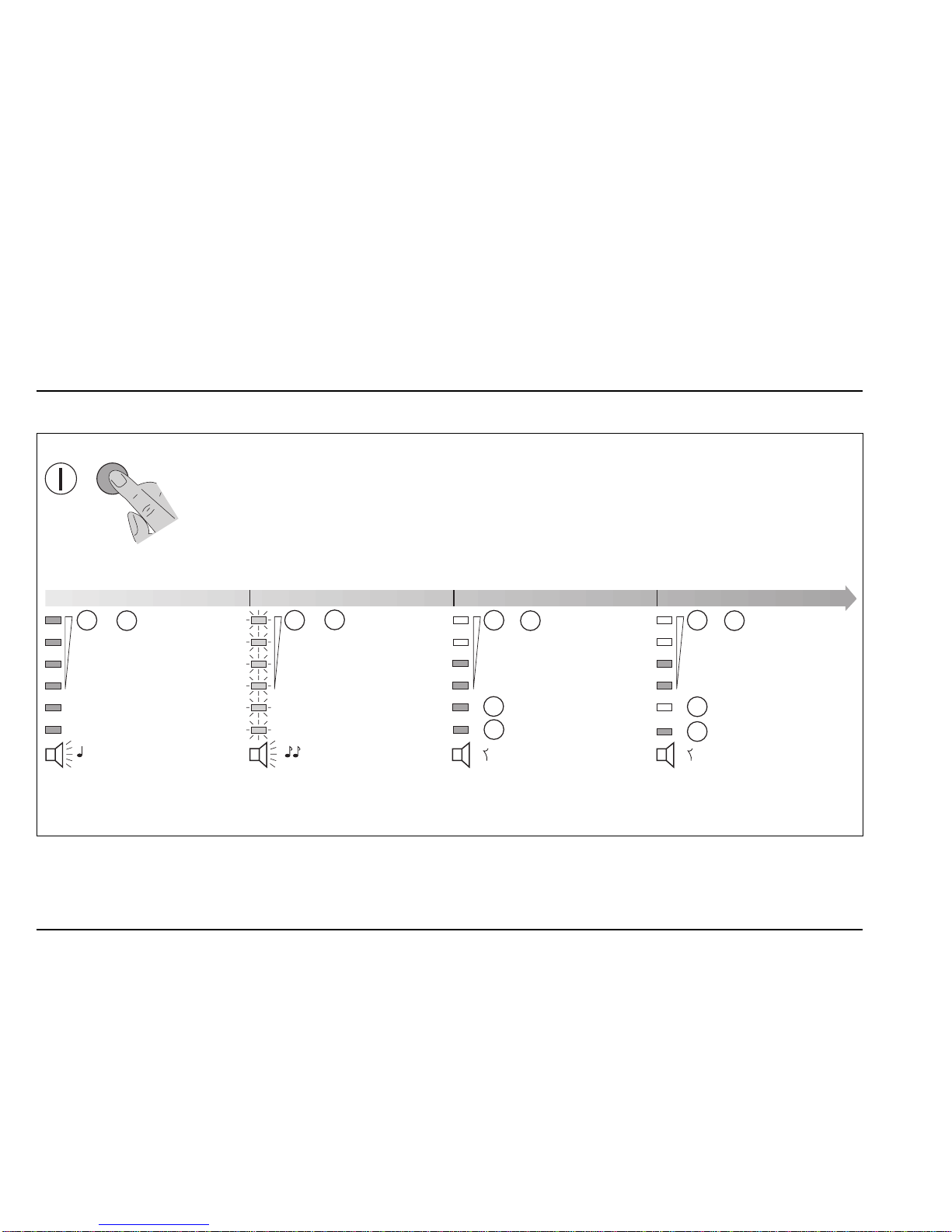

starting up with utility power present
17 s7 s5 s0 s
several beeps
1a to 1f on
UPS is on utility power
1 s beep
output off output off
normal operation
indicator lights testpress button "on/off" :
automatic sequence:
your load is supported
by the battery
1a to 1f flashing
device and battery test
indicating the
remaining battery
time percentage
(here 50%)
1f
on
1a
to
1d
1f
on
indicating the
recharge
percentage of the
battery (here 50%)
silence
1e 1e
off
1a 1d
to
on
silence

MGE UPS SYSTEMS Pulsar EX: E-51032278XT/AB 15

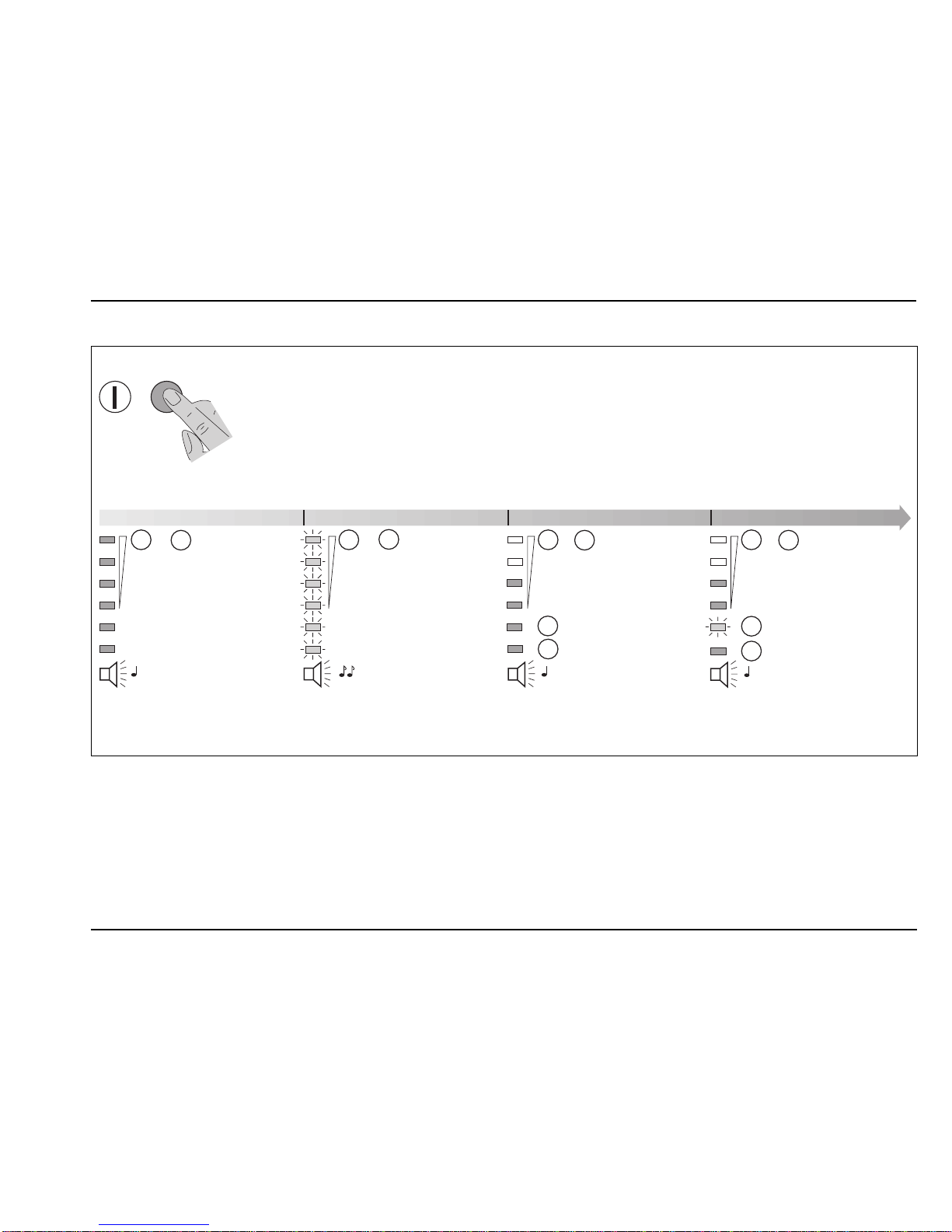

starting up with out utility power
17 s7 s5 s0 s
several beeps
1a to 1f on
1 s beep
output off output off
normal operation on battery
indicator lights testpress "on/off" button:
automatic sequence:
your load is supported
by the battery
1a to 1f flashing
UPS is on utility power
device and battery test
indicating the
remaining battery
time percentage
(here 50%)
1f
on
1a
to
1d
1f
on
1 beep every 10 s
1e 1e
flashing
1a 1d
to
on
3 s beep
indicating the
remaining autonomy
percentage
(here 50%)

16 Pulsar EX: E-51032278XT/AB MGE UPS SYSTEMS
operation on battery
no utility power
1a to 1d indicating the battery
recharge percentage: here,
between 12 and 25%
1e indifferent
1f on
silence
your load is supplied by the utility power
(on line)
1a to 1d indicating the load charge
percentage: here 50%
1e off
1f on
silence
At whatever point the utility power
returns, Pulsar switches to normal
operation:
return of utility power load charge percentage
Note 1:
The "function" button is to deactivate or
activate the audio warning device when
operating on battery, or when site wiring
fault occured.
Note 2:
The "function" button allows you to force a
transfer on bypass (push three times within
5 seconds) and to come back on normal
operation (push again three times within 5
seconds).
If utility power is present, hold alarm
silence button in:
x + ε mn
x mn0 mn
Pulsar switches off
automatically
warning alarm at low
battery
indicating the
remaining battery
time: here, between
75 and 87%
to
silence
1a 1c 1a 1f
flashing
1d
1f
1a 1d
1e
1f
flashing
1e
1 beep every 10 s
your load is supported
by the battery
to off
you have less than 12% battery time
remaining: power down your load, Pulsar
will soon switch off automatically
UPS output "off"
to off
1 beep every 3 s
break in utility power
on
flashing
on

MGE UPS SYSTEMS Pulsar EX: E-51032278XT/AB 17
overload
utility power present
1a flashing
1d flashing
1e off
1f on
1 beep every second
automatic load transfer to bypass
operating anomalies
device fault
vv
vv
vautomatic load transfer to bypass,
vv
vv
vswitch off Pulsar (release "on/off" button),
disconnect from the wall socket (check input
cord), and check that Pulsar has not short-
circuited (disconnect all loads),
vv
vv
vif necessary, change one of the fuses 7c ,
vv
vv
vre-start Pulsar.
1b flashing
1d flashing
1e off
1f on
1 beep every second
battery fault
A battery test is carried out while Pulsar, is in
start-up mode, then automatically every 7
days (interval times adjustable using EX
Driver). If a battery fault is detected, the
following occurs:
recharge your battery for 8 hours.
1c flashing
1e off
1f on
1 beep every second
operation on bypass
see "overload" and "device fault" section
Note:
This operating mode provides temporary
inverter fault tolerance.
1a and 1b indifferents
1d flashing
1e off
1f on
1 beep every second
no utility power present
1a flashing
1e flashing
1f on
1 beep every second
Pulsar switches off automatically after a
length of time which depends on the level
of overload.
Note: overload occurs if the load
consumption is greater than the rated power
of Pulsar.
To acknowledge the fault, release the "on/
off" button, temporarily disconnected Pulsar
from the wall socket (check input cord),
disconnect loads and re-start Pulsar.
…
1a to 1f off
continuous beep
after the start-up sequence, if the audio
warning device sounds continuously,
recharge your battery for 8 hours.
Note: if the previous symptoms persist,
contact technical support.
battery low

18 Pulsar EX: E-51032278XT/AB MGE UPS SYSTEMS
