Mi Swaco MONGOOSE PRO User manual

9092F02001AENG (D)
Publication Date: 6 JUL 2018
MONGOOSE PRO
Shale Shaker
Field Installation and Operation Manual
For Assemblies: 9675300-XXAD, 9675320-XXAD, 9675360-XXAD, 9675365-XXAD, 9675370-XXAD,
9675375-XXAD, 9675385-XXAD, 9675400-XXAD, 9675410-XXAD, 9675450-XXAD, 9675460-XXAD,
9675480-XXAD, 9675500-XXAD, 9675510-XXAD, 9675520-XXAD, 9675530-XXAD, 9675680-XXAD,
9675770-XXAD, 9675980-XXAD, 9675990-XXAD
For Configurations Certified to UL, ATEX, or IECEx Specifications

DOCUMENT CONTROL AND REVISION DETAILS
MONGOOSE PRO, Shale Shaker
Field Installation and Operation Manual 9092F02001AENG (D)
Document Owner: ESVE Engineering
Approved For Release:
7/3/2018
X
Jimmy Marshall
Engineering Group Manager
Signed by: James Marshall 505340
Version: (D)
Description: Revision
Location of Change
Description of Change
Spare Parts
Black Trichromate hardware changed to Xylan. Motor torque specification
changed

M‑I SWACO MONGOOSE PRO Shale Shaker
iii Field Installation and Operation Manual 9092F02001AENG (D) iii
TABLE OF CONTENTS
1. INTRODUCTION...................................................................................................................................................................1
2. HEALTH SAFETY AND ENVIRONMENT (HSE) ..............................................................................................................1
2.1 Summary ........................................................................................................................................................................1
2.2 Personnel Health And Safety..........................................................................................................................................2
2.3 Equipment Safety ...........................................................................................................................................................2
3. Personnel REQUIREMENTS..................................................................................................................................................2
4. EQUIPMENT USE..................................................................................................................................................................2
4.1 Restrictions Of Use.........................................................................................................................................................2
4.1.1 Warranty...............................................................................................................................................................2
5. EQUIPMENT FUNCTION.....................................................................................................................................................3
5.1 Identification of Main Components................................................................................................................................3
5.2 Variations Among MONGOOSE PRO Configurations ................................................................................................4
6. SPECIFICATIONS .................................................................................................................................................................8
6.1 General Specifications....................................................................................................................................................8
6.1.1 Unit Weights ........................................................................................................................................................8
6.1.2 Unit Dimensions...................................................................................................................................................8
6.2 Performance....................................................................................................................................................................9
6.2.1 Noise Data............................................................................................................................................................9
6.3 Consumption Requirements ...........................................................................................................................................9
7. HANDLING AND TRANSPORTING ...................................................................................................................................9

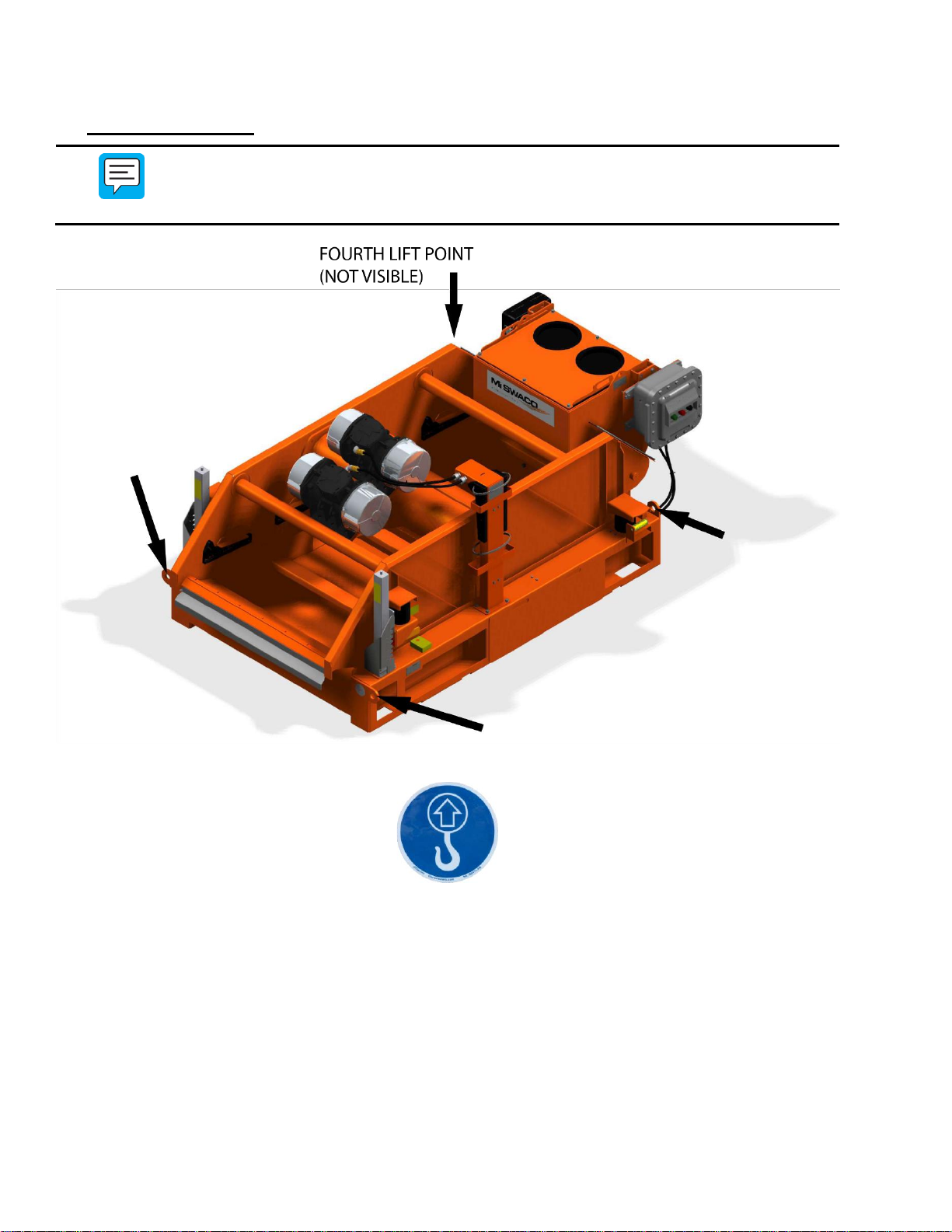

7.1 Lifting & Handling.......................................................................................................................................................10
8. PREPARING RIG SITE........................................................................................................................................................12
9. UNPACKING AND INSPECTING......................................................................................................................................12
9.1 Unloading.....................................................................................................................................................................12
9.1.1 Preferred Unloading Method..............................................................................................................................12
9.1.2 Alternate Unloading Procedure..........................................................................................................................13
9.2 Placing Equipment For Operation ................................................................................................................................13
9.3 Removing Packaging Material .....................................................................................................................................14
9.4 Inspecting Equipment...................................................................................................................................................14

M‑I SWACO MONGOOSE PRO Shale Shaker
iv Field Installation and Operation Manual 9092F02001AENG (D) iv
10. INSTALLING / RIG-UP .....................................................................................................................................................14
10.1 Connecting Equipment ...............................................................................................................................................14
10.1.1 Connecting Vent Hood .....................................................................................................................................14
10.1.2 Completing Fluid Piping Connections..............................................................................................................14
10.1.3 Connecting Rig Power......................................................................................................................................15
10.2 Removing Shipping Brackets .....................................................................................................................................19
11. PREPARING UNIT FOR OPERATIONS ..........................................................................................................................20
11.1 Confirming Motor Weight Rotation ...........................................................................................................................20
12. STARTING EQUIPMENT..................................................................................................................................................23
12.1 Pre-Start Checklist......................................................................................................................................................23
12.2 Starting Sequence .......................................................................................................................................................24
13. OPERATING EQUIPMENT...............................................................................................................................................24
13.1 Adjustable Parameters During Normal Operating Conditions....................................................................................24
13.1.1 Screen Selection ...............................................................................................................................................24
13.1.2 Adjusting Flow Rate.........................................................................................................................................24
13.1.3 Adjusting Basket (Deck) Angle........................................................................................................................25
13.1.4 Adjusting Shaker Speed....................................................................................................................................26
13.2 Operating Hazards ......................................................................................................................................................27
13.2.1 Acting in Emergency Situations .......................................................................................................................27
14. STOPPING / SHUTDOWN.................................................................................................................................................28
14.1 Controlled Shutdown of the Equipment for Routine Maintenance.............................................................................28
15. MAINTAINING EQUIPMENT ..........................................................................................................................................29
15.1 Safety Related Maintenance Procedures.....................................................................................................................29
15.2 Preventive Maintenance Schedule ..............................................................................................................................30
15.3 Handling Screens........................................................................................................................................................31
15.3.1 Removing Screens ............................................................................................................................................31
15.3.2 Replacing Screens.............................................................................................................................................32
15.3.3 Washing Screens...............................................................................................................................................34
15.3.4 Storing Screens.................................................................................................................................................34
15.4 Maintaining Motors ....................................................................................................................................................35
15.4.1 Lubricating Motor Bearings .............................................................................................................................35
15.4.2 Applying Torque to Motor Bolts ......................................................................................................................36
15.4.3 Electrical Connections (Isolators).....................................................................................................................36
15.5 Maintaining Isolation Springs.....................................................................................................................................37

M‑I SWACO MONGOOSE PRO Shale Shaker
v Field Installation and Operation Manual 9092F02001AENG (D) v
15.5.1 Inspecting Springs............................................................................................................................................37
15.6 Maintaining Deck Adjustment Jack............................................................................................................................38
15.6.1 Greasing Deck Adjustment Jack ......................................................................................................................38
15.7 Maintaining Screen Gaskets .......................................................................................................................................38
15.7.1 Removing Screen Gaskets................................................................................................................................38
15.7.2 Replacing Grommets........................................................................................................................................39
15.7.3 Replacing Screen Gaskets ................................................................................................................................39
16. Shaker Wash Down Procedures...........................................................................................................................................40
16.1 Washing During Normal Conditions..........................................................................................................................40
16.2 Washing After Circulation of Completion Fluids.......................................................................................................40
17. TROUBLESHOOTING ......................................................................................................................................................41
17.1 Troubleshooting Table................................................................................................................................................41
17.2 Electrical Troubleshooting Table ...............................................................................................................................43
18. PRESERVATION AND STORAGE ..................................................................................................................................44
18.1 Storage of Non-Commissioned Equipment................................................................................................................44
18.2 Storage of Commissioned Equipment ........................................................................................................................44
19. RIG-DOWN / PREPARING EQUIPMENT FOR RELOCATION ....................................................................................45
20. PARTS DRAWINGS AND LISTS.....................................................................................................................................46
20.1 Assemblies, Sub-Assemblies, Spare Parts Lists, Additional Hardware......................................................................46
20.1.1 Rig Critical Spares (1 Year) .............................................................................................................................46
20.1.2 MONGOOSE PRO Motor Kits.......................................................................................................................54
21. DIAGRAMS AND SCHEMATICS....................................................................................................................................56
21.1 Wiring Diagram, Electrical Schematics .....................................................................................................................56
21.1.1 Cable Block Diagram .......................................................................................................................................59
21.2 General Assembly Drawing........................................................................................................................................60
21.3 Mud Flow Diagram ....................................................................................................................................................62
21.4 Mechanical Diagrams.................................................................................................................................................63
21.4.1 Piping and Instrumentation Diagram................................................................................................................63

M‑I SWACO MONGOOSE PRO Shale Shaker
vi Field Installation and Operation Manual 9092F02001AENG (D) vi
ABOUT THIS MANUAL
As equipment is updated over time, changes to supporting documents may occur in the form of simple revisions
or development of completely new documents.
Document version information is indicated on the front cover in parenthesis with the document part number. This
part number and revision is duplicated on all printed pages. The initial release of a document is represented by
double dashes (--) while subsequent revisions will be represented by sequential letters (A) (B) (C) etc.
To make sure that the document you are using is still active and that it has not been superseded by a more recent
version, contact your local M‑I SWACO representative. They can check the document distribution system to
verify the document and version you have.
HOW TO USE THIS MANUAL
This manual is to be used by anyone installing, operating, repairing, or maintaining the MONGOOSE PRO Shale
Shaker manufactured by M-I SWACO.
This manual is organized in paragraphs of technical information. To easily find specific information refer to the
table of contents found at the front of this manual or the index found at the back of this manual.
This manual covers a variety of equipment configurations, therefore the illustrations used may not exactly match
the configuration you have.
Illustrated parts breakdowns, diagrams, and schematics applicable to the equipment and tasks can be found at the
back of this manual.
While every effort has been made to present accurate information in this manual, M‑I SWACO will not be held
liable for any errors or consequences resulting from the use of this information.

M‑I SWACO MONGOOSE PRO Shale Shaker
1 Field Installation and Operation Manual 9092F02001AENG (D) 1
1. INTRODUCTION
The MONGOOSE PRO Shale Shaker is designed to provide primary solids removal from both oil-based mud
(OBM) and water-based mud (WBM) during drilling operations. The MONGOOSE PRO basket holds four
pretensioned composite wire mesh screens. The MONGOOSE PRO deck adjustment system allows flexible
control of fluid pool depth and beach length in a variety of drilling conditions.
The MONGOOSE PRO is equipped with two explosion-proof vibratory motors that produce a dual motion
system. The Normal (Efficiency) mode is a progressive elliptical motion used during normal drilling conditions to
maximize both screen life and cuttings retention time. The motor output for this mode is 6.5Gs. The Capacity
mode is a balanced elliptical motion used during fluid surges and heavy solids loading. The motor output is 7.5Gs
when operating in Capacity mode.
2. HEALTH SAFETY AND ENVIRONMENT (HSE)
2.1 Summary
Equipment manufactured by M‑I SWACO is typically installed and operated where hazardous conditions are
likely to be present. Be sure to read and understand all HSE information contained in this manual before
installing, operating or maintaining the MONGOOSE PRO.
Be sure to review any additional HSE information from local or national codes for the location where the
equipment is being used as well as any job site specific regulations that must be followed.
The following explains the different type of advisories that may be found in this manual.
WARNING
THIS ADVISORY DRAWS ATTENTION TO ACTIONS THAT COULD RESULT IN
PERSONAL INJURY.
CAUTION
THIS ADVISORY DRAWS ATTENTION TO ACTIONS THAT COULD RESULT IN
EQUIPMENT DAMAGE.
NOTE
THIS ADVISORY GENERALLY PROVIDES RELEVANT INFORMATION TO HELP THE
READER UNDERSTAND THE HIGHER LEVEL CONTEXT OF A SPECIFIC TASK.
TIP
THIS ADVISORY OFFERS A SUGGESTION OR RECOMMENDATION THAT COULD
MAKE A TASK EASIER OR MORE CONVENIENT.

M‑I SWACO MONGOOSE PRO Shale Shaker
2 Field Installation and Operation Manual 9092F02001AENG (D) 2
2.2 Personnel Health And Safety
All personnel working on, or around, any M‑I SWACO equipment must be familiar with, and wear, the required
Personal Protective Equipment (PPE) appropriate for the task they are performing.
The PPE items listed below are required for any task, be sure to check local and national codes as well as any job
site or task specific regulations that may require you to use additional PPE.
•Approved hard hat.
•Approved safety footwear.
•Approved safety glasses with side shields and / or approved full face shield if appropriate.
•Approved gloves appropriate for the task being performed.
•Approved outer garments appropriate for the task being performed.
2.3 Equipment Safety
Before installing or maintaining any equipment, be sure to lock out and tag all sources of electrical, pneumatic or
hydraulic power connected to it.
Lock out and tag any feed pumps or accessory equipment connected to the Shale Shaker. Be sure to isolate and
tag any inlet piping that could deliver mud or other materials into the equipment during installation or
maintenance.
3. PERSONNEL REQUIREMENTS
Shale Shaker operators must read and understand everything covered in this documentation prior to operating
equipment. All personnel performing installation or operation procedures on this equipment should be trained on
rig safety, operations, and maintenance for this equipment. Consult rig site management prior to operating the
Shale Shaker, as individual locations may have specific training requirements for operators.
CAUTION
READ THE FOLLOWING PROCEDURES BEFORE INSTALLING OR PERFORMING
MAINTENANCE ON MONGOOSE PRO SHALE SHAKER EQUIPMENT TO AVOID
INJURIES TO PERSONNEL OR DAMAGE TO EQUIPMENT.
4. EQUIPMENT USE
The MONGOOSE PRO Shale Shaker is designed to provide primary solids removal from both oil-based
mud (OBM) and water-based mud (WBM) during drilling operations. Fluid from the wellbore is pumped up for
processing. Depending on rig site conditions, this fluid can be processed before it reaches the Shale Shaker or
stored in a tank. From the holding tank, fluid is pumped into a number of Shale Shakers to separate waste solids
from viable drilling solution. Dried solids are collected and hauled away as waste, and the processed liquid is
either routed to another storage tank for evaluation or pumped directly back into the wellbore.
4.1 Restrictions Of Use
4.1.1 Warranty
Refer to your purchase/sales agreement for warranty information specific to your unit.
In general, the warranty will be void if the unit is damaged due to intentional or accidental mishandling, improper
preservation and storage, failure to follow recommended installation, operation and maintenance instructions or
using the unit in a manner that deviates from the designed and intended purpose.

M‑I SWACO MONGOOSE PRO Shale Shaker
3 Field Installation and Operation Manual 9092F02001AENG (D) 3
5. EQUIPMENT FUNCTION
The MONGOOSE PRO Shale Shaker has a screen deck made of four pretensioned composite wire mesh screens.
Each Shale Shaker screen is secured to the basket with two screen wedges. An optional stainless steel vibratory
vent hood upgrade is available for jobs that require fume extraction. The Shale Shaker deck adjustment system
allows flexible control of fluid pool depth and beach length in a variety of drilling conditions.
The Shale Shaker is equipped with two explosion-proof vibratory motors that produce a dual motion system. The
normal mode is a progressive elliptical motion used during normal drilling conditions to maximize both cuttings
retention time and screen life. The motor output for this mode is 6.5Gs. The capacity mode is used during fluid
surges and heavy solids loading. The motor output is 7.5Gs when operating in capacity mode.
5.1 Identification of Main Components
Figure 1. Main Components, MONGOOSE PRO Shale Shaker [Typical]
FIGURE 1 LEGEND
ITEM
NAME
DESCRIPTION
1
HEADER BOX
ROUTES FLUID TO SHAKER SCREENS
2
CONTROL PANEL
HOUSES CONTROLS FOR THE ELECTRICAL COMPONENTS
3
BASKET
HOLDS THE MOTORS AND WIRE MESH SCREENS
4
FEED END SHIPPING
BRACKET
SECURES THE FEED END OF THE SHAKER DURING
TRANSPORTATION
5
CABLE TOWER
ROUTES MOTOR CABLES AND HOLDS SCREEN WEDGES
6
DISCHARGE END
SHIPPING BRACKET
SECURES THE DISCHARGE END OF THE SHAKER DURING
TRANSPORTATION
7
BASKET SPRING
ISOLATES VIBRATORY MOTION ON THE BASKET FROM THE SKID
8
DECK ADJUSTMENT
ELEVATOR JACK
RAISES OR LOWERS THE DECK ANGLE TO OPTIMIZE FLUID AND
SOLIDS FLOW DURING OPERATION
9
SWING WEIGHT MOTOR
PROVIDES ADJUSTABLE VIBRATORY MOTION TO EQUIPMENT
10
FIXED WEIGHT MOTOR
PROVIDES VIBRATORY MOTION TO EQUIPMENT

M‑I SWACO MONGOOSE PRO Shale Shaker
4 Field Installation and Operation Manual 9092F02001AENG (D) 4
5.2 Variations Among MONGOOSE PRO Configurations
M‑I SWACO offers a variety of MONGOOSE PRO configurations; this content will help operators become
familiar with the particular model they will be using. Below is a configuration overview.
•Shaker with Header Box
oThe fluid distribution system is at the rear of the shaker basket and is mounted above the screen deck
(Refer to Figure 2).
oFluid is redirected from the inlet line through the header box into a half pipe at the rear of the basket.
Since fluid distribution is mounted above the screen deck, no trap exists to collect solids. As fluid passes
through the diverter box, it sweeps the box clean.

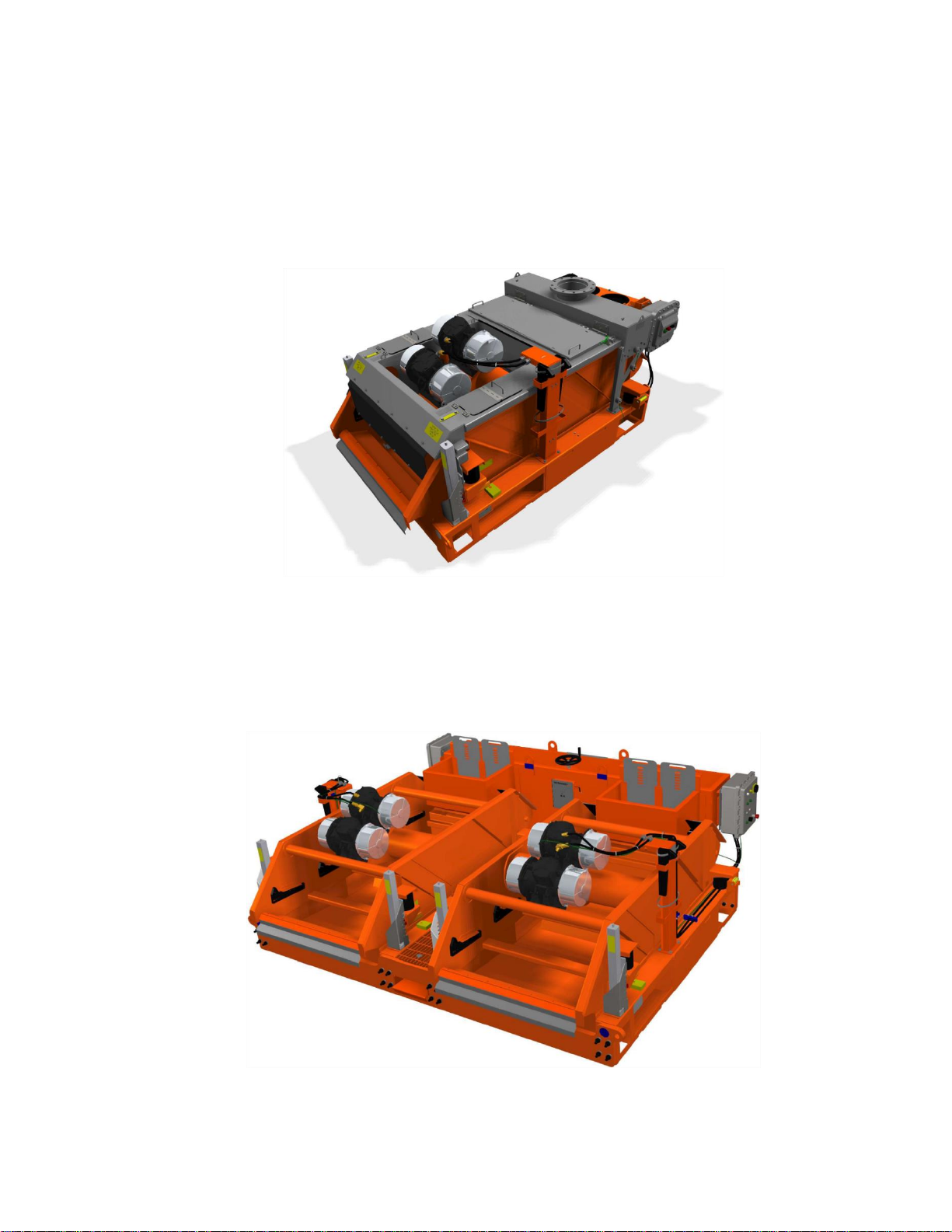

Figure 2. MONGOOSE PRO with Carbon Steel Header Box
•Shaker with Possum Belly with Butterfly Valve Bypass
oThe manually-adjustable butterfly valve is located below the main inlet on the possum belly (Refer to
Figure 3).
oWhen the valve is closed, fluid flow is directed through the possum belly to the shaker bed.
oThe butterfly valve bypass is opened by rotating the valve 90°. When butterfly valve is opened, fluid is
redirected into the skid, bypassing the screens.

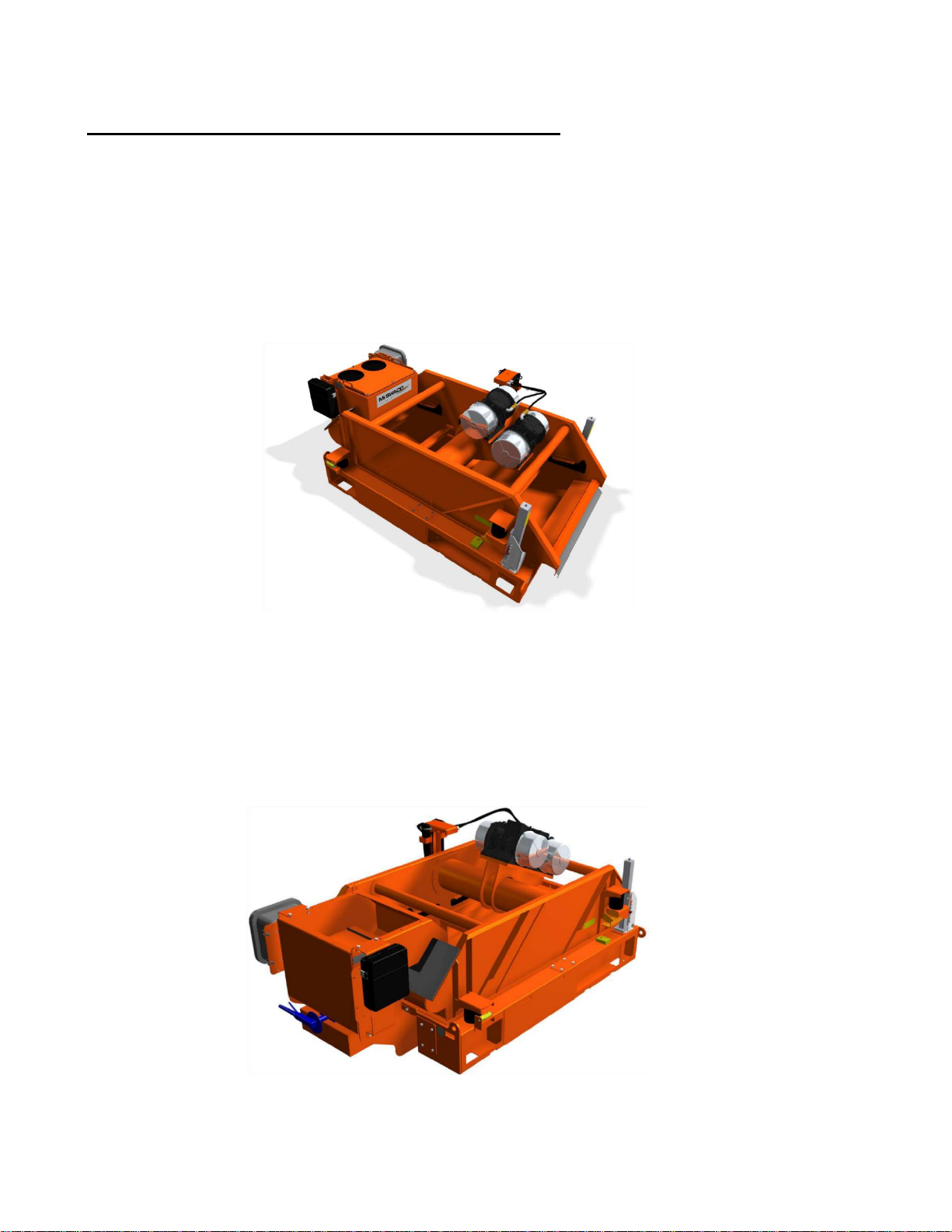

Figure 3. MONGOOSE PRO with Butterfly Valve Possum Belly

M‑I SWACO MONGOOSE PRO Shale Shaker
5 Field Installation and Operation Manual 9092F02001AENG (D) 5
•Shaker with Vent Hood
oThe optional stainless steel vent hood (Refer to Figure 4) covers the exposed basket area of the shaker
and offers a 10”, 150LB fume extraction port used to divert fumes safely away from the shaker.
oAccess panels line the sides of the hood to allow operators to install or remove screen wedges and
screens.
oThis option is critical on rigs that house shale shakers indoors.
Figure 4. MONGOOSE PRO with Vent Hood
•Dual & Triple Shakers with Common Possum Belly and Knife Gate Bypass
oThe knife gate is controlled by a single rotating hand wheel (Refer to Figure 5 & Figure 6).
oWhen the knife gate is opened, fluid is redirected into the skid bypassing the screens.
oThe manually operated header box slide gates are used to control the flow rate to each shaker.
Figure 5. MONGOOSE PRO Dual Shaker with Common Possum Belly and Knife Gate

M‑I SWACO MONGOOSE PRO Shale Shaker
6 Field Installation and Operation Manual 9092F02001AENG (D) 6

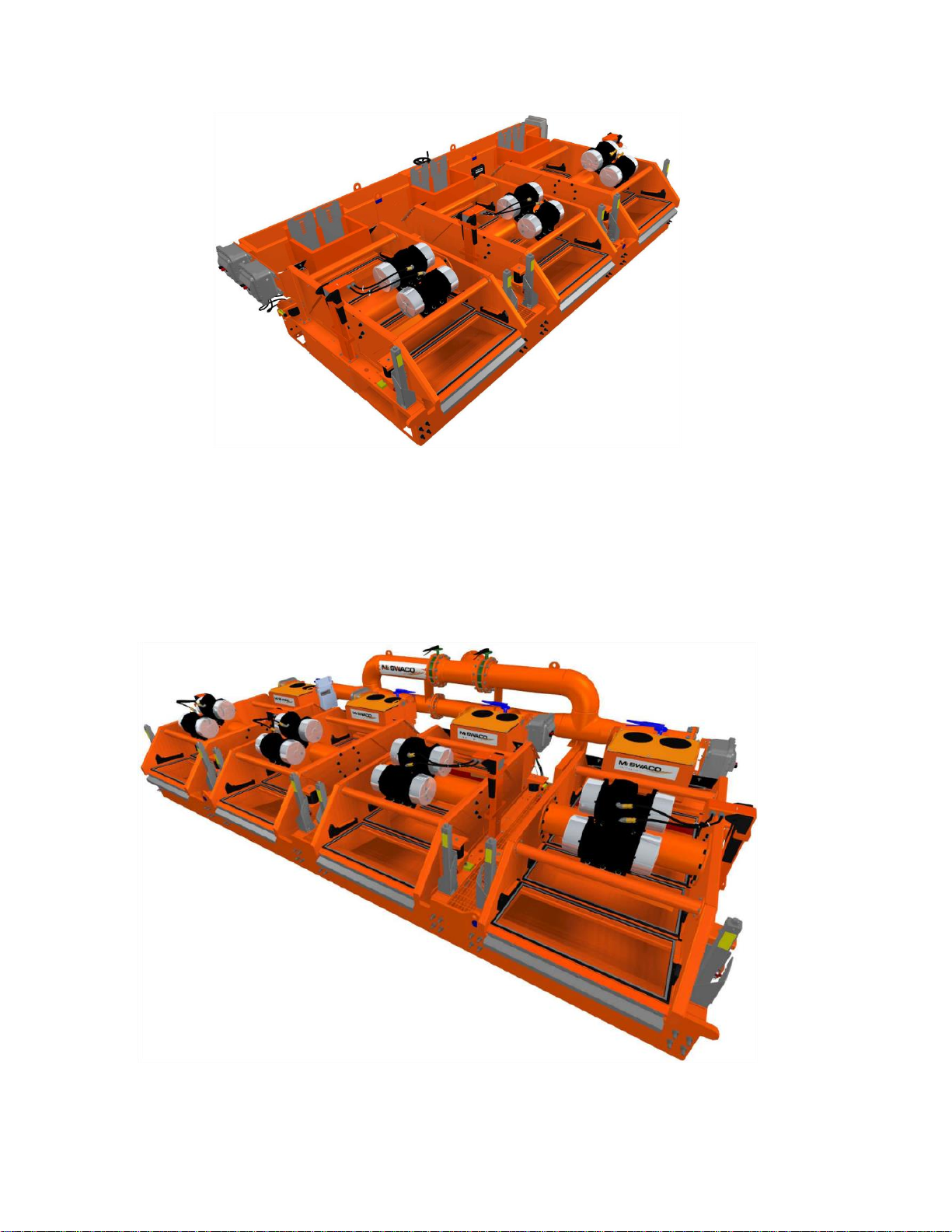

Figure 6. MONGOOSE PRO Triple Shaker with Common Possum Belly and Knife Gate
•Quad Shakers with Feed Manifold Assembly, Header Boxes & Butterfly Valve Bypasses
oMud feeds into the back of the feed manifold assembly with the flow evenly distributed to each of the
header boxes (Refer to Figure 7).
oButterfly valves located at each header box are used to open or close flow to a particular shaker.
oButterfly valves located at the top of the feed manifold are used to close off flow to shakers enabling
the use of a cement bypass.
Figure 7. MONGOOSE PRO Quad Shakers

M‑I SWACO MONGOOSE PRO Shale Shaker
7 Field Installation and Operation Manual 9092F02001AENG (D) 7
•Mud Cleaner Configurations
oMud Cleaners are equipped with D-SANDER and/or D-SILTER hydrocyclones.
oHydrocyclones provide finer filtration than the Shale Shaker basket wire mesh screens.
oVariations in each configuration allow the equipment to operate at specific flow rates.
oFigure 8 is an example of a MONGOOSE PRO Mud Cleaner equipped with a 3-12 D-SANDER and
10T4 D-SILTER.

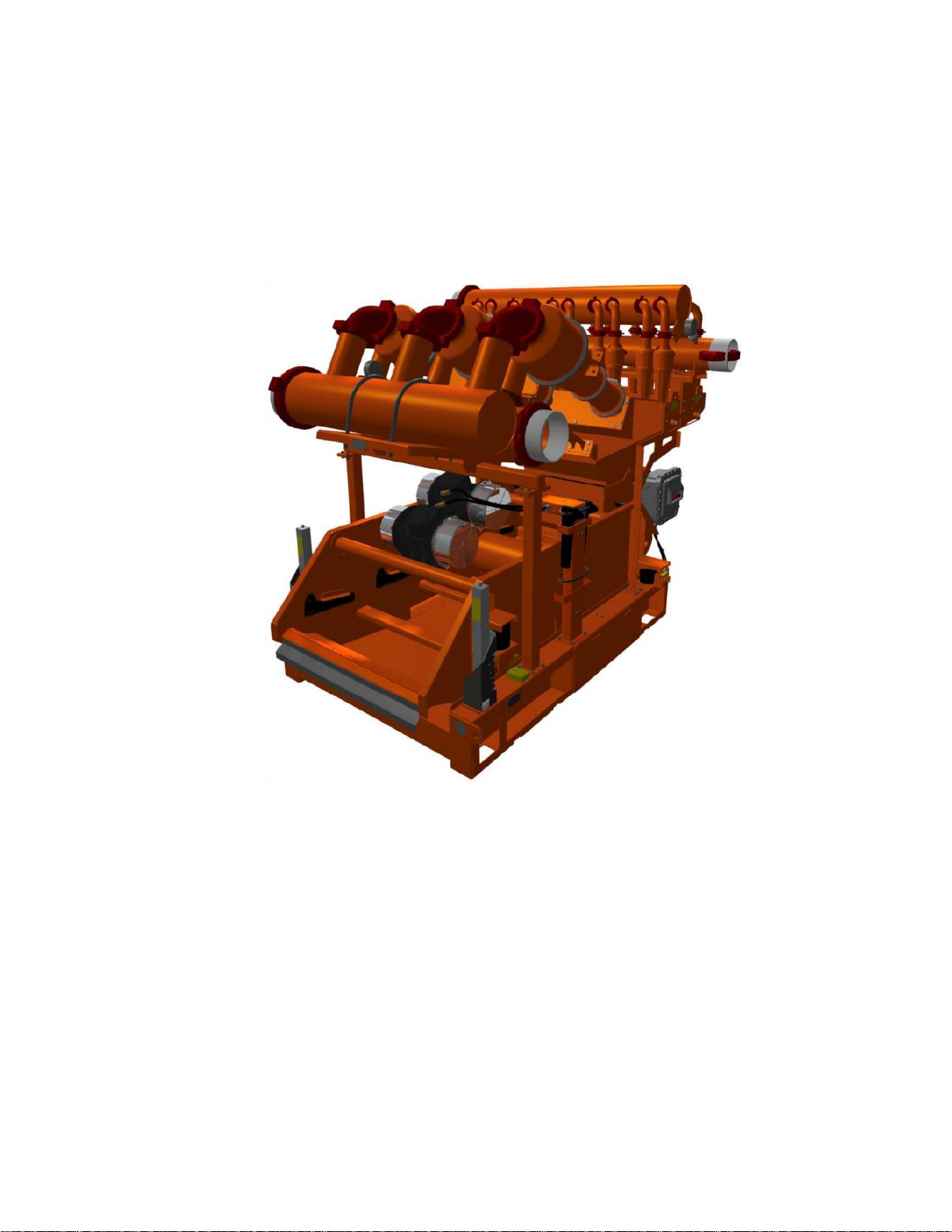

Figure 8. MONGOOSE PRO Mud Cleaner

M‑I SWACO MONGOOSE PRO Shale Shaker
8 Field Installation and Operation Manual 9092F02001AENG (D) 8
6. SPECIFICATIONS
6.1 General Specifications
Equipment type------------------------------- MONGOOSE PRO Shale Shaker
Applications-----------------------------------Drilling fluid and cuttings separation, filtration
Equipment Voltages/Frequencies---------Varies with each configuration; see below:
220-240V---------------------------------60Hz
380-415V---------------------------------50Hz
440-480V---------------------------------60Hz
575-600V---------------------------------60Hz
Temperature rating---------------------------degF [degC]
ATEX/IECEx---------------------------- -4-131°F [-20-55°C]
UL ------------------------------------------4-104°F [-20-40°C]
Approvals--------------------------------------UL [Class I Div I, T2C] OR [ATEX/IECEx EExd IIB 160C]
6.1.1 Unit Weights
Single Unit ------------------------------------3,460lbs. [1,573kg.]
Dual Unit --------------------------------------8,650lbs. [3,924kg.]
Triple Unit-------------------------------------13,500lbs. [6,124kg.]
Quad Unit--------------------------------------20,400lbs. [9,253kg]
6.1.2 Unit Dimensions
Single MONGOOSE PRO
Length-------------------------------------119.8” [3,042mm]
Width--------------------------------------68.9” [1,749mm]
Height-------------------------------------52.3” [1,328mm]
Dual MONGOOSE PRO
Length-------------------------------------124” [3,149mm]
Width--------------------------------------145.2” [3,699mm]
Height-------------------------------------52.3” [1,328mm]
Triple MONGOOSE PRO
Length-------------------------------------124” [3,149mm]
Width--------------------------------------229.6” [5,833mm]
Height-------------------------------------56.4” [1,432mm]
Quad MONGOOSE PRO
Length-------------------------------------149.1” [3,787mm]
Width--------------------------------------279.1” [7,090mm]
Height-------------------------------------70” [1,777mm]

M‑I SWACO MONGOOSE PRO Shale Shaker
9 Field Installation and Operation Manual 9092F02001AENG (D) 9
6.2 Performance
Rated Motor Output------------------------- 2.49hp [1.86kW]
Output Force---------------------------------- 6.5 Gs (Normal Mode) & 7.5Gs (Capacity Mode)
Filtering Area--------------------------------- 30ft2[2.73m2] per shaker
Operating Temperature--------------------- 86°F [30°C]
6.2.1 Noise Data
Normal Operating Mode ------------------- 74.3 dBA
Capacity Operating Mode------------------ 75.2 dBA
6.3 Consumption Requirements
Table 1. Electrical Consumption Data
DESCRIPTION
VOLTAGE
INPUT POWER
OUTPUT POWER
FREQUENCY
SHALE SHAKER
2-MOTOR
DRIVE
220-240V
2.25KW
2.5HP [1.86KW]
60HZ
380-415V
2.25KW
2.5HP [1.86KW]
50HZ
440-480V
2.25KW
2.5HP [1.86KW]
60HZ
575-600V
2.25KW
2.5HP [1.86KW]
60HZ
7. HANDLING AND TRANSPORTING
The MONGOOSE PRO Shale Shaker should always be transported to rig locations on a flatbed truck. Make sure
the unit is properly secured prior to departure and the shipping brackets are installed.
WARNING
NEVER ATTEMPT TO MOVE OR LIFT THE MONGOOSE PRO SHALE SHAKER
WITHOUT THE SHIPPING BRACKETS SECURED TO THE EQUIPMENT! REFER TO
PARAGRAPH 10.2 FOR INFORMATION CONCERNING SHALE SHAKER SHIPPING
BRACKETS.
WARNING
FAILURE TO SECURELY TIE DOWN EQUIPMENT TO TRUCK COULD CAUSE THE
UNIT TO MOVE OR FALL DURING TRANSPORT, RESULTING IN PERSONAL INJURY.
WARNING
USING ANY LIFTING OR HOISTING DEVICE AND ACCESSORY ITEM THAT IS NOT
RATED TO SUPPORT THE UNIT WEIGHT CAN CAUSE PERSONAL INJURY OR DEATH
FROM THE UNIT FALLING OR BEING UN-CONTROLLED WHEN HANDLING.

M‑I SWACO MONGOOSE PRO Shale Shaker
10 Field Installation and Operation Manual 9092F02001AENG (D) 10
7.1 Lifting & Handling
NOTE
PERFORM STRUCTURAL CHECKS ON THE DECK BEAMS TO ENSURE THEY CAN
SUPPORT APPLIED LOADS (TWICE THE WEIGHT OF THE SHALE SHAKER) OF
EQUIPMENT.
Figure 9. Lifting Points on the MONGOOSE PRO
Figure 10. Lifting Lug Label

M‑I SWACO MONGOOSE PRO Shale Shaker
11 Field Installation and Operation Manual 9092F02001AENG (D) 11
Table 2. MONGOOSE PRO Component Lifting Points
COMPONENT
LIFTING METHOD
UNIT ASSEMBLY
USE APPROPRIATE LIFTING DEVICE AT THE FOUR LIFTING LUGS, ONE AT
EACH CORNER. WEIGHT: 3,460LBS. [1,569KG.]
BASKET ASSEMBLY
USE SOFT SLINGS AROUND BASKET OR SPRING MOUNTS.
WEIGHT (INCLUDING MOTORS: 1,927LBS. [874KG.]
SKID
USE APPROPRIATE LIFTING DEVICE AT THE FOUR LIFTING LUGS, ONE AT
EACH CORNER. WEIGHT: 1,296LBS. [588KG.]
MOTORS
IF MOTORS ARE REMOVED FROM BASKET ASSEMBLY, USE CERTIFIED
LIFTING EYE STRAPS. WEIGHT: 282LBS. [127KG.]
HEADER BOX
USE APPROPRIATE LIFTING DEVICE AT THE FOUR LIFTING LUGS, ONE AT
EACH CORNER. WEIGHT: 240LBS. [108KG.]
Single MONGOOSE PRO
Basket Assembly (without motors) - 1,360lbs. [618kg.]
Motors ------------------------------------ 282lbs. [128kg.]
Possum Belly---------------------------- 425lbs. [193kg.]
Carbon Steel Header Box------------- 240lbs. [108kg.]
Dual MONGOOSE PRO
Basket Assembly (without motors) - 1,360lbs. [618kg.]
Motors ------------------------------------ 282lbs. [128kg.]
Possum Belly---------------------------- 1,918lbs. [870kg.]
Triple MONGOOSE PRO
Basket Assembly (without motors) - 1,360lbs. [618kg.]
Motors ------------------------------------ 282lbs. [128kg.]
Possum Belly---------------------------- 2,833lbs. [1,285kg.]
Quad MONGOOSE PRO
Basket Assembly (without motors) - 1,360lbs. [618kg]
Motors ------------------------------------ 282lbs. [128kg]
Possum Belly---------------------------- N/A
Carbon Steel Header Box------------- 240lbs. [108kg.]

M‑I SWACO MONGOOSE PRO Shale Shaker
12 Field Installation and Operation Manual 9092F02001AENG (D) 12
8. PREPARING RIG SITE
The MONGOOSE PRO Shale Shaker assemblies are mounted to a sturdy integral skid that secures the equipment
to the rig site directly onto the deck or above sand traps/mud pits and directs fluid flow from the unit. Potential
locations for the Shale Shaker must comply with the following:
•A proper rig location for a single MONGOOSE PRO Shale Shaker must have a minimum mounting space
of 103.5 X 76in [2623 X 1923mm].
•The discharge end of the unit MUST have at least 25in [635mm] of free space in front of it to allow
operators to remove and replace screens.
•Make sure the location has adequate space to manage solids discharge and effluent material.
•Make sure the chosen location for the equipment has access to adequate power and rig air requirements.
Refer to paragraph 6.3 for consumption data.
•MONGOOSE PRO installers must be able to route drilling fluid to the Shale Shaker feeder box. Make
sure there is a clear path from drilling fluid source to the feeder box.
NOTE
PERFORM STRUCTURAL ANALYSIS ON THE DECK BEAMS TO MAKE SURE THEY
CAN SUPPORT APPLIED LOADS (TWICE THE DRY WEIGHT OF A MONGOOSE
PRO SHALE SHAKER) OF EQUIPMENT.
9. UNPACKING AND INSPECTING
9.1 Unloading
WARNING
NEVER ATTEMPT TO LIFT THE ENTIRE UNIT BY THE BASKET OR MOTOR LIFTING
POINTS! THEY ARE NOT DESIGNED TO HOLD THE WEIGHT OF THE ENTIRE UNIT.
FAILURE TO COMPLY WILL DAMAGE THE UNIT AND COULD CAUSE EXTREME
PERSONAL INJURY WHEN THE LIFTING POINTS FAIL.
ALWAYS LIFT THE UNIT BY THE MARKED LIFTING POINTS ON THE SKID!
CAUTION
FOLLOW ALL LIFTING SAFETY PROCEDURES OUTLINED IN PARAGRAPH 7.1.
FAILURE TO COMPLY CAN RESULT IN EQUIPMENT DAMAGE.
9.1.1 Preferred Unloading Method
The preferred method used to remove the MONGOOSE PRO Shale Shaker from the trailer is using a crane to
hoist it off. Refer to paragraph 7.1 for more information concerning proper techniques to use when unloading the
Shale Shaker.
1. Remove any chains or straps securing the Shale Shaker to the trailer.
2. Attach the lifting device to the lifting points on the equipment, using suitable slings, cables, or chains.
3. Slowly and carefully lift the unit from the trailer and move to the desired operating position.
4. Disconnect the lifting device from the equipment lift points.
