MRac Pole Rack 6 Installation Guide
Content
1. Product Introduction--------------------------------------------------------------P2
2. Installation Tools & Components---------------------------------------------P3
3. Installation Instruction-----------------------------------------------------------P4
4. 10 Years Warranty Declaration-----------------------------------------------P7

Mibet (Xiamen) New Energy Co., Ltd.
No 69, Xintian Rd., Jimei District, Tel: [phone]
Xiamen China 361022 Fax: [phone]
www.mbt-energy.com Email: [email protected]om 2 / 9
1. Product Introduction
MRac Pole Rack 6 system is specially designed and manufactured for large
commercial and utility scale installations. What is more, the system can be applied to
almost all PV ground installation projects in both open and rough terrain with
adjustable tilt angles of 0 to 60 degrees. The unique locking clamps and rails also
ensure an easier and quicker installation with simple tools.
Please read this Installation Guide thoroughly before installing the MRac Pole Rack
6 system. This Guide offers the planning and installation instruction for the system.
MRac Pole Rack products, when installed in accordance with this guide, will be
structurally adequate and meet standards of AS/NZS1170, IBC2009 and CBC 2010.
During installation, please be sure to observe the appropriate safety regulations and
please pay attention to the relevant regulations of your local region. Please check
that you are using the current version of the installation manual by contacting Mibet
Energy via mail [email protected], or our local representatives.
Get all components ready including the panels, it will take around one hour and a
half for 4 well trained workers to finish the installation of one set of Pole Rack 6.
The installer is solely responsible for:
Complying with all applicable local or national building codes, including any that may
supersede this manual;
Ensuring that MRac and other products are appropriate for the particular installation and the
installation environment;
Using only MRac parts and installers-supplied parted as specified by MRac (Substitution of
parts may void the warranty and invalidate the letter of certification on page 2);
How to recycle: according to the local relative statute;
How to disassemble: countermove with installation;
Ensure that there are no less than two professional workers in panel installation;
Ensure the installation of relative electrical equipment is performance by professional
electrician.
Ensure safe installation of all electrical aspects of the PV array.

Mibet (Xiamen) New Energy Co., Ltd.
No 69, Xintian Rd., Jimei District, Tel: [phone]
Xiamen China 361022 Fax: [phone]
www.mbt-energy.com Email: [email protected]om 3 / 9
2. Installation Tools & Components
2.1 Installation Tool
4*6mm Inner Hexagon Spanner
2*5m Tape
4*12" Spanner
2.2 Main Components
Components
End Clamp
Kit
Inter Clamp
Kit
C Clamp Kit
Rail 50
Adjustable
Tube
Connector
Adjustive
Pole
Beam
Built-in
Fitment for
Beam
Splice for
Post
Girder
PR-6 Quadrate Post
2.3 Solution Overview
1) End Clamp Kit
2) Inter Clamp Kit
3) C Clamp Kit
4) Rail 50
5) Beam
6) Built-in Fitment for Beam
7) Girder
8) Adjustable Tube Connector

Mibet (Xiamen) New Energy Co., Ltd.
No 69, Xintian Rd., Jimei District, Tel: [phone]
Xiamen China 361022 Fax: [phone]
www.mbt-energy.com Email: [email protected]om 4 / 9
9) Adjustive Pole
10) Splice for Post
11) PR-6 Quadrate Post
3. Installation Instruction

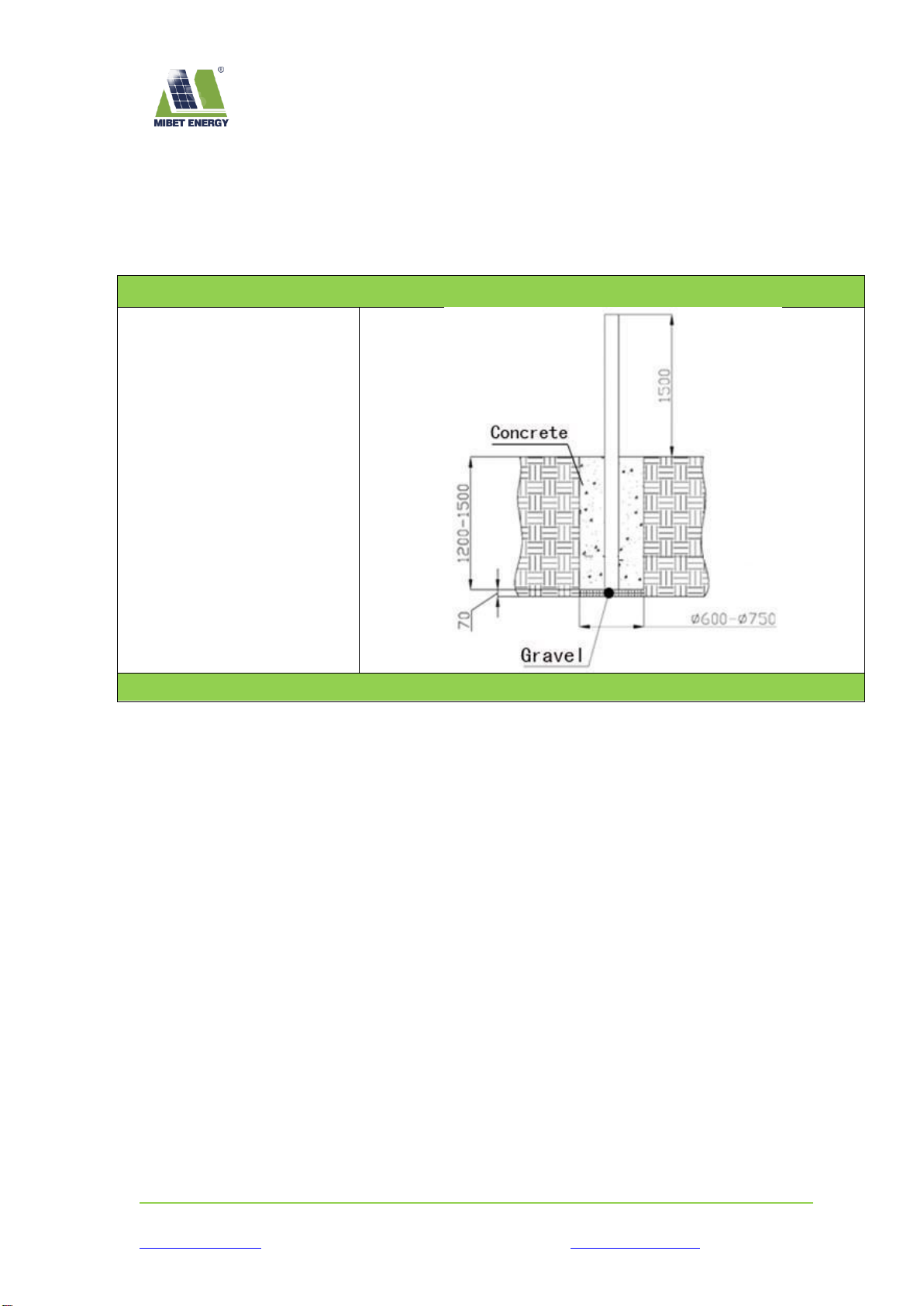

3.1 Install PR-6 Quadrate Post
3.1.1 Dig a hole depth at 1200-
1500mm with dimension
around 600-700mm, leaving
graves at the bottom around
70mm.
3.1.2 Put the PR-6 Quadrate
Post into the hole directly,
input mud fluid into this hole
while make sure
perpendicularity error of the
Post is within ±2°.
3.2 Install Splices for Post and Girder

Mibet (Xiamen) New Energy Co., Ltd.
No 69, Xintian Rd., Jimei District, Tel: [phone]
Xiamen China 361022 Fax: [phone]
www.mbt-energy.com Email: [email protected]om 5 / 9

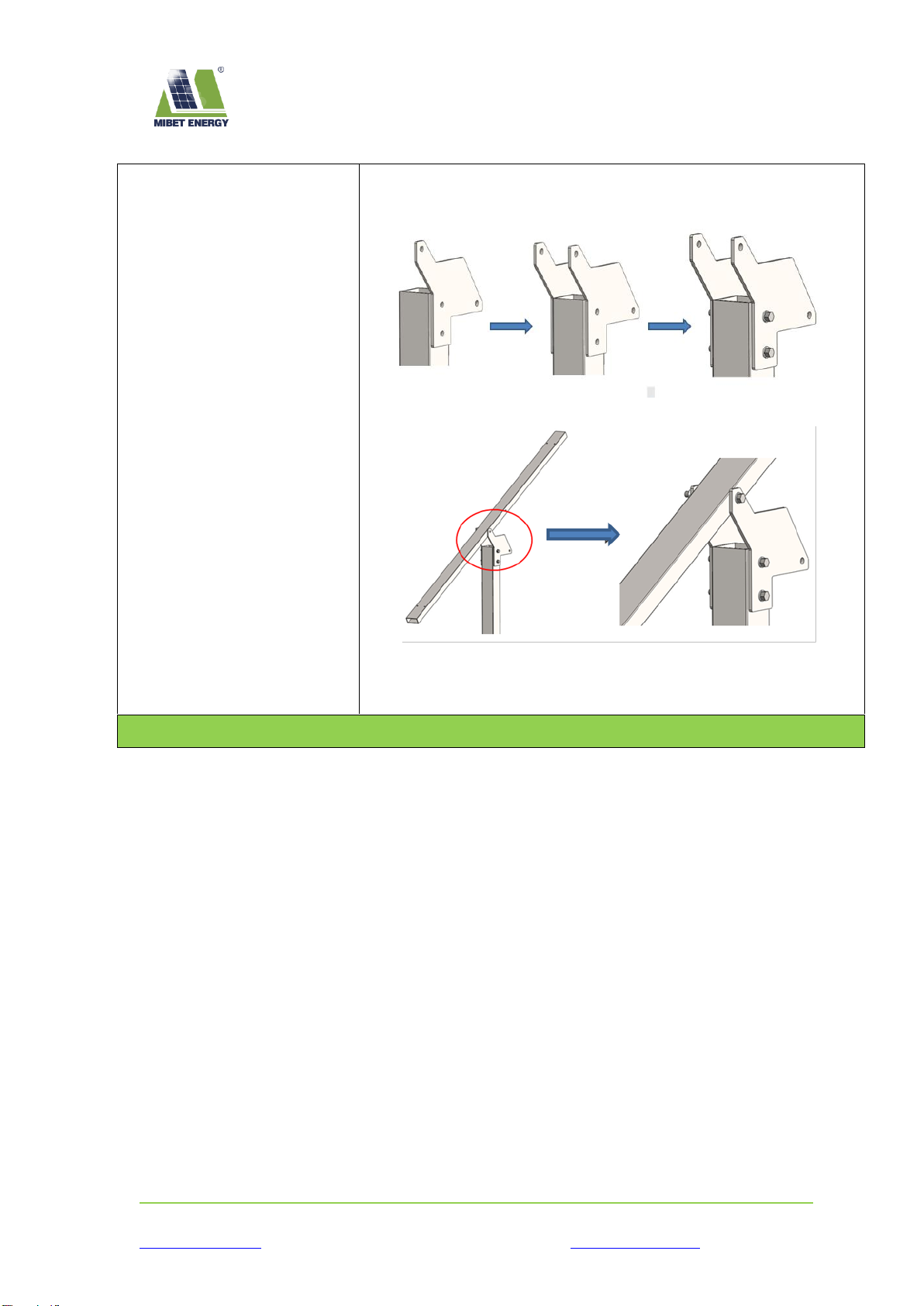

3.2.1 Fix two Splices for Post
onto the Quadrate Post by two
sets of Hexagon Bolts
M14*150, as Picture 3-2-1
shows.
3.2.2 Put the Girder between
the two Post Splices, fix it with
M14*150 Hexagon Bolts as
planned. (Refer to picture 3-
2-2)
3.3 Install Adjustive Pole and PR-6 Beam
3-2-1
3-2-2

Mibet (Xiamen) New Energy Co., Ltd.
No 69, Xintian Rd., Jimei District, Tel: [phone]
Xiamen China 361022 Fax: [phone]
www.mbt-energy.com Email: [email protected]om 6 / 9
3.3.1 Fix Adjustable Tube
Connectors onto the Adjustive
Pole with two sets of
Hexagonal Bolt M14*150.
3.3.2 Connect the PR-6 Girder,
pre-assembled Adjustive Pole
and Splices for Post with
Hexagonal Bolt M14*150
(Refer to picture 3-3-1).
The tilt angle of the system
can be adjustable by changing
the position of Adjustive Pole
with 10, 20, 30, 40, 50 and 60
degrees at your disposal.
(Tips: To make an easier
assembling & installation for
the rest components, the tilt
angle of system can be
changed to 10 degrees firstly,
connecting the Girder onto the
hole of Adjustive Pole at the
top.)
3.3.3 Fix Built-in Fitments for
Beam onto the Girder with two
sets of Hexagonal Bolt M12*75
respectively, making sure they
are located
symmetrically.(Refer to
picture 3-3-2)
3.3.4 Connect the Beam with
Built-in Fitment by two sets of
Hexagonal Bolt M12*90.
(Refer to picture 3-3-3)
(Tips: Please make sure two
beam ends are approximately
parallel to each other. When
“d1=d2”, two Beams are
located in parallel)
3.4 Install the Rail 50
d1
d2
3-3-1
d1
d2
3-3-2
3-3-3

Mibet (Xiamen) New Energy Co., Ltd.
No 69, Xintian Rd., Jimei District, Tel: [phone]
Xiamen China 361022 Fax: [phone]
www.mbt-energy.com Email: [email protected]om 7 / 9
3.4.1 Attach the Rail 50 to the
Beams with C Clamp Kit on
both sides.(Please refer to
Picture 3-4-1)
3.4.2 Place all other Rail 50 as
planned.
(Tips: Make sure all rail ends
are in the same line, that is,
The distance between ends of
4 Rails and the side part of
Beams should remain the
same.)
3.5 Install solar Panels
3.5.1 Install the panels as
planned. Put panels onto the
Rail 50 and fix them with Inter
Clamps Kits and End Clamps
Kits.
(Tips:Put one Inter Clamp
between two panels, remove it
after the panels fixed.)
Keep a slot
between panels
around one Inter
Clamp.
End Clamp
3-4-1
Inter Clamp

Mibet (Xiamen) New Energy Co., Ltd.
No 69, Xintian Rd., Jimei District, Tel: [phone]
Xiamen China 361022 Fax: [phone]
www.mbt-energy.com Email: [email protected]om 8 / 9
4、15 year limited Product Warranty, 5 year limited Finish Warranty
Mibet (Xiamen) New Energy Co., Ltd. (hereinafter as “Mibet Energy”) warrants to the
original purchaser (“NSEW Trading Pty Ltd.”) of products that it manufactures (“Solar PV
Mounting Systems”) at the original installation site that the Product shall be free from defects
in material and workmanship for a period of fifteen (15) years, except for the under normal
atmospheric conditions for a period of five (5) years, from the earlier of 1). The date the
installation of the Product is completed, or 2). 30 days after the purchase of Product by the
original Purchaser (“Finish Warranty”).
The Finish Warranty does not apply to any foreign residue deposited on the finish. All
installations in corrosive atmospheric conditions are excluded. The Finish Warranty is VOID
if the practices specified by AAMA 609 & 610-02 –“Cleaning and Maintenance for
Architecturally Finished Aluminum” (www.aamanet.org) are not followed by Purchaser.
This Warranty does not cover damage to the Product that occurs during its shipment, storage,
or installation.
This Warranty shall be VOID if installation of the Product is not performed in accordance
with Mibet’s written installation instructions, or if the Product has been modified, repaired,
or reworked in a manner not previously authorized by Mibet IN WRITING, or if the Product
is installed in an environment for which it was not designed. Mibet shall not be liable for
consequential, contingent or incidental damages arising out of the use of the Product by
Purchaser under any circumstances.
If within the specified Warranty periods the Product shall be reasonably proven to be
defective, then Mibet shall repair or replace the defective Product, or any part thereof, in
Mibet’s sole discretion. Such repair or replacement shall completely satisfy and discharge all
of Mibet’s liability with respect to this limited Warranty. Under no circumstances shall Mibet
be liable for special, indirect or consequential damages arising out of or related to use by
Purchaser of the Product.
In addition to our Warranty against Defects, the Frame also comes with guarantees that
cannot be excluded under the Australian Consumer Law (Consumer Guarantees). In the
event that the Frame fails to satisfy a Consumer Guarantee, you are entitled to a replacement
or refund for a major failure and compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the Frame repaired or replaced if the Frame fails to be
of acceptable quality and the failure does not amount to a major failure. Please note that in

Mibet (Xiamen) New Energy Co., Ltd.
No 69, Xintian Rd., Jimei District, Tel: [phone]
Xiamen China 361022 Fax: [phone]
www.mbt-energy.com Email: [email protected]om 9 / 9
addition to the rights and remedies set out in this document, you may also have other rights
and remedies available to you under the law.
*Manufacturers of related items, such as PV modules and flashings, may provide written
warranties of their own. Mibet’s limited Warranty covers only its Product, and not any
related items.
Making a claim
If you believe that the Frame is defective and you are an End-User, you may either make a
claim against the installer or builder from whom you purchased the Frame or you may make
a claim against us directly. In order to make a claim against us, you must post, fax or email
us a notice, using the contact details set out below.
In your notice you must provide: details of why you believe the Frame is defective; a copy of
your invoice, receipt or any other document which provides proof of purchase;
Details of any expenses you have incurred in making your claim; and details of how we
should contact you.
Within a reasonable time after receipt of your claim we will contact you to arrange a time to
attend the premises at which the Frame is located.
Jurisdiction
Our Warranty against Defects is to be construed in accordance with the laws of Victoria and
any disputes will be determined by the exclusive jurisdiction of the courts of Victoria.
Contact Details
NSEW Trading Pty Ltd
Level 5, 24 Albert Road
South Melbourne Vic 3205
Tel: [phone]
Email: [email protected]
