Mibrasa HMB 75 User manual

Read all instructions before installing and using the appliance.
Save these instructions.
MIBRASA®OVEN
USER MANUAL
Feeding the Senses!
www.mibrasa.com

Mibrasa,
the Masters of fire!
We are fascinated by re and invite you to
experience grill cooking for yourselves. Cook
and create in a way that awakens your taste
buds and reminds us of the beauty in simplicity.

Contents
1. Introduction 1
2. Mibrasa®oven description 3
3. Models 5
4. Installation instructions 8
4.1. Requirements for oven surroundings
4.2. Installation and assembly instructions
4.3. Smoke extraction
5. Instructions of use 16
5.1. Loading the charcoal
5.2. Lighting the charcoal
5.3. Prior to cooking
5.4. Ready to cook
5.5 After service
5.6 Reutilizing charcoal from the previous service
6. Maintenance and safety standards 19
6.1. Daily cleaning
6.2. Weekly cleaning
6.3. Special care
6.4. Safety standards
7. General conditions 21
7.1. Warranty
7.2. Returns
7.3. Property Reserve

1
Mibrasa® charcoal ovens are robust and solid, an essential piece of equipment for any
kitchen, giving a unique and delicious avor to all your ingredients.
Mibrasa® charcoal ovens comply to the strict standards & regulations set by internationally
recognized certications of quality.
Our ovens
Mibrasa® is a closed grill designed and developed in our workshops. Made from the best
quality steel by expert hands, our grills are designed to satisfy even the most demanding
chefs.
The technical specications allow the user to accurately control the airow through the
oven, regulating the intensity of the heat of the embers to grant a highly efcient way of
cooking while signicantly reducing the consumption of charcoal.
Mibrasa® charcoal ovens allow you to cook all types of foods retaining the natural avors while
bringing out a unique taste.
1. Introduction

2
The versatility of Mibrasa® ovens
We have a wide range of models and accessories allowing you to completely personalize your
Mibrasa® oven and adapt it to your needs.
The advantages of Mibrasa® ovens:
The MIBRASA
®
HMB AB SB has a heating rack with an average temperature of 40ºC, perfect for
bringing the meat to temperature and keeping ingredients warm. It also comes with a natural
heated holding cupboard below with a temperature between 50º and 70ºC.

3
Note: Regulating the entry of airow is controlled through the opening and closing of the lower damper
whilst the air outlet is controlled using the upper damper.
Grill sizes and approximate diners per service:
A Firebreak
B Dissipating filter
C Upper damper
D Door handle
E Thermometer
FLower damper /
Ash collector
G Grease collector
H Door
I Charcoal grids
J Grills
A-B
F
G
C
E
I
D
J
H
Model Grill dimensions (mm) Diners per service
HMB MINI 540 x 345 35-45
HMB MINI PLUS 540 x 395 45-65
HMB 75 540 x 595 75-95
HMB 110 760 x 595 110-130
HMB 160 760 x 795 160-190
542
600
WD
2. Mibrasa®oven description

4
Included accessories:
Optional accessories:
Kitchenware (consult online catalog at www.mibrasa.com)
Mibrasa®tongs Ash shovel Grill brush
Grill
Dissipating filter
Ember poker
Firebreak
Mibrasa®Ecofire firelighters
Extra grill

5

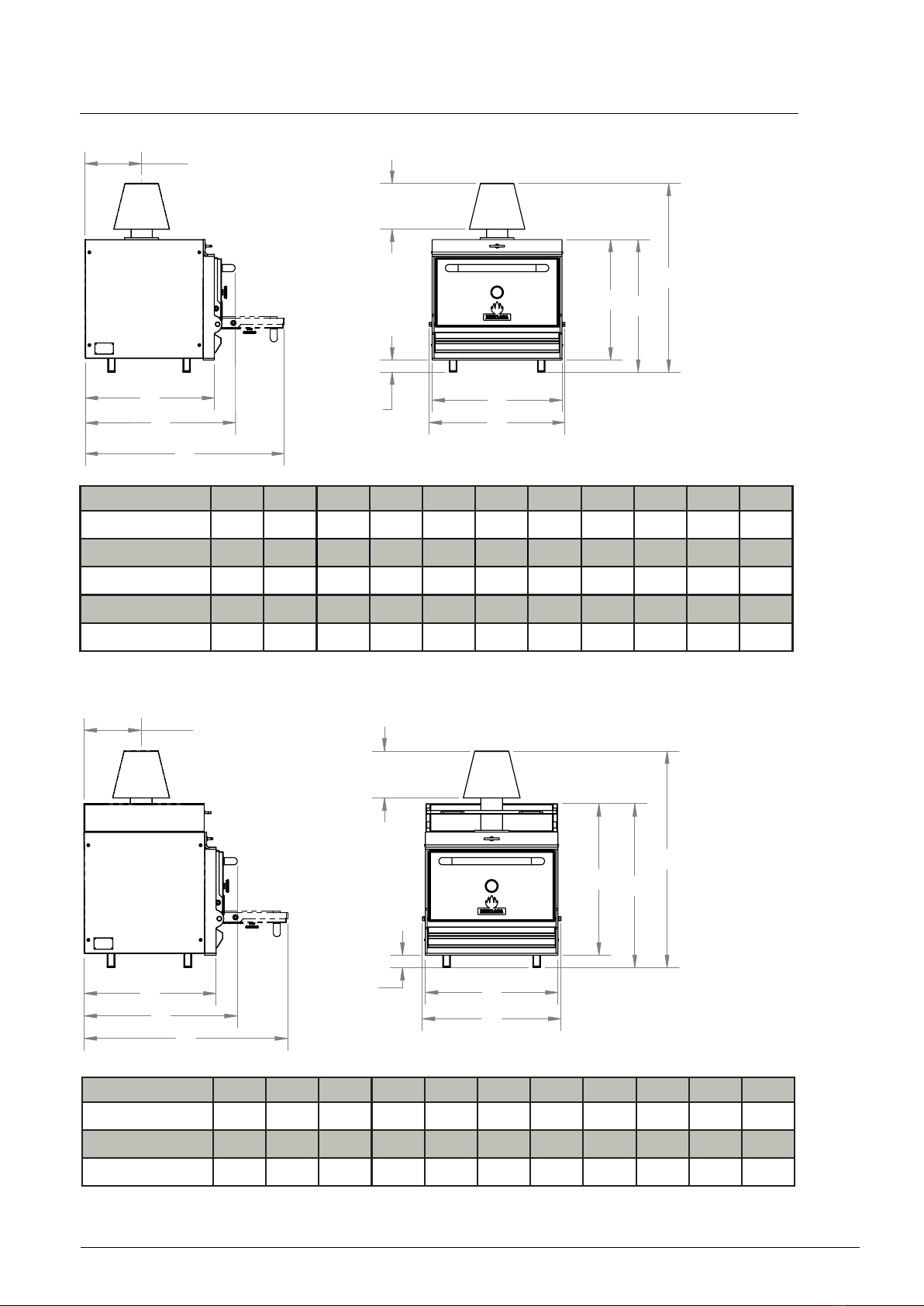

3. Models
Models A B C D E F G H I J K
HMB MINI 200 490 600 810 250 65 700 735 520 585 895
HMB MINI PLUS 230 510 625 890 250 65 700 735 650 715 1025
HMB 75 300 700 810 1075 250 65 700 735 650 715 1025
HMB 110 300 700 810 1160 250 65 920 955 740 805 1115
HMB 160 350 900 1010 1360 250 65 920 955 740 805 1115
Models A B C D E F G H I J K
HMB SB 75 300 700 810 1075 250 65 700 735 800 865 1155
HMB SB 110 300 700 810 1160 250 65 920 955 890 955 1245
HMB SB 160 350 900 1010 1360 250 65 920 955 890 955 1245
HMB Worktop models
HMB SB Worktop model with heating rack
Dimensions in mm
G
K
I
F
H
J
E
C
A
B
D
J
E
F
H
G
K
I
B
C
D
A

6
Models A B C D E F G H I J* K L
HMB AB 75 300 635 810 1075 250 695 735 650 740 170 1390 1700
HMB AB 110 300 635 810 1160 250 920 955 740 690 170 1430 1740
HMB AB 160 350 835 1010 1360 250 920 955 740 690 170 1430 1740
Models A B C D E F G H I J* K L
HMB AB SB 75 300 635 810 1075 250 695 735 800 740 170 1540 1830
HMB AB SB 110 300 635 810 1160 250 920 955 890 690 170 1580 1870
HMB AB SB 160 350 835 1010 1360 250 920 955 890 690 170 1580 1870
HMB AB with cupboard below
HMB AB SB with cupboard below and heating rack
F
G
H
E
J
I
L
K
B
C
D
A
H
F
G
J
E
L
K
I
B
C
A
D
* Adjustable leg height: 135-195 mm
* Adjustable leg height: 135-195 mm

7
A
B
HMB AC with complete cupboard
Workspace for the chef and recommended height of the worktop models
Measurements are subject to technical changes.
E
D
A
C
B
Models A B C D E
HMB AC 75 650 815 1080 1900 850
HMB AC 110 650 815 1165 1900 1070
HMB AC 160 850 1015 1365 1900 1070
Models A B
HMB MINI 1100 800
HMB MINI PLUS 1100 700
HMB 75 1100 700
HMB 110 1100 600
HMB 160 1100 600

8
4. Installation instructions
4.1. Requirements for oven surroundings
The installer should contact the local building or re ofcials concerning any installation
restrictions or need for inspection of the oven installation.
The minimum hearth extension areas to be covered with relationship to the door opening
of the oven for combustible oors should be the following:
a. 762 mm to each side of the door opening
b. 914 mm in front of the door opening
Clearances to combustible construction/other appliances:
a. Unit to backwall = 76 mm
b. Unit to sidewalls = 76 mm
Countertop models should be placed on a reproof material table or stand, preferably
metals: stainless steel, etc. Such support must be strong enough to support the weight of
the oven.
4.2. Installation and assembly instructions
Worktop models: - HMB MINI, MINI PLUS, 75, 110, 160
- HMB SB 75, 110, 160
Lift the oven
3
Due to the high weight of the ovens, it is always necessary to use lifting equipment to handle
them safely. If no such equipment is available, there must be an adequate number of per-
sonnel in compliance with local safety regulations, to assist with the installation.
1Remove the ash collector
Make sure the forks reach
the end of the oven.
2Insert the forks of a lifting de-
vice in the ash collector space
Lifting using a lifting device (recommended)

9
Open the door
13Remove the charcoal grids 2Remove the grills
Do not lift the oven from the
door handle
Lifting by hand (not recommended)
6If lifting by hand use the two
pull-out handle bars
4Remove the charcoal grids
support
9Place back the charcoal grids
support
8Place back the ash collector,
firebreak and dissipating
filter
7Place the oven on the
countertop
Majority of the weight is at the
front of the oven
5Remove the ash collector, dis-
sipating filter and firebreak
5Place back the ash collector 4Place the oven on the
countertop

10
Models with heating rack: - HMB SB 75, 110, 160
- HMB AB SB 75, 110, 160
x2
2Position the heating rack in
place
Connect the extension flue
4
Unscrew the two screws on
the roof of the oven
1 3 Align the screws with their
holes and screw in tightly
using an allen key 5
5Insert the grill
x2
11 Place back the grills 10 Place back the charcoal
grids
Side with narrower slits
facing up

11
Models with cupboard below: - HMB AB 75, 110, 160
- HMB AB SB 75, 110, 160
- HMB AC 75, 110, 160
x16 x16
x16
Install the legs/wheels of the
cupboard
1
2Remove the ash collector
5Place the oven on the cupboard
Make sure the forks reach the
end of the oven.
3Insert the forks of a lifting
device in the ash collector
space
Lift the oven
4
Assemble the oven with the cupboard
6
a) Open the cupboard doors b) Attach the oven to the cupboard
The open stand is equipped
with the same ttings
x4 x4
Oven leg
Omega prole
Adjustable

12
Models with full cupboard: - HMB AC 75, 110, 160
Assemble the oven with cupboard
below
1
An alternative option to provide more working space inside the heating cabinet is to install
the security accessories outside of the cabinet. In order to do this, connect the extended
ue duct to the oven smoke outlet prenetrating the cabinet’s roof. Assemble the rebreak
and dissipating lter over the duct.
2Open the door
5Place oven with cupboard
below in position
3Remove the frontal panel
6Place back the grill
4Remove the grill
7Place back the frontal panel
Follow the steps for models
with cupboard below
Option 1 Option 2

13
4.3. Smoke extraction
When the oven is installed in the interior of a closed building an extractor hood of sufcient
dimensions is required.
The extractor hood must have a suitable depth in order to cover the opening of the oven
and stand out laterally by 150 mm on both sides.
The ductwork must be either galvanized steel or stainless steel, uniform and well sealed
throughout. It is important to avoid installing horizontal pipes and must provide frequent
access points to remove the build up of solid/liquid residues and creosote, see point 6.3 on
cleaning and special care.
It is recommended that the ductwork is installed with a vent cap in order to improve the
removal of smoke.
Dissipating filter: This is installed over the
rebreak. It lters and spreads the ow of
air, slowing it down and dropping its tem-
perature.
To guarantee the correct operation of the said components, the recommended
charcoal loads mentioned in point 5.1 should be respected.
Firebreak: Is installed where the smoke
leaves the oven. Its function is to prevent
ames or sparks from escaping the oven.
MIBRASA®Protective components

14
This type of installation consists of an exhaust hood, which is independent of the oven.
The ductwork must be either galvanized or stainless steel, 300/350 mm in diameter up to
the highest part of the building. Installation of the rebreak and the dissipating lter are
needed.
Installation options
Table showing exhaust hood measurements and required flow rates:
1) Oven with independent extraction
Models Flow rate (m3/h) Minimum hood dimensions
(mm) - (width, depth)
Minimum height from the
floor (mm)
HMB MINI 2500 1000 x 1000 2000
HMB MINI PLUS 2500 1000 x 1000 2000
HMB 75 2800 1300 x 1300 2000
HMB 110 3200 1500 x 1300 2000
HMB 160 3500 1500 x 1500 2000
+
2000 mm

15
2) Oven installed under exhaust hood with other cooking appliances.
General ventilation ductwork
It is necessary to install the oven with the rebreak and dissipating lter. This will prevent
sparks and ames from escaping the oven. The smoke will be ltered reducing the ow and
cooling its temperature down prior to contact with the ventilation system.
+
2000 mm
Never connect the oven outlet directly with the
exhaust hood
