Belling BPROC60 AU STA User manual

Built-in Compact Oven
User Manual
BPROC60 AU STA

Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
Specifications
Rated Input Power(Grill):
Rated Input Power(Convection):
V~50Hz
900W
1650W
1750W
1750W
44L
360mm
Approx. kg
594 454.5 568 mm
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
break or important not tomicrowave energy. It is
tamper with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow
soil or cleaner residue to
accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged,
be operated until it has been repaired the oven must not
by a competent person.
If the apparatus is not maintained in a good state of cleanliness,
its surface could be degraded and affect the lifespan of the
apparatus and lead to a dangerous situation.
ADDENDUM
230
35.5
BPROC60 AU STA
-240
2

IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including
the following:
2. Warning : It is hazardous for anyone other
than a competent
service or repair operation that person to carry out any
the removal of a cover which gives involves protection against
exposure to microwave energy.
8. When heating food in plastic or paper containers, keep an eye
on the oven due to the possibility of ignition.
1. Warning : Liquids and other foods must
not be heated in
they are liable to explode.sealed containers since
5. Only use utensils suitable for use in
microwave ovens.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
unless they are older than 8 and supervised.
3. This appliance can be used by children
aged from 8 years
with reduced physical, sensory or and above and persons
capabilities or lack of experience andmental knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
4. Keep the appliance and its cord out of reach of children
less than 8 years.
6. The oven should be cleaned regularly and any food deposits
should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE
ENERGY".
3

9. If smoke emitted, switch off or unplug the appliance and
the door closed keep in order to stifle any flames.
10. Do not overcook food.
12. Remove wire twist-ties and metal handles from paper or
containers/bags plastic before placing them in the oven.
13. Install or locate this oven only in accordance with the
instructions provided.installation
14. Eggs in the shell and whole hard-boiled
eggs should not be
ovens since they may explode, evenheated in microwave
after microwave heating has ended.
11. Do not use the oven cavity for storage purposes. Do not
such as store items,bread, cookies, etc. inside the oven.
15.This appliance is intended to be used in
household but is not
as:intended to be used
such
-staff kitchen areas in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near
a swimming pool.
19. The temperature of accessible surfaces may be high when the
appliance is operating. The surfaces are liable to get hot
during use. Keep cord away from heated surface, and do not
cover any vents on the oven.
20. Do not let cord hang over edge of table or counter.
is
in applications
4

21. Failure to maintain the oven in a clean
condition could lead
of the surface that could adversely to deterioration affect the
life of the appliance and possibly result in a hazardous
situation.
22. The contents of feeding bottles and baby food jars shall be
stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
23. Microwave heating of beverages can result in delayed
therefore care must be taken when eruptive boiling ,
handling the container.
24.The appliance is not intended for use by persons
capabilities, or lack of experience and knowledge,mental
unless they have been given supervision or instruction
by a person responsible concerning use of the appliance
(including children) with reduced physical , sensory or
for their safety.
25.Children should be supervised to ensure that they do not
play with the appliance.
26.The appliances are not intended to be operated by
separate remote-control means of an external timer or
system.
27. Accessible parts may become hot during use.
Young children should be kept away.
28. Steam cleaner is not to be used.
29 During use the appliance becomes hot. Care should be
elements inside the oven.taken to avoid touching heating
30. Only use the temperature probe recommended for this
facility to use a oven.(for ovens provided with a
temperature-sensing probe.)
5

READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
32. The microwave oven must be operated with the decorative
decorative door.)door open. (for ovens with a
33. Surface of a storage cabinet can get hot.
31. WARNING: The appliance and its accessible parts become
be taken to avoid touching hot during use. Care should
heating elements. Children less than 8 years of age shall
be kept away unless continuously supervised.
6

To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the internal components can cause serious
personal injury or death . Do not disassemble this appliance.
WARNING
Electric Shock Hazard
Improper use of he can result in electric shock.
Do not plug into an outlet until appliance is properly
installed and .
This appliance must be . In the event of an
electrical short circuit, reduces the risk of
electric shock by providing an escape wire for the electric
current. This appliance is equipped with a cord having
a with a plug. The plug must
be plugged into an outlet that is properly installed and
.
Consult a qualified electrician or serviceman if the
instructions are not completely understood
or if doubt exists as to whether the appliance is
properly . If it is necessary to use an extension
cord , use only a 3-wire extension cord.
1. A short power-supply cord is provided to reduce the
risks resulting from becoming entangled in or tripping
over a longer cord.
7
t earthing
earthed
earthing
earthing
earthing wire earthing
earthed
earthing
earthed

CLEANING
Be sure to unplug the appliance from the power supply.
2.Clean the accessories in the usual way in soapy water.
1.Clean the cavity of the oven after use with a
slightly damp cloth.
3.The door frame and neighbouring parts
cleaned must be carefully with a damp cloth when
they are dirty.
4.Do not use harsh abrasive cleaners or sharp metal
to clean the scrapers oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
5.Cleaning Tip---For easier cleaning of the cavity walls
that the food cooked can touch:
Place half a lemon in a bowl, add 300ml(1/2 pint) water
and heat on 100%microwave power for 10 minutes.
Wipe the oven clean using a soft, dry cloth.
8
,
seal
,

CAUTION
Personal Injury Hazard
It is hazardous for anyone other than a compentent person
to carry out any service or repair operation that involves the
removal of a cover which gives protection against exposure
to microwave energy.
UTENSILS
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test
the utensil in question following the procedure below.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer's instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Browning dish
Glass jars
Glassware
Dinnerware
9

Follow manufacturer's instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short-term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer's instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
10

SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity
Your oven comes with the following accessories:
Turntable ring assembly 1
Instruction Manual 1
1. Control panel
2. Grill element
3. Light
4. Level
5. Door glass
6. Hinge
7. Turntable shaft
1
2
3
4
5
6
7
Enamel Tray 1
9
8
10
8. Short Grill Rack
9. Long Grill Rack
10.Grill Pan
11

Hub (underside)
tray should never be restricted.
always be used during
cooking.
c. All food and containers of food are always placed
breaks, contact your
nearest authorized service
center.
Turntable Installation
Turntable shaft
The accessible surface
may be hot during
operation.
a. Never place the enamel tray upside down. The
enamal
b. The enamal tray
must
on the
enamel tray for cooking.
d. If enamel tray cracks or
Enamel tray
Important information about installing
•
•
•
•
•
Please observe the installation instructions provided and note that this appliance
should only be installed by a qualifi
ed technician.
In case a new socket is needed, installation and cable connection must only be done
by a quali ed electrician. If the plug is no longer accessible following installation, a
pole disconnecting device must be present on the installation site with a contact gap
of at least 3 mm.
Adapters, multiway strips and extension cords must not be used. Overloading can
This appliance is NOT intended for use in a commercial environment.
The appliance is fitted with a plug and must only be connected to a properly
installed earthed socket.
result in fire.
If the appliance is not fitted with a supply cord and a plug, the connection equipment
must have a contact separation in all poles that provide full disconnection, and the
appliance must be incorporated in the fixed wiring in accordance with the wiring rules.
•
12
3 pin
fi

Placement
appliance can cause serious personal injury or death.
•
cient ventilation around the microwave oven. At the rear•
and sides keep at least 10 cm free.
Do not cover the air vents.•
The adjustable feet should not be removed.•
Do not place the microwave oven near a heat source.•
Transmitting and receiving equipment such as radios and televisions can affect the•
operation of the microwave oven.
Installation dimensions
Building in
• Do not hold or carry the appliance by the door handle. The door handle cannot hold
the weight of the appliance and may break off.

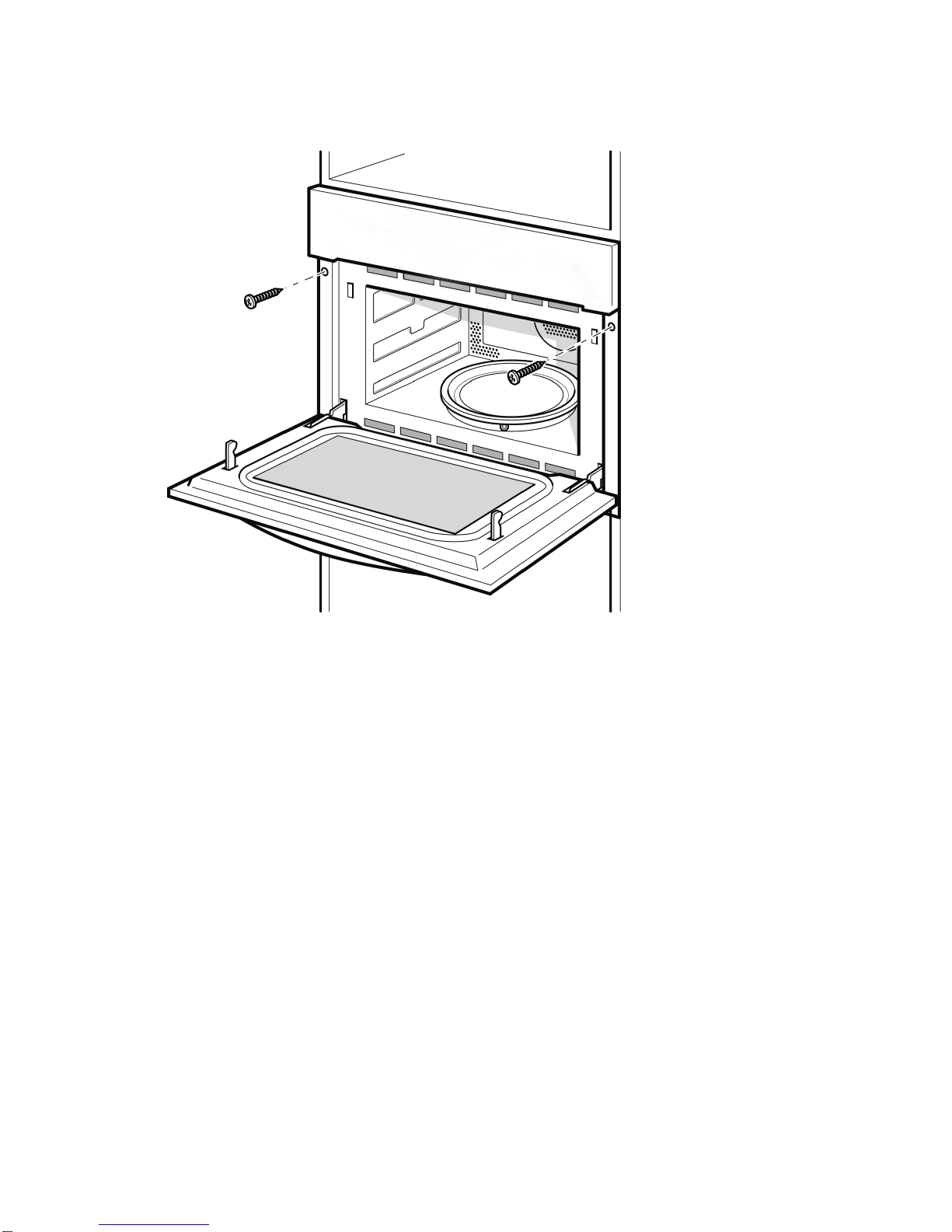

1. Carefully push the microwave into the box, making sure that it is in the centre.
2. Open the door and fasten the microwave with the screws that were supplied.
100
455
595
600
min 580
560-568
22
455
22
595
558-568
min 460
542
542
540
min. beluchtingsopp. 250 cm2
min. beluchtingsopp.
250 cm2
450
600
min
550
min 580
560
28 2
560
min
min.
550
min. aeration surface 250 cm2
min. aeration surface
250 cm2
• Danger! Do not disassemble this appliance. Touching internal components of this
Place the microwave oven on a firm,flat surface.
Make sure that there is surfi
454.5 454.5
458+2
Note: There should be gap above the oven.
594
594
min 45
8
13




Fully insert the appliance and centre it.
Do not kink the connecting cable.
Screw the appliance into place.
The gap between the worktop and the appliance must not be closed by
addtional battens.
14

INSTALL THE GRILL PAN
1. Be sure the angle of the shaft.
５：１
2. Adjust the ang e of the grill pan and the shaft.
3. Put the pan into the cavity and adjust slightly.
15
l

hrhr
minmin
Control Panel and Features
OPERATION
1
23
4
5
6
78
1) Function knob
2) Power/Weight button
3) Fast preheat button
4) On/Off Button
5) Temperature/automenu button
6) Clock button
7) Start/Pause button
8) Selection knob
16

This microwave oven uses modern electronic control to adjust cooking parameters
to meet your needs better for cooking.
When the microwave oven is electrified, "00:00" will blink, buzzer will ring once.
2) After you have set the right time, press " ". The clock has been set.
Note: 1) If you want to change the time, you have to press and hold the " "
to confirm the setting.
2) If you do not want to see the clock in the display, press " " button
briefly. The time disappears. Press " " again, and the cl k appears
in the display again.
OPERATION INSTRUCTION
1.Clock Setting
2. Microwave Cooking
1) Press the " " button to activate the microwave. "01:00" is blinking in
The max. cooking time depends on the power that has been set. When the power
is 900W, the MAX. time is 30 minutes and other powers are 90 minutes.
3) Press " " button to adjust the power microwave power.
5) Press " " button to start cooking.
NOTE: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 1 second
1---5 min : 10 seconds
5---15 min : 30 seconds
15---60 min : 1 minute
60 min : 5 minutes
blink in the display.
button
1) Turn knob to set the right time(between 00:00 and 23:59.)
Turn knob to set the new time and press the " "
2) Turn knob to set the cooking time.
4) Turn knob to set the microwave power (between 100W to 900W)
current power will be confirmed automatically.
the display and the microwave icon appears. If no operation in 10 seconds, the
button for 3 seconds. The actual time disappears and then the time will
17
oc

You can see from the table below which
which foods the power levels are suitable.
Power level Food
900 W - Boiling water, reheating
- Cooking chicken,
700 W - Reheating
- Cooking mushrooms, shell
- Cooking dishes containing eggs and cheese
450 W - Cooking rice, soup
300 W - Defrosting
- Melting chocolate and butter
100 W - Defrosting sensitive/delicate foods
- Defrosting irregularly-shaped foods
- Softening ice cream
- Allowing dough to rise
power levels you can choose and for
Function Mode
Microwave Microwave Microwave
Use the microwave
function to cook and
reheat vegetables,
potatoes, rice,
meat.
Hot air Hot air
With hot air you can
prepare meals in the
same way as you do
with a conventinal oven.
The microwave is not
activated. You are advised
to preheat the oven
before putting the meal in
the oven.
Grill with fan Grill with fan
Use this function to r
meals evenly and at the
same time give the meal a
brown crust.
Grill Grill
The grill is very suitable
to prepare thin pieces of
meat and sh.
Functions
Heating
fish, vegetables
fish
fish and
oast
fi
18

Function Mode
+
Hot air Microwave + Hot air
Use this function to roast
meals quickly.
Grill with fan Microwave + Grill with
fan
Grill Microwave + Grill
Use this function to cook
meals quickly and at the
same time give the meal
a brown crust (also au
gratin). The microwave
and the grill are activated
at the same time. The
microwave is cooking and
the grill is roasting.
Auto-
programs Automatic cooking programs
Defrost d01 + d02 Defrost
Combination
Hot air+
Bottom heat
Hot air+
Bottom heat
Use this function to roast
big pieces of meat, pizza,
etc.
Use this function to roast
big pieces of meat, pizza,
etc.
P01 - P13
Heating
Conv.+Bottom Grill
Microwave+Bottom+Conv.
19

1) Press " " button to activate the microwave.
2) Turn " " to select the cooking mode.
4) Press "
7) Press " " button to start cooking.
3. Grill Cooking
" to enter to the grill level.
Press " " to select the time setting mode. The default time is 10 minutes.
3) Turn " " to select grill mode. The default grill power is the third level.
6) Turn " " to select the cooking time of grill. The MAX.time is 90 minutes.
" " indicator will light when grill function is selected.
" " indicator lights.
1) Press " " button to activate the microwave.
4) Press "
7) Press " " button to start cooking.
Press " " to select the time setting mode. The default time is 10 minutes.
" " indicator lights.
4. Convection Cooking
2) Turn " " to select the cooking mode.
3) Turn " " to select convection mode. " " lights.
" to enter to the tem ature mode.
The default temperature is 180 degrees..
5) Turn " " to select temperature. The temperature is from 50 to 230 degrees.
5) Turn " " to select the level 3(the MAX.), level 2 or level 1(the MIN.).
6) Turn " " to select the cooking time. The MAX.time is 5 hours.
20
per
