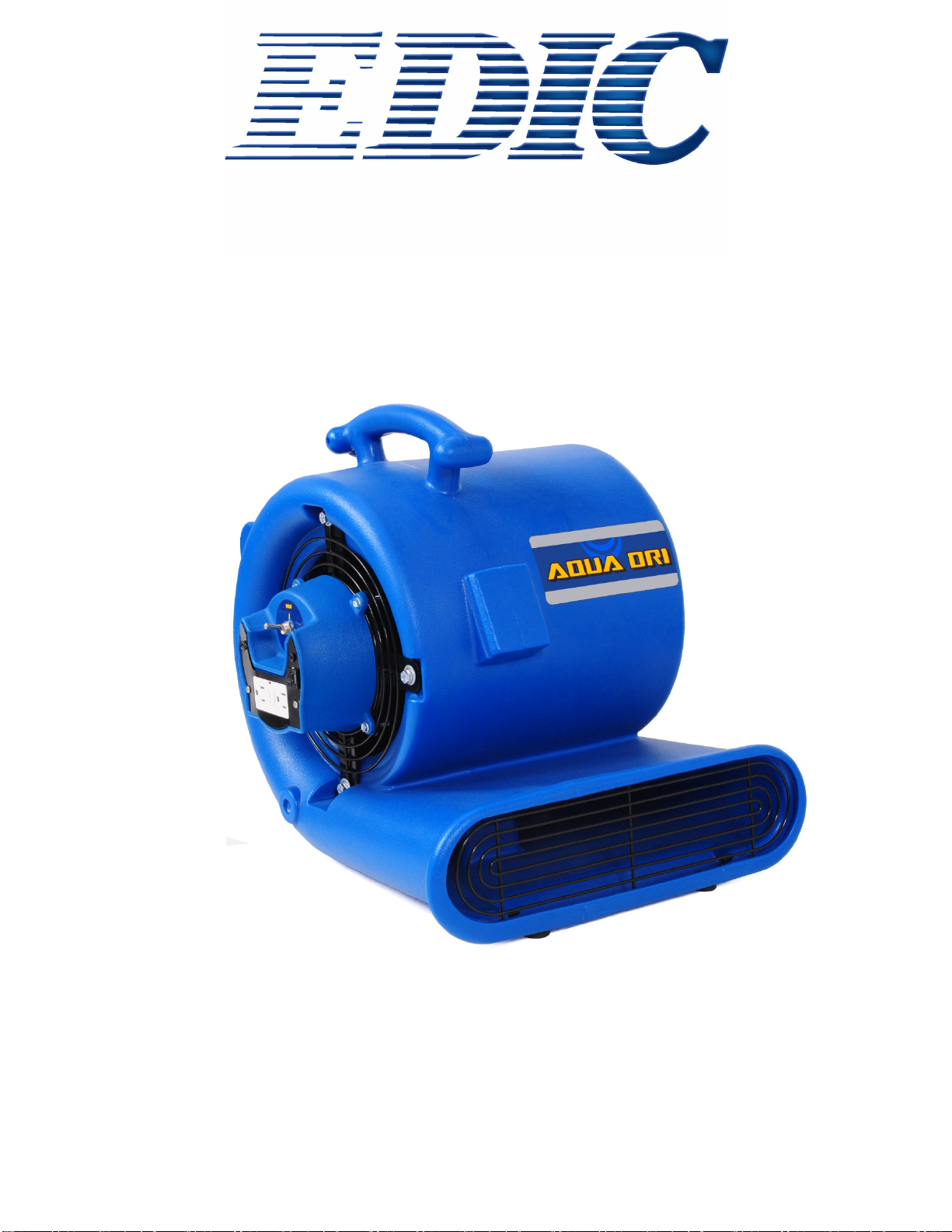

AQUA-DRI Owner’s Manual
& Parts List
This equipment is intended for commercial use only
AQUA-DRI MODELS
3007ADN 3007AD-CCN
1753 Blake Avenue
♦
Los Angeles, CA 90031
♦
1-(800)-338-EDIC, or in CA 1-(323)-660-1635
♦
Fax [phone]

BEFORE OPERATING THIS MACHINE
Read this manual carefully and completely before attempting to operate this unit. This manual
has important information for the use and safe operation of the machine. Keep this manual handy at
all times. This machine will assure years of satisfactory service if operated and maintained according to
recommendations in this manual. If additional information is needed, please contact EDIC at 1-800-
338-EDIC or write to:
EDIC
1753 Blake Ave.
Los Angeles, CA 90031
Electrical – 120 Volt
This machine is designed to operate on a standard 15 amp, 120volt, 60 Hz, AC circuit. Voltages below
105 volts AC or above 125 volts AC could cause serious damage to the motor.
Electrical – 240 Volt
This machine is designed to operate on a standard 10 amp, 240 volt, 50 Hz, AC circuit
IMPORTANT SAFETY INSTRUCTIONS, READ AND SAVE THESE
INSTRUCTIONS BEFORE USING
DANGER!
•Improper connection of the equipment – grounding conductor can result in a risk of fire,
electric shock or injury to person.
Check with a qualified electrician or service person if you are in doubt as to whether the outlet is
properly grounded. Do not modify the plug provided with the air mover – if it will not fit the outlet,
have a proper outlet installed by a qualified electrician.
WARNING!
•This equipment is not designed to handle or use combustible / volatile substances such as gasoline
or kerosene, in, on, or near the machine. The use of such materials will cause an extreme
hazardous condition.
•Disconnect the power cord from the outlet before servicing.
•Do not immerse or use this machine in standing water. Such use may cause electric shock.
•Ensure children do not have access to the equipment. Do not allow children to play with or near
the unit or in its air flow.
•Do not use with damaged cord or plug. If air mover is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water, return it to a qualified service center.
•Do not operate any fan with a damaged cord or plug. Discard fan or return to a qualified service
facility for examination and/or repair.
•When using an extension cord, use only a 3-prong conductor grounding cord- 12 gauge wire or
heavier.

•Do not run cord under carpeting. Do not cover cord with throw rugs, runners or similar coverings.
Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it
will not be tripped over.
•Repairs only allowed by a qualified service center. Do not attempt to disassemble or repair the unit
if you are not qualified to do so.
•Never operate with the safety grills removed. Personal injury may result.
•To avoid electric shock, do not expose the machine to rain. Store it indoors only.
•Do not expose the machine to freezing temperatures.
•Do not move or carry the unit while it is turned on.
•Do not pull or carry by the cord, use cord as a handle, close a door on the cord, or pull cord around
sharp edges or corners.
•Keep cord away from heated surfaces.
•Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
•Do not handle plug or air mover with wet hands.
•Do not put object into openings. Do not use with any opening blocked; keep free of dust, lint, hair
and anything that may reduce air flow.
•Keep hair, loose clothing, fingers and all parts of the body away from the openings and moving
parts.
•Turn off all controls before unplugging the unit.
•Connect to a properly grounded outlet only. See grounding instructions.
•Operate unit on level and stable surface to prevent it from falling and possibly causing injury.
•Do not drop or throw the unit. Treatment of this type can cause damage to the components and
create a hazardous condition.
•To reduce the risk of fire or electric shock, do not use this air mover with any solid-state speed
control devices.
FAILURE TO COMPLY WITH ABOVE WARNING INSTRUCTIONS WILL VOID THE WARRANTY
Grounding Instructions
The 120V A/C and the 240V A/C models have been outfitted with the appropriate grounded connectors. Make
sure the machine is connected to a grounded outlet having the same configuration as the grounded plug. No
adaptor should be used with this machine. Any modification to the connectors will void the warranty.
Ground Fault Circuit Interrupter
The GFCI, or ground fault circuit interrupter is designed to protect the user of the machine. If the GFCI detects
a ground fault, it will interrupt the electrical current. The GFCI will trip when a short circuit or circuit overload
occurs. If the GFCI on your unit should trip, unplug the unit and inspect for hazards such as a damaged
electrical cord or standing water that could cause an electrical surge. Plug the unit into an alternate outlet and
push the reset button to make sure the unit is operating. If so, continue use of the machine. If the unit does
not turn back on, call EDIC at 1-800-338-3342.

OPERATING PROCEDURES
Plug the Aqua Dri into a standard grounded outlet with correct voltage and amperage. Turn on the switch and
check that the unit operates properly before leaving it unattended. Do not carry or move the Aqua Dri when it
is running.
Auxiliary Outlet
The “daisy chain” outlet allows for the connecting of up to 3 EDIC Aqua-Dri 3007ADN machines to maximize
drying efficiency and circuit breaker usage. The red circuit breaker switch is installed in order to protect the
machine. This circuit breaker turns off the unit when more than 9 amps are run through the on-unit circuit.
MAINTENANCE
1. Disconnect the power cord from the outlet before performing this maintenance procedure.
2. Inspect the electrical cord and wiring for damage or discoloration.
3. Inspect for loose fasteners.
4. Clean screens on the sides and front of the unit.
5. Listen for abnormal sounds.
6. Always keep the machine clean inside and out.
7. Motor does not require lubrication.
PERIODIC MAINTENANCE
Use compressed air or a vacuum to remove lint, etc., from the motor, screen or blower. Do not wet the motor
or the wiring. Do not use a pressure washer to clean the unit.
TROUBLE SHOOTING
PROBLEM
PROBLEM CAUSE
ELECTRICAL SYSTEM
Does not turn on 1. Defective power cord.
2. House or building circuit breaker tripped.
3. Switch is defective.
4. Capacitor is defective.
Does not operate at all
speeds
1. Switch is defective.
2. Capacitor is defective.
Blower wheel rubs
1. Wheel is out of round.
Unit makes abnormal
sounds
1. Defective motor.
2. Foreign object stuck.

EDIC DAISY CHAIN AQUA-DRI 3007ADN
PARTS LIST
#
PART NUMBER
DESCRIPTION
QTY
1
F13504-BLUE-GFCI
PLASTIC HOUSING
1
2
D11774
INTAKE GRILL
1
3
C11893
8 X .5 PAN PHILLIPS, BLACK
4
4
D11778
KICKSTAND
1
5
E11841
GROMMET
2
6
D11773
FRONT GRILLE
1
7
H02545
LABEL, AQUA-DRI
1
8
N/A
N/A
N/A
9
B10719
POWER CORD, 16/3, 25’
1
10
B11821
STRAIN RELIEF
1
11
B13511
CAPACITOR, ATTACHED TO MOTOR
1
12
B12914
GROUND FAULT CIRCUIT INTERRUPTER
1
13
D13219
PLATE, GFCI
1
14
C13026
8 X 32 X .63 PAN PHILLIPS, BLACK
4
15
C00314-1
HEX BOLT, 1-4 X 20 X .63
4
16
C00254
LOCK WASHER, 1-4 IN SPLIT
4
17
C00233
FLAT WASHER, .25 IN
4
18
B13234
CIRCUIT BREKAER, 9 AMP
1
19
D11775
MOTOR GRILLE
1
20
G13553
MOTOR, 1/3 HP, 2 SPEED
1
21
C00267-1
U-NUT, 1-4 20
4
22
G11826
FAN WHEEL
1
23
B13660
TOGGLE SWITCH
1
24
H13765
LABEL, TWO SPEED
1

NOTES
REVISED 08-20-2013
