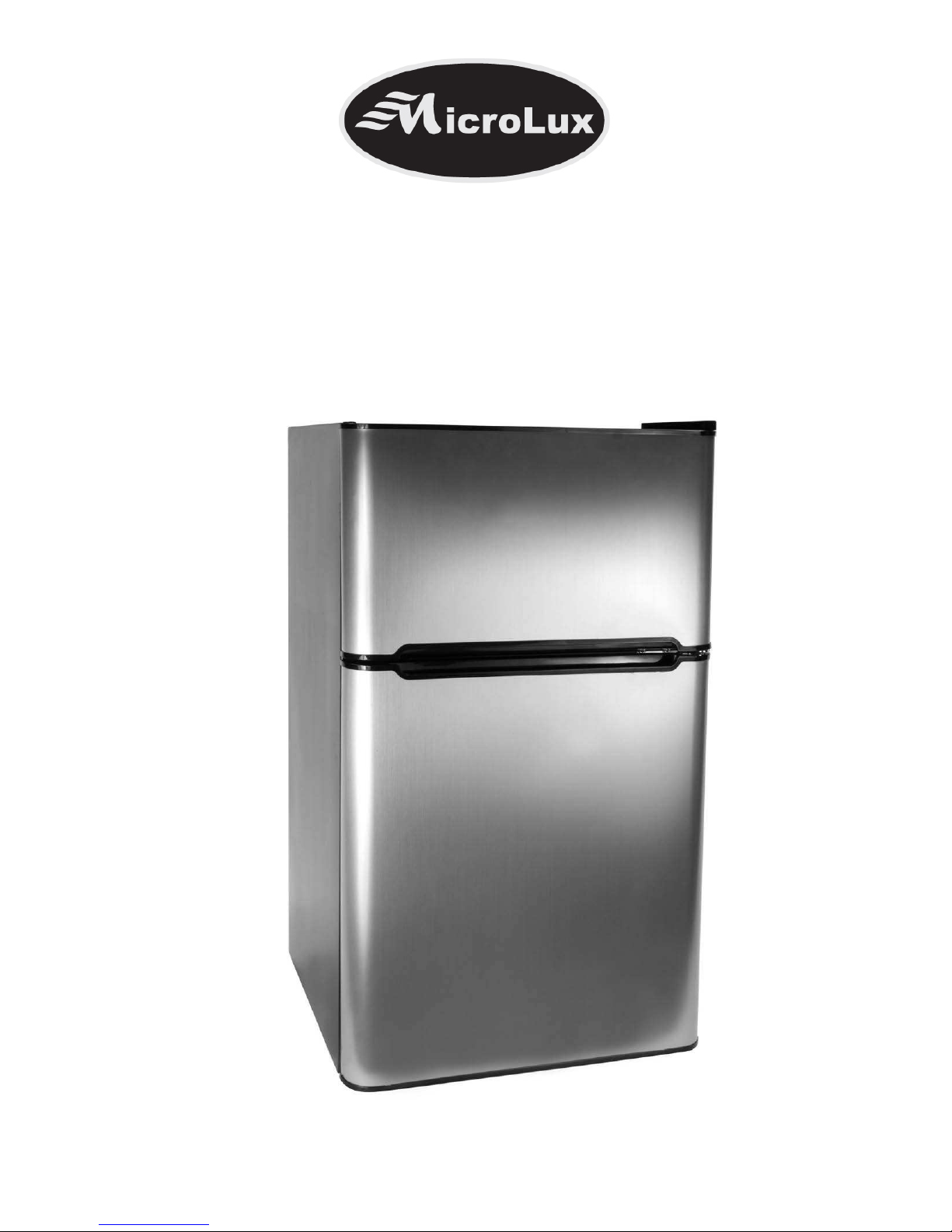

MicroLux ML880BK User manual

REFRIGERATOR
INSTRUCTION M ANUAL
Model No.: ML880BK /
ML880WH

2
Table of contents
SAFETY PRECAUTIONS 3
PARTS AND FEATURES 6
INSTALLING YOUR REFRIGERATOR 7
UNPACKING YOUR REFRIGERATOR 7
LEVELING YOUR REFRIGERATOR 7
PROPER AIR CIRCULATION 7
ELECTRICAL REQUIREMENT 8
USE OF EXTENSION CORDS 8
INSTALLATION LIMITATIONS 8
DOOR ALIGNMENT 9
REVERSING THE DOOR 9
REFRIGERATOR FEATURES AND USE 11
ADJUSTABLE TEMPERATURE DIAL 11
FREEZER COMPARTMENT / USE OF ICE CUBE TRAYS 11
REFRIGERATOR INTERIOR SHELVES 12
USING THE DISPENSE-A-CAN™ 12
CRISPER 12
DEFROSTING YOUR REFRIGERATOR 13
FOOD STORAGE INFOR ATION 14
NOR AL OPERATING SOUNDS YOU AY HEAR 15
PROPER REFRIGERATOR CARE AND CLEANING 15
DOOR GASKETS 15
LIGHTBULB REPLACE ENT 15
POWER INTERRUPTIONS 16
VACATIONS AND OVING CARE 16
TROUBLESHOOTING 17

3
SAFETY PRECAUTIONS
WARNING: Read all of the instructions before using this appliance.
When using this appliance, always exercise basic safety precautions,
including the following:
NOTE: If the refrigerator/freezer has been placed in a horizontal or tilted position
for any period of time wait 24 hours before plugging the unit in.
1. Only use this appliance for its intended purpose as described in this manual.
2. This refrigerator/freezer must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3. This refrigerator/freezer should not be recessed or built-in an enclosed
cabinet. It is designed for freestanding installation only.
4. Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end. Never
unplug your refrigerator/ freezer by pulling on the power cord. Always grasp
the plug firmly and pull straight out from the outlet.
5. If your old refrigerator/freezer is not being used, we recommend that you
remove the doors. This will reduce the possibility of danger to children.
6. WARNING: After your refrigerator/freezer is in operation, do not touch the
cold surfaces in the freezer compartment, particularly when hands are damp
or wet. Skin may adhere to these extremely cold surfaces.
7. Do not refreeze foods, which have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No. 69 reads:
"…You may safely refreeze frozen foods that have thawed if they still contain ice
crystals or if they are still cold-below 40°F…Thawed ground meats, poultry, or fish
that have any off-odor or offcolor should not be refrozen and should not be eaten.
Thawed ice cream should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat. Even partial thawing and
re-freezing reduce the eating quality of foods, particularly fruits, vegetables, and
prepared foods. The eating quality of red meats is affected less than that of many
other foods. Use refrozen foods as soon as possible, to save as much of their eating
quality as you can."

4
SAFETY PRECAUTIONS CONTD.
8. Do not use any electrical device or any sharp instrument in defrosting your
refrigerator.
9. Unplug your refrigerator/freezer before cleaning or before making any
repairs. Note: If for any reason this product requires service, we strongly
recommend that a certified technician perform service.
10. Do not operate your refrigerator in the presence of explosive fumes.

5
SAVE THESE INSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away your old refrigerator
or freezer, take off the doors. Leave the shelves in place so that children
may not easily climb inside.
Thank you for purchasing our product. This easy-to-use manual will guide
you in getting the best use of your appliance. Remember to record the model and
serial number. They are on a label in back of the appliances.
Model number: _________________________________
Serial number: _________________________________
Date of purchase: _______________________________
Staple your receipt to your manual. You will need it to obtain warranty service.

6
PARTS AND FEATURES
1. Interior Light
2. Temperature Control
3. Refrigerator Shelves
4. Crisper
5. Front Leveling Legs
6. Refrigerator Door Shelves
7."Dispense-A-Can™" Storage
8. Freezer Door Shelf
9. Ice Cube Tray
10. Ice Scraper

7
Installing Your Refrigerator
Unpacking Your Refrigerator
1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the refrigerator accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materials before
powering on the refrigerator.
Leveling Your Refrigerator
•Your refrigerator has two leveling legs which are located in the front bottom
corners of your refrigerator. After properly placing your refrigerator in its final
position, you can level your refrigerator.
•Leveling legs can be adjusted by turning them counterclockwise to raise
your refrigerator or by turning them clockwise to lower your refrigerator. The
refrigerator door will close easier when the leveling legs are extended.
Proper Air Circulation
•To ensure your refrigerator works at the maximum efficiency it was designed
for, you should install it in a location where there is proper air circulation,
plumbing, and electrical connections.
•The following are recommended clearances around the refrigerator:
Sides……………3/4" (19mm)
Top....................2" (50mm)
Back..................2" (50mm)

8
WARNING: ELECTRICAL REQUIRE ENT - SHOCK HAZARD
Electrical Requirement
•Make sure there is a suitable power outlet (120 volts, 15 amp outlet) with
proper grounding to power the refrigerator.
•Avoid the use of three prong adapters or cutting off the third grounding
prong in order to accommodate a two prong outlet. This is a dangerous
practice since it provides no effective grounding for the refrigerator and may
result in shock hazard.
WARNING: USE OF EXTENSION CORDS- POTENTIAL SAFETY HAZARD
Use of Extension Cords
Avoid the use of an extension cord because of potential safety hazards under
certain conditions. If it is necessary to use an extension cord, use only a 3-wire
extension cord that has a 3-blade grounding plug and a 3-slot outlet that will
accept the plug. The marked rating of the extension cord must be equal to or
greater than the electrical rating of the appliance.
DO NOT USE AN EXTENSION CORD LONGER THAN 12 FT.
Installation Limitations
•Do not install your refrigerator in any location not properly insulated or
heated, e.g. garage, etc. Your refrigerator was not designed to operate in
temperature settings below 55° Fahrenheit.
•Select a suitable location for the refrigerator on a hard even surface away
from direct sunlight or heat source, e.g. radiators, baseboard heaters,
cooking appliances, etc. Any floor unevenness should be corrected with the
leveling legs located on the front bottom corners of the refrigerator.

9
Door Alignment
Freezer Door: (see fig. #1)
1. Remove the top hinge cover.
2. Loosen the top hinge screws using a phillips
head screwdriver.
3. Adjust the door or put a spacer in between
and then tighten the screws.
4. Replace the top hinge cover.
Reversing the Door (See Fig. #4 On Next Page)
1. Remove the top hinge cover. (See Fig. #1)
2. Using screwdriver, loosen and remove the
screws holding the top hinge in place.
3. Remove top hinge and carefully lift off the
freezer door.
4. Remove the screw hole plugs from the
opposite side and insert the plugs in the screw
hole openings of the just removed screws.
5. Open refrigerator Door and unscrew 2 screws
from the center hinge bracket while holding
the open door in place. (See Fig. #2)
6. Remove bracket and lift off refrigerator door
7. While doors are removed unscrew the door stoppers and reinsert on
opposite side of door. (See Fig. #3)
8. Remove the screw hole plugs from the opposite side and insert the plugs in
the screw hole openings of the just removed screws.
9. Remove any loose items in the refrigerator and carefully tilt refrigerator and
lean against wall. Remove both leveling legs and place in a secure area.

10
10. Loosen the screws holding the lower hinge bracket to the refrigerator door
and remove screws and bracket. Remove leveling leg
11. Remove screws from the other side and insert in the previously removed
screw holes. Remove leveling leg.
12. Remove door pin by turning counter clockwise and reinsert to the underside
of the bracket and tighten.
13. Align bracket and insert (2) remaining screws into the holes provided.
Tighten all the way. Replace leveling legs and place refrigerator upright.
14. Replace washers and cap over pin. Align hole in the refrigerator door with
the door pin and gently push down until firm.
15. Insert pin from center hinge bracket into refrigerator door hole and align
center hinge bracket holes to the screw holes in the cabinet.
16. Insert 2 screws and tighten.
17. Place washers on the center hinge bracket pin and align the freezer door
holes and insert into pin.
18. Replace screws on the top hinge cover, align door and tighten screws.
19. Replace top hinge cover.

11
Refrigerator Features & Use
Adjustable temperature dial:
Your refrigerator will automatically maintain the
temperature level you select. The temperature
control dial has 7 settings plus 0.1 is the warmest.
7 is the coldest. Turning the dial to 0 stops cooling
in both the refrigeration and freezer sections. At
first, set the dial to 4 and allow 24 hours to pass
before adjusting the temperature to your needs.
(Note: If the refrigerator has been placed in a
horizontal or tilted position for any period of time
wait 24 hours before plugging the unit in.)
Freezer Compartment / Use of the Ice Cube Trays
This compartment is designed for making ice cubes and for short-term food
storage (a few days at most).
WARNING: This compartment is not cold enough to freeze foods safely for more
than 5 days.
If ice cube tray freezes to the bottom of the compartment, pour a little warm
water around it to loosen it. Do not use boiling water, which can damage plastic
parts, or sharp metal objects such as a knife or screw driver, which can damage
the cooling system tubing. Wash the ice cube tray in lukewarm water only. Do
not wash in the dishwasher.

12
Refrigerator Interior Shelves
To remove or replace a full-width slide-out
shelf:(see fig. # 5)
1. Gently tilt the shelf up and slide forward until
the shelf has been completely removed.
2. To replace the shelf, gently slide the shelf
back.
Using the Dispense-A-CanTM
Your refrigerator is equipped with the convenient
Dispense-A-Can™ compartment. Each
compartment will hold up to six cans. Simply load
the cans from the top. To dispense a can, simply
draw one out from the bottom. It is that easy.
Crisper
Your refrigerator has a clear crisper. To remove,
grasp the crisper handle and gently slide out.
Slide the drawer back in to replace.

13
Defrosting Your Refrigerator
For maximum energy efficiency, defrost freezer section whenever frost
accumulates to a thickness of 1/4" or more on freezer walls. Note that frost
tends to accumulate more during the summer months.
To defrost freezer, remove food and ice cube tray from the freezer section.
Turn temperature control dial to OFF position. Defrosting may take a few hours.
To speed up defrost time, keep the door open and place a bowl of warm water in
the freezer.
During the defrost, water will accumulate. Use a towel to wipe off excess dripping
water. Do not leave unattended.
After defrosting, empty and wipe down the interior of the freezer. You may
now reset your refrigerator to the desired temperature and return food.
Your freezer has been equipped with an ice scraper for your convenience.

14
Food Storage Information
Fresh Food
When storing fresh food that is not prepackaged, be sure to wrap or store food in
airtight and moisture proof material unless otherwise noted. This will ensure
proper shelf life and prevent the transfer of odors and tastes.
Wipe containers before storing to avoid needless spills.
Eggs should be stored in an upright position in their original carton to maximize
shelf life. Fruit should be washed and dried, then stored in sealed plastic bags
before storing in the refrigerator. Vegetables with skins should be stored in
plastic bags or containers. Leafy vegetables should be washed and drained and
then stored in plastic bags or containers. Hot food should be allowed to cool
before storing in the refrigeration. This will prevent unnecessary energy use.
Fresh seafood should be used the same day as purchased. When storing meats
in the fresh food section, keep in the original packaging or rewrap as necessary.
Follow the suggestions below for safe storage:
• Chicken 1-2 Days • Steaks/Roasts 3-5 Days
• Ground Beef 1-2 Days • Smoked/Cured Meats 7-10 Days
• Cold Cuts 3-5 Days
Frozen Food
Proper freezer storage requires correct packaging. All foods must be in
packages, which do not allow the flow of air or moisture in, or out. Improper
storage will result in odor and taste transfer and will result in the drying out of the
improperly packaged food.Follow package or container instructions for proper
storage.
Packaging Recommendations:
•Plastic containers with air tight lids
•Heavy duty aluminum foil
•Plastic wrap made from saran film
•Self-sealing plastic bags
•Do not refreeze defrosted/thawed foods.
•It is recommended that the freezing date be marked on the packaging.

15
Normal Operating Sounds You ay Hear
Boiling water, gurgling sounds or slight vibrations that are the result of the
refrigerant circulating through the cooling coils.The thermostat control will click
when it cycles on and off.
Proper Refrigerator Care and Cleaning
Cleaning and Maintenance
WARNING: To avoid electric shock, always unplug your refrigerator before
cleaning. Ignoring this warning may result in death or injury.
CAUTION: Before using cleaning products, always read and follow
manufacturer’s instructions and warnings to avoid personal injury or product
damage. Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed
with warm water. Use sponge or soft cloth, dampened with the cleaning solution,
to wipe down your refrigerator. Rinse with clean warm water and dry with a soft
cloth. Do not use harsh chemicals, abrasives, ammonia, chlorine bleach,
concentrated detergents, solvents or metal scouring pads. Some of these
chemicals may dissolve, damage and/or discolor your refrigerator.
Door Gaskets
Clean door gaskets every three months according to general instructions.
Gaskets must be kept clean and pliable to assure a proper seal. Petroleum jelly
applied lightly on the hinge side of gaskets will keep the gasket pliable and
ensure a good seal.
Light Bulb Replacement
1. Switch off power to refrigerator.
2. Gently pull out the clear cover
3. Replace with same type light bulb rated at 10 watts.
4. Push the clear cover back into place.

16
Power Interruptions
Occasionally there may be power interruptions due to thunderstorms or
other causes. Remove the power cord from AC outlet when a power outage
occurs. When power has been restored, replug power cord to AC outlet.
If outage is for a prolonged period, inspect and discard spoiled or thawed
food in freezer and refrigerator. Clean refrigerator before reusing.
WARNING: IF OUTAGE IS FOR A PROLONGED PERIOD,
INSPECT AND DISCARD SPOILED OR THAWED FOOD IN
FREEZER AND REFRIGERATOR. CLEAN REFRIGERATOR
BEFORE REUSING.
Vacation and oving Care
For long vacations or absences, empty food from refrigerator and freezer, move
the temperature DIAL to the OFF position and clean the refrigerator and door
gaskets according to "General cleaning" section.
Prop doors open, so air can circulate inside.When moving always move the
refrigerator vertically. Do not move with the unit lying down. Possible damage to
the sealed system could occur.

17
Troubleshooting
Refrigerator does not operate:
•Check if thermostat control is not in the “0” position.
•Check if refrigerator is plugged in.
•Check if there is power at the AC outlet, by checking the circuit breaker.
Food temperature appears too warm:
•Frequent door openings.
•Allow time for recently added warm food to reach fresh food
temperature.
•Check gaskets for proper seal.
•Adjust temperature control to colder setting.
Food temperature is too cold:
•If temperature control setting is too cold, adjust to a warmer setting and
allow several hours for temperature to adjust.
Refrigerator runs too frequently:
•This may be normal to maintain constant temperature during high
temperature and humid days.
•Doors may have been opened frequently or for an extended period of
time.
•Check gasket for proper seal.
•Check to see if doors are completely closed.
Moisture build up on interior or exterior of the refrigerator:
•This is normal during high humidity periods.
•Prolonged or frequent door openings.
•Check door gaskets for proper seal.
Refrigerator has an odor:
•Interior needs cleaning.
•Foods improperly wrapped or sealed are giving off odors.
Refrigerator door does not shut properly:
•Level the refrigerator.
•Re-align refrigerator door.
•Check for blockages, e.g. food containers, crisper cover, shelves, bins,
etc.

18
Popping or cracking sound when the compressor comes on:
•Check to ensure the refrigerator is level.
•The floor may be uneven or weak. The refrigerator rocks on the floor
when it is moved slightly. Be sure the floor can adequately support the
refrigerator. Level the refrigerator by putting wood or metal shims under
part of the refrigerator.
•The refrigerator is touching the wall. re-level the refrigerator and move it
from the wall. See the “Installing Your Refrigerator” section.
Refrigerator light does not work:
•Check power supply.
•Tighten bulb in socket.
•Replace burned out bulb.
