Please read this manual before using the product!
Dear Customer,
We'd like you to make the best use of our product, which has been manufactured in modern facilities
with care and meticulous quality controls.
Thus, we advice you to read the entire user manual before you use the product. In case the product
changes hands, do not forget to hand the guide to its new owner along with the product.
This guide will help you use the product quickly and safely.
• Please read the user guide carefully before installing and operating the product.
• Always observe the applicable safety instructions.
• Keep the user guide within easy reach for future use.
• Please read any other documents provided with the product.
Keep in mind that this user guide may apply to several product models. The guide clearly indicates any
variations of different models.
CImportant information and useful
tips.
ARisk of life and property.
BRisk of electric shock.
The product’s packaging is made of
recyclable materials, in accordance
with the National Environment
Legislation.

2 / 25 EN Refrigerator / User Guide
1 Safety and environment instructions3
1.1. General safety. . . . . . . . . . . . . . . . . . . . . . . 3
1.1.1 HC warning. . . . . . . . . . . . . . . . . . . . . . . . 4
1.1.2 For models with water dispenser . . . . . . . . 5
1.2. Intended use. . . . . . . . . . . . . . . . . . . . . . . . 5
1.3. Child safety. . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4. Compliance with WEEE Directive and
Disposing of the Waste Product . . . . . . . . . 5
1.5. Compliance with RoHS Directive . . . . . . . . . 6
1.6. Package information . . . . . . . . . . . . . . . . . . 6
2 Refrigerator 7
3 Installation 8
3.1. Right place for installation . . . . . . . . . . . . . . 8
3.2. Attaching the plastic wedges . . . . . . . . . . . . 8
3.3. Adjusting the stands . . . . . . . . . . . . . . . . . . 9
3.4. Power connection . . . . . . . . . . . . . . . . . . . . 9
3.5. Water connection . . . . . . . . . . . . . . . . . . . . 9
3.6. Connecting water hose to the product . . . . 10
3.7. Connecting to water mains . . . . . . . . . . . . 10
3.8. For products using water carboy . . . . . . . . 11
3.9. Fixing external filter on the wall (Optional) . . 12
4 Preparation 14
4.1. What to do for energy saving. . . . . . . . . . . 14
4.2. First Use . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5 Using the product 15
5.1. Indicator panel . . . . . . . . . . . . . . . . . . . . . 15
5.2. Activating the water filter replacing alert . . 17
5.3. Taking ice / water . . . . . . . . . . . . . . . . . . . 17
5.4. Dripping tray. . . . . . . . . . . . . . . . . . . . . . . 18
5.5. Zero degree compartment. . . . . . . . . . . . . 18
5.6. Vegetable bin . . . . . . . . . . . . . . . . . . 18
5.7. Multi zone storage compartment . . . . . . . 19
5.8. Rotating storage compartment . . . . . . . . . 19
5.9. Blue light . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.10. Ionizer . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.11. Minibar. . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.12.Freezing fresh food . . . . . . . . . . . . . . . . . 20
5.13.Recommendations for storing frozen foods 20
5.14.Deep freezer details. . . . . . . . . . . . . . . . . 20
5.15.Placing the food. . . . . . . . . . . . . . . . . . . . 21
5.16.Door open alert . . . . . . . . . . . . . . . . . . . . 21
5.17.Interior light . . . . . . . . . . . . . . . . . . . . . . . 21
6 Maintenance and cleaning 22
6.1. Preventing malodour . . . . . . . . . . . . . . . . . 22
6.2. Protecting plastic surfaces . . . . . . . . . . . . 22
6.3. Cleaning the ice tray . . . . . . . . . . . . . . . . . 22
7 Troubleshooting 23
Table of Contents

3 / 25 EN
Refrigerator / User Guide
1Safety and environment instructions
This section provides the safety
instructions necessary to prevent
the risk of injury and material
damage. Failure to observe these
instructions will invalidate all
types of product warranty.
Intended use
• This product is intended to be
used
• indoors and in closed areas
such as homes;
• in closed working
environments such as stores and
offices;
• in closed accommodation
areas such as farm houses,
hotels, pensions.
• It should not be used outdoors.
1.1.General safety
• This product should not be
used by persons with physical,
sensory and mental disabilities,
without sufficient knowledge
and experience or by children.
The device can only be
used by such persons under
supervision and instruction of
a person responsible for their
safety. Children should not be
allowed to play with this device.
• In case of malfunction, unplug
the device.
• After unplugging, wait at least
5 minutes before plugging in
again.
• Unplug the product when not in
use.
• Do not touch the plug with wet
hands! Do not pull the cable to
plug off, always hold the plug.
• Wipe the power plug’s tip with a
dry cloth before plugging in.
• Do not plug in the refrigerator if
the socket is loose.
• Unplug the product during
installation, maintenance,
cleaning and repair.
• If the product will not be used for
a while, unplug the product and
remove any food inside.

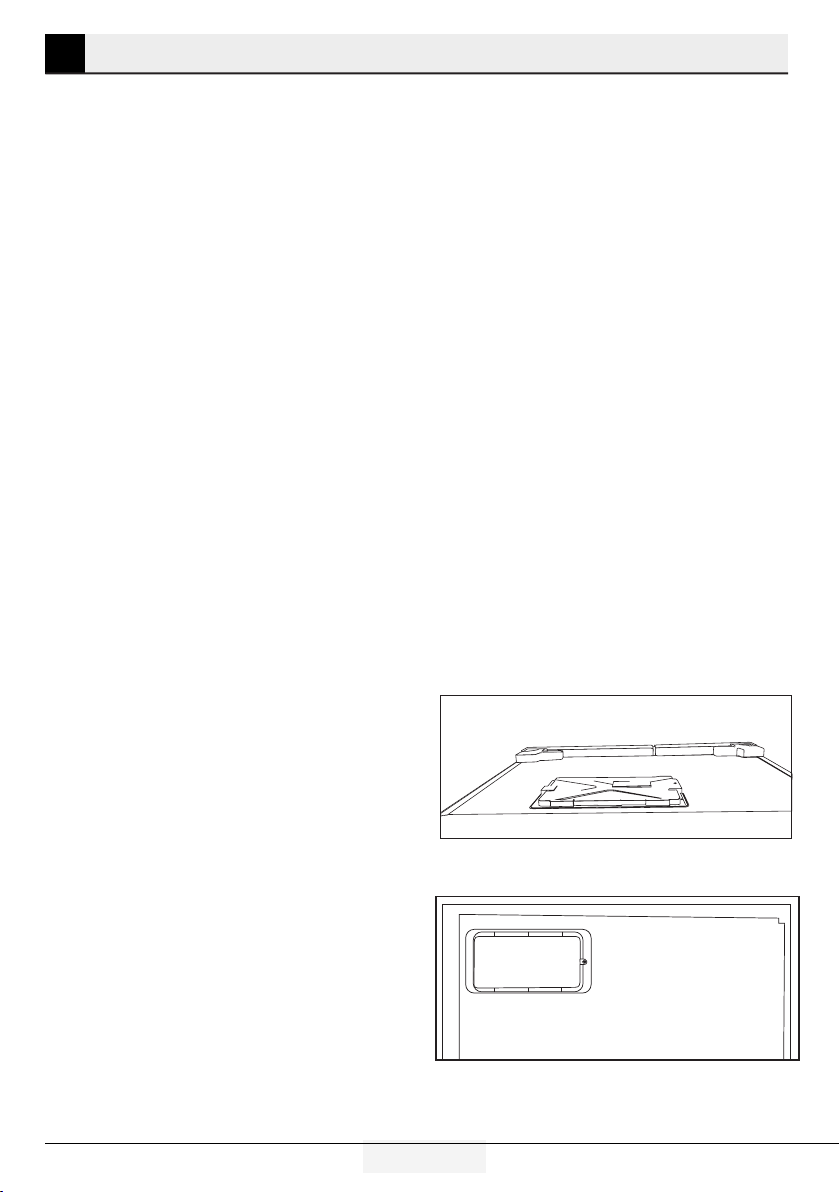

• Do not use the product when the
compartment with circuit cards
located on the upper back part of
the product (electrical card box
cover) (1) is open.
1
1
• Do not use steam or steamed
cleaning materials for cleaning

4 / 25 EN Refrigerator / User Guide
Safety and environment instructions
the refrigerator and melting the
ice inside. Steam may contact
the electrified areas and cause
short circuit or electric shock!
• Do not wash the product by
spraying or pouring water on it!
Danger of electric shock!
• In case of malfunction, do not
use the product, as it may cause
electric shock. Contact the
authorized service before doing
anything.
• Plug the product into an earthed
socket. Earthing must be done
by a qualified electrician.
• If the product has LED type
lighting, contact the authorized
service for replacing or in case
of any problem.
• Do not touch frozen food with
wet hands! It may adhere to
your hands!
• Do not place liquids in bottles
and cans into the freezer
compartment. They may burst
out!
• Place liquids in upright position
after tightly closing the lid.
• Do not spray flammable
substances near the product, as
it may burn or explode.
• Do not keep flammable
materials and products with
flammable gas (sprays, etc.) in
the refrigerator.
• Do not place containers holding
liquids on top of the product.
Splashing water on an electrified
part may cause electric shock
and risk of fire.
• Exposing the product to rain,
snow, sunlight and wind will
cause electrical danger. When
relocating the product, do not
pull by holding the door handle.
The handle may come off.
• Take care to avoid trapping any
part of your hands or body in
any of the moving parts inside
the product.
• Do not step or lean on the door,
drawers and similar parts of the
refrigerator. This will cause the
product to fall down and cause
damage to the parts.

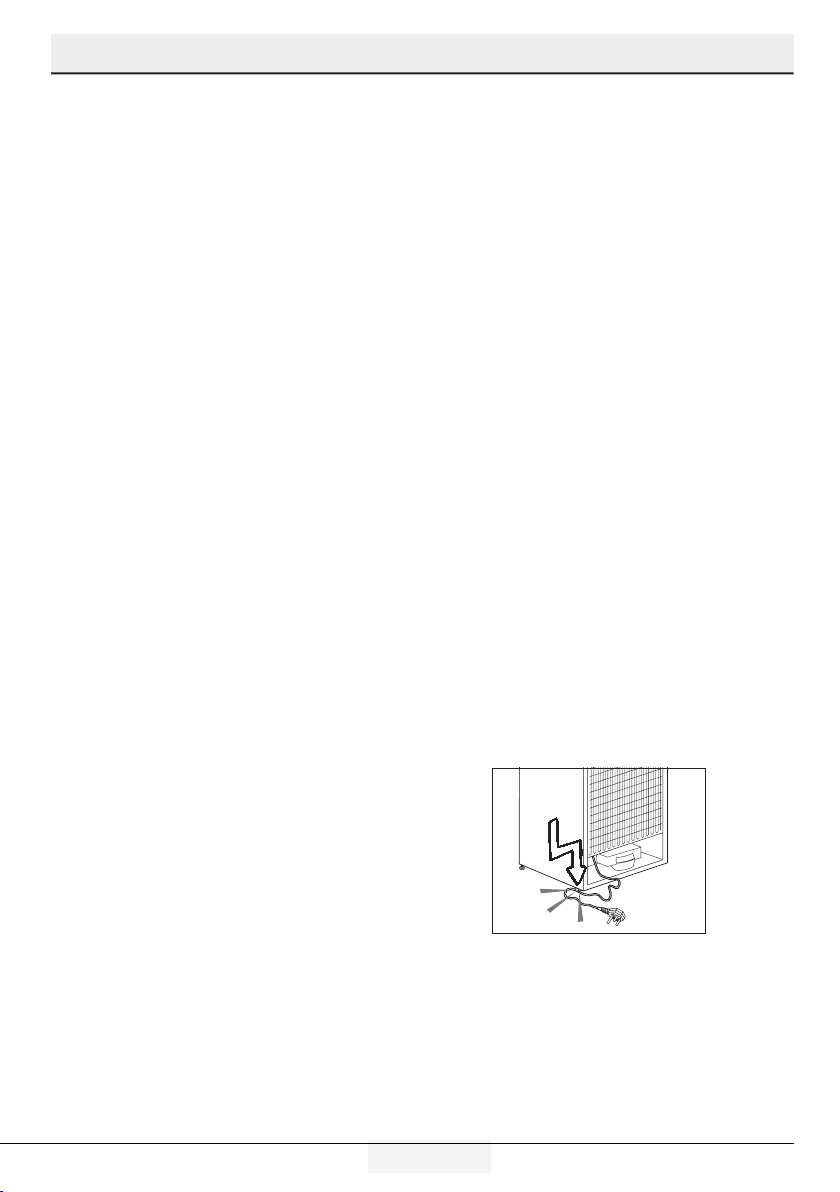

• Take care not to trap the power
cable.
1.1.1 HC warning
If the product comprises a cooling
system using R600a gas, take
care to avoid damaging the
cooling system and its pipe while
using and moving the product.

5 / 25 EN
Refrigerator / User Guide
Safety and environment instructions
This gas is flammable. If the
cooling system is damaged, keep
the product away from sources
of fire and ventilate the room
immediately.
CThe label on the inner
left side indicates the
type of gas used in the
product.
1.1.2 For models with
water dispenser
• Pressure for cold water inlet
shall be maximum 90 psi (6.2
bar). If your water pressure
exceeds 80 psi (5.5 bar), use a
pressure limiting valve in your
mains system. If you do not
know how to check your water
pressure, ask for the help of a
professional plumber.
• If there is risk of water hammer
effect in your installation,
always use a water hammer
prevention equipment in
your installation. Consult
Professional plumbers if you
are not sure that there is no
water hammer effect in your
installation.
• Do not install on the hot water
inlet. Take precautions against
of the risk of freezing of the
hoses. Water temperature
operating interval shall be 33°F
(0.6°C) minimum and 100°F
(38°C) maximum.
• Use drinking water only.
1.2.Intended use
• This product is designed for
home use. It is not intended for
commercial use.
• The product should be used to
store food and beverages only.
• Do not keep sensitive
products requiring controlled
temperatures (vaccines,
heat sensitive medication,
medical supplies, etc.) in the
refrigerator.
• The manufacturer assumes no
responsibility for any damage
due to misuse or mishandling.
• Original spare parts will be
provided for 10 years, following
the product purchasing date.
1.3.Child safety
• Keep packaging materials out
of children’s reach.
• Do not allow the children to
play with the product.
• If the product’s door comprises
a lock, keep the key out of
children’s reach.
1.4. Compliance with WEEE Directive
and Disposing of the Waste Product
This product complies with EU WEEE
Directive (2012/19/EU). This product bears a
classification symbol for waste electrical and
electronic equipment (WEEE).

6 / 25 EN Refrigerator / User Guide
Safety and environment instructions
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Do not dispose of the
waste product with normal domestic
and other wastes at the end of its
service life. Take it to the collection
center for the recycling of electrical and
electronic equipment. Please consult your local
authorities to learn about these collection
centers.
1.5. Compliance with RoHS Directive
• This product complies with EU WEEE Directive
(2011/65/EU). It does not contain harmful and
prohibited materials specified in the Directive.
1.6. Package information
• Packaging materials of the product are
manufactured from recyclable materials in
accordance with our National Environment
Regulations. Do not dispose of the packaging
materials together with the domestic or other
wastes. Take them to the packaging material
collection points designated by the local
authorities.

7 / 25 EN
Refrigerator / User Guide
2 Refrigerator
C*Optional: Figures in this user guide are schematic and may not be exactly match your product. If your
product does not comprise the relevant parts, the information pertains to other models.
1. Cooler compartment
2. Butter cheese rack
3. Glass rack
4. Eggholder
5. Odour filter
6. Minibar inner cover
7. Zero degree compartments
8. Vegetable bins
9. Cooler compartment door shelves
10. Door rack under storage container
11. Multizone compartment glass racks
12. Freezer compartment door shelves
13. Multi Zone / Flexi Zone / Cool Control
compartment food storage compartments
14. Multizone compartment
15. Freezer compartment
16. Frozen or fresh food storage compartment
17. Freezer
18. Ice stock compartment
1
2
3
5
6
4
7
8
9
10
11
12
17
18
13
1415
16

8 / 25 EN Refrigerator / User Guide
3 Installation
3.1. Right place for installation
Contact the Authorized Service for the product's
installation. To ready the product for installation,
see the information in the user guide and make
sure the electric and water utilities are as required.
If not, call an electrician and plumber to arrange
the utilities as necessary.
BWARNING: The manufacturer assumes
no responsibility for any damage caused
by the work carried out by unauthorized
persons.
BWARNING: The product’s power cable
must be unplugged during installation.
Failure to do so may result in death or
serious injuries!
A
WARNING: : If the door span is too
narrow for the product to pass, remove
the door and turn the product sideways; if
this does not work, contact the authorized
service.
•Placetheproductonaflatsurfacetoavoid
vibration.
•Placetheproductatleast30cmawayfromthe
heater, stove and similar sources of heat and at
least 5 cm away from electric ovens.
•Donotexposetheproducttodirectsunlightor
keep in damp environments.
•Theproductrequiresadequateaircirculationto
function efficiently. If the product will be placed
in an alcove, remember to leave at least 5 cm
distance between the product and the ceiling
and the walls.
•Donotinstalltheproductinenvironmentswith
temperatures below -5°C.

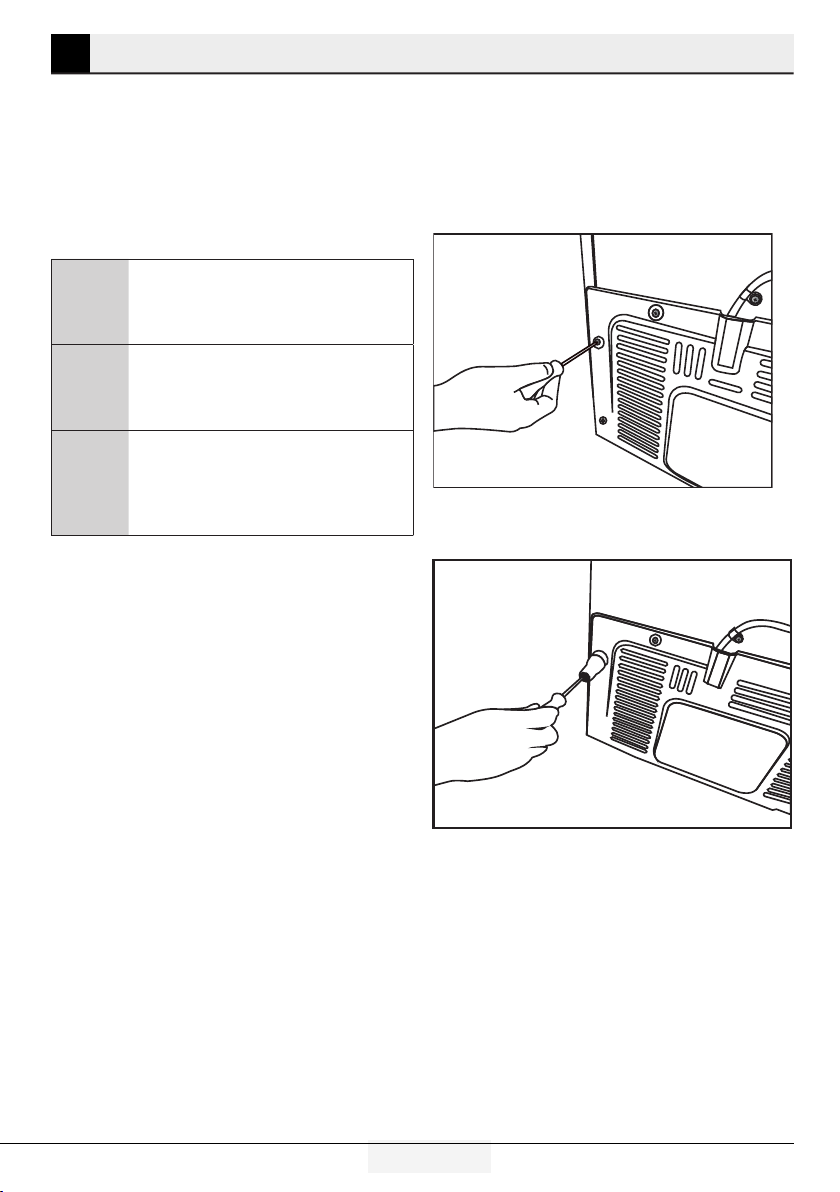

3.2. Attaching the plastic wedges
Use the plastic wedges in the provided with
the product to provide sufficient space for air
circulation between the product and the wall.
1. To attach the wedges, remove the screws on the
product and use the screws provided with the wedges.
2. Attach 2 plastic wedges on the ventilation cover
shown as j in the figure.

9 / 25 EN
Refrigerator / User Guide
Installation

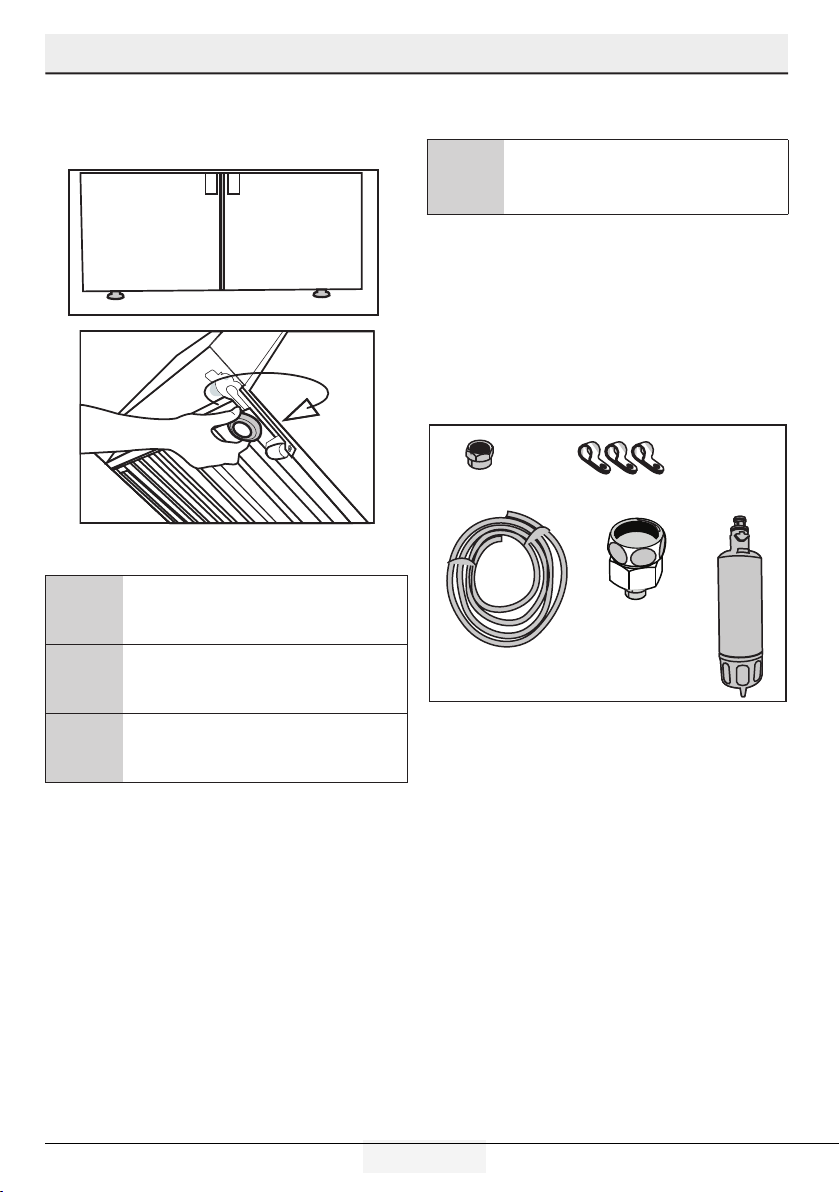

3.3. Adjusting the stands
If the product is not in balanced position, adjust the
front adjustable stands by rotating right or left.
3.5. Water connection
(Optional)
AWARNING: Unplug the product and
the water pump (if available) during
connection.
The product’s water mains, filter and carboy
connections must be rendered by authorizer
service. The product can be connected to a carboy
or directly to the water mains, depending on the
model. To establish the connection, the water hose
must first be connected to the product.
Check to see the following parts are supplied with
your product’s model:
3.4. Power connection
AWARNING: Do not use extension or multi
sockets in power connection.
BWARNING: Damaged power cable must
be replaced by Authorized Service.
CWhen placing two coolers in adjacent
position, leave at least 4 cm distance
between the two units.
• Our firm will not assume responsibility for any
damages due to usage without earthing and
power connection in compliance with national
regulations.
• The power cable plug must be easily
accessible after installation.
• Connect the refrigerator to an earthed socket
with 220-240V/50 Hz voltage. The plug must
comprise a 10-16A fuse.
• Do not use multi-group plug with or without
extension cable between the wall socket and
the refrigerator.
3
1
4
2
*5
1. Connector (1 piece): Used to attach the water
hose to the rear of the product.
2. Hose clip (3 pieces): Used to fix the water
hose on the wall.
3. Water hose (1 piece, 5 meter diameter 1/4
inches): Used for the water connection.
4. Faucet adapter (1 piece): Comprises a porous
filter, used for connection to the cold water
mains.
5. Water filter (1 piece *Optional): Used to
connect the mains water to the product. Water
filter is not required if carboy connection is
available.
