MICROWELL HP COMMERCIAL iMAX60 User manual

–
Version: 04/2020 (last update: 2020-04-24)
HEAT
PUMP
for swimming pool water
heating & cooling
HP COMMERCIAL Inverter iMAX60
HP COMMERCIAL Inverter iMAX110
Installation and user manual

Installation and user manual HP COMMERCIAL Inverter iMAX60 / iMAX110
Version: 04/2020 Page 2
Thank you for purchasing Microwell swimming pool heat pump.
Before you use this device, it is necessary to carefully read the entire
Installation and user manual. It is not allowed to commence the heat
pump installation or operation unless full content of this Installation
and user manual is understood and acknowledged. Please keep the
Installation and user manual available in the case of any future
reference is required. Please provide this information also to each
user of the device. Please mind local regulations in your country
regarding installation and usage of this heat pump which are valid in
addition to this User manual.
We hope you'll enjoy using our heat pumps.
Contents
1. Safety Precautions........................................................................................................................... 4
1.1 Warning ................................................................................................................................... 4
1.2 Attention ................................................................................................................................. 4
1.3 Safety....................................................................................................................................... 4
2. About your heat pump .................................................................................................................... 4
2.1 Transportation......................................................................................................................... 4
2.2 Accessories .............................................................................................................................. 5
2.3 Operating condition and range ............................................................................................... 5
2.4 Introduction of different modes ............................................................................................. 5
2.5 Technical parameters .............................................................................................................. 6
2.6 Dimensions .............................................................................................................................. 7
3. INSTALLATION GUIDANCE ............................................................................................................... 8
3.1 Installation reminder............................................................................................................... 8
3.2 Wiring .................................................................................................................................... 11
3.3 Electric wiring Diagram.......................................................................................................... 11
3.4 References for protecting devices and cable specification................................................... 11
4. OPERATION GUIDANCE ................................................................................................................. 12
4.1 Key Function.......................................................................................................................... 12
4.2 Operation Instruction............................................................................................................ 12
5. TESTING ......................................................................................................................................... 14
5.1 Inspect heat pump before use .............................................................................................. 14
5.2 Trial........................................................................................................................................ 14
6. MAINTENANCE .............................................................................................................................. 14
7. TROUBLE SHOOTING FOR COMMON FAULTS ............................................................................... 15
HEAT PUMP MICROWELL HP

HP COMMERCIAL Inverter iMAX60 / iMAX110 Installation and user manual
Page 3Version:04/2020
7.1 Failure solution and code ...................................................................................................... 15
8. Electrical wiring schematic (optional) ........................................................................................... 17
9. Wi-Fi operation.............................................................................................................................. 19
HEAT PUMP MICROWELL HP

Installation and user manual HP COMMERCIAL Inverter iMAX60 / iMAX110
Version: 04/2020 Page 4

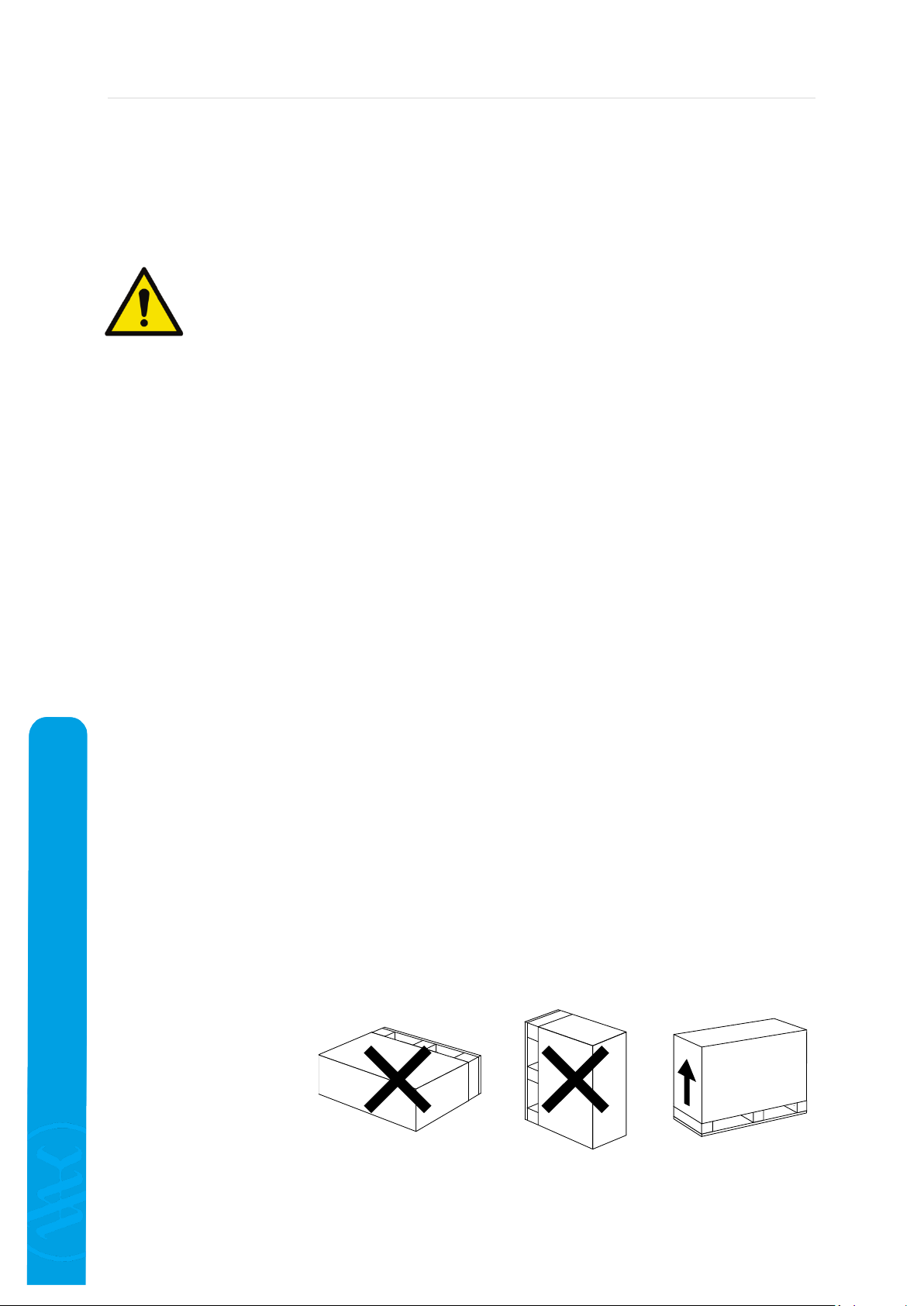

1. Safety Precautions
We have provided important safety messages in this manual and on your heater.
Please always read and obey all safety messages.
1.1 Warning
The WARNING sign denotes a hazard. It calls attention to a procedure, practice, or
the like, which, if not correctly performed or adhered to, could result in personal
injury or injury to a third party. These signs are rare, but are extremely important.
1.2 Attention
a) Set proper temperature in order to get comfortable water temperature to avoid overheating
or overcooling.
b) Please don’t stack substances, which will block air flow near inlet or outlet area, otherwise
the efficiency of the heater will be reduced or even stopped.
c) Don’t use or stock combustible gas or liquid such as thinners, paint and fuel to avoid fire.
d) In order to optimize the heating effect, please install heat preservation insulation on pipes
between swimming pool and the heater, and please use a recommended cover on the
swimming pool.
e) Connecting pipes of the swimming pool and the heater should be ≤10m.
1.3 Safety
a) Please keep the main power supply switch far away from the children.
b) When a power cut happens during operating, and later the power is restored, the heater will
start up.
c) Please switch off the main power supply in lightening and storm weather to prevent from
machine damage that caused by lightning.
d) Installation and any repairing should be conducted in the area with good ventilation. The
ignition source is prohibited during the operation.
2. About your heat pump
2.1 Transportation
a. Always keep upright
HEAT PUMP MICROWELL HP

HP COMMERCIAL Inverter iMAX60 / iMAX110 Installation and user manual
Page 5Version:04/2020

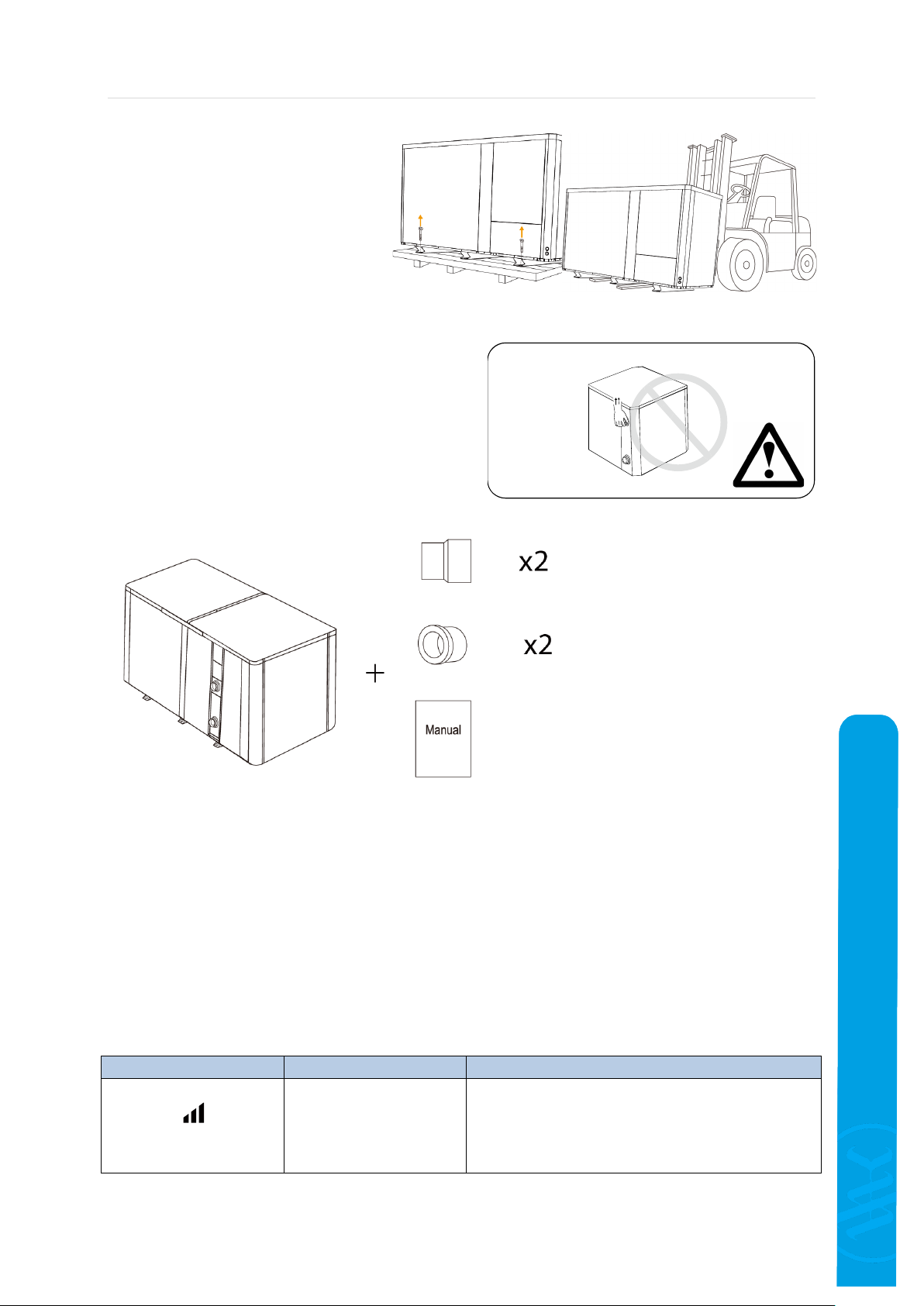

Loose the screws in the bottom, and use
the forklift to transport.

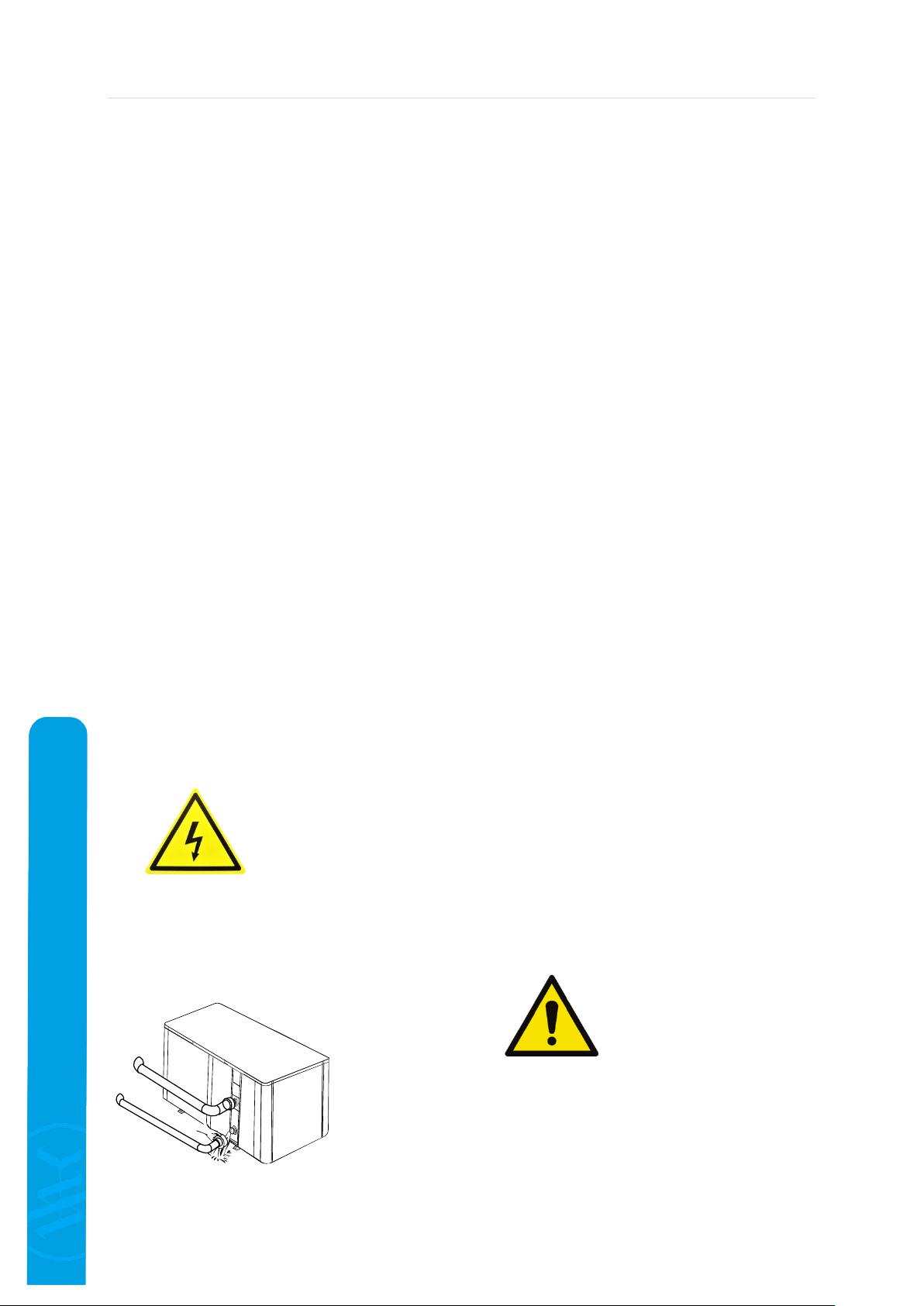

b. Do not lift the water union, otherwise, the
titanium heat exchanger inside the heat pump
may be damaged)
2.2 Accessories
2.3 Operating condition and range
To provide you comfort and pleasure, please set swimming pool water temperature efficiently and
economically.
The heat pump can work between air -10°C～43°C, and its ideal operation range is between air 15°C
~ 25°C.
2.4 Introduction of different modes
a) The heat pump has two modes: Boost and Silence.
b) They have different strengths under different conditions.
Mode
Modes
Strength
Boost mode Heating capacity: 20% to 100% capacity
Intelligent optimization
Fast heating
HEAT PUMP MICROWELL HP

Installation and user manual HP COMMERCIAL Inverter iMAX60 / iMAX110
Version: 04/2020 Page 6
2.5 Technical parameters
Model
iMAX60
iMAX110
PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80%
Heating capacity (kW)
60.2
115.0
Average COP at 50% Speed
10.5
10.0
PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. 70%
Heating capacity (kW)
40.1
80.8
Average COP at 50% Speed
7.0
7.0
TECHNICAL SPECIFICATIONS
Advised pool volume (m3) *
125~260
250~520
Operating air temperature (
℃
)
-10
℃
~43
℃
Fan direction
Vertical
Power supply
400V/3Ph/50Hz
Rated input power (kW)
2.26~8.90
4.68~17.5
Rated input current (A)
3.27~12.9
6.78~25.3
Sound level at 10m dB(A)
33.0~41.0
35.0~44.0
Advised water flux (m³/h)
20~25
40~50
Water connection (mm)
75
110
Net dimension LxWxH (mm)
1000x1110x1260
2100x1090x1280
Net Weight (kg)
212
459
Remarks:
This heat pump is able to perform normal within air temp -10℃～43℃, efficiency will not be guaranteed out of
this range. Please take into consideration that the pool heater performance and parameters are different under
various conditions.
Related parameters are subject to adjustment periodically for technical improvement without further notice.
For details please refer to nameplate.
Silence mode Heating capacity: 20% to 80% capacity
Sound level: 3dB (A) lower than Boost mode
HEAT PUMP MICROWELL HP

HP COMMERCIAL Inverter iMAX60 / iMAX110 Installation and user manual
Page 7Version:04/2020

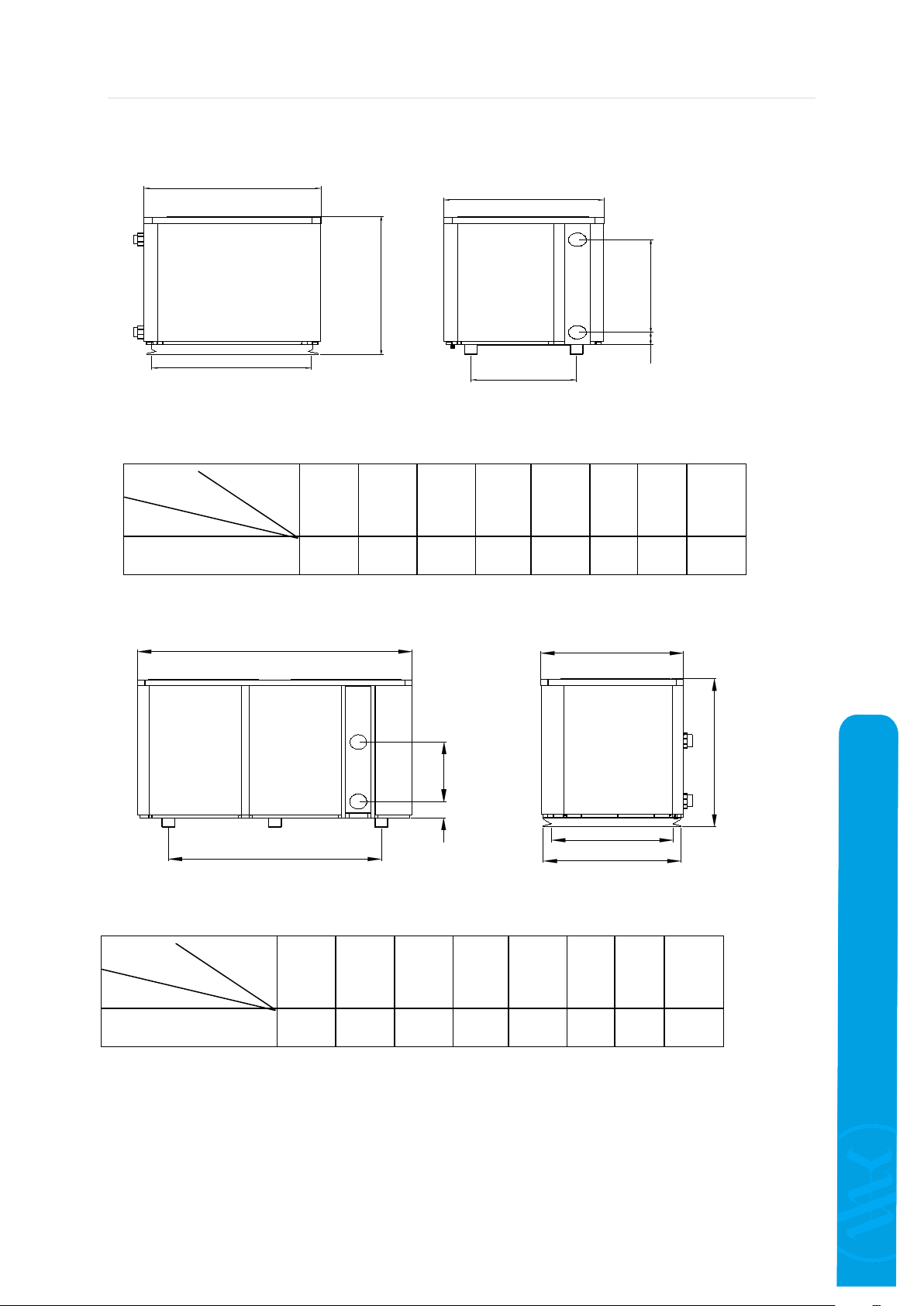

2.6 Dimensions
B
F
G
E
H
A
C
E
B
F
G
D
A
H
C
A B C D E F G H
iMAX60
1000
660
1110
1070
1000
780
105
1260
A B C D E F G H
iMAX110
1000
1630
1090
1050
2100
515
140
1280
Name
Size (mm)
Model
Name
Size (mm)
Model
HEAT PUMP MICROWELL HP

Installation and user manual HP COMMERCIAL Inverter iMAX60 / iMAX110
Version: 04/2020 Page 8
3. INSTALLATION GUIDANCE
3.1 Installation reminder
Only a professional staff is allowed to install the heat pump. The users are not qualified to install by
themselves, otherwise the heat pump might be damaged and risky for users’ safety.

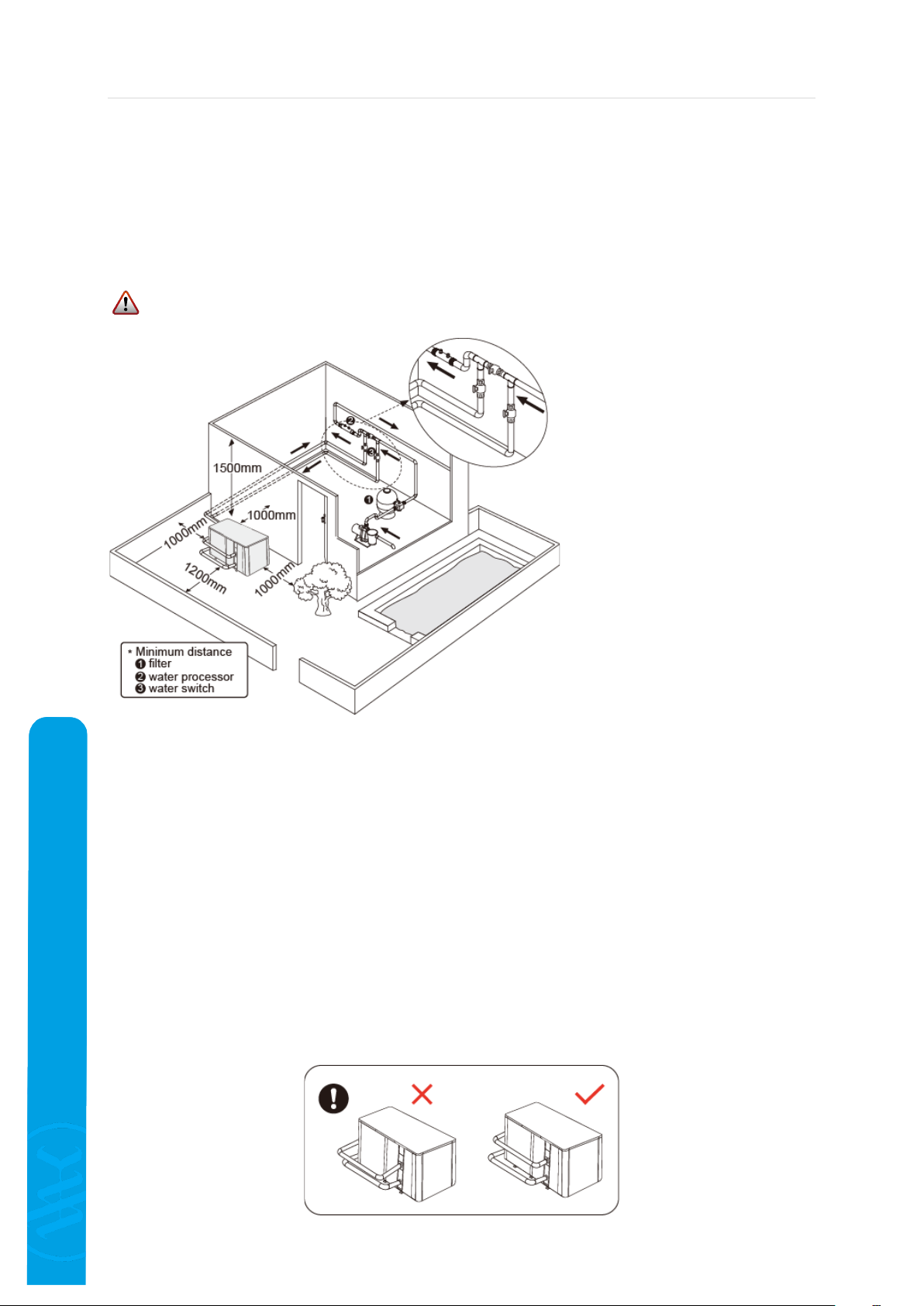

a. Location and water pipe connection
The inverter pool heat pump should be installed in a good ventilation place.
1) The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete
foundation must be solid and fastened; the bracket must be strong enough and antirust treated;
2) Please don’t stack substances that will block air flow near inlet or outlet area, and there is no
barrier within 50cm behind the main machine, or the efficiency of the heater will be reduced or
even stopped;
3) The machine needs an appended pump (Supplied by the user). The recommended pump
specification-flux: refer to Technical Parameter, Max. lift ≥10m;
4) When the machine is running, there will be condensation water discharged from the bottom,
please pay attention to it. Please hold the drainage nozzle (accessory) into the hole and clip it
well, and then connect a pipe to drain the condensation water out.
b. The inlet and outlet water unions can’t stand the weight of soft pipes. The heat pump must be
connected with hard pipes!
HEAT PUMP MICROWELL HP

HP COMMERCIAL Inverter iMAX60 / iMAX110 Installation and user manual
Page 9Version:04/2020
1. How to connect to the terminal board of iMAX60
Step 1. open the maintenance panel

Remove three screws outside

Open the panel

Remove two screws inside

Open the internal
HEAT PUMP MICROWELL HP

Installation and user manual HP COMMERCIAL Inverter iMAX60 / iMAX110
Version: 04/2020 Page 10

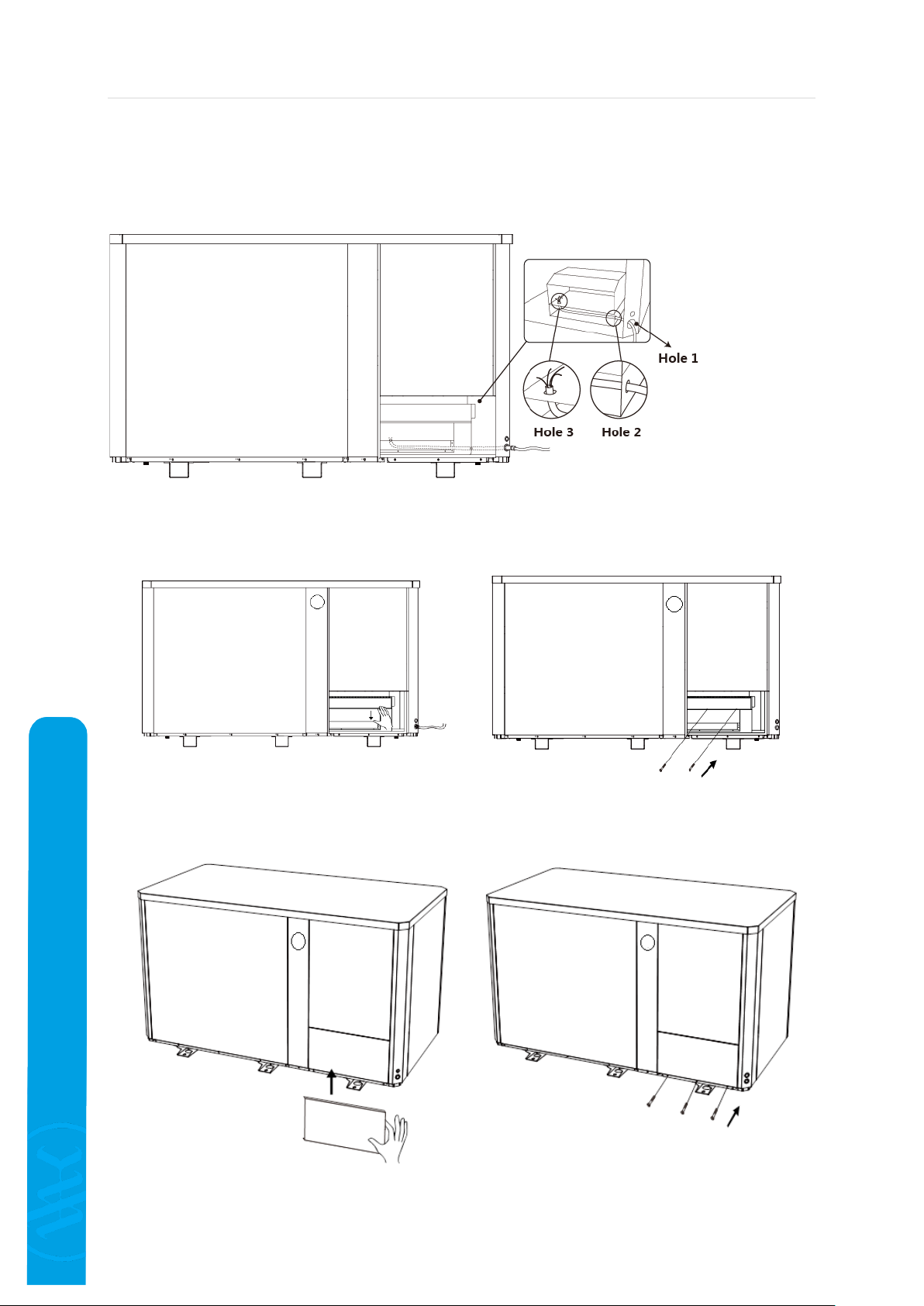

Step 2. Power cord must be passed through below 3 holes

Connect the wire through three holes

Restore the internal panel

Fix the internal panel by two screws

Restore the panel

Fix the panel by three screws
HEAT PUMP MICROWELL HP

HP COMMERCIAL Inverter iMAX60 / iMAX110 Installation and user manual
Page 11 Version:04/2020
3.2 Wiring
a) Connect to appropriate power supply, the voltage should comply with the rated voltage of the
products.
b) Earth the machine well.
c) Wiring must be handled by a professional technician according to the circuit diagram.
d) Set leakage protector according to the local code for wiring (leakage operating current ≤ 30mA).
e) The layout of power cable and signal cable should be orderly and not affecting each other.

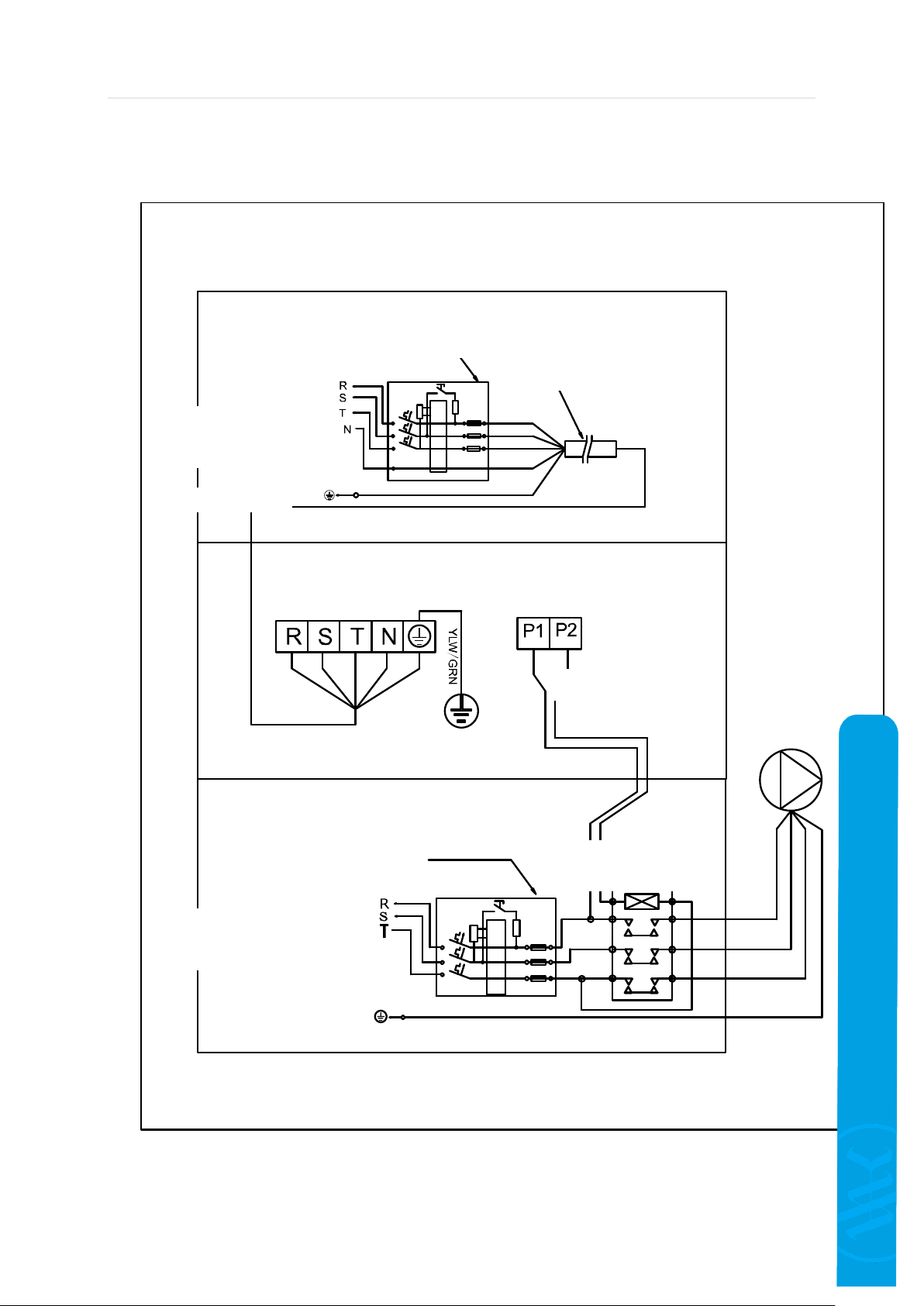

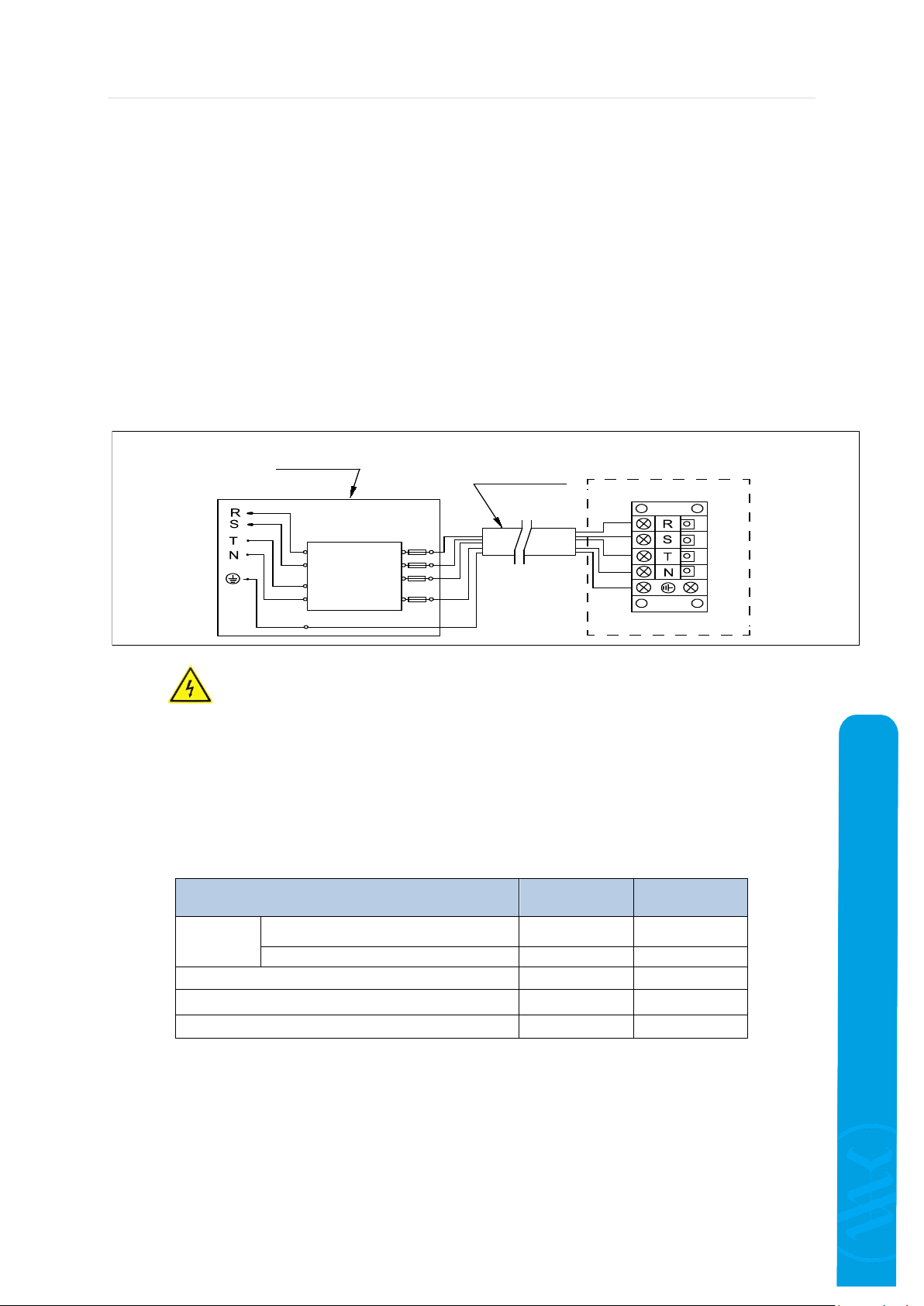

3.3 Electric wiring Diagram
For power supply: 400V 50Hz
Note: 1) Must be hard wired, plug is not allowed.
2) The swimming pool heat pump must be earthed well.
3.4 References for protecting devices and cable specification
※Above datais subject to modification without notice.
Note: The above data is adapted to power cord ≤ 10m. If power cord is
＞ 10m, wire diameter must be increased.
The signal cable can be extended to 50m maximumly.
MODEL
iMAX60
iMAX110
Breaker Maximum Current (A) 23 45
residual-current circuit breaker (A)
30
30
Fuse (A) 23 45
Power Cord (mm
2
) 5×6 5×16
Signal cable (mm2)
3×0.5
3×0.5

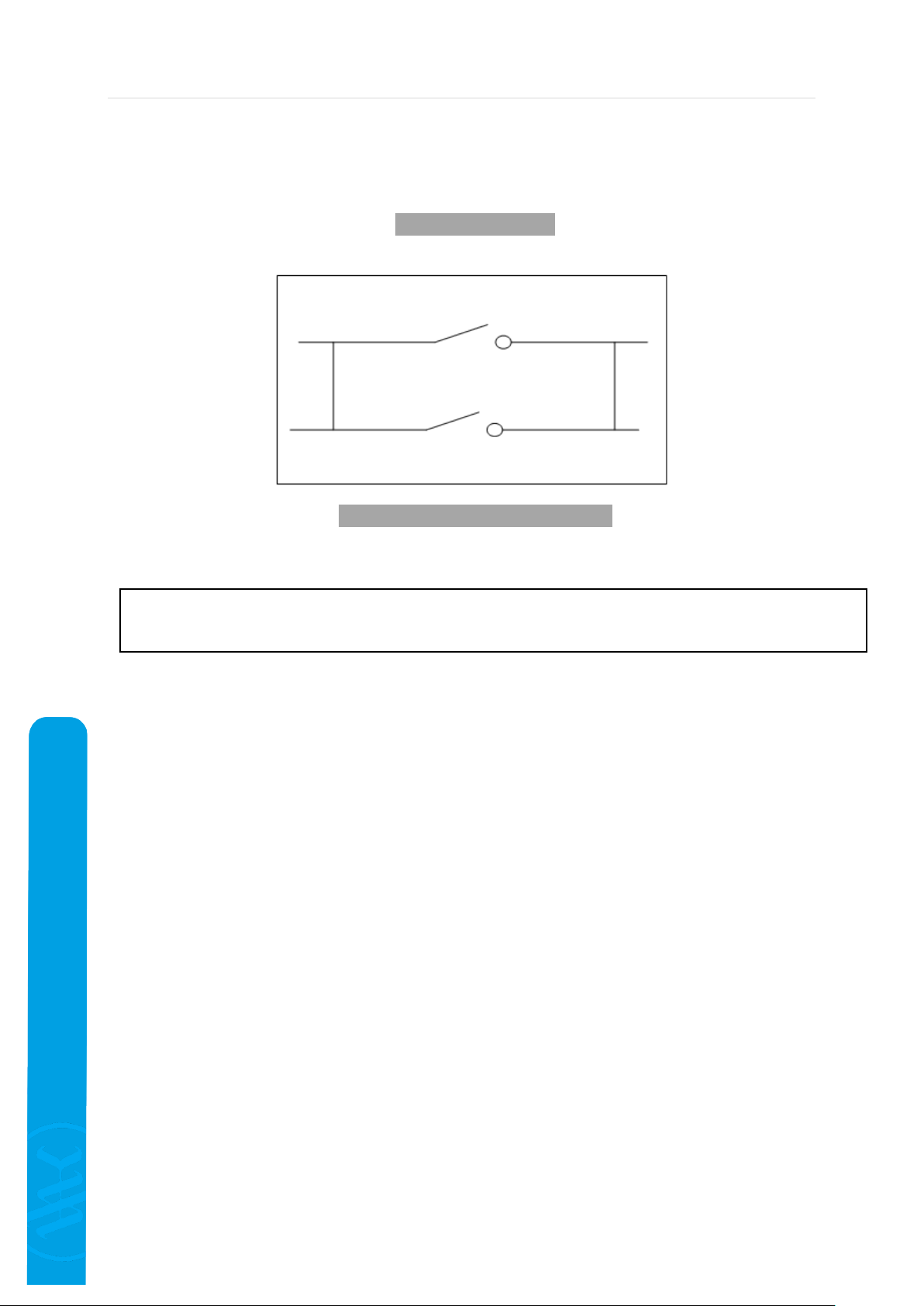

Distribution Box(Customer prepare)
Power Cord
Swimming Pool Heat Pump Wiring Board
Power Supply
400V 50Hz
Breaker
Earthing
Fuse
HEAT PUMP MICROWELL HP

Installation and user manual HP COMMERCIAL Inverter iMAX60 / iMAX110
Version: 04/2020 Page 12
4. OPERATION GUIDANCE

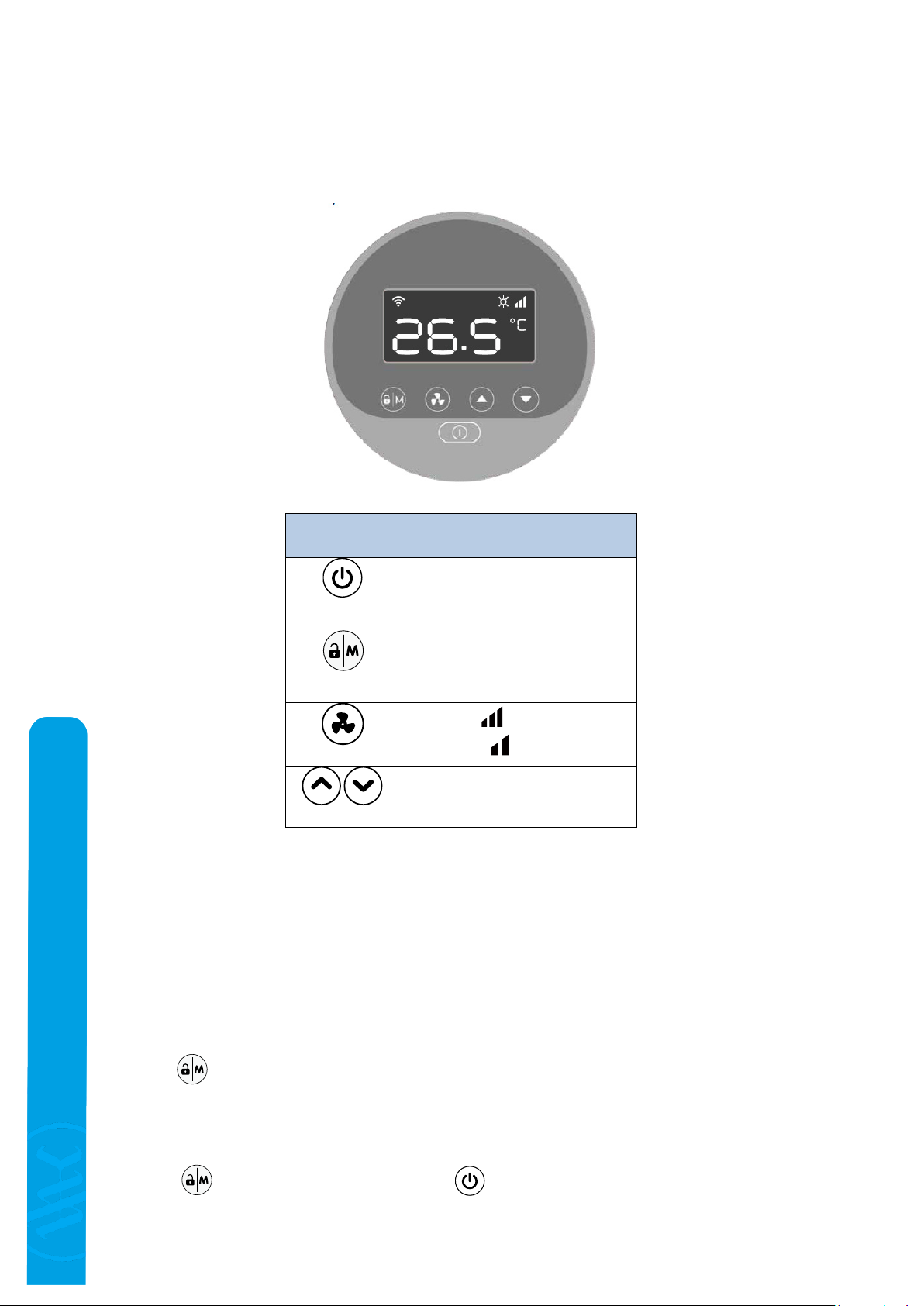

4.1 Key Function
Symbol
Heating & cooling models
i. Power On/Off
ii. Wi-Fi setting
i. Lock/Unlock Screen
ii. Heating mode (18-40°C)
iii. Cooling mode (12-30°C)
iv. Auto mode (12-40°C)
i. Boost
ii. Silence
Temperature Setting
Attention:
i. The controller has power-down memory function.
ii. The buttons will turn dark when it’s locked.
4.2 Operation Instruction
a. Screen Lock
1) Press for 3 seconds to lock or unlock the screen
2) Automatic Lock Period: 30 seconds if no operation
b. Power On
Press for 3 seconds to unlock screen, Press to power on machine.
HEAT PUMP MICROWELL HP

HP COMMERCIAL Inverter iMAX60 / iMAX110 Installation and user manual
Page 13 Version:04/2020

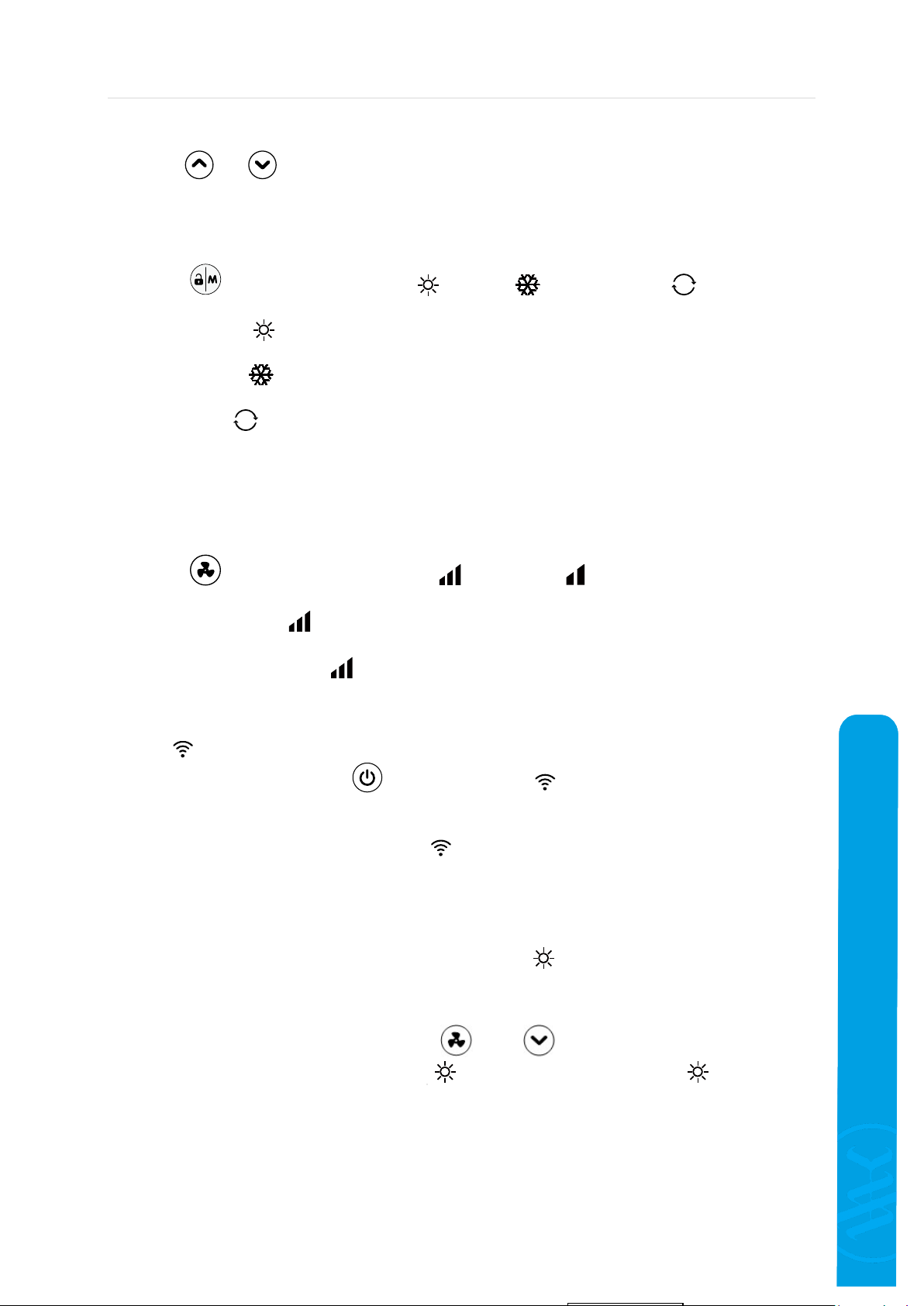

c. Temperature Setting
Press and to display and adjust set temperature.
d. Mode Selection
1) Heating/Cooling/Auto
Press “ ” to switch among heating ” ”, cooling ” ” and auto mode ” ”.
Heating mode “ ”: Water temperature setting range(18-40°C)
Cooling mode “ ”: Water temperature setting range(12~30°C)
Auto mode “ ”: Water temperature setting range(12~40°C)
* When water inlet temperature is higher than setting point, automatic cooling mode starts.
* When water inlet temperature is lower than setting point, automatic heating mode starts.
2) Silence/Boost mode selection
Press “ ” to switch among boost mode , silence mode
Default mode: boost
Please choose boost mode for initial heating
e. WIFI
When the screen is on, press “ ”for 3 seconds, after “ ” flashing, enter Wi-Fi connection.
Connect Wi-Fi on mobile phone and input password, and then control equipment by Wi-Fi.
When APP connects Wi-Fi successfully，“” lights on.
f. Defrosting
1) Automatic defrosting: When machine is auto defrosting, will flash, and return to previous
working mode when it finishes.
2) Manual Defrosting: To enter forced defrosting mode, the compressor must be working more
than 10 minutes. in heating mode, press “ ” and “ ” on touch controller simultaneously
for 5 seconds to start forced defrosting, ” ” is flashing and defrost starts, “ ” stop flashing
and defrosting stops. (Remarks: the interval between manual defrosting should be more than 30
minutes.)
HEAT PUMP MICROWELL HP

Installation and user manual HP COMMERCIAL Inverter iMAX60 / iMAX110
Version: 04/2020 Page 14
5. TESTING
5.1 Inspect heat pump before use
a) The ventilating device and outlets are operating adequately and are not obstructed.
b) It’s prohibited to install refrigeration pipe or components in corrosive environment.
c) Inspect the electric wiring on basis of the electric wiring diagram and earthing connection.
d) Double confirm the main machine power switch should be off.
e) Inspect the air inlet and outlet.
5.2 Trial
a) The user must “Start the Pump before the Machine, and Turn off the Machine before the
Pump”, or the machine will be damaged.
b) Before start the heat pump, please check for any leakage of water.
c) In order to protect the swimming pool heat pump, the machine is equipped with a time lag
starting function, the fan will run 1 minute earlier than the compressor when starting the
machine, and it will stop running 1 minute later than the compressor when power off the
machine.
d) After the swimming pool heat pump start up, please kindly checking for any abnormal noise
from the machine.
6. MAINTENANCE
6.1 In winter season when you don’t swim:
•Cut off power supply to prevent any machine damage.
•Drain water clear of the machine.
•Cover the machine body when not in use.
Important:
Unscrew the water nozzle of inlet
pipe to let the water flow out.
When the water in machine freezes in
winter season, the titanium heat exchanger
may be damaged.
“CUT OFF”power supply of the heater before
cleaning, examination and repairing
HEAT PUMP MICROWELL HP

HP COMMERCIAL Inverter iMAX60 / iMAX110 Installation and user manual
Page 15 Version:04/2020
6.2 Please clean this machine with household detergents or clean water, NEVER use
gasoline, thinners or any similar fuel.
6.3 Check bolts, cables and connections regularly.
6.4 If repair or scrap is required, please contact authorized service center nearby.
6.5 Do not attempt to work on the equipment by yourself. Improper operation may cause
danger.
7. TROUBLE SHOOTING FOR COMMON FAULTS
7.1 Failure solution and code
Failure Reason Solution
Heat pump doesn’t run
No power
Wait until the power recovers
Power switch is off
Switch on the power
Fuse burned
Check and change the fuse
The breaker is off
Check and turn on the breaker
Fan running but with
insufficient heating
evaporator blocked
Remove the obstacles
Air outlet blocked
Remove the obstacles
3 minutes start delay
Wait patiently
Display normal, but no heating
Set temp. too low
Set proper heating temp.
3 minutes start delay
Wait patiently
If above solutions don’t work, please contact your installer with detailed information and your
model number. Don’t try to repair it yourself.
Note: If the following conditions happen, please stop the machine immediately, and cut off
the power supply immediately, then contact your dealer:
1. Inaccurate switch action.
2. The fuse is frequently broken or leakage circuit breaker jumped.
Protection & Failure code
NO.
Display
Protection code description
1
E3
No water protection
2
E5
Power supply excesses operation range
3 E6
Excessive temp difference between inlet and outlet water(Insufficient water
flow protection)
4
Eb
Ambient temperature too high or too low protection
5
Ed
Anti-freezing reminder
NO.
Display
Failure code description
1
E1
High pressure protection
2
E2
Low pressure protection
3
E4
3 phase sequence protection (three phase only)
HEAT PUMP MICROWELL HP

Installation and user manual HP COMMERCIAL Inverter iMAX60 / iMAX110
Version: 04/2020 Page 16
4
E7
Water outlet temp too high or too low protection
5
E8
High exhaust temp protection
6
EA
Evaporator overheat protection (only at cooling mode)
7
EC
System communication failure
8
P0
Controller communication failure
9
P1
Water inlet temp sensor failure
10
P2
Water outlet temp sensor failure
11
P3
Gas exhaust temp sensor failure
12
P4
Evaporator coil pipe temp sensor failure
13
P5
Gas return temp sensor failure
14
P6
Cooling coil pipe temp sensor failure
15
P7
Ambient temp sensor failure
16
P8
Cooling plate sensor failure
17
P9
Current sensor failure
18
PA
Restart memory failure
19
F1
Compressor drive module failure
20
F2
PFC module failure
21
F3
Compressor start failure
22
F4
Compressor running failure
23
F5
Inverter board over current protection
24
F6
Inverter board overheat protection
25
F7
Current protection
26
F8
Cooling plate overheat protection
27
F9
Fan motor failure
28
Fb
Power filter plate No-power protection
28
FA
PFC module over current protection
29
FA
PFC module over current protection
30
FC
AC fan motor overcurrent protection
31
Fd
AC fan motor overheat protection
32
FE
AC fan motor phase protection
HEAT PUMP MICROWELL HP

HP COMMERCIAL Inverter iMAX60 / iMAX110 Installation and user manual
Page 17 Version:04/2020
8. Electrical wiring schematic (optional)
Breaker/fuse
(Customer prepare)
Earthing
Power Supply
400V~/50Hz
Water pump: 400V voltage
Water Pump
Water Pump
Breaker/fuse
(Customer prepare)
Power Supply
400V~/50Hz
Earthing
Power Cord
Contactor
coil voltage:400V
HEAT PUMP MICROWELL HP

Installation and user manual HP COMMERCIAL Inverter iMAX60 / iMAX110
Version: 04/2020 Page 18
Water pump control and timer connection
1: Water pump timer
2: Water pump wiring of Heat Pump
Note: The installer should connect 1 parallel with 2 (as above picture). To start the water pump, condition 1 or 2 is
connected. To stop the water pump, both 1 and 2 should be disconnected.
HEAT PUMP MICROWELL HP

HP COMMERCIAL Inverter iMAX60 / iMAX110 Installation and user manual
Page 19 Version:04/2020
9. Wi-Fi operation
Account Registration
1. Register by mobile or email
iPhone please download from
2. Create your password
APP Binding
Please make sure you are connected to the
Wi-Fi.
Press " " for 3 seconds to unlock the
screen, press “ ” for 3 seconds then
release, after hearing “Beep”.
Enter Wi-Fi code. During connection, “ ”
flashes. When the APP connects to the Wi-
Fi successfully, the “ ” will display
APP Download
Android please download from
HEAT PUMP MICROWELL HP

Installation and user manual HP COMMERCIAL Inverter iMAX60 / iMAX110
Version: 04/2020 Page 20
Click "Add device", and then follow instructions to pair device.
HEAT PUMP MICROWELL HP
