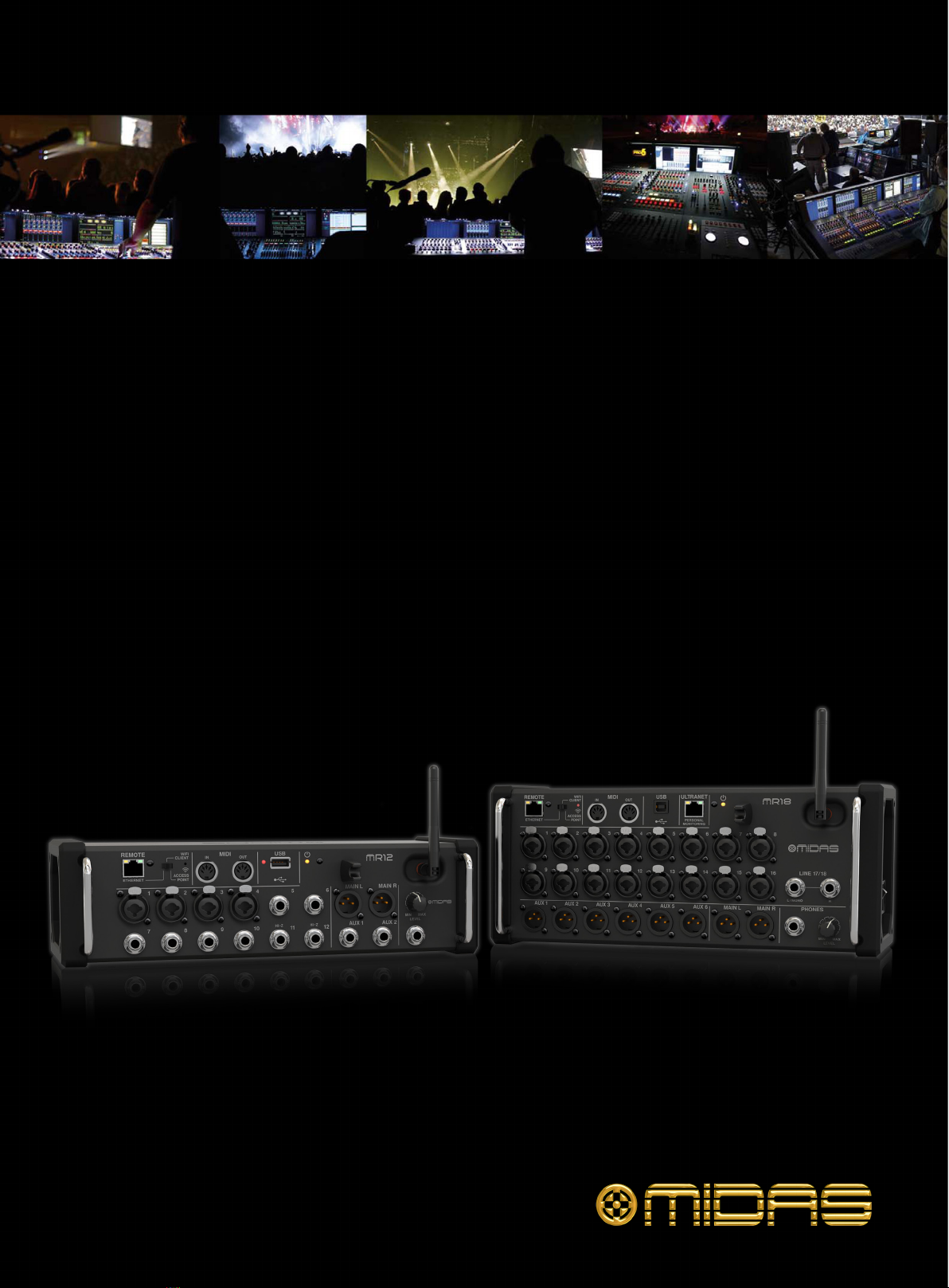

Midas MR18 User manual

Product Manual
MR18
18-Input Digital Mixer for iPad/Android Tablets with 16 MIDAS PRO Preamps,
Integrated Wi Module and Multi-Channel USB Audio Interface
MR12
12-Input Digital Mixer for iPad/Android Tablets with 4 MIDAS PRO Preamps,
8 Line Inputs, Integrated Wi Module and USB Stereo Recorder

2M AIR User Manual
Table of Contents
Important Safety Instructions ...................................... 3
Legal Disclaimer............................................................. 3
Limited warranty............................................................ 3
1. Introduction ............................................................... 4
2. Callouts....................................................................... 5
2.1 MR18 Callouts....................................................................... 5
2.2 MR12 Callouts ...................................................................... 6

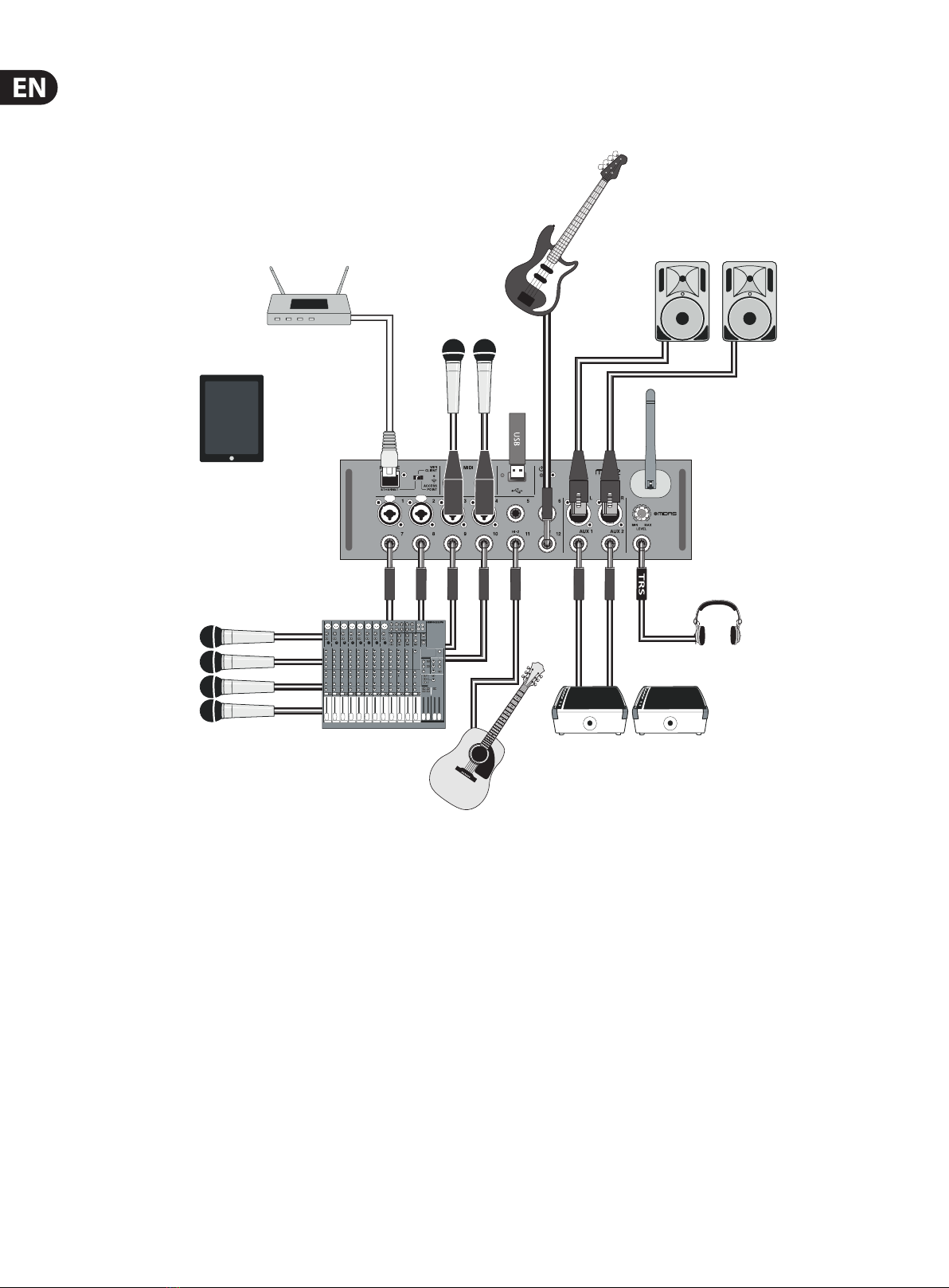

3. Hookup....................................................................... 7

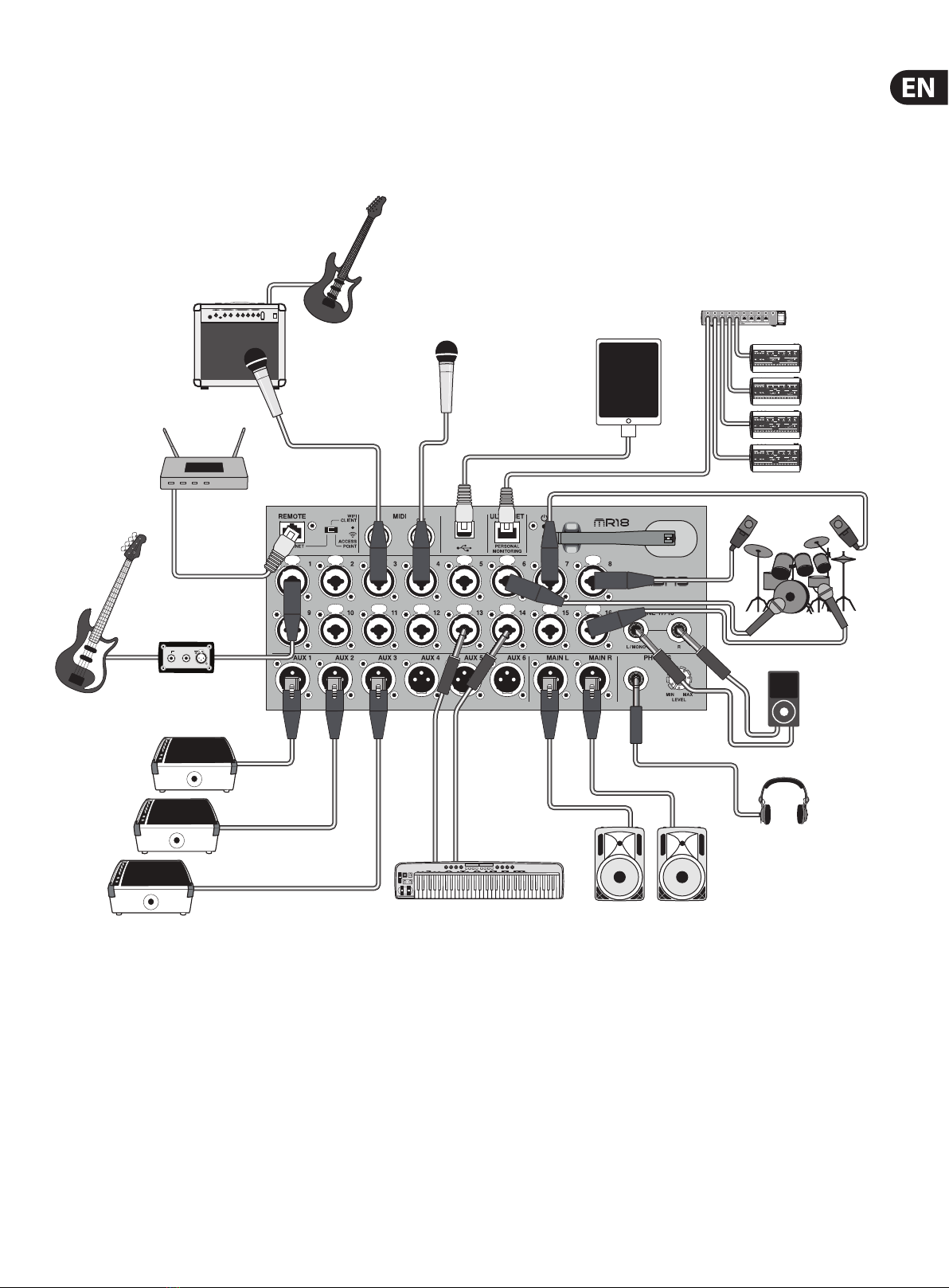

3.1 MR18 Hookups..................................................................... 7

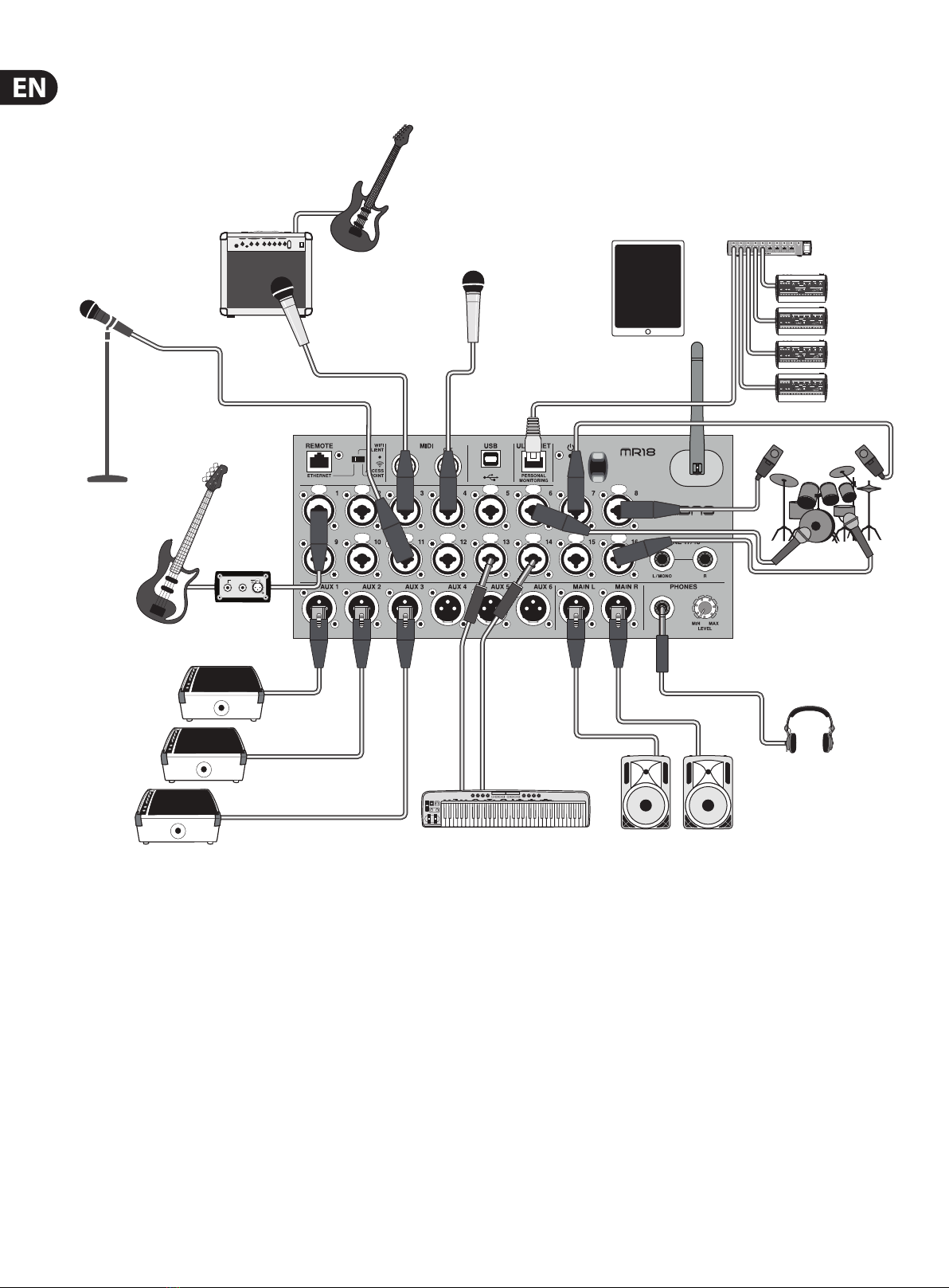

3.2 MR12 Hookups................................................................... 10
4. Network Connection ............................................... 12
4.1 IP Address and DHCP....................................................... 12
4.2 Ethernet/LAN..................................................................... 12
4.3 Wi Client ............................................................................ 12
4.4 Access Point........................................................................ 13
4.5 Getting Started.................................................................. 13
5. M AIR for iPad........................................................... 14
5.1 Main Screen ........................................................................ 14
5.2 Input...................................................................................... 14
5.3 Sends..................................................................................... 14
5.4 Gate ....................................................................................... 14
5.5 Dynamics............................................................................. 15
5.6 Channel EQ ......................................................................... 16
5.7 Insert ..................................................................................... 16
5.8 Presets .................................................................................. 16
5.9 Output .................................................................................. 16
5.10 Meters ................................................................................. 17
5.11 Sh ow s .................................................................................. 17
5.12 Snapshots .......................................................................... 17
5.13 Eects.................................................................................. 17
5.14 Routing............................................................................... 17
5.15 Setup ................................................................................... 18
5.16 Main EQ .............................................................................. 18
6. M AIR for Android .................................................... 18
6.1 Main View ............................................................................ 18
6.2 Input...................................................................................... 19
6.3 Cong ................................................................................... 19
6.4 Gate .......................................................................................20
6.5 EQ...........................................................................................20
6.6 Dynamics............................................................................. 21
6.7 Sends..................................................................................... 21
6.8 Main....................................................................................... 21
6.9 Meters and RTA..................................................................22
6.10 Eect Rack.........................................................................22
6.11 Snapshots ..........................................................................22
6.12 Scenes and Shows..........................................................22
6.13 Routing............................................................................... 22
6.14 Setup...................................................................................23
7. M AIR Edit for PC ......................................................24
7.1 Main View and Mixer Tab ............................................... 24
7.2 Channel Tab ........................................................................ 24
7.3 Input Tab..............................................................................25
7.4 Gate Tab................................................................................25
7.5 EQ Tab ................................................................................... 26
7.6 Comp Tab............................................................................. 26
7.7 Sends Tab............................................................................. 26
7.8 Main Tab............................................................................... 27
7.9 FX Tab.................................................................................... 27
7.10 Meter Tab ........................................................................... 27
7.11 Setup Menu....................................................................... 27
7.12 Snapshot Page.................................................................. 28
7.13 Utilities ................................................................................29
7.14 Auto Mix .............................................................................30
8. MIDI........................................................................... 31
9. Specications........................................................... 32
9.1 MR18 ...................................................................................... 32
9.2 MR12 ...................................................................................... 33
10. Eect Descriptions ................................................ 35
11. Instructional Videos .............................................. 42
12. Block Diagrams...................................................... 43
12.1 MR18 Block Diagram......................................................43
12.2 MR12 Block Diagram .....................................................44
FEDERAL COMMUNICATIONS COMMISSION
COMPLIANCE INFORMATION ......................................45

3M AIR User Manual
Terminals marked with this symbol carry
electrical current of sucient magnitude
to constitute risk of electric shock.
Use only high-quality professional speaker cables with
¼"TS or twist-locking plugs pre-installed. Allother
installation or modication should be performed only
by qualiedpersonnel.
This symbol, wherever it appears,
alertsyou to the presence of uninsulated
dangerous voltage inside the
enclosure-voltage that may be sucient to constitute a
risk ofshock.
This symbol, wherever it appears,
alertsyou to important operating and
maintenance instructions in the
accompanying literature. Please read the manual.
Caution
To reduce the risk of electric shock, donot
remove the top cover (or the rear section).
No user serviceable parts inside. Refer servicing to
qualied personnel.
Caution
To reduce the risk of re or electric shock,
do not expose this appliance to rain and
moisture.The apparatus shall not be exposed to dripping
or splashing liquids and no objects lled with liquids,
suchas vases, shall be placed on the apparatus.
Caution
These service instructions are for use
by qualied service personnel only.
Toreduce the risk of electric shock do not perform any
servicing other than that contained in the operation
instructions. Repairs have to be performed by qualied
servicepersonnel.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong.The wide
blade or the third prong are provided for your safety. Ifthe
provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Use only attachments/accessories specied by
themanufacturer.
12. Use only with the
cart, stand, tripod, bracket,
or table specied by the
manufacturer, orsold with
the apparatus.When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has
beendropped.
15. The apparatus shall be connected to a MAINS socket
outlet with a protective earthing connection.
16. Where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device shall
remain readily operable.
17. Correct disposal of this
product:This symbol indicates
that this product must not be
disposed of with household
waste, according to theWEEE
Directive (2012/19/EU) and
your national law.This product
should be taken to a collection center licensed for the
recycling of waste electrical and electronic equipment
(EEE).The mishandling of this type of waste could have
a possible negative impact on the environment and
human health due to potentially hazardous substances
that are generally associated with EEE. At the same time,
your cooperation in the correct disposal of this product
will contribute to the ecient use of natural resources.
For more information about where you can take your
waste equipment for recycling, please contact your local
city oce, or your household waste collection service.
18. Do not install in a conned space, such as a book
case or similar unit.
19. Do not place naked ame sources, such as lighted
candles, on the apparatus.
20. Please keep the environmental aspects of battery
disposal in mind. Batteries must be disposed-of at a
battery collection point.
21. Use this apparatus in tropical and/or
moderate climates.
MUSIC Group accepts no liability for any loss
which may be suered by any person who relies
either wholly or in part upon any description,
photograph, or statement contained herein.
Technical specications, appearances and other
information are subject to change without notice.
All trademarks are the property of their respective
owners. MIDAS, KLARK TEKNIK, LAB GRUPPEN, LAKE,
TANNOY, TURBOSOUND, TC ELECTRONIC,TC HELICON,
BEHRINGER, BUGERA and DDA are trademarks
or registered trademarks of MUSIC Group IP Ltd.
© MUSIC Group IP Ltd. 2016 All rights reserved.
For the applicable warranty terms and conditions
and additional information regarding MUSIC Group’s
LimitedWarranty, please see complete details online at
music-group.com/warranty.
Important Safety
Instructions
LEGAL DISCLAIMER
LIMITED WARRANTY

4M AIR User Manual
1. Introduction
Congratulations on your purchase of the new MIDAS M AIR series digital mixer.
These mixers oer plenty of analog I/O for most performances in a very compact
form factor that is easy to transport, but doesn’t sacrice any mixing power.
With high-end features taken from the M32 mixer, such as MIDAS PRO preamps,
high-quality eects, P-16 monitoring on the MR18, and USB recording capability,
these consoles far outperform their size.
Mixing live shows can now be done from anywhere in the venue thanks to the
wireless control options that allow all software functions to be controlled from
an iPad*, Android* tablet or PC. While a dedicated external router can be used,
it is not necessary thanks to the integrated Wi module. This allows monitors
to be adjusted while standing on stage, and the main mix to be perfected from
anywhere in the crowd.
In addition to dedicated aux buses for monitoring, the M AIR has 4 studio-quality
stereo eects processors. In fact, these are the same great eects found in the
acclaimed M32 mixer, including legendary reverb, echo and chorus algorithms.
Not just a live sound tool, the MR18 features an 18x18 USB audio/MIDI interface,
and the MR12 allows 2-track stereo recording. This makes for a great mobile
recording device, home studio interface, and enables live performances to be
multitracked for later mixing.
Continue through this manual to learn all about the functionality of your mixer,
as well as the M AIR software.
*iPad is a trademark of Apple Inc. Android is a trademark of Google Inc. iPad and Android tablet are not included.

5M AIR User Manual
2. Callouts
2.1 MR18 Callouts
(7) (9) (8)(6) (11)
(5)
(3)
(4)
(1)
(12) (2)
(13)
(10)
(1) INPUTS accept balanced and unbalanced XLRand ¼" plugs.
(2) MAIN L & R jacks send the main mix signal to PA or monitor speakers via
XLR cables.
(3) HEADPHONE jack accepts a ¼"TRS plug for connecting a pair
ofheadphones.
(4) PHONES LEVEL knob determines the output of the headphones jack.
(5) POWER switch turns the power on and o. The LED on the main input
panel will light when the unit is powered on.
(6) USB port (type B) accepts a USB cable for connection to a computer for
multi-channel audio and MIDI recording. Up to 18 audio channels can
be simultaneously recorded, and 18 channels are available for playback.
The mixer application allows assignment of channels for recording and
playback. 16channels of MIDI I/O can also be transmitted on the same USB
connection. Check the product page on midasconsoles.com todownload
the required (Windows*) driver and the full manual for a comprehensive
explanation of the interface.
(7) ETHERNET port allows the mixer to be controlled via LAN or connected
Wi router.
(8) RESET button resets the console to default network parameters when held
for 2 seconds. When held for 10 seconds, allconsole functions are reset to
factory default status.
(9) REMOTE switch selects between Ethernet, Wi client, or Access Point. See
the Network Connection chapter for details.
(10) MIDI IN/OUT jacks send and receive MIDI signals to and from external
equipment. Seethe MIDI Implementation chart fordetails.
(11) ULTRANET port allows connection of BEHRINGER P16-M personal
monitoring mixers or P16-D distribution hubs.
(12) AUX SEND jacks send your monitor mixes to active stage monitors or
headphone mixers via XLR connectors.
(13) Inputs 17 and 18 acceptbalanced ¼" cables for connecting line-level
sources. These inputs have limited processing compared to the other input
channels.
*Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or
other countries.

6M AIR User Manual
2.2 MR12 Callouts
(2) (3) (4) (5)(1)
(7) (8)
(9)
(6)
(10)
(12)
(11)
(1) ETHERNET port allows the mixer to be controlled via LAN or connected
Wi router.
(2) REMOTE switch selects between Ethernet, Wi client, or Access Point.
See the Network Connection chapter for details.
(3) RESET button resets the console to default network parameters when held
for 2 seconds. When held for 10 seconds, all console functions are reset to
factory default status.
(4) MIDI IN/OUT jacks send and receive MIDI signals to and from external
equipment. See the MIDI Implementation chart for details.
(5) USB port (type A) accepts a ash drive for stereo recordings and playback.
The red LED next to it indicates le access. Do not remove the USB ash
drive while it is lit!
(6) XLR COMBO jacks accept balanced and unbalanced XLR and ¼" plugs.
(7) ¼" inputs accept balanced or unbalanced ¼" plugs. Channel 11 and 12
accept high impedance sources for direct connection of guitars and basses.
(8) AUX SEND jacks send your monitor mixes to stage monitors or
headphone mixers.
(9) MAIN L/R jacks send the main mix signal to PA or monitor speakers via
XLR cables.
(10) HEADPHONE jack accepts a ¼" TRS plug for connecting a pair of
headphones.
(11) PHONES LEVEL knob determines the output of the headphones jack.
(12) POWER switch turns the mixer on and o. The front panel LED will light
when the unit is powered on.

7M AIR User Manual
3. Hookup
3.1 MR18 Hookups
3.1.1 MR18 recording with iPad
Headphones
iPad* with camera
connection kit
for multi-track
recording
up to 18 tracks
P16-D
P16-M
TRS
Active loudspeakers
Keyboard
Active Monitors
DN100
Wireless router
(optional)
BALANCEDLINKED INPUTS

8M AIR User Manual
3.1.2 MR18 live performance
Active Monitors
Headphones
P16-D
P16-M
TRS
Active loudspeakers
Keyboard
iPad* for wireless control
DN100
BALANCEDLINKED INPUTS

9M AIR User Manual
3.1.3 MR18 System Overview
MIC/LINE IN
CH. 1-16
AUDIO IN/OUT
CH. 1-18
MAIN OUT L-R
AUX SEND 1-6
ULTRANET OUT
CH. 1-16
ETHERNET
LINE IN
CH. 17-18
PHONES STEREO
AUDIO INPUTS USB AUDIO
AUDIO I/OMIXER CONTROL
DSP ENGINE
MIDI I/O
WIRED CONTROL
ACCESS
POINT*
WIFI
CLIENT*
WIRELESS CONTROL AUDIO OUTPUTS
LEVEL
DSP
ACCESS POINT
WIFI CLIENT
ETHERNET
or
ACCESS POINT mode (Mobile Devices with WiFi)
*ACCESS POINT mode:
- available channels: 1-11
- max. 4 Wifi clients
- performance limited by Wifi bandwidth
*WIFI CLIENT mode:
- available channels: 1-11
4 STEREO FX SLOTS RTA METER
DSP-MIXER CH.
MONO IN 1-16
USB/AUX IN (STEREO)
FX RETURN 1-4 (STEREO)
DSP-MIXER BUSES
AUX /
GROUP SEND 1-6
iOS/Android Android
Win/Mac/Linux
P16-M
P16-D
DACs
ADCs
ADCs
DACs
DACs
Router
Router
WIFI CLIENT mode (Mobile Devices with Wifi)
ETHERNET mode
Computer with Ethernet port
Mobile Devices with WiFi
CAT-5 cable
CAT-5 cable
iOS/Android*
X-TOUCH
or any other MIDI /
Mackie Control
compatible Controller
Win/Mac*/Linux*
Win/Mac/Linux
iOS/Android
or
MR18

10 M AIR User Manual
3.2 MR12 Hookups
3.2.1 MR12 club performance
Active loudspeakers
USB
Flash
Drive
iPad* for remote control
Sub mixer (optional)
Insert sends from mixer
Active monitors
Headphones
Wireless router (optional)
