MCAC-RTSM-2012-07 M-thermal Technical Manual(part 1)
1
Midea M-thermal
Heat Pump Water Heater
Technical Manual
Midea reserves the right to discontinue, or change at any time, specifications or designs without notices and
without incurring obligations.
LRSJF-V120/SN1-610
LRSJF-V140/SN1-610
Outdoor unit
LSX-300XP/D15B11
Water tank
SMK-120/CSD80GN1
SMK-140/CSD80GN1
Indoor unit
TMK-01
Solarkit

MCAC-RTSM-2012-07 M-thermal Technical Manual(part 1)
2
Part 1
System Outline
1. Measurements.................................................................3
2. External Appearance ......................................................4
3. Nomenclature..................................................................5
4. Features...........................................................................7
5. Specifications..................................................................9
5.1 Specifications of outdoor units.......................................................... 9
5.2 Specifications of Hydraulic indoor unit .......................................... 10
5.3 Specifications of water tank and solar kit........................................11
6. Performance data..........................................................12
6.1 Heating performance data of 14kw model ...................................... 12
6.2 Cooling performance data of 14kw model...................................... 12
6.3 Heating performance data of 12kw model ...................................... 13
6.4 Cooling performance data of 12kw model...................................... 13
7. Wiring Diagrams ...........................................................14

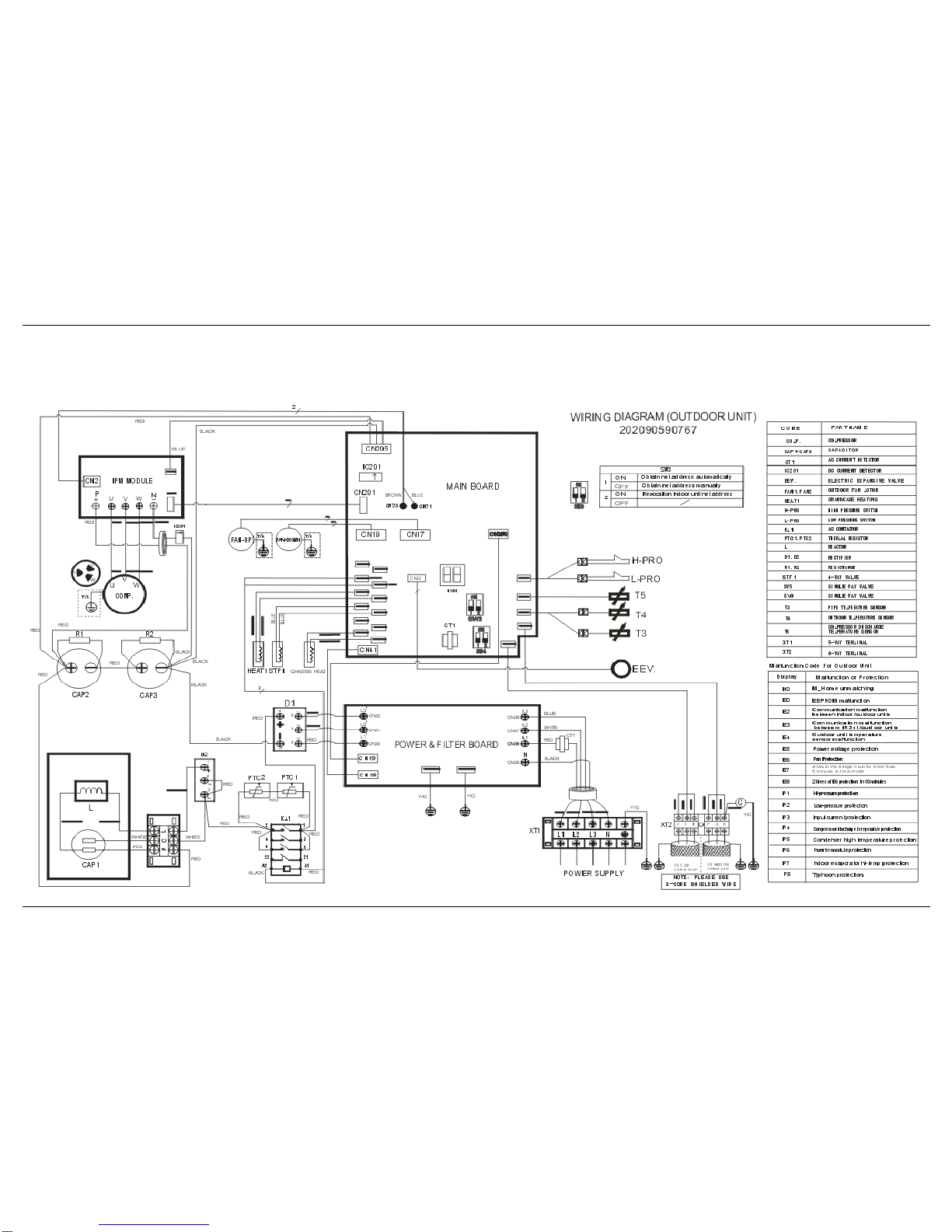

7.1 Outdoor units wiring diagram.......................................................... 14
7.2 Hydraulic indoor units wiring diagram............................................ 15
8. Exploded View...............................................................16
8.1 Exploded view of outdoor units....................................................... 16

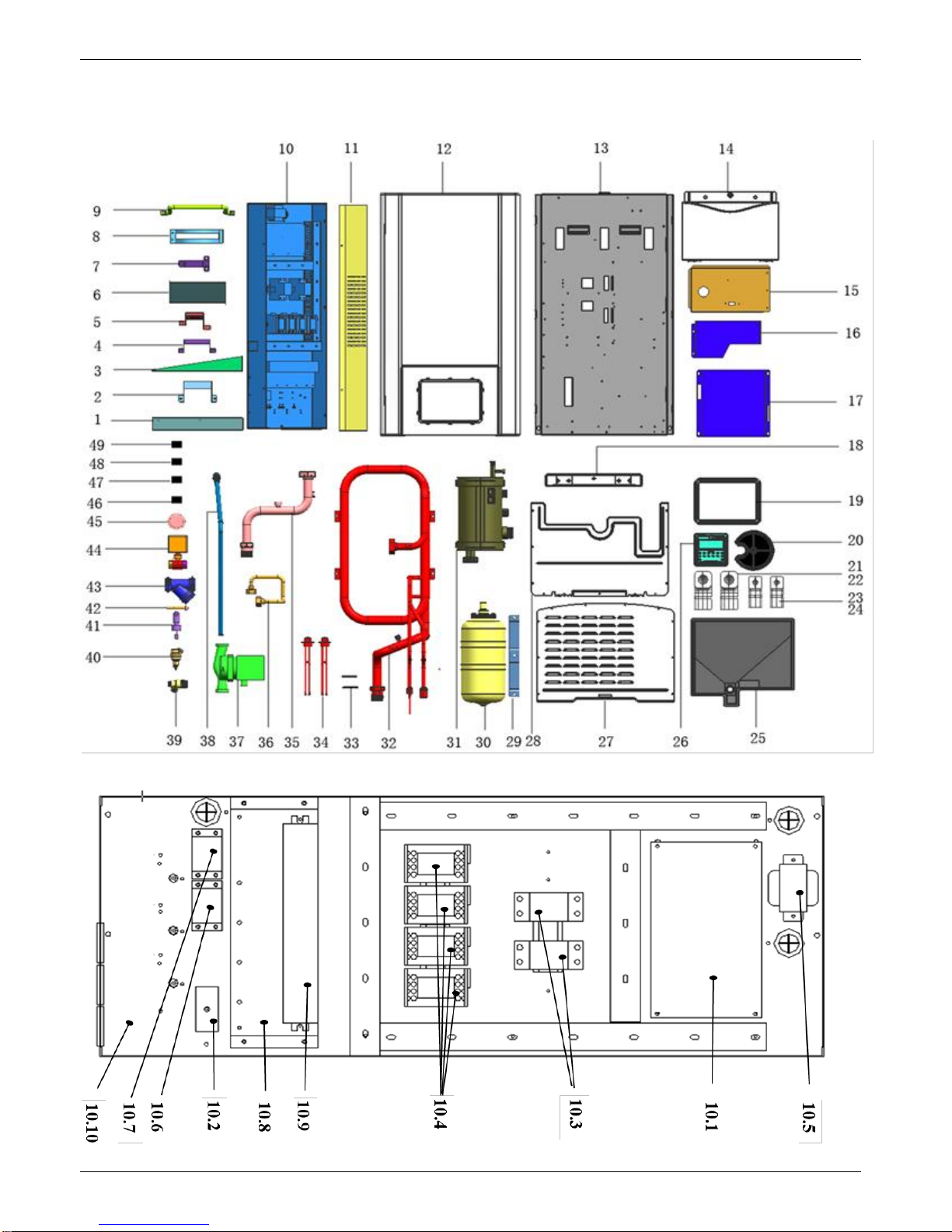

8.2 Exploded view of hydraulic indoor units ........................................ 18

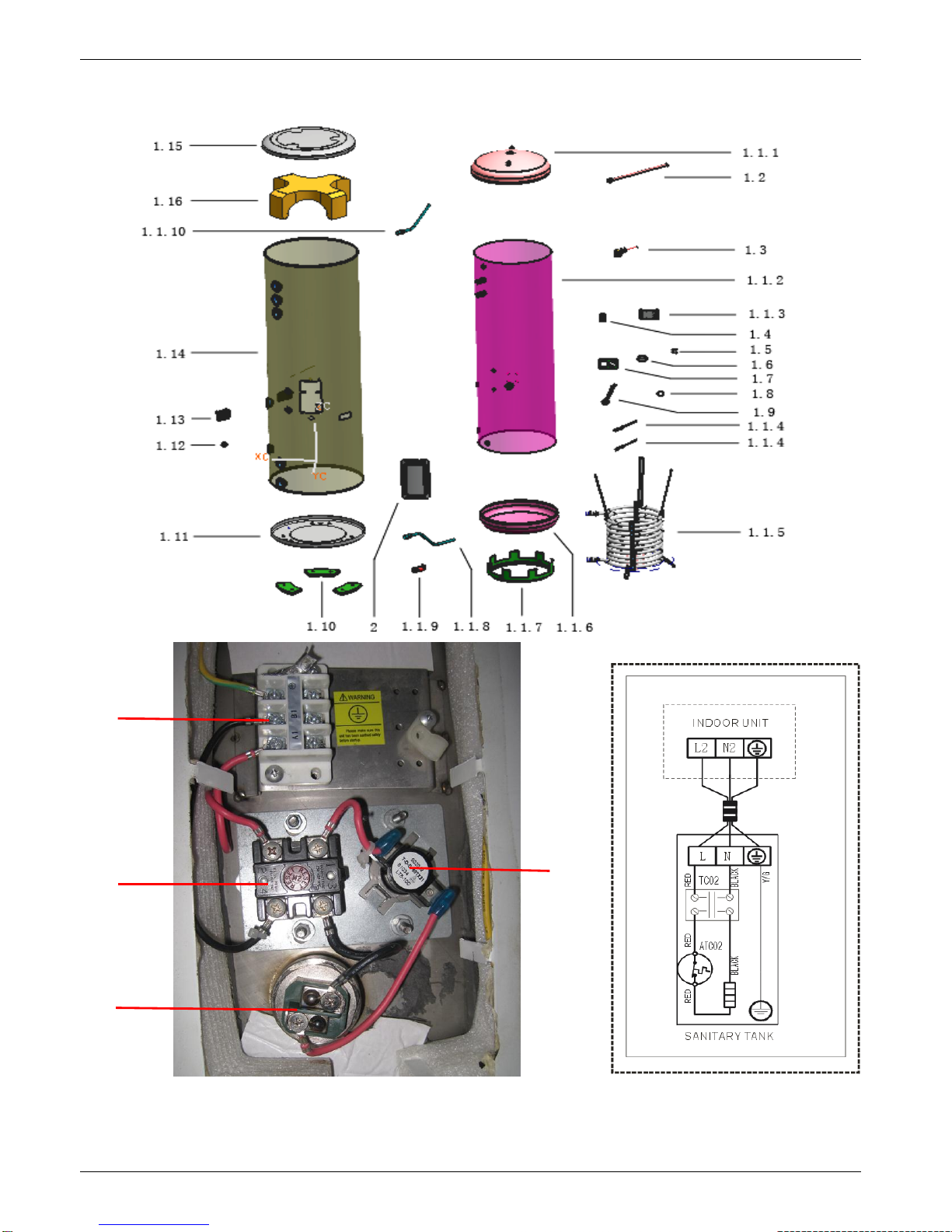

8.3 Exploded view of water tank............................................................ 20
8.4 Exploded view of solar kit................................................................ 22

MCAC-RTSM-2012-07 M-thermal Technical Manual(part 1)
3
1. Measurements
Outdoor units
Model name
Dimension (mm)
Net/Gross weight (kg)
Power supply
LRSJF-V120/SN1-610
Width: 900
Height: 1327
Depth:348
89/101
380V～415V-50Hz
3 Ph
LRSJF-V140/SN1-610
Hydraulic indoor unit
SMK-120/CSD80GN1
Width: 900
Height:500
Depth:375
63/75
380V～415V-50Hz
3 Ph
SMK-140/CSD80GN1
Solar kit
TMK-01
Width: 810
Height: 310
Depth:295
8/10
220V～240V-50Hz
1 ph
Water Tank
Model name
Dimension (mm)
Net/Gross weight (kg)
Packing Dimension W×D×H
LSX-300XP/D15B11
Ф580×1800
75//84
620×1960×635

MCAC-RTSM-2012-07 M-thermal Technical Manual(part 1)
4
2. External Appearance
LRSJF-V120/SN1-610
LRSJF-V140/SN1-610
SMK-120/CSD80GN1 SMK-140/CSD80GN1
TMK-01

MCAC-RTSM-2012-07 M-thermal Technical Manual(part 1)
5
3. Nomenclature
Outdoor unit
CE-L RSJF-V120/SN1- 610
Design code
Refrigerant type (R410a)
380-415V~ 3phase 50Hz
Heating Capacity (12000W)
Compressor type (DC inverter compressor)
Split type
Midea Heat Pump water heater
Heating and cooling mode (Omit for heating)
Export model code

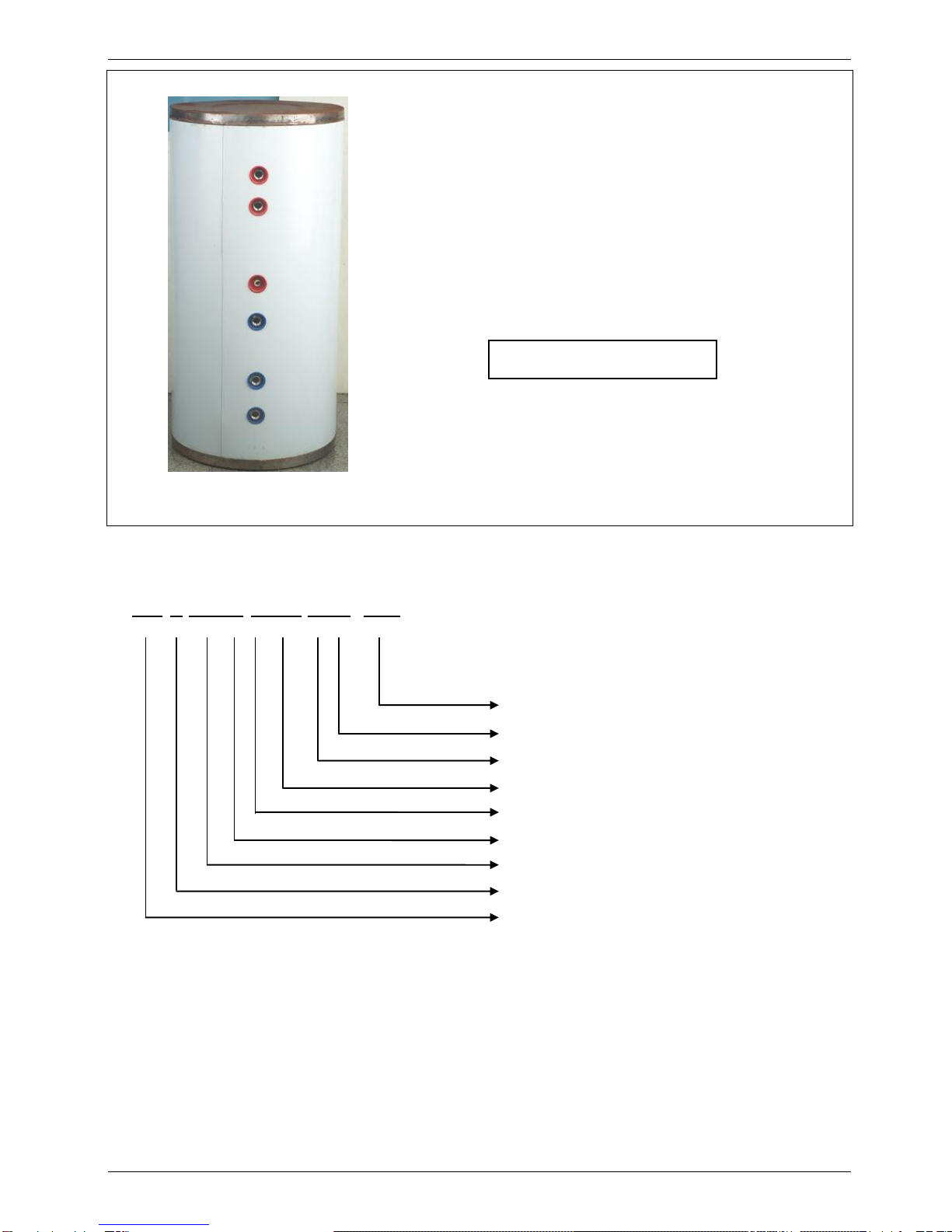

LSX-300XP/D15B11

MCAC-RTSM-2012-07 M-thermal Technical Manual(part 1)
6
Indoor unit
CE-SMK –80 / C S D 80 G N1
Solar kit
CE-TMK-01
CE-L SX-300XP/ D15 B11
Refrigerant type (R410a)
Heating type (Floor heating)
E-heater Capacity (8000W)
Electric heater
Power type (3ph, 380V)
Water cycle type
Heating Capacity (8000w)
Hydraulic modular
Export model code
Design code
Solar heating unit
Export model code
Design code
E-heater power(1500w)
Electric heater
Water tank appearance code (spraying appearance)
Water tank inner tank code (Stainless Steel inner tank )
Water tank volume (300L)
Water tank code
Water tank type code (vertical type)
Export model code

MCAC-RTSM-2012-07 M-thermal Technical Manual(part 1)
7
4. Features
4.1 Safety
a. Realize isolation between water and electricity. No electric shock problem, more safety.
b. No fuel tubes and storage, no potential danger from oil leakage, fire, explosion etc. Five operating
mode:
1). Space cooling
2). Space heating
3). Water heating
4). Space cooling + water heating
5). Space heating + water heating
4.2 Environmental friendly.
a. R410a refrigerant;
b. No discharge of poisonous gas;
4.3 DC inverter system.
.
4.4 Automatic weekly anti-legionella function
4.5 Easy operation and automatic control.
The system can be controlled simply through the wire controller.

MCAC-RTSM-2012-07 M-thermal Technical Manual(part 1)
8
4.6 High efficiency and energy-saving.
The unit adopts heat pump principle, which absorbs heat from outdoor air and produce heat water, thermal
efficiency for water heating be up to 4.3.
4.7 All the weather the system can run.
Within the temperature range from -20 to 43℃, it will not be affected by night, overcast sky, rain and snow.
4.8 Convenient installation and maintenance
The quadrate type can be easily installed in a corner of the verandah even if it’s very narrow.
4.9 Total Heating Solution
When floor heating is conducted in a new house, warm air spreads gently across the house, making it
comfortable and enabling the use of broad space without necessitating radiators or FCU.
4.10 Comfort System
When floor heating is applied, warm air spreads gently across the house, making it comfortable. The system
can help blood circulation and metabolism, further boosting our health.
The installation of M-Thermal will eliminate oil or gas tank, making the household surrounding neat and safe,
enabling the use of more space, and avoiding refueling.
4.11 Reduce CO2emission
When the system is connected to solar panels, CO2 can be reduced more sharply.
In addition, M-thermal can significantly cut CO2 emission when being connected to solar thermal panel a
completely pure energy source.
4.12 CE approval
Solar Panel

MCAC-RTSM-2012-01 M-thermal Technical Manual
9
5. Specifications
5.1 Specifications of outdoor units
DC Inverter outdoor unit
LRSJF-V120/SN1-610
LRSJF-V140/SN1-610
Power supply
Ph-V-Hz
3-380～415-50
3-380～415-50
Max. current
A
9
9
Heating
Capacity
kW
12
14
COP
kW/kW
4.17
4.13
Ambient Temp.
℃
-20～43
-20～43
Cooling
Capacity
kW
8.8
8.8
COP
kW/kW
2.22
2.28
Ambient Temp.
℃
15～43
15～43
Unit
Dimension (W×H×D)
mm
900×1327×320
900×1327×320
Packing (W×H×D)
mm
1016×1456×435
1016×1456×435
Net/gross weight
kg
89/101
89/101
Noise level
dB(A)
58
58
Refrigerant
type/quantity
kg
R410a/2.7kg
R410a/2.7kg
system pressure
MPa
4.4/2.6
4.4/2.6
Refrigerant
pipe
Liquid side
mm
Ф9.52
Ф9.52
Gas side
mm
Ф16
Ф16
Max. length
m
50
50
Max. difference between
outdoor unit and indoor unit
m
15
15
Compressor
Model
TNB306FPNMC
TNB306FPNMC
Type
Rotary
Rotary
Brand
Mitsubishi
Mitsubishi
Capacity
kW
9.88
9.88
Input
w
3010
3010
Locked rotor current
A
45
45
Rate current
A
9.3
9.3
Crankcase
W
30
30
Fan motor
Brand
Panasonic
Panasonic
Model
WZDK100-38G（×2）
WZDK100-38G（×2）
Type
DC MOTOR
DC MOTOR
Input
w
100*2
100*2
Output
w
110*2
110*2
Speed
r/min
800
800
Outdoor coil
Number of rows
2
2
Tube pitch(a)x row pitch(b)
mm
25.4/22
25.4/22
Tube dia. and type
mm
7.94(female screw)
7.94(female screw)
Fin space
mm
1.7
1.6
Fin type (code)
Hydrophilic aluminum
Hydrophilic aluminum
Coil length x height
1276*870
1276*870
Number of circuits
7
7
Loading
Quantity
20'/40'/40H
Pcs
28/58/58
28/58/58

MCAC-RTSM-2012-01 M-thermal Technical Manual
10
5.2 Specifications of Hydraulic indoor unit
Hydraulic indoor unit
SMK-120/CSD80GN1
SMK-140/CSD80GN1
Power supply
Ph-V-Hz
3-380～415-50
3-380～415-50
Function
Types
Heating &Cooling
Heating &Cooling
Space
Heating
℃
15～55
15～55
Space
Cooling
℃
7～22
7～22
Sanitary Hot
Water
℃
35～60
35～60
Max. current
A
13.8
13.8
Noise level
dB(A)
32
32
Unit
Dimension
(W×H×D)
mm
900×500×375
900×500×375
Packing
(W×H×D)
mm
1110×610×510
1110×610×510
Net/gross
weight
kg
63/75
63/75
E-heater
Size
kW
4
4
Quantity
1
1
specification
Ph-V
3-400
3-400
E-heater(standby)
Size
kW
4
4
Quantity
1
1
specification
Ph-V
3-400
3-400
Water pipeline
Water inlet
pipe
mm
DN32
DN32
Water outlet
pipe
mm
DN32
DN32
Loading Quantity
20'/40'/40H
Pcs
66/138/184
66/138/184
The testing Condition:
1. Heating: Outdoor temp. 7/6℃(DB/WB), inlet water temp. 30℃, outlet water temp. 35℃.
2. Cooling: Outdoor temp. 35/24℃(DB/WB), inlet water temp. 12℃, outlet water temp. 7℃.

MCAC-RTSM-2012-01 M-thermal Technical Manual
11
5.3 Specifications of water tank and solar kit
Sanitary hot water tank
LSX-300XP/D15B11
Power supply
Ph-V-Hz
1-220～240-50
Storage size
L
300
Max. water output temp.
℃
60
Dimension (D×H)
mm
Ф580×1800
Packing (W×H×D)
mm
670×1885×670
Net//gross weight
kg
80/91
E-heater
specification
kW
1.5
Quantity
1
Power supply
Ph-V
1-220～240-50
Tank material
SUS304
Water
pipeline
Water inlet pipe
mm
DN20
Water outlet pipe
mm
DN20
PT valve joint
MPa
DN20
Solar kit
TMK-01
Power supply
Ph-V-Hz
1-220～240-50
Dimension (W×H×D)
mm
810×310×295
Packing (W×H×D)
mm
830×340×315
Net weight
kg
8/10
solar coils
OD+T
mm*mm
￠22*0.8
Length
m
11
Material
SUS316L
Inlet pipe
mm
DN20
Outlet pipe
mm
DN20
Loading
Quantity
20'/40'/40H
Pcs
300/624/728

MCAC-RTSM-2012-01 M-thermal Technical Manual
12
6. Performance data
6.1Heating performance data of 14kw model
LWE[℃]
25
32
40
43
50
Tamb [℃]
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
-20
4850
1725
2.81
3511
1887
1.53
/
/
/
/
/
/
/
/
/
-10
6943.5
2471
2.81
6426
2758
2.33
5476
3094
1.77
5120
3220
1.59
/
/
/
-5
10555
3586
2.94
8935
3327
2.69
7804
3722
2.1
7391
3883
1.9
/
/
/
0
9138
3662
2.5
11254
4115
2.73
10101
4353
2.32
9317
4274
2.18
/
/
/
2/1
12614
3835
3.29
13017
4244
3.07
10882
4410
2.47
9922
4369
2.27
/
/
/
7/6
15601
3851
4.05
14871
4251
3.5
13036
4472
2.92
11897
4410
2.7
6531
3293
1.98
15/12
17258
3629
4.76
17077
4046
4.22
14503
4003
3.62
13969
4205
3.32
7162
2676
2.68
25/17
13570
2331
5.82
14152
2640
5.36
11336
2573
4.41
7696
2288
3.36
6299
2029
3.1
35/24
/
/
/
/
/
/
13060
2769
4.72
10902
2530
4.31
6059
1781
3.4
6.2Cooling performance data of 14kw model
Remark:
CC= cooling capacity PI = power input HC = heating capacity
LWE[℃]
10
15
20
Tamb [℃]
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
15
4120
1289
3.2
/
/
/
/
/
/
20
5122
1378
3.72
11441
2980
3.84
/
/
/
25
5584
1450
3.85
12009
3217
3.73
14153
3587
3.95
30
5468
1608
3.41
11349
3504
3.24
13596
3504
3.88
35
5463
2110
2.59
10264
3836
2.68
12326
4272
2.89
43
5922
3259
1.82
7357
3365
2.19
8853
3450
2.57

MCAC-RTSM-2012-01 M-thermal Technical Manual
13
6.3Heating performance data of 12kw model
LWE[℃]
25
32
40
43
50
Tamb [℃]
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
-20
2883
1749
1.65
2453
1891
1.30
/
/
/
/
/
/
/
/
/
-10
7090
2481
2.86
6656
2772
2.40
5514
3107
1.77
4721
3230
1.46
/
/
/
-5
9652
3030
3.19
9234
3344
2.76
8498
3750
2.27
7819
3908
2.00
/
/
/
0
5662
2951
1.92
10921
3949
2.77
10277
4363
2.36
9267
4311
2.15
6433
3578
1.80
2/1
11208
3388
3.31
10601
3641
2.91
9432
3768
2.50
9177
4030
2.28
8272
4078
2.03
7/6
14824
3677
4.03
14241
4049
3.52
11589
3978
2.91
11257
4171
2.70
5731
3015
1.90
15/12
17436
3682
4.74
17029
4100
4.15
14311
4056
3.53
13508
4226
3.20
6872
2618
2.62
25/17
13181
2133
6.18
13412
2436
5.51
11683
2457
4.75
10320
2365
4.36
6299
2029
3.10
35/24
/
/
/
/
/
/
11683
2432
4.80
9770
2333
4.19
6748
2031
3.32
6.4 Cooling performance data of 12kw model
Remark:
CC= cooling capacity PI = power input HC = heating capacity
LWE[℃]
10
15
20
Tamb [℃]
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
15
4199
1308
3.21
/
/
/
/
/
/
20
6960
1781
3.91
9973
2732
3.65
/
/
/
25
7908
2355
3.36
11272
2969
3.8
12878
3018
4.27
30
7752
3064
2.53
10532
3253
3.24
12453
3322
3.75
35
10252
3629
2.82
12494
3753
3.33
15884
4233
3.75
40
7039
2812
2.5
9537
3550
2.69
11506
3663
3.14
43
5814
3251
1.79
7237
3350
2.16
8693
3445
2.52

MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
14
7. Wiring Diagrams
7.1 Outdoor units wiring diagram
Model:CE-LRSJF-V120/SN1-610 CE-LRSJF-V140/SN1-610

MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
15
7.2Hydraulic indoor units wiring diagram
Model :SMK-120/CSD80GN1 SMK-140/CSD80GN1

MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
16
8. Exploded View
8.1 Exploded view of outdoor units
Model: CE-LRSJF-V120/SN1-610 CE-LRSJF-V140/SN1-610

MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
17
No.
Part Name
Quantity
BOM code
1
Motor bracket assembly
1
201295190080
2
Valve mounting plate
1
201295190083
3
Cover before the tube
1
201295190086
4
Right rear side
1
201295190081
5
Installation of gas-liquid separator plate
1
201295190079
6
Front Panel
1
201295190088
7
Handle
3
201195190001
8
Axial fan
2
201100300524
9
Partition components
1
201295190094
10
Right front side components
1
201295190082
11
Left rear support
1
201295190084
12
Base
1
201295190174
13
Layering fence
1
201295190076
14
Cover parts
1
201295190089
15
Compressor electric heater
1
202403100155
16
Electric heater
1
202403101687
17
Net
2
201195190163
18
Four-way valve parts
1
201695190355
19
Discharge pipe ass'y
1
201695190460
20
Suction pipe ass'y
1
201690590359
21
Electronic expansion valve ass'y
1
201690590595
22
Compressor
1
201401500270
23
Gas-liquid separator
1
201601100084
24
DC Motor
2
202400300216
25
E-part box ass'y
1
203390590094
25.1
Main control board ass'y
1
201390590073
25.2
Inverter module
1
201319902223
25.3
outdoor unit power supply board
1
201395190184
25.4
AC contactor
1
202300850054
25.5
Aluminum electrolytic capacitor
2
202300300109
25.6
Three phase bridge
1
202300500348
25.7
Single-phase bridge
1
202300500910
25.8
Resistance
2
202300130008
25.9
Wire joint
1
202301450115
25.10
Wire joint
1
202301450133
25.11
Six Terminal Block
1
202301400242
26
Electrical inductance Ass'y
1
203395100212
26.1
Compressor capacitor
1
202401090058
26.2
inductance
1
202301000927
27
After the tube cover
1
201295190085
28
Condenser ass'y
1
201595190036
29
Transport to strengthen board
1
201295190078
30
Discharge temp sensor ass'y
1
202301300124
31
room temp sensor ass'y
1
202301300197
32
Outdoor coil temp sensor ass'y
1
202301300438

MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
18
8.2 Exploded view of hydraulic indoor units
Model :SMK-120/CSD80GN1 SMK-140/CSD80GN1

MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
19
No.
Part Name
Quantity
BOM code
No.
Part Name
Quantity
BOM code
1
Electronic control
box mounting plate
2
1
201256390012
21
Right foam refrigerant
pipe
2
202256390004
2
Pump mounting
plate
1
201256390014
22
Left foam refrigerant
pipe
2
202256390005
3
1 electronic control
box mounting plate
1
201256390013
23
Right out of the
bubble pipe
2
202256390002
4
Refrigerant pipe
fixed plate
1
201256390008
24
Left out of the bubble
pipe
2
202256390003
5
Fixed plate inlet
1
201256390009
25
Water tray
components
1
202256390001
6
Pump Bracket 2
1
201256390004
26
Hydraulic module
wired remote
1
203355100567
7
Outlet pipe fixed
plate
1
201256390010
27
Roof
1
201256390033
8
Expansion tank
clamp
1
201290490010
28
Bottom
1
201256390034
9
Handle
1
201256390011
29
Mounting Bracket
1
201256390017
10
E-part box ass'y
1
203356390006
30
Expansion Tank
1
201601300552
10.1
Main controller
ass'y
1
201356390008
31
Small water tank
1
201256390006
10.2
Wire joint, 6p
1
202301400219
32
Casing components
1
201756390001
10.3
32A MCB
2
202301620210
33
Shaft
2
201256390035
10.4
AC contactor
4
202300850054
34
Electric heater
2
202403101682
10.5
Transformer
1
202300900109
35
Outlet pipe
components
1
201656390016
10.6
Wire joint, 5p
1
202301450039
36
Expansion Tank take
over the components
1
201656390014
10.7
Wire joint
1
202301450133
37
Drain Pump
1
202400600085
10.8
Electronic control
box terminal strip
bracket
1
201256390001
38
Connect hose
1
201119900833
10.9
Thirty Terminal
Block
1
202301400244
39
Safety valve
1
201604100106
10.10
E-part box ass'y
1
201256390036
40
Exhaust valve
1
201601601296
11
Electronic control
box cover
1
201256390003
41
Target Flow Switch
1
202301800869
12
Front Panel
1
201256390031
42
Expansion bolt
assembly
5
202501100838
13
Rear
1
201256300023
43
Electric valve
3
201601601255
14
Flip
1
201256390032
44
Y Type filter
1
201695700020
15
Wired remote
support
1
201256390018
45
Hydraulic meter
1
201800100005
16
Pump bracket
1
201256390015
46
Temp sensor
1
202301300311
17
Small water tank
fixed plate
1
201256390016
47
Pipe temperature
sensor assemblies
1
202301300494
18
Decorative plates
1
201156390003
48
Temp sensor ass'y
1
202301300495
19
Decorative ring
1
201156390004
49
Thermostat
components
1
202456390020
20
Electric heating
cover
1
201156390002

MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
20
8.3Exploded view of water tank
1.5
1.4
1.6
1.9
