Midea MCCU-03CN1 User manual

1
Midea R410A 50Hz
Compressor Condensing Unit
Technical Manual
Applicable Model:
MCCU-03CN1 MCCU-05CN1
MCCU-07CN1 MCCU-10CN1
MCCU-12CN1 MCCU-16CN1
MCCU-22CN1 MCCU-28CN1
MCCU-35CN1 MCCU-45CN1
MCCU-53CN1 MCCU-61CN1
MCCU-70CN1 MCCU-105CN1
Midea reserves the right to discontinue, or change specification or designs at any time without notices and
without incurring obligations.
DM15-01.01.17en

Midea R410A 50Hz T1 Compressor Condensing Unit
2
Content
Part. 1 Performance.............................3
Part. 2 Installation..............................38
Appendix: VRF Solution....................67

Midea R410A50Hz T1 Compressor Condensing Unit
3
Part. 1 Performance
1. Product lineup................................................................4
2. External Appearance.....................................................4
3. Nomenclature.................................................................6
4. Specifications ................................................................7
5. Dimensions (Unit: mm) ...............................................18
6. Refrigerant circuits......................................................24
7. Wiring Diagrams..........................................................28
8. Electrical datas ............................................................34
9. Sound Levels ...............................................................34
10. Connection accessory list (Optional)......................35

Midea R410A 50Hz T1 Compressor Condensing Unit
4

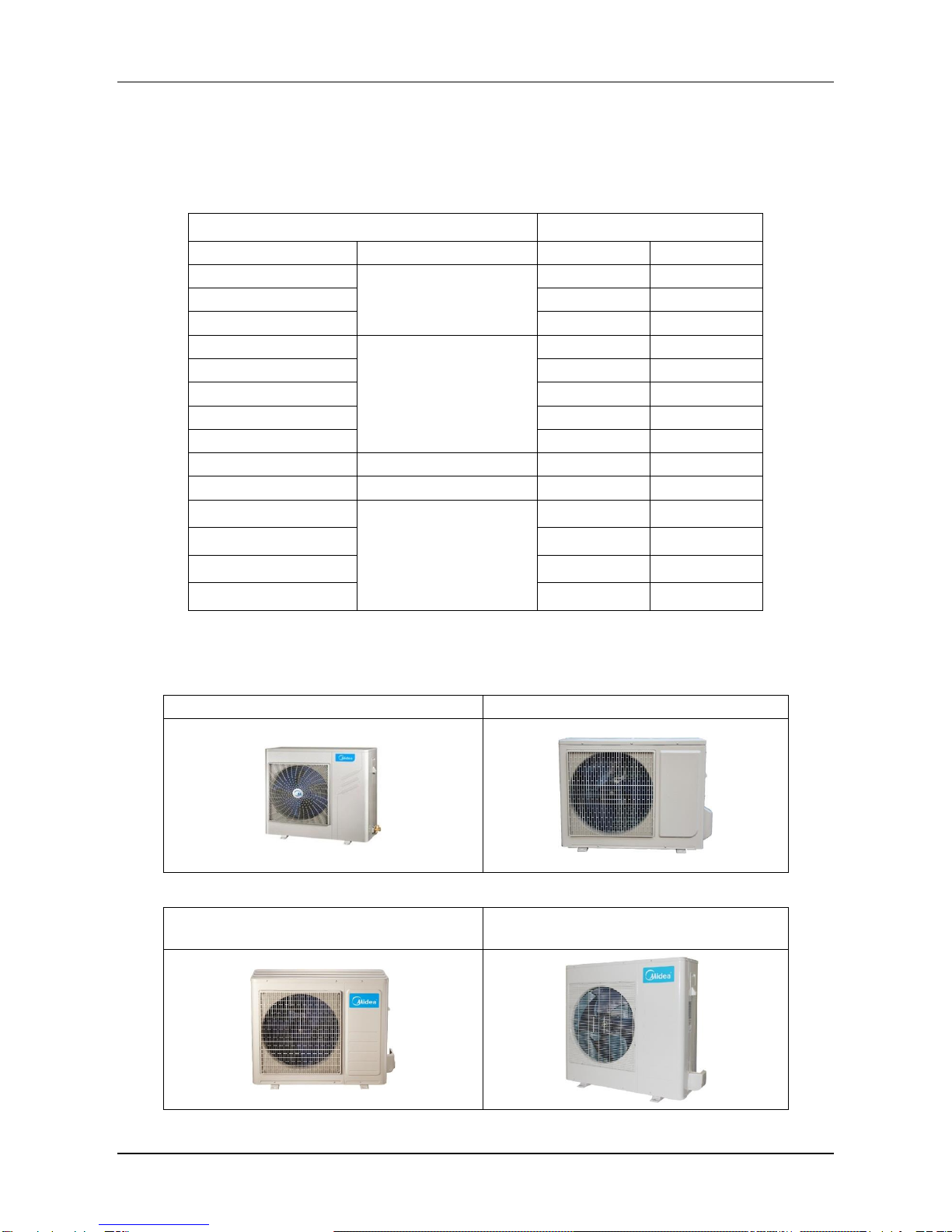

1. Product lineup
Model names of units with cooling only:
Outdoor unit
Cooling capacity
Model
Power supply
W
Btu/h
MCCU-03CN1
220-240V~, 1Ph, 50Hz
3,200
10,920
MCCU-05CN1
5,300
18,080
MCCU-07CN1
7,100
24,230
MCCU-10CN1
380-415V~, 3Ph, 50Hz
10,500
35,830
MCCU-12CN1
14,000
47,770
MCCU-16CN1
16,000
54,590
MCCU-22CN1
22,000
75,060
MCCU-28CN1
28,000
95,540
MCCU-35CN1
380-400V~,3Ph, 50Hz
35,000
119,420
MCCU-45CN1
380-415V~, 3Ph, 50Hz
45,000
153,540
MCCU-53CN1
380-400V~,3Ph, 50Hz
53,000
180,840
MCCU-61CN1
61,000
208,130
MCCU-70CN1
70,000
238,840
MCCU-105CN1
105,000
358,260
2. External Appearance
MCCU-03CN1
MCCU-05CN1
MCCU-07CN1
MCCU-10CN1

Midea R410A50Hz T1 Compressor Condensing Unit
5

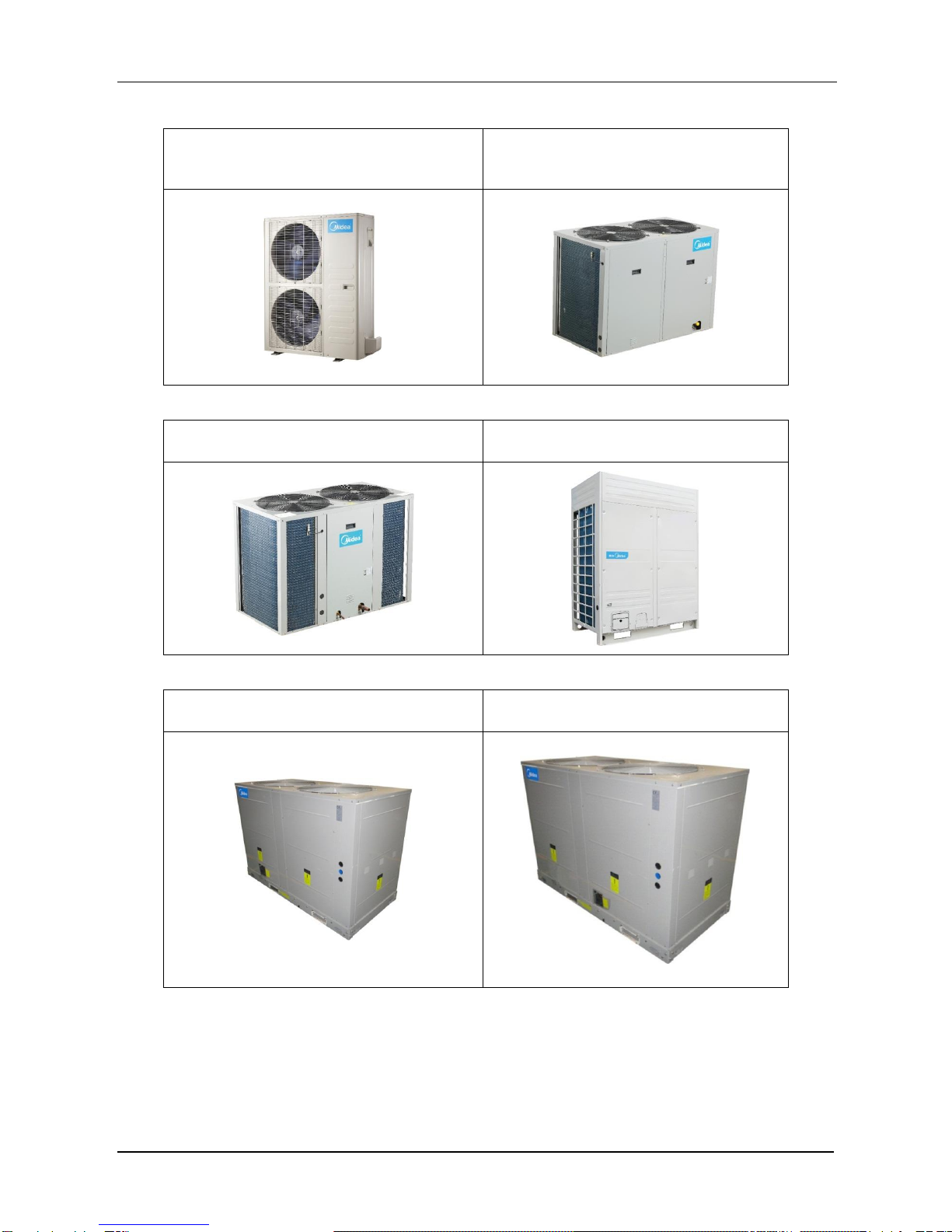

MCCU-12CN1
MCCU-16CN1
MCCU-22CN1
MCCU-28CN1
MCCU-35CN1
MCCU-45CN1
MCCU-53CN1, MCCU-61CN1
MCCU-70CN1, MCCU-105CN1

Midea R410A 50Hz T1 Compressor Condensing Unit
6
3. Nomenclature
MCCU –53 CN1
Refrigerant type: R410A
Function code
C: Cooling only
H: Heat pump
Nominal cooling capacity (53×1,000W)
Compressor Condensing Unit
Midea

Midea R410A50Hz T1 Compressor Condensing Unit
7
4. Specifications
Model
MCCU-03CN1
MCCU-05CN1
Power supply
\
220-240V~, 1Ph, 50Hz
220-240V~, 1Ph, 50Hz
Ambient temperature range
°C
17~46
17~46
Cooling
Capacity
kW
3.2
5.3
Max. input
kW
1.60
2.85
Max. current
A
7.5
15.0
Noise level
dB(A)
29.4
44.0
Compressor
Type / Quantity
\
Rotary /1
Rotary /1
Model
\
PA150X2C-4FT
PA225M2CS-4KU2
Brand
\
GMCC
GMCC
Capacity
W
3,660
5,500
Input
W
1,260
1,835
Capacitor
\
35µF/450V
50µF/450V
Rated current (RLA)
A
5.8
8.5
Oil charge
\
480 (Ester oil VG74)
750 (Ester oil VG74)
Refrigerant
Type / Charged
\
R410A / 800g
R410A / 860g
Fan
Type / Quantity
\
Axial fan /1
Axial fan /1
Motor model
\
YDK24-6F(B)
YDK48-6H(A)
Fan dimension
mm
Φ401
Φ424
Drive type
\
Direct
Direct
Capacitor
\
2.5µF/450V
3µF/450V
Motor input
W
63
111
Motor speed
rpm
800
890
Coil
Type
\
Copper tube and aluminum fin
Copper tube and aluminum fin
Tube size
mm
Φ7.94
Φ7
No. of rows
\
1
2
Fin space
mm
1.6
1.4
Length ×Height
mm
762×484
658×546
Number of circuits
\
2
8
Refrigerant
pipe
Liquid side / Gas side
mm
Φ6.35/Φ12.7
Φ6.35/Φ12.7
Max. pipe length
m
20
20
Max. difference in level
m
10
10
Connection
wire
Power wire
\
2×2.5mm2+1×1.5mm2(Ground)
2×4.0mm2+1×2.5mm2(Ground)
Signal wire
\
1×1.0mm2
1×1.0mm2
Dimension (W×H×D)
mm
848×549×300
825×597×315
Packing (W×H×D)
mm
910×575×335
890×650×360
Net / Gross weight
kg
30.5/33
36.5/39.5
Notes:
Nominal cooling capacities are based on the following conditions: Indoor temperature: 27°CDB/19°CWB; outdoor
temperature: 35°CDB/24°C WB. Equivalent refrigerant pipe: 7.5m.

Midea R410A 50Hz T1 Compressor Condensing Unit
8
Model
MCCU-07CN1
MCCU-10CN1
Power supply
\
220-240V~, 1Ph, 50Hz
380-415V~, 3Ph, 50Hz
Ambient temperature range
°C
17~46
17~46
Cooling
Capacity
kW
7.1
10.5
Max. input
kW
3.50
5.30
Max. current
A
18.0
10
Noise level
dB(A)
72.6
58
Compressor
Type / Quantity
\
Rotary /1
Scroll / 1
Model
\
PA290G2CS-4MU1
C-SBN303H8D
Brand
\
GMCC
Sanyo
Capacity
W
7,260
9,800
Input
W
2,430
3,650
Capacitor
\
50µF/450V
/
Rated current (RLA)
A
11.65
6.58
Oil charge
\
850 (Ester oil VG74)
1,700 (FV68S)
Refrigerant
Type / Charged
\
R410A / 1,350g
R410A / 2,500g
Fan
Type / Quantity
\
Axial fan /1
Axial fan /1
Motor model
\
YDK53-6C
YDK190-6D(B)
Fan dimension
mm
Φ460
Φ560
Drive type
\
Direct
Direct
Capacitor
\
3µF/450V
10µF/450V
Motor input
W
136
290
Motor speed
rpm
800
830
Coil
Type
\
Copper tube and aluminum fin
Copper tube and aluminum fin
Tube size
mm
Φ7
Φ7
No. of rows
\
2
1.6
Fin space
mm
1.5
1.5
Length ×Height
mm
766×630
898×882
Number of circuits
\
4
7
Refrigerant
pipe
Liquid side / Gas side
mm
Φ9.52/Φ12.7
Φ9.52/Φ19
Max. pipe length
m
20
30
Max. difference in level
m
10
20
Connection
wire
Power wire
\
2×6.0mm2+1×4.0mm2(Ground)
4×4.0mm2+1×2.5mm2(Ground)
Signal wire
\
1×1.0mm2
1×1.0mm2
Dimension (W×H×D)
mm
916×702×360
1,077×967×396
Packing (W×H×D)
mm
965×755×420
1,120×1,100×435
Net / Gross weight
kg
48.5/52
85.8/95.6
Notes:
Nominal cooling capacities are based on the following conditions:
Indoor temperature: 27°CDB, 19°CWB; Outdoor temperature: 35°CDB, 24°C WB; Equivalent refrigerant pipe: 7.5m.

Midea R410A50Hz T1 Compressor Condensing Unit
9
Model
MCCU-12CN1
MCCU-16CN1
Power supply
\
380-415V~, 3Ph, 50Hz
380-415V~, 3Ph, 50Hz
Ambient temperature range
°C
17~46
17~46
Cooling
Capacity
kW
14.0
16.0
Max. input
kW
6.10
8.50
Max. current
A
12
13
Noise level
dB(A)
58
59
Compressor
Type / Quantity
\
Scroll / 1
Scroll / 1
Model
\
C-SBN373H8D
C-SBN453H8D
Brand
\
Sanyo
Sanyo
Capacity
W
14,100
16,400
Input
W
4,750
5,750
Capacitor
\
/
/
Rated current (RLA)
A
8.22
9.77
Oil charge
\
1,700 (FV68S)
1,700 (FV68S)
Refrigerant
Type / Charged
\
R410A / 3,000g
R410A / 3,050g
Fan
Type / Quantity
\
Axial fan /2
Axial fan /2
Motor model
\
YDK65-6F(B)
YDK65-6F(B)
Fan dimension
mm
Φ455
Φ455
Drive type
\
Direct
Direct
Capacitor
\
4µF/450V
4µF/450V
Motor input
W
174
174
Motor speed
rpm
825
825
Coil
Type
\
Copper tube and aluminum fin
Copper tube and aluminum fin
Tube size
mm
Φ7
Φ7.94
No. of rows
\
2
2
Fin space
mm
1.5
1.6
Length ×Height
mm
845×1,092
837×1,100
Number of circuits
\
8
8
Refrigerant
pipe
Liquid side / Gas side
mm
Φ9.52/Φ19
Φ9.52/Φ19
Max. pipe length
m
30
30
Max. difference in level
m
20
20
Connection
wire
Power wire
\
4×4.0mm2+1×2.5mm2(Ground)
4×10.0mm2+1×6.0mm2(Ground)
Signal wire
\
1×1.0mm2
1×1.0mm2
Dimension (W×H×D)
mm
987×1,167×400
987×1,167×400
Packing (W×H×D)
mm
1,032×1,307×443
1,032×1,307×443
Net / Gross weight
kg
91.6/102
96.6/107
Notes:
Nominal cooling capacities are based on the following conditions:
Indoor temperature: 27°CDB, 19°CWB; Outdoor temperature: 35°CDB, 24°C WB; Equivalent refrigerant pipe: 7.5m.

Midea R410A 50Hz T1 Compressor Condensing Unit
10
Model
MCCU-22CN1
Power supply
\
380-415V~, 3Ph, 50Hz
Ambient temperature range
°C
17~52
Cooling
Capacity
kW
22.0
Max. input
kW
11.70
Max. current
A
19.3
Noise level
dB(A)
65
Compressor
Type / Quantity
\
Scroll / 1
Model
\
ZP90KCE-TFD-522
Brand
\
Copeland
Capacity
W
21,900
Input
W
6,950
Capacitor
\
/
Rated current (RLA)
A
16.5
Oil charge
\
2,513 (POE)
Refrigerant
Type / Charged
\
R410A / 5,400g
Fan
Type / Quantity
\
Axial fan /2
Motor model
\
YDK210-6A
Fan dimension
mm
Φ530
Drive type
\
Direct
Capacitor
\
10μF/450V
Motor input
W
Hi: 284; Lo: 202
Motor speed
rpm
Hi: 920/930; Lo: 650/710 (4 blades/3 blades)
Coil
Type
\
Copper tube and aluminum fin
Tube size
mm
Ф7.94
No. of rows
\
2
Fin space
mm
1.4
Length ×Height
mm
2,177×880
Number of circuits
\
9
Refrigerant
pipe
Liquid side / Gas side
mm
Ф9.52/Ф22
Max. pipe length
m
50
Max. difference in level
m
30
Connection
wire
Power wire
\
5×6.0mm2
Signal wire
\
2×1.0mm2
Dimension (W×H×D)
mm
1,260×908×700
Packing (W×H×D)
mm
1,320×1,060×730
Net / Gross weight
kg
171/190
Notes:
Nominal cooling capacities are based on the following conditions:
Indoor temperature: 27°CDB, 19°CWB; Outdoor temperature: 35°CDB, 24°C WB; Equivalent refrigerant pipe: 7.5m.

Midea R410A50Hz T1 Compressor Condensing Unit
11
Model
MCCU-28CN1
Power supply
\
380-415V~, 3Ph, 50Hz
Ambient temperature range
°C
17~52
Cooling
Capacity
kW
28.0
Max. input
kW
14.40
Max. current
A
23.7
Noise level
dB(A)
67
Compressor
Type / Quantity
\
Scroll / 1
Model
\
ZP120KCE-TFD-522
Brand
\
Copeland
Capacity
W
29,200
Input
W
9,200
Capacitor
\
/
Rated current (RLA)
A
20
Oil charge
\
3,253 (POE)
Refrigerant
Type / Charged
\
R410A / 6,000g
Fan
Type / Quantity
\
Axial fan /2
Motor model
\
YDK400-4C
Fan dimension
mm
Φ530
Drive type
\
Direct
Capacitor
\
25μF/450V
Motor input
W
Hi: 621/587; Lo: 388/388 (4 blades/3 blades)
Motor speed
rpm
Hi: 1,180/1,230; Lo: 790/870 (4 blades/3 blades)
Coil
Type
\
Copper tube and aluminum fin
Tube size
mm
Ф7
No. of rows
\
3
Fin space
mm
1.3
Length ×Height
mm
2,179×882
Number of circuits
\
20
Refrigerant
pipe
Liquid side / Gas side
mm
Ф9.52/Ф25
Max. pipe length
m
50
Max. difference in level
m
30
Connection
wire
Power wire
\
5×6.0mm2
Signal wire
\
2×1.0mm2
Dimension (W×H×D)
mm
1,260×908×700
Packing (W×H×D)
mm
1,320×1,060×730
Net / Gross weight
kg
185/202
Notes:
Nominal cooling capacities are based on the following conditions:
Indoor temperature: 27°CDB, 19°CWB; Outdoor temperature: 35°CDB, 24°C WB; Equivalent refrigerant pipe: 7.5m.

Midea R410A 50Hz T1 Compressor Condensing Unit
12
Model
MCCU-35CN1
Power supply
\
380-400V~, 3Ph, 50Hz
Ambient temperature range
°C
17～52
Cooling
Capacity
kW
35.0
Max. input
kW
17.30
Max. current
A
28.5
Noise level
dB(A)
69
Compressor
Type / Quantity
\
Scroll / 1
Model
\
SH140A4ALC
Brand
\
Danfoss
Capacity
W
34,700
Input
W
10,862
Capacitor
\
/
Rated current (RLA)
A
21.4
Oil charge
\
3,300 (POE-160SZ)
Refrigerant
Type / Charged
\
R410A / 7,200g
Fan
Type / Quantity
\
Axial fan /2
Motor model
\
YDK400-4C
Fan dimension
mm
Φ530
Drive type
\
Direct
Capacitor
\
25μF/450V
Motor input
W
Hi: 621/587; Lo: 388/388 (4 blades/3 blades)
Motor speed
rpm
Hi: 1,180/1,230; Lo: 790/870 (4 blades/3 blades)
Coil
Type
\
Copper tube and aluminum fin
Tube size
mm
Ф7
No. of rows
\
3
Fin space
mm
1.3
Length ×Height
mm
(1,380×882)+(1,380×882)
Number of circuits
\
20+20
Refrigerant
pipe
Liquid side / Gas side
mm
Ф12.7/Ф28.6
Max. pipe length
m
50
Max. difference in level
m
30
Connection
wire
Power wire
\
5×6.0mm2
Signal wire
\
2×1.0mm2
Dimension (W×H×D)
mm
1,260×908×700
Packing (W×H×D)
mm
1,320×1,060×730
Net / Gross weight
kg
199/215
Notes:
Nominal cooling capacities are based on the following conditions:
Indoor temperature: 27°CDB, 19°CWB; Outdoor temperature: 35°CDB, 24°C WB; Equivalent refrigerant pipe: 7.5m.

Midea R410A50Hz T1 Compressor Condensing Unit
13
Model
MCCU-45CN1
Power supply
\
380-415V~, 3Ph, 50Hz
Ambient temperature range
°C
17～46
Cooling
Capacity
kW
45.0
Max. input
kW
26.90
Max. current
A
47.9
Noise level
dB(A)
70
Compressor
Type / Quantity
\
Scroll / 3
Model
\
E605DH-59D2YG
Brand
\
Hitachi
Capacity
W
15,390
Input
W
5,130
Capacitor
\
/
Rated current (RLA)
A
8.8
Oil charge
\
500 (FVC68D)
Refrigerant
Type / Charged
\
R410A / 10,000g
Fan
Type / Quantity
\
Axial fan /2
Motor model
\
YDK380-4D
Fan dimension
mm
Φ560/Φ562
Drive type
\
Direct
Capacitor
\
20μF/450V
Motor input
W
Hi: 615/580; Lo: 425/420 (4 blades/3 blades)
Motor speed
rpm
Hi: 1,000/1,090; Lo: 780/870 (4 blades/3 blades)
Coil
Type
\
Copper tube and aluminum fin
Tube size
mm
Ф7.94
No. of rows
\
2
Fin space
mm
1.6
Length ×Height
mm
2,286×1,232
Number of circuits
\
28
Refrigerant
pipe
Liquid side / Gas side
mm
Ф16/Ф32
Max. pipe length
m
50
Max. difference in level
m
30
Connection
wire
Power wire
\
5×15.0mm2
Signal wire
\
2×1.0mm2
Dimension (W×H×D)
mm
1,250×1,615×765
Packing (W×H×D)
mm
1,305×1,790×820
Net / Gross weight
kg
288/308
Notes:
Nominal cooling capacities are based on the following conditions:
Indoor temperature: 27°CDB, 19°CWB; Outdoor temperature: 35°CDB, 24°C WB; Equivalent refrigerant pipe: 7.5m.

Midea R410A 50Hz T1 Compressor Condensing Unit
14
Model
MCCU-53CN1
Power supply
\
380-400V~, 3Ph, 50Hz
Ambient temperature range
°C
18~46
Cooling
Capacity
kW
53.0
Max. input
kW
23.70
Max. current
A
45.2
Noise level
dB(A)
73
Compressor
Type / Quantity
\
Scroll / 2
Model
\
SH105A4ALC
Brand
\
Danfoss
Capacity
W
26,816
Input
W
8,472
Capacitor
\
/
Rated current (RLA)
A
16.4
Oil charge
\
3,300ml (POE-160SZ)
Refrigerant
Type / Charged
\
R410A / 11,000g
Fan
Type / Quantity
\
Axial fan /2
Motor model
\
YS600-6P
Fan dimension
mm
Φ650
Drive type
\
Direct
Capacitor
\
\
Motor input
W
750
Motor speed
rpm
930
Coil
Type
\
Copper tube and aluminum fin
Tube size
mm
Φ7.94
No. of rows
\
3
Fin space
mm
1.6
Length ×Height
mm
2,209×1,100
Number of circuits
\
12+12
Refrigerant
pipe
Liquid side / Gas side
mm
（Ф12.7/Ф25）×2
Max. pipe length
m
50
Max. difference in level
m
30
Connection
wire
Power wire
\
4×16.0mm2+1×10.0mm2(Ground)
Signal wire
\
2×1.0mm2
Dimension (W×H×D)
mm
1,825×1,245×899
Packing (W×H×D)
mm
1,844×1,272×924
Net / Gross weight
kg
395/405
Notes:
Nominal cooling capacities are based on the following conditions:
Indoor temperature: 27°CDB, 19°CWB; Outdoor temperature: 35°CDB, 24°C WB; Equivalent refrigerant pipe: 7.5m.

Midea R410A50Hz T1 Compressor Condensing Unit
15
Model
MCCU-61CN1
Power supply
\
380-400V~, 3Ph, 50Hz
Ambient temp range
°C
17~46
Cooling
Capacity
kW
61.0
Max. input
kW
28.20
Max. current
A
51.0
Noise level
dB(A)
76
Compressor
Type / Quantity
\
Scroll / 2
Model
\
SH120A4ALC
Brand
\
Danfoss
Capacity
W
29,950
Input
W
9,462
Capacitor
\
/
Rated current (RLA)
A
20.7
Oil charge
\
3,300ml (POE-160SZ)
Refrigerant
Type / Charged
\
R410A / 12,400g
Fan
Type / Quantity
\
Axial fan /2
Motor model
\
YS1100-6
Fan dimension
mm
Φ700
Drive type
\
Direct
Capacitor
\
\
Motor input
W
1,300
Motor speed
rpm
940
Coil
Type
\
Copper tube and aluminum fin
Tube size
mm
Φ7.94
No. of rows
\
3
Fin space
mm
1.6
Length ×Height
mm
2,209×1,100
Number of circuits
\
12+12
Refrigerant
pipe
Liquid side / Gas side
mm
（Ф12.7/Ф25）×2
Max. pipe length
m
50
Max. difference in level
m
30
Connection
wire
Power wire
\
4×25.0mm2+1×16.0mm2(Ground)
Signal wire
\
2×1.0mm2
Dimension (W×H×D)
mm
1,825×1,245×899
Packing (W×H×D)
mm
1,844×1,272×924
Net / Gross weight
kg
395/405
Notes:
Nominal cooling capacities are based on the following conditions:
Indoor temperature: 27°CDB, 19°CWB; Outdoor temperature: 35°CDB, 24°C WB; Equivalent refrigerant pipe: 7.5m.

Midea R410A 50Hz T1 Compressor Condensing Unit
16
Model
MCCU-70CN1
Power supply
\
380-400V~, 3Ph, 50Hz
Ambient temperature range
°C
17~46
Cooling
Capacity
kW
70.0
Max. input
kW
31.80
Max. current
A
56.5
Noise level
dB(A)
76
Compressor
Type / Quantity
\
Scroll / 2
Model
\
SH140A4ALC
Brand
\
Danfoss
Capacity
W
34,700
Input
W
10,862
Capacitor
\
/
Rated current (RLA)
A
21.4
Oil charge
\
3,300ml (POE-160SZ)
Refrigerant
Type / Charged
\
R410A / 17,000
Fan
Type / Quantity
\
Axial fan /2
Motor model
\
YS1100-6
Fan dimension
mm
Φ750
Drive type
\
Direct
Capacitor
\
\
Motor input
W
1,300
Motor speed
rpm
940
Coil
Type
\
Copper tube and aluminum fin
Tube size
mm
Φ7.94
No. of rows
\
3.6
Fin space
mm
1.6
Length ×Height
mm
(1,355×1,100)+(1,325×1,100)
Number of circuits
\
25+25
Refrigerant
pipe
Liquid side / Gas side
mm
（Ф12.7/Ф25）×2
Max. pipe length
m
50
Max. difference in level
m
30
Connection
wire
Power wire
\
4×25.0mm2+1×16.0mm2(Ground)
Signal wire
\
2×1.0mm2
Dimension (W×H×D)
mm
2,158×1,258×1,082
Packing (W×H×D)
mm
2,168×1,275×1,105
Net / Gross weight
kg
508/523
Notes:
Nominal cooling capacities are based on the following conditions:
Indoor temperature: 27°CDB, 19°CWB; Outdoor temperature: 35°CDB, 24°C WB; Equivalent refrigerant pipe: 7.5m.

Midea R410A50Hz T1 Compressor Condensing Unit
17
Model
MCCU-105CN1
Power supply
\
380-400V~, 3Ph, 50Hz
Ambient temp range
°C
17~46
Cooling
Capacity
kW
105.0
Max. input
kW
40.70
Max. current
A
71.8
Noise level
dB(A)
78
Compressor
Type / Quantity
\
Scroll / 2
Model
\
SH184A4ALC
Brand
\
Danfoss
Capacity
W
44,661
Input
W
13,732
Capacitor
\
/
Rated current (RLA)
A
27.6
Oil charge
\
3,600ml (POE-160SZ)
Refrigerant
Type / Charged
\
R410A / 18,000g
Fan
Type / Quantity
\
Axial fan /2
Motor model
\
YS1500-6
Fan dimension
mm
Φ802
Drive type
\
Direct
Capacitor
\
\
Motor input
W
1,690
Motor speed
rpm
910
Coil
Type
\
Copper tube and aluminum fin
Tube size
mm
Φ7
No. of rows
\
3.6
Fin space
mm
1.5
Length ×Height
mm
(1,325×756)×2+(1367×756)×2
Number of circuits
\
24+24
Refrigerant
pipe
Liquid side / Gas side
mm
（Ф12.7/Ф25）×2
Max. pipe length
m
50
Max. difference in level
m
30
Connection
wire
Power wire
\
4×35.0mm2+1×16.0mm2(Ground)
Signal wire
\
2×1.0mm2
Dimension (W×H×D)
mm
2,158×1,669×1,082
Packing (W×H×D)
mm
2,168×1,686×1,105
Net/ Gross weight
kg
570/582
Notes:
Nominal cooling capacities are based on the following conditions:
Indoor temperature: 27°CDB, 19°CWB; Outdoor temperature: 35°CDB, 24°C WB; Equivalent refrigerant pipe: 7.5m.

Midea R410A 50Hz T1 Compressor Condensing Unit
18

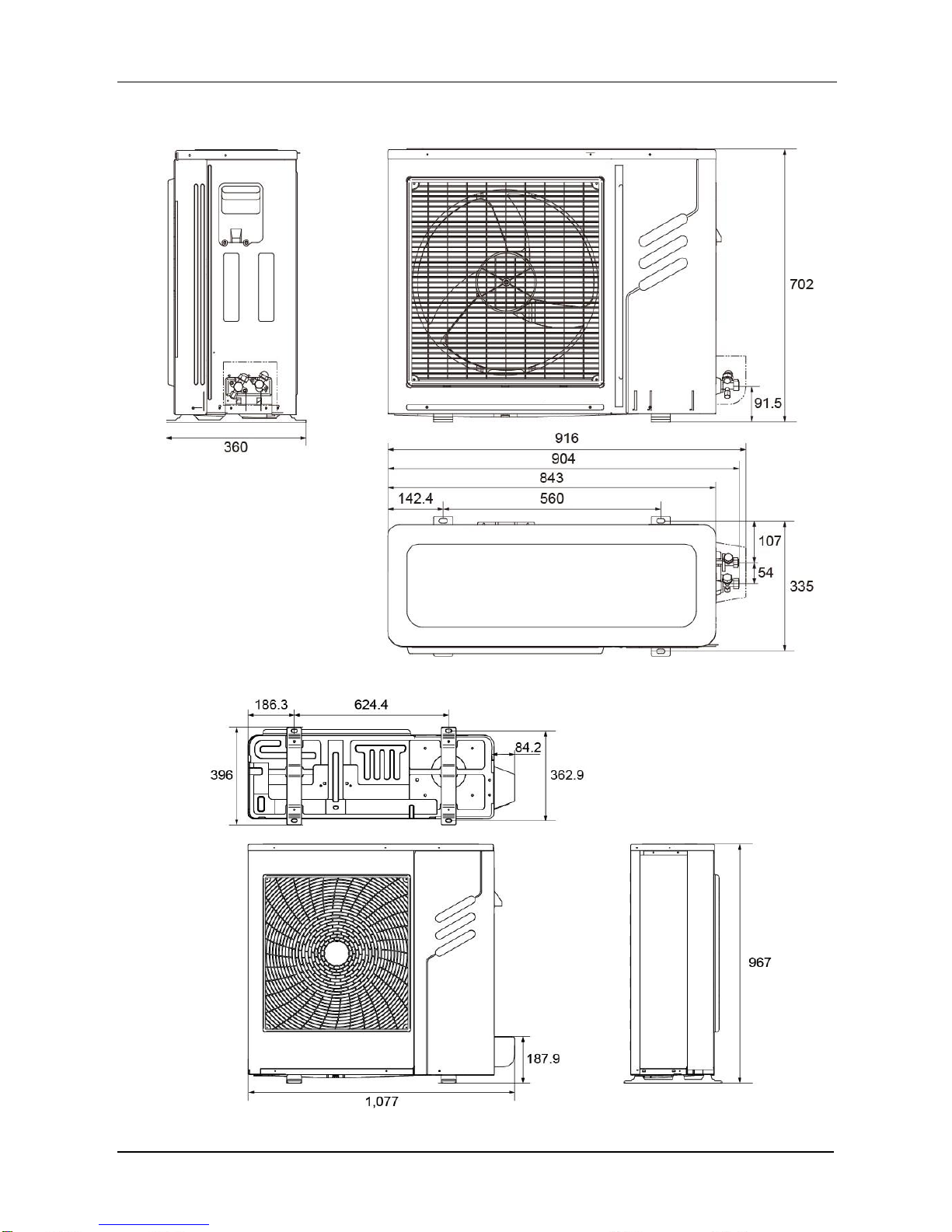

5. Dimensions (Unit: mm)
MCCU-03CN1
MCCU-05CN1

Midea R410A50Hz T1 Compressor Condensing Unit
19
MCCU-07CN1
MCCU-10CN1

Midea R410A 50Hz T1 Compressor Condensing Unit
20
MCCU-12CN1, MCCU-16CN1
