INSTRUCTION MANUAL
MODEL:AS823EKW
Microwave Oven
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.

Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can
result in harmful exposure to microwave energy. It is important not to
break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent person.
Specifications
Rated Input Power(Grill):
Rated Input Power(Convection):
AS823EKW
230V~50Hz
1300W
800W
23L
270mm
Approx. 14.46 kg
485 410 296mm
1200W
1200W
2
If the apparatus is not maintained in a good state of cleanliness, its surface could
be degraded and affect the lifespan of the apparatus and lead to a dangerous
situation.
ADDENDUM

IMPORTANT SAFETY INSTRUCTIONS
WARNING To reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including
the following:
1. Warning: Liquids and other foods must
not be heated in sealed containers since
they are liable to explode.
2. Warning: It is hazardous for anyone other
than a competent person to carry out any
service or repair operation that involves
the removal of a cover which gives
protection against exposure to microwave
energy.
3. Warning: Only allow children to use the
oven without supervision when adequate
instructions have been given so that the
child is able to use the oven in a safe way
and understand the hazards of improper
use.
4. Warning: When the appliance is operated
in the combination mode, children should
only use the oven under adult supervision
due to the temperatures generated.
(only for grill series)
5. Only use utensils suitable for use in
microwave ovens.
6. The oven should be cleaned regularly and
any food deposits should be removed.
7. Read and follow the specific:"PRECAU-
TIONSTOAVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition.
9. If smoke is observed, switch off or unplug
the appliance and keep the door closed
in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage
purposes. Do not store items,
such as bread, cookies, etc. inside the
oven.
12. Remove wire twist-ties and metal handles
from paper or plastic containers/bags
before placing them in the oven.
13. Install or locate this oven only in
accordance with the installation
instructions provided.
14. Eggs in the shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even
after microwave heating has ended.
15. Use this appliance only for its intended
uses as described in manual. Do not
use corrosive chemicals or vapors
in this appliance. This oven is especially
designed to heat. It is not designed for
industrial or laboratory use.
16. If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance
outdoors.
18. Do not use this oven near water, in a
wet basement or near a swimming
pool.
19. The temperature of accessible surfaces
may be high when the appliance is
operating. The surfaces are liable to get
hot during use. Keep cord away from
heated surface, and do not cover any
events on the oven.
20. Do not let cord hang over edge of table
or counter.
21. Failure to maintain the oven in a clean
condition could lead to deterioration
of the surface that could adversely
affect the life of the appliance and
possibly result in a hazardous situation.
22. The contents of feeding bottles and
baby food jars shall be stirred or shaken
and the temperature checked before
consumption, in order to avoid burns.
3

35.The rear surface of appliance shall be placed against a wall.
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore
care must be taken when handling the container.
24.The appliance is not intended for use by persons (including children) with reduced
physical , sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
25.Children should be supervised to ensure that they do not play with the appliance.
26.The microwave oven shall not be placed in a cabinet unless it has been tested in a
cabinet.
27.The appliances are not intended to be operated by means of an external timer or
separate remote-control system.
28. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid
the possibility of electric shock.
29. Accessible parts may become hot during use. Young children should be kept away.
30.Steam cleaner is not to be used.
31. Surface of a storage drawer can get hot.
32. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door
glass since they can scratch the surface, which may result in shattering of the glass.
33. During use the appliance becomes hot. Care should be taken to avoid touching heating
elements inside the oven.
34. Only use the temperature probe recommended for this oven.(for ovens provided with a
facility to use a temperature-sensing probe.)
4

DANGER
Electric Shock Hazard
Touching some of the internal
components can cause serious
personal injury or death. Do not
disassemble this appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding
can result in electric shock. Do
not plug into an outlet until
appliance is properly installed
and grounded.
To Reduce the Risk of Injury to Persons
Grounding Installation
CLEANING
Be sure to unplug the
appliance from the power supply.
1. Clean the inside of the oven after using
with a slightly damp cloth.
2. Clean the accessories in the usual way
in soapy water.
3. The door frame and seal and
neighbouring parts must be cleaned
carefully with a damp cloth when they
are dirty.
Two-round-pin plug
1. A short power-supply cord is provided to
reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
1)The marked electrical rating of the cord set
or extension cord should be at least as great
as the electrical rating of the appliance.
2)The extension cord must be a grounding-
type 3-wire cord.
3)The long cord should be arranged so that it
will not drape over the counter top or tabletop
where it can be pulled on by children or tripped
over unintentionally.
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire
for the electric current. This appliance is equipped
with a cord having a grounding wire with a
grounding plug. The plug must be plugged into an
outlet that is properly installed and grounded.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely
understood or if doubt exists as to whether the
appliance is properly grounded. If it is necessary
to use an extension cord , use only a 3-wire
extension cord.
5

CAUTION
Personal Injury Hazard
It is hazardous for anyone
other than a compentent person
to carry out any service or repair
operation that involves the removal
of a cover which gives protection
against exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
6

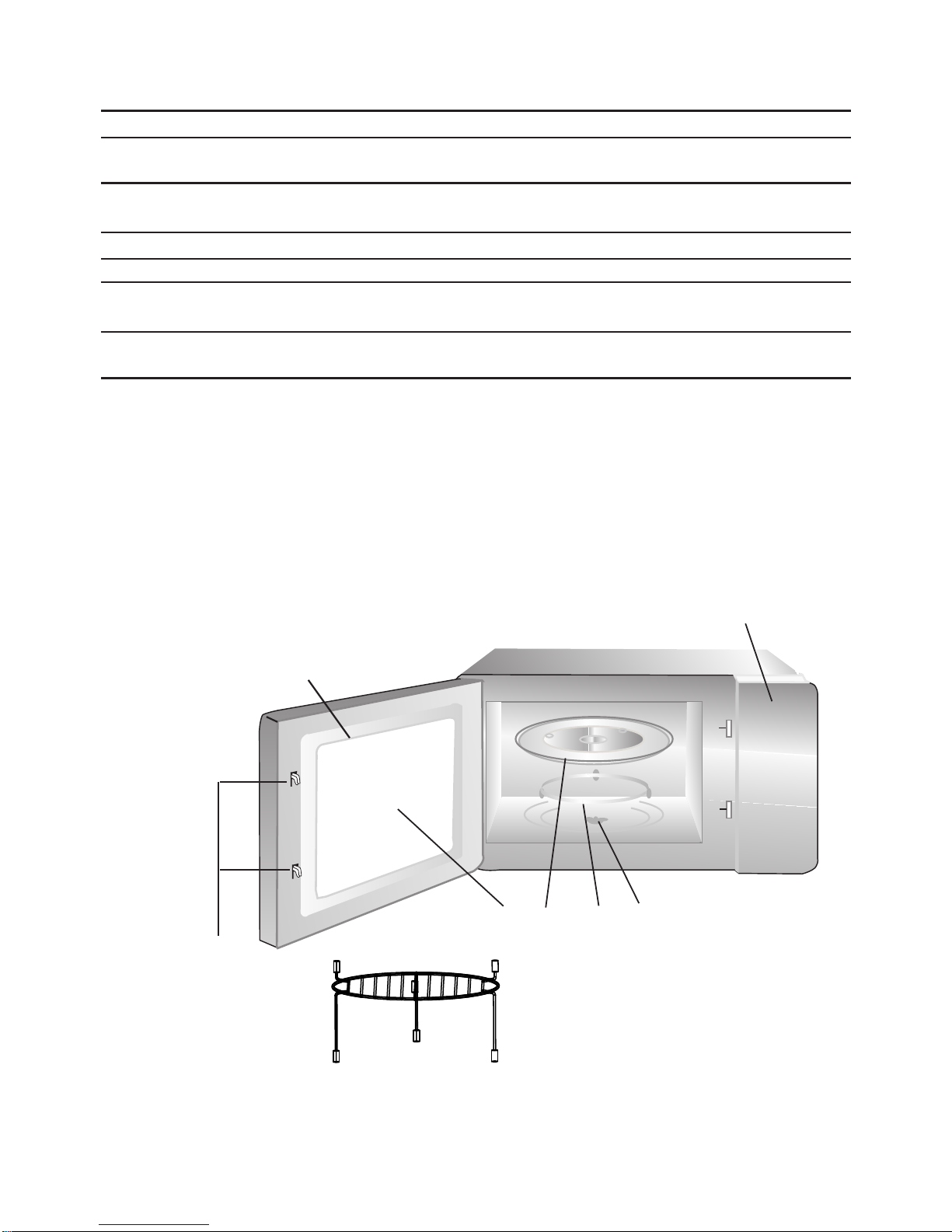

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
F
G
A
CB
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Grill Rack( Only for Grill series )
7

8
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Installation
Select a level surface that provide
enough open space for the intake
and/or outlet vents.
(3) Blocking the intake and/or outlet openings
can damage the oven.
(4) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or TV
reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frequency is the same as the voltage
and the frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and
the warranty would be void.
Hub (underside)
Glass tray
Turntable ring assembly
7.5cm
30cm
OPEN
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
1.
The accessible surface
may be hot during
operation.
A minimum clearance of 3.0 inches
(7.5cm) is required between the oven and
any adjacent walls. One side must be open.
(1) Leave a minimum clearance of 12
inches (30cm) above the oven.
(2) Do not remove the legs from the
bottom of the oven.
The rear surface of appliance shall be
placed against a wall.

2. Microwave Cooking
9
This microwave oven uses modern electronic control to adjust cooking parameters
to meet your needs better for cooking.
When the microwave oven is electrified,the oven will display "0:00", buzzer will ring
once.
2) Press " " or " " to adjust the hour figures, the input time should be within 0--23.
3) Press " CLOCK/KITCHEN TIMER ", the minute figures will flash.
5) Press " CLOCK/KITCHEN TIMER " to finish clock setting. ":" will flash.
1) Press " CLOCK/KITCHEN TIMER ","00:00" displays.
OPERATION INSTRUCTION
NOTE: the step quantities for the adjustment time of pressing " " or " " are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
Microwave Power Chart
Press
Microwave Power
Once Twice Thrice 4 times 5 times
80% 50% 30% 10%100%
4) Press " " or " " to adjust the minute figures, the input time should be within 0-59.
1) Press the "MICROWAVE " key once, and "P100" display.
2) Press " MICROWAVE" for times or press " " or " " to select the microwave
power from 100% to 10%. "P100", "P80", "P50", "P30", "P10" will display in order.
3) Press "START/+30SEC./CONFIRM " to confirm.
4) Press " "or " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
1.Clock Setting

3. Grill Cooking
4. Combination Cooking
5. Convection Cooking(With preheating funtion)
10
1) Press the "GRILL/COMBI. " key once, and "G-1" display.
2) Press " GRILL/COMBI." for times or press " " or " " to select the grill power.
Stop pressing when "G-1" displays.
3) Press "START/+30SEC./CONFIRM " to confirm.
4) Press " " or " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
Instructions Microwave Grill
Display Convection
1
2
3
4
1) Press the "GRILL/COMBI. " key once, and "G-1" display.
2) Press " GRILL/COMBI." for times or press " " or " " to select the grill power.
Stop pressing when "C-1","C-2","C-3" or "C-4" displays.
3) Press "START/+30SEC./CONFIRM " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
C-1
C-2
C-3
C-4
The convection cooking can let you to cook the food as a traditional oven. Microwave is not
used. It is recommended that you should preheat the oven to the appropriate temperature
before placing the food in the oven.
Note: Combination instructions
Note:If half the grill time passes, the oven sounds twice to tell you to turn the food over.
You can just leave continue working. But in order to have a better effect of grilling
food, you should turn the food over, close the door, and then
press"START/+30SEC./CONFIRM" to continue cooking. If no operation, the oven will
work automatically.

11
6. Convection Cooking( Without pre-heating function)
1) Press the "CONVECTION " key once, "110" flash.
2) Keep pressing "CONVECTION" or press " " or " " to select the convection
function.
3) Press the " START/+30SEC./CONFIRM " to confirm the temperature.
4) Press the " START/+30SEC./CONFIRM " to start preheating.When the
preheating temperature arrives, the buzzer will sound twice to remind you to
put the food into the oven. And the preheated temperature is displayed and flash.
5) Put the food into the oven and close the door. Press " " or " " to adjust the
cooking time. (The maximum setting time is 95 minutes.)
6) Press the " START/+30SEC./CONFIRM " key to start cooking.
1) Press the "CONVECTION " key once, "110" flash.
2) Keep pressing "CONVECTION" or press " " or " " to select the convection
function.
3) Press the " START/+30SEC./CONFIRM " to confirm the temperature
4) Press " " or " " to adjust the cooking time. (The maximum setting time is 95
minutes.)
5) Press the " START/+30SEC./CONFIRM " key to start cooking.
7. Kitchen Timer
(1) Press " CLOCK/KITCHEN TIMER " twice, LED will display 00:00.
(2) Press " " or " " to enter the correct timer.(the maximum cooking time is 95 minutes)
(3) Press "START/+30SEC./CONFIRM " to confirm setting.
(4) When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times.
If the clock be set(24-hour system), LED will display the current time.
Note:
a. The kitchen Time is differ from 24-hour system,Kitchen Timer is a timer.
b. When the door is open, Kitchen timer function will continue working.
c. During timer function process, any other program cannot be set.
Note:the temperature can be chosen from 110 degrees to 200 degrees.
Note: a. Cooking time cannot be input until the preheating temperature arrives.
If the temperature arrives, door must be opened to input the cooking time.
b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound
five times and turn back to waiting states.
Note:the temperature can be chosen from 110 degrees to 200 degrees.

10. Auto Menu
8. Defrost By weight
9. Defrost By time
12
Note: Cake menu is under convection cooking with 160 -warm-up function,
and you should preheat first following the auto menu operation, when the oven
reaches the temperature, it will stop working and sound to remind opening
the door to put cake in, then press "Start/+30Sec./Confirm" to start cooking.
3) Press "Start/+30Sec./Confirm" to start defrosting.If "Stop/Clear" is pressed,it will
go back to waiting state. At this time, press "Start/+30Sec./Confirm" again or the
time for pause is more than 5 minutes, it will turn back to the waiting state. Press
"Start/+30Sec./Confirm" in 5 minutes, the unit goes on working and time counts
down. When it is finished, the buzzer sounds five times and turn back to the
waiting states.
1) Press "W.T./Time Defrost " to choose the defrosting by weight function. "dEF1"
will be displayed.
3) Press "Start/+30Sec./Confirm" to start defrosting. If "Stop/Clear" is pressed,it will
go back to waiting state. At this time, press "Start/+30Sec./Confirm" again or the
time for pause is more than 5 minutes, it will turn back to the waiting state. Press
"Start/+30Sec./Confirm" within 5 minutes, the unit goes on working and time counts
down.
1) Press "W.T./Time Defrost" twice to choose the function of defrost by time.
"dEF2" will be displayed.
2) Press " " or " " to input the cooking time.The MAX.time is 95 minutes.
1) In waiting state, press " " or " " to choose the function wanted,
and "A1","A2","A3"...."A10" will be displayed.
2) Press "START/ +30 SEC./CONFIRM" to confirm the menu you need.
3) press " " or " " to choose the weight of menu,and "g" indicator will light.
4) Press "START/ +30 SEC./CONFIRM" to start cooking.
4) When half the defrost time pass, the buzzer will sound twice remind you to turn the food
over, if no action is taken, the unit will continue working and the defrost result is not well.
2) Press " " or " " to input the weight."100","200","300","400","500","600","800",
"1000","1200","1400","1600","1800 and "2000" will be displayed in order.

13
Auto menu Chart
Menu Weight(g) Power
A7
Pasta
A1
Pizza
A2
Potato
A3
Meat
A4
Fish
A5
Vegetable
A8
Popcorn
A6
Beverage
300
400
230
460
690
200
300
400
500
200
300
400
500
200
300
400
500
1(about 240 ml)
2(about 480 ml)
3(about 720 ml)
50(add cold water 450 ml)
100(add cold water 800 ml)
150(add cold water 1200 ml)
50
100
475
750
1000
1250
100% (Mic.)/100% Grill
100%(Mic.)/100% Grill
100%(Mic.)
100%(Mic.)
100%(Mic.)
100%(Mic.)
100%(Mic.)
100%(Mic.)
100%(Mic.)
80%(Mic.)
80%(Mic.)
80%(Mic.)
80%(Mic.)
100%(Mic.)
100%(Mic.)
100%(Mic.)
100%(Mic.)
100%(Mic.)
100%(Mic.)
100%(Mic.)
80%(Mic.)
80%(Mic.)
80%(Mic.)
100%(Mic.)
100%(Mic.)
A10
Roast Chicken
A9 Cake
C-2
C-2
Preheat at 160 degrees
C-2

11. Speedy Cooking
14
1) In waiting state, press "START/+30SEC./CONFIRM" key to cook with 100% power
level for 30 seconds. Each press on the same key can increase 30 seconds. The
maximum cooking time is 95 minutes.
12. Lock-out Function for Children
Lock: In waiting state, press "STOP" for 3 seconds, there will be a long "beep"
denoting entering into the children-lock state and " " indicator will light. LED will display
current time or 0:00.
Lock quitting: In locked state, press "STOP" for 3 seconds, there will be a long "beep"
denoting that the lock is released, and " " indicator will disapear.
2) During microwave,grill,convection and combination states, press
"START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds.
Each press on the same key can increase 30 seconds.
Note: this function cannot work under defrost, auto menu and multi-stage
cooking.
2) When the door is open, the lamp will light. If it keeps opening in 10 minutes,
the lamp will be off and the display will change to waiting states .
3) When open the door in waiting states or during setting process, the inicial display
will stay the same.It can change and set too. But the "START/+30SEC./CONFIRM"
key will not work.
4) Close the door, the lamp will be off. The setting can be changed. And the
"START/+30SEC./CONFIRM" key can work too.
13. Special Specifications
1) The maximum cooking time of "Microwave","Grill", "Defrost by time" ,
"Convection" and "Combine" is 95 minutes.

15
Trouble shooting
According to Waste of Electrical and Electronic Equipment
(WEEE) directive, WEEE should be separately collected and
treated. If at any time in future you need to dispose of this
product please do NOT dispose of this product with household
waste. Please send this product to WEEE collecting points
where available.
It is forbidden to run the unit without any food inside.
It is very dangerous.
