Midea MMW20W User manual

Microwave Oven
INSTRUCTION MANUAL
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY
Model: MMW20W
MMW20S

2
Precautions to Avoid Possible Exposure to
Excessive Microwave Energy
(a) Do not attempt to operate this oven with the door open
since this can result in harmful exposure to microwave
energy. It is important not to break or tamper with the
safety interlocks.
(b) Do not place any object between the oven front face and
the door or allow soil or cleaner residue to accumulate on
sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by a
competent person.
Addendum
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
Specications
Rated Voltage: 240V~ 50Hz
Rated Input Power (Microwave): 1150W
Rated Output Power (Microwave): 700 W
Oven Capacity: 20 L
Turntable Diameter: Φ255 mm
External Dimensions: 440x330x259mm
Net Weight: Approx. 10.14 kg
Model: MMW20W & MMW20S

3
Important Safety Instructions Warning
To reduce the risk of re, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including the
following:
1. Read and follow the specic: "PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
2. This appliance can be used by children aged from 8 and
above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children unless they are older than 8 and
supervised. Children less than 8 years old shall be kept
away unless continuously supervised.
3. Keep the appliance and its cord out of reach of children
less than 8 years old.
4. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard. (For appliance with
type Y attachment)
5. WARNING: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibility of
electric shock.
6. WARNING: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.

4
7. WARNING: Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
8. When heating food in plastic or paper containers, keep
an eye on the oven due to the possibility of ignition.
9. Only use utensils that are suitable for use in microwave
ovens.
10. If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stie any ames.
11. Microwave heating of beverages can result in delayed
eruptive boiling. Therefore care must be taken when
handling the container.
12. The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked before
heating, in order to avoid burns.
13. Eggs in their shell and whole hard-boiled eggs shall not
be heated in microwave ovens since they may explode,
even after microwave heating has ended.
14. The oven shall be cleaned regularly and any food
residues within removed.
15. Failure to maintain the oven in a clean condition could
lead to deterioration of the surface that can adversely
affect the lifespan of the appliance and possibly result in
a hazardous situation.
16. The appliance must not be installed behind a decorative
door in order to avoid overheating. (This is not applicable
for appliances with decorative door.)
17. Only use the temperature probe recommended for
this oven. (For ovens provided with a facility to use a
temperature-sensing probe.)

5
18. The microwave oven shall not be placed in a cabinet
unless it has been tested in a cabinet.
19. The microwave oven must be operated with the
decorative door open. (For ovens with a decorative
door.)
20. The appliance is intended to be used in household and
similar applications such as:
- Staff kitchen areas in shops, ofces and other working
environments;
- Hotels, motels and other residential type
environments;
- Farm houses;
- Bed and breakfast type environments.
21. The microwave oven is designed for heating food and
beverages. Other forbidden purposes such as drying of
food or clothing and heating of warming pads, slippers,
sponges, damp cloth and similar may lead to risk of
injury, ignition or re.
22. Metallic containers for food and beverages are not
allowed during microwave cooking.
23. The appliance shall not be cleaned with a steam cleaner.
24. The appliance is intended to be used freestanding.
25. The rear surface of the appliance shall be placed against
a wall.
READ CAREFULLY AND KEEP FOR
FUTURE REFERENCE

6
To Reduce the Risk of Injury to Persons
Grounding Installation
Danger
Electric shock hazard may rise
when touching some of the
internal components, which
can cause serious personal
injury or death. Do not
disassemble this appliance.
Warning
Electric shock hazard may rise
when with improper use of the
grounding.
Do not plug into an outlet until
appliance is properly installed
and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding can reduce the risk
of electric shock by providing
an escape wire for the electric
current.
This appliance is equipped
with a cord having a grounding
wire with a grounding plug.
The plug must be plugged
into an outlet that is properly
installed and grounded.
Consult a qualied electrician
or serviceman if the grounding
instructions are not completely
understood or if doubt exists
as to whether the appliance is
properly grounded.
If it is necessary to use an
extension cord, use only a
3-wire extension cord.
1. A short power-supply cord is
provided to reduce the risks
resulting from becoming
entangled in or tripping over
a longer cord.
2. If a long cord set or
extension cord is used:
1) The marked electrical
rating of the cord set or
extension cord shall be
at least as great as the
electrical rating of the
appliance.
2) The extension cord must
be a grounding-type
3-wire cord.
3) The long cord shall be
arranged well to prevent
draping over the counter
top or tabletop in case
being pulled on by
children or tripped over
unintentionally.

7
Cleaning
UTENSILS
Caution
Personal Injury Hazard
It is hazardous for anyone
other than a competent person
to carry out any service or
repair operation that involves
the removal of a cover which
gives protection against
exposure to microwave
energy.
See the instructions on "Materials you can
use in microwave oven or to be avoided
in microwave oven". There may be certain
non-metallic utensils that are not safe to use
for microwaving. If in doubt, you can test the
utensil in question following the procedure
below.
Utensil Test:
1. Fill a microwave-safe container with 1
cup of cold water (250ml) along with the
utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty
utensil is warm, do not use it for
microwave cooking.
4. Do not exceed 1 minute of cooking time.
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly
damp cloth.
2. Clean the accessories in the usual way in soapy water
3. The door frame and seal and neighboring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the
glass.
5. Cleaning Tip - For easier cleaning of the cavity walls that
the food cooked can touch: Place half a lemon in a bowl,
add 300ml (1/2 pint) water and heat it on 100% microwave
power for 10 minutes. Then wipe the oven clean using a
soft and dry cloth.

8
Materials You Can Use in Microwave Oven
Utensils Remarks
Aluminum Foil Shielding only. Small smooth pieces can be used to cover thin parts of meat
or poultry to prevent overcooking. Arcing can occur if foil is too close to
oven walls. The foil shall be at least 1 inch (2.5cm) away from oven walls.
Browning Dish Follow manufacturer’s instructions. The bottom of browning dish must be at
least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the
turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use
cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do
not use cracked or chipped dishes.
Oven Cooking Follow manufacturer’s instructions. Do not close with metal tie.
Bags Make slits to allow steam to escape.
Paper Plates and
Cups
Use for short-term cooking/warming only. Do not leave oven unattended
while cooking.
Paper Towels Use to cover food for reheating and absorbing fat. Use with supervision for
a short-term cooking only.
Parchment Paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer’s instructions. Shall be la-
beled “Microwave Safe”. Some plastic containers soften, as the food inside
gets hot.“Boiling bags” and tightly closed plastic bags shall be slit, pierced
or vented as directed by package.
Plastic Wrap Microwave-safe only. Use to cover food during cooking to retain moisture.
Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax Paper Use as a cover to prevent splattering and retain moisture.
Materials to Be Avoided in Microwave Oven
Utensils Remarks
Aluminum Tray May cause arcing. Transfer food into microwave-safe dish.
Food Carton
With Metal Handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or Metal-
trim Utensils
Metal shields the food from microwave energy. Metal trim may cause
arcing.
Metal Twist Ties May cause arcing and could cause a re in the oven.
Paper Bags May cause a re in the oven.
Plastic Foam Plastic foam may melt or contaminate the liquid inside when exposed to
high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.

9
Setting Up Your Oven

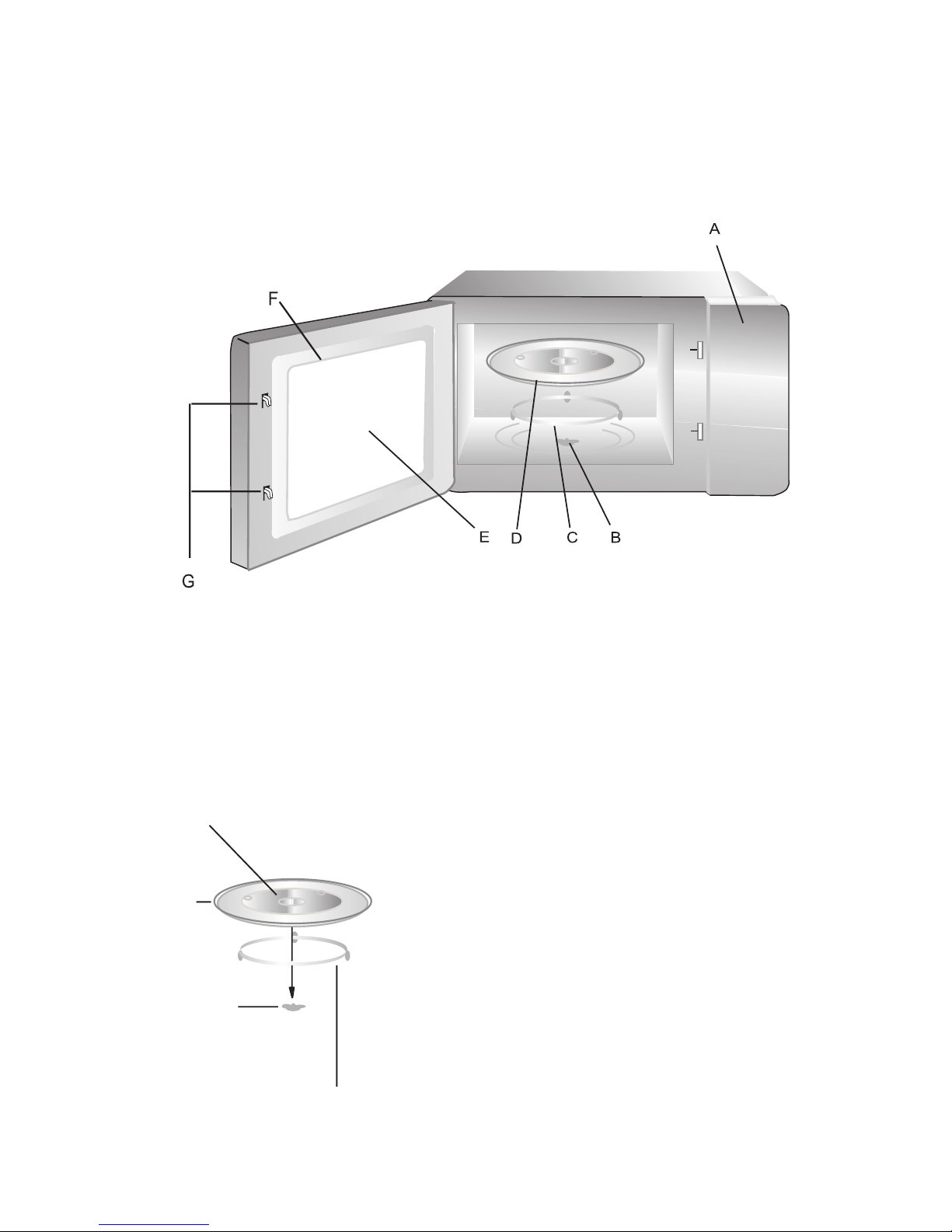

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Turntable Installation
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
a. Never place the glass tray upside down. The
glass tray shall never be restricted.
b. Both glass tray and turntable ring assembly
must always be used during cooking.
c. All food and containers of food are always
placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks
or breaks, contact your nearest authorized
service center.
Glass tray
Hub (underside)
Turntable shaft
Turntable ring assembly

10
Countertop Installation
Installation
Remove all packing materials and acces-
sories. Examine the oven for any damage
such as dents or broken door. Do not install
the oven if it is damaged.

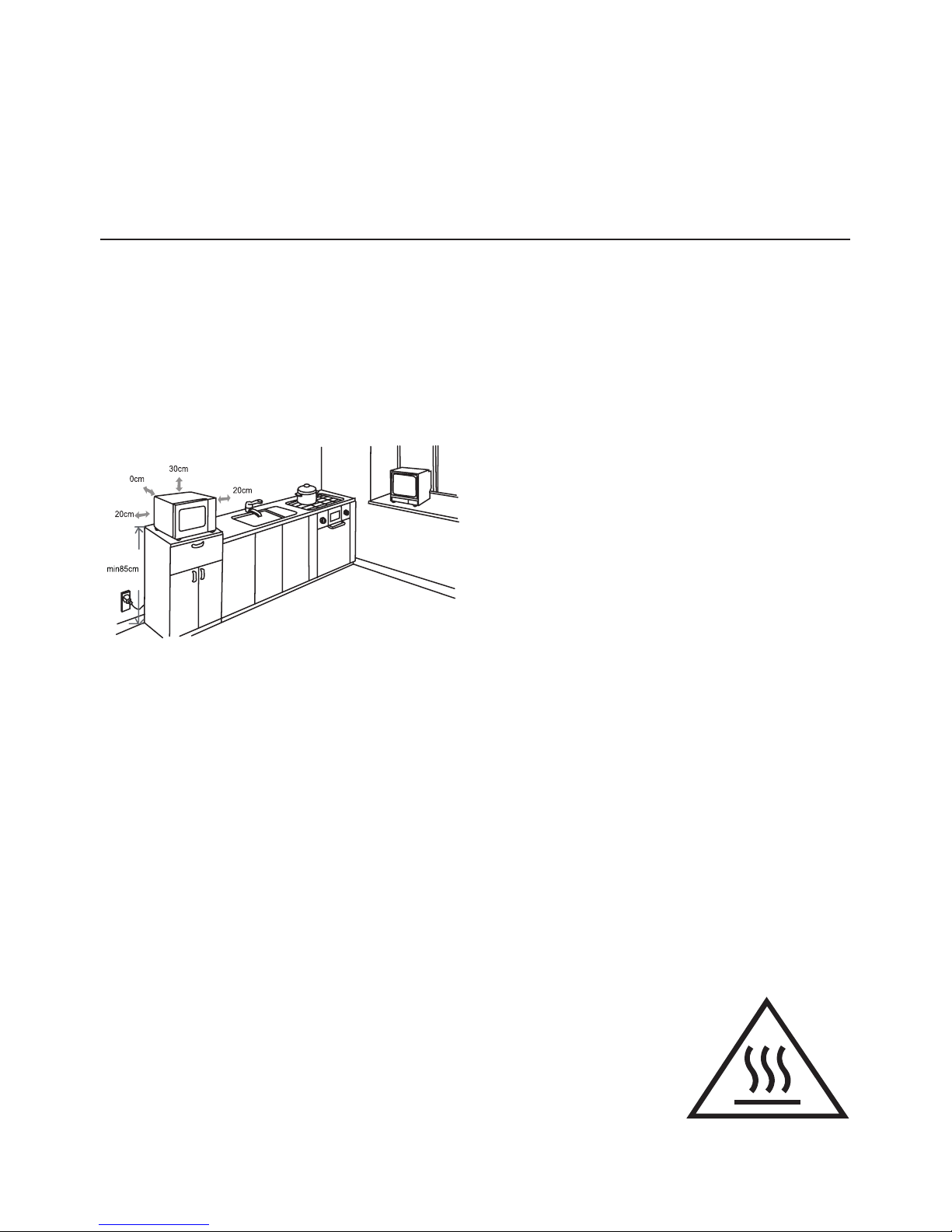

1. Select a level surface that
provides enough open space
for the intake and/or outlet
vents.
(1) The minimum installation
height is 85cm.
(2) The rear surface of
appliance shall be placed
against a wall.
Leave a minimum clearance
of 30cm above the oven,
a minimum clearance of
20cm is required between
the oven and any adjacent
walls.
(3) Do not remove the legs
from the bottom of the oven.
(4) Blocking the intake and/
or outlet openings can
damage the oven.
(5) Place the oven as far
away from radios and TV
as possible. Operation of
microwave oven may cause
interference to your radio or
TV reception.
2. Plug your oven into a
standard household outlet.
Be sure the voltage and the
frequency is the same as the
voltage and the frequency on
the rating label.
WARNING: Do not install
oven over a range cooktop
or other heat-producing
appliance. If installed near or
over a heat source, the oven
could be damaged and the
warranty would be void.
The accessible
surface may
be hot during
operation
Cabinet: Remove any protective lms found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to protect
the magnetron.

11
Operation
1. Power Level
11 Power levels are available.
2. Clock Setting
(1) Press “CLOCK”, “00:00” will display.
(2) Press the number keys and enter the current time. For example, if time is 12:10 now,
please press “1”, “2”, “1”, “0” in turn.
(3) Press “CLOCK” to nish clock setting. “:” will ash and the clock will be lighted.
(4) If the numbers input are not within the range of 1:00-12:59, the setting will be invalid
until valid numbers are input.
Note: (1) In the process of clock setting, if the “STOP/CANCEL” button is pressed or if
there is no operation within 1 minute, the oven will go back to the former setting
automatically.
(2) If the clock needs to be reset, please repeat step 1 to step 3.
3. Kitchen Timer
(1) Press “KITCHEN TIMER”, the screen will display 00:00, the rst hour gure ash.
(2) Press the number keys and enter the timer time. (The maximum cooking time is 99
minutes and 99 seconds)
(3) Press “START/+30SEC.” to conrm setting.
(4) When the timer time arrives, the buzzer will ring 5 times.
If the clock (12-hour system) is set, the screen will display the current time.
Note: (1) The kitchen time is differing from 12-hour system, and kitchen timer is also a
special timer.
(2) During kitchen timer, any program cannot be set.
4. Microwave Cook
(1) Press “TIME COOK” once, the screen will display “00:00”.
(2) Press number keys to input the cooking time; the maximum cooking time is 99 minutes
and 99 seconds.
(3) Press “POWER” once, the screen will display “PL10”. The default power is 100% power.
Now you can press number keys to adjust the power level.
(4) Press “START/+30SEC.” to start cooking.

12
Example: to cook the food with 50% microwave power for 15 minutes.
a. Press “TIME COOK” once.”00:00” displays.
b. Press “1”,”5”,”0”,”0” in order.
c. Press “POWER” once, then press “5” to select 50% microwave power.
d. Press “START/+30SEC.” to start cooking.
Note: (1) In the process of setting, if the “STOP/CANCEL” button is pressed or if there is no
operation within 1 minute, the oven will go back to the former setting automatically.
(2) If “PL0” selected, the oven will work with fan for no power.
(3) During microwave cooking, “POWER” can be pressed to change the power you
need. After pressing “POWER”, the current power ash for 3 seconds, now you can
press number button to change the power. The oven will work with the selected
power for the rest time.
5. Speedy Cooking
(1) In waiting state, instant cooking at 100% power level can be started by select a cooking
time from 1 to 6 minutes by pressing number pads1 to 6. Press “START/+30SEC.” to
increase the cooking time; the maximum cooking time is 99 minutes and 99 seconds.
(2) In waiting state, instant cooking at 100% power level with 30 seconds cooking time
and can be started by pressing “START/+30SEC”. Each press on the same button will
increase cooking time by 30 seconds; the maximum cooking time is 99 minutes and 99
seconds.
Note: during microwave cooking and time defrost, time can be added by pressing
“START/+30SEC” button.
6. Weight Defrost Function
(1) Press “WEIGHT DEFROST”, the screen will display “dEF1”.
(2) Press numerical buttons to input weight to be defrosted.
Input the weight ranged between 100~2000 g.
(3) If the weight input is not within 100~2000 g, the input will be invalid.
(4) Press “START/+30SEC.” to start defrosting. The remaining cooking time will be
displayed.
7. Time Defrost Function
(1) Press “TIME DEFROST”, the screen will display “dEF2”.
(2) Press number pads to input defrosting time. The effective time range is 00:01~99:99
(3) The default microwave power is power level 3.
(4) Press “START/+30SEC.” to start defrosting. The remaining cooking time will be
displayed.

13
8. Popcorn
(a) Press “POPCORN” repeatedly until the number you wish appears in the display, “50”,
“100” g will display in order.
For example, press “POPCORN” once, “50” appears.
(b) Press “START/+30 SEC.” to cook, buzzer sounds once. When cooking is nished,
buzzer will sound ve times and then the procedure will turn back to waiting state.
Important Information about Microwave Popcorn Feature:

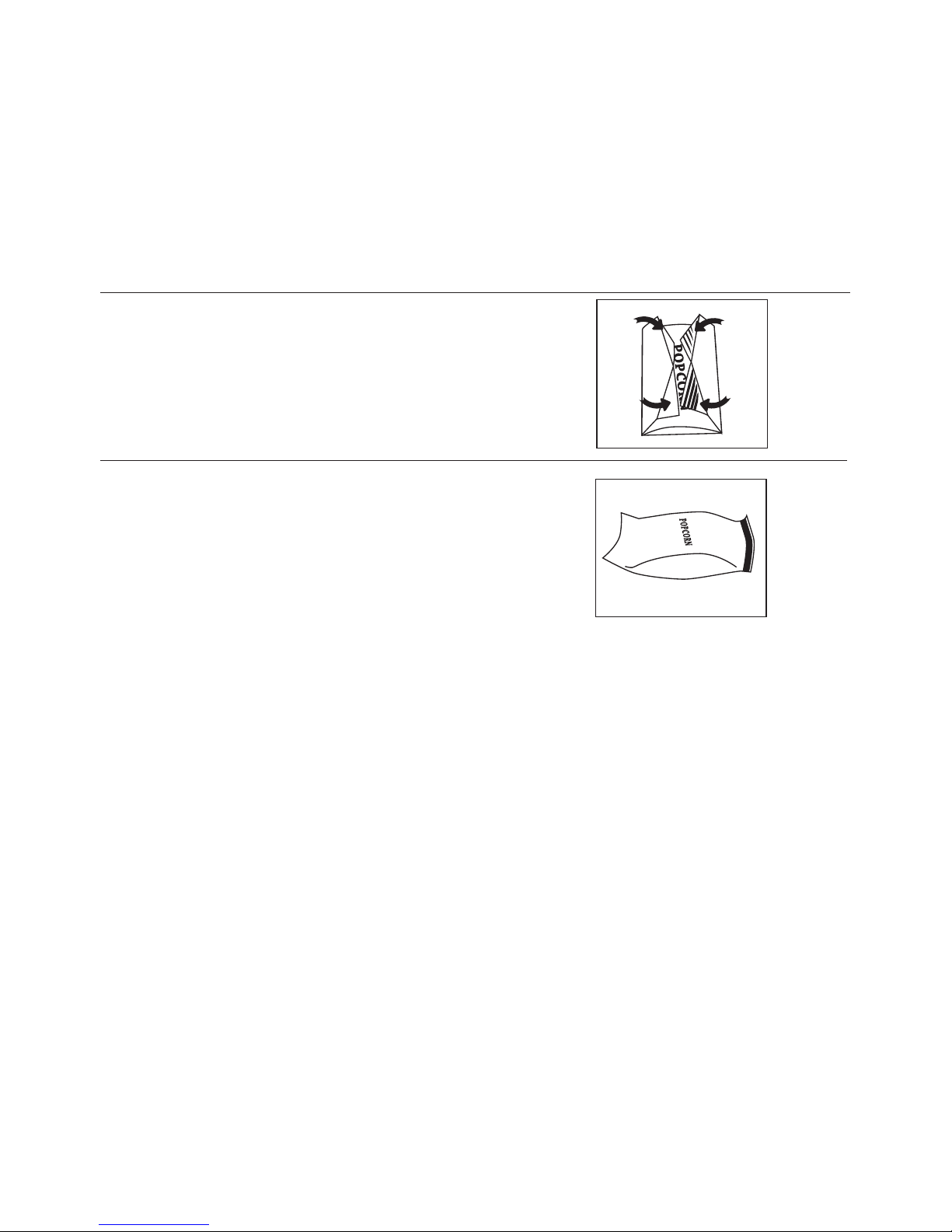

1. When selecting 100 g of popcorn, it is
suggested that you fold down a triangle on each
corner of the bag before cooking. Refer to the
picture at right.
2. If/When the popcorn bag expands and no longer
rotates properly, please press “STOP/CANCEL”
button once and open the oven door and adjust the
bag position to ensure even cooking.
9. Potato
(a) Press “POTATO” repeatedly until the number you wish appears in the display, “1”, “2”, “3”
will display in order.
“1”SET: 1 potato (approximate 230 gram)
“2”SETS: 2 potatoes (approximate 460 gram)
“3”SETS: 3 potatoes (approximate 690 gram)
For example, press “POTATO” once, “1” appears.
(b) Press “START/+30 SEC.” to cook, buzzer sounds once. When cooking is nished,
buzzer will sound ve times and then the procedure will turn back to waiting state.
10. Frozen Vegetable
(a) Press “FRZ. VEGETABLE” repeatedly until the number you wish appears in the display,
“150”, “350”, “500” g will display in order.
For example, press “FRZ. VEGETABLE” once, “150” appears.
(b) Press “START/+30 SEC.” to cook, buzzer sounds once. When cooking is nished,
buzzer will sound ve times and then the procedure will turn back to waiting state.

14
11. Beverage
(a) Press “BEVERAGE” repeatedly until the number you wish appears in the display,
“1”,”2”,”3” cup will display in order. One cup is about 120ml. For example, press
“BEVERAGE” once, “1” appears.
(b) Press “START/+30 SEC.” to cook, buzzer sounds once. When cooking is nished,
buzzer will sound 5 times and then the procedure will turns back to waiting state.
12. Dinner Plate
(a) Press “DINNER PLATE” repeatedly until the number you wish appears in the display,
“250”, “350”, “500” g will display in order.
For example, press “DINNER PLATE” once, “250” appears.
(b) Press “START/+30 SEC.” to cook, buzzer sounds once. When cooking is nished,
buzzer will sound 5 times and then the procedure will turn back to waiting state.
13. Pizza
(a) Press “PIZZA” repeatedly until the number you wish appears in the display, “100”, “200”,
“400” g will display in order.
For example, press “PIZZA” once, “100” appears.
(b) Press “START/+30 SEC.” to cook, buzzer sounds once. When cooking is nished,
buzzer will sound 5 times and then the procedure will turn back to waiting state.
14. Memory Function
(1) Press “0/MEMORY” to choose memory 1-3 procedure. The screen will display”1”, “2”,
“3”.
(2) If the procedure has been set, press “START/+30 SEC.” to use it. If not, continue to set
the procedure. Only one or two stages can be set.
(3) After nishing the setting, press “START/ +30 SEC.” once to save the procedure and
turn back to the waiting states. If press “START/+30 SEC.” again, it will start cooking.
Example: to set the following procedure as the second memory, that is memory 2; to cook
the food with 80% microwave power for 3minutes and 20 seconds.
The steps are as follow:
a. In waiting states, press “0/MEMORY” twice, stop pressing until the screen displays “2”.
b. Press “TIME COOK” once, then press “3”,”2”,”0” in order.
c. Press “POWER” once, “PL10” display, then press “8” and “PL8” displays.
d. Press “START/ +30 SEC.” to save the setting. Buzzer sounds once then turn back to
waiting states. If you press “START/+30SEC.” twice after step c, the procedure will be
saved as the memory 2 and operated.
e. If the electricity is not cut off, the procedure will be saved all the time. If it is cut off, the
procedure will need to be reset.
f. If you want to run the saved procedure, in waiting states, press “0/MEMORY” twice,
screen displays “2”, then press “START/+30SEC.” to run.

15
15. Multi-stage Cooking
At most 2 stages can be set for cooking. In multi-stage cooking, if one stage is defrosting,
then defrosting shall be placed at the rst stage automatically.
Note: Auto cooking cannot work in the multi-stage cooking.
Example: if you want to cook with 80% microwave power for 5 minutes + 60% microwave
power for 10 minutes. The cooking steps are as following:
(1) Press “TIME COOK” once, then press “5”, “0”, “0” to set the cooking time;
(2) Press “POWER” once, then press “8” to select 80% microwave power.
(3) Press “TIME COOK” once, then press “1”, “0”, “0”, “0” to set the cooking time;
(4) Press “POWER” once, then press “6” to select 60% microwave power.
(5) Press “START/ +30 SEC.” to start cooking.
16. Inquiring Function
(1) In cooking state, press “CLOCK”, the screen will display clock for three seconds.
(2) In the microwave cooking state, press “POWER” to inquire microwave power level, and
the current microwave power will be displayed. After three seconds, the oven will turn
back to the previous state. In multi-stage state, the inquiring function can be done by
the same way as above.
17. Lock Function for Children
Lock: In waiting state, press “STOP/CANCEL” for 3 seconds, there will be a long “beep”
denoting the entering into the children-lock state; meanwhile, screen will display “ ”.
Lock quitting: In locked state, press “STOP/CANCEL” for 3 seconds, there will be a long
“beep” denoting quitting the lock function.
18. Cooking End Reminding Function
When the cooking is over, the buzzer will sound “beep” 5 times to alert user the cooking is
nished.
19. Other Specications
(1) In standby state, if the set clock digital tube displays current time, the icon “ : ” would
ash; otherwise, it shows “0:00”.
(2) In setting function state, the screen displays corresponding setting.
(3) In working or pause state, the screen displays surplus cooking time.

16
Trouble Shooting
Normal
Microwave oven
interfering with TV
reception
Radio and TV reception may be interfered when microwave
oven is operating. It is similar to the interference of small
electrical appliances, like mixer, vacuum cleaner, and electric
fan. It is normal.
Dim oven light In low power microwave cooking, oven light may become dim.
It is normal.
Steam accumulating on
door, hot air out of vents
In cooking, steam may get out from food. Most of it will be
expelled from vents. But some may accumulate on cold
surface like oven door. It is normal.
Oven being started
accidentally with no food
in
It is forbidden to run the appliance without any food inside. It is
very dangerous.
Trouble Possible Cause Remedy
Oven cannot
being started
(1) Power cord is not plugged
in tightly.
Unplug the power cord. Then
plug it in again after 10 sec-
onds.
(2) Fuse blows or circuit break-
er works.
Replace fuse or reset circuit
breaker (shall be repaired by
professional personnel of our
company)
(3) There may be a fault with
the outlet.
Test outlet with other electrical
appliances.
Oven does not heating (4) Oven door is not closed
well. Reclose the door well.
According to Waste of Electrical and Electronic Equipment (WEEE)
directive, WEEE shall be separately collected and treated. If at any time
in future you need to dispose of this product please do NOT dispose of it
with household waste. Please send this product to WEEE collecting points
where available.

FOR SPARE PARTS OR TO FIND THE ADDRESS OF
YOUR NEAREST STATE SPARE PARTS CENTRE IN AUSTRALIA
MIDEA HOME APPLIANCES AUSTRALIA PTY LTD
11/75 Lorimer Street, Docklands, Melbourne, 3008
After-sales service No.: 1800 88 60 10
Maintenance schedule:
To ensure the appliance continues to operate at peak performance, we recommend a routine
service call every 2years for the life of the appliance.
