Midea Black 34L User manual

INSTALLATION
INSTRUCTIONS
USER GUIDE
Warning notices: Before using this product,
please read this manual carefully and keep
it for future reference. The design and
specifications are subject to change without
prior notice for product improvement.
Consult with your dealer or manufacturer
for details.
MIDEA
Microwave Oven
315535//??/
Black34L

(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
Specifications
Approx. 11.7kg
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
240V~ 50Hz
315 mm
1900W
1200 W
34 L
519x406.5x314.2mm
315535
2

To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
IMPORTANT SAFETY INSTRUCTIONS
WARNING
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.( For appliance with
type Y attachment)
AVOIDPOSSIBLE EXPOSURETO EXCESSIVE
MICROWAVE ENERGY".
4. If the supply cord is damaged, it must be replaced by
1. Read and follow the specific:"PRECAUTIONS TO
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than 8
2. This appliance can be used by children aged from 8
3. Keep the appliance and its cord out of reach of children
less than 8 years.
and supervised. Children less than 8 years of age shall be
kept away unless continuously supervised.
3

.ovens
and keep the door closed in order to stifle any flames.
delayed eruptive boiling, therefore care must be taken
when handling the container.
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
12.The contents of feeding bottles and baby food jars
13. Eggs in their shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
deposits removed.
14. The oven should be cleaned regularly and any food
11. Microwave heating of beverages can result in
keep an eye on the oven due tothe possibility of ignition.
in sealed containers since they are liable to explode.
could lead to deterioration of the surface that could
15. Failure to maintain the oven in a clean condition
7. WARNING: Liquids and other foodsmust not be heated
10. If smoke is emitted, switch off or unplug the appliance
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
before replacing the lamp to avoid the possibility of
electric shock.
5. WARNING: Ensure that the appliance is switched off
6. WARNING: It is hazardous for anyone other than a
8. When heating food in plastic or paper containers,
9. Only use utensils that are suitable for use in microwave
4

-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and similar
may lead to risk of injury, ignition or fire.
21.The microwave oven is intended for heating food and
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
decorative door open. (for ovens with a decorative door.)
18.The microwave oven shall not be placed in a cabinet
unless it has been tested in a cabinet.
this oven.(for ovens provided with a facility to use a
17.Only use the temperature probe recommended for
temperature-sensing probe.)
adversely affect the life of the appliance and possibly
result in a hazardous situation.
allowed during microwave cooking.
cleaner.
19.The microwave oven must be operated with the
22. Metallic containers for food and beverages are not
23. The appliance shall not be cleaned with a steam
16. The appliance must not be installed behind a
applicable for appliances with decorative door.)
decorative door in order to avoid overheating. (This is not
24.The appliance is intended to be used freestanding.
20.This appliance is intended to be used in household
5

a wall.
25.The rear surface of appliances shall be placed against
6
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE

To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this
appliance.
WARNING
ElectricShock Hazard
Improper
use of the grounding
can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only
a 3-wire
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
2. If a long cord set or extension
cord is used:
1)The marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extensioncord must be
a grounding-type 3-wire cord.
3)The longcord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
extension cord.
7

CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a
competent person to
carry out any service
or repair operation that
involves the removal of
a cover which gives
protection against
exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
8

Materials you can use in microwave oven
Utensils Remarks
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
9

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
10

Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Installation

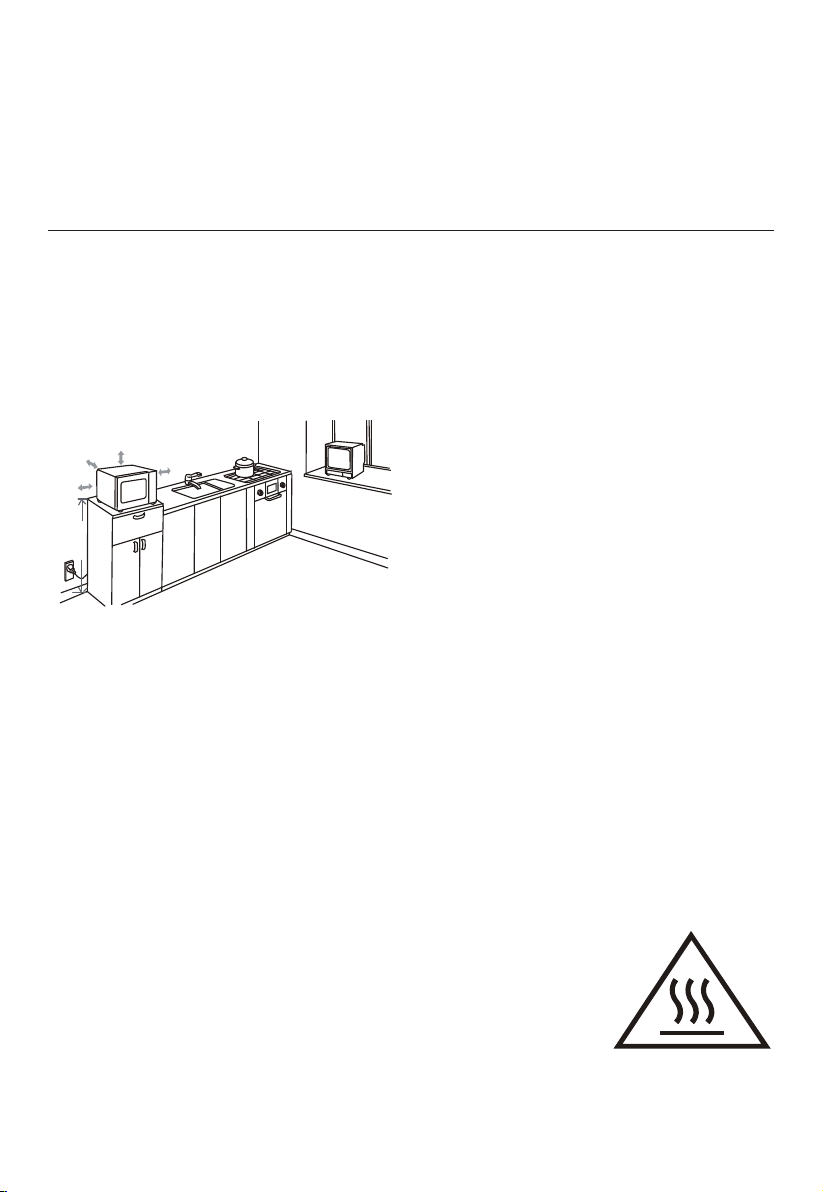

1.Select a level surface that
provide enough open space
for the intake and/or outlet
vents.
(1) The minimum installation
height is 85cm.
(2) The rear surface of
appliance shall be placed
against a wall.
Leave a minimum clearance
of 30cm above the oven, a
minimum clearance of 20cm
is required between the oven
and any adjacent walls.
(3) Do not remove the legs
from the bottom of the oven.
(4) Blocking the intake and/
or outlet openings can
damage the oven.
(5) Place the oven as far
away from radios and TV
as possible. Operation of
microwave oven may
cause interference to your
radio or TV reception.
2. Plug your oven into a
standard household outlet.
Be sure the voltage and
the frequency is the same
as the voltage and the
frequency on the rating
label.
WARNING: Do not install
oven over a range cooktop
or other heat-producing
appliance. If installed near
or over a heat source, the
oven could be damaged
and the warranty would be
void.
20cm
30cm
20cm
min85cm
0cm
The accessible
surface may be
hot during operation.
11

OPERATION INSTRUCTION
2. Kitchen Timer
1 )In the standby or clock running state, press the "Timer/ Clock" key once, and the LED will always be on
to display "00: 00" to prompt the input of time. The second flashing sign ":"will always be on, and the alarm
clock sign will be on.
2 )Press the number keys to enter the time. The time setting range is 00: 00 99: 99.
For example, set the timing of 5 minutes, press the numeric keys "5", "0" and "0" one time in turn to
display "5: 00".
3 )After the setting is completed, press the "START/+30SEC" key to start the countdown, the LED countdown
displays the remaining time, the second flashing symbol ":"is always on, and the alarm clock symbol flashes.
4 )When the countdown is over, Timer ends the sound and returns to the standby state. No clock is set.
When cooking is finished and returns to the standby state, the LED displays 0: 00 at this time. The clock
has been set, the clock time will be displayed after returning to standby, and the alarm clock flag will go out.
5)During the operation of the alarm clock, opening the oven door or closing the oven door has no influence
on the alarm clock, and the alarm clock continues to operate.
Press the "STOP/ECO" key to cancel the alarm clock directly and return to the standby state.
6) function description:
1. When the first digit of the digital tube is "0" in the running state, it will not be displayed.
2. Timer cannot query the clock during operation.
3. Microwave Cooking
1 )in standby or Clock operation state, press the "Microwave" key, the display screen will flash with "P100"
and the microwave flag will be lit (the high fire flag will be lit when P100 and P90 firepower are selected).
2) Continue to press the "Microwave" key to modify the fire power and display "P90 → P80 ... P10 →
P100" flashing; Press the "START/+30SEC" key to confirm, and the LED will always be on to display the
currently selected firepower.
3)After the fire power setting is completed, press the corresponding number keys to set the cooking time,
with the maximum cooking time being 99:99.
If microwave is set for 15min.
Press the numeric keys "1", "5", "0" and "0" one at a time in turn, and the LED will always be on to
display "15: 00".
4 )If the oven door is closed, press the "START/+30SEC" key to start cooking immediately. The microwave
power is P80. The LED countdown displays the remaining cooking time and the microwave sign flashes
(P100 and P90 fire cooking and high fire sign flashes).
12

4. Defrost By time
1) in standby or Clock operation state, press "Defrost Inverter" key once, the right-most three digits of the display
screen will flash "d01", the microwave and unfreezing signs will light up, press "START/+30EC" key to confirm,
and the LED will stop flashing and will always light up.
2) Press the corresponding numeric key to set the working time for thawing on time (the maximum cooking
time is 99:99), and the LED will always be on to display the current setting time.
3) If the oven door is closed, press the "START/+30SEC" key to start cooking immediately. LED countdown
displays the remaining cooking time. The default fire power is P30. The microwave and defrost signs flash.
4) When opening the oven door during cooking or pressing the "STOP/ECO" key, cooking will be suspended
and the remaining cooking time will be displayed.
After the oven door is closed, press the "START/+30SEC" key to restart the cooking process, and the microwave
fire cycle timing will not restart.
5 )When the countdown of cooking time is over, the cooking end sound starts and returns to the standby state.
No clock is set. When cooking is over and returns to the standby state, the LED displays 0: 00 at this time.
The clock has been set, and the clock time will be displayed after returning to standby.
6 )function description:
1. The default microwave power for thawing on time is P30 and cannot be modified manually.
5. Defrost By weight
1 )In standby or Clock operation state, press the "Defrost Inverter" key twice, and the right-most three digits
of the display screen will flash "d02". The microwave and unfreezing signs will light up. Press the "START/+30EC"
key to confirm that the LED will stop flashing and will always light up (continue to press this key to select
d03, d04, d05 and d01 unfreezing menus).
2 )Press the corresponding number key to set the unfreezing weight and the G sign will be lit.
For example, set 500g thawing.
Press the number key "5" and the LED will display "5g". Press the number key "0" twice,
and the LED will always display "500g".
3) if the oven door is closed, press the "START/+30SEC" key, cooking will begin immediately, LED countdown
will show the remaining cooking time, microwave and defrost signs will flash, and "g" sign will go out.
4 )When the thawing cooking P50 fire is over, a cooking prompt tone will be issued to prompt the user to turn
over the surface. If the user does not operate, cooking will not be suspended.
5 )When opening the oven door during cooking or pressing the "STOP/ECO" key, cooking will be suspended
and the remaining cooking time will be displayed.
After the oven door is closed, press the "START/+30SEC" key to restart the cooking process, and the microwave
fire cycle timing will not restart.
6 )When the countdown to cooking time is over, the cooking end sound starts and returns to the standby state.
No clock is set. When cooking is over and returns to the standby state, the LED displays 0: 00 at this time.
The clock has been set, and the clock time will be displayed after returning to standby..
5 )During cooking, press the "Microwave" key to display the current fire power of 3 sec.
6 )When opening the oven door during cooking or pressing the "STOP/ECO" key, cooking will be
suspended and the remaining cooking time will be displayed.
After the oven door is closed, press the "START/+30SEC" key to restart the cooking process, and
the microwave fire cycle timing will not restart.
7) When the countdown of cooking time is over, the cooking end sound starts and returns to the standby
state. No clock is set. When cooking is over and returns to the standby state, the LED displays 0: 00 at this
time. The clock has been set, and the clock time will be
displayed after returning to standby.
13

1)In standby or Clock operation state, press the "Defrost Inverter" key twice, the display screen will
flash "d02", the microwave and unfreezing signs will light up, press the "START/+30EC" key to confirm,
and the LED will stop flashing and will always light up.
2)For example, set 500g thawing.
Press the number key "5" and the LED will normally illuminate to display "5g", press the number key "0"
twice, the LED will normally illuminate to display "500g" and the microwave and defrost signs will illuminate.
3)Press the "Microwave" key, the display screen will flash "P100" and the microwave sign will be lit.
4)After the fire power setting is completed, press the "START/+30SEC" key to confirm, and press the
corresponding numeric key to set the cooking time at 2min30sec.
5)If the oven door is closed, press the "START/+30SEC" key, cooking will begin immediately, LED
countdown will show the remaining cooking time, and microwave and defrost signs will flash.
6)When the thawing P50 fire is over, a cooking prompt tone will be issued to prompt the user to turn over.
If the user does not operate, cooking will not be suspended.
7)After the execution of the first stage, a beeping tone will be issued to enter the second stage of
microwave cooking.
8)When the countdown to cooking time is over, the cooking end sound starts and returns to the
standby state. No clock is set. When cooking is over and returns to the standby state, the LED
displays 0: 00 at this time. The clock has been set, and the clock time will be displayed after returning to standby.
9)Functional description:
1, according to the heavy thaw and thaw on time when setting, can only set up a thaw, and must be
executed in the first stage of cooking.
2. Alarm clock, automatic menu and quick cooking cannot be set as one of multi-stage cooking.
3. During the execution of multi-stage cooking, you can press the "START/+30SEC" key to increase
the time. The time increases in the current stage.
1)Mute: Press the "STOP/ECO" key in standby or Clock operation state, beep and extinguish the screen.
2)Cancel the screen extinguish: After the screen is extinguished, press any key or rotate the knob to enter
the standby state, and the LED shows that the clock has been set or "0:00".
1 )In standby or Clock operation state, press the "Sensor Reheat" key once to enter the sensor reheat menu
The right-most three digits of the LED are always on to display the minimum menu weight, and the
automatic mark and microwave mark are on.
2) Continue to press this menu key to select other components.
3) After selecting the weight, if the oven door is closed and the "START/+30SEC" key is pressed,
humidity sensing will be started. During sensing, the LED will flash to display the currently selected weight,
and the corresponding menu fire flag and AUTO icon will flash to display (if the door is opened or the
cancel key is pressed, then return to standby).
4)After induction, there will be 2 beeps, LED will automatically display countdown and start cooking. When
the oven door is opened during cooking or press the "STOP/ECO" key, cooking will be suspended and
the remaining cooking time will be displayed.
After the oven door is closed, press the "START/+30SEC" key to restart the cooking process, and the
microwave fire cycle timing will not restart.
5) When the countdown of cooking time is over, the cooking end sound starts and returns to the standby
state. No clock is set. When cooking is over and returns to the standby state, the LED displays 0: 00 at this time.
The clock has been set, and the clock time will be displayed after returning to standby
8.Sensor Reheat
6.Multi-Stage Cooking
7.ECO
14

9.Melt/Soften
1)In standby or Clock operation state, press the "Melt/Soften" key once to enter the melting/softening menu.
The right-most three digits of the LED flash to display "S01". The automatic and microwave flags are lit. Press
this key continuously to select "S02" and "S01".
2) Press the START/+30SEC key to confirm the menu type. The right-most three digits of the LED will always display
the default quantity of the current menu type. Continue to press the "Melt/Soften" key to select other quantities.
3) After selecting the weight, if the oven door is closed, when pressing the "START/+30SEC" key, humidity sensing
will begin. During sensing, the LED will flash to display the currently selected weight, and the corresponding menu
fire sign and AUTO icon will flash to display.
4 )When opening the oven door during cooking or pressing the "STOP/ECO" key, cooking will be suspended and the
remaining cooking time will be displayed.
After the oven door is closed, press the "START/+30SEC" key to restart the cooking process, and the timing of the
microwave fire cycle will not restart.
5 )When the countdown of cooking time is over, the cooking end sound starts and returns to the standby state. No
clock is set. When cooking is over and returns to the standby state, the LED displays 0: 00 at this time. The clock has
been set, and the clock time will be displayed after returning to standby.
10.Dinner Plate
1)In the standby or Clock operation state, press the "Dinner Plate" key once to enter the Dinner Plate menu.
The right three digits of the LED are always on to display the minimum menu weight, and the automatic
mark and microwave mark are on.
2) Continue to press this menu key to select other components.
3) After selecting the weight, if the oven door is closed and the "START/+30SEC" key is pressed,
humidity sensing will be started. During sensing, the LED will flash to display the currently selected weight,
and the corresponding menu fire flag and AUTO icon will flash to display (if the door is opened or the
cancel key is pressed, then return to standby).
4)After induction, there will be 2 beeps, LED will automatically display countdown and start cooking. When
the oven door is opened during cooking or press the "STOP/ECO" key, cooking will be suspended and
the remaining cooking time will be displayed.
After the oven door is closed, press the "START/+30SEC" key to restart the cooking process, and the
microwave fire cycle timing will not restart.
5) When the countdown of cooking time is over, the cooking end sound starts and returns to the standby
state. No clock is set. When cooking is over and returns to the standby state, the LED displays 0: 00 at this time.
The clock has been set, and the clock time will be displayed after returning to standby
15

MenuWeight power
50g
250g
350g
450g
85g
100g
Popcorn
250g
350g
450g
Sensor
reheat
Potato
Pizza
Fish
Chicken
Pasta
Dinner
plate
Melt
butter
Soften
butter
250g
200g
400g
600g
250g
350g
450g
227g
227g
454g
454g
50g(water450g)
100g(water800g)
Auto Menu
100%
100%
100%
100%
100%
100%
100%
100% / 80%
100% / 80%
100% / 80%
100% / 80%
100%
100%
100% / 80%
100% / 80%
100%
100%
100%
100%
100%
100%
30%
1 (230g)
2 (460g)
3 (690g)
16
100%
100%
30%

11.Mute function
1)Mute: In standby or Clock running state, after pressing the "0/silent mode" key for 3 seconds, the buzzer will sound
for 2 times and enter the mute mode. The key will not beep.
2)Unmute: In the mute state, in the standby or Clock operation state, press "0/silent mode" for a long time. After 3
seconds, the buzzer will sound for short time , canceling the mute mode, and the key will beep.
12.Micro shortcut settings
1) When the oven door is Clock, press "START/+30SEC" to set the 30-second microwave cooking with a firepower
of P100, and "0: 30" will be displayed. Press this key repeatedly to increase the cooking time, stepping to 30 seconds.
In the standby state with the oven door closed, press the number key "0-9" directly to enter the P100 microwave fire
time setting function. Press the START/+30SEC key after the time input is completed to start 100% microwave
2)This cooking is a fast cooking type and cannot be set as one of many sections.
3) When the countdown of cooking time is over, the cooking end sound starts and returns to the standby state.
No clock is set. When cooking is over and returns to the standby state, the LED displays 0: 00 at this time.
The clock has been set, and the clock time will be displayed after returning to standby.
13.Child lock settings
1)LOCK: In standby or Clock operation state, after pressing the "STOP/ECO" key for 3 seconds, the buzzer will
sound for 2 seconds, the LED will display the status of the child lock or the current clock time, the child lock flag
will light up, and the LED will always light up to display " "
2)UN-LOCK: In the child lock state, after pressing the "STOP/ECO" key for 3 seconds for a long time, the buzzer
will sound for two short times and return to the standby state. The LED will display "0:00" or the current clock time,
and the child lock flag will not be displayed.
After returning to standby, it can respond to normal key operation.
two s
" "
17
cooking.

According to Waste of Electrical and Electronic Equipment
(WEEE) directive, WEEE should be separately collected and
treated. If at any time in future you need to dispose of this
product please do NOT dispose of this product with household
waste. Please send this product to WEEE collecting points
where available.
It is forbidden to run the unit without any food inside.
It is very dangerous.

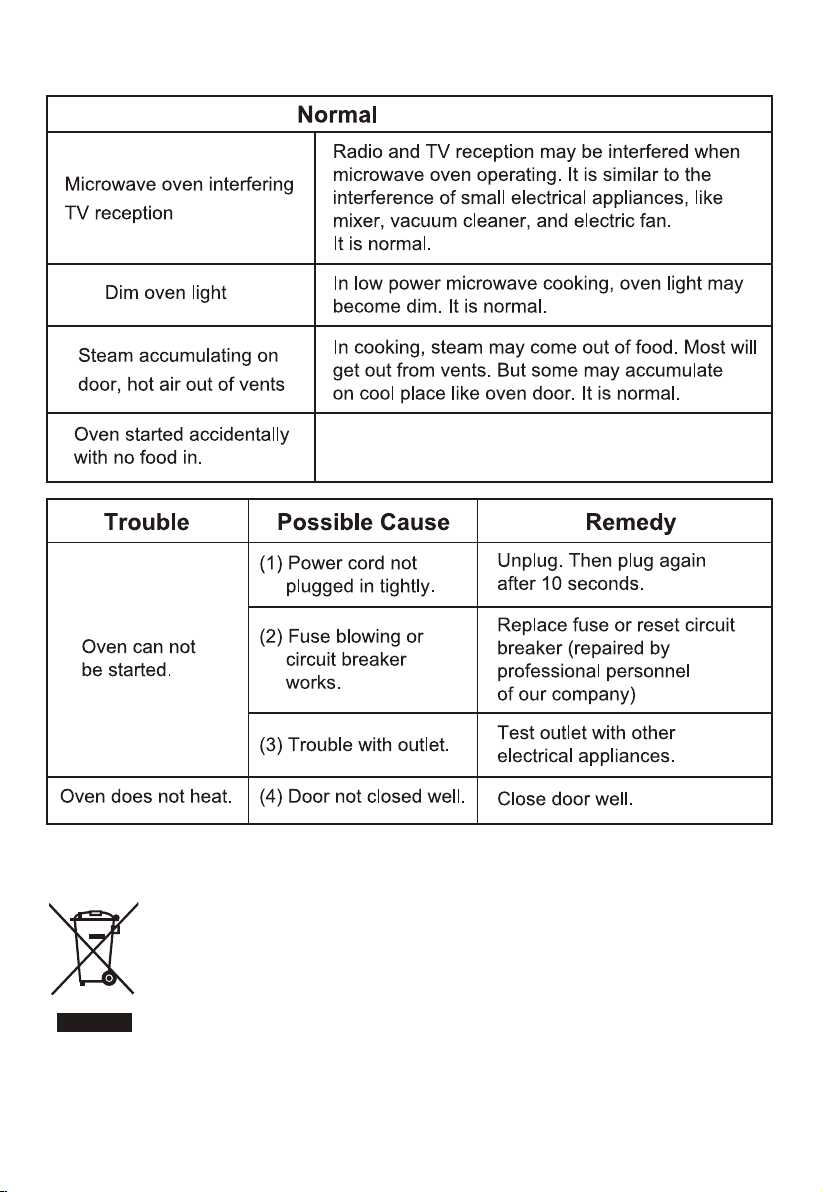

Trouble shooting
18
PN:16170000A79452
