Midian TVS-2 Series User manual

1
TVS-2
High Level Hopping Code Scrambler
VPU-15
Voice Inversion Scrambler wi h Midian’s Kryp ic Signaling
Manual Revision: 2018-03-30 Rev G
Covers Sof ware Revisions:
TVS-2: 4.97 & Higher
VPU-15: 4.97 & Higher

2
SPECIFICATIONS
Operating Voltage 5.5-15 VDC
Operating Current 9 mA
Operating Temperature - 0 - +60 C
Frequency Response 00-2600 Hz
Input Impedance 100 kΩ
Input Level (TX) 0.2-4.0 VPP
Input Level (RX) 0. -4.0 VPP
Carrier Suppression 65 dB < Peak Voice
Audio Output Impedance 1K Ω (min)
Encryp ion Specifica ions
TVS-2: Encryption Sequences +40 Trillion
TVS-2: Random Number Generator 64 bits
TVS-2: Sequence Length (est.) 84 billion years
VPU-15: Inversion Codes Available 7
INSTALLATION OVERVIEW
1. Test the radio for functionality.
2. Program the scrambler per the Product Programming Section of this manual.
. Install the scrambler into the radio per the Hardware Installation Section of this manual.
4. Program the radio per any application note instructions.
*** Midian is not responsible for any damage/loss resulting from the use of Midian’s products.
GENERAL INFORMATION
TVS-2 Series:
Midian’s TVS-2 series is a high-level rolling code scrambler. The TVS-2 uses hopping type rolling code encryption
for higher security rather than sweeping code type and offers 4 user-programmable hop rates and is down
gradable to voice inversion. The scrambler is capable of features such as ANI, ENI, OTAR, Deadbeat Disable,
Spy, and more when using Midian’s Kryptic Signaling format with the CAD- 00/DDU- 00. For more information
on Midian’s TVS-2 please read the TVS-2 Technical Reference Manual.
VPU-15 Series:
Midian’s VPU-15 series is an entry level voice inversion scrambler. The scrambler is capable of features such as
ANI, ENI, OTAR, Deadbeat Disable, Spy, and more when using Midian’s Kryptic Signaling format with the CAD-
00/DDU- 00.

PRODUCT PROGRAMMING
Midian’s TVS-2 and VPU-15 are programmed using Midian’s KL-4F and MPS software. Please reference the KL-
4 manual for setup instructions of the KL-4 hardware.
KL4-F USB PORT ASSIGNMENT and SOFTWARE INSTALLATION
Go to our website midians.com and under downloads> software download the latest MPS software version. If
using the supplied CD-ROM insert it into the PC’s CD-ROM drive. In the browser that will pop-up, install the MPS
programming software. Be certain that the “Install KL-4 USB Driver” box is checked during the installation
process.
Open Windows’ Control Panel and go to Device Manager.
Open Ports (COM& LPT) to identify the port assignment issued by computer. Plug in the KL4 programmer to the
USB port and the screen will flash and show the device location.
Open the software and choose product from product tree then set appropriate comport selection in the MPS
software as needed, from the product selection screen on the programming software, select the appropriate
product from the list and click OK. Set the parameters of the TVS-2\VPU-15 software to fit the application. If any
clarifications on a feature are required, move the mouse cursor over the feature name until the question mark
appears and right click, a definition of the feature will be shown.
After entering the parameters, save the file by going to File - Save As. Enter the file name in the File Name block
and click Save. Saving the file will allow for quick and easy reprogramming of units.
The TVS-2 and VPU-15 require the following additional connections from the flea clips to the P2* connector of the
module:
Green – Program In – Connect to the Midian product’s Program In P2:8*.
Yellow – Program Ou – Connect to the Midian product’s Program Out P2:10*.

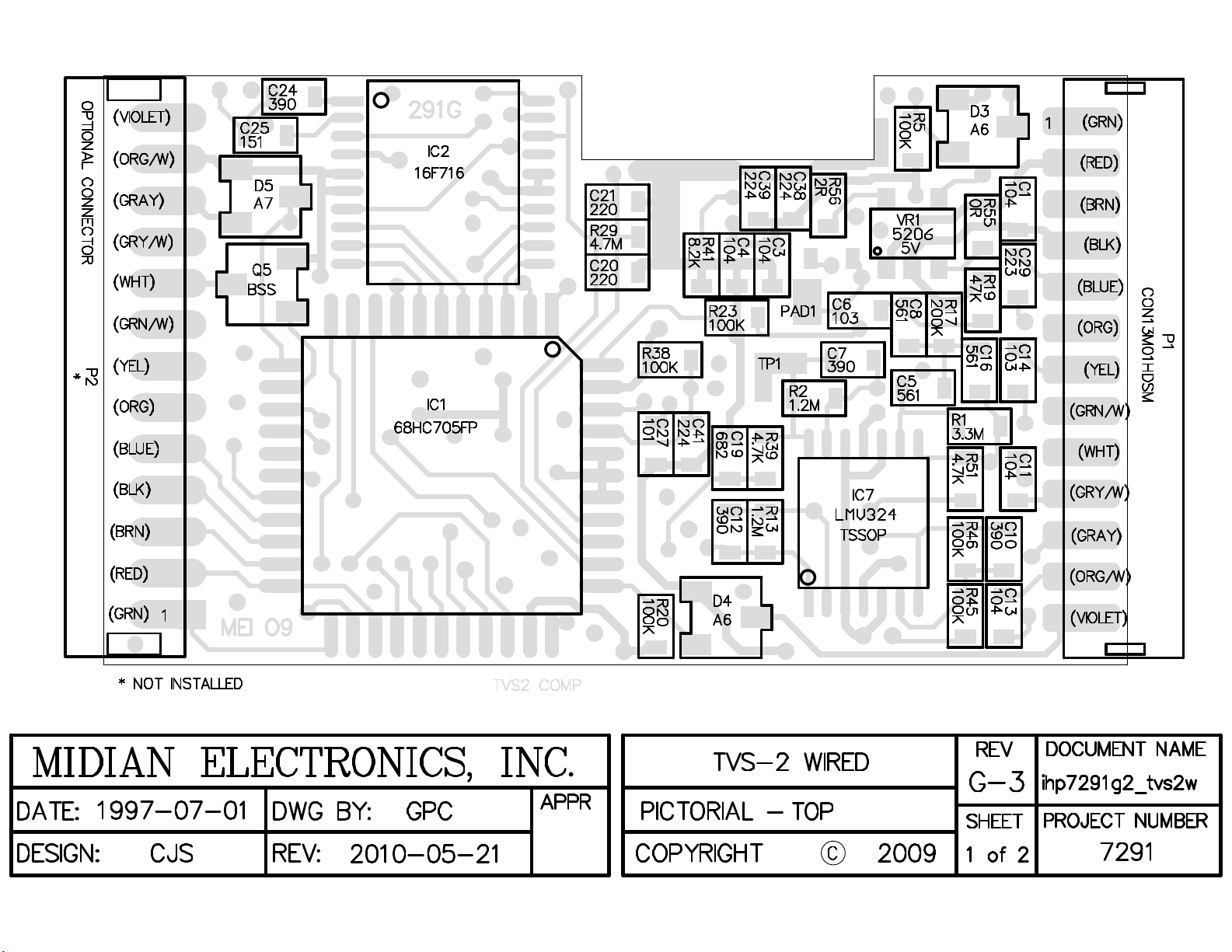

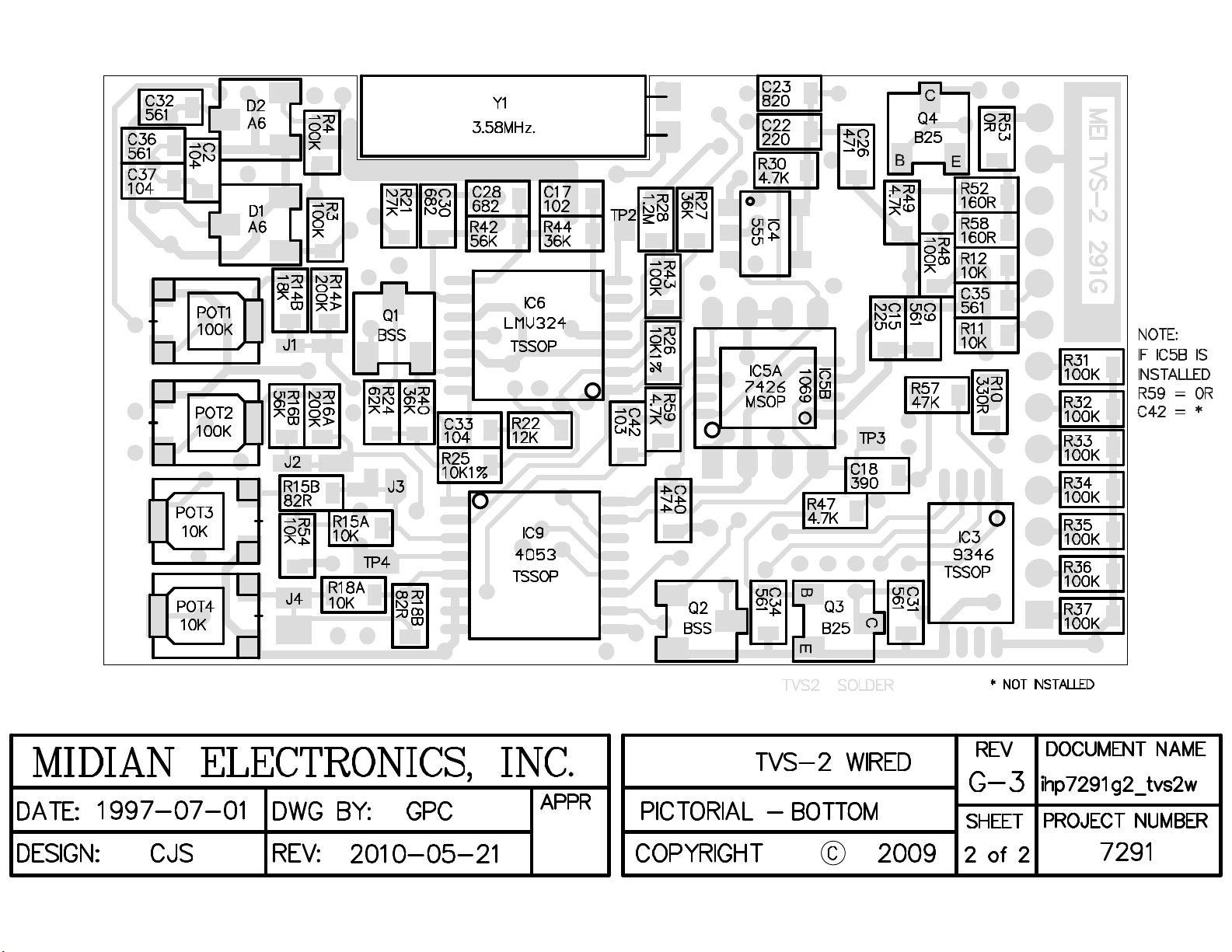

*Please reference the pictorial at the end this manual for location of programming connections.*
Impor an No e: Do not attempt to ‘clone’ the scrambler by reading one and then programming another. When
the scrambler is read, the security codes will be read out as zeroes. If another scrambler is then cloned with this
information, the scramblers will be incompatible because they have different security codes. To ensure
scramblers communicate with each other, program them from a saved file.

4
HARDWARE INSTALLATION
Be certain to follow standard anti-static procedures when handling any of Midian’s products. For installation
instructions into a particular radio, please consult Midian’s application notes for the TVS-2 and VPU-15 if
available.
P1 – Connec or Side
P1-1 – Green – PTT Input – Disconnect the line coming from the radio’s PTT switch. Connect the PTT Input lead
to the PTT switch. If you do not break the PTT line the unit must be programmed for common PTT. See P1-9.
P1-2 – Red – VIN +5.5-15 VDC – Connect to switched battery point in the radio. Connect to a regulated voltage
point in a vehicular radio if engine noise is present on the battery line. Keep this lead as short as possible.
P1-3 – Brown – Mode/Code Select – Connect to a momentary or latching switch.
P1-4 – Black – Ground – Connect to the nearest ground plane in the radio.
P1-5 – Blue – TX Audio In – The scrambler must be installed in the TX audio path between the microphone and
the insertion point of CTCSS or other tone signaling. Break the TX audio path and connect to the side nearest the
microphone.
P1-6 – Orange – Emergency Input – When taken to ground the scrambler will send an ENI. This input is
continually active.
P1-7 – Yellow – RX Audio In – The scrambler must be installed in the receive audio path after the CTCSS high
pass filter and where any tone signaling is picked off. This point needs to be given a constant level; otherwise the
trigger will not work. If possible connect to the high-side of the volume control where a constant level is available.
Connect to the source of the audio at the break.
P1-8 – Green/Whi e – Audio Enable Out - This output is active when the scrambler produces beeps such as when
ringing or changing modes. This lead may be used in several different ways. Connect this lead to a point in the radio,
which will turn on the radio’s speaker power amp, allowing beep tones to be heard. This lead may also be used to supply
a ground to one side of the speaker when used in conjunction with the Alert Tone Output (see P2-1 ). If used in this
manner, make sure that the power amp output stage and Q2 will not be damaged (a resistor may be necessary). This
lead may also be used to supply a ground to the cathode of an LED which will blink any time the TVS-2 beeps, providing a
visual silent indicator. Be sure to use a current limiting resistor if connecting to an LED.
P1-9 – Whi e – PTT Out – Connect to the wire removed from the switch mentioned above (see P1-1). PTT
Output should be connected even when using common PTT mode. The PTT transistor is rated for 200 mA
continuous.
P1-10 – Gray/Whi e – RX Audio Out – Connect to side closest to the receiver's speaker driver amplifier at the
above mentioned break point (see P1-7). In addition to outputting receive audio, this lead outputs beep tones
whenever applicable, such as when the mode switch is pressed. Beep tones are also available on P2-1 .
P1-11 – Gray - Mode LED Out – If desired, connect to the anode of an LED and the cathode to ground to indicate
scramble or clear mode. This output will source up to 15 mA to drive the LED when in scramble mode.
P1-12 – Orange/Whi e – TX Audio Out – Connect to the point nearest the modulator at the above-mentioned
breakpoint (see P1-5).
P1-13 – Viole – COR Input – Connect to a point in the radio receiver squelch circuit that changes state when carrier is
present. A radio whose squelch circuit gives a logic low (0V) or logic high (5V) should be used to drive the COR input.
The COR input lead must be connected in order to use Advanced and Standard Mute functions.

5
P2 – Non-Connec or Side
P2-1 – Keypad Column Input
P2-2 – Keypad Column 2 Input. Can also be used with a binary switch to select security codes.
P2-3 – Keypad Column 1 Input
P2-4 – Keypad Row 4 Input
P2-5 – Keypad Row Input
P2-6 – Keypad Row 2 Input. Can also be used with a binary switch to select security codes.
P2-7 – Keypad Row 1 Input
P2-8 – Program Input – Connect this lead to the green clip lead from the KL- programmer.
P2-9 – Squelch/Disable Output – When used as Squelch Output, this lead can be used to mute the radio’s audio
power amplifier by the scrambler. Using this lead to mute the radio is optional since the scrambler can mute
internally. When programmed as Disable Output, this output will be active when the disable command is
transmitted from the CAD- 00/DDU- 00 and will remain active until re-enabled from the CAD- 00/DDU- 00.
P2-10 – Program Output – Connect this lead to the yellow clip lead from the KL- programmer.
P2-11 – Trunking Delay Input – This input should be used in trunked radios with a channel acquisition strobe
output. When used, the scrambler will wait up to 5 seconds for a channel to be acquired. After 5 seconds the
PTT must be reset. If this input is not used, program the trunk delay polarity to positive and leave unconnected.
P2-12 – Keypad Ground
P2-13 – Alert Tone Output - This lead outputs beep tones whenever applicable, such as when the scrambler rings
or the mode is changed. This lead should be used when the Audio Enable Output is insufficient for turning on the
radio’s audio amplifier. This lead should be connected directly to the high side of the radio’s speaker. If neither
side of the speaker is connected to ground, the Audio Enable Output may be used to supply a ground to the
speaker when tones are being output. Be sure this will not damage the radio’s audio amplifier or Q2.

6
HARDWARE ALIGNMENT
1. For level reference, take a signal measurement at the input and output of the RX audio path’s breaking point
component by modulating the receiver with a full quieting signal and at full modulation. That’s 5 kHz for a
wide band radio and 2.5 kHz for a narrow band radio of a 1 KHz tone.
2. For the TX signal level, speak normally into the microphone while monitoring the TX breaking point. For a
higher level, say “FOUR” and document the levels. If it is possible to inject a 1 kHz tone into the microphone
stage, set that as kHz for wide band or 1.5 kHz for narrow band as a reference.
. To set up the RX level correctly on the TVS-2 (after installation into the radio), modulate the radio receiver at
full quieting with a 1250 Hz tone at .7 to .8 kHz for wide band or . 5 to .4 kHz for narrow band.
4. To adjust the RX input pot, monitor with an oscilloscope at IC-6 Pin 7 until it triggers at the step levels.
5. Adjust the RX output pot to match the reference level documented from step 1 output level. If the output level
cannot be obtained call Midian for further details.
6. For the TX levels, set the TX input pot so that the level at IC-9 Pin 1 is just below clipping by speaking loudly
into the microphone with the scrambler in scramble mode.
7. With the scrambler in the clear mode, adjust the TX output pot for the documented level from step 2 output
level.
8. With the scrambler in scramble mode, key the radio with no audio and observe the TVS-2 sync-packets on a
communications analyzer. Make sure the sync-packets are as close to full modulation as possible.
For further details for aligning the RX and TX lines, refer to the TVS-2 Technical Reference Manual.

7
OPERATION
Mode Selec :
Momen ary Swi ch: When using a momentary switch, pressing and then releasing the switch will cause the
scrambler to switch modes. A medium tone followed by a high tone indicates the scrambler has been switched
into scrambled mode. A medium tone followed by a low tone indicates the scrambler has been switched into clear
mode.
La ched Swi ch: When using a latched switch, pressing the switch will toggle the mode. Depending on the
programmed polarity will determine the mode. For example if the polarity is programmed as low, then the
scrambler will be in scrambled mode when taken to ground. No mode indication tones are available.
Code Selec :
Momen ary Swi ch: When using a momentary switch, pressing and holding the switch will toggle the scrambler
through the programmed codes (1-4 codes). The scrambler will emit a number of tones corresponding to the code
that is being switched to. When the desired code is reached simply release the switch.
La ched Swi ch: Multi-code operation is not available when using a latched switch.
Communica ions: Once the desired mode has been selected, press and hold the PTT. The scrambler will
generate a scrambled or clear synchronization packet to tell receiving radios whether to go to scramble or clear if
Automatic Detection is enabled. Once the sync packet is transmitted a go-ahead beep is heard to indicate that it
is okay to start the conversation.
Midian’s Kryp ic Signaling:
Midian’s TVS-2 and VPU-15 offer the following signaling functions:
ANI: When the PTT button is pressed the scrambler will generate an ANI to be decoded by Midian’s CAD- 00 or
DDU- 00.
Emergency ANI (ENI): When the Emergency button on the radio is pressed and held for 1 second the scrambler
will key the radio and transmit the ANI to be decoded by Midian’s CAD- 00 or DDU- 00.
Selec ive Call: The scrambler can be selectively called from Midian’s CAD- 00 or DDU- 00. When the scrambler
is called it will generate ringing beeps out the radio’s speaker.
Radio Kill: The scrambler can be disabled and re-enabled from Midian’s CAD- 00 or DDU- 00. When the
scrambler receives a disable command it will not allow any receive or transmit audio to pass through the
scrambler or for a PTT command to be given to the radio if the PTT path is controlled by the scrambler. When the
scrambler receives an enable command it will resume normal operation.
Spy: The scrambler can be sent a command from Midian’s CAD- 00 or DDU- 00 to key the radio and transmit
ambient noise from the microphone for 00-90 seconds in 10 second increments. This time is preprogrammed into
the scrambler.
Query: This command sent from Midian’s CAD- 00 or DDU- 00 will report to the CAD or DDU if the
scrambler/radio is currently on or off.

8
SYSTEM SETUP
Simplex:
It will be necessary to program the “Front Porch Time” on the TVS 2 long enough for the sync packet to open the
repeaters’ CTCSS/DCS and let the repeater come up to full power and then to open the portable and mobile
radios CTCSS/DCS so the sync is not blocked at the receiving radios. EIA spec states that a 100 Hz CTCSS tone
should open in 250 msec. 67 Hz tone will take longer and a 250 Hz tone will be half the decode time.
Repea er:
If the repeater’s repeat audio levels are not properly aligned it is possible the synchronization packet could be
distorted. Flat audio is preferred. Pre-emphasis and de-emphasis should be disabled via the repeaters internal
programming. To correctly align the repeat audio levels of the repeater use the following procedure.
1. Connect a microphone to the repeater’s TX radio.
2. While monitoring the TX signal with a service monitor set the TX modulation for 4.8 – 5.0 kHz of deviation in a
wide band system or 2.4 – 2.5 kHz in a narrow band system. This should be done while speaking loudly into
the microphone with a constant voice.
NOTE: For military radio systems operating in the 6 -88 MHz range set the modulation to 1 kHz out of a
maximum of 15kHz
. Adjust the RX repeat audio using 1.5 – 2.0 kHz deviation of a 1 kHz tone at the RX input with a strong RF
signal and adjust the repeat level to the transmitter for the same level of 1.5 – 2.0 kHz while monitoring the TX
signal with a service monitor. For a narrow band system use 0.75 – 1.0 kHz deviation.
4. Ensure that compression and expansion are turned off in the repeater. Do not enable de-emphasis or pre-
emphasis.
It will be necessary to program the “Front Porch Time” on the TVS-2 long enough for the sync packet to be
decoded by the receiving radio. Time should be given for CTCSS or DCS signaling to be decoded and for the
repeater to rise prior to the synchronization being transmitted by the scrambler.
Trunking Sys ems:
Midian’s TVS-2 has a trunking delay input. Connect this input to a point in the radio that will give the scrambler a
strobe upon acquisition of a channel. This can either be high or low. Program the “Trunking Delay Polarity” to the
active state of the strobe. Upon indication that the channel has been acquired the TVS-2 will go through the
programmed “Front Porch Time” and send the synchronization. If a channel is not acquired within 5 seconds the
PTT will need to be reset.
Vo ed Sys ems:
When using the TVS-2 in a voted system please observe the following:
1. The voting receivers should be programmed to “Scan and Lock”, not “Scan and Re-Scan”.
2. Set the “Front Porch Type” on the TVS-2 to “Preamble”.

9
Some voting systems regard frequencies above a certain frequency (i.e. 2700 Hz) as noise. With inversion and
rolling code scramblers the voting comparator may treat the inverted voice as noise.
Simulcas Sys ems:
Call for more information.
HF SSB:
Midian does not recommend the TVS-2 to be used on HF SSB systems for several reasons. Due to the nature of
SSB modulation the signal fades in and out. Depending on the strength of the signal at the time the sync is
received by the TVS-2 will determine whether or not the sync will be decoded. A radio 0 miles away might
decode, but a radio 0 feet away might not. If the TVS-2 is used in an SSB system Midian recommends that
either L1 or L2 hop rates are used for audio quality purposes.
For HF SSB systems Midian recommends using Midian’s VS-1200 frequency domain scrambler.

10
TECHNICAL NOTES
Radio Compa ibili y: Midian has taken the utmost care to ensure the option board integrates into the radio with
minimal impact to the features of the radio. However, some features may not be available in the radio when an
option board is used. If a feature is not available, please contact Midian to see if the feature can be added.
MIDIAN CONTACT INFORMATION
Midian Elec ronics, Inc.
20 0 N. Forbes Blvd. #101
Tucson, Arizona 85745 USA
Orders: 1-800-MIDIANS
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Web: www.midians.com

1
1
2
2
3
3
4
4
5
5
6
6
D D
C C
B B
A A
62K
R24
36K
R44
150pC25
560p
C9
560p
C32
1.2MR2
.0068µ
C28
.1µ
C33
.001µ
C17
8.2K
R41
39p
C7
100K
R5
200K
R14A
2.2µ
C15
100K
R32
82p
C23
56K
R42
22p
C21
.0068µ
C19
560p
C31
411
-
+
13
12
14
LMV324
IC6:4
47K
R57
22p
C20
36K
R27
27K
R21
TP2
100K
R31
93LC46B
CS 1
SCLK 2
SI 3
SO 4
VCC
8
NC1
7
NC2
6
GND
5
IC3
4.7K
R30
.47µ
C40
100K
R4
10K1%
R26
4.7M
R29
470p
C26
TP3
12K
R22
MIC555
VS 1
GND
2
O T 3
TRG
4
THS
5
IC4
100K
R3
39pC24
16F716
VDD
15
VDD
16
A0
19
MCLR 4
B6 13 B4 11 B5 12 B1 8 B2 9 B3 10
OSC1 18
A4 3
A1 20
A2 1
A3
2
B7
14
OSC2
17
VSS
6
VSS
5
B0
7
IC2
4.7K
R39
10K1%
R25
0R
R53
3.58 MHz.
Y1
39p
C18
74HC4053
11
A
11
A
12 X0 12 X0
13 X1 13 X1
14
X14 X
IC9:1
1.2M
R28
100p
C27
74HC4053
9
C
9
C
4Z 4Z
5
Z0 5 Z0
3
Z1 3 Z1
6
E
6
E
16
VCC
16
VCC
7VEE 7VEE
8GND 8GND
IC9:3
22pC22
4.7K
R59
100K
R20
TP1
74HC4053
10
B
10
B
1Y1 1Y1
2Y0 2Y0
15
Y15 Y
IC9:2
100K
R43
.0068µ
C30
100K
R23
68HC705FP
OSC2 36 TCMP
33
VDD 38
VPP 43
SS 32
B3
11
D7
34
OSC1 37
B0 8
B1 9
A5
2
A6
1
A7
44
A4
3
A3
4
A2
5
A1
6
A0
7
C4
21
C5
20
C3
23
C0
26
C1
25
C2
24
C6
19
C7 18
B4 12
B7
15
B6
14
GND
17
RES
41
B2 10
TCAP
35
IRQ
42
B5 13
SCK
31
MOSI
30
MISO
29
PD0 27
PD1 28
NC1 16
NC2
22
NC3 39
NC4 40
IC1
+5V
VAN
VAN
VAN
VAN
VAN
+5V
VAN
+5V
+5V
+5V
+5V
+5V+5V
+5V
+5V
+5V
+5V +5V
+5V
+5V
(SO RCE)
ihs7291g2_tvs2_wired
CJS
1997-07-01 GPC
2010-05-21
G3
1 of 1 7291
TVS-2 WI ED
MIDIAN ELECT ONICS, INC.
DATE:
DESIGN:
DWN BY:
EV:
APP
SCHEMATIC
COPY IGHT © 2009
EV
SHEET P OJECT NUMBE
DOCUMENT NAME
NOTE: * = NOT INSTALLED
36K
R40
-
+
2
3
1
LMV324
IC6:1
-
+
6
5
7
LMV324
IC6:2
-
+
9
10
8
LMV324
IC6:3
411
-
+
13
12
14
LMV324
IC7:4
18K
R14B
100K
R38
.22µ
C41
B25
Q3
B25
Q4
A6
D3:1
A6
D3:2
A6
D2:1
A6
D2:2
A6
D1:2
A6
D1:1
PTT_IN
(GREEN)
P1:1
EMERG_IN
(ORANGE)
P1:6
MODE_IN
(BROWN)
P1:3
COR_IN
(VIOLET)
P1:13
A6
D4:1
A6
D4:2
100K
POT1
TX_IN
(BL E)
P1:5
VAN
1.2M
R13
39p
C12
200K
R16A
.01µ
C14
VAN
-
+
2
3
1
LMV324
IC7:1
56K
R16B
100K
POT2
RX_IN
(YELLOW)
P1:7
VAN 200K
R17
3.3M
R1
VAN
-
+
9
10
8
LMV324
IC7:3
560p
C16
560p
C5
47K
R19
560p
C8
PAD1
4.7K
R51
*
R50
39p
C10 TP4
VAN
-
+
6
5
7
LMV324
IC7:2
100K
R45 100K
R46
82R
R18B
82R
R15B
10K
R18A
10K
R15A 10K
R54
.1µ
C13
.1µ
C11
10K
POT4
10K
POT3
TX_O T
(ORG / W)
P1:12
RX_O T
(GRAY / W)
P1:10
+5V
4.7K
R47 PTT_O T
(WHITE)
P1:9
A DIO_EN
(GRN / W)
P1:8
MODE_LED
(GRAY)
P1:11
560p
C34
330R
R10
ALERT_TONE
(VIOLET)
P2:13
SQ_DISABLE
(WHITE)
P2:9
TR NK_DLY
(GRAY)
P2:11
GND
(ORG / W)
P2:12
PRG_IN
(GRN / W)
P2:8
PROG_O T
(GRAY / W)
P2:10
10K
R11
A7
D5:1
A7
D5:2
100K
R48
+5V
560p
C35
BSS
Q5
4.7K
R49 160R
R52
160R
R58
+VIN
R2
(ORG) P2:6
R3
(BL E) P2:5
R4
(BLK) P2:4
C1
(BRN) P2:3
C2
(RED) P2:2
C3
(GREEN) P2:1
R1
(YEL) P2:7
100K
R33
+5V
100K
R34
+5V
100K
R35
+5V
100K
R36
+5V
100K
R37
+5V
+VIN
(RED)
P1:2
GND
(BLK)
P1:4 560p
C36
.1µ
C2
.1µ
C1
.1µ
C37
5206
IN1
1
ENA
3
GND
2RES 4
O T 5
VR1
2R
R56
0R
R55
+VIN
.1µ
C4
.1µ
C3
+5V
.022u
C29
+5V
+5V
10K
R12
BSS
Q2
BSS
Q1
J1
J2
J3
J4
LTC1069
1
2
3
4
5
6 7
8IC5B
MAX7426
7 4 8
2 5
1 6 3
IC5A
.01µ
C42
.01µ
C6
.22µ
C38 .22µ
C39
J MP_A
J MP_A
J MP_B
netP1_11
netP2_13

-This Page Intentionally left Blank-
