Miele professional G 7883 CD User manual

Operating and Installation
Instructions
Laboratory Glassware
Washer
G 7883 CD
To prevent accidents
and machine damage
read these instructions
before
installation or use. M.-Nr. 07 779 611
en-US

2

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

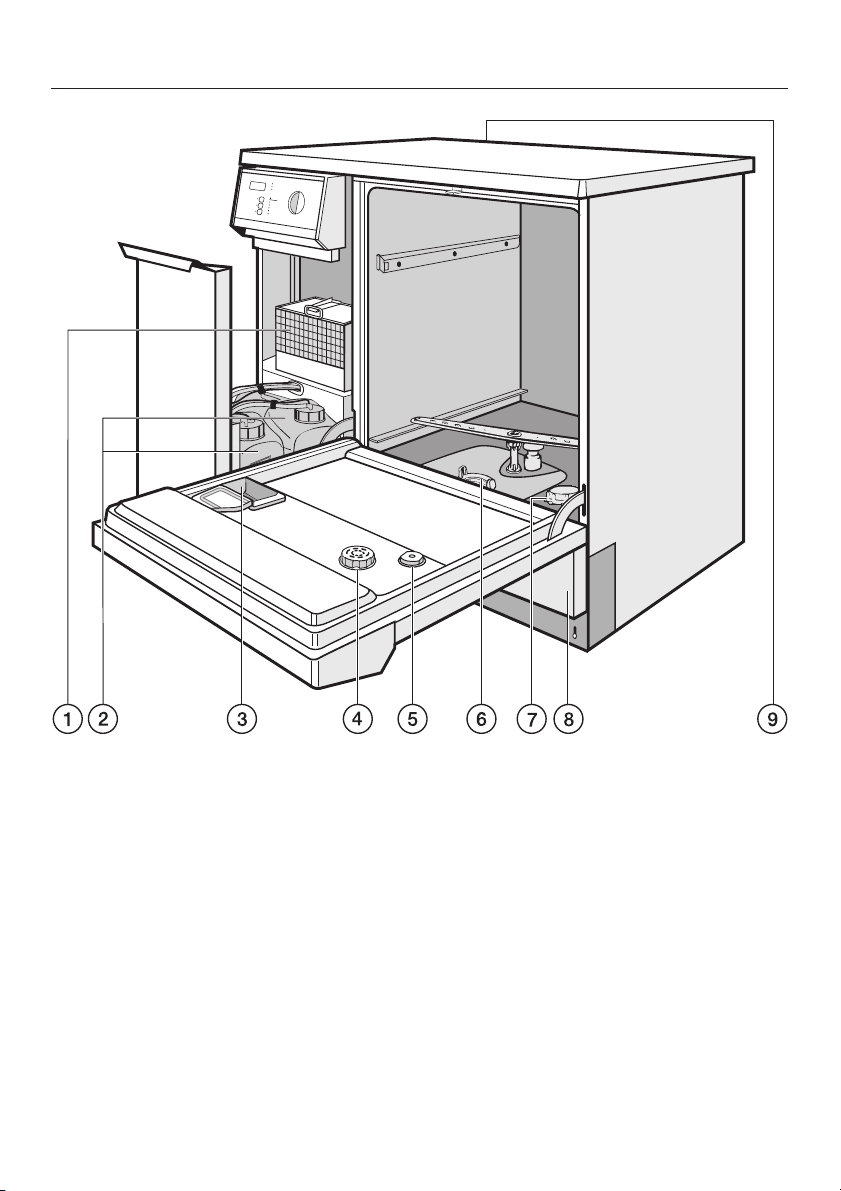

Guide to the laboratory glassware washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Function of the laboratory glassware washer. . . . . . . . . . . . . . . . . . . . . . . . . . 12
Opening and closing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting the water softener ...........................................14
Filling the salt reservoir .............................................16
Salt indicator .....................................................17
Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Rinse aid indicator light .............................................19
Setting the rinse aid dosage .........................................19
Neutralizing agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Adding neutralizer .................................................20
Neutralizer indicator light............................................21
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Setting the liquid detergent dosage ...................................22
Loading the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Process validation .................................................25
Spring adapter for the water connection ................................27
Adjusting the upper basket ..........................................27
Effects of Processing Chemicals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Turning on .......................................................36
Starting a program.................................................36
Selecting the (optional) drying function.................................36
Program sequence display ..........................................37
End of a program..................................................38
Additional drying................................................38
Turning off .......................................................38
Canceling a program...............................................39
Contents
3

Program Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Programming functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
The following instructions apply to all programming functions:...............42
To access the programming mode .................................42
Saving to memory and exiting the programming mode ..................42
Exiting the programming mode without saving ........................42
DOS 1 (liquid detergent) ............................................43
Setting the detergent dosage ......................................43
Priming the dosage system .......................................43
DOS 3 (neutralizer) ................................................44
Setting the neutralizer dosage .....................................44
Priming the dosage system .......................................44
Buzzer ..........................................................45
Changing program parameters .......................................46
Changing the temperature ........................................47
Changing the holding time ........................................47
Restoring the factory settings ........................................48
Setting the time and date............................................49
Resetting the filter timer of the drying system ............................50
Process documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Routine checks ...................................................52
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Thermo switch ....................................................71
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
INSTALLATION INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Drainage ........................................................80
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Contents
4

This machine conforms to current
safety requirements. However,
inappropriate use can lead to
personal injury and property
damage.
To avoid the risk of accidents and
machine damage read the operating
instructions carefully before using
this machine.
Keep these instructions in a safe
place and pass them on to any
future user.
WARNING - To reduce the risk of fire,
electric shock or injury:
Use
~This lab washer is not intended for
any purpose that is not indicated in the
operating instructions. Conversions,
modifications, and other unintended
uses are considered to be dangerous.
The cleaning processes described here
apply only to those medical products
that are specifically designed by the
manufacturer to be re-used. Follow the
product manufacturer's instructions.
~This lab washer in intended for
indoor stationary use only.
Please pay attention to the following
notes to maintain safe procedures.
~The lab washer should be installed,
commissioned and maintained only by
a Miele Service Technician. Repairs by
unqualified persons could be
dangerous.
~Do not install the lab washer in an
area where a danger of explosion or
freezing may be present.
~Be certain this appliance is properly
installed and grounded by an
authorized technician. To guarantee the
electrical safety of this appliance,
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system
checked by a qualified technician.
~A damaged or leaking lab washer is
dangerous. Turn off the machine
immediately at the main switch and call
the Miele Service Department.
~Personnel operating the lab washer
should be trained regularly. Children
and untrained personnel must not be
allowed access to the machine or its
controls.
~Take care when handling
processing chemicals (detergents,
softeners, neutralizers, etc.). These may
contain irritant or corrosive ingredients.
Wear protective gloves and goggles.
With all chemical agents the
manufacturer’s safety conditions must
be observed.
IMPORTANT SAFETY INSTRUCTIONS
5

~The lab washer is only designed to
operate with water and the
recommended processing chemicals.
The machine must NOT be operated
with organic solvents or flammable
liquids. This may cause an explosion or
damage to rubber and plastic
components, which in turn allows liquid
substances to leak out.
~Do not stand, sit or lean on the
opened machine door. This could
cause the lab washer to tip over,
resulting in injuries and damage.
~Do not touch the heating elements
during or directly after the end of a
program, burns could result. The
elements remain hot for some time after
the end of the program.
~The water in the lab washer must not
be used as drinking water.
~Be careful when sorting items with
sharp, pointed ends. Carefully position
these items in the machine, so that you
will not hurt yourself or create dangers
for other operators.
~When using this machine regard the
high temperatures and be especially
careful not to scald or burn yourself.
When opening the door bypassing the
electrical lock, a danger of burning,
scalding or corrosion exists or when
using disinfection agents, the inhalation
of toxic fumes. Let baskets and inserts
cool. Empty any water from parts into
the wash cabinet.
~If toxic chemical substances can
form in the wash water during
processing, the door seal and, if
applicable, the function of the steam
condensor must be checked regularly.
In that case, opening the lab washer
door during a program interruption can
be dangerous.
~If you are exposed to toxic vapors or
processing chemicals, consult the
manufacturer's material safety data
sheets for emergency procedures.
~Always allow mobile units, modules,
inserts, and loads to cool before
removing. Be sure to empty any water
from concave items into the wash
cabinet before removing.
~After drying open the door to allow
the items and inserts to cool.
~Never clean the lab washer or near
its vicinity with a water or high pressure
hose.
IMPORTANT SAFETY INSTRUCTIONS
6

~Avoid inhaling powder products.
They can cause burning in the mouth
and throat if swallowed, and can inhibit
breathing.
~Before servicing, disconnect the
power supply by either removing the
fuse, unplugging the unit or manually
"tripping" the circuit breaker.
~After work is conducted on the tap
water network, the water supply line to
the lab washer must be cleared of air.
Failure to do so can result in damage to
the laboratory glassware washer.
The following points should be
observed to assist in maintaining
quality standards for critical labware
and to avoid damage to the loads
being cleaned.
~For this type of cleaning, the
program must not be interrupted until
completion. Interruptions should also
be avoided for all other programs, such
as during performance testing,
because this can negatively affect the
cleaning and rinsing results. After any
interruption, the program should be
restarted from the beginning.
~Only use cleaning agents
formulated for special processes and
approved by Miele for use with this lab
washer. Use of unsuitable cleaning
agents could adversely affect the
components of the machine.
~Use only Miele approved cleaning
agents with this machine. Use of
unsuitable cleaning agents could
adversely affect the components of the
machine. Damages resulting from using
unsuitable cleaning agents are not
covered by the warranty.
~Pre-treatments with cleaning agents
can create suds, as can certain rinsing
agents. For pre-treatment and / or
cleaning, only use low-sudsing
detergents which have been approved
by Miele. Suds can have an adverse
effect on the cleaning process.
~Use of a chemical disinfectant at
moderate temperatures (for example
149°F / 65°C or lower) do NOT fulfill the
official requirements for disinfection
pursuant to FDA regulations. Always
note their specifications for handling,
application conditions and efficacy. The
operator is responsible for the use of
any such thermo-chemical processes.
~The process must be set so that no
foam escapes the wash compartment.
Escaping foam jeopardizes the safe
operation of the lab washer.
~The process must be checked
regularly in order to detect any
foaming.
~In order to prevent damage to the
lab washer and any accessories
through processing chemicals or dirt as
well as any interaction between them,
see "Effects of Processing Chemicals".
IMPORTANT SAFETY INSTRUCTIONS
7

~In critical applications where very
stringent requirements have to be met,
it is strongly recommended that all the
relevant factors for the process, such
as detergent, quality of water, etc. are
discussed with a Miele Application
Technology specialist.
~It is the responsibility of the operator
to routinely check that the required
cleaning standards are being met.
Therefore, results need to be regularly
tested and documented, both thermo
electrically and through inspection. For
thermo chemical processes, additional
testing is required using chemical or
biological indicators.
~The performance of the cycles was
tested using Neodisher products. The
use of other products is not
discouraged but may not yield identical
results. Please be aware that changes
in formulation, storage conditions, etc.
which may not be publicized by the
chemical manufacturer can have a
negative effect on cleaning results. and
are not the responsibility of the machine
manufacturer.
~When using cleaning agents and
specialized products, it is essential that
the manufacturer’s instructions are
followed. Only use the product for the
application described by the
manufacturer to avoid any material
damage or the occurrence of strong
chemical reactions.
~The mobile units, baskets and
special inserts should only be used for
their specific applications. Instruments
with hollow parts must be flushed
through with wash water.
~Empty all containers and utensils
before arranging them in the machine.
~Do not allow any remains of acids,
solvents or corroding ferrous material,
and in particular hydrochloric acid or
chloride solutions to get into the wash
cabinet. The presence in compounds of
any solvents should be minimal,
(especially those in hazard class A1).
~To avoid any corrosion damage
ensure that solutions or steam
containing hydrochloric acid do not
come in contact with the stainless steel
casing of the machine.
~Please follow the installation advice
in these instructions and the separate
Installation Instructions.
Please note the following symbols on
the machine:
Caution : See Operating
Instructions!
Caution : Danger of electric
shock!
IMPORTANT SAFETY INSTRUCTIONS
8

Accessories
~Only genuine, Miele parts and
accessories should be used with this
lab washer, including Miele mobile
units, baskets and inserts.
~Adequate cleaning results cannot
be guaranteed when non-Miele
accessories are used, or when Miele
accessories are altered. Damages
resulting from the use of unsuitable
accessories are not covered by the
warranty.
Disposal of an old appliance
Obsolete appliances should be made
unusable. To do this, first disconnect
the appliance from the power supply,
then cut off the power cord. It is
important to note that the old appliance
may be contaminated from exposure to
pathogens, genetically modified
material, blood, etc., and therefore
must be decontaminated before
disposal.
For safety and environmental
protection, be sure to remove all
chemical residue, in compliance with
safety regulations (wear protective
eyewear and gloves!).
Remove or destroy the door latch, to
prevent children from locking
themselves inside. The appliance can
now be sent for disposal through the
proper resource recovery facilities.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
9

aDisplay
b"Display" indicator
c"Drying" indicator
d"Start" indicator
e"Start" 6button
f"Drying" 0button
g"Display" ßtoggle button (toggles
between the elapsed time, active
wash blocks and temperature
displays)
h"8Dosing pump" indicator
i"Rinse aid" indicator
j"Neutralizer agent" indicator
k"Recharge Softener" indicator
l"Fill/Drain" indicator
mProgram sequence display
nProgram selector
o"On/Off" I-0button
p"Door" abutton
Guide to the laboratory glassware washer
10

aDrying system
bDispensers for neutralizer (red) and
liquid detergent (blue)
cDispenser for powdered detergent
dRinse aid reservoir
(with dosage selector)
eLevel indicator for rinse aid
fFilter combination
gSalt reservoir
(water softener)
hService panel
iSerial interface
Guide to the laboratory glassware washer
11

Miele laboratory washers are designed
to clean and rinse laboratory equipment
and accessories.
In this operating manual, the general
term "labware" is used to cover a range
of laboratory equipment.
Always follow the labware
manufacturer's instructions. Individual
items need to be checked to ensure
that they are designed to withstand the
temperatures and acid / alkaline
environment in the lab washer.
Standard model
The lab washer comes as standard with
a:
– drying system
– serial interface
– water softener
– steam condenser
– flow meter
Optional additions:
–DOS G 60 liquid pump
Intended application: Laboratory
equipment
Labware includes a wide range of
items:
–Glassware, such as beakers,
round-bottomed flasks, Erlenmeyer
flasks, bottles, test tubes, separatory
funnels,
–measuring vessels, such as
graduated flasks, graduated
cylinders, pipettes
–dishes, such as Petri dishes, watch
glasses, mortars, and
– hardware, such as stoppers,
spatulas and stirrers.
Labware can be made of glass,
heat-resistant plastic, ceramic,
stainless steel, or coated metal
(e.g., stirrers).
Function of the laboratory glassware washer
12

Before using the lab washer for the first
time, the water softener should be
programmed. The water needs to be
softened to avoid calcium deposits on
the items being cleaned and in the
machine itself.
If the water supply is harder or softer
than the factory setting (including
below 4 gr/gal or 70 ppm), the setting
will need to be changed. See "Setting
the water softener".
–In order to function properly, the
water softener requires a supply of
reactivation salt.
– The cleaner must be correctly
programmed to match the hardness
of the tap water supply.
– Your local water authority can
provide information about the
hardness of the tap water in your
area.
If the water hardness is known to
fluctuate, always program for the
highest value.
The built-in water softener can be
programmed at settings from
1 - 60 gr/gal or 20 - 1080 ppm.
It is useful to make a note of your water
hardness so that you can provide the
service technician with this information
in the event of any service calls.
Please note the water hardness in the
space provided here:
gr/gal or ppm
Setting the water softener
^Use the On/Off button to switch off
the machine.
^Turn the program selector to f.
^Simultaneously press and hold the
"Display" ßand "Start" 6buttons,
while turning the machine on with the
On/Off button.
The current program status P....
will appear in the display, and the
"Fill/Drain" indicator will come on.
^Press the "Drying" 0button once.
E01 will appear in the display.
^Turn the program selector one switch
position clockwise (to 1 o'clock).
The number 19 will appear in the
display (this indicates the factory
setting in gr/gal).
^Press and hold the "Display" ß
button until the required value
appears in the display.
Please refer to the "Settings" table for
detailed water hardness tables (water
hardness in gr/gal and ppm).
Once the 60 setting has been reached,
the counter begins again from 0.
^Press "Start" 6.
SP will appear in the display.
^Press "Start" 6again.
The setting you selected will now be
stored in memory. The display light(s)
will turn off.
The machine is now ready for use.
Water softener
14

Settings
Settings
1-30
gr/gal
1-30
ppm
CaCO3
Settings
31 -60
gr/gal
31 -60
ppm
CaCO3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19 *)
20
21
22
23
24
25
26
27
28
29
30
20
40
50
70
90
110
130
140
160
180
200
220
230
250
270
290
310
320
340
360
380
400
410
430
450
470
490
500
520
540
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
560
580
590
610
630
650
670
680
700
720
740
760
770
790
810
830
850
860
880
900
920
940
950
970
990
1010
1030
1040
1060
1080
*) factory setting
Water softener
15

Filling the salt reservoir
Only special, coarse-grained
reactivation salt* should be used in
this lab washer.
*Available from Miele. Please see
back page for more information.
Do not use other types of salt, e.g. table
salt, agricultural or gritting salt. These
could contain components which are
insoluble in water and could damage
the water softener. If in doubt, consult
Miele Technical Service.
The salt reservoir holds approximately
2.5 kg salt.
,Inadvertently filling the salt
reservoir with detergent will damage
the water softener.
Before filling the reservoir, make
sure that you are using reactivation
salt.
^Remove the bottom basket from the
machine.
^Unscrew the salt reservoir cap.
Before filling the salt reservoir for the
first time fill the reservoir with
approximately 2.5 liters of water, so
that the salt can dissolve properly.
Once the lab washer has been
operated, there will always be
enough water in the reservoir.
^Place the funnel provided in place.
^Carefully fill the reservoir with the
reactivation salt.
Some displaced water will run out - this
is normal.
Water softener
16

^Wipe any residual salt off the screw
threads and seal of the reservoir.
^Screw the cap on securely.
^Immediately after this step, start the
"Rinse" program, to remove any
traces of salt from the inside of the
lab washer.
Note: There may be a delay of a few
minutes before the "Rinse" program
starts due to the reactivation of the
water softener.
Salt indicator
When the salt reservoir is empty, the
"Recharge Softener" indicator blights
to remind you to fill the reservoir.
Reactivation takes place automatically
as needed during a program. The
"Recharging" indicator alights while
this is occurring.
Water softener
17

,Use only special processing
chemicals for lab washers and
observe the manufacturer's
recommendations for use. In
particular, always observe the
manufacturer's instructions
regarding residual amounts that do
not pose any toxicological risk.
Adding rinse aid
Rinse aid is not used in laboratory
glassware cleaning applications.
If rinse aid is required, the rinse aid
dosage must be activated with
assistance from Miele Technical
Service.
Rinse aid (e.g., MieleClear) is filled in
the storage container, and the selected
dose is then dispensed automatically.
The rinse aid reservoir holds
approximately 180 ml.
,Inadvertently filling the rinse aid
reservoir with detergent will damage
the lab washer. Be sure only to use
rinse aid in the rinse aid reservoir.
^Open the machine door.
^Unscrew the reservoir cap.
^Pour enough rinse aid into the
reservoir so that the level indicator
(see arrow) is dark. Use a funnel if
necessary.
^Replace and tighten the reservoir
cap.
^Wipe up any spilled rinse aid, to
prevent over sudsing during the next
wash cycle.
Rinse Aid
18

Rinse aid indicator light
^Rinse aid does not need to be refilled
until the "Rinse aid" indicator light
comes on in the display.
Setting the rinse aid dosage
The dosage selector has settings from
1 to 6 (1 - 6 ml). The factory setting is at
3 (3 ml).
If the glassware shows spots after
washing,
^adjust to a higher setting.
If the glassware shows smearing or
cloudy streaks after washing,
^adjust to a lower setting.
Rinse Aid
19

Adding neutralizer
Neutralizer has an acidic pH, and
works by neutralizing any traces of
(alkaline) cleaner from the surface of
the glassware.
When a mild alkaline detergent is
used for washing, select a
neutralizer that contains phosphoric
acid.
The neutralizer is automatically
dispensed during the second rinse
after the main wash cycle. To function
properly, the neutralizer container must
be filled and cleared of air.
For specific instructions, please read
the section on "Programming functions".
Note: the program "Inorganica"
dispenses neutralizer after the
pre-wash.
^Open the door of the storage cabinet
that houses the neutralizer and
detergent dispensers.
^Take out the (red) neutralizer
container and refill it or replace it with
a filled container.

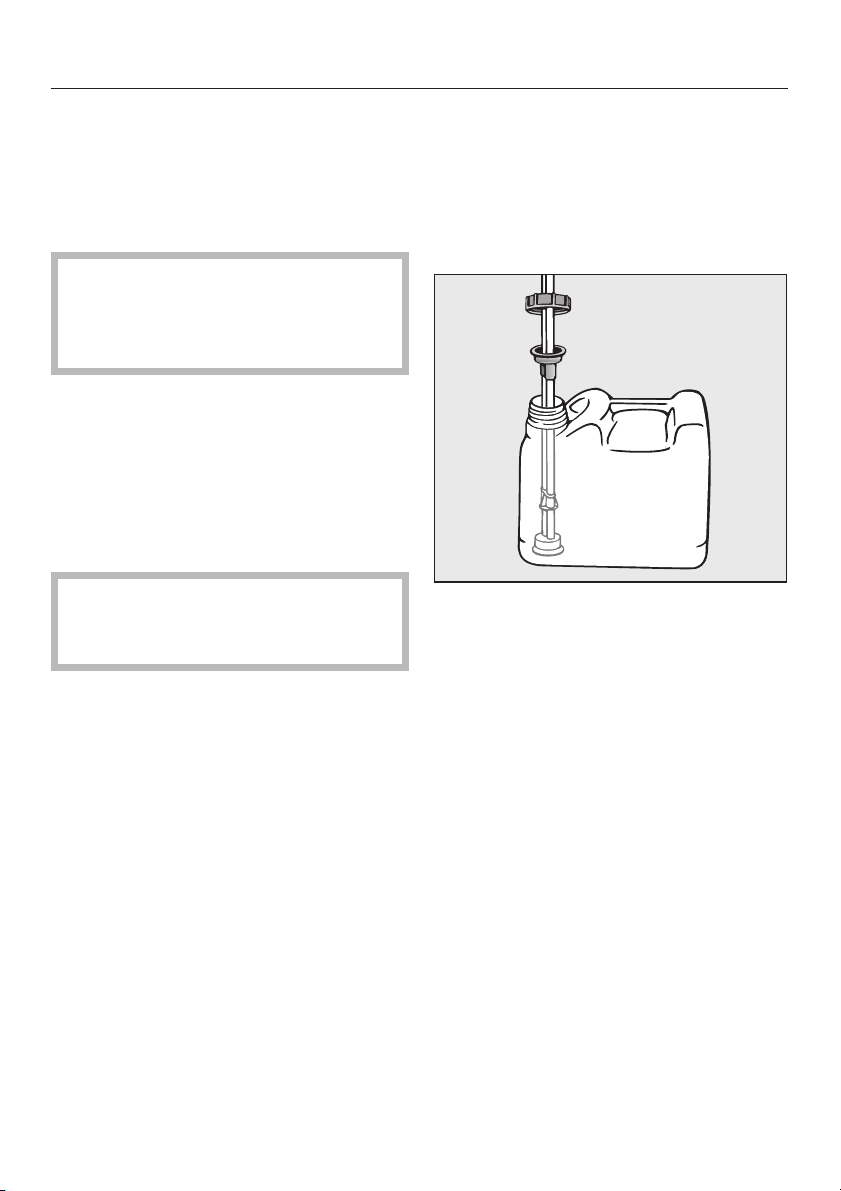

^Insert the siphon tube into the
container opening and screw it into
place. Make sure to observe the
color coding.
Neutralizing agent
20
