Warning and Safety instructions
Read the operating instructions through
before using this machine for the first time.
his way you will avoid the risk of
accidents or damage to the machine.
Appropriate use of the machine
his washer extractor is only intended for
items of laundry which have not been
impregnated with dangerous or inflammable
substances.
Only machine wash articles which
possess a care label stating that they are
suitable for machine washing.
It is the operator’s responsibility to ensure
that the standard of disinfection in thermal
as well as chemo thermal procedures is
maintained (in accordance with § 18 IFSG) by
carrying out suitable validation tests. hese
procedures should be checked on a regular
basis, either thermo-electrically using loggers,
or bacteriologically with bio indicators. he
operator must pay particular attention to
maintaining the correct parameters in the
procedure, including temperature and with
chemo thermal programmes the chemical
concentration used. Disinfection programmes
must not be interrupted, as this can have a
limiting effect on the disinfection result.
On no account must solvents of the kind
used for dry cleaning be used in this
machine. here may be the danger of fire or
explosion.
Never use or store benzine, petrol or pe-
troleum based substances or any easily
inflammable substances near the machine.
Do not use the machine lid as a resting place.
Danger of fire or explosion.
Technical and electrical safety
he electrical safety of this machine can
only be guaranteed when continuity is
complete between it and an effective earthing
system which complies with local and national
regulations.
It is most important that this basic safety
requirement is regularly tested, and where
there is any doubt the on-site wiring should
be inspected by a qualified electrician. he
manufacturer cannot be held liable for the
consequences of an inadequate earthing
system.
Do not damage, remove or bypass the
safety features and controls on the
machine.
Where there is any damage to the
machine or to the cable insulation the
machine must not be used until it has been
repaired.
Any removable outer panels must be in
place, and all moving or electrical parts
shielded before the machine is operated.
he machine is only completely isolated
from the electricity supply when switched
off at the wall isolator or at the mains switch.
Repairs should only be undertaken by a
suitably qualified service engineer to
ensure safety. Unauthorised repairs could
be dangerous.
Never attempt to force the machine door
open. o ensure the correct functioning of
the door lock safety mechanism the handle is
fitted with a break line.
Faulty components should only be
exchanged for original Miele spare parts.
Only when these parts are fitted can the
safety standards of the machine be
guaranteed.
Use of the machine
Remember that the door porthole glass
can become hot during the operation of
the machine.
Always make sure the drum is stationary
before reaching in to remove laundry.
Reaching into a moving drum is extremely
dangerous.
Water used for washing and rinsing must
not be used as drinking water. It must be
discharged into a proper sewerage system.
«M.-Nr. 06 411 840 - GB - » 4

Warning and Safety instructions
Chlorine or agents containing chlorine are
corrosive, and can under certain
conditions lead to irreperable damage to
components.
Disinfecting and cleaning agents often
have compounds containing chlorides in
them. If these agents dry on to stainless steel
surfaces, the residual chlorides will attack the
steel and can cause rusting.
If you accidentally spill an agent containing
chlorides on the machine it should be rinsed
off with water and dried using a soft cloth.
o protect your machine from rust dam-
age we recommend the use of chloride-
free disinfecting and cleaning agents. If you
are unsure about a particular agent you
should contact the manufacturer for advice.
Always follow the instructions of the
chemical manufacturer when using clean-
ing agents and special application chemicals.
Only use such chemicals for the purpose and
in the situation specified by the manufacturer
in order to avoid the danger of adverse
chemical reactions and material damage.
If in doubt check the suitability of the product
for use in this machine with the manufacturer
before using it.
Where a chemical cleaning agent is rec-
ommended on technical application
grounds, this does not imply that the manufac-
turer of the machine takes responsibility for
the effect of the chemical on the material of
the items being cleaned or on the machine.
Please be aware that changes in formulation,
storage conditions etc., which may not be pub-
licised by the chemical producer, can have a
negative effect on the cleaning result.
Proprietary dyes, dye removers and de-
scaling agents may only be used in this
machine if the manufacturer expressly states
that they are suitable for use in a washing
machine. Follow manufacturer’s usage
instructions on the packaging.
On no account use high pressure
cleaners or hose down the machine.
All personnel working with this machine
must be fully trained in all aspects of its
use and safety.
Keep these operating instructions in a safe
place.
5 «M.-Nr. 06 411 840 - GB - »

Guide to the machine
Control panel
Key switch Display Programme selector
On button Y Block + / (pre-wash button) button T Cursor buttons 1 2
Off button Z Starch hold button U Plus-/-Minus buttons 4 3 Start button X
Spin-stop button V Delay start button W End button 7
he option buttons are not available for programmes in key switch position A.
Optical interface 8
Emergency Stop switch
Control panel
Detergent dispenser box
Magnetic pocket for
detergent reminder
(with accessory pack)
Drum door
Service panel
Plinth
WS 5240
«M.-Nr. 06 411 840 - GB - » 6

Guide to the machine
On button Y
Off button Z
Key switch
Position A - Operation
his key switch position is used for se-
lecting programmes 1 to 13.
Position B - Supervisor
his key switch position is only ac-
cessible by the supervisor and is used
for selecting all programmes. he display
will show which programme the pro-
gramme selector has been turned to.
Position C - Programming
his key switch position is only ac-
cessible by a Miele engineer for pro-
gramming purposes.
Position D - Unlocking
his key switch position is only ac-
cessible by a Miele engineer for service
purposes.

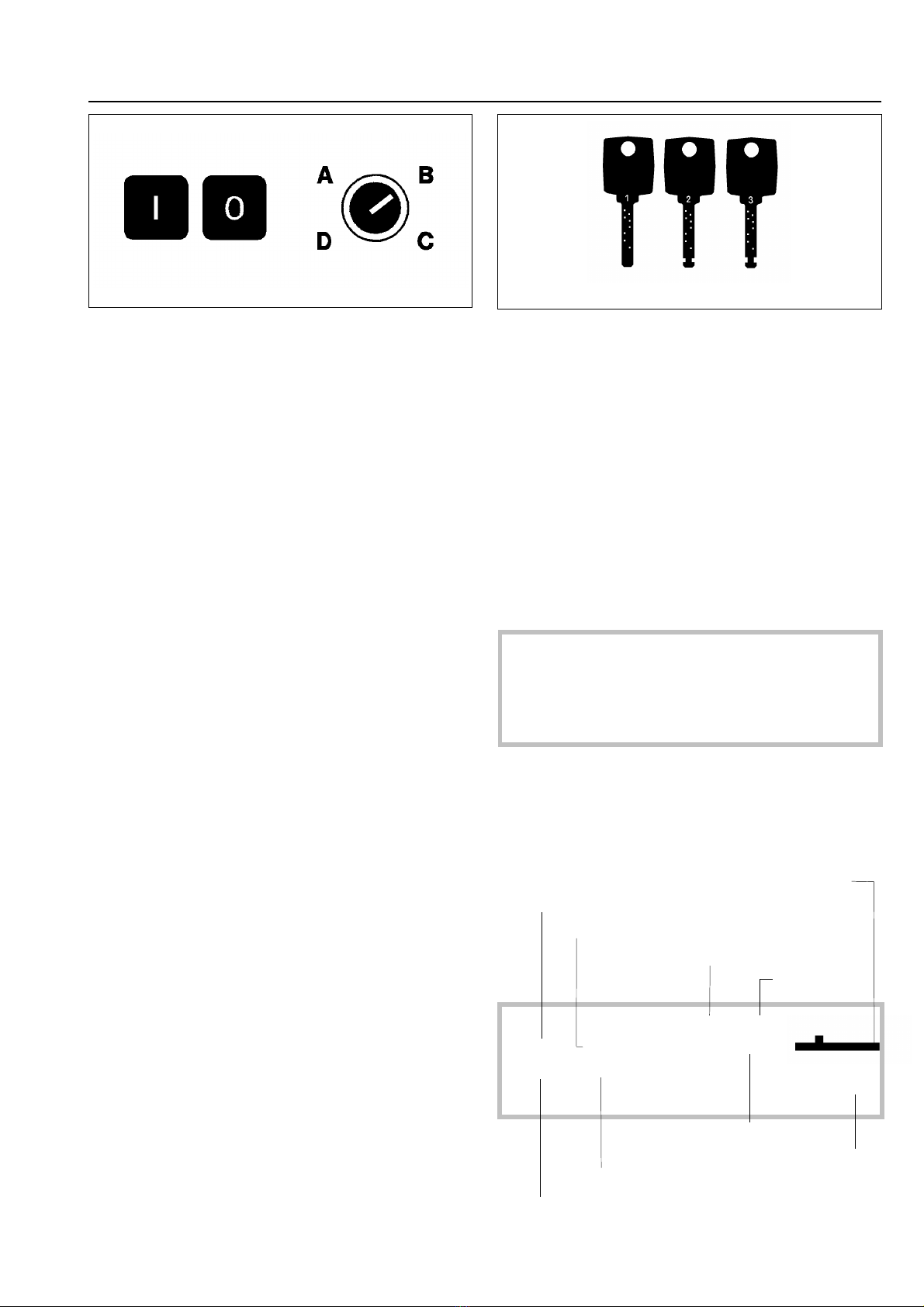

Keys for the key switch positions
Key 1 (2 supplied) for operating levels
A and B.
Key 2 for operating levels
A, B, C.
Key 3 for operating levels
A, B, C, D.
Display
he Display content shows after the ma-
chine is switched on. It has up to four
lines, each 40 digits long, showing which
programme has been selected.
After the Programme start:
ime line for the current Prog. block
Planned temperature of the current prog. block.
Name of the current prog. block.
Programme number
Prog.name
Actual temperature
Points to a further display line
Name of the following Programme block
Planned temperature of the following prog. block.
1 2 3
PROGRAMME 1 Universal 50°C
>50° C< Main wash 1
Rinses 3 1100 RPM à
PROGRAMME 14 Universal vario
60 °C Pre-wash 25 °C
95 °C Main wash
à
7 «M.-Nr. 06 411 840 - GB - »

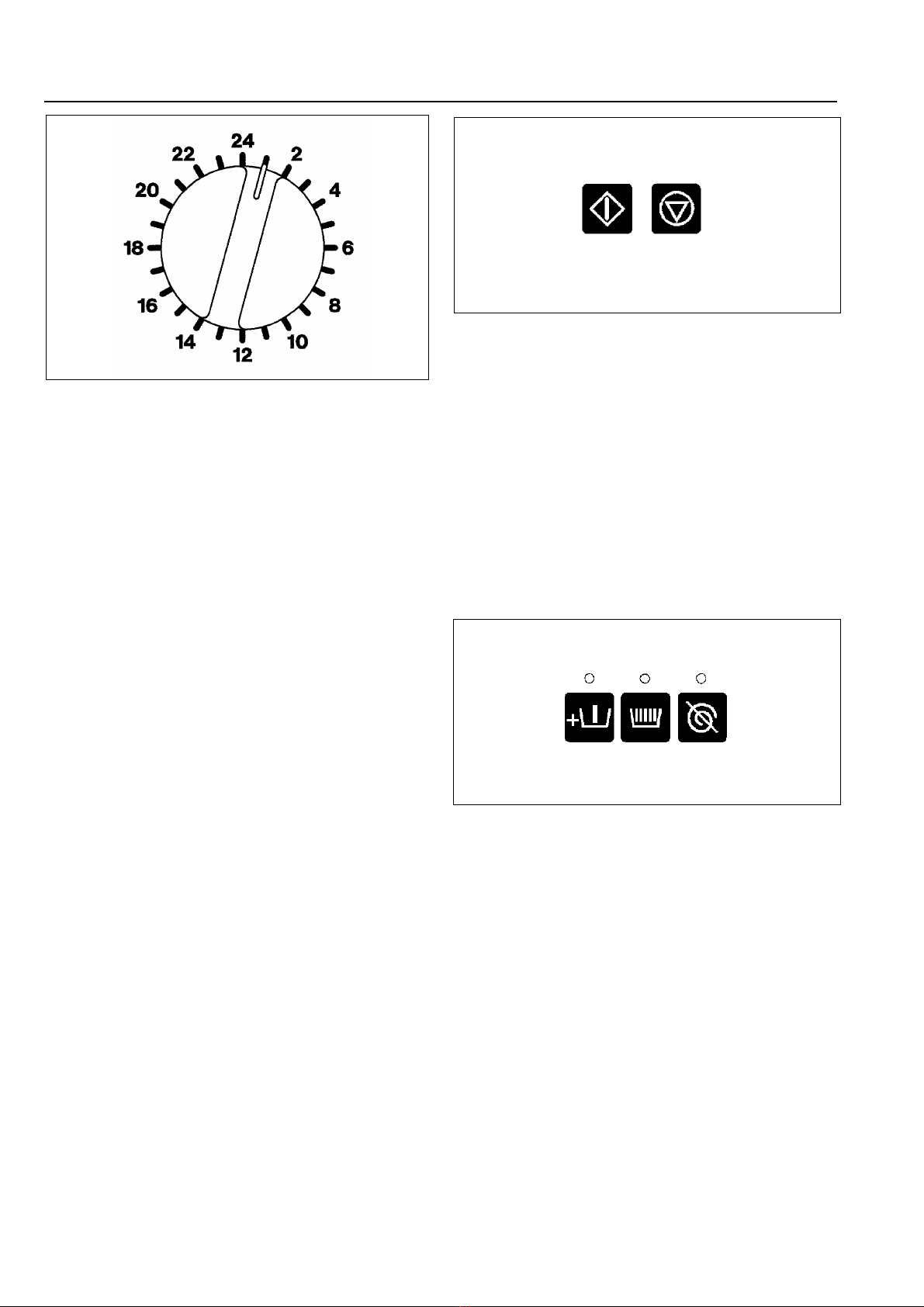

Guide to the machine
Programme selector
Programme numbers 1 to 13 can be se-
lected directly by turning the programme se-
lector to the appropriate number.
Programme number 14 can only be selected
via key switch position B.
he name of the selected programme and its
corresponding number appear in the display.
If the programme selector is turned to another
position after the start of the programme, the
first line of the display flashes. he pro-
gramme does not however change.
Standard programmes:
Programmes in key position A
1Universal 50°C (bagged)
2Universal 60°C (bagged)
3Medical cloth (sealed bag)
4Sleeping bags
5Overalls
6Natural fibre covers
7Catering cloth
8 Peripel
9Maintenance
10 Drain and reset
11 Separate spin
12 Universal cold
13 Cold draindown
Programme in key position B
14 Universal vario
Changes are not possible to programmes
1 to 13.
Start button X
Press to start the selected programme.
End button 7
Press the End button 7 once to inter-
rupt a programme. (Press it twice if you
want to terminate the programme). o
continue an interrupted programme
press the Start button X.
Additional options (available to Key switch
position B programmes only)
Block button T with indicator light
When the button is pressed the light
above it comes on. he corresponding
programme block (e.g. Pre-wash) is
added to the programme. Pressing the
button a second time de-selects the func-
tion. his option can be de-selected.
Starch-hold button U with indicator light
Press this button if the washing is to be
starched. he light comes on.
Spin-stop button V with indicator light
Press this button if a final spin is not re-
quired after the final rinse. he light
comes on.
«M.-Nr. 06 411 840 - GB - » 8

Guide to the machine
Key switch position B only
Plus and Minus buttons 4 3
Once an input field has been selected it
is possible to make a modification. Press-
ing the button continuously advances
quickly through the options.
Delay start button W
If this button is pressed before the start
of a programme, the display indicates
that a start time should be selected. If
the button is pressed again the Delay
start option is cancelled.
If the button is pressed after the start of a
programme the current time of day and
date are shown.
Emergency Stop Switch
Only to be used in an emergency.
After removing the cause of danger this
switch can be re-set by turning the
ribbed disc in a clockwise direction.
After re-setting the following appears in the
display:
Press the Start button X again to continue.
PROGRAMME 1 Universal 50°C
PROGRAMME S OP
HROUGH POWER CU
Please press the Start button.
9 «M.-Nr. 06 411 840 - GB - »

Operation
Key switch position B only

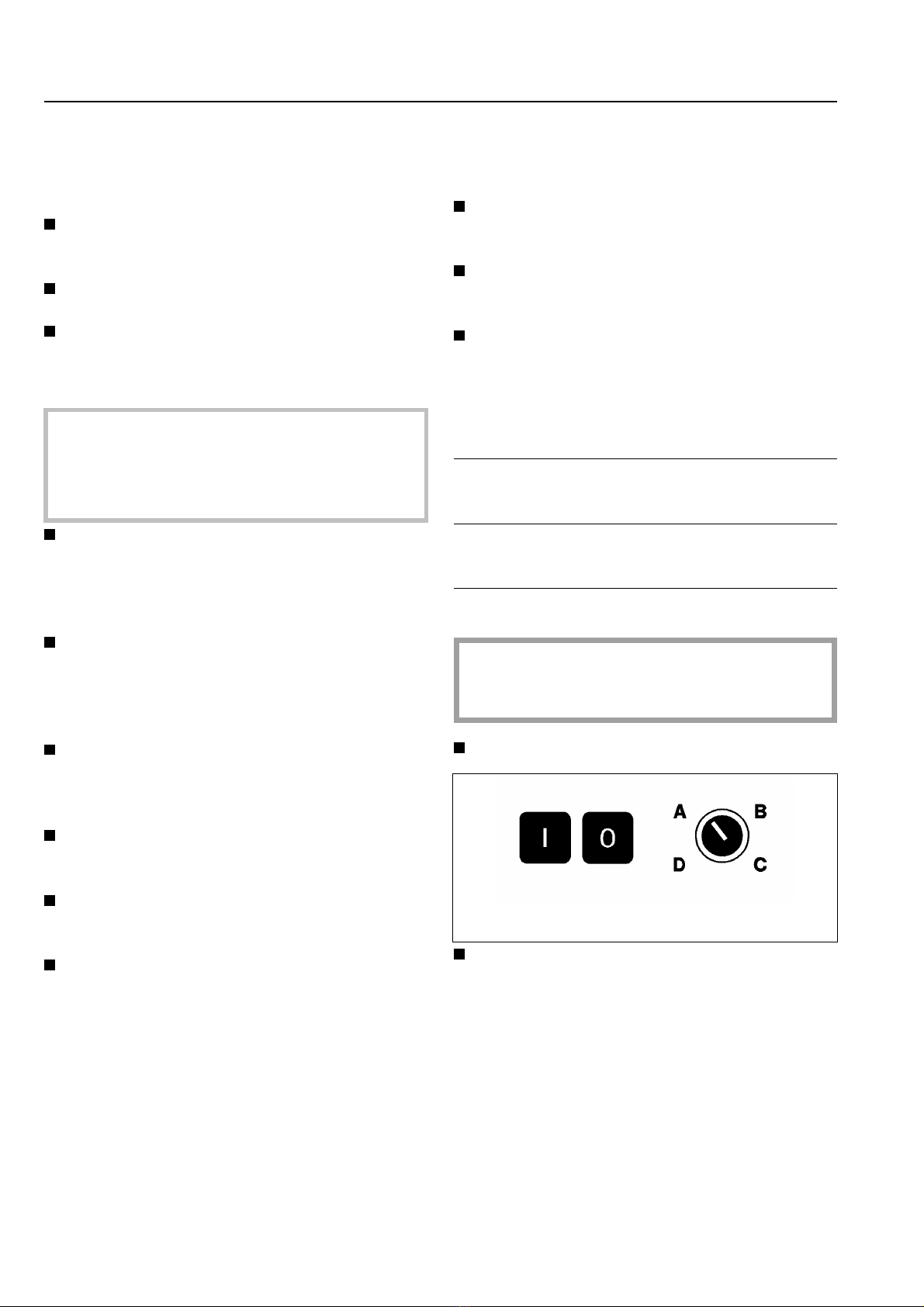

Setting the current time and date*
Switch the machine off with the
Off button Z.
urn the key switch to position B.
Press the Delay start button W and the On
button Y at the same time and hold
pressed in, until the Display shows the
following:
Use the 2 cursor button to position the
cursor on the input field for hours and set
the hours using the Plus / Minus
buttons 4 3.
Use the 2 cursor button to position the
cursor on the input field for minutes and
set the minutes using the Plus / Minus
buttons 4 3.
Position the cursor over the date and set
the date using the Plus / Minus
buttons 4 3.
Position the cursor on Month and set the
month.
Position the cursor on Year and set the
year.
Store in memory with the Start button X.
If the Delay start button is pressed during
a running programme the current time of
day and date are shown.
*Pauses between programming steps must not last
longer than 25 seconds, otherwise the display returns
to the basic stage, (such as On) and the changes are
not stored in memory.
KEY SWITCH POSITION A
OPERATION
Establish the water supply to the machine
and the drain outlet.
Switch on the electricity supply at the
mains (on site) or start the generator.
Open the door and load the drum.
Load weight
WS 5240
Programmes 1, 2, 3, 8, 12
max. 25 kg bagged laundry
Programmes 4, 5, 6, 7, 8, 12
max. 25 kg unbagged laundry
Foreign objects, (eg nails, coins, paper
clips etc) can cause damage to textiles
and components in the machine.
Close the drum door.
Press the On button Y.
SE ING IME AND DA E
ime of day >14< : 30 hrs
Date 23. 03. 1995
After selection press Start button.
t
«M.-Nr. 06 411 840 - GB - » 10

Operation
Select a programme (e.g. Programme 1
Universal 50°C).
he display shows the following (example):
Add detergent.
For the standard programmes add deter-
gent for the Main wash into dispenser com-
partment 2
- and as required, detergent for a Pre-
wash into dispenser compartment 1, Peri-
pel into compartments 3 and 4. Compart-
ment 5 is not used.
Detergent dispensing
Avoid dispensing more than the required
amount as this can cause excessive foaming.
Amounts to be dispensed
ake into account the water hardness, and
the detergent manufacturer’s instructions.
Programme 8. PERIPEL
Do not fill compartment 3 or 4 higher than
the level marker in the relevant dispenser
compartment. Otherwise the the peripel
can run through the siphon into the suds
container.
Press the Start button X.
he wash programme proceeds.
he programme sequence is shown in the
display after the start of the programme.
he top line shows which programme has
been selected. he 2nd line shows the actual
suds temperature and the time line extending
off to the right.
PROGRAMME 1 Universal 50°C
>50° C< Main wash 1
Rinses 3 1100 RPM
1 3 4 5 2
t
t
PROGRAMME 1 Universal 50°C
20 °C
Main wash
à
Pre-Wash Peripel Main wash
11 «M.-Nr. 06 411 840 - GB - »

Operation
Programme end display
After water from the last heating phase has
drained away, or after the last "Cool Down"
the programme end time is shown in hours
and minutes.
Programme end - to open the drum door
At the end of the Programme, with a stationary
drum and no more water in the machine
the following display is shown (for example):
Pull the handle to open the door.
Note: If the door cannot be opened, press
against the door, and pull on the handle
again. Never use force to open the door.
Remove the laundry.
If the programme is interrupted when there is
water in the machine, or during the spin, the
following display messages might appear:
or:
he door is locked. Never try to force open
the door. See "Problem solving guide".

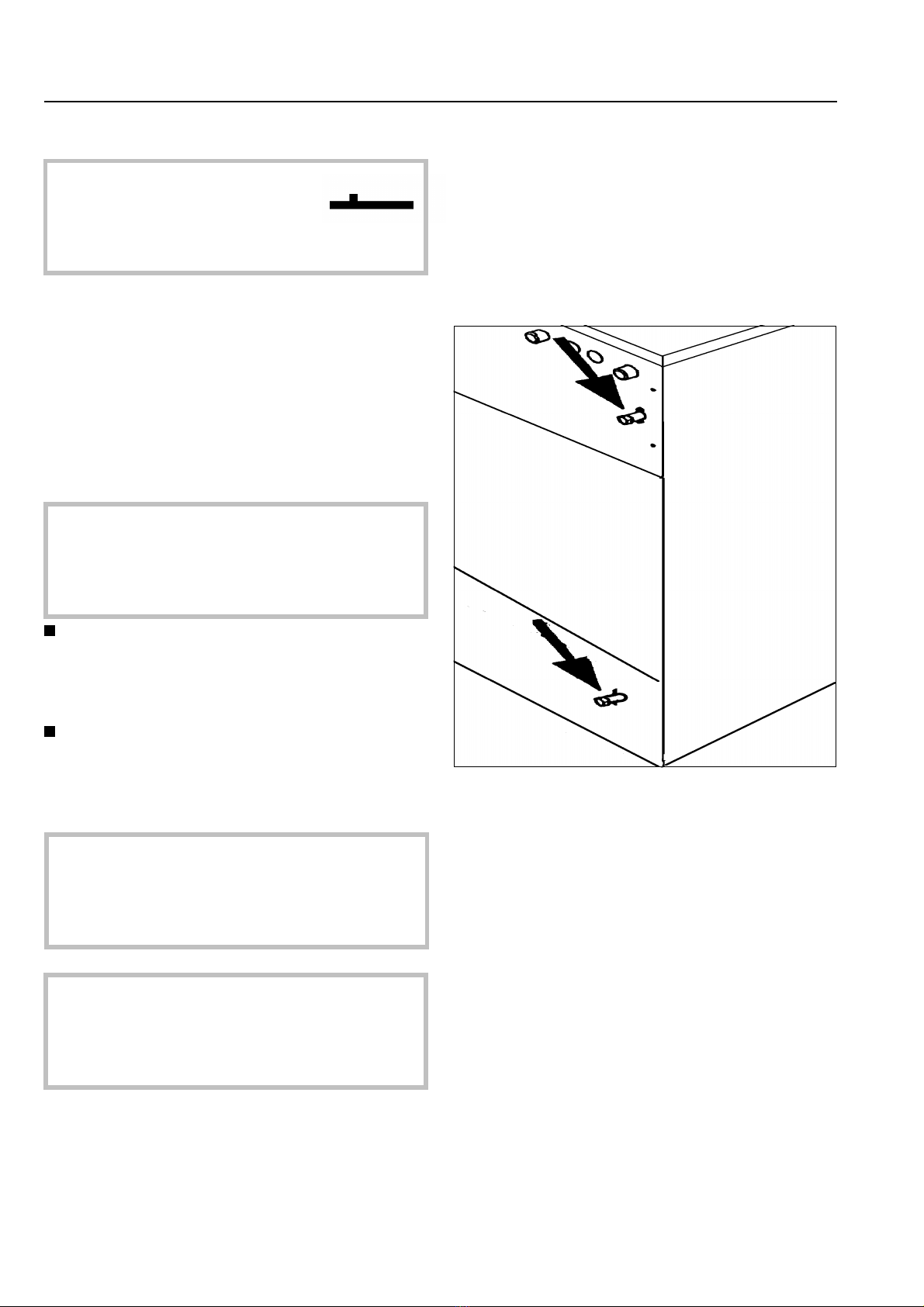

Programme 13 Cold draindown
his programme is designed for use in cold
climates when there is a danger of water
freezing during shut-down periods.
Ensure that the water supply pump system is
turned off and that the water supply is drained
down before selecting this programme.
At the end of the cold draindown programme
the two plugs must be removed from the drain
off points at the rear of the machine. Place a
suitable container under the plugs to collect
the residual water.
hese two plugs must be screwed back into
position again before using the machine
again. Do not overtighten them!
PROGRAMME 1 Universal 50°C
Rinse 1
Rinse 2
Programme end 11 : 25 hrs à
PROGRAMME 1 Universal 50°C
PROGRAMME END
DOOR IS UNLOCKED
PROGRAMME 1 Universal 50°C
PROGRAMME END
DOOR IS LOCKED
HERE IS WA ER IN HE MACHINE
PROGRAMME 1 Universal 50°C
PROGRAMME END
DOOR IS LOCKED
DRUM NO YE S A IONARY
«M.-Nr. 06 411 840 - GB - » 12

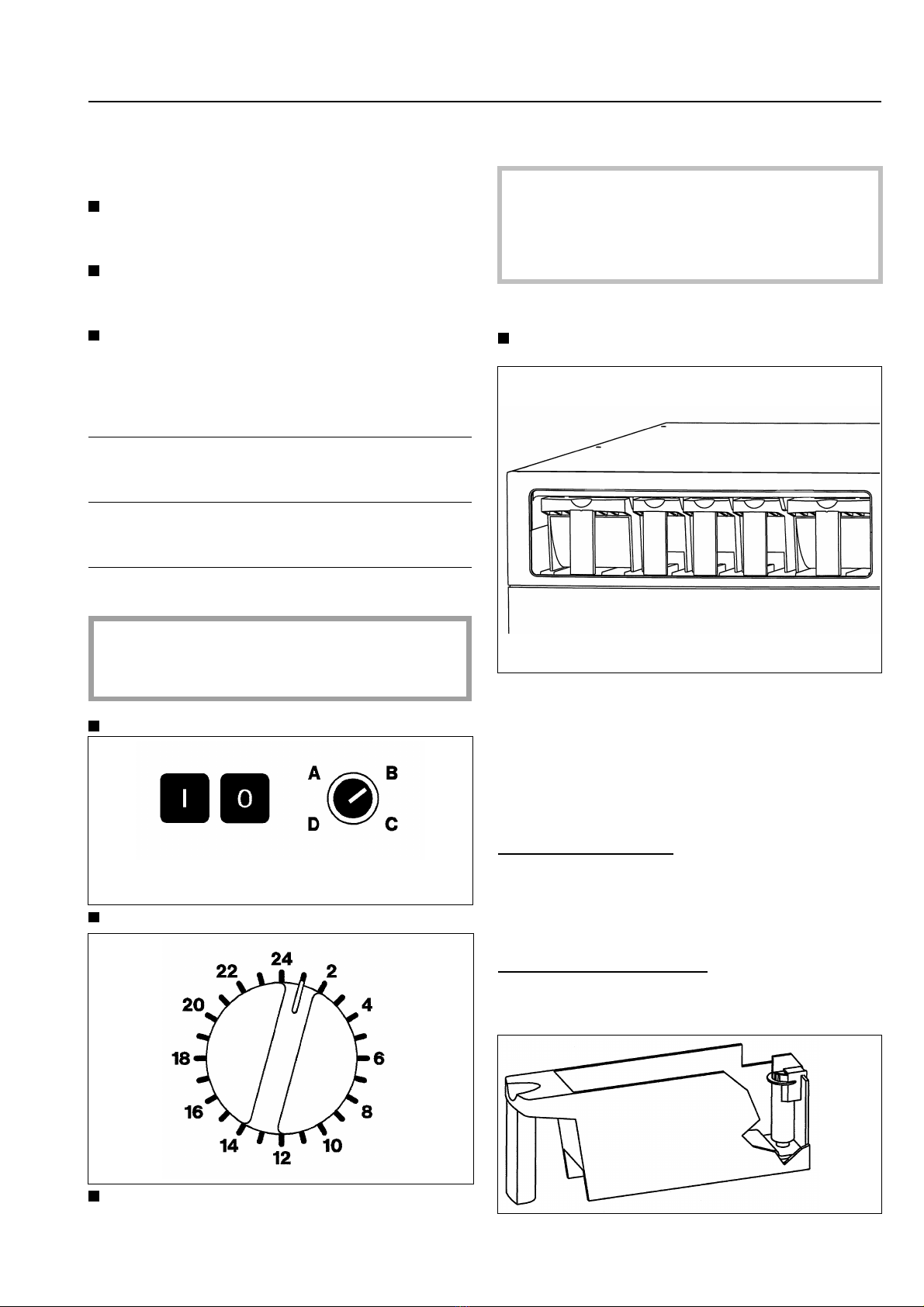

Operation
KEY SWITCH POSITION B
OPERATION
Establish the water supply to the machine
and the drain outlet.
Switch on the electricity supply at the
mains (on site) or start the generator.
Open the door and load the drum.
Load weight
WS 5240
Programmes 1, 2, 3, 8, 12, 14
max. 25 kg bagged laundry
Programmes 4, 5, 6, 7, 8, 12, 14
max. 25 kg unbagged laundry
Foreign objects, (eg nails, coins, paper
clips etc) can cause damage to textiles
and components in the machine.
Close the drum door.
Press the On button Y.
Select a programme (e.g. Programme 1
Universal 50°C).
he display shows the following (example):
Add detergent.
For the standard programmes add detergent
for the Main wash into dispenser compart-
ment 2
- and as required, detergent for a Pre-wash
into dispenser compartment 1, Peripel into
compartments 3 and 4. Compartment 5 is not
used.
Detergent dispensing
Avoid dispensing more than the required
amount as this can cause excessive foaming.
Amounts to be dispensed
ake into account the water hardness, and
the detergent manufacturer’s instructions.
PROGRAMME 1 Universal 50°C
>50 °C< Main wash 1
Rinses 3 1100 RPM
t
1 3 4 5 2
t
Pre-Wash Peripel Main wash
13 «M.-Nr. 06 411 840 - GB - »

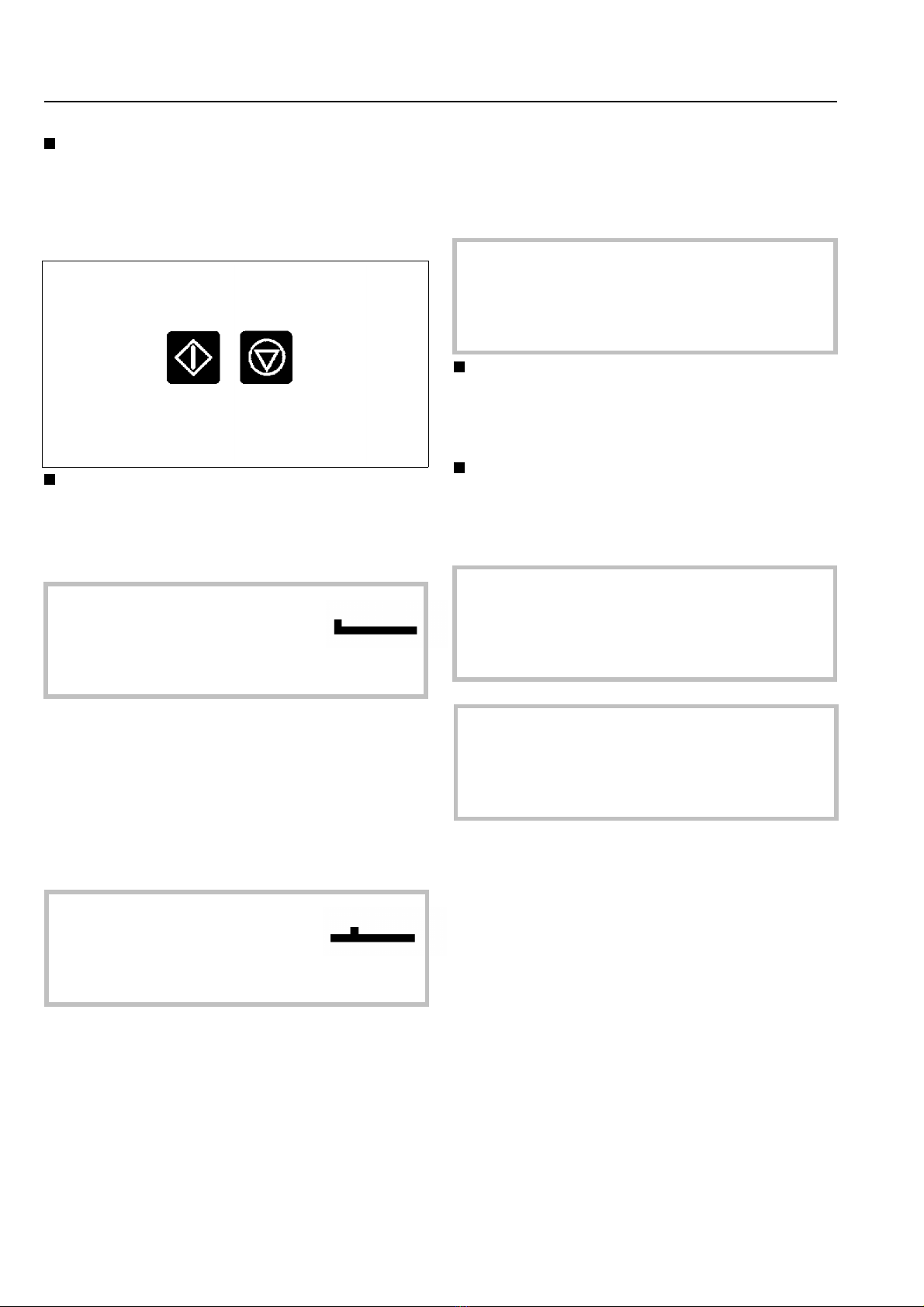

Operation
Do not fill compartment 3 or 4 higher than
the level marker in the relevant dispenser
compartment. Otherwise the peripel can
run through the siphon into the suds con-
tainer.
Press the Start button X.
- he wash programme proceeds -.
he programme sequence is shown in the
display after the start of the programme.
he top line shows which programme has
been selected. he 2nd line shows the actual
suds temperature and the time line extending
off to the right.
Programme end display
After water from the last heating phase has
drained away, or after the last "Cool Down"
the programme end time is shown in hours
and minutes.
Programme end - to open the drum door
At the end of the Programme, with a stationary
drum and no more water in the machine
the following display is shown (for example):
Pull the handle to open the door.
Note: If the door cannot be opened, press
against the door, and pull on the handle
again. Never use force to open the door.
Remove the laundry.
If the programme is interrupted when there is
water in the machine, or during the spin, the
following display messages might appear:
or:
he door is locked. Never try to force open
the door. See "Problem solving guide".
t
PROGRAMME 1 Universal 50°C
20 °C
Main wash
à
PROGRAMME 1 Universal 50°C
PROGRAMME END
DOOR IS UNLOCKED
PROGRAMME 1 Universal 50°C
PROGRAMME END
DOOR IS LOCKED
DRUM NO YE S A IONARY
PROGRAMME 1 Universal 50°C
PROGRAMME END
DOOR IS LOCKED
HERE IS WA ER IN HE MACHINE
PROGRAMME 1 Universal 50°C
Rinse 1
Rinse 2
Programme end 11 : 25 hrs à
«M.-Nr. 06 411 840 - GB - » 14

Operation
Key switch position B, Programme 14
he following parameters can be changed be-
fore the start of a programme if required:
he temperature in 1 °C steps from cold, 15
to max. 95 °C .
he spin speed in steps of 100 rpm from 0,
300 to max. 1100.
Use the 2 cursor button to position the
cursor on the input field for the Pre-wash
temperature, and set the temperature re-
quired with the Plus or Minus button 4 3.
Position the cursor on the input field for
the Main wash temperature, and set the
temperature required with the Plus or
Minus button 4 3.
Position the cursor on the input field for
the Spin speed, and set the spin speed re-
quired with the Plus or Minus button 4 3.
Delayed Start –Key switch position B only
If a later start to a programme is required, this
can be selected using the Delay start button.
o select a delayed start time
urn the key switch to position B.
Switch on the machine and select the re-
quired programme with the programme se-
lector switch.
he Display shows the following:
Press the Delay start button W.
Here the display shows the following:
he current time of day is always displayed
first.
he cursor points to the input field for ’hours’.
Select the Start Hour with the Plus or
Minus button 4 3.
Position the cursor on the input field for
minutes and select the minutes with the
Plus or Minus button 4 3.
Note:
Before pressing the Start button the Start time
can be deleted by pressing the Delay start
button again, or by switching the machine off
and then on again.
Otherwise, when the Start button X is
pressed in, Delay start is confirmed, and
the following shows in the display:
When the start time is reached the pro-
gramme proceeds and the Display shows the
programme sequence. If the Delay start but-
ton W is pressed during the programme, the
actual time of day and date are shown.
If the End button 7 is pressed this cancels
the Delay start function.
PROGRAMME 14 Universal vario
>95 °C< Main wash 1
Rinses 3 1100 RPM
PROGRAMME 14 Universal vario
Start time >14>:30 hrs
After the start time has been set
press the Start button.
PROGRAMME 14 Universal vario
95 °C Main wash 1
Start time 18 : 30 hrs
15 «M.-Nr. 06 411 840 - GB - »

Notes
Starch (Key switch position B)
Starching can be selected additionally in all
programmes (except Separate spin and
Separate drain). he indicator light above the
button lights up.
When the Starch point has been reached in
the programme sequence, "Starch hold"
flashes in the Display.
he programme is continued by pressing the
Starch hold button U, (the indicator light goes
out). Add the starch formulation, prepared ac-
cording to the producers’s instructions to the
inflowing water via the correct dispenser com-
partment. he wash time is automatically ex-
tended by 4 minutes.
Filling the starch directly into the drum
When the Starch point is reached in the se-
quence, "Starch hold" flashes in the Display.
Open the drum door and add the starch for-
mulation, prepared according to the pro-
ducer’s instructions. Shut the drum door, -
the message "power cut programme stop" ap-
pears in the Display. - , and press the Start
button X . his message appears again:
Press the button Starch hold button U , (the
indicator light goes out) and the programme
continues.
Without spin (Key switch position B)
Without spin can be selected additionally in
all programmes (except Separate spin). he
indicator light above the button lights up.
When the Spin programme point is reached,
"Spin stop" flashes in the Display.
Either press the Spin-stop button V again to
continue the programme with a spin, or press
the End button 7, for the programme to finish
with water in the machine.
PROGRAMME 14 Universal vario
Rinse 3
S ARCH HOLD
Press the Starch and Starch hold button.
PROGRAMME 14 Universal vario
Rinse 3
WI HOU SPIN
Press the without spin or End button.
PROGRAMME 14 Universal vario
Rinse 3
S ARCH HOLD
Press the Starch and Starch hold button.
t
t
«M.-Nr. 06 411 840 - GB - » 16

Notes
Programme cancellation
(Key switch position B)
Should you wish to cancel a programme,
press the End button 7 twice in succession.
If the programme was cancelled while there
was water in the machine, or during a spin,
the following shows in the display (example):
or:
Select the programme Separate Drain or Sep-
arate Spin and start it. On completion the
door can be opened.
PROGRAMME 14 Universal vario
PROGRAMME END
DOOR IS LOCKED
DRUM NO YE S A IONARY
t
PROGRAMME 14 Universal vario
PROGRAMME END
DOOR IS LOCKED
HERE IS WA ER IN HE MACHINE
17 «M.-Nr. 06 411 840 - GB - »

After sales service PC- Printer connection
Should a fault occur please contact the Miele
Service Department.
When contacting the Service Department,
please quote the model type and machine
number, (Fabr.-Nr.) and Part no. (M.-Nr.).
hese can be found on the data plate:
with the door open, or:
at the rear of the machine towards the top.
Only use genuine spare parts.
When ordering spare parts please quote the
model type and machine number (Fabr.-Nr.)
and Part No. (M.-Nr.).
PC- Printer connection:
he machine can be connected to a PC or
printer using fitting kit SD.
PC-Operation:
Programme changes can be carried out via a
PC, or new programmes can be downloaded.
his requires a special Editor programme
which is available from the Miele Professional
Department.
Printer-Operation:
It is possible to print out whole programmes
or parts of programmes. See programming in-
structions.
«M.-Nr. 06 411 840 - GB - » 18

Problem solving guide
The door will not open
Press against the door, switch the machine
off and then on again and then try and open
the door again.
If you still cannot open the door:
The door handle safety mechanism has
disengaged itself.
he door cannot be opened or closed.
he safety mechanism is designed to pro-
tect the handle and the lock from damage,
for instance, if too much force is being
used in an attempt to open the door.
Press firmly against the door handle until you
clearly hear the safety mechanism engage.
You will now be able to open and close the
door again.
If the door remains locked, select the Drain
and Reset programme. he door will automati-
cally unlock itself at the end of the pro-
gramme.
Power cut during a wash programme
Emergency door release
With a short power cut:
he programme remains in position, and
when power is restored the following mess-
age appears in the Display:
Press the button X Start, the programme con-
tinues again.
In the event of an extended power cut:
o remove the laundry the drain valve will
need to be opened manually and the drum
door unlocked manually.
Open the drain valve by partially opening the
venting screw, (spanner size 17 mm) at the
rear of the machine, but do not unscrew com-
letely. Drain off the suds.
ake care, some water will seep out of the
screw opening (approx. 100 ml). his should
be caught in a suitable container.
ighten up the venting screw again and check
that there is no leak.
PROGRAMME 1 Universal 50°C
PROGRAMME S OP
HROUGH POWER CU
Please press the Start button.
19 «M.-Nr. 06 411 840 - GB - »

Problem solving guide
First position the screwdriver in the opening,
push in and hold firm.
Press against the door handle with your right
hand, and then pull on the door handle to
open the door.
- Never use force to open the door. -
ake out the laundry.
Fault messages
Repairs to machines should only be under-
taken by a suitably qualified service engineer
to ensure safety. Unauthorised repairs could
be dangerous.
Faults that occur before or after the start of a
programme are displayed in a flashing display.
When power is restored press the Start
button X.
his fault message can also indicate that the
winding protection of the drive motor has over-
heated. Allow the motor to cool down.
Should the water inlet become blocked,
"Water inlet fault" will be displayed and the
programme terminated.
Open water stopcock and press the Start
button X.
Check the drainage system on site and press
the Start button X. A defective drain valve
should only be repaired by an authorised
service engineer.
Call the Service department.
Call the Service department.
Call the Service department.
Call the Service department.
PROGRAMME 1 Universal 50°C
PROGRAMME S OP
HROUGH POWER CU
Please press the Start button.
PROGRAMME 1 Universal 50°C
PROGRAMME S OP
WA ER INLE FAUL
Open water stopcock and press Start button.
PROGRAMME 1 Universal 50°C
PROGRAMME S OP
HEA ING SYS EM FAUL
PROGRAMME 1 Universal 50°C
PROGRAMME S OP
HEA ING SYS EM FAUL
Cut-out of heating sensor 1.
PROGRAMME 1 Universal 50°C
PROGRAMME S OP
HEA ING SYS EM FAUL
Short circuit on heater sensor 1
PROGRAMME 1 Universal 50°C
PROGRAMME S OP
DRAIN FAUL
Clean drain system and press Start button.
PROGRAMME 1 Universal 50°C
PROGRAMME S OP
DRIVE SYS EM FAUL
Multiplug drive variants lacking.
«M.-Nr. 06 411 840 - GB - » 20
