Miele G 1170 User manual

Operating instructions
for dishwashers
To avoid the risk of accidents or
damage to the appliance it is
essential to read these instructions
as well as the installation plan before
it is installed and used for the first time.
G
M.-Nr. 06 702 840

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Appliance overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Programming the water hardness level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Checking the programmed water hardness level. . . . . . . . . . . . . . . . . . . . . . . 15
Before using the appliance for the first time you require: . . . . . . . . . . . . . . . . . . . 16
Filling the salt reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Salt indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setting the rinse aid dosage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Items not suitable for dishwashers: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Hinged cup rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Positioning rail (depending on model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Hinged spiked insert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Bottle holder (depending on model). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cutlery tray (depending on model). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cutlery basket (depending on model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Contents
2

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Selecting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Unloading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Changing a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Buzzer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Factory default setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Cleaning the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Cleaning the door front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Cleaning the filters in the wash cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
The dishwasher does not fill/drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
General problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Unsatisfactory washing result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Problem solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Contents
3

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Future updates (PC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
For testing institutes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Contents
4

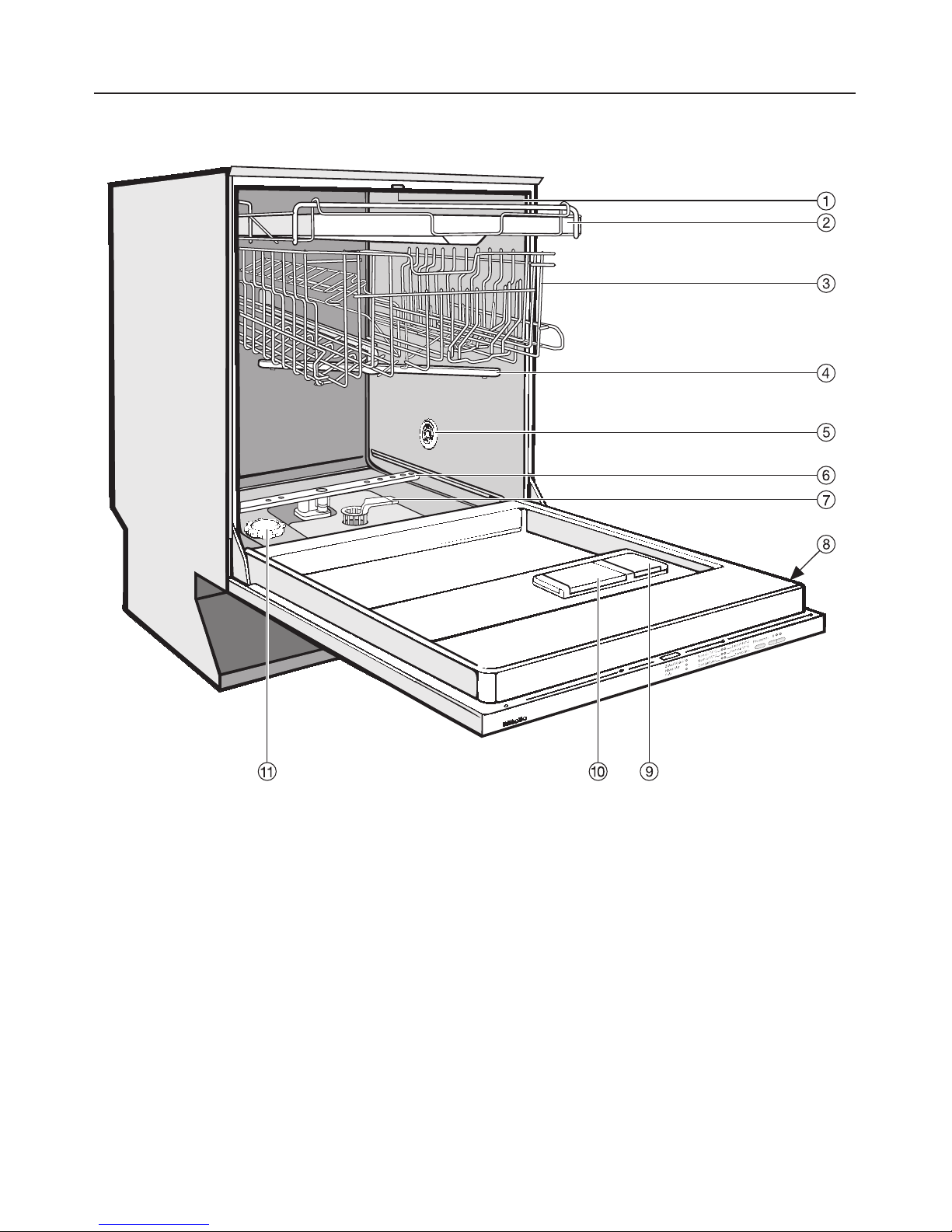

Appliance overview
aUpper spray arm (not visible)
bCutlery tray (depending on model)
cUpper basket
dMiddle spray arm
eAir inlet for drying
(depending on model)
fLower spray arm
gFilter combination
hData plate
iRinse aid reservoir
jDual compartment detergent
dispenser
kSalt reservoir
Description of the appliance
5

Control panel
aCheck/Refill indicators
bProgrammes
cProgramme selector button
dOn button gwith indicator light
eOff button o
This instruction book applies to several different dishwasher models.
The specific dishwasher models below are referred to as follows:
G 1170 / G 1180 = G 1XXX
G 2170 / G 2180 = G 2XXX
The model numbers G 1XXX and G 2XXX used in this book refer to the model
designation specified on the data plate of the appliance (and not the
description on the control panel).
The data plate is located at the top right hand side of the door.
Description of the appliance
6

This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property. To
avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on its
safety, use and maintenance.
Keep these instructions in a safe
place for future reference, and pass
them on to any future user.
Correct usage
This dishwasher is intended
exclusively for cleaning domestic
crockery and cutlery in a domestic
household. Using it for purposes other
than those for which it was designed,
as well as any alterations or
conversions to the appliance would be
unauthorised and could cause harm.
The manufacturer cannot be held liable
for damage resulting from improper or
incorrect use of the appliance.
Transport
Should you ever need to move the
dishwasher, e.g. when moving
house, note the following:
–Empty the dishwasher,
–Secure any loose parts, e. g. hoses,
mains cable, cutlery baskets, lower
basket
–Transport the dishwasher in the
upright position only.
Delivery
Before setting up the appliance,
check it for any externally visible
damage. Under no circumstances
should you use a damaged appliance.
A damaged appliance could be
dangerous.
Please ensure that the packaging
material is offered for recycling.
Installation
The dishwasher must be installed
and connected in compliance with
the installation plan.
The dishwasher must only be
plugged into the electricity supply
via a suitable switched socket. The
electrical socket must be easily
accessible after the dishwasher is
installed so that it can be disconnected
from the electricity supply at any time.
(See "Electrical connection").
There must be no electrical
sockets behind the dishwasher.
Danger of overheating and fire risk if
the dishwasher were to be pushed up
against a plug.
In order to ensure stability,
built-under and integrated
dishwashers must only be installed
under a continuous worktop which is
secured to adjacent cabinetry.
Warning and Safety instructions
7

The dishwasher must not be
installed under a hob. The high
radiant temperatures which are
sometimes generated by a hob could
damage the dishwasher. For the same
reason it should not be installed next to
open fires or other appliances which
give off heat, such as heaters etc.
If you want to convert your
freestanding dishwasher to a
built-under ("U") model, you will need to
order the appropriate conversion kit. If
you remove the existing plinth, you
must replace it with a U-model plinth.
This is necessary to avoid the risk of
injury caused by protruding metal
parts.
Do not connect the dishwasher to
the mains supply until it has been
fully installed.
Before connecting the appliance,
check that the connection data on
the data plate (voltage and connected
load) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system. It is most important that this
basic safety requirement is regularly
tested and where there is any doubt,
the electrical system in the house
should be checked by a qualified
electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
A damaged appliance could be
dangerous. Switch off at the mains
and call your Miele supplier or the Miele
Service Department.
The plastic housing of the water
connection contains an electrical
component. The housing must therefore
not be dipped in water.
There are live wires in the water
inlet hose. Never cut the water inlet
hose, even if it is too long.
Do not connect the appliance to
the mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
Use
Do not use solvents in the
dishwasher. Danger of explosion.
Do not inhale or ingest dishwasher
detergent! Dishwasher detergents
can cause burning in the nose, mouth
and throat if swallowed, or inhibit
breathing. Consult a doctor immediate-
ly if detergent has been swallowed or
inhaled.
Warning and Safety instructions
8

Avoid leaving the door open
unnecessarily, as you could trip
over it.
Do not sit or lean on the opened
door. This could cause the
dishwasher to tip and be damaged and
you could get injured.
Only use detergent and rinse aid
formulated for domestic
dishwashers. Do not use washing-up
liquid.
In an appliance with a cutlery
basket (depending on model)
cutlery is cleaned and dried more
efficiently if placed in the basket with
the handles downwards. However, to
avoid the risk of injury place knives and
forks etc. with the handles upwards.
Please only use special coarse
grained dishwasher salt for
reactivation, as other salts may contain
insoluble additives which can impair
the functioning of the softener.
Plastic items which cannot
withstand being washed in hot
water, such as disposable plastic
containers, or plastic cutlery and
crockery should not be cleaned in the
dishwasher. The high temperatures in
the dishwasher may cause them to melt
or lose shape.
On models with "Delay start", make
sure that the dispenser is dry
before adding detergent. Wipe dry if
necessary. Detergent will clog if poured
into a damp dispenser and may not be
thoroughly dispensed.
Do not use liquid detergent when
selecting Delay start, as it can run into
the dishwasher before it is required.
Safety with children
This appliance is not a toy! To
avoid the risk of injury do not allow
children to play in or around the
dishwasher, or to operate it. There is
also a danger that children playing
might shut themselves in the
dishwasher.
Keep children away from
detergents. Dishwasher detergents
can cause burning in the mouth, nose
and throat if swallowed, or inhibit
breathing. Keep children away from the
dishwasher when the door is open.
There could still be detergent residues
in the cabinet.
Consult a doctor immediately if your
child has swallowed or inhaled
detergent.
Warning and Safety instructions
9

To avoid damage to the
appliance and other materials
Do not fill the rinse aid reservoir
with powder or liquid detergent.
This will cause serious damage to the
reservoir.
Inadvertently filling the salt
reservoir with powder or liquid
dishwasher detergent always leads to
serious damage to the water softener.
Make sure you have picked up the
correct packet of dishwasher salt
before filling the salt reservoir!
Do not use commercial or industrial
detergents as these may damage
material and there is a risk of severe
chemical reaction.
The Miele Waterproof System offers
protection from water damage,
provided the following conditions are
met:
– The dishwasher is correctly installed
and plumbed in.
–The dishwasher is properly
maintained and parts are replaced
where it can be seen that this is
necessary.
–The stopcock has been turned off
when the appliance is not used for a
longer period of time (e.g. during
holidays).
The Waterproof system will work even if
the appliance is switched off. However,
the appliance must remain connected
to the electricity supply.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage caused by cockroaches or
other vermin will not be covered by the
guarantee.
Repairs and maintenance
Repairs may only be carried out by
suitably qualified and competent
technicians in accordance with current
local and national safety requirements.
Repairs and other work by unqualified
persons could be dangerous.
Always disconnect the appliance
from the electrical supply for
maintenance work (switch off at the wall
socket and remove the plug).
If the connection cable is damaged
it must be replaced with a Miele
cable by a Miele approved service
technician only.
Disposal of your old appliance
When disposing of an old
dishwasher first make it unusable.
Disconnect, cut off the cable and the
plug from the cable. Make the door lock
inoperative by unscrewing the Torx
screw, so that children cannot
accidentally shut themselves in. Make
appropriate arrangements for the
disposal of the appliance.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
10

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled. Ensure
that any plastic wrappings, bags etc.
are disposed of safely and kept out of
the reach of babies and young
children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure that they
are recycled.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person. The
plug must be rendered useless and the
cable cut off directly behind it to
prevent misuse. See the "Warning and
Safety" section of this booklet for further
details.
Energy saving washing
This dishwasher is exceptionally
economical in its use of water and
electricity. You can make the most of
your appliance by following these tips:
^If your household water system is
suitable, this dishwasher can be
connected to a hot water supply, for
further economies. If the water is
heated by for example, solar panels,
this would be energy efficient.
However, if your water is heated by
electricity we would recommend
connection to cold water.
^For most economical dishwashing
make full use of the baskets without
overloading the dishwasher.
^Choose the programme to suit the
type of crockery being washed and
the degree of soiling.
^Select the Energy save programme
for energy-saving dishwashing.
^Follow the detergent manufacturer’s
recommendations on detergent
dosage.
^When using powder or liquid
detergent you can use 1/3less
detergent if baskets are only half full.
Caring for the environment
11

To open the door
^Pull the handle.
If the door is opened during operation
all functions are automatically
interrupted.
To close the door
^Push the baskets right in.
^Then lift the door upwards and push
until it clicks into position.
Before using for the first time
12

Water softener
In order to achieve good cleaning
results, the dishwasher needs to
operate with soft water. Hard water
results in the build-up of calcium
deposits on crockery and in the
dishwasher.
Mains water with a hardness level
higher than 0.7 mmol/l (4 °d - German
scale) needs to be softened. This takes
place automatically in the integrated
water softener.
–The water softener requires
dishwasher salt.
If you use "3 in 1" products in your
dishwasher you should still add salt
in order to achieve optimum results.
– The dishwasher must be
programmed for the water hardness
in your area.
– Your local water authority will be able
to advise you of the water hardness
level in your area.
Where the water hardness fluctuates
e.g. between 6.7 - 9.0 mmol/l (37 -50 °d
- German scale) always programme the
dishwasher to the higher value
(9.0 mmol/l in this example).
In the event of a fault, it will help the
service technician if you know the
hardness of your local water supply.
^Enter the water hardness below:
mmol/l or °d
The dishwasher is set at the factory
for a hardness level of
2.2 - 2.7 mmol/l (12 - 15 °d).
If this setting corresponds to the
hardness of your water you do not need
to do anything more.
If your water is harder or softer, you will
need to programme the water hardness
level. See following section.
Before using for the first time
13

Programming the water hardness
level
Each time a button is pressed one of
the indicator lights will flash and light
up in the control panel. However, only
the indicator lights mentioned in the
following programming process stages
are significant.
The programming procedure can be
cancelled at any time by pressing the
Off button o. The procedure can
then be re-started from the beginning
again.
^Switch the dishwasher off with the Off
button o.
^Press the programme selector button
in, and whilst holding it in switch
the dishwasher on using the On
button g.
Keep the programme selector button
pressed in for at least four seconds
until the lower right hand programme
indicator comes on.
If this does not happen, start the
procedure from the beginning again.
^Press the programme selector button
twice briefly.
The "Inlet/Drain" check light will flash
twice briefly at intervals, and the upper
right hand programme indicator will
flash 4 times briefly at intervals (factory
setting).
^Press the programme selector button
for at least one second until the
"Inlet/Drain" check light comes on.
The number of times the upper right
hand programme indicator flashes tells
you the water hardness level which has
been set (see chart).
°d mmol/l °f Flashing
1 - 4 0.2 - 0.7 2- 7 Once briefly
5 - 7 0.9 - 1.3 9- 13 Twice briefly
8 - 11 1.4 - 2.0 14- 20 3 times briefly
12 - 15 2.2 - 2.7 22- 27 4 times briefly
16 - 20 2.9 - 3.6 29- 36 5 times briefly
21 - 25 3.8 - 4.5 38- 45 6 times briefly
26 - 30 4.7 - 5.4 47- 54 7 times briefly
31 - 36 5.6 - 6.5 56- 65 8 times briefly
37 - 45 6.7 - 8.1 66- 80 9 times briefly
46 - 70 8.3 - 12.6 82-125 Once for longer
^Press the programme selector button
briefly to select the number of flashes
which equates to your water
hardness level.
Each press of the button moves you
up a level. When the highest water
hardness level is reached, the setting
starts from the beginning again.
Example:
If your water hardness level is
4.0 mmol/l (22 °d), the upper right
hand programme indicator should
flash briefly six times at intervals.
^Switch the dishwasher off with the Off
button o.
Before using for the first time
14

Checking the programmed water
hardness level
^Switch the dishwasher off with the Off
button o.
^Press the programme selector button
in, and whilst holding it in switch
the dishwasher on using the On
button g.
Keep the programme selector button
pressed in for at least four seconds
until the lower right hand programme
indicator comes on.
^Press the programme selector button
twice briefly.
The upper right hand programme
indicator will flash for the number of
times which corresponds to the water
hardness level which has been set (see
chart).
^Switch the dishwasher off with the Off
button o.
Before using for the first time
15

Before using the appliance for
the first time you require:
–approx. 2 litres of water,
–approx. 2 kg dishwasher salt,
–domestic dishwasher detergent,
–rinse aid formulated for domestic
dishwashers.
Every dishwasher is tested at the
factory.
There will be residual water in the
appliance from this test. It is not an
indication that it has been previously
used.
Filling the salt reservoir
If the water in your area is very soft
and constantly lower than
0.7 mmol/l (4 °d) you do not need
to add dishwasher salt.
The water softener must, however,
still be programmed to correspond
to the water hardness level in your
area. (The salt indicator light will still
come on, but should be ignored).
The water softener requires
dishwasher salt. If you use "3 in 1"
tabs in your dishwasher you should
still add salt in order to achieve
optimum results.
Important: Before filling the salt
reservoir with dishwasher salt for the
first time, you must fill it with
approx. 2 litres of water to enable
the salt to dissolve. Once the
dishwasher has been used, there is
always sufficient water in the
reservoir.
,Inadvertently filling the salt
reservoir with powder or liquid
dishwasher detergent always leads
to serious damage to the water
softener. Make sure you have picked
up the correct packet of dishwasher
salt before filling the salt reservoir!
,Only use special coarse grained
dishwasher salt for reactivation. Do
not use other salts such as cooking
salt, agricultural grade or gritting
salt. These may contain insoluble
additives which can impair the
functioning of the water softener.
Before using for the first time
16

^Remove the lower basket and
unscrew the salt reservoir cap.
Only open the salt reservoir when
you want to fill it with dishwasher salt
as water or salt solution will run out
of the reservoir when the cap is
removed.
^Fill the reservoir with approx. 2 litres
of water (first use only).
^Place the funnel provided over the
salt reservoir and carefully fill with salt
until the reservoir is full. The salt
reservoir holds approx. 2 kg of salt
depending on the brand used.
As the salt reservoir is filled, displaced
water will overflow.
^Clean any excess salt from around
the reservoir opening and then screw
the cap on again firmly.
^Run the "Quick wash" programme
immediately (without any crockery in
the dishwasher) to remove any traces
of salt water from the cabinet.
Salt indicator
^Fill the salt reservoir with dishwasher
salt when the salt indicator light
comes on. (If it comes on during a
programme, wait until the end of the
programme).
After the reservoir has been filled, the
water softener is automatically
reactivated the next time the
dishwasher is run. The salt indicator
light may still be illuminated during this
process. It will go out once the salt
concentration has reached the correct
level.
,After filling the salt reservoir,
run the "Quick wash" programme
immediately (without any crockery in
the dishwasher) to remove any
traces of salt water from the cabinet.
Before using for the first time
17

Rinse aid
Rinse aid is necessary to ensure water
does not cling and leave marks on
crockery during the drying phase and
helps crockery dry faster after it has
been washed.
Rinse aid is poured into the storage
reservoir and the amount set is
dispensed automatically.
,Inadvertently filling the rinse aid
reservoir with powder or liquid
detergent always causes serious
damage to the reservoir. Only pour
rinse aid formulated for domestic
dishwashers into the reservoir.
Alternatively, it is possible to use
– Household vinegar with a max. 5%
acid content
or
– Liquid citric acid up to 50% acid
content.
The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.
,Do not use vinegar with a higher
acid content (e.g. vinegar essence
25% acid). This would damage the
dishwasher.
,If you only ever use "2 in 1" or "3
in 1" products in your dishwasher
you do not need to add rinse aid.
Adding rinse aid
^Press the button on the lid of the
rinse aid reservoir in the direction of
the arrow until the flap springs open.
Before using for the first time
18

^Add rinse aid only until it is visible in
the opening.
The rinse aid reservoir holds approx.
110 ml.
^Close the flap firmly so that it clicks
into place. Otherwise water would
enter the rinse aid reservoir during a
programme.
^Wipe up any spilled rinse aid. This
prevents over-foaming occurring
during the next programme.
Rinse aid indicator
When the light comes on the reservoir
contains sufficient rinse aid for 2 - 3
programmes only.
^Add rinse aid in plenty of time.
Before using for the first time
19

Setting the rinse aid dosage
You can adjust the rinse aid dosage for
best results.
The rinse aid dosage can be set from
approx. 0-6 ml. It is set to a
recommended setting of approx. 3 ml
at the factory.
If spots appear on crockery and
glassware:
^Increase the rinse aid dosage.
If clouding or smearing appears on
crockery and glassware:
^Decrease the rinse aid dosage.
^Switch the dishwasher off with the Off
button o.
^Press the programme selector button
in, and whilst holding it in switch
the dishwasher on using the On
button g.
Keep the programme selector button
pressed in for at least four seconds
until the lower right hand programme
indicator comes on.
If this does not happen, start the
procedure from the beginning again.
^Press the programme selector button
three times briefly.
The "Inlet/Drain" check light will flash
briefly three times at intervals.
The upper right hand programme
indicator will flash briefly three times at
intervals.
This means that approx. 3 ml of rinse
aid will be used per programme
(factory default setting).
The number of times the upper right
hand programme indicator flashes tells
you the rinse aid dosage which has
been set (see chart).
Rinse aid
in ml
Flashing
0-
1 Once
2 Twice
3 Three times
4 Four times
5 Five times
6 Six times
^Press the programme selector button
for at least one second until the
upper right hand programme
indicator comes on.
^Press the programme selector button
briefly to select the number of flashes
which equate to the rinse aid dosage
you want.
Each press on the button moves you
up a level.
The programmed rinse aid dosage is
now stored in memory.
^Switch the dishwasher off with the Off
button o.
Before using for the first time
20
