Miele G5930 User manual

Operating instructions
for dishwashers
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
as well as the installation plan before
it is installed and used for the
first time. M.-Nr. 09 191 170
en-GB

Guide to the appliance .............................................5
Appliance overview .................................................5
Control panel ......................................................6
Miele{home ......................................................7
Warning and safety instructions .....................................9
Caring for the environment.........................................14
Disposal of the packing material ......................................14
Disposal of your old appliance .......................................14
Energy saving washing .............................................15
Before using for the first time.......................................16
To open the door ..................................................16
To close the door ..................................................16
Safety lock .......................................................16
Display ..........................................................17
Basic settings ....................................................18
Water softener ....................................................21
Programming the water hardness level ..............................22
Before using the appliance for the first time, you require:...................23
Filling the salt reservoir .............................................23
Salt indicator .....................................................25
Rinse aid ........................................................26
Adding rinsing agent ...............................................26
"Rinse aid low" message ............................................27
Loading the dishwasher ...........................................28
Items not suitable for dishwashers: ....................................29
Upper basket .....................................................30
Hinged spikes..................................................30
Hinged cup rack ................................................30
Jumbo cup rack (depending on model)..............................31
Glass rail ......................................................31
Adjusting the upper basket .......................................32
Lower basket .....................................................33
Removable MultiComfort insert.....................................34
Glass rack.....................................................34
Glass rail ......................................................35
Hinged spikes..................................................35
Bottle holder ...................................................35
Contents
2

Cutlery ..........................................................36
3D cutlery tray (depending on model) ...............................36
Cutlery basket (depending on model) ...............................37
Operation .......................................................38
Detergent ........................................................38
Adding detergent..................................................39
Switching on .....................................................40
Selecting a programme .............................................40
Select an extra option(s) ............................................41
Starting the programme.............................................42
Display ..........................................................42
Standby .........................................................43
At the end of the programme.........................................43
Switching off .....................................................44
Unloading the dishwasher ...........................................44
Interrupting a programme ...........................................44
Changing a programme ............................................45
Additional functions ..............................................46
Delay start .......................................................46
BrilliantLight ......................................................48
DetergentAgent ...................................................48
Cleaning and care ................................................49
Cleaning the wash cabinet ..........................................49
Cleaning the door and the door seal ...................................49
Cleaning the door front .............................................49
Checking the filters in the wash cabinet ................................50
Cleaning the filters .................................................50
Cleaning the spray arms ............................................52
Problem solving guide ............................................53
Technical problems ................................................53
Water inlet/drain fault ...............................................55
General problems .................................................57
Noises ..........................................................59
Unsatisfactory washing result ........................................60
Maintenance .....................................................63
Cleaning the water inlet filter .........................................63
Cleaning the drain pump and non-return valve...........................64
Contents
3

Optional accessories..............................................65
Programme chart .................................................66
After sales service ................................................72
Repairs .......................................................72
Future updates .................................................72
For testing institutes................................................72
Electrical connection..............................................73
Plumbing........................................................74
The Miele waterproof anti-leak system .................................74
Connection to the water supply .......................................74
Drainage ........................................................76
Technical data ...................................................77
Settings menu !..................................................78
To open the Settings !menu .........................................78
Language !......................................................79
Time ...........................................................79
Water hardness level ...............................................80
Rinse aid ........................................................80
Sensor wash .....................................................80
AutoOpen........................................................80
Optimise standby..................................................81
Refill display......................................................81
Check filters ......................................................81
Change main menu ................................................82
Save extras ......................................................83
System lock ......................................................84
Temperature .....................................................85
Volume ..........................................................85
Brightness .......................................................86
Contrast .........................................................86
Memory .........................................................86
Showroom programme .............................................87
Factory default ....................................................87
To close the Settings !menu.........................................87
Contents
4

Appliance overview
aUpper spray arm (not visible)
bCutlery tray (depending on model)
cUpper basket
dMiddle spray arm
eAir inlet for drying
(depending on model)
fLower spray arm
gFilter combination
hData plate
iSafety lock in door grip (not visible)
jRinse aid reservoir
kDual compartment detergent
dispenser
lSalt reservoir
Guide to the appliance
5

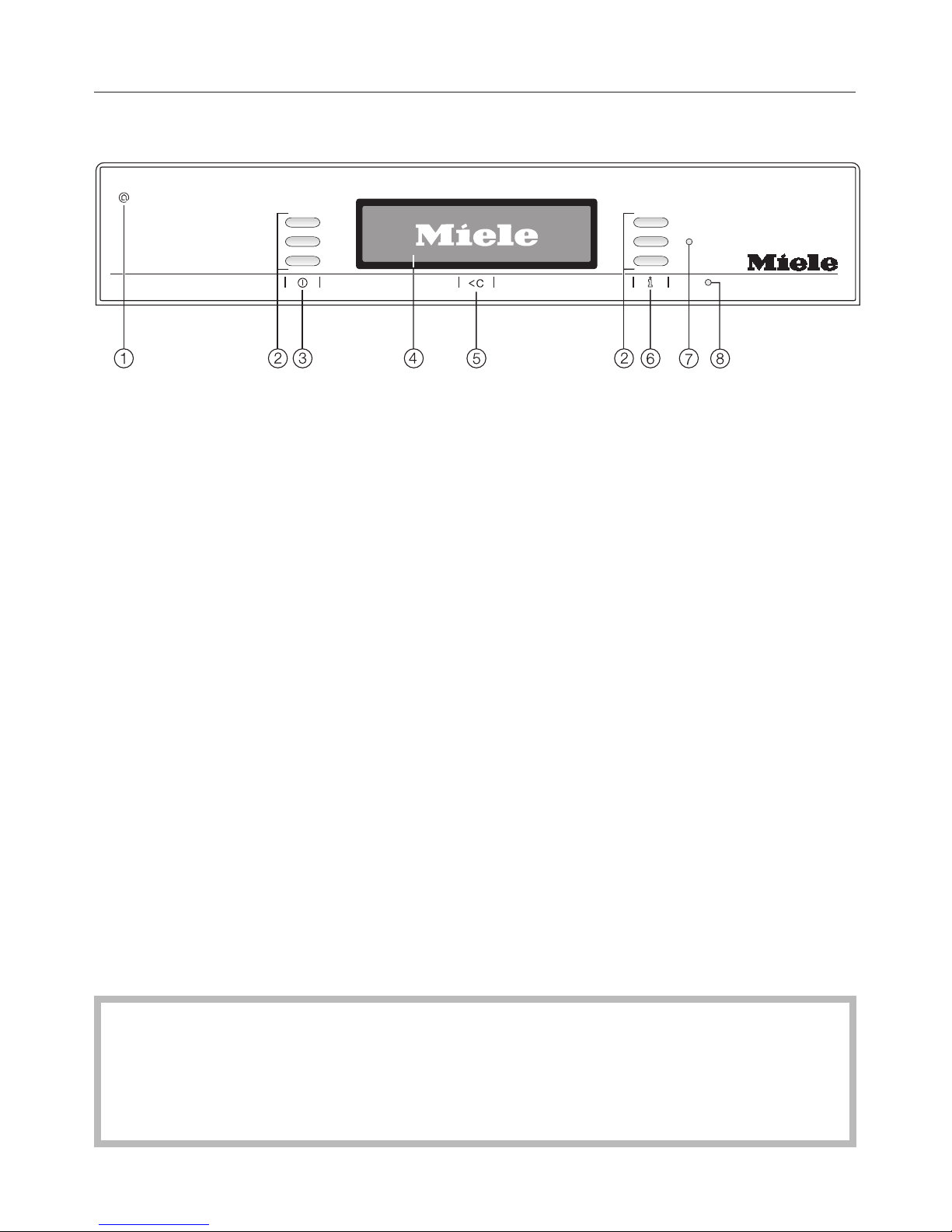

Control panel
aMiele<home
The appliance is compatible with the
Miele|home system.
bSelector sensors
For selecting the option displayed
next to them.
For altering the values displayed
(+/-).
For scrolling to other menus.
The selector sensors light up when
active.
cOn/Off sensor K
For switching the appliance on and
off.
dDisplay
See next page for more information.
eClear sensor U
For navigating back to the previous
menu or deleting values which have
been set previously.
fInformation sensor :
For displaying additional information
about the menu being displayed.
gStandby indicator light
When the dishwasher is switched on,
the indicator light flashes if the
display is switched off.
hService interface
Used by service technicians to run
diagnostic checks on your
appliance, or to update
programming data in the future.
This instruction book applies to several different dishwasher models.
The specific dishwasher models are referred to as follows:
Standard = 80.5 cm high dishwashers (integrated)
and 84.5 cm high dishwashers (freestanding)
XXL = 84.5 cm high dishwashers
Guide to the appliance
6

aCommunication enabled appliances
bCommunication module
cSuperVision master appliance
dPower supply
eMiele|home Gateway
f(WLAN) Router
Possible connections (optional)
gPC, Notebook
hiPod* or iPhone*
iConnection with a domestic bus
system display
jPossible internet connection
* iPod und iPhone are registered trade
marks of Apple Inc.
Miele{home
7

This appliance is communication
enabled and can be linked into the
Miele|home system via a
communication module b(optional
accessory).
Miele|home enabled appliances send
information via the household power
supply network dto the master
appliance c/eabout the operational
status of the appliances, as well as
information about the progress of the
programme.
Displaying information, controlling
appliances
– SuperVision master appliance c
The status of other communication
enabled appliances in the system
can be shown in the display of the
SuperVision master appliance.
– Mobile terminal appliances g/h
A PC, Notebook or an iPod* /
iPhone* can be used within the
operating radius of a WLAN fto
display status information about the
networked appliances and to carry
out some operational commands.
–Household network i
Miele|home enables smarter living.
With the Miele|home Gateway e
communication-enabled appliances
can be integrated into the domestic
bus system.
* iPod und iPhone are registered trade
marks of Apple Inc.
Smart Grid / SmartStart
Smart Grid enabled appliances can be
started automatically to take advantage
of cheaper electricity tariffs. Reduced
electricity tariffs can be stored in the
Miele|home Gateway e, which then
starts the appliance automatically at the
right time.
Optional accessories required
–Communication module XKM 2000
–Miele|home Gateway
Both of these are supplied with their
own installation and operating
instructions.
Further information
Further information about Miele|home,
SuperVision and future options can be
found on the Miele website and in the
operating instructions of the individual
Miele|home components, for example,
the Miele|home Gateway.
Miele{home
8

This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on its
safety, use and maintenance.
Keep these instructions in a safe
place and pass them on to any
future owner.
Correct application
~This dishwasher is not designed for
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:
– Shops
– Offices and showrooms
and by residents in establishments
such as
–Hostels and guest houses.
~This dishwasher is not intended for
outdoor use.
~It must only be used as a domestic
appliance as specified in these
operating instructions, for cleaning
domestic crockery and cutlery.
Any other usage is not supported by
the manufacturer and could be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation.
~This dishwasher is not intended for
use by people with reduced physical,
sensory or mental capabilities, or lack
of experience and knowledge, unless
they are supervised whilst using it, or
have been shown how to use it
correctly by a person responsible for
their safety.
Safety with children
~This appliance is not a toy! To avoid
the risk of injury, keep children well
away and do not allow them to play in
or around the dishwasher or to use the
controls. They will not understand the
potential dangers posed by it. They
should be supervised whenever you
are working in the kitchen. There is also
a danger that children playing might
shut themselves in the dishwasher.
~Older children may only use the
dishwasher when its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.
~Keep children away from
detergents. Dishwasher detergents
contain irritant and corrosive
ingredients which can cause burning in
the mouth, nose and throat if
swallowed, or inhibit breathing. Keep
children away from the dishwasher
when the door is open. There could still
be detergent residues in the cabinet.
Consult a doctor immediately if your
child has swallowed or inhaled
detergent.
Warning and safety instructions
9

Technical safety
~Before setting up the appliance,
check it for any externally visible
damage. Under no circumstances
should you use a damaged appliance.
It could be dangerous.
~The dishwasher must only be
plugged into the electricity supply via a
suitable switched socket. The electrical
socket must be easily accessible after
the dishwasher is installed so that it can
be disconnected from the electricity
supply at any time. (See "Electrical
connection").
~There must be no electrical sockets
behind the dishwasher. Danger of
overheating and fire risk if the
dishwasher were to be pushed up
against a plug.
~The dishwasher must not be
installed under a hob. The high radiant
temperatures which are sometimes
generated by a hob could damage the
dishwasher. For the same reason it
should not be installed next to open
fires or other appliances which give off
heat, such as heaters etc.
~Do not connect the dishwasher to
the mains supply until it has been fully
installed and any adjustment has been
made to the door springs.
~Before connecting the appliance,
check that the connection data on the
data plate (voltage, frequency and
connected load) match the mains
electricity supply. If in any doubt,
consult a qualified electrician.
~The electrical safety of this
appliance can only be guaranteed if
correctly earthed. It is most important
that this basic safety requirement is
observed and regularly tested and
where there is any doubt the electrical
system in the house should be checked
by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~Do not connect the appliance to the
mains electricity supply by a
multi-socket adapter or an extension
lead. These do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
Warning and safety instructions
10

~This appliance must not be used in
a non-stationary location (e.g. on a
ship).
~The plastic housing of the water
connection contains an electrical
component. The housing must not be
submerged in water.
~There are electrical wires in the
water inlet hose. Never cut the water
inlet hose, even if it is too long.
~The integrated Waterproof System
offers protection from water damage,
provided the following conditions are
met:
– The dishwasher is correctly installed
and plumbed in.
– The dishwasher is properly
maintained and parts are replaced
where it can be seen that this is
necessary.
– The stopcock has been turned off
when the appliance is not used for a
longer period of time (e.g. during
holidays).
The Waterproof system will work even if
the appliance is switched off. However,
the appliance must remain connected
to the electricity supply.
~A damaged appliance could be
dangerous. If the dishwasher gets
damaged, switch it off at the mains and
call your Miele Dealer or the Miele
Service Department.
~Unauthorised repairs could result in
unforeseen dangers for the user, for
which Miele cannot accept liability.
Repairs should only be undertaken by a
Miele approved service technician.
~Faulty components must only be
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
appliance be guaranteed.
~Always disconnect the dishwasher
from the electrical supply for
maintenance work (switch off at the wall
socket and remove the plug).
~If the connection cable is damaged
it must be replaced with a special
cable, available from Miele. For safety
reasons this must only be fitted by the
Miele Service Department or a Miele
authorised service technician.
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Warning and safety instructions
11

Installation
~The dishwasher must be installed
and connected in compliance with the
diagram supplied.
~The dishwasher must be correctly
aligned to ensure problem-free
operation.
~In order to ensure stability,
built-under and integrated dishwashers
must only be installed under a
continuous worktop which is secured to
adjacent cabinetry.
~If you want to convert your
freestanding dishwasher to a
built-under ("U") model, you will need to
order the appropriate conversion kit. If
you remove the existing plinth, you
must replace it with a U-model plinth.
This is necessary to avoid the risk of
injury caused by protruding metal
parts.
~The door springs must be adjusted
equally on both sides. They are
correctly adjusted when the door
remains stationary when left open at
45°. It is important that the door is held
in place by the springs and cannot fall
open.
Correct use
~Do not use solvents in the
dishwasher. Danger of explosion.
~Do not inhale or ingest dishwasher
detergent. Dishwasher detergents
contain irritant or corrosive ingredients
which can cause burning in the nose,
mouth and throat if swallowed, or inhibit
breathing. Consult a doctor immediate-
ly if detergent has been swallowed or
inhaled.
~Avoid leaving the door open
unnecessarily, as you could trip over it.
~Do not sit or lean on the opened
door. This could cause the dishwasher
to tip and be damaged, and you could
get injured.
~Only use detergent and rinse aid
formulated for domestic dishwashers.
Do not use washing-up liquid.
~Do not use commercial or industrial
detergents as these may cause
damage, and there is a risk of severe
chemical reaction.
~Do not fill the rinse aid reservoir with
powder or liquid detergent. This will
cause serious damage to the reservoir.
Warning and safety instructions
12

~Inadvertently filling the salt reservoir
with powder or liquid dishwasher
detergent will damage the water
softener. Make sure you have picked
up the correct packet of dishwasher
salt before filling the salt reservoir!
~Please only use special coarse
grained dishwasher salt for reactivation,
as other salts may contain insoluble
additives which can impair the
functioning of the softener.
~In an appliance with a cutlery basket
(depending on model) cutlery is
cleaned and dried more efficiently if
placed in the basket with the handles
downwards. However, to avoid the risk
of injury, place knives and forks etc.
with the handles upwards.
~Plastic items which cannot withstand
being washed in hot water, such as
disposable plastic containers, or plastic
cutlery and crockery should not be
cleaned in the dishwasher. The high
temperatures in the dishwasher may
cause them to melt or lose shape.
~On models with "Delay start", make
sure that the dispenser is dry before
adding detergent. Wipe dry if
necessary. Detergent will clog if poured
into a damp dispenser and may not be
thoroughly dispersed.
Accessories
~Only use genuine Miele original
spare parts and accessories with this
appliance. If spare parts or accessories
from other manufacturers are used, this
will invalidate the guarantee, and Miele
cannot accept liability.
Disposal of your old
dishwasher
~Make the door lock inoperative so
that children cannot accidentally shut
themselves in. Make appropriate
arrangements for the disposal of the
appliance.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and safety instructions
13

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
The packaging consists of the following
materials:
Outer packaging:
– Corrugated cardboard made from up
to 100% recyclable material:
or: Polyethylene (PE) shrink wrap
– Polyproplylene (PP) strapping
Inner packaging:
– Chlorine and fluorine free expanded
polystyrene (EPS)
–Base, lid frame and support battens
made from untreated natural wood
from renewable forests
–Polyethylene (PE) protective wrap
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection/recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
To enable sorting by type of plastic for
recycling, all plastic parts of the
appliance are labelled with international
standard symbols.
Caring for the environment
14

Energy saving washing
This dishwasher is exceptionally
economical in its use of water and
electricity. You can make the most of
your appliance by following these tips:
^For most economical dishwashing
make full use of the baskets without
overloading the dishwasher.
^Choose the programme to suit the
type of crockery being washed and
the degree of soiling.
^Select the Energy save programme
for energy-saving dishwashing.
^If your household water system is
suitable, this dishwasher can be
connected to a hot water supply.
Select Without heater when
washing lightly to normally soiled
dishes.
The water will not be heated in this
programme. However, because the
water is not heated, drying results
may not match those of other
programmes.
^Follow the detergent manufacturer's
recommendations on detergent
dosage.
^When using powder or liquid
detergent you can use 1/3less
detergent if baskets are only half full.
Caring for the environment
15

To open the door
At the end of programmes with a drying
phase (see "Programme chart"), the
door will open automatically a little in
order to help the drying process.
This function can be deactivated, if
preferred (see "Settings menu,
AutoOpen").
^Reach under the handle and pull the
door open.
If the door is opened during operation,
all functions are automatically
interrupted.
,Keep the area around the door
free of obstructions.
To close the door
^Push the baskets right in.
^Then raise the door up and push until
the catch engages.
The door will then close automatically.
,Do not put your hand inside the
door as it is closing. Danger of
injury.
Safety lock
Use the safety lock to prevent children
opening the dishwasher door.
^To lock the door, push the slide
underneath the handle to the right.
^To unlock the door, push the slide to
the left.
Before using for the first time
16

Display
The display is used to select the
following:
–the programme
–extras
–the delay start time
–the Settings menu !
– information
During a programme, the display
shows the following:
– the name of the programme
– the current time of day
– the stage the programme is at
– the estimated time left for the
programme to run
– any relevant fault messages and
notes
To save energy, the dishwasher
switches off after a few minutes if you
do not start a programme or touch
any sensors during this time (see
"Operation, Standby").
Touch the Ksensor to switch the
dishwasher back on again.
!
A dot in the display next to a selector
sensor indicates that a function can be
selected with that sensor. The relevant
sensor lights up.
n
The arrows on the right of the display
indicate that more options or more text
are available which can be displayed
by touching the relevant illuminated
selector sensor.
------
A dotted line will appear after the last
option available.
OK
The OK function is used to confirm a
message or setting, and also to move
to the next menu or to another level.
(
A tick will appear beside the option
which is currently selected.
The Settings menu !is used to alter
the dishwasher's electronics to suit
different requirements. See "Settings
menu" for more details.
Before using for the first time
17

Basic settings
Welcome screen
^Switch the dishwasher on using the Ksensor.
If the dishwasher is being switched on for the first time, the
welcome screen will appear after a few seconds.
Language
The display will then change automatically to the screen for
setting the language.
\
\
\
Language F[
[
[
$ceština
#dansk p
!deutsch OK !
^Select the language you want and confirm this with OK.
A tick (will appear next to the language that has been set.
Clock display
The display will then change to the screen for setting the
clock display.
\
\
Clock display
[
$12 h Clock
#24 h Clock (
OK !
^Select the clock display you require, and confirm this with
OK.
Before using for the first time
18

Time (of day)
The display will then change to the screen for setting the
time.
Time [
[
[
+$
10 :21 -#
OK !
^Set the hours with the +/- sensors and confirm with OK.
Then set and confirm the minutes, and confirm with OK.
Display
The display will then change to the screen for setting the
display for the time of day.
\
\
\
Time
[
$Do not display (
#On
!On for 60 seconds OK !
^Select the display you require for the time of day, and
confirm this with OK.
Water hardness
The display will then change to the screen for setting the
water hardness.
\
\
\
Wasserhärte 12:00 [
[
$15°d (
#16°d
!17°d m
Before using for the first time
19

–The dishwasher must be
programmed for the water hardness
in your area.
–Your local water authority will be able
to advise you of the water hardness
level in your area.
–Where the water hardness fluctuates,
e.g. between 6.7 - 9.0 mmol/l (27 -
30 °d - German scale), always
programme the dishwasher to the
higher value (9.0 mmol/l in this
example).
In the event of a fault, it will help the
service technician if you know the
hardness of your local water supply.
Enter the water hardness below:
mmol/l or °d
The dishwasher is programmed at the
factory for a water hardness level of
2.7 mmol/l (15 °d - German scale).
^Select the water hardness you want,
and confirm your selection with OK.
See "Programming the water
hardness level" for further
information.
These settings will be saved in memory
after the dishwasher has been through
one complete programme.
Finally, two messages will appear in the
display.
After confirming these, Rinse aid low
and Insufficient salt may then appear
in the display to remind you to fill the
salt and rinse aid reservoirs. See
relevant sections on how to do this.
After you have confirmed these
messages with OK, the display will
change to show the main menu.
Before using for the first time
20
