Miele KFN 12823 SD ed User manual

Operating and installation instructions
Frost free fridge freezer
To avoid the risk of accidents or damage to the appliance it is
essential to read these instructions before it is installed
and used for the first time.
M.-Nr. 09 435 380en-GB

Guide to the appliance .............................................4
Caring for the environment..........................................6
Warning and Safety instructions .....................................7
How to save energy ...............................................16
Switching on and off ..............................................18
To switch the refrigerator section off separately........................19
Switching off for longer periods of time .................................19
The correct temperature ...........................................20
...intherefrigerator section.........................................20
...inthefreezer section ............................................20
Setting the temperature .............................................20
Temperature display ...............................................21
Temperature range ..............................................21
Alarm...........................................................23
Temperature alarm ................................................23
Door alarm .......................................................23
Super freeze and Dynamic cooling ..................................24
Super freeze .....................................................24
Dynamic cooling m...............................................25
Storing food in the refrigerator......................................26
Different storage zones .............................................26
Food which is not suitable for storing in the refrigerator ....................27
When shopping for food ............................................28
Storing food correctly ..............................................28
Fruit and vegetables .............................................28
Protein rich foods ...............................................28
Adjusting the interior fittings .......................................29
Moving the shelves ................................................29
Split shelf ........................................................29
Adjusting the door shelf/bottle shelf ...................................29
Freezing and storing food..........................................30
Maximum freezing capacity..........................................30
Freezing fresh food ................................................30
Storing frozen food ................................................30
Contents
2

Home freezing ....................................................31
Hints on home freezing...........................................31
Packing .......................................................31
Before placing food in the freezer ..................................32
Placing food in the freezer ........................................32
Defrosting .......................................................33
Ice cubes ........................................................33
Cooling drinks ....................................................33
Automatic defrost ................................................34
Cleaning and care ................................................35
Cleaning the interior and accessories ..................................35
Appliance doors, side panels ........................................36
Ventilation gaps ...................................................37
Door seals .......................................................37
Problem solving guide ............................................38
Noises .........................................................41
After Sales / Guarantee ............................................42
Guarantee .....................................................42
Note for test institutes.............................................43
Electrical connection..............................................44
Installation ......................................................45
Location .........................................................45
Climate range ..................................................45
Ventilation .......................................................46
Appliances with wall spacers supplied .................................46
Installation .......................................................46
Aligning the appliance..............................................46
Levelling the appliance door .........................................47
Appliance dimensions ..............................................48
Changing the door hinging .........................................49
Aligning the appliance doors .......................................55
Building in the appliance ..........................................56
Addresses.......................................................59
Contents
3

aOn button for the whole appliance
and On/Off button for independently
switching the refrigerator section on
and off
bDynamic cooling button and
indicator light
cRefrigerator section temperature
selector button
dRefrigerator section temperature
display
eFreezer section temperature display
fFreezer section temperature selector
button
gSuper freeze button and indicator
light
hAlarm off button and indicator light
iMaster switch for switching
the whole appliance on and off
Guide to the appliance
4

aDynamic cooling fan
bButter and cheese compartment
cInterior lighting
dAdjustable shelves
eEgg tray
fDoor shelves
gBottle rack
hCondensate channel and
drain hole
iFruit and vegetable containers
jBottle shelf
kFreezer drawers
Guide to the appliance
5

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
Caring for the environment
6

This appliance complies with all statutory safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before installation and
before using it for the first time. They contain important
information on its safety, installation, use and maintenance.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Correct application
~The appliance is intended for use in domestic households and
similar working and residential environments. It is not intended for
outdoor use.
~This appliance is intended for domestic use only for cooling and
storing food and drink as well as for storing deep frozen food,
freezing fresh food and for making ice.
Any other usage is not supported by the manufacturer and could be
dangerous.
Warning and Safety instructions
7

~The appliance is not suitable for storing and keeping cool
medicines, blood plasma, laboratory preparations or other such
materials or products. Incorrect use of the appliance for such
purposes can cause deterioration of the items stored. The appliance
is not suitable for use in areas where there is a risk of explosion.
Miele cannot be held liable for damage resulting from incorrect or
improper use or operation.
~The appliance can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Safety with children
~Children under 8 years of age must be kept away from the
appliance unless they are constantly supervised.
~Children 8 years and older may only use the appliance
unsupervised if they have been shown how to use it in a safe way
and recognise and understand the consequences of incorrect
operation.
~Children must not be allowed to clean or maintain the appliance
unsupervised.
~Please supervise children in the vicinity of the appliance and do
not let them play with it.
~Danger of suffocation. Packaging, e.g. plastic wrappings, must
be kept out of the reach of babies and children. Whilst playing,
children could become entangled in packaging or pull it over their
head and suffocate.
Warning and Safety instructions
8

Technical safety
~The coolant system is tested for leaks. The appliance complies
with statutory safety requirements and the appropriate EU
guidelines.
~This appliance contains the coolant Isobutane (R600a), a natural
gas which is environmentally friendly. Although it is flammable, it
does not damage the ozone layer and does not increase the
greenhouse effect.
The use of this coolant has, however, led to a slight increase in the
noise level of the appliance. In addition to the noise of the
compressor, you might be able to hear the coolant flowing around
the system. This is unavoidable, and does not have any adverse
effect on the performance of the appliance.
Care must be taken during the transportation and installation of the
appliance that no parts of the cooling system are damaged.
Splashes of coolant can injure the eyes.
In the event of any damage:
–avoid open flames or anything which creates a spark,
–disconnect the appliance from the electricity supply,
–ventilate the room where the appliance is located for several
minutes, and
–call the Service department.
Warning and Safety instructions
9

~The more coolant there is in an appliance, the larger the room it
should be installed in. In the event of a leakage, if the appliance is in
a small room, there is the danger of combustible gases building up.
For every8gofcoolant at least 1 m3of room space is required. The
amount of coolant in the appliance is stated on the data plate inside
the appliance.
~To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data
plate corresponds to the household supply.
Check that this is the case before connecting the appliance. Consult
a qualified electrician if in any doubt.
~The electrical safety of this appliance can only be guaranteed
when it is correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt, please have the electrical
installation tested by a qualified electrician.
~If the electrical connection cable is faulty it must only be replaced
by a Miele approved service technician to protect the user from
danger.
~Do not connect the appliance to the mains electrical supply by a
multi-socket adapter or an extension lead. These are a fire hazard
and do not guarantee the required safety of the appliance.
~Do not use in a damp or wet environment (e.g. garage or utility
room). Moisture could reach live components or the electrical
connection and cause a short circuit.
Warning and Safety instructions
10

~This appliance must not be used in a non-stationary location (e.g.
on a ship).
~In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings clean at all times. Any damage caused by
cockroaches or other vermin will not be covered by the guarantee.
~Do not use a damaged appliance. It could be dangerous. Check
the appliance for visible signs of damage.
~The appliance must be disconnected from the mains electricity
supply during installation, maintenance and repair work. Ensure that
power is not supplied to the appliance until after it has been
installed or until after any maintenance or repair work has been
carried out.
~Unauthorised installation, maintenance and repairs can cause
considerable danger to users. Installation, maintenance and repair
work must only be carried out by a Miele authorised technician.
~While the appliance is under guarantee, repairs should only be
undertaken by a Miele authorised service technician. Otherwise the
guarantee is invalidated.
~The manufacturer can only guarantee the safety of the appliance
when original Miele replacement parts are used. Faulty components
must only be replaced by genuine Miele original spare parts.
Warning and Safety instructions
11

Correct use
~The appliance is designed for use within certain climate ranges
(ambient temperatures), and should not be used outside this range.
The climate range of the appliance is stated on the data plate inside
the appliance. Installing it in a room with too low an ambient
temperature, e.g. in a garage, will lead to the appliance switching off
for longer periods so that it cannot maintain the required
temperature.
~Do not cover or block the air vents as this could impair the
efficiency of the appliance, increase the electricity consumption and
could cause damage to the components.
~If storing food which contains a lot of fat or oil in the appliance or
the door, make sure that it does not come into contact with plastic
components as this could cause stress cracks or break the plastic.
~Do not store explosive materials in the appliance or any products
containing propellants (e.g. spray cans). Electrical components
could cause flammable vapours to ignite. Danger of fire and
explosion.
~Do not operate any electrical equipment (e.g. an electric
ice-cream maker) inside the appliance. Danger of sparking and
explosion.
~Do not store cans or bottles containing carbonated drinks or
liquids which could freeze in the freezer section. The cans or bottles
could explode. Danger of injury and damage.
Warning and Safety instructions
12

~When cooling drinks quickly in the freezer, make sure bottles are
not left in for more than one hour; otherwise they could burst,
causing injury or damage.
~Never handle frozen food or the metal parts of the appliance with
wet hands. Your hands may freeze to the frozen food or metal parts.
Danger of frost burn.
~Do not take ice cubes out with your bare hands and never place
ice cubes or ice lollies in your mouth straight from the freezer. The
very low temperature of the frozen ice or lollies can cause frostburn
to the lips or tongue.
~Do not refreeze partially or fully defrosted food. Consume
defrosted food as soon as possible, as it will lose its nutritional value
and spoil if left for too long. Defrosted food may only be re-frozen
after it has been cooked.
~Observe the manufacturer's "use-by" dates and storage
instructions given on food to avoid the risk of food poisoning.
Storage times will depend on several factors, including the
freshness and quality of the food as well as the temperature at which
it is stored. Follow the instructions given on the food manufacturer's
packaging regarding storage conditions and "use-by" dates.
~Only use genuine original Miele accessories with this appliance.
Using spare parts or accessories from other manufacturers will
invalidate the guarantee, and Miele cannot accept liability.
Warning and Safety instructions
13

Stainless steel appliances
~Do not use sticky notes, transparent adhesive tape, masking tape
or other types of adhesive on the surface of the door. These
damage the surface, causing it to lose its dirt-repellent protective
coating.
~The high-quality surface of the door is susceptible to scratching.
Even fridge magnets can cause scratching.
Cleaning and care
~Do not use any oils or grease on the door seals, as these will
cause the seals to deteriorate and become porous with time.
~Do not use a steam cleaning appliance to defrost or clean this
appliance. Steam could reach electrical components and cause a
short circuit.
~Do not use sharp edged objects to
– remove frost and ice,
– lift food.
They will damage the evaporator, causing irreversible damage to
the appliance.
~Never place electric heaters or candles in the appliance to
defrost it. These can damage the plastic parts.
~Do not use defrosting sprays or de-icers, as they could contain
substances which could damage the plastic parts and which may
cause the build up of gases and pose a danger to health.
Warning and Safety instructions
14

Transporting the appliance
~Always transport the appliance in an upright position and in its
original transport packaging to prevent damage in transit.
~Danger of injury and damage. The appliance is heavy and must
be transported by two people.
Disposal of your old appliance
~Before disposing of an old appliance, first make the door latch or
lock unusable.
This way you will prevent children from accidentally locking
themselves in and endangering their lives.
~Be careful not to damage any part of the pipework whilst awaiting
disposal, e.g. by
– puncturing the refrigerant channels in the evaporator,
– bending any pipework,
– scratching the surface coating.
Splashes of coolant can damage the eyes.
Warning and Safety instructions
15

Normal energy
consumption
Increased energy
consumption
Installation site In a ventilated room. In an enclosed, unventilated
room.
Protected from direct
sunlight.
In direct sunlight.
Not near to a heat source
(radiator, oven).
Near to a heat source
(radiator, oven).
Where the ideal ambient room
temperature is approx. 20 °C.
Where there is a high
ambient room temperature.
Ventilation gaps uncovered
and dusted regularly.
Ventilation gaps covered or
dusty.
Compressor and metal grille
(heat exchanger) dusted at
least once a year.
Dust build-up on the
compressor and metal grille
(heat exchanger).
Temperature
setting
Refrigerator section 4 to 5 °C
Freezer section -18 °C
With a higher setting: the
lower the temperature, the
higher the energy
consumption.
How to save energy
16

Normal energy consumption Increased energy
consumption
Use Drawers, shelves and racks
arranged as they were when
the appliance was delivered.
Only open the doors when
necessary and for as short a
time as possible.
Store food in an organised
way.
Frequent opening of the door
for long periods will cause a
loss of coldness. The
appliance works harder to
cool down and the
compressor runs for longer
periods.
Take an insulated cool bag
with you when shopping and
place food in the appliance as
soon as possible.
Replace any food removed
rapidly, before it begins to
thaw.
Allow hot food and drinks to
cool down before placing
them in the appliance.
Hot food or food at room
temperature raises the
temperature inside the
appliance. The appliance
works harder to cool down
and the compressor runs for
longer periods.
Store food covered or
packaged.
The evaporation or
condensation of liquids will
cause a loss of coldness in the
refrigerator.
Place frozen food in the
refrigerator to defrost.
Do not over-fill the appliance
to allow air to circulate.
How to save energy
17

Before using for the first time
Packing material
^Remove all the packing material from
the interior of the appliance.
Protective foil
The stainless steel trim to the interior
shelves has a layer of protective foil to
prevent damage during transporation.
On stainless steel appliances, the
stainless steel door (and sides,
depending on model) will also have a
layer of protective foil.
^Do not remove this foil until the
appliance has been positioned in its
final location.
Cleaning
Please observe the relevant
instructions in "Cleaning and care".
^Clean the inside of the appliance and
the accessories with lukewarm water
and then dry with a soft cloth.
Switching on
The refrigerator and freezer sections are
switched on together by pressing the
master switch on the right hand side of
the control panel, or by pressing the On
button on the left hand side of the
control panel.
^Press the master switch on the right
hand side of the control panel.
The temperature display for the
refrigerator section will show the
selected temperature setting. The
temperature display for the freezer
section and the alarm indicator light will
flash until the freezer section has
cooled down to the correct temperature
for freezing.
The appliance will start cooling down
and the interior light in the refrigerator
section will come on if you open the
door.
To enable the temperature to get
sufficiently cold inside the
appliance, allow the appliance to
run for a few hours before placing
food in it.
Do not place food in the freezer
section until the temperature is at
least -18 °C.
Switching on and off
18

Switching off
^Press the master switch on the right
hand side of the control panel until
both temperature displays go out.
The interior lighting will not come on
when you open the door and the
cooling process will be switched off.
To switch the refrigerator section off
separately
The refrigerator section can be
switched off without having to switch off
the freezer section. This is useful e.g.
whilst on holiday.

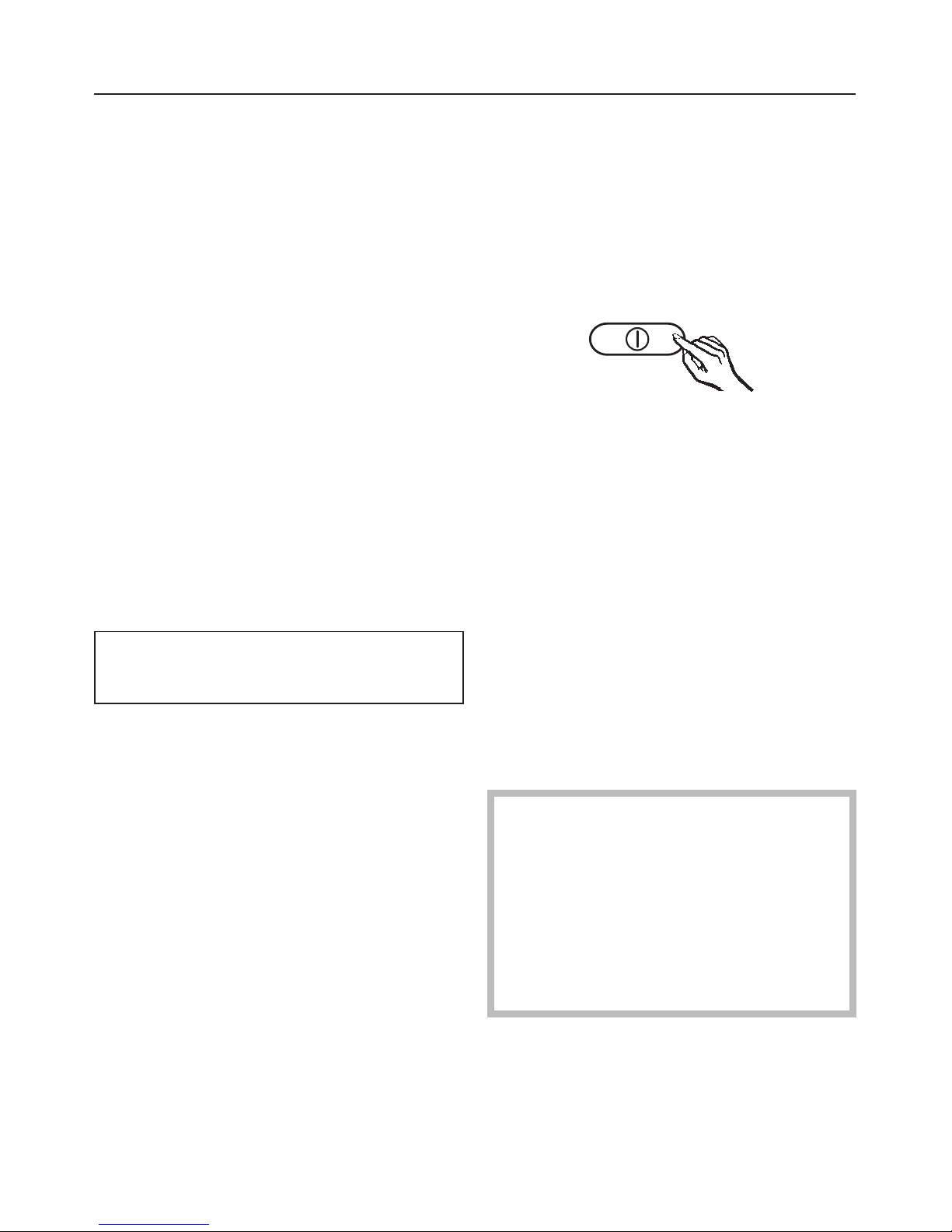

^Press the On/Off button for the
refrigerator section on the left hand
side of the control panel until the
temperature display for the
refrigerator section goes out.
The interior light will not come on when
you open the door and the refrigerator
section is switched off.
The temperature display for the freezer
section will remain lit up.
To switch the refrigerator section on
again
^Press the On/Off button on the left
hand side of the control panel again.
The refrigerator section temperature
display will light up. The refrigerator
section will start cooling. The interior
light will come on when the door is
opened.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday:
^switch the appliance off,
^disconnect it from the mains,
^clean the appliance out and
^leave the doors ajar to air it.
If, during a long absence, the
appliance is switched off but not
cleaned out and the doors are left
shut, there is a danger of mould and
odours building up inside the
appliance.
Switching on and off
19

It is very important to set the correct
temperature for storing food in the
appliance. Micro-organisms will cause
food which is not stored at the correct
temperature to deteriorate rapidly.
Temperature influences the growth rate
of these micro-organisms. Reducing
the temperature reduces their growth
rate.
The temperature in the appliance will
rise:
–the more often the door is opened
and the longer it is kept open,
– the more food that is placed in it,
– the warmer the food is which is being
put into it,
– the higher the ambient temperature
surrounding the appliance.
The appliance is designed for use in
specific ambient temperatures
(climate ranges). Do not use in
ambient temperatures for which it is
not designed.
...intherefrigerator section
We recommend a temperature of 5°C
in the middle of the refrigerator.
...inthefreezer section
To freeze fresh food and to store frozen
food for a long time, a temperature of
-18 °C is required. At this temperature
the growth of micro-organisms is
generally halted. As soon as the
temperature rises above -10 °C, the
micro-organisms become active in the
food again so that it cannot be kept as
long. For this reason, partially defrosted
or defrosted food must not be re-frozen.
Food may be re-frozen once it has
been cooked, as the high temperatures
achieved when cooking destroy most
micro-organisms.
Setting the temperature
The temperature is set in each zone by
using the respective temperature
button.
^Press the temperature button
repeatedly until the indicator light for
the temperature you want lights up in
the display.
The first time you press the button the
indicator light for the last temperature
you set will flash in the display.
Thereafter the temperature value will
change each time you press the button
until the highest setting is reached. It
will then go back to the lowest setting
again.
The correct temperature
20
