Miele KM 6364 User manual

Operating and installation instructions
Ceramic hobs with induction
To avoid the risk of accidents or damage to the appliance it is essential
to read these instructions before it is installed and used for the first time.
M.-Nr. 09 681 620en-GB

Warning and Safety instructions .....................................4
Caring for the environment.........................................13

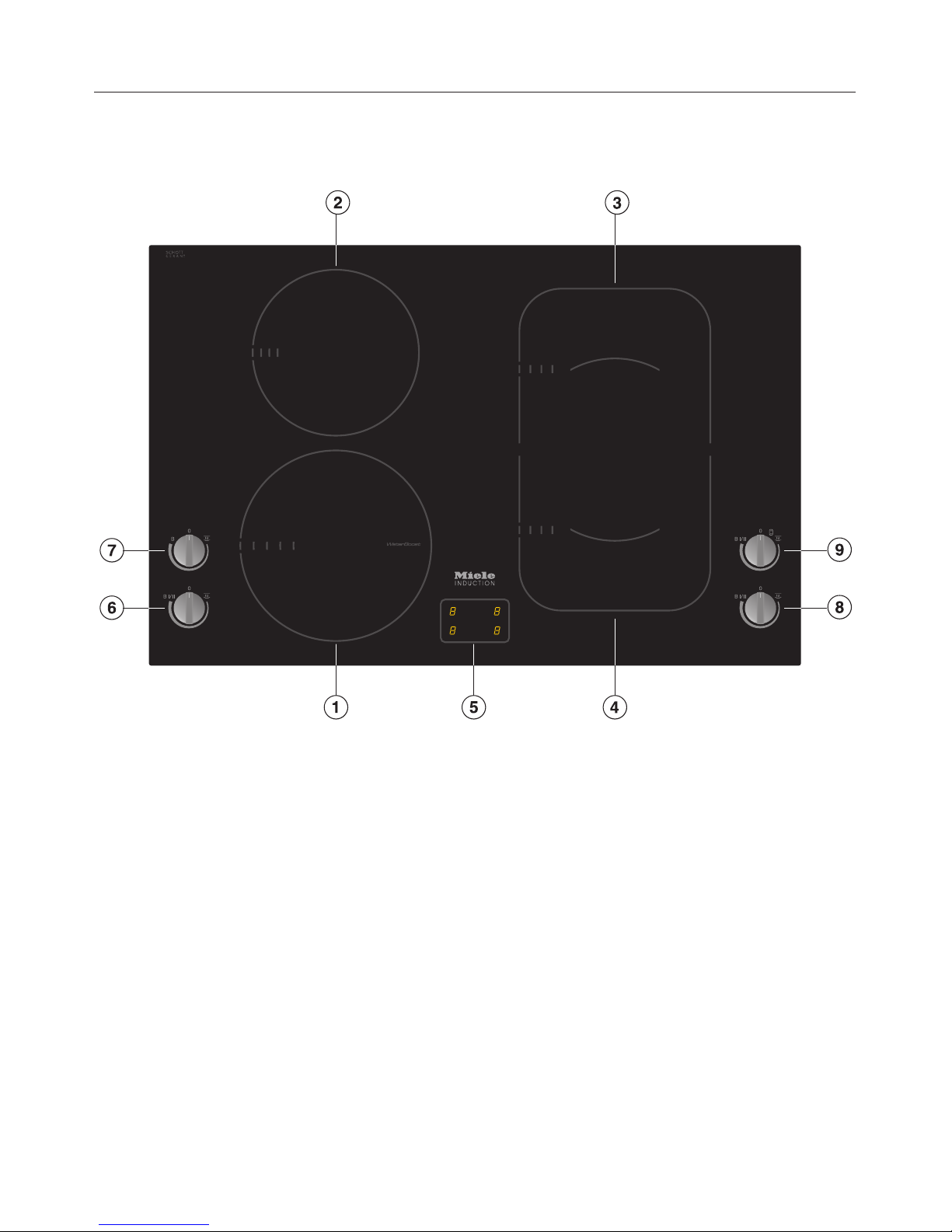

Description of the appliance........................................14
Model ...........................................................14
KM 6325 ......................................................14
KM 6362 / KM 6363 / KM 6364.....................................15
Symbols .........................................................16
Display ..........................................................16
Cooking zones ....................................................17
Before using for the first time.......................................19
Cleaning for the first time............................................19
Before using for the first time.........................................19
Induction........................................................20
The induction principle .............................................20
Noises ..........................................................21
Pans ............................................................22
Power level range ................................................23
Operation .......................................................24
Hob cooking zone controls ..........................................24
Switching on .....................................................24
PowerFlex cooking area ............................................24
Auto heat-up .....................................................26
Booster..........................................................28
Keeping warm function .............................................30
Switching off .....................................................31
Residual heat indicators ..........................................31
Tips on saving energy ............................................32
Contents
2

Safety features ...................................................33
System lock ......................................................33
Safety switch-off...................................................34
Overheating protection .............................................35
Cleaning and care ................................................36
Problem solving guide ............................................39
Optional accessories..............................................42
Safety instructions for installation...................................43
Safety distances..................................................44
Hob with frame or bevelled edge ....................................48
Installation notes ..................................................48
Building-in dimensions .............................................49
KM 6325 ......................................................49
KM 6362 ......................................................50
KM 6363 ......................................................51
Installing the hob ..................................................52
Flush-fitted hobs .................................................53
Building-in dimensions .............................................53
KM 6364 ......................................................53
Installing the hob ..................................................54
Electrical connection..............................................57
Wiring diagram ...................................................58
After sales service, data plate ......................................59
Contents
3

This hob complies with all relevant safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before installation and
before using it for the first time. They contain important notes on
installation, safety, use and maintenance.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Warning and Safety instructions
4

Correct application
~This hob is not designed for commercial use. It is intended for
use in domestic households and similar working and residential
environments.
~The appliance is not intended for outdoor use.
~It is intended for domestic use only to cook food and keep it
warm. Any other use is not supported by the manufacturer and
could be dangerous.
~The appliance can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Warning and Safety instructions
5

Safety with children
~Children under 8 years of age must be kept away from the
appliance unless they are constantly supervised.
~Children 8 years and older may only use the appliance
unsupervised if they have been shown how to use it in a safe way
and can recognise and understand the consequences of incorrect
operation.
~Children must not be allowed to clean the appliance
unsupervised.
~This appliance is not a toy! To prevent the risk of injury, do not
allow children to play with the appliance or its controls.
~The appliance gets hot when in use and remains hot for a while
after being switched off. Keep children well away from the appliance
until it has cooled down and there is no danger of burning.
~Danger of suffocation. Packaging, e.g. plastic wrappings, must
be kept out of the reach of babies and children. Whilst playing,
children could become entangled in packaging or pull it over their
head and suffocate.
~Danger of burning.
Do not store anything which might arouse a child's interest in
storage areas above or behind the appliance. Otherwise they could
be tempted into climbing onto the appliance.
~Danger of burning or scalding.
Place pots and pans on the cooking zone in such a way that
children cannot pull them down and burn themselves.
~Activate the system lock to ensure that children cannot switch on
the appliance inadvertently.
Warning and Safety instructions
6

Technical safety
~Unauthorised installation, maintenance and repairs can cause
considerable danger to users. Installation, maintenance and repair
work must only be carried out by a Miele authorised technician.
~A damaged appliance can be dangerous. Check the appliance
for visible signs of damage. Do not use a damaged appliance.
~The electrical safety of this appliance can only be guaranteed if
correctly earthed. It is most important that this basic safety
requirement is observed and regularly tested, and where there is
any doubt, the installation should be inspected by a qualified
electrician.
~To avoid the risk of damage to the appliance, make sure that the
connection data (frequency and voltage) on the data plate
corresponds to the household supply, before connecting the
appliance to the mains supply.
Consult a qualified electrician if in any doubt.
~Do not connect the appliance to the mains electrical supply by an
extension lead. These are a fire hazard and do not guarantee the
required safety of the appliance.
~For safety reasons, this appliance may only be used after it has
been built in.
~This appliance must not be used in a non-stationary location (e.g.
on a ship).
~Do not open the casing of the appliance.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Warning and Safety instructions
7

~While the appliance is under guarantee, repairs should only be
undertaken by a service technician authorised by Miele. Otherwise
the guarantee is invalidated.
~The manufacturer can only guarantee the safety of the appliance
when original Miele spare parts are used. Faulty components must
only be replaced by genuine Miele original spare parts.
~The hob is not intended for use with an external timer switch or a
remote control system.
~The hob must be connected to the electrical supply by a qualified
electrician. If the connection cable is faulty, it must be replaced with
a special connection cable installed by a qualified electrician. See
"Electrical connection".
~The appliance must be disconnected from the mains electricity
supply during installation, maintenance and repair work. Ensure that
power is not supplied to the appliance until after it has been
installed or until any maintenance or repair work has been carried
out.
~Danger of electric shock.
Do not use the hob if it is faulty, or if the ceramic surface is cracked,
chipped or damaged in any way. Switch it off immediately, and
disconnect it from the mains electricity supply.
~In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the guarantee.
Warning and Safety instructions
8

Correct use
~Oil and fat can overheat and catch fire. Do not leave the
appliance unattended when cooking with oil or fat.
If oil or fat does catch fire, do not attempt to put out the flames with
water. Disconnect the appliance from the mains and use a suitable
fire blanket, saucepan lid, damp towel or similar to smother the
flames.
~Flames could set the grease filters of a cooker hood on fire. Do
not flambé under a cooker hood.
~Spray canisters, aerosols and other inflammable substances can
ignite when heated. Therefore do not store such items or substances
in a drawer under the appliance. Cutlery inserts must be
heat-resistant.
~Do not heat an empty pan.
~Do not heat up unopened tins of food on the hob, as pressure will
build up in the tin, causing it to explode.
~Do not cover the hob, e.g. with a hob cover, a cloth or protective
foil. The material could catch fire, shatter or melt if the appliance is
switched on by mistake or if residual heat is still present.
~When using an electrical appliance, e.g. a hand-held food
blender, near the appliance, ensure that the cable of the electrical
appliance cannot come into contact with the hot appliance. The
insulation on the cable could become damaged.
Warning and Safety instructions
9

~If the appliance is installed behind a kitchen furniture door, it may
only be used with the furniture door open. Do not close the door
whilst the hob in use or whilst there is any residual heat present.
~The appliance gets hot when in use and remains hot for a while
after being switched off. There is a danger of burning until the
residual heat indicators go out.
~You could burn yourself on the hot hob. Protect your hands with
heat-resistant pot holders or gloves when handling hot pots and
pans. Do not let them get wet or damp, as this causes heat to
transfer through the material more quickly with the risk of scalding or
burning yourself.
~When the appliance is switched on either deliberately or by
mistake, or when there is residual heat present, there is the risk of
any metal items left on the hob heating up, with the danger of
burning.
Depending on the material, other items left on the hob could also
melt or catch fire.
Damp pan lids might adhere to the ceramic surface and be difficult
to dislodge.
Do not use the appliance as a resting place.
Switch the cooking zones off after use.
~Do not allow solid or liquid sugar, or pieces of plastic or
aluminium foil to get onto the cooking zones when they are hot, as
they can damage the ceramic surface when it cools down. If this
should occur, switch off the appliance and scrape off all the sugar,
plastic or aluminium residues whilst still hot, using a shielded
scraper blade. Wear oven gloves.
Allow the cooking zones to cool down and then clean them with a
suitable ceramic hob cleaning agent.
~Pans which boil dry can cause damage to the ceramic glass. Do
not leave the appliance unattended whilst it is being used.
Warning and Safety instructions
10

~Do not use pots or pans on the hob with bases with pronounced
edges or ridges. These could scratch or scour the ceramic glass
surface permanently. Only use pots and pans with smooth bases.
~Lift pans into position on the hob. Sliding them into place can
cause scuffs and scratches.
~Grains of salt, sugar and sand (e.g. from cleaning vegetables)
can cause scratches if they get under pan bases. Make sure that
the ceramic surface is clean before placing pans on it.
~Even a light object could cause damage in certain
circumstances. Do not drop anything on the ceramic surface.
~Do not place hot items or pans on the display as this could cause
damage to the electronics underneath. Do not place hot pans on the
area around the display.
~Induction heating works extremely quickly and so the base of the
pan could heat up to the temperature at which oil or fat self-ignites
within a very short time. Do not leave the appliance unattended
whilst it is being used.
~Heat oil or fat for a maximum of one minute. Do not use the
Booster function to heat oil or fat.
~For people fitted with a heart pacemaker:
Please note that the area immediately surrounding the hob is
electromagnetically charged. It is unlikely to affect a pacemaker.
However, if in any doubt, consult the manufacturer of the pacemaker
or your doctor.
~To prevent damage to items which are susceptible to magnetic
fields, e.g. credit cards, digital storage devices, pocket calculators,
etc, do not leave them in the immediate vicinity of the hob.
Warning and Safety instructions
11

~Metal utensils stored in a drawer under the hob can become hot if
the appliance is used intensively for a long time. Do not store any
metal items or utensils in a drawer under the hob
~This hob is fitted with a cooling fan. If a drawer is fitted directly
underneath the hob, ensure that there is sufficient space between
the drawer and its contents and the underside of the appliance in
order to ensure sufficient ventilation of the hob.
Do not store pointed or small items or paper in the drawer. They
could get in through the ventilation slots or be sucked into the
housing by the fan and damage the fan or impair cooling.
~Do not use two pans on a cooking zone, extended zone or
PowerFlex zone at the same time.
Cleaning and care
~Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
~If the hob is built in over a pyrolitic oven or cooker, the hob
should not be used whilst the pyrolitic process is being carried out,
as this could trigger the overheating protection mechanism on the
hob (see relevant section).
Warning and Safety instructions
12

Disposal of the packing
material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain materials which, if handled
or disposed of incorrectly, could be
potentially hazardous to human health
and to the environment. They are,
however, essential for the correct
functioning of your appliance. Please
do not therefore dispose of it with your
household waste.
Please dispose of it at your local
community waste collection/recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Caring for the environment
13

Model
KM 6325
aPowerFlex cooking zone with
TwinBooster
bPowerFlex cooking zone with
TwinBooster
a+bcan be combined to form a
PowerFlex cooking area
cCooking zone with Booster
dCooking zone with Booster
eCooking zone displays
Cooking zone controls:
fFront left
gRear left
hFront right
iRear right
Description of the appliance
14

KM 6362 / KM 6363 / KM 6364
aCooking zone with WaterBoost
bCooking zone with Booster
cPowerFlex cooking zone with
TwinBooster
dPowerFlex cooking zone with
TwinBooster
c+dcan be combined to form a
PowerFlex cooking area
eCooking zone displays
Cooking zone controls:
fFront left
gRear left
hFront right
iRear right
Description of the appliance
15

Symbols
0Cooking zone off
yFor activating the PowerFlex cooking zone
2Keeping warm function
BLevel 1 Booster
B I/II TwinBooster/WaterBoost with 2 levels
yPosition of cooking zone, e.g. front left
Display
Cooking zone displays
0= Cooking zone ready for use
^= Keeping warm function
1to 9= Power levels
A= Auto heat-up
f= Level 1 TwinBooster/WaterBoost
h= Booster/Level 2 TwinBooster/WaterBoost
œ= PowerFlex cooking area activated
ß= No pan on cooking zone or pan unsuitable
(see "Induction")
#= Residual heat
LC = System lock activated
Description of the appliance
16

Cooking zones
Cooking
zone
KM 6325
Minimum to maximum
Cin cm*
Rating in watts for 230 V**
y15–23 Normal
TwinBooster level 1
TwinBooster level 2
2100
3000
3650
w15–23 Normal
TwinBooster level 1
TwinBooster level 2
2100
3000
3650
x14–20 Normal
Booster
1850
3000
z10–16 Normal
Booster
1400
2200
y+w22–23 /
15x23–23x39
Normal
TwinBooster level 1
TwinBooster level 2
3400
4800
7300
Total: 7300
* Pans of any base diameter within the given range may be used.
** The wattage quoted may vary depending on the size and material of the pans
used.
Description of the appliance
17

Cooking
zone
KM 6362 / KM 6363 / KM 6364
Minimum to maximum
Cin cm*
Rating in watts for 230 V**
y10–23 Normal
WaterBoost level 1
WaterBoost level 2
2300
3200
5000
w14–20 Normal
Booster
1850
3000
x15–23 Normal
TwinBooster level 1
TwinBooster level 2
2100
3000
3650
z15–23 Normal
TwinBooster level 1
TwinBooster level 2
2100
3000
3650
x+z22–23 /
15x23 – 23 x 39
Normal
TwinBooster level 1
TwinBooster level 2
3400
4800
7300
Total: 7300
* Pans of any base diameter within the given range may be used.
** The wattage quoted may vary depending on the size and material of the pans
used.
Description of the appliance
18

Please stick the extra data plate for the appliance supplied
with this documentation in the space provided in the "After
sales service, data plate, guarantee" section of this booklet.
Cleaning for the first time
^Remove any protective wrapping and adhesive labels.
^Before using for the first time, clean the appliance with a
damp cloth only and then wipe dry.
Before using for the first time
On hobs with bevelled glass edges, a small gap may be
visible between the hob and the worktop during the first
few days after installation. This gap will reduce with time as
the appliance is used and will not affect the electrical
safety of your appliance.
The metal components have a protective coating which may
give off a slight smell when heated up for the first time. The
induction coils may also give off a slight smell for the first few
hours of operation. This smell will be less noticeable with
each subsequent use before dissipating completely.
The smell and any vapours given off do not indicate a faulty
connection or appliance and they are not hazardous to
health.
Please note that the heating up time on induction hobs is
very much shorter than on conventional hobs.
Before using for the first time
19

The induction principle
An induction coil is located under each cooking zone. When
a cooking zone is switched on, this coil creates a magnetic
field which impacts directly on the base of the pan and heats
it up. The cooking zone itself is heated up indirectly by the
heat given off by the pan.
An induction cooking zone only works when a ferromagnetic
pan is placed on it (see "Pans"). The induction cooking zone
automatically recognises the size of the pan
The ßsymbol flashes alternately with the power setting
selected in the display,
–if it is switched on without a pan in place, or if the pan is
unsuitable (non-magnetic base),
– if the diameter of the base of the pan is too small,
– if the pan is taken off the cooking zone when it is switched
on.
If a suitable pan is placed on the cooking zone within
3 minutes, the ßwill go out and you can continue as normal.
If no pan or an unsuitable pan is placed on the cooking zone,
the cooking zone will switch off automatically after 3 minutes.
Danger of burning.
Do not use the hob as a resting place for metal items (e.g.
cutlery). When the appliance is switched on either
deliberately or by mistake, or when there is residual heat
present, there is the risk of the metal items heating up,
with the danger of burning.
Switch the hob off after use.
Induction
20
