Miele H4080BM User manual

Operating and Installation
Instructions
Convection microwave oven
H 4080 BM
To prevent accidents
and machine damage
read these instructions
before
installation or use. M.-Nr. 06 894 670
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Guide to the display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Oven accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Safety and energy saving features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Settings J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Language J......................................................16
Clock ...........................................................16
Temperatures.....................................................17
Oven Light .......................................................17
Temperature °F/°C .................................................17
Tone Options .....................................................18
Display ..........................................................19
System Lock .....................................................19
Warming function..................................................20
Power Level ......................................................20
Reset ...........................................................21
Selecting cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Before using the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Programming the oven .............................................26
Cleaning the appliance .............................................26
Heating the oven ..................................................27
Using the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Selecting cooking times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Contents
2

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Bake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Broil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Microwave. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Master Chef . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Defrost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Roast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Using the roast probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Technical Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Programming the oven .............................................65
Contents
3

When using electrical appliances always observe basic safety precautions,
including the following:
WARNING - To reduce the risk of
burns, electric shock, fire, injury to
persons, or exposure to excessive
microwave energy:
Read all instructions before installing
or using the oven.
Read and follow the specific,
"PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY".
This appliance is intended for
residential use only. Only use the
appliance for its intended purpose.
The manufacturer cannot be held
responsible for damages caused by
improper use of this oven.
This appliance complies with current
safety requirements. Improper use
of the appliance can lead to
personal injury and material
damage.
Electrical safety
~Installation, repair and maintenance
work should be performed by a Miele
authorized service technician in
accordance with national and local
safety regulations and the provided
installation instructions. Contact Miele’s
Technical Service Department for
examination, repair or adjustment.
Repairs and other work by unauthorized
persons could be dangerous and may
void the warranty.
~Before installation make sure that
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond in order to prevent
injury and machine damage. If in doubt,
consult a qualified technician.
~To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
cannot be held responsible for
damages caused by the lack, or
inadequacy, of an effective grounding
system.
IMPORTANT SAFETY INSTRUCTIONS
4

~The appliance must only be
operated after it has been correctly
installed into cabinetry. This is
necessary to ensure that all electrical
components are shielded.
~This appliance is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
installation in these applications. Please
contact the Miele Technical Service
Department with specific requirements.
~Before service or maintenance work
the power supply must be
disconnected.
~If the electrical cord is damaged it
must be replaced by a Miele Service
technician with a genuine Miele spare
part.
~Do not use an extension cord to
connect the appliance to electricity.
~Do not open the casing of the oven.
Danger of electric shock!
Use
~The appliance is intended for
domestic use only: defrosting, heating,
cooking, baking, roasting and broiling
of food.
It is not designed for industrial or
laboratory use.
~Do not use corrosive chemicals or
vapors in this appliance.
~Do not use the appliance to store or
dehydrate flammable materials. This is
a fire hazard.
~Do not use the oven to heat the
room. Due to the high temperatures
radiated, objects left near the oven
could catch fire.
~Prevent children from touching the
appliance when in use.
~Times for cooking, heating and
defrosting food in the microwave are
shorter than that of traditional food
preparation methods. Extensive
microwaving could dry out food and
cause possible ignition. Fire hazard!
~Do not use the microwave function
to dry bread, flowers, herbs, etc. Use
the Convection Bake function.
~Do not heat cushions filled with
herbs, gel, etc. with the microwave
function. The cushions could ignite,
even once removed from the oven after
heating. This is a fire hazard.
~Do not use full power when warming
empty dishes. The lack or minimal
amount of food could cause damage to
the appliance.
IMPORTANT SAFETY INSTRUCTIONS
5

~Supervise cooking with grease or
oils. Oils and grease could ignite.
~Never heat undiluted alcohol in the
microwave oven, it can easily ignite.
~If materials inside the oven ignite,
keep the oven door closed to avoid
fueling any flames. Turn the oven off or
disconnect the power supply.
~Cover food stored in the oven
interior. Condensation from food and
drinks could cause corrosion damage.
It also prevents the food from drying
out.
~Spills or stains from food and liquids
containing salt should be immediately
cleaned from the stainless steel interior.
Corrosion may occur.
~If smoke occurs in the oven, to avoid
fueling any flame, do not open the oven
door. Switch the appliance off by
pressing the ON/OFF button, switch off
at the mains and remove the plug from
the socket. Do not open the oven door
until the smoke has dispersed.
~Only use the Miele roast probe
supplied with this appliance. If a
replacement is necessary it can be
ordered from Miele or your Miele
dealer.
~When not in use do not leave the
roast probe in the oven, especially
when broiling. The high temperatures
used for broiling could cause plastic
components on the roast probe to melt.
~When using residual heat to keep
food warm leave the selected function
on and select the lowest temperature.
Do not turn the oven off. Condensation
from food and drinks could cause
damage at the machine or the
countertop and cabinetry. Leaving the
machine on will keep the fan running to
aid in dissipating the condensation.
~The glass tray and combi rack can
support a maximum weight of 17.5 lb (8
kg). These accessories may be
damaged if over strained.
~Do not lean, sit or place heavy items
on the open oven door. The machine
may be damaged.
~Never place the hot glass tray
directly on a cold surface, such as a
tiled or granite countertop. The glass
tray may crack.
~Do not use a steam cleaner to clean
this appliance. The steam could
penetrate live components and
permanently damage the oven or cause
injury.
~Do not operate this appliance if it
has a damaged cord or plug, if it is not
working properly or has been damaged
or dropped.
~Do not cover or block any opening
on the appliance.
~This appliance must not be installed
or operated outdoors.
~Do not use this appliance near
water, e.g. sink, wet basement,
swimming pool, etc.
IMPORTANT SAFETY INSTRUCTIONS
6

Microwave function
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE
ENERGY
Do not attempt to operate this oven
with the door open since open-door
operation can result in harmful
exposure to microwave energy. It is
important not to damage or tamper
with the safety interlocks.
Do not place any object between the
oven front and the door or allow soil
or cleaner residue to accumulate on
sealing surfaces.
Do not operate the oven if it is
damaged. It is particularly important
that the oven door closes properly
and that there is no damage to the:
(1) door (bent), (2) hinges and
latches (broken or loosened),
(3) door seals and sealing surfaces.
The oven should not be adjusted or
repaired by anyone except properly
qualified service personnel.
~Do not operate the Microwave
empty! The oven will be damaged.
~Items not suitable for use when
using the microwave function or any
combination functions: metal,
aluminum foil, cutlery, dishware with
metal decoration, crystal glass
containing lead, bowls with a knurled
rim, non-temperature safe dishware,
wooden dishware, metal clips, wire
twist ties, food containers with metal
coverings or residues.
Danger of machine damage and fire.
The provided combi rack is specially
designed for use in this oven.
~Do not leave the appliance
unattended when heating food in
disposable, e.g. plastic, paper or other
flammable materials.
See "Selecting cookware".
~Do not use the oven to heat food in
heat retaining packaging, e.g. take-out
food bags.
This packaging contains a thin layer of
aluminum foil which reflects the
microwaves. This reflected energy can
cause the paper layer to ignite.
IMPORTANT SAFETY INSTRUCTIONS
7

~Before serving food allow a
sufficient standing time. Always check
the temperature of the food itself after
taking it out of the microwave. Do not
judge by the plate temperature. The
heat is created in the food, the dishes
may stay cool to the touch.
~Always check the temperature
before serving heated baby food.
~Use a food thermometer to measure
the foods temperature. Do not use
thermometers containing mercury or
liquids, they are not suitable for high
temperatures and break easily.
~Never cook or reheat food and
liquids in sealed containers or bottles.
Remove the nipple or lid before heating
in the microwave. Built-up pressure
may cause them to burst. Danger of
injuries.
~The combi rack will get hot when
used in the microwave. Danger of
burns.
~When heating liquids, the provided
boiling wand should be placed into the
container.
When heating liquids, milk, sauces,
etc., in the oven without the boiling
wand, the boiling point of the liquid may
be reached without the production of
bubbles. The liquid will not boil evenly.
This "boiling delay" can cause a sudden
build up of steam bubbles, when the
container is removed from the oven or
shaken. This can lead to the liquid
boiling over suddenly and explosively.
Danger of burning!
The built-up pressure may force the
oven door open. This could result in
injury or damage. The boiling wand
ensures that the liquid boils evenly and
that steam bubbles form at an early
stage.
IMPORTANT SAFETY INSTRUCTIONS
8

~Eggs must only be cooked in their
shells in the microwave oven in a
specially designed egg-boiling device.
Hard-boiled eggs should not be
reheated in the microwave oven. The
eggs may burst, even once they have
been removed from the oven.
~Eggs can be cooked without their
shells in the microwave oven only if the
yolk membrane has been punctured
first. The pressure could otherwise
cause the egg yolk to explode. Danger
of injuries.
~Food with a thick skin or peel, such
as tomatoes, sausages and potatoes
should be pierced in several places
before cooking to allow steam to vent
and prevent the food from bursting.
~Do not use dishware with hollow
handles or lid knobs. Moisture can get
into the hollow parts. (The hollow parts
of some dishware can be vented).
Danger of built-up pressure and the
explosion of the hollow parts may
cause injuries.
Solo functions:
Convection Bake, Auto Roast, Broil,
Convection Broil
Caution! Danger of burns!
When using solo functions the oven
interior gets very hot.
~Do not allow children to touch or
play in, on or near the oven when it is in
operation. The oven gets hot at the
oven door glass, the vapor vent, the
handle and the operating controls.
Danger of burns.
~Use pot holders when working with
a hot appliance. Especially the upper
heating element gets extremely hot
when using the functions broil and
convection broil. Danger of burning!
~Allow the heating element to cool
before attempting to lower it to clean
the oven. Danger of burns.
~Do not use force to lower the upper
heating element. It may get damaged.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
9

aControl panel
bUpper heating element
cLight
dRoast probe socket
eThree level runners
fOven door
Guide to the oven
10

aTouch controls
Next to and below the display are
electronic sensor controls which
react to the touch of a finger. When
the oven is turned on the display
shows the allocation of the controls.
The oven is operated by a touch of
the respective control. Every touch of
the controls is confirmed by a tone.
The tone can be turned off.
See "Settings - Tone Options -
Keypad tone".
bKeypad
The number keypad lights when
entries for temperatures or times are
needed.
cOn/Off
Turns the oven on or off.
dMinute+
To start the microwave with
maximum power for 1 minute. You do
not have to turn the microwave on to
start this function.
^Press the Minute+ button and the
program will start automatically.
eDisplay
fTimer
To time any kitchen activity,
e.g. cooking pasta. Two separate
times can be entered.
gClear
To delete the last entry or to go back
to the previous menu. If more than
one function is entered, a question is
displayed to clarify which one the
user would like to delete.
Guide to the display
11

Display
+
This symbol is allocated to a touch
control and shows in the display with
an option or request, e.g. "more",
"back", "OK", etc. The display shows
a maximum of six options. If more
menu points are available, "more" will
be displayed as the last menu
option. The desired setting is
selected by touching the sensor next
to it.
If options are available for times or
temperatures they will also be
highlighted in the display. These
numbers can be entered by using
the keypad.
The currently selected setting will
then be highlighted and/or shown at
the top of the display.
K
Additional information for options are
marked with this sign. Confirm with
"OK" to close an info window.
(BAKE... MASTER CHEF... )
(BROIL... DEFROST... )
(MICROWAVE... more )
12:23
KLevel 1 from the bottom
Use rack and glass tray
OK )
Guide to the display
12

Oven accessories
Glass tray with non-tip safety
notches
These trays are suitable for all
microwave oven functions. They have
non-tip safety notches which prevent
them from being pulled out completely.
When inserted the safety notches
should face the rear.
The glass tray has to be lifted to be
taken out of the oven.
Combi rack
Insert the combi rack into the glass
tray. Always use the combi rack
together with the glass tray.
Depending on the oven function and
food height, the combi rack can be
used right-side-up (upper illustration) or
upside down (lower illustration).
This assures an optimum distance to
the upper heating element.
The combi rack is specially
designed for microwaves. It should
not be set on the bottom of the oven,
direct contact could lead to sparks.
Oven accessories
13

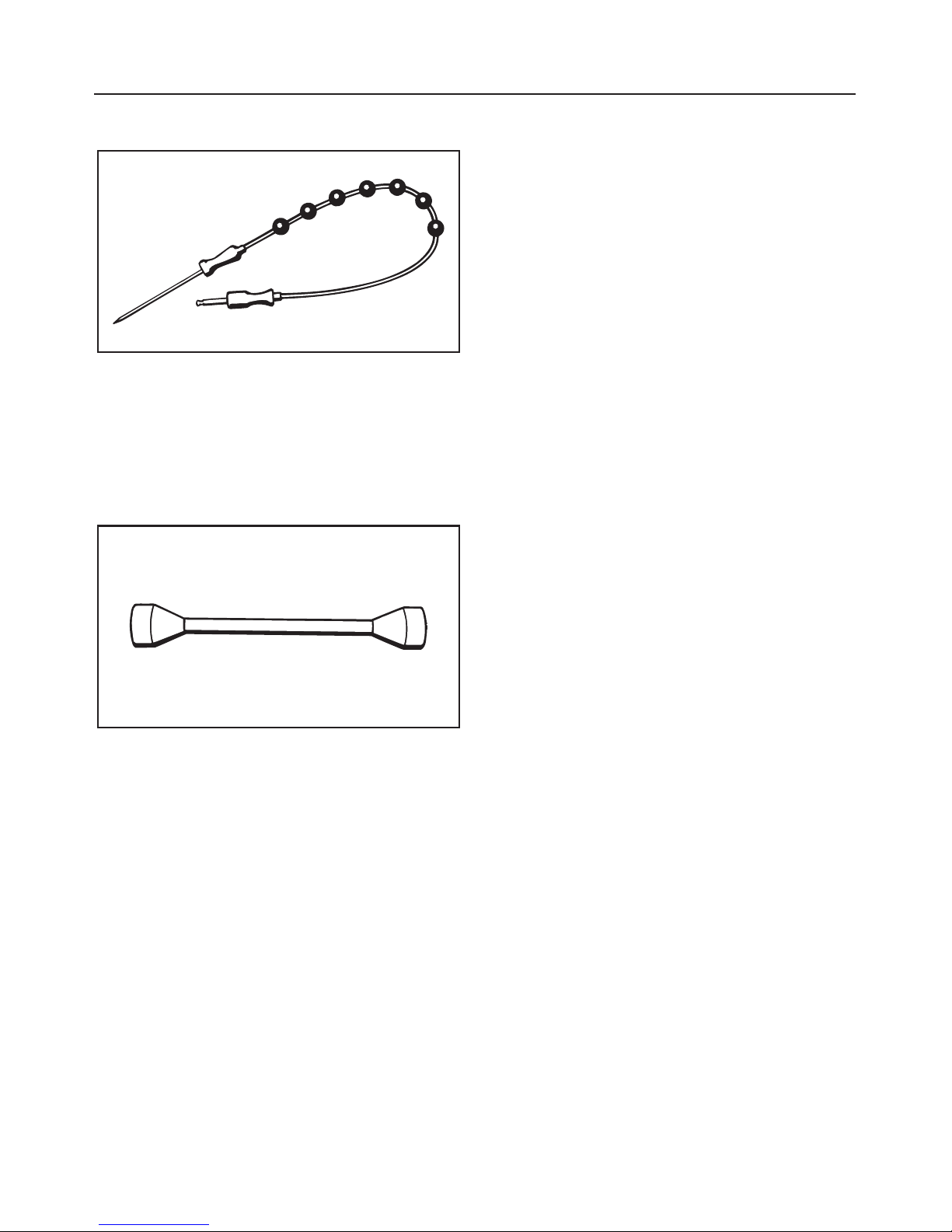

Roast probe
The roast probe is inserted in the food
to monitor the roasting process. For
more information see "Using the roast
probe".
Boiling wand
When heating liquids, the provided
boiling wand should be placed into the
container. It results in even boiling of
the liquid.
Oven accessories
14

System lock
When locked the oven cannot be
operated, see "Settings - System lock".
Automatic Safety Shut Off
A solo oven function can be started
without a cooking time set. To prevent a
run-on operation and a fire hazard the
oven shuts off automatically.
Depending on the temperature and
function selected, the oven will turn off
1 to 10 hours after the last operation
was selected.
When the microwave is turned off after
one operation but will be used for a
second cooking program right away,
you must wait 30 seconds before the
power can be turned on again.
Door contact switch
If the door is opened during a
combination function e.g. Combination
Bake, the heat and convection fan will
automatically turn off. After closing the
door and pressing "Start", the operation
will continue. When the door is opened
during a solo function e.g. Convection
Bake, the operation will continue
immediately after closing the door. It
does not need to be restarted.
Interior light turned off
The interior light can be set to turn off
after the process starts. See "Settings -
Oven Light".
Safety and energy saving features
15

The default oven settings can be
changed in the function "Settings J". In
this function you can customize the
oven to suit your preferences. Settings
may be adjusted by touching the
corresponding touch control.
Language J
^Select the touch control next to the
desired language and confirm by
selecting "OK".
The symbol Jindicates the "Language"
setting. If you accidentally select an
unfamiliar language, simply look for the
Jsymbol, touch the control next to it
and select your language of choice.
Clock
"Enter Time" appears in the display.
^Enter the current time using the
keypad.
Different settings can be selected by
touching the control next to the option:
–the size of the clock display,
Size Normal or LARGE
–the time format,
12 hour or 24 hour
–whether or not the time is displayed,
Clock-Display On or Off
^Touch the "OK" control to confirm the
entries.
If the power is cut off for more than 6
weeks the clock will have to be reset.
LANGUAGE english
(english français )
(deutsch OK )
(español more )
Enter Time: 04:23
(Size Normal Clock display On )
(12 hour OK )
Settings J
16

Temperatures
The default temperature of each
function can be adjusted. If a
temperature out of the available range
is selected, the oven will revert to the
default temperature.
^Touch the control of the function
whose default temperature you wish
to alter.
^Enter the new default temperature
using the keypad.
The next time this function is selected,
the new temperature will be used.
Oven Light
The "on" duration of the oven light can
be altered.
^Touch the control of the light setting
you wish to change.
– "Off after 1 minute"
The light goes off after the 1st minute
of a function.
–"On during use"
The oven light remains lit during a
function.
The selected setting will appear in the
display.
^Touch the "OK" control to confirm the
selection.
Temperature °F/°C
All oven temperatures can be displayed
in either Fahrenheit or Celsius.
^Touch the "Temperature" control to
toggle between °F and °C.
TEMPERATURES
(CONVECTION BAKE 325°F
(CONVECTION BROIL 400°F OK )
(AUTO ROAST 325°F more )
OVEN LIGHT
On during use
(Off after 1 minute
(On during use OK )
SETTINGS
(LANGUAGE...JOVEN LIGHT... )
(CLOCK... TEMPERATURE °F...)
(TEMPERATURES... more )
Settings J
17

Tone Options
Unique tones may be set for each of
the two timers to differentiate them from
an oven function tone.
"Timer 1" and "Timer 2"
The tone of "Timer 1" and "Timer 2" can
be set to one of five tone options.
^Select "Timer 1 Tone" or "Timer 2
Tone" by touching the corresponding
control.
With every touch of the respective
control, another tone will sound and the
display will show the tone number.
For example, Timer 1 Tone 1.
^Select a tone for each timer.
"Keypad Tone"
The keypad can be set to make a
sound with each touch of a control.
^Touch the "Keypad tone" control to
toggle between the on and off
settings.
"Volume"
This control adjusts the volume of the
tone options.
^Touch the "Volume" control until you
hear the desired volume.
TONE OPTIONS
(Timer 1 Tone 1 Volume 1 )
(Timer 2 Tone 2 Tone Short )
(Keypad tone on OK )
Settings J
18

"Tone Short / Long"
The duration of the timer and oven
tones can be modified.
–"Tone short" will beep in quick
succession when an oven signal or
the oven timer sounds.
–"Tone long" a continuous tone will
sound when an oven signal or the
oven timer sounds.
^Touch the "Tone" control to toggle
between the short and long settings.
^Touch the "OK" control to confirm the
"Tone Options" settings.
When the tone sounds to indicate an
oven signal or the timer, touch any
number on the keypad to turn off the
tone.
Display
The oven display can be adjusted as
desired by touching the controls next to
"Brightness" and "Contrast".
System Lock
The oven can be locked.
Do not accept
The lock is not used. Default setting
Accept
The lock is used.
When "Accept" is set, the display shows
a lock which is either open or closed.
Off
The lock is open, the oven can be
used.
On
The lock is closed, the oven can not be
used.
The timer can still be used.
The oven will remain locked after a
power failure.
Settings J
19

Warming function
The microwave has a built-in warming
function which is activated by default.
Food which is not immediately removed
from the oven will be kept warm for a
short period of time. The display shows
"Keep warm".
The function can be deselected. The
"Warming function" cannot be set as a
separate function.
Power Level
The default power levels for microwave
and combined microwave functions
can be adjusted. Confirm with "OK".
They are shown in a bar. A full bar
shows the maximum power.
Seven power levels are available for
microwave.
If only two segments are shown the
minimum power is displayed.
Four power levels are available for
combination functions.
If only four segments are shown the
minimum power is displayed.
WARMING FUNCTION
On
(Off
(On OK )
MICROWAVE
Adjust power level
(Lower wHigher )
OK )
COMBINATIONS
Adjust power level
(Lower vHigher )
OK )
Settings J
20
