Miele DG 4064 User manual

Installation instructions
Steam oven
DG 4064
DG 4064 L
To avoid the risk of accidents or
damage to the appliance it is
essential to read these
instructions before it is installed
and used for the first time.
GiZ
M.-Nr. 06 786 800

2

Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Appliance and building-in dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
DG 4064 in 380 mm tall housing unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
DG 4064 and AB 45-7 in 450 mm tall housing unit . . . . . . . . . . . . . . . . . . . . . . . . . 8
DG 4064 L in 380 mm tall housing unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
DG 4064 L and AB 45-7 in 450 mm tall housing unit . . . . . . . . . . . . . . . . . . . . . . 12
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Building in and connecting to services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connection cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Water inlet connection hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connection to drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Drain hose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Contents
3

The water inlet hose must be flushed
through before using the appliance
for the first time, and thereafter every
time the water inlet hose is re-fitted.
This is to remove any deposits which
may have collected in the inlet hose
and at the stopcock.
This steam oven must only be
installed in a suitable tall housing
unit.
The appliance must be installed at
such a height that small children
cannot reach the appliance door, which
gets hot during use.
The top edge of the appliance door
should not be above eye level. If it
is too high, you will find it difficult to
access all levels safely when putting
dishes into the oven and taking them
out, and there is a danger of food
spillages and possible scalding.
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
All installation work must be carried
out by a suitably qualified
technician in strict accordance with
current local and national safety
regulations.
Water Authority and Building
Regulations must also be
observed.
The stopcock for the steam oven
water inlet must be located so that
it is easily accessible after the
appliance has been built in.
To ensure that the waste water is
pumped away completely, the
mains drainage outlet point should not
be positioned higher than the drain
hose outlet position on the steam oven.
The temperature of the water being
drained is approx. 80 - 90 °C.
The hoses and mains connection
cable must be fitted in such a way
that the appliance can be easily taken
out of the housing unit by a service
technician should repair work ever be
necessary.
Safety instructions
4

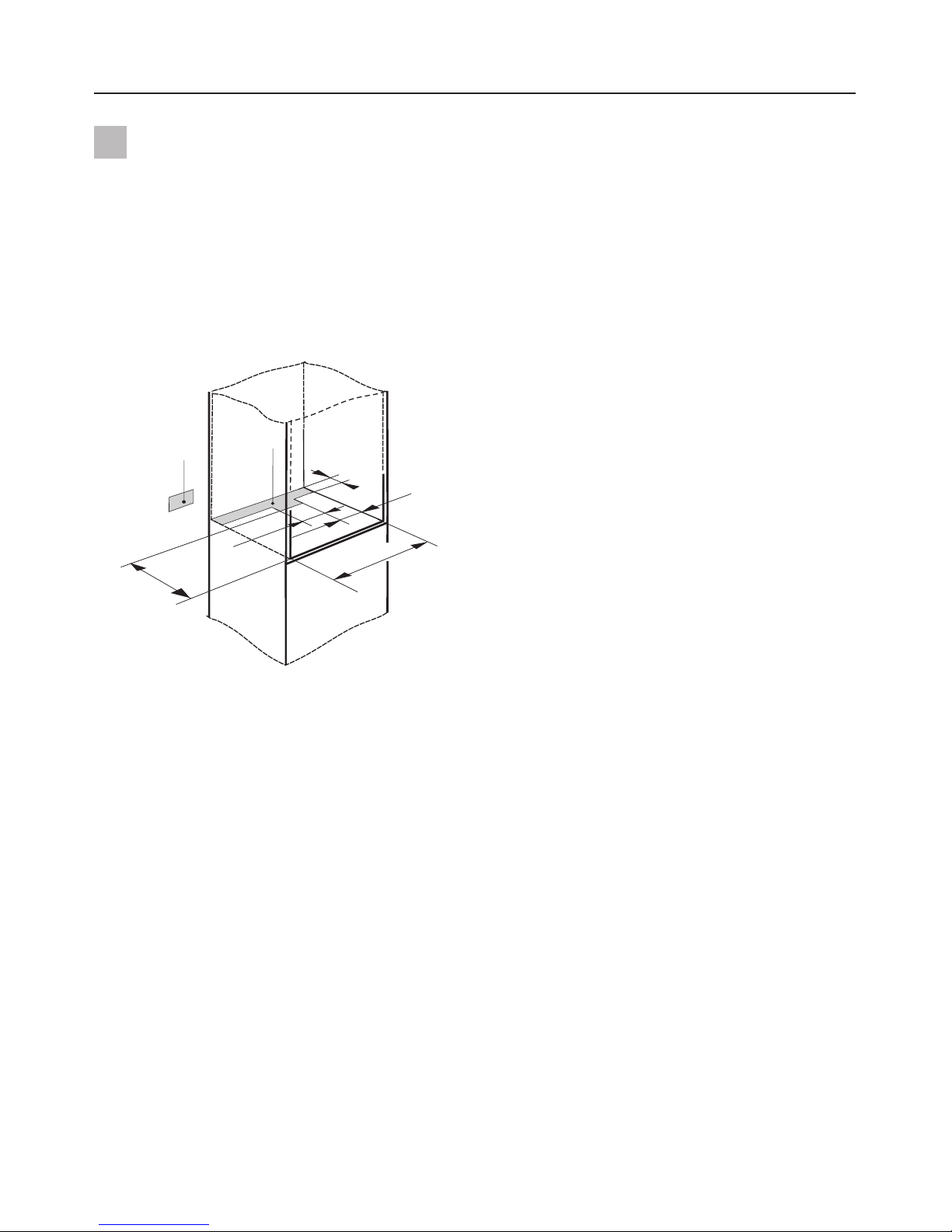

A cut-out a, as illustrated below, is
required in the housing unit for
feeding the water inlet and outlet
through. This is to ensure that there is
adequate space for any movement in
the hoses during operation and thus
prevent the risk of damage to the hoses
and any subsequent water damage.
bIsolator switch position.
Important UK: Do not position the
isolator behind the appliance!
Keep these instructions in a safe place
and pass them on to any future
user/owner of the appliance.
All dimensions in this instruction booklet
are given in mm.
Safety instructions
5
450
560-568
120 130
45
a
b

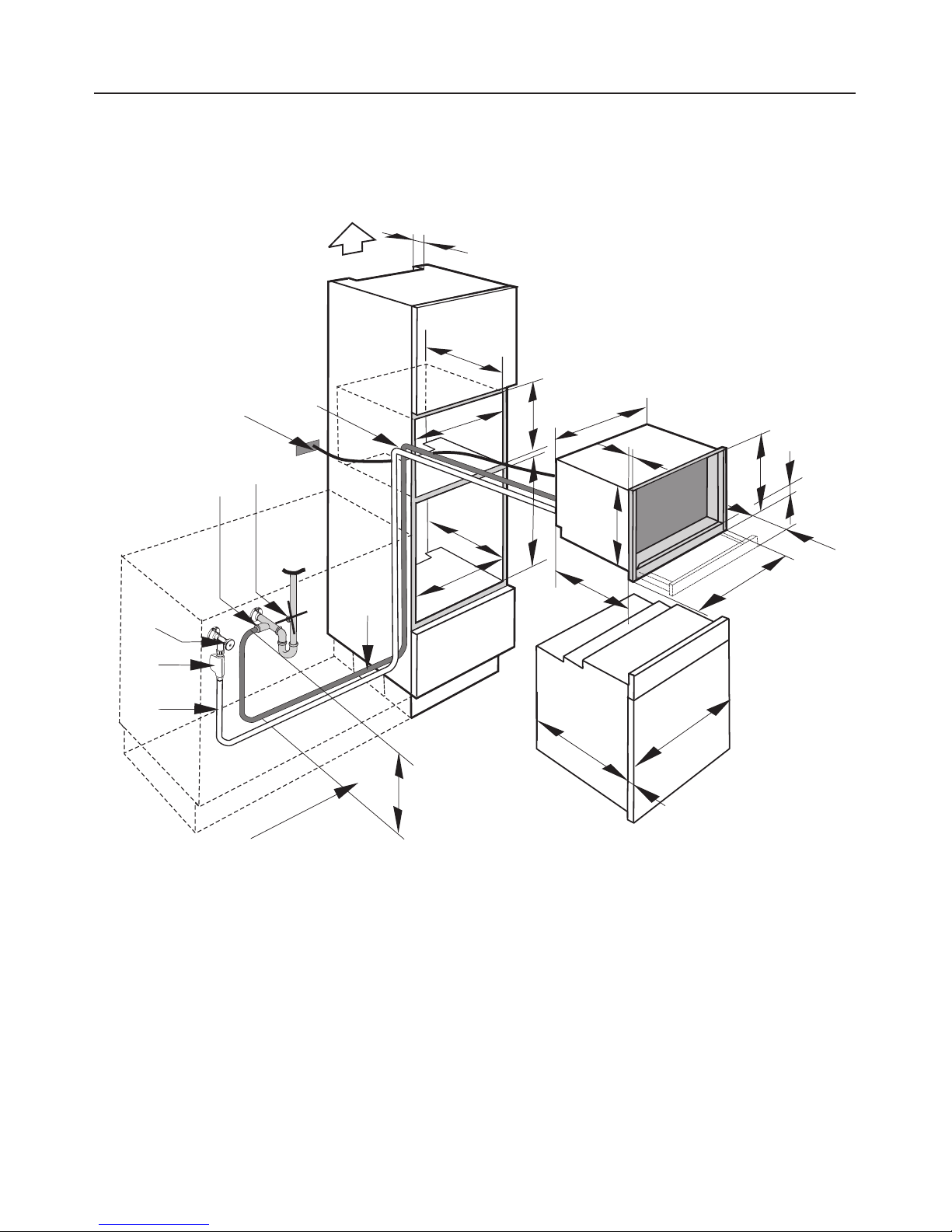

DG 4064 in 380 mm tall housing unit
Appliance and building-in dimensions
6
b
560-568
380
0555
593-595
595
542
378
22
385
270
55
200 cm
2
22
595
544
45
527
555
0
560-568
500
fg
d
c
e
h
a
i

aCut-out in the housing unit for feeding the water inlet and outlet hoses through
bIsolator switch position.
Important UK: Do not position the isolator behind the appliance!
cStopcock (cold water connection)
dWater inlet connection with safety valve
eWater inlet hose
fSecond separate siphon
gDo not connect the drain hose here!
hDrain hose
Important:
The top end of the drain hose imust not be higher than 500 mm where it
connects to the odour trap.
Appliance and building-in dimensions
7

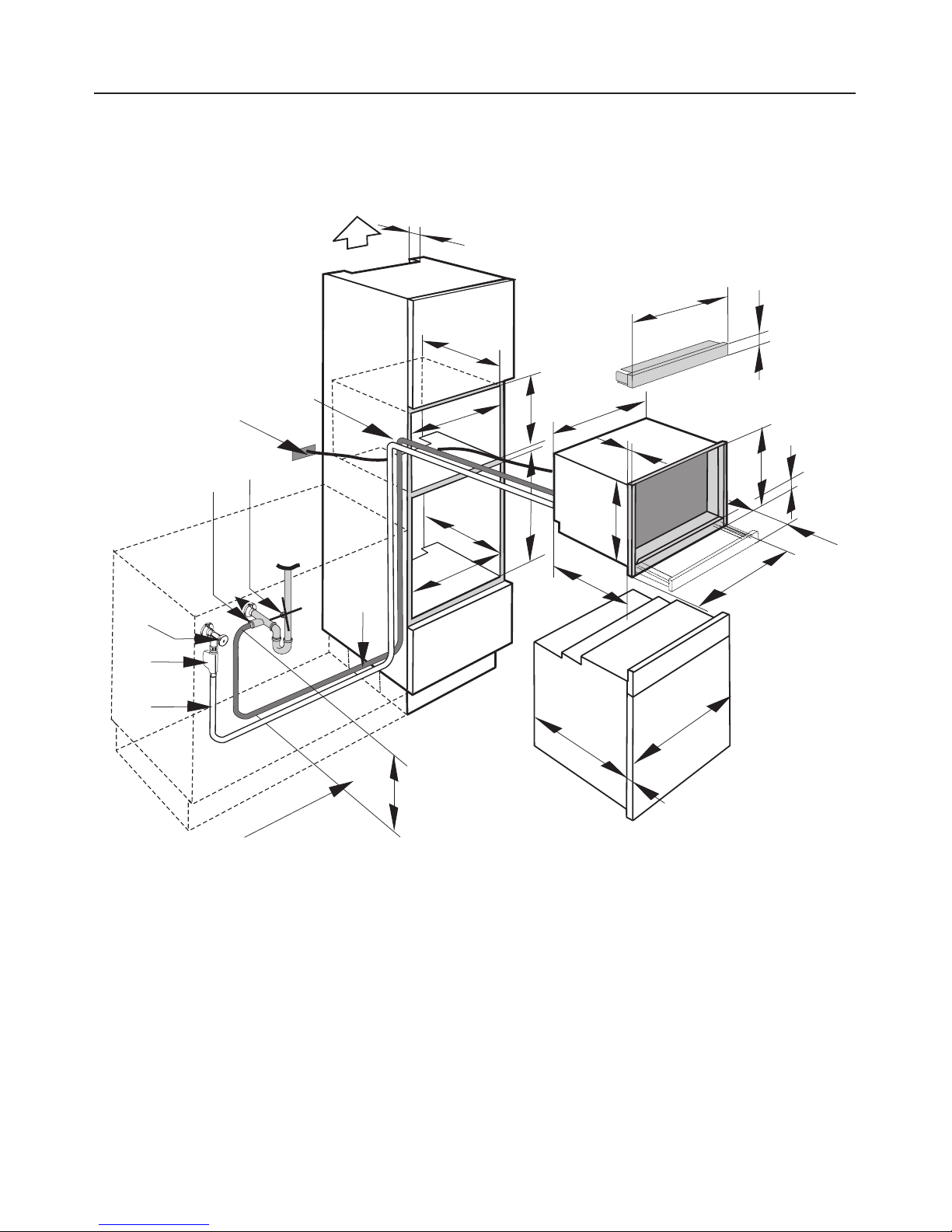

DG 4064 and AB 45-7 in 450 mm tall housing unit
Appliance and building-in dimensions
8
560-568
448-452
0555
593-595
595
542
378
22
385
270
55
200 cm
2
22
595
544
45
527
555
0
560-568
500
595
65
fg
d
c
e
h
i
a
b

aCut-out in the housing unit for feeding the water inlet and outlet hoses through
bIsolator switch position.
Important UK: Do not position the isolator behind the appliance!
cStopcock (cold water connection)
dWater inlet connection with safety valve
eWater inlet hose
fSecond separate siphon
gDo not connect the drain hose here!
hDrain hose
Important:
The top end of the drain hose imust not be higher than 500 mm where it
connects to the odour trap.
Appliance and building-in dimensions
9

DG 4064 L in 380 mm tall housing unit
Appliance and building-in dimensions
10
560-568
380
0555
593-595
200 cm
2
22
595
544
45
555
0
560-568
500
595
22
541
378
324
385
270
700
55
552
95
63
fg
d
c
e
h
i
a
b

aCut-out in thehousing unit for feeding the water inlet and outlet hoses through
bIsolator switch position.
Important UK: Do not position the isolator behind the appliance!
cStopcock (cold water connection)
dWater inlet connection with safety valve
eWater inlet hose
fSecond separate siphon
gDo not connect the drain hose here!
hDrain hose
Important:
The top end of the drain hose imust not be higher than 500 mm where it
connects to the odour trap.
Appliance and building-in dimensions
11

DG 4064 L and AB 45-7 in 450 mm tall housing unit
Appliance and building-in dimensions
12
560-568
448-452
0555
593-595
200 cm
2
22
595
544
45
555
0
560-568
500
595
22
541
378
324
385
270
700
55
552
95
63
595
65
fg
d
c
e
h
i
b
a

aCut-out in the housing unit for feeding the water inlet and outlet hoses through
bIsolator switch position.
Important UK: Do not position the isolator behind the appliance!
cStopcock (cold water connection)
dWater inlet connection with safety valve
eWater inlet hose
fSecond separate siphon
gDo not connect the drain hose here!
hDrain hose
Important:
The top end of the drain hose imust not be higher than 500 mm where it
connects to the odour trap.
Appliance and building-in dimensions
13

Building in and connecting to
services
^Before connecting the appliance to
the mains supply you must
disconnect the electricity supply to
the isolator switch.
See "Electrical Connection".
^Connect the mains connection cable
to the isolator switch in accordance
with current local and national safety
regulations.
^Feed the water inlet and drainage
hoses through the cut-out ain the
housing unit. See "Safety
instructions".
^Push the appliance into the recess as
far as it will go, making sure that the
mains connection cable and the
water inlet and drain hoses do not
get trapped or damaged when doing
so.
After aligning the appliance, it must be
secured against slippage.
^Secure the appliance using screws
jsupplied, as shown in the
diagrams.
^Switch the electricity supply back on
again. See "Electrical connection".
^Connect the appliance to the water
supply and drainage outlet.
^Using the Operating Instructions as a
guide, check all oven functions are
working correctly.
Before using for the first time, check
all hose connections for leaks.
DG 4064
DG 4064 L
Installation
14

All electrical work should be carried
out by a suitably qualified and
competent person, in strict
accordance with current local and
national safety regulations (BS 7671
in the UK).
Installation, repairs and other work
by unqualified persons could be
dangerous. The manufacturer
cannot be held liable for
unauthorised work.
Ensure power is not supplied to the
appliance until after installation or
repair work has been carried out.
The appliance must only be
operated when built-in. This is to
ensure that all electrical parts are
shielded. Live parts must not be
exposed.
Do not connect the appliance to the
mains electricity supply by an
extension lead. These do not
guarantee the required safety of the
appliance.
Please make sure that the connection
data quoted on the data plate match
the household mains supply.
Connection should be made via a
suitable isolator which complies with
national and local safety regulations,
and the On/Off switch should be easily
accessible after the appliance has
been built in.
If the switch is not accessible after
installation (depending on country) an
additional means of disconnection must
be provided for all poles.
For extra safety it is advisable to install
a residual current device (RCD), with a
trip current of 30 mA.
When switched off there must be an
all-pole contact gap of at least 3 mm in
the isolator switch (including switch,
fuses and relays).
Important U.K.
The appliance is supplied for
connection to a 230-240 V, 50 Hz
supply with a 3-core cable.
The wires in the mains lead are
coloured in accordance with the
following code:
Green/yellow = earth
Blue = neutral
Brown = live
Electrical connection
15

WARNING
THIS APPLIANCE MUST BE
EARTHED
The electrical safety of this appliance
can only be guaranteed when
continuity is complete between it and
an effective earthing system, which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and regularly tested and where
there is any doubt, the electrical wiring
in the home should be inspected by a
qualified electrician. The manufacturer
cannot be held liable for the
consequences of an inadequate
earthing system such as an electric
shock.
The manufacturer cannot be held
liable for damage which is the direct
or indirect result of incorrect
installation or connection.
Electrical connection
16

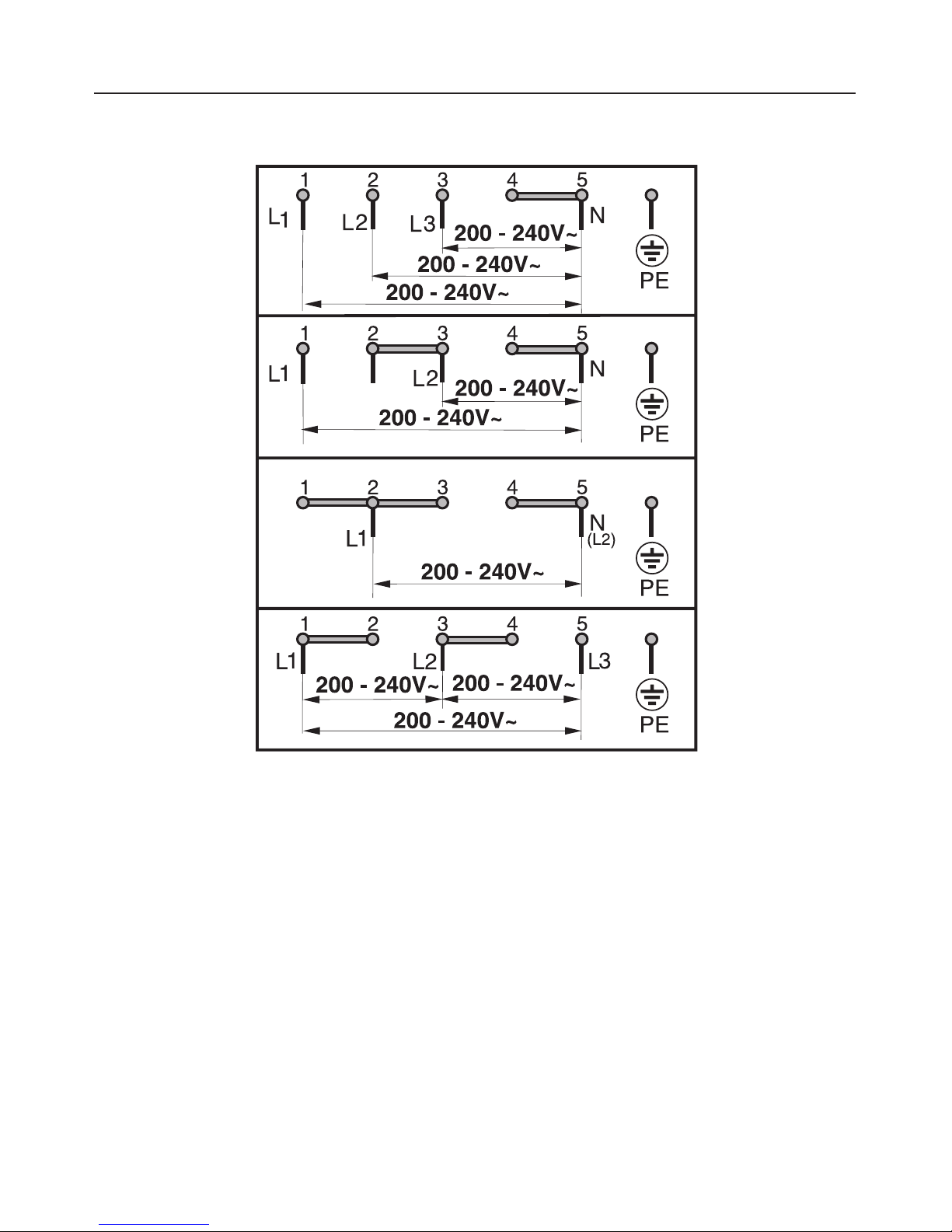

Wiring diagram
N.B. This appliance is supplied single phase only in the UK.
Electrical connection
17

Connection to the water supply
–This appliance must be connected to
a mains drinking water supply only.
–The steam oven needs to be
connected to the mains water supply
and to the drainage system by a fully
qualified person in accordance with
national and local Water Authority
regulations.
This appliance is constructed in
accordance with German water
regulations (DVGW), and may be
connected to a suitable supply
without an extra non-return valve if
national regulations permit.
– The appliance is designed to operate
with a flow pressure of between 1
and 6 bar. If necessary a pressure
reducing valve must be fitted.
The water connection must be fitted
so that the stopcock is easily
accessible (e.g. in a neighbouring
base unit).
The person installing the appliance
is responsible for ensuring its
correct operation.
If a water softener is already
installed in the building, the
electrical conductivity of the water
must be maintained.

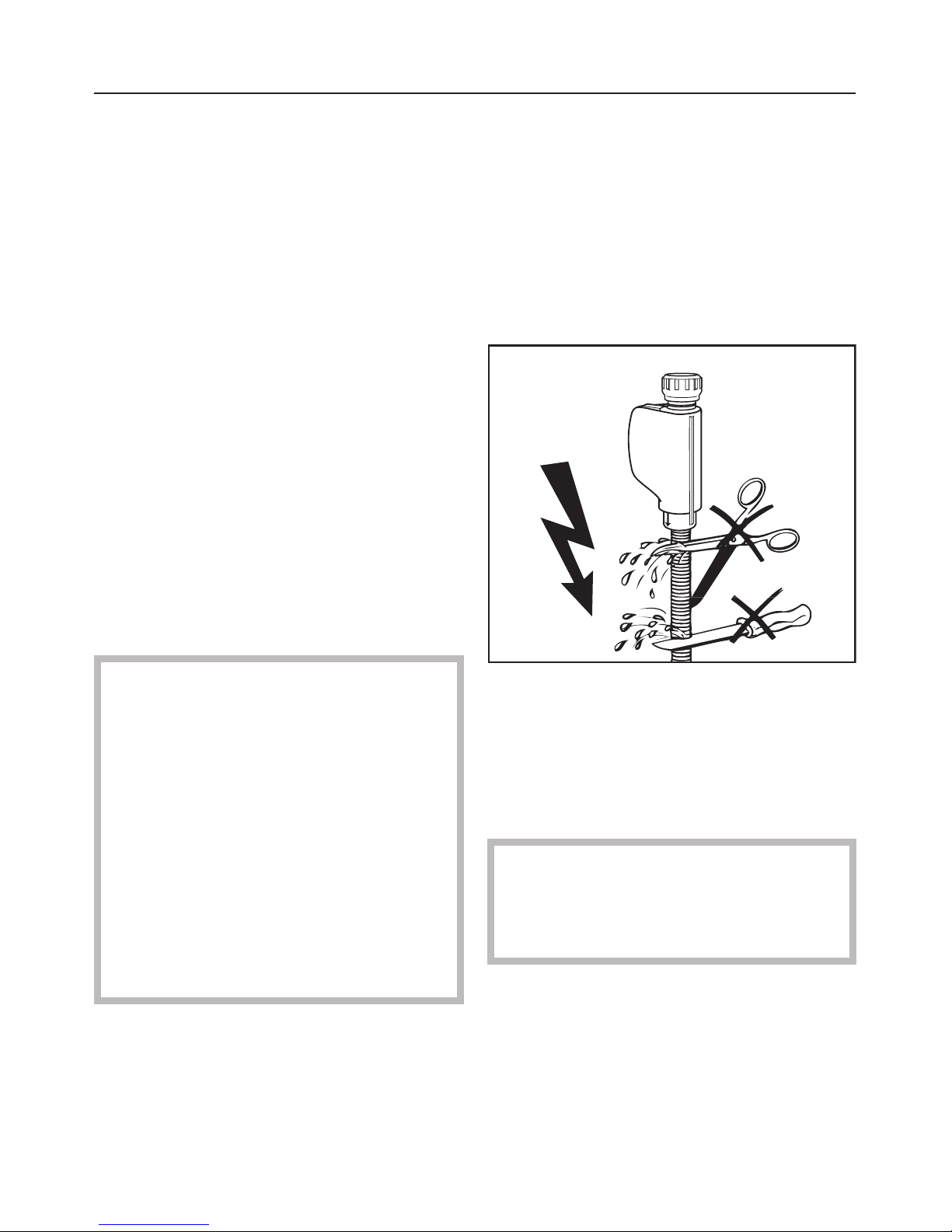

Water inlet connection hose
The appliance is supplied as standard
with a special 2.5 m long water
connection hose with a solenoid valve,
flow regulator and 3/4" threaded union.
The 2.5 m connection hose must not be
shortened or damaged, as it contains
electrical parts.
The hose may be lengthened up to a
maximum of 7.5 metres using hose
extensions. These are available as
optional accessories from the Miele
Spare Parts Department, and must
not be shortened or damaged.
Please note:
If the hose is lengthened, the hose
extension does not have a solenoid
valve.
Plumbing
18

Connection to drainage
A siphon with a fixed hose connection
point must be provided in the base unit
for the drain hose.
Often the only connection point
available is on the sink drain outlet.
This connection point gmust not be
used. Water draining through it would
be too noisy and odours can occur. A
second separate siphon fmust be
provided which can be connected via a
T-connection piece or via a separate
drainage point.
See "Appliance and building-in
dimensions".
Drain hose
The standard 2.5 m drain hose
supplied is connected to the siphon,
using a C21 mm hose sleeve and hose
clip.
The drain hose must not be
shortened.
The hose may be lengthened
(horizontally) up to a maximum of 7.5
metres using hose extensions. These
are available as optional accessories
from the Miele Spare Parts
Department and must not be
shortened or damaged.
Plumbing
19

Alteration rights reserved / 1106 M.-Nr. 06 786 800 / 02
en-–
