Miele KFN 37232 iD User manual

Operating and Installation Instructions
Fridge-freezer Combination
To prevent accidents and machine damage, read these instructions be-
fore installation or use.
en – US, CA M.-Nr. 10 516 570

Contents
2
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 4
Caring for the environment ................................................................................ 12
How to save energy............................................................................................. 13
Guide to the appliance........................................................................................ 15

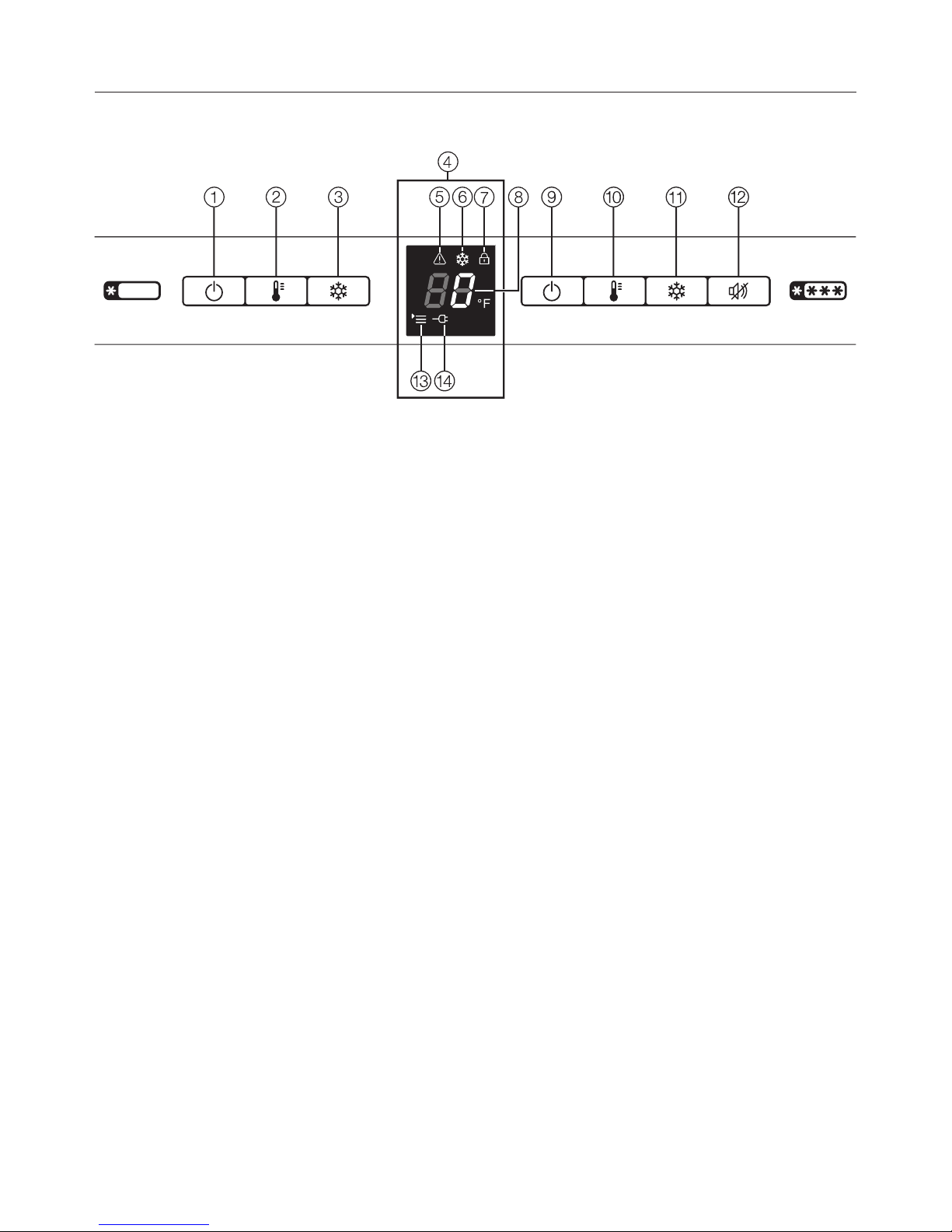

Control panel......................................................................................................... 15
Optional accessories............................................................................................. 17
Switching on and off ........................................................................................... 18
Before first use ...................................................................................................... 18
Turning off for longer periods of time .................................................................... 20
The correct temperature..................................................................................... 21
. . . in the refrigerator section ................................................................................ 21
Automatic cold air circulation (DynaCool) ........................................................ 21
. . . in the freezer section ....................................................................................... 21
Temperature display .............................................................................................. 21
Setting the temperature for the refrigerator and freezer........................................ 22
Using Automatic SuperCool and SuperFreeze ................................................. 23
The Automatic SuperCool function in the refrigerator........................................... 23
The Automatic SuperCool function in the freezer ................................................. 24
Temperature and door alarm.............................................................................. 25
Temperature alarm................................................................................................. 25
Door alarm............................................................................................................. 25
Turning off the acoustic alarm ............................................................................... 25
Selecting additional settings.............................................................................. 26
Settings mode ....................................................................................................... 26
Storing food in the refrigerator section............................................................. 29
Various cooling zones ........................................................................................... 29
Food which is not suitable for storage in the refrigerator section ......................... 30
What to be aware of when shopping for food....................................................... 31
Storing food correctly............................................................................................ 31
Adjusting the interior fittings.............................................................................. 32
Adjusting the door shelf / bottle shelf ................................................................... 32
Adjusting the bottle holder .................................................................................... 32
Moving the shelves................................................................................................ 32
Fruit and vegetable drawer.................................................................................... 32

Contents
3
Freezing and storing food................................................................................... 33
Maximum freezing capacity .................................................................................. 33
What happens when you freeze fresh food?......................................................... 33
Storing frozen food................................................................................................ 33
Home freezing ....................................................................................................... 34
Defrosting ......................................................................................................... 36
Making ice cubes ............................................................................................. 37
Adjusting the interior fittings.................................................................................. 37
Defrosting............................................................................................................. 38
Cleaning and care ............................................................................................... 39
Cleaning agents..................................................................................................... 39
Preparing the appliance for cleaning..................................................................... 40
Cleaning the interior and accessories ................................................................... 41
Cleaning the door seal .......................................................................................... 42
Cleaning the ventilation grilles............................................................................... 42
After cleaning ........................................................................................................ 42
Frequently asked questions ............................................................................... 43
Causes of noises ................................................................................................. 49
Technical Service................................................................................................. 50
Contact in case of fault ......................................................................................... 50
Warranty ................................................................................................................ 50
Electrical connection .......................................................................................... 51
Installation information....................................................................................... 53
Ventilation.............................................................................................................. 54
Cabinet doors........................................................................................................ 56
Calculating cabinet door sizes ......................................................................... 56
Before installing the appliance .............................................................................. 59
Installation dimensions....................................................................................... 60
Adjusting the door hinge .................................................................................... 62
Building in the appliance .................................................................................... 65
Fitting the cabinet doors ....................................................................................... 72

IMPORTANT SAFETY INSTRUCTIONS
4
This appliance complies with all statutory safety requirements.
Please note that inappropriate use can lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before using it for the first
time. They contain important notes on installation, safety, use and
maintenance.
Miele cannot be held liable for non-compliance with these instruc-
tions.
Keep these instructions in a safe place and ensure that new users
are familiar with the contents. Pass them on to any future owner.
Use
 This appliance is intended for use in domestic households and
similar residential environments.
This appliance is not intended for use outdoors, in damp environ-
ments or in places exposed to rain.
 This appliance is intended for domestic use only for cooling and
storing food and drink as well as for storing deep frozen food, freez-
ing fresh food and for making ice.
Any other usage is not supported by the manufacturer and could be
dangerous.
 This appliance is not suitable for storing and keeping cool
medicines, blood plasma, laboratory preparations or other such ma-
terials or products. Incorrect use of the appliance for such purposes
can cause deterioration of the items stored. The appliance is not
suitable for use in areas where there is a risk of explosion.
Miele cannot be held liable for damage resulting from improper or in-
correct use of the appliance.

IMPORTANT SAFETY INSTRUCTIONS
5
 People who lack physical, sensory or metal abilities, or experience
with the appliance should not use it without supervision
or have been instructed how to use it in a safe way and recognize
and understand the consequences of incorrect operation.
Children
 To reduce the risk of injury, do not allow children to play in, on or
near the appliance.
 Danger of suffocation! Whilst playing, children could become en-
tangled in packaging material (such as plastic wrapping) or pull it
over their head and suffocate. Keep packaging material away from
children.
Technical safety
 The refrigerant system is tested for leaks. This appliance complies
with statutory safety requirements.
 This appliance contains the refrigerant Isobutane (R600a), a natu-
ral gas which is environmentally friendly. Although it is combustible,
it does not damage the ozone layer and does not increase the green-
house effect.
The use of this refrigerant has, however, led to a slight increase in
the noise level of the appliance. In addition to the noise of the com-
pressor, you might be able to hear the refrigerant flowing around the
system. This is unavoidable, and does not have any adverse effect
on the performance of the appliance.
Care must be taken during the transportation and setting up of the
appliance that no parts of the cooling system are damaged. Leaking
refrigerant can cause severe irritation to the eyes.
In the event of any damage:
– avoid open flames and anything that creates a spark,
– disconnect the appliance from the electrical power supply,
– ventilate the room where the appliance is located for several min-
utes, and

IMPORTANT SAFETY INSTRUCTIONS
6
– contact Miele Technical Service.
 The more coolant there is in an appliance, the larger the room it
should be installed in. In the event of a leakage, if the appliance is in
a small room, there is the danger of combustible gases building up.
For every 11g of coolant at least 1m3 of room space is required. The
amount of coolant in the appliance is stated on the data plate inside
the appliance.
 To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data
plate corresponds to the household supply.
Check that this is the case before connecting the appliance. Consult
a qualified electrician if in any doubt.
 The electrical safety of the appliance can only be guaranteed
when correctly grounded. It is essential that this standard safety re-
quirement is met. If in any doubt please have the electrical installa-
tion tested by a qualified electrician.
 Reliable and safe operation of this appliance can only be assured
if it has been connected to the mains electricity supply.
 If the power cord is damaged, it must be replaced by a Miele au-
thorized technician in order to protect the user from harm.
 Do not connect the appliance to the electrical supply with a power
bar or extension cord. These are a fire hazard and do not guarantee
the required safety of the appliance.
 If moisture gets into electrical components or into the power cord,
it could cause a short circuit. Therefore, do not operate the machine
in areas where there may be moisture or splashing water (e.g.,
garages, laundry rooms).
 This appliance must not be installed and operated in mobile in-
stallations (e.g. on a ship).
 Do not use a damaged appliance. It could be dangerous. Check
the appliance for visible signs of damage.

IMPORTANT SAFETY INSTRUCTIONS
7
 For safety reasons, this appliance may only be used after it has
been built in.
 During installation, maintenance and repair work, the appliance
must be disconnected from the electrical power supply. It is only
completely isolated from the electricity supply when:
– the circuit breaker has been tripped, or
– the screw-type fuses on the electrical service panel have been re-
moved or
– the power cord has been unplugged. Pull on the plug and not on
the cord when removing it from the outlet.
 Installation, repair, and maintenance work should only be per-
formed by a Miele-authorized service technician.
Work by unqualified persons could be dangerous and may void the
warranty.
 Any manufacturer's warranty will be void if the appliance is not re-
paired by a Miele approved service technician.
 Defective components should only be replaced by Miele original
parts. Only with these parts can the manufacturer guarantee the
safety of the appliance.

IMPORTANT SAFETY INSTRUCTIONS
8
Proper use
 The appliance is designed for use within a certain climate range
(ambient temperatures), and should not be used outside this range.
The climate range for your appliance is stated on the data plate in-
side the appliance. Installing it in a room with too low an ambient
temperature, e.g. a garage, will lead to the appliance switching off
for longer periods so that it cannot maintain the required tempera-
ture.
 WARNING! Danger of overheating! Do not cover or block the air
vents. This can impair the efficiency of the appliance, increase the
power consumption and cause damage to the appliance.
 If storing food which contains a lot of fat or oil in the appliance,
make sure that it does not come into contact with plastic compo-
nents as this could cause stress cracks or break the plastic.
 Do not store explosive materials in the appliance or any products
containing propellants (e.g. spray cans). Electrical components could
cause flammable vapors to ignite.
Danger of fire and explosion.
 Do not operate any electrical equipment (e.g. an electric ice cream
maker) inside the appliance.
Danger of sparking and explosion.
 Do not store cans or bottles containing carbonated drinks or liq-
uids which could freeze in the freezer. The cans or bottles could ex-
plode.
Danger of injury and damage to the appliance.
 When cooling drinks quickly in the freezer, make sure bottles are
not left in for more than one hour; otherwise they could burst, caus-
ing injury or damage.
 Never handle frozen food or the metal parts of the appliance with
wet hands. Your hands may freeze to the frozen food or to the metal.
Danger of frost burn!

IMPORTANT SAFETY INSTRUCTIONS
9
 Do not take ice cubes out with your bare hands and never place
ice cubes or popsicles in your mouth straight from the freezer sec-
tion. The very low temperature of the frozen ice or popsicles can
cause frost burn to the lips and tongue. Danger of injury.
 Do not refreeze partially or fully defrosted food. Consume de-
frosted food as soon as possible, as it will lose its nutritional value
and spoil if left for too long. Defrosted food may only be refrozen af-
ter it has been cooked.
 When eating stored food, there is a danger of food poisoning.
Storage times will depend on several factors, including the freshness
and quality of the food, as well as the temperature at which it is
stored. Observe the manufacturer's "use-by" dates and storage in-
structions.
 Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty may become invalid.
Cleaning and care
 Do not use any oil or grease on the door seals.
They can cause the seals to deteriorate over time.
 Never use a steam cleaner to clean the appliance.
The steam can reach the electrical components and cause a short
circuit.
 Sharp edged or pointed objects will damage the evaporator, caus-
ing irreversible damage to the appliance. Do not use sharp edged or
pointed objects to
– remove frost or ice,
– separate frozen foods or remove ice trays.
 Never place electric heaters or candles in the appliance to defrost
it. These can damage the plastic parts.

IMPORTANT SAFETY INSTRUCTIONS
10
 Do not use defrosting sprays or de-icers, as they could contain
substances which could damage the plastic parts or which might
cause the build-up of gases and pose a danger to health.
California Proposition 65
 Appliances could produce or may contain some products which
are known by the State of California to cause cancer or reproductive
harm. California law requires all businesses to warn customers of po-
tential exposure of such substances. To minimize exposure to these
substances, always install, operate, and maintain this product ac-
cording to the Operating and Installation manual.
Transport
 To avoid damage to the appliance, always transport it upright and
in its packaging.
 Danger of injury and damage. The appliance is very heavy and
must be transported by two people.
Disposal of your old appliance
 Children could become trapped in the machine and could suffo-
cate.
– Remove the machine doors.
– Remove the drawers.
– Leave the adjustable shelves in the machine so children cannot
climb inside.
 Danger of electric shock!
– Cut the plug off the power cord.
– Cut the power cord off the old appliance.
Dispose of them separately from the appliance.
 Ensure that the appliance is not stored in the vicinity of gasoline or
inflammable gases and liquids during and after disposal.

IMPORTANT SAFETY INSTRUCTIONS
11
 Make sure that the coolant pipework is not damaged during dis-
posal to avoid uncontrolled leakage of oil and coolant (see data plate
for coolant type).
 Splashes of coolant can cause damage to the eyes. Be careful not
to damage any part of the pipework while awaiting disposal, e.g. by
– puncturing the coolant channels in the evaporator,
– kinking any pipework,
– scratching the surface coating.
Symbol on the compressor (depending on model)
This information is only relevant for recycling. In normal operation there is no risk.
 The oil in the compressor can be fatal if swallowed or if it pene-
trates the airways.

Caring for the environment
12
Disposal of packaging material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children. Return
the packaging to your dealer.
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these mate-
rials improperly by disposing of them in
your household waste can be harmful to
your health and the environment. There-
fore, please do not dispose of your old
appliance with regular household waste
and follow local regulations on proper
disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed.
Take care not to damage the pipework
at the back of your appliance before or
during transportation to an authorized,
environmentally friendly collection de-
pot.
This way, coolant in the pipework and
oil in the compressor will be contained,
and will not leak into the environment.
Please ensure that your old appliance
does not pose a danger to children
while being stored prior to disposal.
See "IMPORTANT SAFETY INSTRUC-
TIONS" for more information.

How to save energy
13
Normal
energy consumption
Increased
energy consumption
Installation /
Maintenance
In a well-ventilated room. In an enclosed, poorly venti-
lated room.
Protected from direct sun-
light.
In direct sunlight.
Away from heat sources (ra-
diator, range/oven).
Near a heat source (radiator,
oven).
Where the ideal room tem-
perature is approx. 68°F
(20°C).
Where the ambient room
temperature is above 77°F
(25°C).
Air vents uncovered and
dusted regularly.
Where the ventilation open-
ings are blocked and full of
dust.
Temperature
setting
39°F to 41°F (4°C to 5°C) in
the refrigerator section
The lower the temperature in
the appliance, the higher the
energy consumption.
0°F (-18°C) in the freezer
section

How to save energy
14
Normal
energy consumption
Increased
energy consumption
Use The drawers and shelves are
in the original arrangement.
Only open the door when
necessary and for as short a
time as possible. Store food
in an organized way.
Frequent opening of the
door for long periods will
cause a loss of coldness.
The appliance will cool down
and the compressor will run
for longer periods.
Take an insulated cool bag
when shopping and load
food in the appliance as
soon as possible.
Replace any food removed
as quickly as possible, be-
fore it begins to thaw.
Allow hot food and drinks to
cool down before placing
them in the appliance.
Hot food or food at room
temperature raises the tem-
perature inside the appli-
ance. The appliance will cool
down and the compressor
will run for longer periods.
Store food covered or
wrapped.
The evaporation or conden-
sation of liquids will cause a
loss of coldness.
Place frozen food in the re-
frigerator to defrost.
Do not overfill the appliance
in order to allow the air to
circulate.
Overfilling the appliance will
cause poor air circulation
and a loss of coldness.

Guide to the appliance
15
Control panel
aOn/Off button for switching the re-
frigerator section on or off
bButton for setting the temperature in
the refrigerator section
cAutomatic SuperCool button
dDisplay
eAlarm symbol
fAutomatic SuperCool symbol
gLock symbol
hTemperature display
iMain On/Off button for switching the
freezer section and the refrigerator
section on or off
jButton for setting the temperature in
the freezer section
kSuperFreeze button
lAlarm off button
mMenu symbol
(Settings mode:
For setting the temperature display
°C / °F, or switching the safety lock
on/off)
nPower supply symbol

Guide to the appliance
16
aControl panel
bFan
cInterior lighting
dEgg tray / Door shelf
eShelf
fBottle shelf
gFruit and vegetable drawer
hCondensate channel and
drain hole
iFreezer drawers

Guide to the appliance
17
Optional accessories
Bottle rack
Bottles can be stored horizontally using
the bottle rack to save space.
The bottle rack can be placed at differ-
ent positions in the appliance.
Split shelf
In order to accommodate tall items in
the appliance, one of the shelves is di-
vided. The front section can be pushed
under the rear section.
All-purpose microfiber cloth
The microfiber cloth helps remove fin-
gerprints and light soiling on surfaces
made of stainless steel, appliance cov-
ers, windows, furniture, car windows,
etc.
Accessories are available to order via
the Miele Webstore, from Miele di-
rectly (see back cover for contact de-
tails) or from your Miele dealer.

Switching on and off
18
Before first use
Packaging material
Remove all packaging material from
the inside of the appliance.
Protective foil
The stainless steel trim to the interior
shelves and the door shelves has a
layer of protective foil to prevent dam-
age during transportation.
Carefully remove the protective foil
from the stainless steel trim.
Cleaning
Please refer to the relevant instruc-
tions in "Cleaning and care".
Clean the inside of the appliance and
the accessories.
Accessories
- Bottle holder
The non-slip fins of the bottle holder jut
out into the bottle shelf and make bot-
tles more secure when opening and
closing the appliance door.
Attach the bottle holder along the
center rear edge of the bottle shelf.

Switching on and off
19
Switching on
To enable the temperature to get suffi-
ciently cold inside the appliance, allow
the appliance to run for a few hours
before placing food in it.
Do not place food in the freezer sec-
tion until the temperature is cold
enough (at least 0°F / -18°C).
The freezer section and the refrigerator
section can be switched on at the
same time using the right-hand main
On/Off button.
Press the right-hand main On/Off but-
ton to switch on the freezer section
and the refrigerator section.
The appliance will start to cool and the
temperature required will appear in the
temperature display. The refrigerator
section interior lighting will come on
when the door is opened.
Switching off
To switch off the freezer section and
the refrigerator section, press and
hold the right-hand main On/Off but-
ton until the display goes out.
The refrigerator section and freezer sec-
tion are switched off. If this is does not
happen, the safety lock is still activated
(see "Selecting additional settings - To
deactivate the safety lock).
The refrigerator section interior lighting
will go out and the cooling process will
be switched off.
Turning off the refrigerator section
separately
The refrigerator section can be turned
off without having to turn off the freezer
section. This is useful, e.g. while on va-
cation.
To switch off the refrigerator section,
press the left-hand On/Off button un-
til the display goes out.
The interior lighting and the temperature
display for the refrigerator section will
go out. The refrigerator section is
switched off. The temperature display
for the freezer section will remain on.

Switching on and off
20
Turning the refrigerator section back
on again
The refrigerator section can also be
switched back on again separately.
To switch the refrigerator section on,
press the left-hand On/Off button.
The temperature display for the refriger-
ator section lights up. The refrigerator
section starts to cool and the interior
lighting comes on when the door is
opened.
Turning off for longer periods
of time
If, during a long absence, the ap-
pliance is switched off but not
cleaned and the door(s) left shut,
there is a danger of bacteria building
up inside the appliance.
It is essential to clean the appliance.
If the appliance is not going to be used
for a longer period of time, e.g. while on
vacation:
switch the appliance off,
unplug the power cord or trip the cir-
cuit breaker,
clean the appliance and
leave the door(s) ajar to air the appli-
ance and avoid odors building up in-
side the appliance.
It is also advisable to carry out the last
two instructions if you are switching
the refrigerator section off for a longer
period of time.
