Miele KS37472iD User manual

Operating and Installation Instructions
Refrigerator
To prevent accidents and damage to the appliance, you must read all
instructions supplied before installing for using the appliance.
M.-Nr. 10 117 250en-US

IMPORTANT SAFETY INSTRUCTIONS.................................4
Guide to the appliance .............................................9
Optional accessories ...............................................12
How to save energy ...............................................13

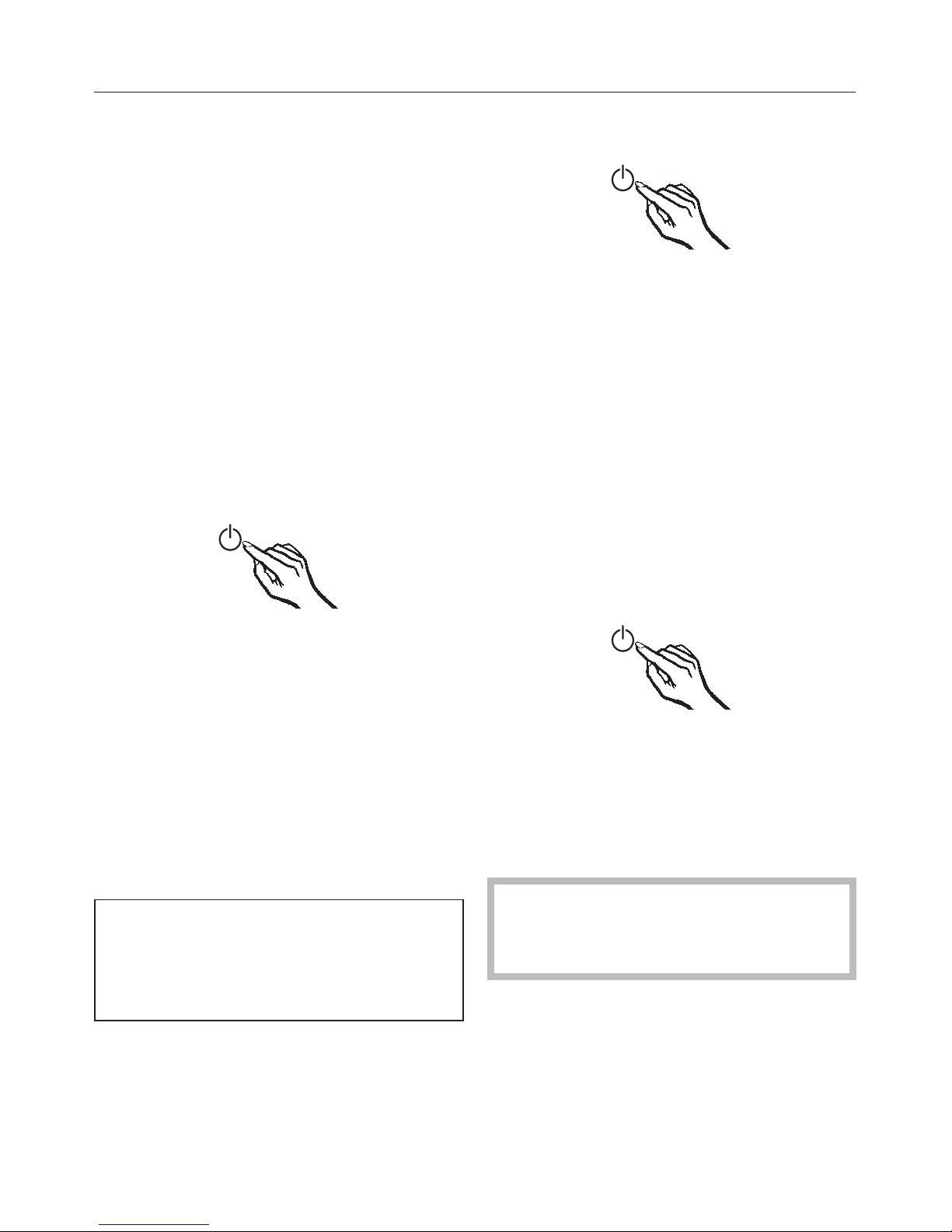

Turning the appliance on and off ....................................15
Operating the appliance ............................................16
Turning the appliance on............................................16
Turning the appliance off............................................16
Turning off the appliance in Sabbath mode ...........................16
Turning off for longer periods of time ..................................17
The right temperature .............................................18
. . . in the fridge section and in the PerfectFresh zone .....................18
Automatic cold air circulation (DynaCool) ............................18
Temperature display ...............................................18
Setting the temperature in the refrigerator...............................19
Adjusting the temperature in the PerfectFresh zone .......................20
SuperCool.......................................................21
Door alarm ......................................................22
Turning off the audio alarm ..........................................22
Selecting additional settings .......................................23
Safety lock 0.....................................................23
Temperature unit (Celsius or Fahrenheit) ...............................24
Acoustic signals )................................................26
Display brightness s...............................................27
Sabbath mode ¬..................................................28
Storing food in the refrigerator section ...............................30
Various cooling zones ..............................................30
Storing food in the PerfectFresh zone................................32
Dry compartment ,................................................33
Humidity controlled compartment ,,..................................33
Low humidity ,.................................................33
High humidity level .............................................33
Adjusting the interior fittings .......................................35
Adjusting the door shelf / bottle shelf ..................................35
Adjusting the bottle holder...........................................35
Contents
2

Adjustable shelf / Adjustable shelf with lighting ..........................35
Moving the shelf / Shelf with lighting ................................35
Adjusting the bottle rack ............................................36
PerfectFresh drawers...............................................36
Automatic defrosting..............................................38
Cleaning and Care ................................................39
Before cleaning ...................................................40
Adjustable shelf / Adjustable shelf with lighting ........................41
Interior and accessories ............................................42
Door seal ........................................................43
Ventilation slits ....................................................43
After cleaning.....................................................44
Frequently asked questions ........................................45
Noises ..........................................................53
Service / Warranty ................................................54
Warranty ......................................................54
Information for dealers/showrooms..................................55
Demo mode r.....................................................55
Caring for the environment.........................................58
Electrical connection..............................................59
Installation information ............................................61
Side-by-side......................................................61
Location .........................................................61
Climate class ..................................................61
Ventilation .......................................................62
Ventilation slits ....................................................63
Before installation .................................................64
Installation dimensions ............................................65
Adjusting the door hinge ..........................................66
Changing the door hinging .........................................67
Installing the appliance ............................................71
Installing the custom door front .......................................79
Contact details ..................................................87
Contents
3

When using the appliance, follow
basic safety precautions, including
the following:
Read all instructions before
installation and use to prevent
accidents and machine damage.
This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property.
They contain important notes on
installation, safety, use and
maintenance. Miele cannot be held
liable for non-compliance with these
instructions.
Keep these instructions in a safe
place and pass them on to any
future owner.
Correct use
~This appliance is intended for use in
domestic households and similar
working and residential environments.
It is not intended for outdoor use.
~This appliance is intended for the
cool storage of food and drink.
Any other usage is not supported by
the manufacturer and could be
dangerous. The manufacturer cannot
be held liable for damage resulting
from incorrect or improper use or
operation.
~This appliance is not suitable for
storing and keeping cool medicines,
blood plasma, laboratory preparations
or other such materials or products.
Incorrect use of the appliance for such
purposes can cause deterioration of the
items stored. The appliance is not
suitable for use in areas where there is
a risk of explosion.
Miele cannot be held liable for damage
resulting from improper or incorrect use
of the appliance.
~The appliance can only be used by
people with reduced physical, sensory
or mental capabilities, or lack of
experience and knowledge
if they are supervised whilst using it or
have been shown how to use it in a safe
way and recognize and understand the
consequences of incorrect operation.
Safety with children
~Children should be supervised in
the vicinity of the appliance.
~Children ages eight and up may
only use the appliance oven without
supervision if they have been shown
how to use it in a safe manner, and if
they are able to recognize and
understand the potential risks of
improper use.
~Children must not clean or service
the appliance unless they are under
supervision.
IMPORTANT SAFETY INSTRUCTIONS
4

~Children should be supervised when
they are near the appliance. This
appliance is not a toy! To avoid the risk
of injury, do not allow children to play
with it or to use the controls. They will
not understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Ensure that any packing material is
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
Technical safety
~The coolant system is tested for
leaks.
~This appliance contains the coolant
isobutane (R600a), a natural gas which
is environmentally friendly. Although it
is flammable, it does not damage the
ozone layer and does not increase the
greenhouse effect.
The use of this coolant has, however,
led to a slight increase in the noise level
of the appliance. In addition to the
noise of the compressor, you might be
able to hear the coolant flowing around
the system. This is unavoidable, and
does not have any adverse effect on
the performance of the appliance.
Care must be taken during the
transportation and setting up of the
appliance that no parts of the cooling
system are damaged. Leaking
refrigerant can damage the eyes.
In the event of any damage:
–avoid open flames and anything that
creates a spark,
–disconnect the appliance from the
electrical power supply,
–air the room in which the appliance is
located for several minutes
–call Miele Technical Service
~The more coolant there is in an
appliance, the larger the room it should
be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every8gofcoolant at least 1 m3of
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.
~To avoid the risk of damage to the
appliance, make sure that the
connection data (fuse rating, frequency
and voltage) on the data plate
corresponds to the household supply.
Check that this is the case before
connecting the appliance. Consult a
qualified electrician if in any doubt.
~Be certain your appliance is
properly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance,
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician.
IMPORTANT SAFETY INSTRUCTIONS
5

~If the power cord is damaged, it
must be replaced by a Miele authorized
technician in order to protect the user
from harm.
~Do not connect the appliance to the
electrical supply with a power bar or
extension cord. These are a fire hazard
and do not guarantee the required
safety of the appliance.
~Do not use the appliance in areas
where there may be moisture or
splashing water (e.g. garages, laundry
rooms, etc.).
Moisture can reach the electrical
components and cause a short circuit.
~This appliance is not to be used in
non-stationary locations, such as ships.
~Do not use a damaged appliance. It
could be dangerous. Check the
appliance for visible signs of damage.
~To ensure safe operation, use the
appliance only when it is installed.
~The appliance must be isolated from
the electricity supply during installation,
maintenance and repair work in the
following circumstances:
–The circuit breakers on the electrical
service panel are tripped.
–The screw-type fuses on the
electrical service panel have been
removed.
–The power cord has been
unplugged. Pull on the plug and not
on the cord when removing it from
the outlet.
~Repairs should only be carried out
by a qualified and trained person in
strict accordance with local and
national safety regulations.
Unauthorized repairs could cause
personal injury or machine damage and
may void the warranty.
~Repairs and other work performed
by unauthorized persons could be
dangerous and may void the warranty.
~Defective components should only
be replaced by Miele original parts.
Only with these parts can the
manufacturer guarantee the safety of
the appliance.
Proper use
~The appliance is designed for use
within a certain climate range (ambient
temperatures), and should not be used
outside this range. The climate range
for your appliance is stated on the data
plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
will lead to the appliance turning off for
longer periods so that it cannot
maintain the required temperature.
~WARNING! Danger of damage from
overheating. May restirct operation.
Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
~If you store fatty or greasy foods in
the appliance or the appliance door,
make sure that no oil or grease leaks
onto the plastic parts of the appliance.
This can cause the plastic to crack and
break.
IMPORTANT SAFETY INSTRUCTIONS
6

~Do not store explosive materials in
the appliance or any products
containing propellants (e.g., spray
cans). Electrical components could
cause flammable vapors to ignite.
Danger of fire and explosion.
~Do not operate any electrical
equipment (e.g. an electric ice cream
maker) inside the appliance.
Danger of sparking and explosion!
~When eating stored food, there is a
danger of food poisoning.
Storage times will depend on several
factors, including the freshness and
quality of the food, as well as the
temperature at which it is stored.
Observe the manufacturer's "use-by"
dates and storage instructions.
~Use only genuine original Miele
parts. If parts or accessories from other
manufacturers are used, the warranty
may become invalid.
Cleaning and care
~Do not use any oil or grease on the
door seals. They can cause the seals to
deteriorate over time.
~Never use a steam cleaner to clean
the appliance.
The steam can reach the electrical
components and cause a short circuit.
~Never use a pointed or sharp-edged
object to
–remove frost or ice
–separate frozen foods or remove ice
trays
This will damage the evaporators,
causing damage to the appliance.
~Do not place electric heaters or
candles in the appliance to defrost it.
These can damage the plastic parts.
~Do not use defrosting sprays or
de-icers
as they could contain substances
which could damage the plastic parts
or which might cause the build-up of
gases and pose a danger to health.
IMPORTANT SAFETY INSTRUCTIONS
7

Transport
~Always transport the appliance in an
upright position and in its original
transport packaging to avoid damage
in transit.
~The appliance is very heavy and
must be transported by two people.
Danger of injury and damage!
Disposal of your old appliance
~There is a risk of suffocation.
Children playing can shut themselves in
and suffocate.
– Take the door(s) off.
– Remove the drawers.
– Leave the storage shelves in the
appliance so that children cannot
easily climb into the appliance.
~Danger of electric shock.
– Cut off the plug from the power cord
and discard.
–Cut off the power cord from the
discarded appliance. Dispose of
separately from the appliance.
~Ensure during and after disposal
that the appliance isn't stored in the
vicinity of gasoline or other flammable
vapors and liquids.
~When disposing of the appliance,
ensure that the refrigeration circuit is
not damaged to prevent uncontrolled
escape of the refrigerant it contains
(data on type plate) and oil.
~Take care not to damage any part of
the cooling system, for example by
–puncturing the coolant channels in
the evaporator,
–kinking any pipework,
–scratching the surface coating.
Caution: Spraying coolant can damage
the eyes.
SAVE THESE
INSTRUCTIONS AND
PASS THEM ON TO ANY
FUTURE USER
IMPORTANT SAFETY INSTRUCTIONS
8

Control panel
aFor turning the entire appliance on
and off.
bOptical interface
(for Service use only)
cOn/Off button for the
SuperCool functions
dFor setting the temperature
(Xfor colder), selection button in
settings mode
eFor confirming a selection
(OK button)
fFor setting the temperature
(Yfor warmer), selection button in
setting mode
gFor accessing or leaving
settings mode
hFor turning the door alarm off
iDisplay with temperature and
symbols (symbols only visible in
settings mode, in the event of an
alarm/message; see table for
explanation of symbols)
Guide to the appliance
9

Explanation of symbols
Symbol Meaning Function
0Safety lock Prevents the user from unintentionally
turning off the appliance, adjusting the
temperature, turning on the SuperCool
functions or entering settings.
)Acoustic signals Selection options for the keypad tone and
the door and temperature alarm tones
sDisplay brightness
settings
For adjusting the brightness of the display
uPerfectFresh
Temperature
Adjusting the temperature in the
PerfectFresh Pro zone
¬Sabbath mode For turning Sabbath mode on and off
tPower supply Confirms that the appliance is connected to
the electricity supply when it is not turned
on; flashes when there is a power cut
;Alarm Illuminates when the door alarm is activated;
flashes in case of a temperature alarm,
power failure, and additional fault messages
rDemo Mode
(only visible when
Demo mode is active)
For turning off Demo mode
Guide to the appliance
10

aControl panel
bFan
cShelf with
lighting (FlexiLight)
dEgg tray / Door shelf
eShelf
fBottle rack
gBottle shelf
hPerfectFresh Pro zone dry
compartment
iCondensate channel and drain hole
jMoisture level control in the
humidity-controlled compartment*
kPerfectFresh zone
humidity-controlled compartment*
* depending on model
Guide to the appliance
11

Optional accessories

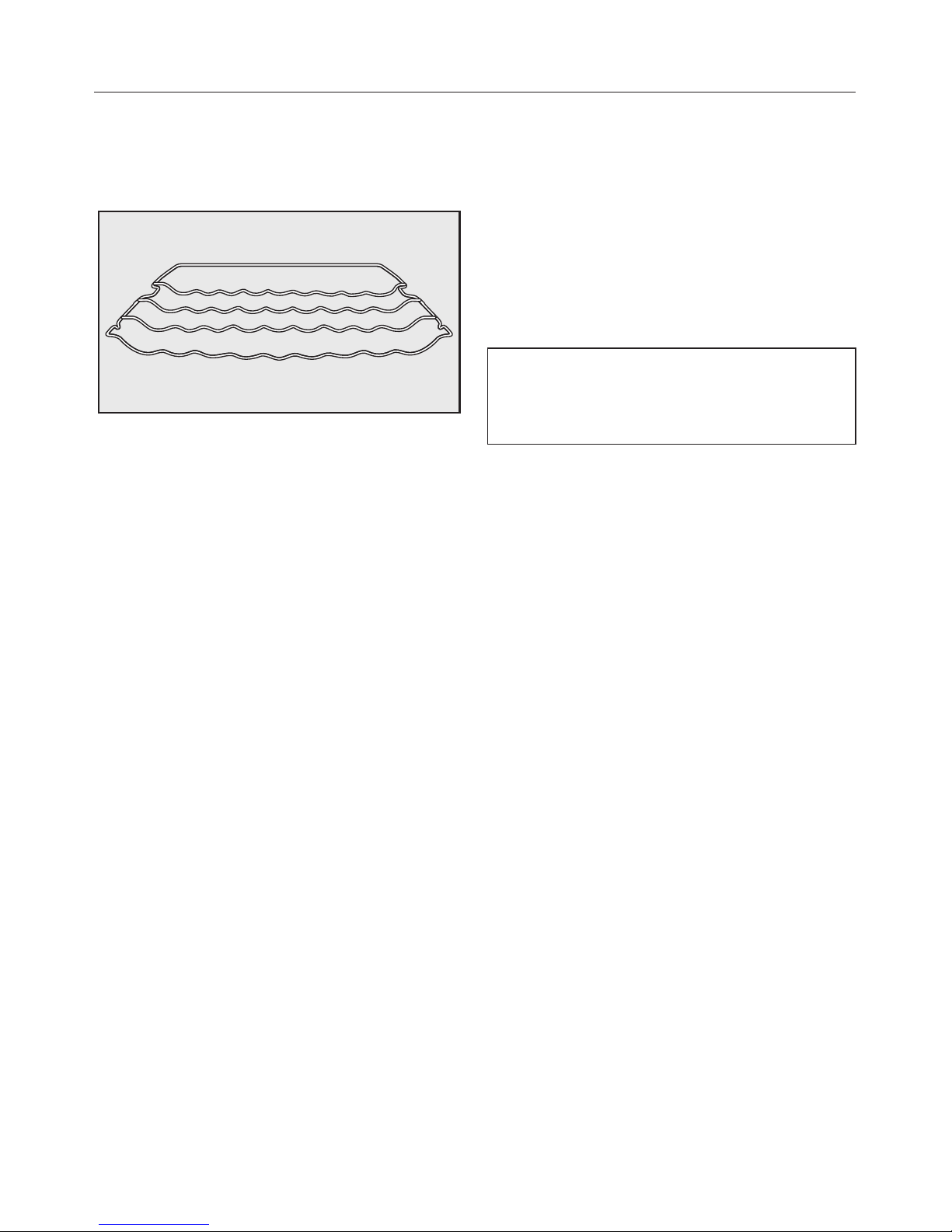

Bottle rack
Bottles can be stored horizontally using
the bottle rack to save space.
The bottle rack can be placed at
different positions in the appliance.
Stainless steel maintenance
–Each application of the Miele
stainless steel conditioner forms a
water and dirt repellent protective
coating. It gently removes water
marks, fingerprints and other dirt for
a uniformly shiny surface.
Optional accessories are available
from Miele, your Miele dealer or
online.
Guide to the appliance
12

Normal
energy consumption
Increased
energy consumption
Installation /
Maintenance
In a well-ventilated room. In an enclosed,
poorly ventilated room.
Protected from direct
sunlight.
In direct sunlight.
Away from heat sources
(radiator, range/oven).
Near a heat source (radiator,
range/oven).
Where the room temperature
is ideal, i.e. around 68°F
(20°C).
Where the room temperature
is higher.
Do not block the ventilation
openings, and keep them
free of dust.
Where the ventilation
openings are blocked and
full of dust.
Temperature
setting
39 to 41°F (4 to 5°C) in the
refrigerator section
With a low temperature
setting: The lower the
temperature in the
appliance, the higher the
energy consumption.
PerfectFresh zone just
above 32°F (0°C)
How to save energy
13

Normal
energy consumption
Increased
energy consumption
Use The drawers and shelves are
in the original arrangement.
Only open the doors when
necessary and for as short a
time as possible.
Store food in an organized
way.
Frequent opening of the door
for long periods will cause a
loss of coldness. The
appliance works harder to
cool down and the
compressor runs for longer
periods.
When shopping, use a cooler
box or bag and place the food
in the appliance as soon as
possible.
Replace items removed from
the appliance as soon as
possible before they warm up.
Allow hot food and drinks to
cool down before placing
them in the appliance.
Hot food or food at room
temperature raises the
temperature inside the
appliance.
The appliance works harder to
cool down and the
compressor runs for longer
periods.
Store food covered or
wrapped.
The evaporation or
condensation of liquids in the
refrigerator section lower the
cooling capacity.
Place frozen food in the
refrigerator to defrost.
Do not overfill the appliance in
order to allow the air to
circulate.
How to save energy
14

Before first use
Packaging material
^Remove all packaging material from
the inside of the appliance.
Protective film
The stainless steel trim and panels are
covered with a film to protect them
during transportation.
^Remove this protective film after the
appliance has been installed.
Cleaning and care
It is essential to follow the relevant
instructions in "Cleaning and care."
^Immediately after pulling the film off,
wipe the stainless steel surfaces with
the Miele stainless steel care
product provided.
Important! Each application of a
stainless steel conditioner forms a
durable protective film that is stain
and water resistant.
^Clean the inside of the appliance and
the accessories.
Accessory - bottle holder
The fins of the bottle holder jut out into
the bottle shelf and make bottles more
secure when opening and closing the
appliance door.
^Attach the bottle holder centrally
along the rear edge of the bottle
shelf.
Turning the appliance on and off
15

Operating the appliance
The appliance is operated with the use
of touch keys activated by a finger.
A tone will sound each time a button is
touched. You can deactivate this, if you
wish (see "Selecting additional settings
- Acoustic signals").
Turning the appliance on
Once the appliance has been
connected to the electrical supply, the
electrical connection symbol twill
appear in the display after a short
while.
^Touch the On/Off button.
The temperature display disappears
and the power supply symbol tlights
up.
The appliance begins to cool.
When the refrigerator door is opened,
the interior lighting comes on and the
LED lighting on the adjustable shelves
becomes brighter until it reaches its
maximum brightness.
To enable the temperature to get
sufficiently cold inside the appliance,
allow the appliance to run for a few
hours before placing food in it.
Turning the appliance off
^Touch the On/Off button.
If this does not work, the safety lock
is activated.
The temperature will go out and the
power supply symbol twill appear.
The interior lighting goes out and the
cooling is turned off.
Turning off the appliance in Sabbath
mode
The appliance can be turned off
directly at any time.
^Touch the On/Off button.
The temperature will go out and the
power supply symbol twill appear.
The interior lighting goes out and the
cooling is turned off.
When the appliance is turned back
on again, Sabbath mode is
deactivated.
Turning the appliance on and off
16

Turning off for longer periods
of time
If the appliance is not needed for a
longer period of time:
^turn the appliance off,
^unplug the power cord or trip the
circuit breaker,
^clean the appliance,
^leave the door slightly ajar to air out
the appliance.
If, during a long absence, the
appliance is turned off but not
cleaned out and the door is left shut,
there is a danger of bacteria and
odors building up inside the
appliance.
Turning the appliance on and off
17

It is very important to set the correct
temperature for storing food in the
appliance. Microorganisms will cause
food which is not stored at the correct
temperature to spoil rapidly.
Temperature influences the growth rate
of these microorganisms. Reducing the
temperature reduces their growth rate.
The temperature in the appliance will
rise for the following reasons:
–if you open the door frequently or
keep it open too long,
–the more food that is stored in it
– if you put food in it that is too warm
– if the room temperature is too high.
The appliance is designed for use
within a certain climate range (room
temperature range) and should not
be used outside this range
. . . in the fridge section and in
the PerfectFresh zone
We recommend a temperature of 39°F
(4°C) in the refrigerator section.
The temperature in the PerfectFresh
zone is controlled automatically, and is
maintained at 32°F to 37°F (0°C to
3°C).
Automatic cold air circulation
(DynaCool)
The fan automatically turns on when the
cooling system for the refrigerator
section turns on. It distributes the
temperature in the appliance to all
areas more evenly so that all the food
will be chilled to about the same
degree.
Temperature display
In normal operation the temperature
display shows the current average
refrigerator temperature.
Depending on the ambient temperature
and the temperature setting, it can take
the appliance a few hours to reach the
temperature required and for this
temperature to then be shown as a
constant temperature in the display.
The right temperature
18

Setting the temperature in the
refrigerator
^Use the two buttons underneath the
display to set the temperature.
By touching the button:
–the temperature will get colder
– the temperature will get warmer
While the temperature is being set, the
temperature value will flash.
When you touch the buttons, you will
see the following changes in the
display:
– When first touched: The last
temperature selected flashes.
–Each subsequent touch of the
button:
The temperature value adjusts in 1°
steps.
–Keeping your finger on the button:
The temperature changes
continuously.
Approximately 5 seconds after you
release the button, the actual
temperature value in the appliance will
be displayed.
or
^Touch the OK button to confirm your
selection.
When you have adjusted the
temperature, wait for approx. 6 hours
if the appliance is not very full and for
approx. 24 hours if the appliance is
full before checking the temperature
display, as it will take this long for the
appliance to reach the temperature.
If, after this amount of time, the
temperature is too high or too low,
adjust it again.
Possible setting values for the
temperature
The temperature can be adjusted from
37.4°F to 48°F (3°C to 9°C).
The right temperature
19

Adjusting the temperature in
the PerfectFresh zone
In the PerfectFresh zone the
temperature is maintained between
32°F (0°C) and 37°F (3°C). However, if
you would like it to be warmer or colder,
e.g. when storing fish, you can adjust
the temperature slightly.
The preset temperature in the
PerfectFresh zone is 5. If a setting of
between 1and 4is selected, minus
temperatures may be reached, thus
resulting in food freezing.
Adjusting the temperature
^Touch the settings button.
All symbols available for selection will
appear in the display and the 0symbol
flashes.
^Touch the buttons for setting the
temperature (Xor Y) repeatedly until
the usymbol flashes in the display.
^Touch the OK button to confirm your
selection.
The last selected setting flashes in the
display and the ulights up.
^You can now adjust the temperature
in the PerfectFresh zone by touching
the Xor Ybutton. You can choose
from settings 1to 9:
1: lowest temperature
9: highest temperature
^Touch the OK button to confirm your
selection.
The selected setting will be adopted
and the usymbol will flash.
^Touch the settings button to leave the
settings mode.
Otherwise the appliance will exit the
settings mode automatically after
approximately one minute.
The newly set temperature for the
PerfectFresh zone will gradually be
reached.
The right temperature
20
