Miku SUPER User manual
JJiangsu Xinri E-vehicle Co.,Ltd.
No.501 Xishan Road, Anzhen, Xishan District, Wuxi, Jiangsu Province, P.R.China
MIKU SUPER
Owner‘s Manual
CONTENTS
SECTION 05
RIDING GUIDE
SECTION 01
USER INSTRUCTIONS
SECTION 02
SAFETY INSTRUCTIONS
SECTION 03
PERFORMANCE
SECTION 04
DESCRIPTION OF COMPONENTS & PARTS
SECTION 06
THE MANUAL OF SMART CHARGER
SECTION 07
BATTERY & CHARGING
SECTION 08
STORAGE
SECTION 09
MAINTENANCE TIPS
SECTION 10
SMART APP INSTRUCTIONS
DESIGNED BY MIKU TEAM
Nov. 2020
WARNING!
Thanks for your purchasing of this vehicle. This model is designed for safety, built for
durability, and perfected for daily street use. The unique vehicle design, enrich of stylish and
personality, represents your outstanding taste and favor to pursue the state of the art living
attitude.
01 USER INSTRUCTIONS
01
Fully understand the information in this manual, including but not limited to the relevant instructions,
precautions and warnings.
Fully understand the operation & contingency measures of electric scooters.
Be fully aware of warning labels of electric scooters.
Modifying the scooter and/or removing original equipment and/or safety decals could make
this scooter unsafe for operation.
Please consult your dealer if you have any questions concerning this manual. Wish you safe and
pleasant riding experience!
This manual describes the correct usage of this motorcycle including safety riding, simple
inspection methods and so on. For a more comfortable and safety riding, please read this
manual carefully before riding and make sure you are always following the requirements below:
FOR YOUR OWN SAFETY, PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING THIS
VEHICLE. ONLY OPERATE THE VEHICLE UNTIL YOU HAVE COMPLETELY AWARE OF ADEQUATE
KNOWLEDGE OF CONTROLS AND OPERATION FEATURE AND YOU HAVE BEEN TRAINING IN
SAFE AND PROPER RIDING TECHNIQUES. PERIODIC INSPECTIONS, WELL MAINTENANCE AND
GOOD RIDING SKILLS, WILL ENSURE YOUR SAFETY RIDING AND INCREASE THE PRODUCT
RELIABILITY OF THIS VEHICLE.
DESIGNED BY MIKU TEAM DESIGNED BY MIKU TEAM
02 SAFETY INSTRUCTION
02
THE VEHICLE IS TWO WHEEL SINGLE TRACK VEHICLE. IN ORDER TO ENSURE THE SAFETY OF YOU
AND OTHERS. TO REMIND OF OPERATOR, WHO SHOULD KNOW THE FOLLOWING REQUIREMENTS
BEFORE RIDING. HE OR SHE SHOULD:
3
4
5
03
Well trained and familiar to all the aspects of vehicle operation.
Obtain qualified training & legal license for operation of this vehicle.
Well and professional maintenance service for operator and certificated repair shop/dealer to acquire good
mechanical conditions of vehicle.
Driver
Driving after consuming alcohol or illegal drugs is strictly prohibited.
Always wear an approved helmet and protective clothing that cover your legs, ankles and feet.
Please DO NOT use high beam in good lighting conditions. The continuous use of high beam will cause
the visual disturbance to vehicles & pedestrians on the opposite side, thus affecting normal driving.
Please do not make or answer any call during riding, which is likely to cause traffic accidents.
Therefore
Always pre-check your vehicle before riding is important to prevent an accident.
Please follow the maximum loads limited of operator and passenger.
Observe traffic regulations and traffic signs and confirm the surrounding road conditions and bike
conditions at any time, so as to actively avoid danger.
Safe Riding
DESIGNED BY MIKU TEAM DESIGNED BY MIKU TEAM
04 05
In practice, the range is largely influenced by the driver’s weight and the additional load, weather conditions,
road conditions, the way it’s driven, the number of starts(e.g. on crossings), the condition of tires( especially their
inflation), batteries wear and tear and many other factors. In extreme conditions, the range can be reduced to
less than 50% of the indicated value.
Flat terrain, constant speed, no full load, no headwind, correct tire pressure, driver weight<70kg, no payload,
approx. 20℃ ambient temperature.
Inflated Tires Underinflated Tires
Unbalanced Power Pack
Balanced Power Pack
Warm Weather Cold Weather
High Head Winds
Slippery Roads
No Wind
DryRoads
Weather
Scooter
03 PERFORMANCE
low SpeedHigh Speed
Stop &Go
Elevation Changes
SoftGravel
Fewer Stops
Flat
Smooth Pavement
Route
More Less
Aggressive Riding
Fully Upright
Heavier
Modulated Riding
Streamlined
Reduced Cargo
Rider
Riding distance of per charge
The performance of an electric scooter is different from gasoline engine driven or human powered
vehicles. It's very important to understand how the electric scooter MIKU Super works before riding.
IDEAL CONDITIONS
DESIGNED BY MIKU TEAM DESIGNED BY MIKU TEAM
04 DESCRIPTION OF COMPONENTS & PARTS
06
Diagram of Components
07
Diagram of Dashboard
Battery case
Head light
Mirror
Storage
Seat
Passenger
foot rest Tail light
Front
suspension
Disc brake system
Side stand
Disc brake system
Motor
Rear swingarm
Instrument
Rear brake lever
Left switch
Tuning light
Right switch
Throttle grip
Front brake lever
Brake oil tank
D
B1
%
%
B2
000000ODO: km
km/h
100 120
80
60
40
20 0
POWER CHARGE
mph
miles
Battery charging hint
indicator
Position lights indicator
Malfunction indicator
Driving beam indicator
Handle failure indicator
Brake failure indicator
Right direction indicator
Left direction indicator
Controller failure indicator Battery capacity display
%
%
Speed display
km/h
mph
READY
Ready indicator
Mileage display
km
mile
ODO:000000
Bluetooth indicator
Central control signal
indicator
Tyre failure indicator
D
Drive mode
DESIGNED BY MIKU TEAM DESIGNED BY MIKU TEAM
Note: The following is MIKU Super smart version instrument.
05 RIDING GUIDE
08 09
Speed display
The speed display shows the riding speed.
Battery capacity display
This indicator shows the remaining capacity of the battery.
Drive mode
Here shows the speed mode which you choose. Driving beam indicator
Lights up whenever high beam is switched on.
Left direction indicator
This indicator light flashes when the left turn signal light is
activated.
Mileage display
Switch on the ignition, the indicator first 10 seconds displays the
total distance the scooter has been ridden in kilometers. And
then display the distance of single riding in kilometers.
Right direction indicator
This indicator light flashes when the right turn signal light is
activated.
Pre-ride Checklist
The condition of a vehicle is the owners’ responsibility. The operator should check the vehicle by
simple but thorough inspection, to make sure of vehicle condition, quick inspect some key and
important parts, to prevent the vehicle from serious consequence/accident. Please carefully check
the following points before each ride.
Tires
Ensure that both tires have at least 1/8 inch tread
depth at center.
Both tires must be inflated to the pressure indicated
on the tire sidewalls.
Replace the tires if tread height is less than 1/8 inch
at the center of tires.
Throttle
Check for smooth operation. Make sure throttle grip
could return to cut off power.
Check for frayed cable or damaged cable housing.
Replace damaged cable to avoid electricity shock.
Check for mud, debris and ice in the throttle
mechanism. Clean out any contamination.
1
2
3
1
2
3
DESIGNED BY MIKU TEAM DESIGNED BY MIKU TEAM
10 11
WARNING! Always perform the entire pre-ride checklist before using the scooter
as this can help you spot problems that could interfere with safe scooter
operation. Failure to follow this entire checklist before every ride can cause
serious injury, and/or property damage to yourself and/or others.
Ignition Switch
This position is used for operating the scooter.
Install the key and turn clockwise. At this
position the following sequence occurs:
All electric system are off. The key can be
removed.
To Lock The Steering Lock:
Lights turn ON Dashboard turns ON
To Unlock The Steering Lock:
Install the key and turn clockwise.
OFF
Position
ON
Position
Finger-print touch-start
Give a gentle touch to start the motor
With the key in the OFF position, turn the
handlebar all the way to the left.
Push the key down and turn the key
counter-clockwise.
Chassis frame Check for bent/damaged compo-
nents. Replace as necessary.
Battery Check the power level to ensure it's enough
for riding.
Lights Check for proper operation. Replace bulbs
as necessary.
Fasteners
Check that all axle nuts & lug nuts are secure.
Check for missing fasteners. Replace as necessary.
Check that all other fasteners are secure. Tighten as
necessary.
Steering
Make sure steering turns freely.
Check for proper “toe-in” of wheels.
Lubricate/Adjust as necessary. Please refer to the
maintenance section.
This switch controls the ignition, and also used to lock the steering. The various positions are described as below.
1
2
3
1
2
3
OPEN
PUSH
OPEN
OPEN
PUSH
OPEN
OPEN
PUSH
OPEN
DESIGNED BY MIKU TEAM DESIGNED BY MIKU TEAM
Short press twice “POWER KEY” to start
the motor
Long press to bind vehicle
Short press “LOCK KEY” to lock
Long press to mute lock
Short press “UNLOCK KEY” to unlock
Long press to open the Storage box
Description:
1 Press twice the POWER KEY to turn on
the ignition.
2 Press the LOCK KEY to lock the vehicle,
then it enters guard mode.
3 Press the UNLOCK KEY to unlock the
vehicle, it enters free mode. Now alarm
turned off manpower can push the bike.
1
2
12 13
Left&Right Switch
DANGER!
Be extremely careful when engaging the front brake to avoid locking the front wheel. Locking the
front wheel can cause a serious accident.
Throttle grip: The rotary throttle grip is on the right handlebar. Make sure that operation is smooth.
Accelerate by rotating the throttle towards you. Decelerate by rotating the throttle away
from you. The throttle includes a safety spring that snaps the throttle back to end when
released.
Rear brake lever: When stopping the scooter, squeeze the left brake lever smoothly and firmly to engage
the rear brake. Always engage the rear brake first.
Front brake lever: Squeeze the right lever to engage the front brake. The right lever must be squeezed
gently at first to avoid locking the front wheel.
Brake Levers & Throttle
1
1
2
2
3
3
1
2
3
4
MODE
R
P
6
7
8
9
5
Right switchLeft switch
Hazard warning lamp switch
1
High & low beam
2
Turn signal
3
Horn
4
83 speed control key :Ⅰ:ECO,Ⅱ:Normal,Ⅲ:Sport
Reverse
5
Auto Headlight
6
Headlight switch
7
9
Parking:
Switch on the ignition, the instrument displays P.
Press P button to remove parking function, then start
your ride.
During temporary stop, press P button to prevent
accidents caused by misoperation.
MODE
R
P
DESIGNED BY MIKU TEAM DESIGNED BY MIKU TEAM
Motor safety
14 15
Reduce the throttle to 0 position.
Operate the brakes.
After the vehicle is stopped turn off the ignition.
Lower the side/main stand with your foot while holding the motorcycle upright.Remove the key from the
main switch.
Stop the motor/Parking
Insert the key into the seat lock, and then turn the key clockwise to
“OPEN” the seat.
Fold the seat up.
Seat
Storage box
DANGER!
When braking, always engage the rear brake first to retain maximum control of the scooter.
Wet, oily, or sandy roads reduce braking effectiveness. Hard braking on these surfaces could
lead to loss of control and a serious accident. Always reduce speed as gradually as possible.
Keep the scooter free of dirt and
debris，especially in the throttle
linkage area.
Never start the engine or motor unless you
are property seated with your hands
firmly on the controls.
Make sure that all screws, locknuts, and bolts
are properly tightened. Never over-tighten
hardware that is designed to move.
Restricting moving parts can cause
a loss of control and possible injury
or death.
Never tamper with, alter, or change the scooter
motor settings. The motor governor is factory
preset and protects the motor from damage.
Excessive motor speed is potentially dangerous
to the operator，and the motor itself.
Operating the scooter in conditions where water,mud,snow,
dirt sand or other debris can get into the throttle wire conduit
and/or the throttle mechanism can cause
the wire or throttle mechanism to bind,
which may lead to throttle sticking,loss
of control,and possible death,injury,
and/or property damage.
Always replace torque-type locknuts with new locknuts
of the same type after removing the old ones.
Fasteners
After shutting off the e-bike, insert the key into the handlebar lock, and rotate it
leftwards to open the storage box.
With the bike unlocked, long press the finger-print touch start to open the storage box.
Long press the alarm unlock key to open the storage box.
2
1
3
4
Storage
Seat lock
Seat
DESIGNED BY MIKU TEAM DESIGNED BY MIKU TEAM
TO OPEN THE SEAT
TO OPEN THE STORAGE BOX
16 17
children
Usage
a
b
c
d
e
f
Turn the ignition off.
Plug the charge into the vehicle’s charging port.
Plug the power plug into 110V/220V/250V local AC power supply.
The green light turns to red to indicate charging status.
After 6-8 hours charging, the red light turns to green to indicate the battery charging is finished.
While the charging is finished, the charger will cut off power from AC power supply automatically.
Instruction
06 THE MANUAL OF SMART CHARGER
The charger should be matched with the alternating voltage of local power supply before connecting charger.
1
The charger is designed & tested for original battery from manufacturer. Do not use them for the other
mismatching batteries.
2
The charger is tested & matched with its scooter. If the charger is used on other scooters, it might make
different charging effect and/or cause battery damage.
3
Please connect charger and scooter before connect to local power supply, while you are going to charge
the battery. Please disconnect the charger from local power supply while the battery is fully charged. Don't
disconnect charger and scooter while the charger is connected with local power supply for safety reason.
4
Do not violently shake the charger. It might cause damage of the charger.
5
Keep the charger away from any water, dust or high temperature.
6
The charger creates heat while working. It should be stored in well ventilated place and keep away from any
inflammable things.
7
Keep it away from children.
8
If any wire or shell was broken, please send it to the professional repairing service. Don't open or repair
it yourself. This action will cause danger and lose warranty of the charger.
9
The charger is designed and made for electric scooter battery charging use. Don't make it for other use.
10
Any incorrect usage which does not follow this instruction will lose guarantee from seller.
11
DESIGNED BY MIKU TEAM DESIGNED BY MIKU TEAM
18 19

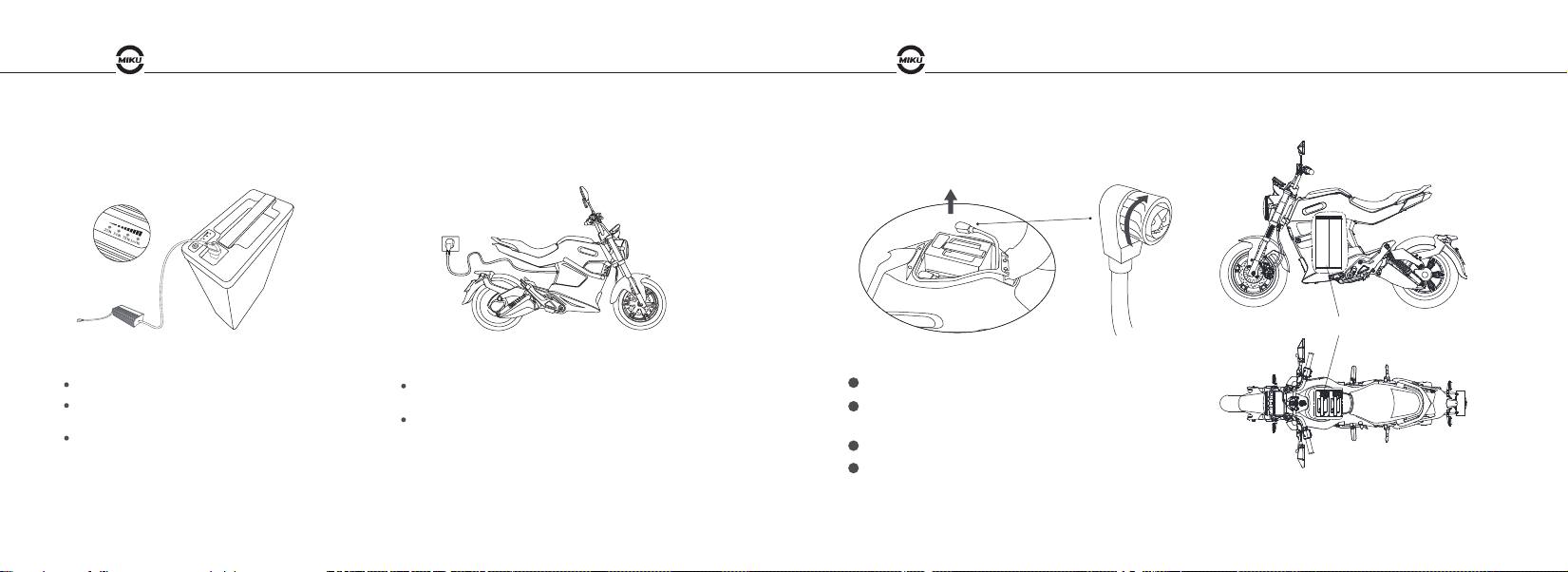

07 BATTERY & CHARGING
MIKU Super holds 2 portable batteries located under the storage box . The battery could be charged in the
scooter or separately charged out of the scooter.
Charging on battery
Take out the power pack from the battery case;
Connect the charger plug to the charging socket
on the battery;
The charging is in process if the charging indicators
are on.
Charging on scooter
Note : ①Always use a MIKU Super original battery charger from manufacturer. Improper charger might pose a fire
or explosion risk.
②The battery is fully charged , while the state light on the charger turns green.
Connect the charger plug to the charging socket
on the scooter;
The charging is in process if the red charging indicator
on the charger are on.
Position of battery
DESIGNED BY MIKU TEAM DESIGNED BY MIKU TEAM
Take the battery out
Open the storage box.
1
With the key in the Steering Locked position, turn the key
counter-clockwise, to open the battery case.
2
3
Rotate the blue knob to the left and hold it until you pull the plug off.
4
Take the battery out.
Tip: A click should be heard while successfully plugging in power.
20 21
Battery Power Indicator Instruction
The power indicators show 5 levels of battery powe
indicator show 20% of battery power.
The power indicators are blinking while the battery is under
charging.
The power pack is fully charged while 5 power indicators are
all staying on.
Store the Battery
Please contact your dealer if you are not familiar with handling the battery.
If the vehicle will not be used for more than a month, fully charge it, and then place it in a cool, dry place.
If the battery will be stored for more than 2 months, check it at least once a month and fully charge it
if the remaining capacity is less than 20%.
Fully charge the battery before the next time you ride it.
Always keep the battery charged. Storing a discharged battery can cause permanent battery damage.
08 STORAGE
LONG-TERM ( FOR WEEKS)
Clean the vehicle.
Check and correct tire pressure and lift the vehicle off the ground, so that neither of the two wheels is on
the ground. If this is not possible, turn the wheels every month a little further, so they do not constantly the
same place standing.
If you are not using the vehicle for an extended period of time, set the circuit breaker to “OFF”. During
this time, the battery has to be charged according to the manual.
SHORT-TERM (FOR A FEW DAYS)
Always store your vehicle in a cool, dry place and, if necessary, protect it against dust with a vehicle cover.
Please store the vehicle in a air flow room with dry air if possible. A place with wet humidity will
cause rust.
DESIGNED BY MIKU TEAM DESIGNED BY MIKU TEAM
22 23
09 MAINTENANCE TIPS
Authorized
Don’t modify the scooter from the
manufacturer’s original design
and configuration.
Assembly, maintenance and/or repair of this
scooter should only be performed by designated
dealers or authorized repair centers for e-scooter
repairs to ensure quality work
and safe scooter conditions.
While stopping,always shut off the scooter to
avoid move unexpectedly.
OFF
Regular maintenance can enhance the service life and driving safety of the smart electric bike. Please
refer to the following suggestions and take care of your scooter.
Please use clean water and neutral detergent
to clean it, and use soft cloths and sponges to
clean the surface; Never wash or operate the
scooter in freezing
temperatures. Please
disconnect the air
switch before cleaning.
OPEN
PUSH
OPEN
Item Purpose Rate
Daily
Daily
Weekly
Weekly
Weekly
Weekly
Monthly
Monthly
Monthly
Monthly
Monthly
Brake
Tyre
Rim
Shockabsorber
Ignition&throttle
Wire
Screw
Battery
Charger
Lubrication
Cleaning
Check braking performance, prevent traffic accident due to braking malfunction
Check tyre damage & air pressure, prevent flat tyre or power over consumption
during driving
Check rim strength & remove dirt in bearing, prevent rim breaking or jamming
Check front & rear shock absorbers, remove dirt & maintain lubrication,prevent
shock absorber jamming
Check ignition & throttle, prevent jamming or occasional failure
Check wire connector loose or damage, prevent wire malfunction
Check screw connector loose or damage, prevent screw malfunction
Check battery appearance & cell performance, prevent wire malfunction &
lengthen lifespan
Check front wheel axle, brake need to add lubrication or not
Surface cleaning
Check whether charger wire damage, braking, off-line, input & output connector
complete and reliable or not
DESIGNED BY MIKU TEAM DESIGNED BY MIKU TEAM
24 25
10 SMART APP INSTRUCTIONS
Step 1：
Download Smart Vehicle APP Client Software
Please scan QR code to download App.Also can
download from APP Store or Play Store. (System
requirements: iOS 9.0 / Android 6.0 or above)
Step 2：
Binding smart vehicles
Open the APP client and search for the vehicle
Search vehicle Vehicle Home
Note: Can't find or bind failed, please switch on/off phone's
Bluetooth and try again.
After registration and
login, long press the
power key to add vehicle
Enter the Home page to
explore how the smart
Miku Super is used
Step 3：
Fingerprint function description
1. Fingerprint entry: After the vehicle is successfully
bound, please touch the fingerprint sensor to see if
there is a beep (that means fingerprint connection is
working correctly). And just do as the system prompts.
DESIGNED BY MIKU TEAM DESIGNED BY MIKU TEAM
26 27
Troubleshooting
Scenes
Binding
process
Use
process
Fingerprint
function
Failure
phenomenon Countermeasures
No vehicle found
Failed to bind vehicle
The phone cannot
remotely control the
vehicle
Connecting slowly
Auto lock without
reason
Alarm can not stop
ringing
Fingerprint cannot
be entered
Fingerprint cannot
switch on the ignition
Switch off/on the Bluetooth or restart the APP
and bind again
Vehicle has audible alarm function, you can press
and hold the lock button to mute status
1. Make sure the corresponding finger fingerprint
is entered
2. Please check whether the fingerprint connection
is correct
Please try to clear the fingerprint. After clearing,
touching the sensor again, make sure if there is a
beep. If it cannot be cleared, please check
whether the fingerprint connection is correct
If the vehicle is not connected and the wheel
does not turn for 45 seconds, it will
automatically lock the vehicle to prevent
forgetting to lock the vehicle; this function can
be turned off in the vehicle settings
You can switch off/on Bluetooth and retry the
connection; some Android phones may have
compatibility issues, please be patient
1. Make sure your phone has Bluetooth and
positioning enabled
2. Make sure you press and hold the power key
and the vehicle beeps
3. Make sure the phone is as close to the vehicle
as possible
The mobile phone needs to be connected to the
vehicle before it can be remotely controlled
Note: If there are other usage and related problems, you can check the content of the help
center in the APP. If you cannot solve your problem, you can go to the store for consultation.
DESIGNED BY MIKU TEAM DESIGNED BY MIKU TEAM
2. Fingerprint use logic: Touch to
unlock, then touch to lock. When
unlocked, long touch the sensor to
open the storagebox.

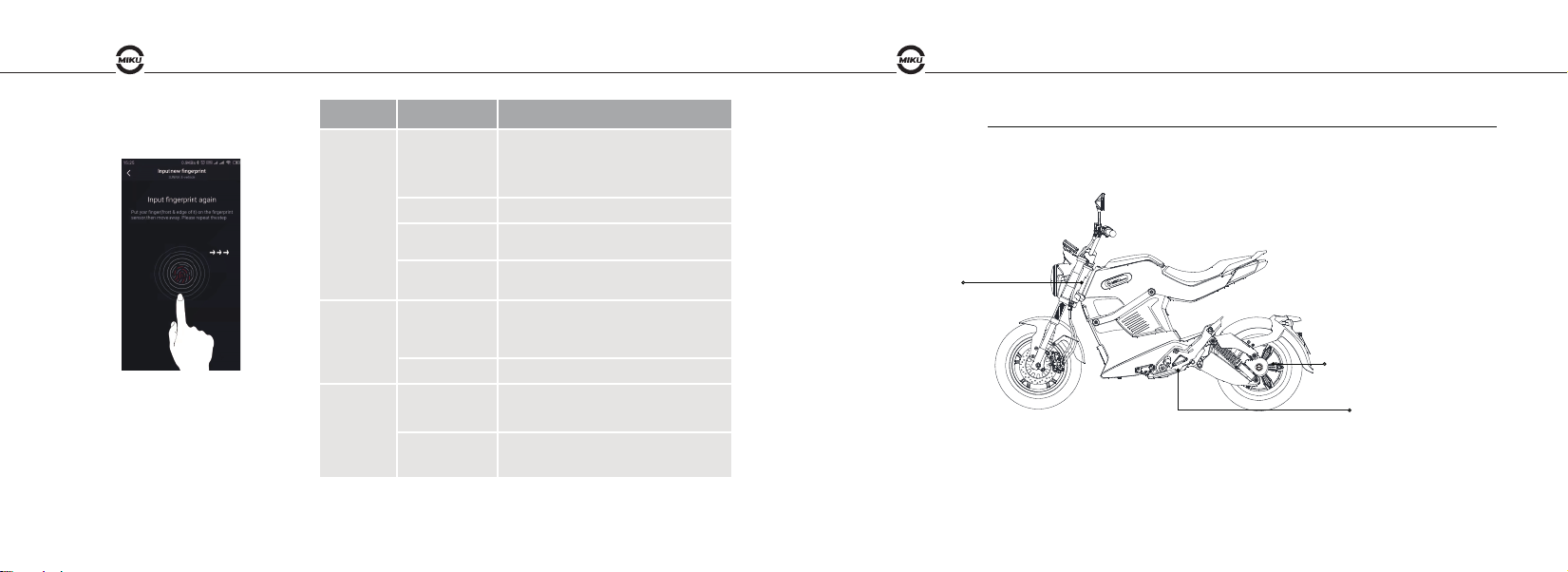

Serial No.：
The vehicle identification number（VIN）is required forall warranty work, theft recovery and consumer safety.
The complete VIN also appears ona plateat the bottom of chassis frame.
The VIN print islocated at steering pipeof chassis frame.
Motor number
VIN plate
VIN No.
Table of contents
