Mini XQB25-725H User manual

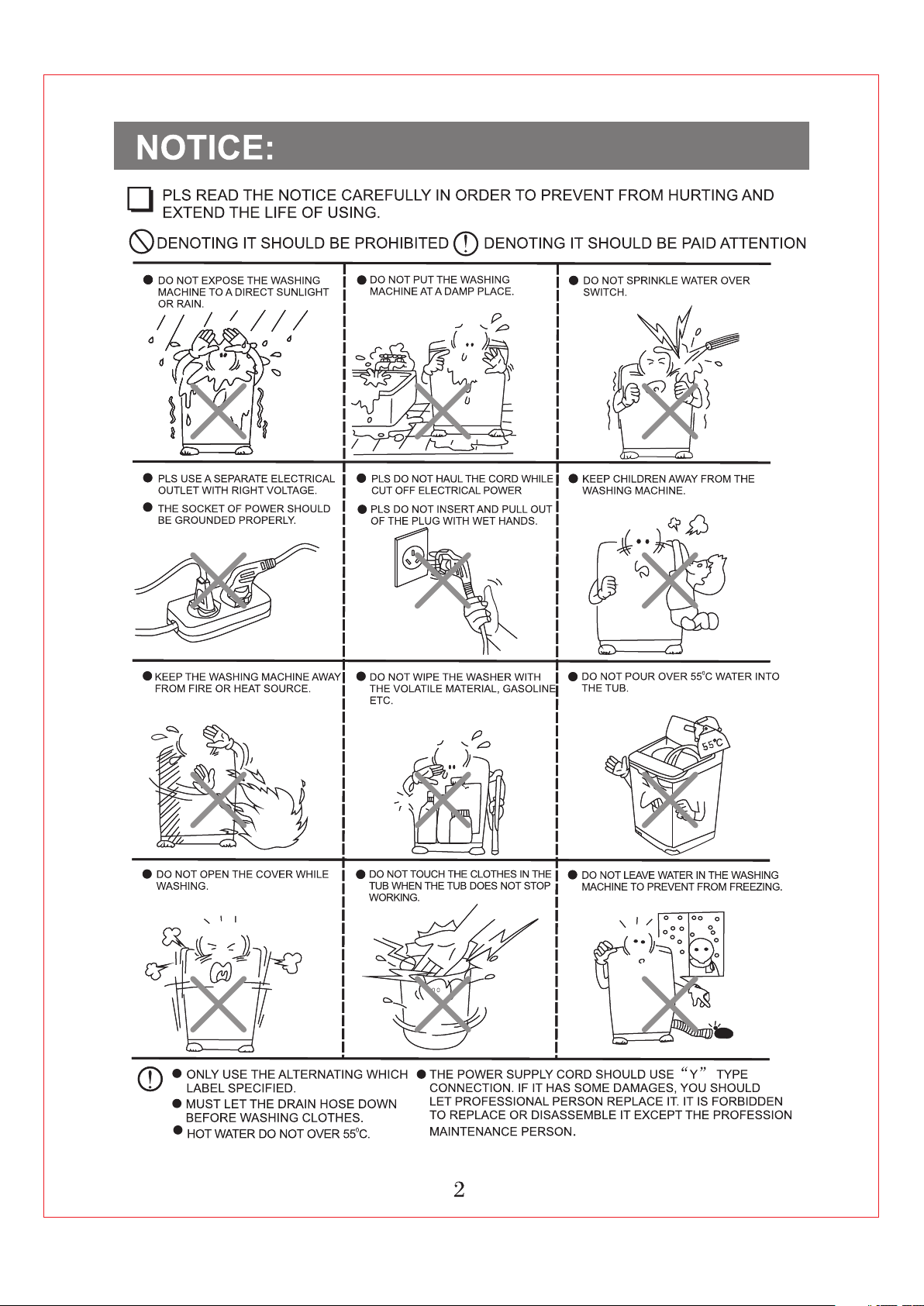

MODEL:XQB25-725H

XQB25-725H
220V
60Hz
250V 10A
2.5kg
0.03-0.8MPa
17kg
390x420x720mm

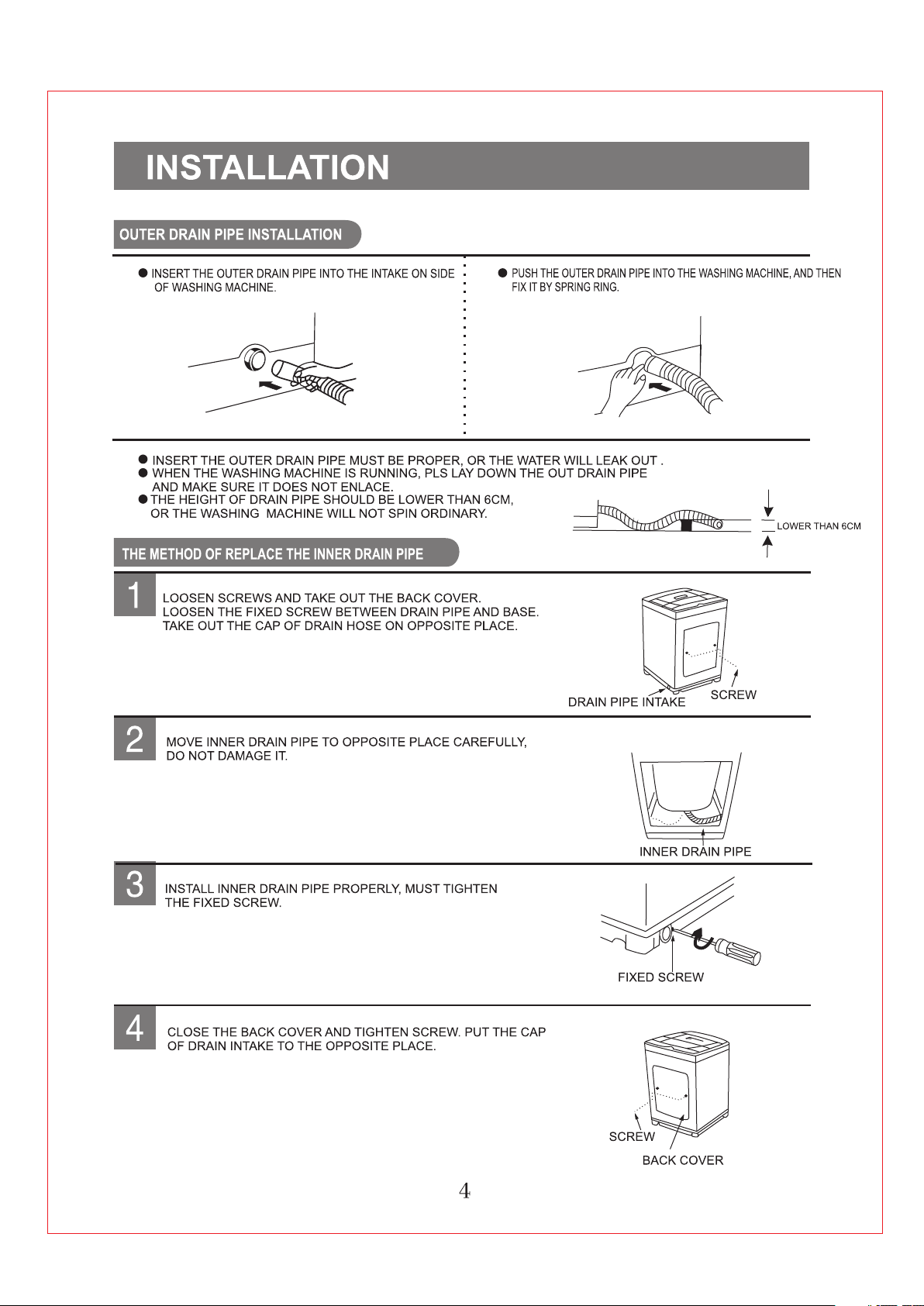

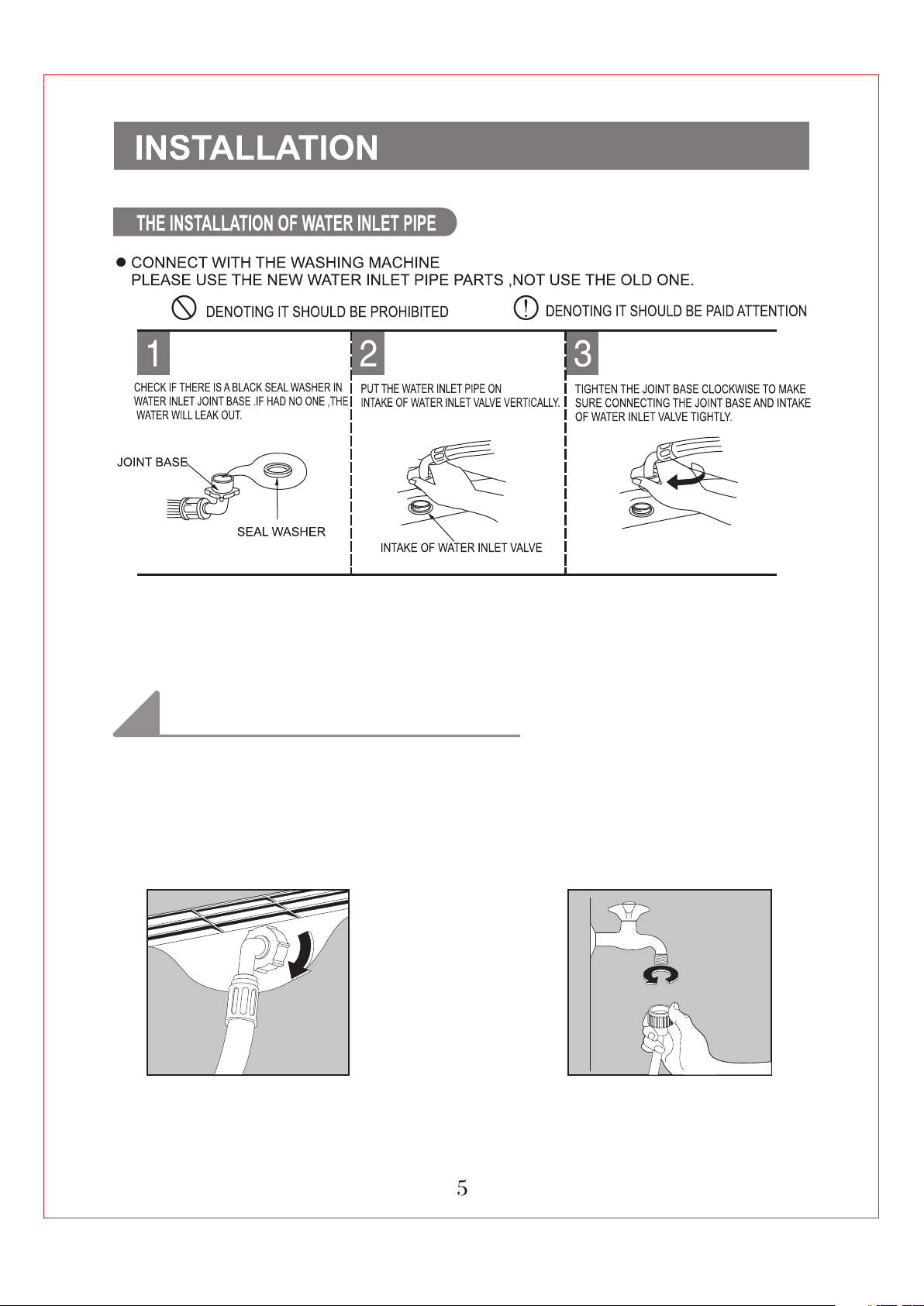

Water inlet connection
Connect the inlet hose supplied with the machine to a tap with a 3/4” thread.
Do not use previously employed hoses.
Installation should comply with local water authority and building regulations’ requirements.

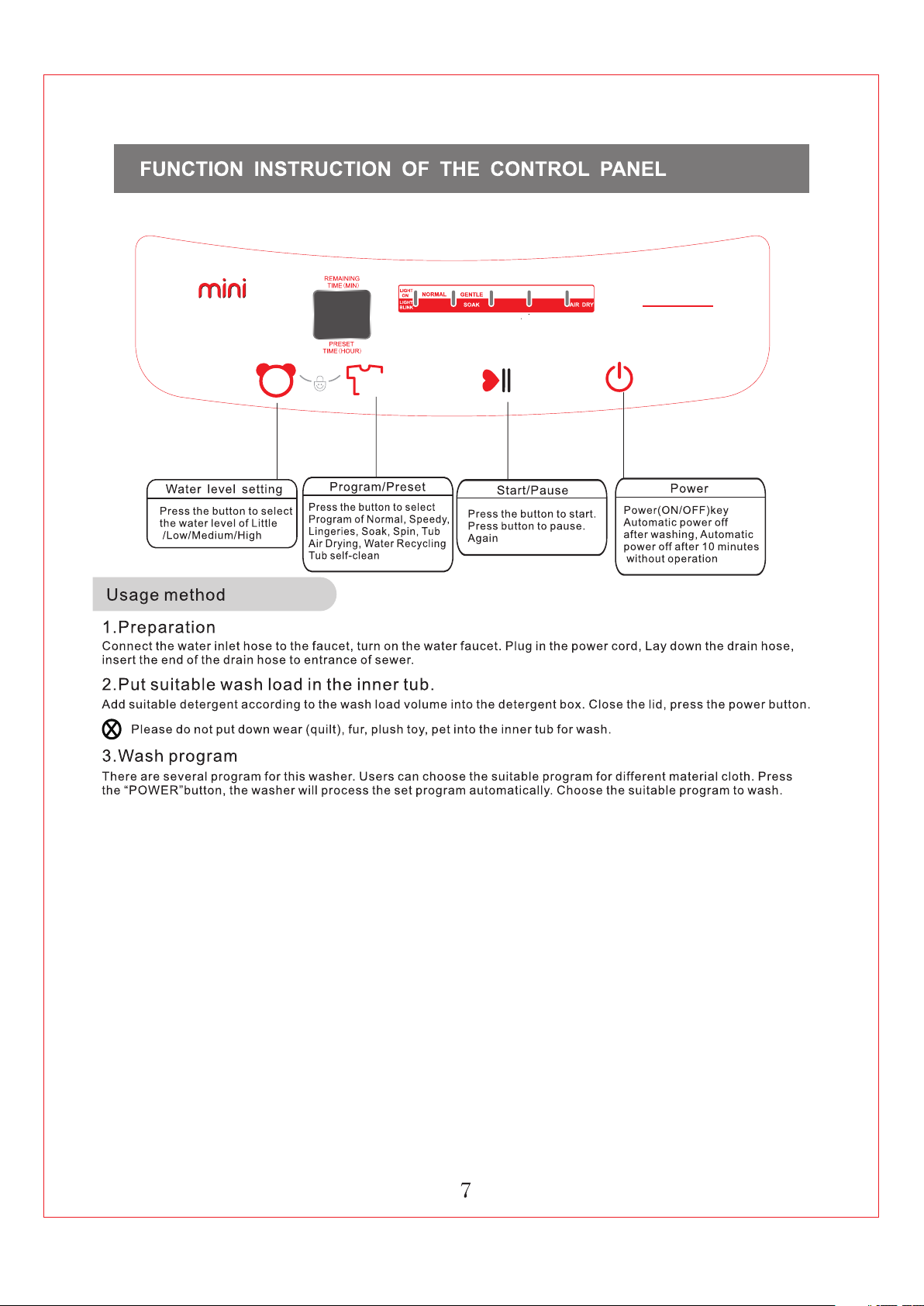

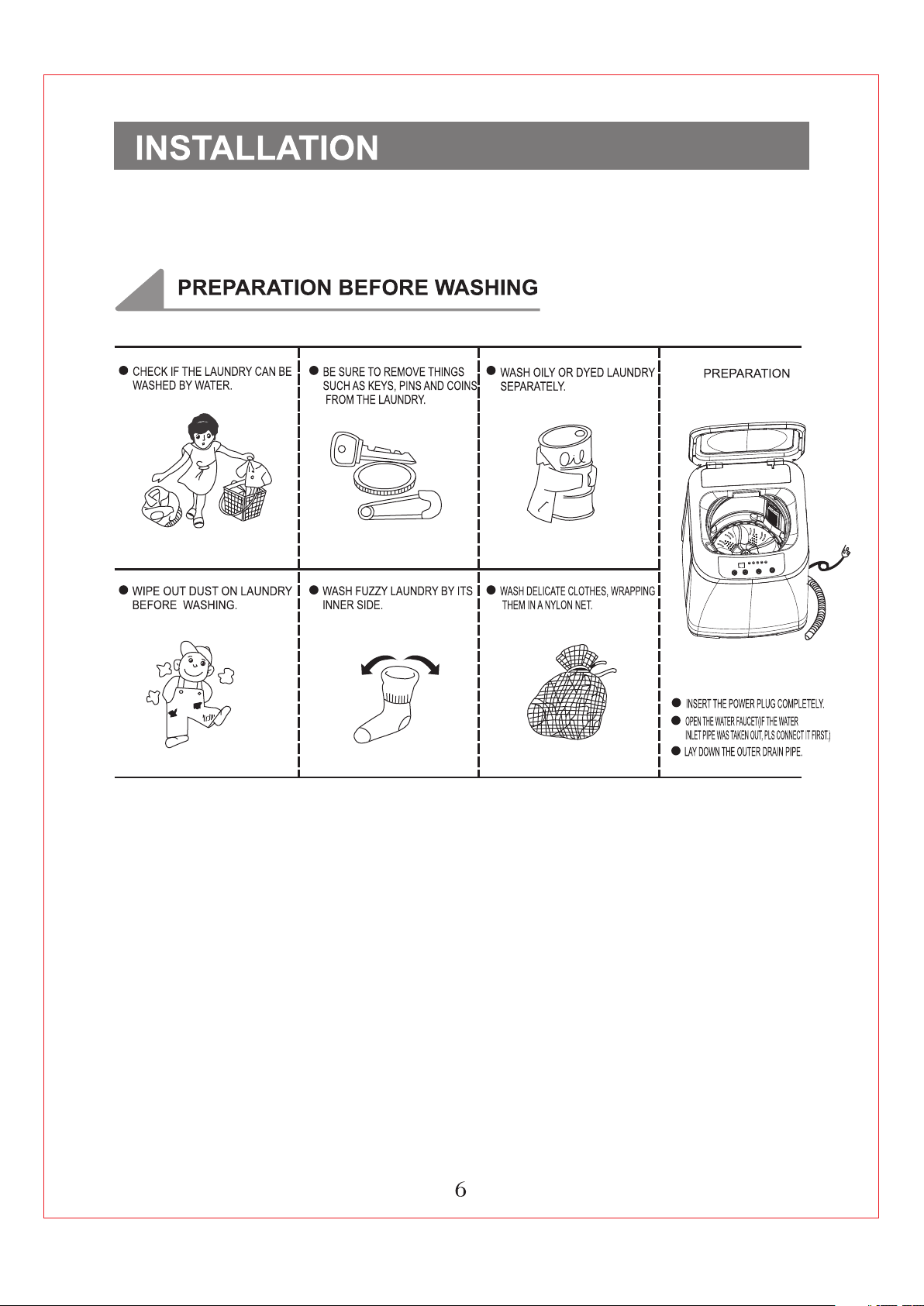

XQB25-725H
Normal Program: For wash normal clothes.
Gentle: Fit for underclothes.
Standard:Fit for wash clothes.
Heat 1: Heat water to 50 degrees.
Heat 2:Heat water to 80 degrees.
Baby:Suitable for baby’s clothes.
Soak :Fit for dirty clothes.
Fast:Fit for slight dirty and sweat stain,specially in summer.
Air Dry:Use the suction effect of the high-speed rotation of the tub,
so that the wet clothes further dehydration,more dry than normal dehydration,
the whole program of about 30 minutes.
Child Lock:When the program is started,pressing WATER LEVELkey and PROGRAM key together,
the child lock program will be operation.
STANDA RD HEAT 1 HEAT 2
BABY FAST SPIN
XQB25-725H
PROGRAM
PRESET
WATER
LEVEL
Child Lock
2.5KG

After press”POWER” button, press”PROGRAM ” button. Select the
washing program, and then press the program button for 3 seconds,
the lower right corner of the digital tube flashing. Preset program
start. Press the program button adjust the booking time, the initial
booking time of 1 hours, followed by 2 hours-3 hours-4 hours-5
hours-6 hours-8 hours-10 hours-12 hours-16 hours-20 hours-24
hours-No preset. Press”START/PAUSE”button start.
4.Adjust water level
The water level control uses the water level--frequency conversion way. The water level changes
the inductance of the vibration loop in the sensor, and changes the vibration frequency. When the
predetermined frequency is consistent with the water level, the water level reaches the setting
requirement and stops water inlet.
Press”Water level” button 1(little)-2(low)-3(medium)-4(high)
5.Press”START/PAUSE”button. system start.
Open the inlet valve, water enters the washing tub, when the water level reaches the set height,
water inlet stops. Pulsator begins to work, enter”washing”, then”rinse”and the”Spin”.The remaining
time of the process automatically minus 1 minute.
If user’s home water pressure is too low, the water inlet time is over 20 minutes, water have not
reach the set water level, digital display will show”E1" and alarm, Open and close the lid to resume
the water. In the drainage process, such as the drainage time of more than 5minutes, did not reach
the reset level, then stop drainage. digital display will show”E2"and alarm. Open and close the lid
to resume drainage. The”soaking”process and”washing” process have a water level detection, if the
water level is below the set limit, washing machine automatically recharge.
If the clothes are placed uneven before spinning, it is easy to result in bigger vibrancy of spinning.
The washing machine has a function of adjusting unbalance. When working, the system of the
washing machine always inspects running state. If finding a phenomenon that the spinning vibrancy
is too big, the washing machine automatically start the adjusting program to adjust the clothes state.
The washing machine can adjust unbalance twice, if no effect, the digital display will show”E4"and
alarm. Open the lid , and put the clothes balance, then close the lid, start”Spinning”.
Press the start/pause button in the running, system pause, the original flashing indicator light is
often bright, when press the button again, then resume the original working state.
In a standby power and water inlet and washing process, as detected by the water level sensor
abnormal frequency(frequency less than high limit water level or higher than the low water level
limit), turn off all output and buzzing alarm.
6.Washing machine automatically finish the whole process of laundry.
The remain time is”0", the buzzing informs 10 seconds after, The PC Board automatically power off.
W a t e r
L e v e l
Remaining Time (Min)
Preset Time (Hour)
Remaining Ti me (Min)
Preset Time (H our)
Program/
Preset

E 1
E 2
E 3
E 4
E 5
E 6
E 7
H S
2.5KG
220W
390*420*720
(mm)
17KG
1：13L
2：18L
3：25L
4：32L
C H
220W
TROUBLESHOOTING/SPECIFICATIONS
Troubleshooting
Function of fault alarm and flash
Exceptional
phenomenons Cause Sensor of water
lever series Solution
No indication
in controller
The power plug is not plugged tight,
the Power switch is not switched No display
No display
Re-plug the power plug,
press”POWER”button
Power socket no electricity or
fuse disconnection Check the power socket or fuse
After the failure Of electricity
supply, it need to re-operation
After the electricity, Wash Rinse
Spin Normal four indicator lights up
After the electricity,
please re-operation
Overhigh voltage or low voltage
Low voltage no display, overhigh
voltage may cause the fuse damaged
Pull the plug, use after the
voltage return to normal
Enter water
failure
Have not open the tap, stop water, low water pressure,
water have not reach the set water level after 20minutes
Open the tap, Clean the netting according to
the method of “Cleaning the water inlet”
Drain failure
The drain house is placed too high or have not lay down
the drian hose. The drain hose is wrung or jammed.
Check the drain hose, lay the drain hose lowly, press
“Start/Pause” button after checking. Open the machine
cover and close the machine cover for alarm free
Open abnormal
Safety lid is open Closed the lid
Touch the
shell during
the spinning
Cloth are uneven in tub causes its unbalance and rub
the shell. Washing machine will adjust itself. After twice
adjustment,if it still in unbalance,it will Be warning.
Open the lid, put clothes well, close the lid
Overhigh
water level Water level up on the highest safety water level PCB can Auto-precess
Sensor of water
lever abnormal
Stage frequency less than high water level limit
or exceed than low water level limit, will shows
sensor of water lever error alarm
Please ask professional person to check
Pause
abnormal Pause time exceed 10 minutes Please press the “start” button
Water
recycling
The water recycling program group the last time
before dehydration tips
Open and close the cover or press the start button
Tub self-clean
tips The indicator shows tub self-clean tips Please press the “start” button
Fault cause and solution for the washing machine without digital display are same as above, the alarminstructions are as follows:
Enter water failure: wash, rinse, spin indicator flash; Drain failure: Wash Rinse indicator flash; Spin abnormal: Rinse, Spin indicator
flash; Touch the shell during the spinning ; Wash, spin indicator flash; Sensor of water lever abnormal: Water level indicator flash.
Notes: Automatic adjustment is to stop spinning and change to reverse frequently cloth to make even. Too much or too
little cloth, or putting washing machine not in horizontal level, it will cause spinning in unbalance. It will automatic
adjustment and increases rinsing times.
Specifications
Model Voltage Capacity
Rated wash power
Rated spin power
Water level
Water Volume
Net
Weight
Product size
Noise
Noise≤70db
Feed water
pressure Water Proof
XQB25-725H 220V/60Hz

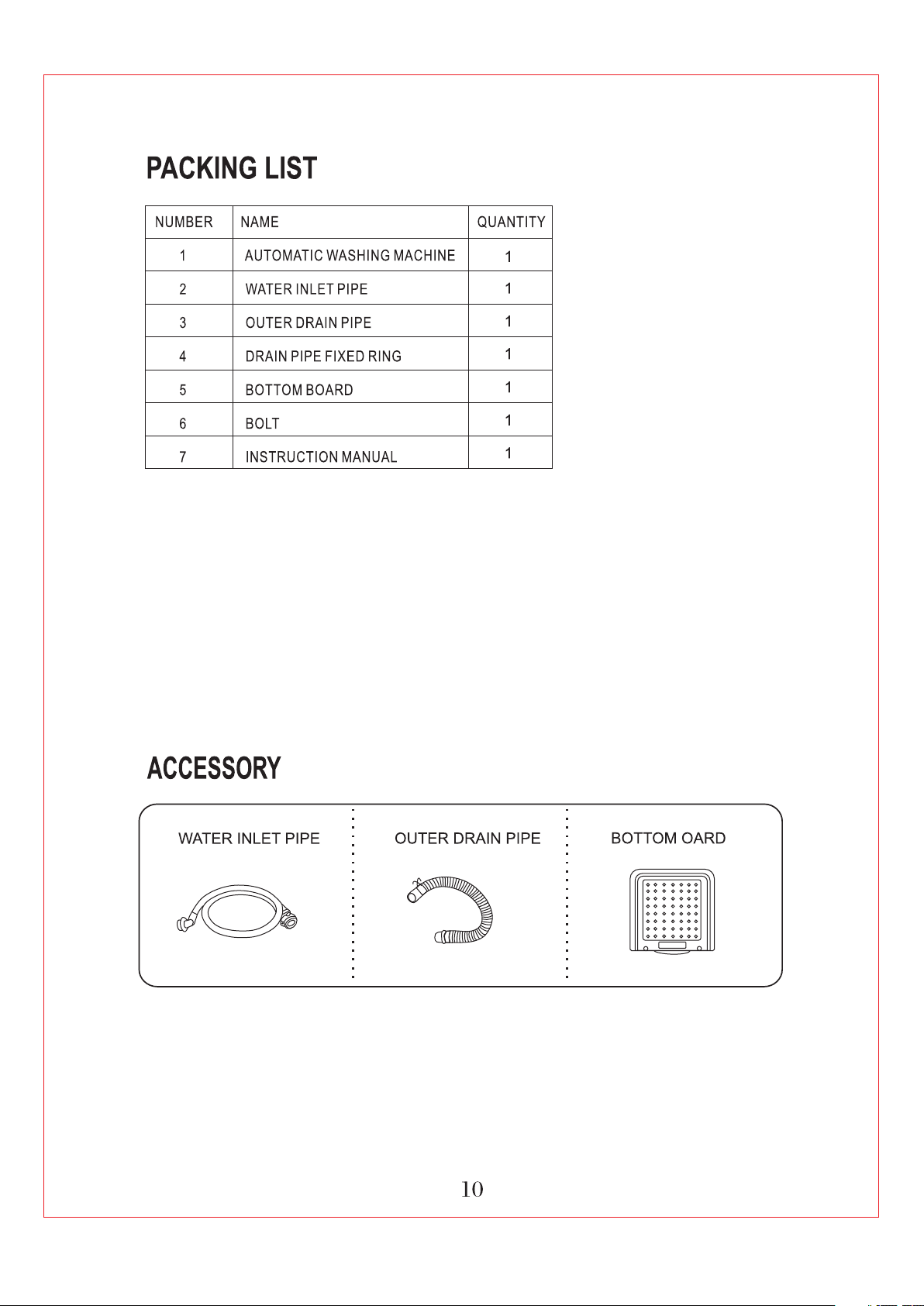

9
