minkaAire Wave F843 User manual

CERTIFICATE
Wave

Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.

The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer.
This warranty is only valid to the original purchaser or user against all defects in material and workmanship light bulbs (
excluded for one full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling ) (1)
fan excluding wall controls and electrical components , to the original purchaser or user. ( )
* The warranty is voided with the use of any non- Minka-Aire®electrical devices, E.g., wall controls or electrical dimmer switches, etc…
* The warranty is void once the original purchaser or user ceases to own the fan or the fan is moved from its original point of installation.
* The warranty is void with the use of any hanger bracket (non-Minka Aire or non-fan specific other than the hanger bracket supplied ) & installed
with this specific fan.

Date Purchased Store Purchased Model Number Serial Number
F843
Warranty Service Information
To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of
purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty
claim. Replacement is subject to availability of the same model. If the model is unavailable it will be replaced by one of equal value. This is a limited
warranty; the original purchaser or user is responsible for the cost of removal and reinstallation of repaired or replacement product.
To obtain the name of the Minka-Aire® authorized dealer nearest you call the Minka-Aire® customer care department at 1-800-307-3267, or
contact Minka-Aire® through www.minkagroup.net and write to: “Ask Mr. Minka” to answer any questions or if you require assistance.

CONTENTS
FINISHING THE INSTALLATION
OPERATING THE REMOTE CONTROL/WALL CONTROL
CARE OF YOUR FAN
TROUBLESHOOTING
SPECIFICATIONS
SAFETY RULES
PACKAGE CONTENTS
INSTALLING THE FAN
BLADE INSTALLATION
HANGING THE FAN
ELECTRICAL CONNECTIONS
1
2
3
4
5
6
7
8
9
10
11
........................................................
..............
..............................................................................
...........................................................................
..................................................................................
...................................................
......................................
......................................
...................................
..........................................
..........................

SAFETY RULES
1
1.
2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinance, or National Electrical Codes. Hire a qualified electrician or
consult a do-it-your self wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet
from the floor and 18 inches from the top of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L Listed metal octagonal outlet box marked"Acceptable For Fan Support".
Secure the box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at
least 50 pounds). Do not use a plastic box.
6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with
the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.
10. Turn the fan off and wait for the blades to stop completely before performing any maintenance or cleaning.
Before you begin installing the fan, shut power off the circuit breaker of the fuse box.

NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and
situations that may occur. It must be understoood that common sense,caution and care are factors which can not be built into
this product. These factors must be spplied by the person(s) installing, caring for and operating the unit.
NOTE: READ AND SAVE ALL INSTRUCTIONS!
WARNING
TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L LISTED OUTLET BOX OR SUPPORTING
SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE
LOCK WASHERS PROVIDED WITH THE FAN. MOST OUTLET BOXS COMMONLY USED FOR THE SUPPORT OF LIGHTING FIXTURES ARE NOT
ACCEPTABLE FOR FAN SUPPORT AND MAY NEED TO BE REPLACED. CONSULT A QUALIFIDE ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING BALANCING THE BLADES OR CLEANING
THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE CFR-3T SOLID-STATE SPEED CONTROL WITH TR111A WALL
CONTROL ONLY.

PACKAGE CONTENTS
1. Fan blades(3)
2. Hanger bracket
3. Canopy
4. Canopy cover
5. Standard downrod assembly (6")
Minimum-length downrod (4.5")
6. Coupling cover
7. Fan motor/housing assembly
8. Receiver with 6 wire nuts
9. Transmitter+holder+2 mounting
screws
A
A. Mounting hardware:
Wire nuts(3)
#8x3/4”Machine screws (2)
#10x1.5Wood screws (2)
4mm Star washers (2)
Metal washers (2)
Lock washers (2)
B. Blade attachment hardware:
1/4“x15.8mm screws with lock
washers(10)
2
Unpack your fan and check the contents. You should have the following items:
B
1
2
3
4
5
6
7
8
9

3
INSTALLING THE FAN
FIG. 1
CROSS BRACE
CEILING
JOIST
CEILING
jOIST
OUTLET BOX
FIG. 2
PARALL EL WOOD BRACE
(MIN. 2’’ THICK)
OUTLET
BOX
CEILING JOIST OR
CROSS BRACE
FIG. 3
ANGLED CE ILING
MAXIMUM 1 8° AN GL E
PROVIDE
STRONG
SUPPORT
RECESSE D
OUTLET
BOX
HANGER
OPENING
must be
FACING
UPSIDE
FIG. 4
CEILING
JOIST
OUTLET BO X
HANGER BA R
(OPTION AL )
HANGER
BRACKET
MOUNTING OPTIONS
If there isn't an existing mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and
building materials. The outlet box and its support must be able to fully support the moving
weight of the fan (at least 50 lbs.).Use a UL listed metal outlet box.
Do not use a plastic outlet box.
Figure1,2 and 3 are examples of different ways to mount the outlet box.
Note: You may need a longer downrod to maintain proper blade clearance when installing on
a steep, sloped ceiling. .
To hang your fan where there is an existing fixture but no ceiling joist, you may need to
install a hanger bar as shown in Fig.4 .
R
Longer downrods are available from your Minka-Aire dealer
R
(available at your Minka Aire dealer or local hardware store)
Tools Required: Philips screw driver, slotted screw driver, step-ladder, wire cutters, electrical tape.

4BLADE INSTALLATION

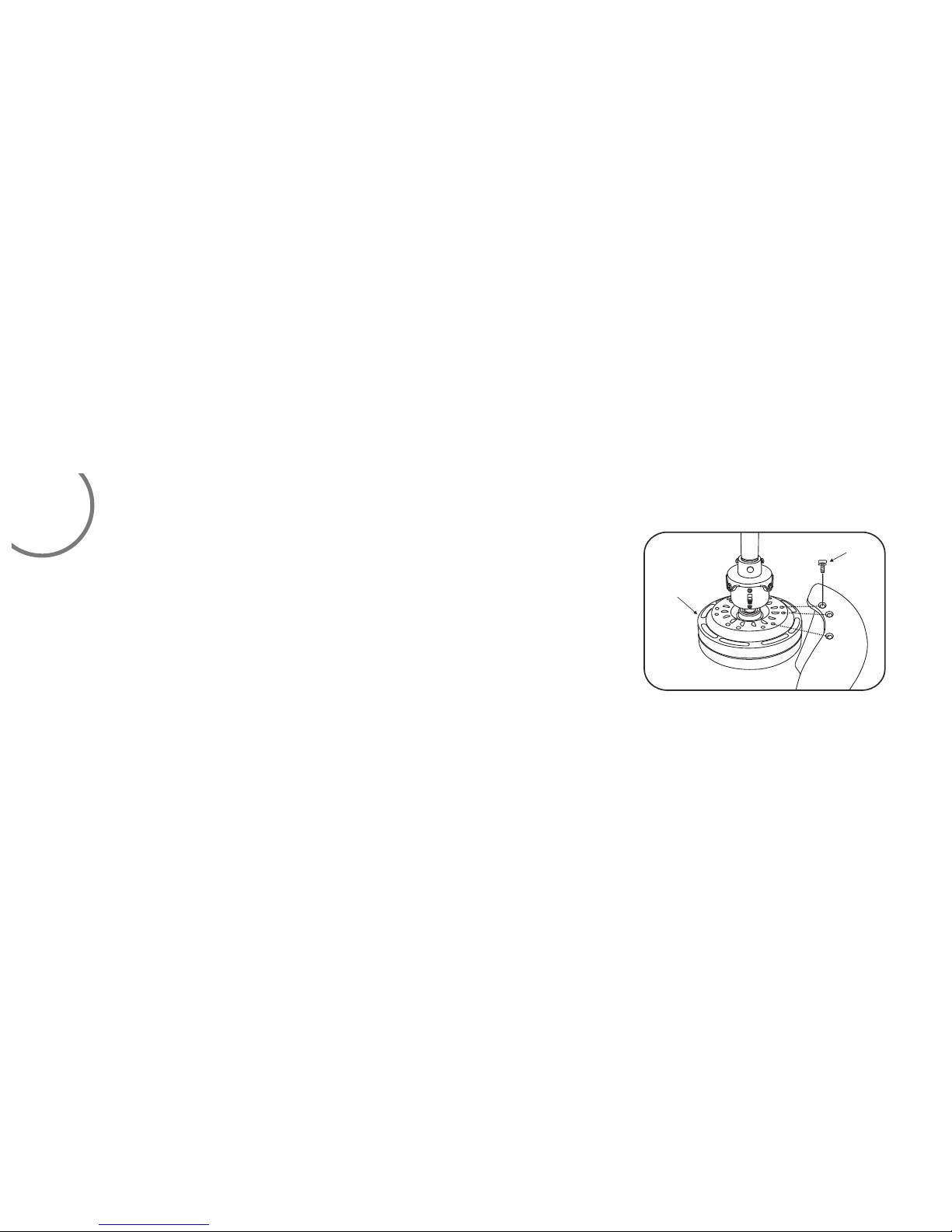

Align the 3 holes from the blade to the fan motor.
Secure blade with 3 blade screws with locked washer provided. Follow the same process for the
remaining two blades. (Fig. 5)
All blade sets are grouped together by weight. Because plastic materials vary in density, the fan
may wobble even though the blades are weight matched.
Bla de
Fig. 5
Scr ew
Fan m otor

5
HANGING THE FAN
WARNING: All of the parts, hardware and components such as the
hanger bracket and hanger ball have been provided for your safety and
the proper installation of your new ceiling fan. The use of other
R
parts,hardware or components not supplied by Minka Aire with the fan
R
will void the Minka Aire Warranty.
REMEMBER to turn off the power. Follow the steps below to hang your
fan properly:
Stpe 2.Lossen the two set screws and remove the hitch pin and lock pin
from the top coupling of the motor assembly.(Fig. 7)
Step 3.Remove hanger ball from downrod assembly by loosening set
screw,removing the cross pin, and sliding ball off rod.(Fig. 8)
Step 1.Secure the hanger bracket to the ceiling outlet box using screws
and washers included with mounting hardware.(Fig.6)
Step 4.Carefully feed fan wires up through the downrod(Fig 9).
Thread the rod into the coupling, next line up holes and replace lock
pin and hitch pin. Tighten set screws.
NOTE:DO NOT INSTALL THE COUPLING COVER IF YOU PLAN TO USE
THE MINIMUM LENGTH DOWNROD.
Step 6. Now lift motor assembly into position and place hanger ball
into hanger bracket. Rotate until the check groove has dropped into
the registration slot and seats firmly.(Fig 11)Rod should not rotate if
this is done correctly.
Step5.Slip coupling cover, canopy cover, and canopy onto downrod
(Fig.10). Carefully reinstall hanger ball onto rod being sure that
cross pin is in the correct position, set screws are tighten and wires
are not twisted.

Fig. 11
REGISTRATION
SLOT
Fig. 9
DOWNROD
SUPPLY
WIRES
Fig. 8
CROSS PIN
HANGER
BALL
DOWNROD
SET SCREW
Fig. 7
HITCH
PIN LOCK
PIN
SET SCREWS
Fig. 6
OUTLET BOX
HANGER BRACKET
Fig. 10
LOCK PIN
DOWNROD
CANOPY
SCREWS
HITCH PIN
COUPLING
COVER
CANOPY
COVER

6
ELECTRICAL CONNECTIONS
WARNING:To avoid possible electrical shock be sure electricity is
turned off at the main fuse or breaker box before wiring.
R
NOTE: The Aire Control System is equipped with a learning frequency
function which has 256 code combinations to prevent potential
interference from other remote units.The frequency on your Receiver
and Transmitter units have been preset at the factory. (Fig.12)
No frequency change is necessary, should you desire to install another
fan whithin the same home or area with a separate frequency code
please see the ”frequency interference ”troubleshooting section
of this instruction manual to learn how to change the frequency.
Step 1. Insert Receiver into Hanger Bracket with the flat side of
the Receiver facing the ceiling.(Fig.13)
Step 2. Motor to Receiver Electrical Connections: Connect the
WHITE wire from the fan to the WHITE wire marked”TO MOTOR
N” from the Receiver. Connect the BLACK wire from the fan to the
BLACK wire marked”TO MOTOR L” from the Receiver. Connect the
BLUE wire from the fan to the BLUE wire marked”For Light” from the
Receiver.
NOTE: If your ceiling fan features an UP Light: Connect the ORANGE
wire from the fan to the ORANGE wire marked “ For Up Light ” from
the Receiver. Otherwise disregard this step and proceed to secure all
wire connections with the plastic wire nuts provided.(Fig.14)
Note: Fan must be installed from a maximum distance of 40 feet from
the transmitting unit for proper signal transmission between the
transmitting unit and the fan’s receiving unit.

Step 3.Receiver to House Supply Wires Electrical connections: Connect
the WHITE wire(Neutral) from the outlet box to the WHITE wire
marked”AC in N” from the receiver. Connect the BLACK wire(Hot) from
the outlet box to the BLACK wire marked “AC in L” from the receiver.
Secure all wire connections with the plastic wire nuts provided.(Fig.14)
Step 4.If your outlet box has a GROUND wire (Green or Bare Copper)
connect this wire to the Hanger Ball and Hanger Bracket Ground wires.
If your outlet box does not have a Ground Wire, then connect the
Hanger Ball and Hanger Bracket Ground Wire together. Secure wire
connection with the plastic wire nut provided.(Fig. 14)
After all splices are made, check to make sure there are no loose strands.
As an additional precaution we suggest to secure the plastic wire
connectors to the wires with electrical tape.
Fig. 12
Fig. 13
RECEIVER
HANGER BRACKET

Fig. 14
WHITE (NEUTRAL)
WHITE (NEUTRAL)
GREEN OR BARE
COPPER (GROUND)
WHITE ( AC IN N )" "
WHITE ( TO MOTOR N )" "
GROUND-
(GREEN)
(CONNECT TO
GROUND WIRE ON
HANGER BRACKE
IF NO HOUSE
GROUND WIRE
EXISTS.)
OUTLET BOX
BLACK (HOT)
BLACK ( AC IN L )" "
BLACK ( TO MOTOR L )" "
RECEIVER
BLUE (FOR LIGHT)
BLUE (FOR LIGHT)
ORANGE
(FOR UPPER LIGHT)
BLACK (MOTOR)
ORANGE
(FOR UPPER LIGHT) Note: if your fan does not have a Blue wire for the light please
cap the blue wire from the receiver side and do not use.

7 FINISHING THE INSTALLATION
Fig. 15
OUTLET BOX
HANGER
BRACKET
HANGER
BALL
CANOPY
CANOPY
COVER
″
Step 1. Tuck connections neatly into ceiling outlet box.
Step 2. Remove one screw from the hanger bracket and loosen the other screw
around 1/4” .
Step 3. Align the canopy up to ceiling and over the loose screw. Place the canopy
into key hole and rotate canopy clockwise. (Figure 15)
Step 4. Secure the canopy by use previous removed screw.
Step 5. Place the canopy cover to the canopy and rotate canopy cover clockwise
until it is locked into right position.(Figure 15)

8
OPERATING THE REMOTE CONTROL/WALL CONTROL
Restore Power to Ceiling Fan.
A. Buttons:
These buttons are used to set the fan speeds as follows;
= Low Speed
= Medium Speed
= High Speed
B. Button:
This button turns the fan off.
C. Button:
These buttons turn the light ON or OFF and also control
the brightness settings of the light. The following
instructions apply to ceiling fans that feature a DOWN
light ( button) only or ceiling fans that feature an UP
light ( button) and a DOWN light ( button) that are
controlled independent of each other;
Press and release the button for the desired light to turn
the light ON or OFF. Press and hold the button to set the
desired light brightness. The light will cycle between
bright and dim settings as long as the button is pressed.
The light key has an automatic auto-resume feature that
allows the light to remain at the same brightness as the
last time it was turned off.
D. OFF-ON Slide Button (Wall Control Fans Only)
This button turns the power Off and On to the Fan and
Light(s).
E. Button: (Full Function Remote Control Units Only)
This button is used to change the direction of the
rotation of the blades; forward for warm weather or
reverse for cool weather.
NOTE: If your Remote Control or Wall Control does not
have a " " button, Please look for a slide reverse
switch on the switch housing.
Remote Control only: Install a A23 12volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time.

Speed settings for warm or cool weather depend on factors such as the room size. Ceiling
height, number of fans, etc.
The Reverse switch is located on the coupling. Slide the switch to the down for warm
weather operation. Slide the switch to the up for cool weather operation.(Fig. 16)
NOTE: Wait for fan to stop before changing the setting of the slide switch.
Warm Weather(forward)
A DOWNWARD airflow creates a cooling effect as shown in Figure 17. This allows you to
set your air conditioner on a warmer setting without affecting your comfort.
Cool Weather(Reverse)
An UPWARD airflow moves warmer air off the ceiling area as shown in Figure 18. This
allows you to set your heating unit on a cooler setting without affecting your comfort.
Fig. 16
Rev erse
swi tch
Warm
weather
Coo l
weather

Fig. 18
WINTER OPERATION
Fig. 17
SUMMER OPERATION

Here are some suggestions to help maintain your fan.
1.Because of the fan’s natural movement some connections may
become loose. Check the support connections, brackets and blade
attachment twice a year. Make sure they are secure.(It is not necessary
to remove fan from the ceiling).
2.Clean your fan periodically to help maintain its new appearance over
the years. Use only a soft brush or lint free cloth to avoid scratching
the finish. Plated finishes are sealed with lacquer to minimize
discoloration or tarnishing.
Do not use water when cleaning, this could damage the motor, wood
blades or possibly cause an electrical shock.
3.Use a lint free lightly damp cloth or duster to remove dust from the
blades.
4.There is no need to oil your fan. The motor has permanently
lubricated bearings.
5.If your fan is provided with glass shades, clean with lukewarm
soapy water and a soft cloth or sponge.DO NOT IMMERSE
GLASS SHADES IN HOT WATER. DO NOT PUT GLASS SHADES
INTO AN AUTOMATIC DISHWASHER.
9CARE OF YOUR FAN
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL
BOX BEFORE YOU ATTEMPT ANY REPAIRS. REFER TO THE
SECTION”ELECTRICAL CONNECTIONS”.
