Minnesota Fats MFT800-TBL User manual

1-866-556-2757
FAX: [phone]
We strive to ensure that our products are of the highest quality
and free of manufacturing defects or missing parts. However, if
you have any problems with your new product,
DO NOT RETURN IT TO THE STORE,
please contact us toll free @:
Or write to:
Escalade Sports
Customer Service Department
P.O. Box 889
Evansville IN 47706
Your Model Number ____________________
have your model number when inquiring about parts.
[email protected]
Please
Date Code ___________________________
2-MFT800-TBL- -DO
© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
When contacting Escalade Sports please provide your model number, date
code (if applicable) and part number if requesting a replacement part. These
numbers are located on the product, packaging, and this owners manual.
1
All Rights Reserved.
Purchase Date ________________________
PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE
MFT800-TBL

© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
2
All Rights Reserved.
IMPORTANT! READ EACH STEP
IN THIS MANUAL BEFORE YOU
BEGIN THE ASSSEMBLY.
Allen Wrench T1 & Wrench T2 Included with the Hardware Kit
Furniture Polish and Cloth
Make sure you understand the following tips before you begin to assemble your pool table.
1. Start all bolts by hand before tightening.
2. Some drawings or images in this manual may not look exactly like your product. Please
read and understand the text before starting each assembly step.
An electric screwdriver is helpful in assembly. However, please set at low torque and use
extreme caution with an electric screwdriver because you could overtighten the hardware
and strip the screws.
TWO ADULTS ARE REQUIRED TO ASSEMBLE THIS
THIS MINNESOTA FATS 7.5FT COVINGTON POOL TABLE
Assembly Tips
Tools Required:
READ AND FOLLOW ALL ASSEMBLY, OPERATION, AND
SAFETY INSTRUCTIONS CAREFULLY. AT LEAST TWO
ADULTS ARE NEEDED TO PUT THIS POOL TABLE
TOGETHER.
ATTENTION:

© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
3
All Rights Reserved.

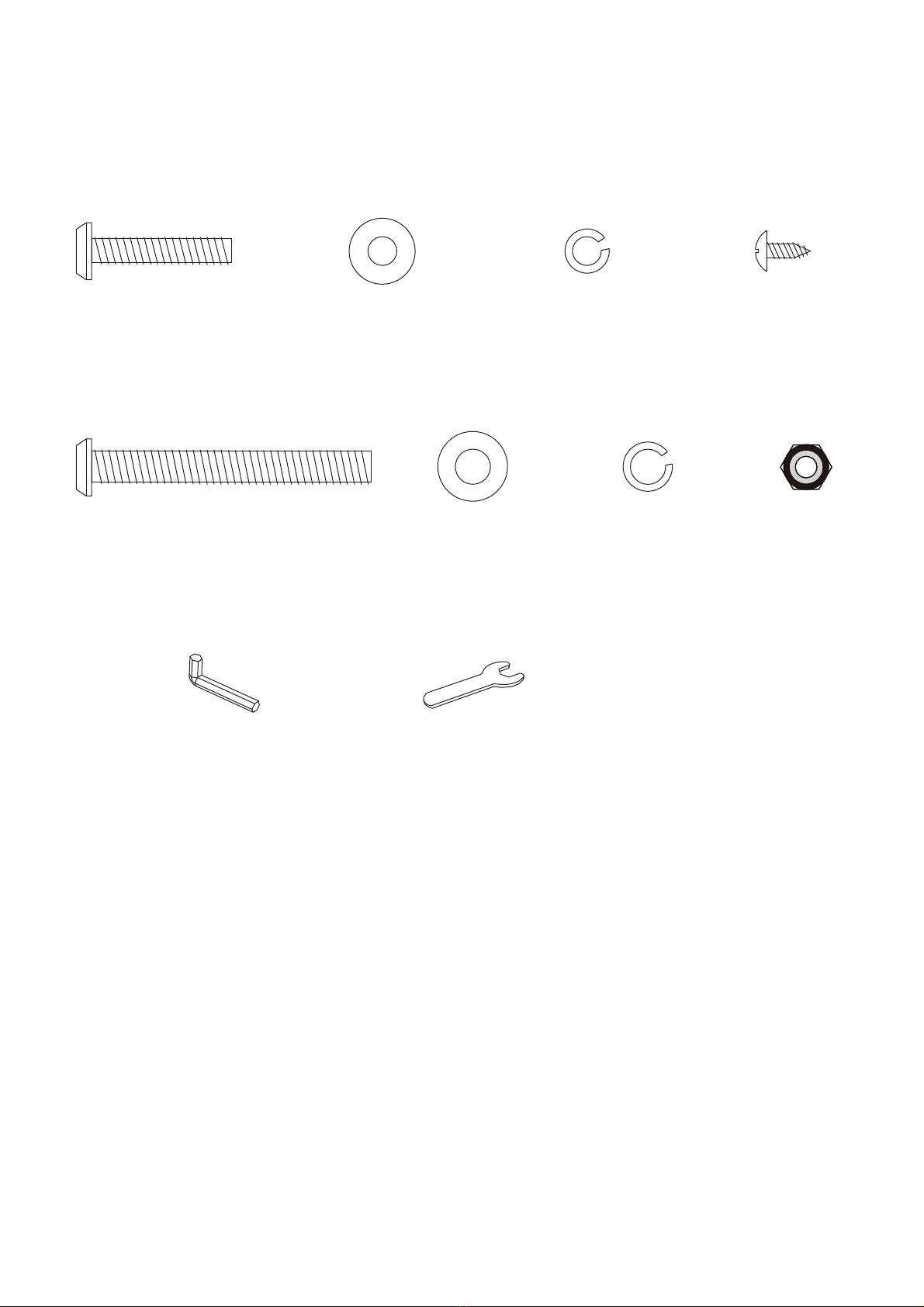

HARDWARE IDENTIFIER
H1 - 1/4” x 1-1/4”
Allen Head Bolt (16)
H2 - 1/4”
Flat Washer (16)
H4 - 4mm x 10mm
Phillips Round
Head Screw (16)
(To Scale)
T1 - Allen Wrench (1)
(Not to Scale)
H5 - 5/16” x 2-1/4”
Allen Head Bolt (12)
H3 - 1/4”
Lock Washer (16)
H6 - 5/16”
Flat Washer (36)
H7 - 5/16”
Lock Washer (24)
H8 - 5/16”
Nut (24)
T2 - Wrench (1)
(Not to Scale)

© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
4
All Rights Reserved.
(Not To Scale)

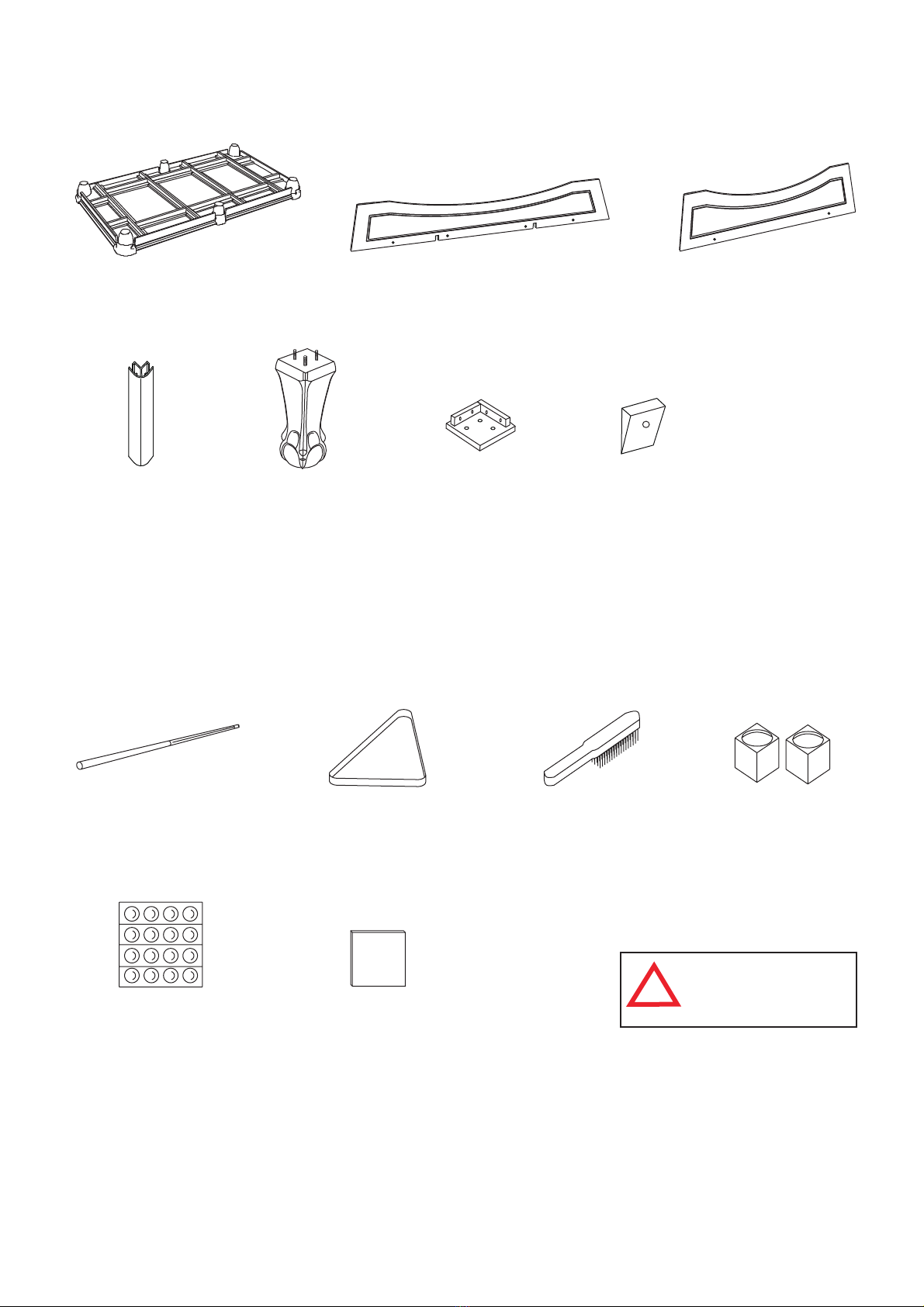

PARTS IDENTIFIER
P1R - Pool Table Cabinet (1) P2R - Side Apron (2)
P4 - Corner
Post (4)
P5 - Leg (4)
P3 - End Apron (2)
P6 - Leg
Support
Brace (4)
(Not To Scale)
ACCESSORIES IDENTIFIER
A1 - Cue Stick (2) A2 - Triangle (1)
A5 - Billiard Ball Set (1)
A3 - Playfield
Cloth Brush (1)
A4 - Cue Chalk (2)
!
WARNING:
CHOKING HAZARD
Small parts.
Not for children under 3 yrs.
P7 - Wooden
Block (12)
A6 - Leveling Shim (10)
** Use under legs
only as required **

© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
5
All Rights Reserved.

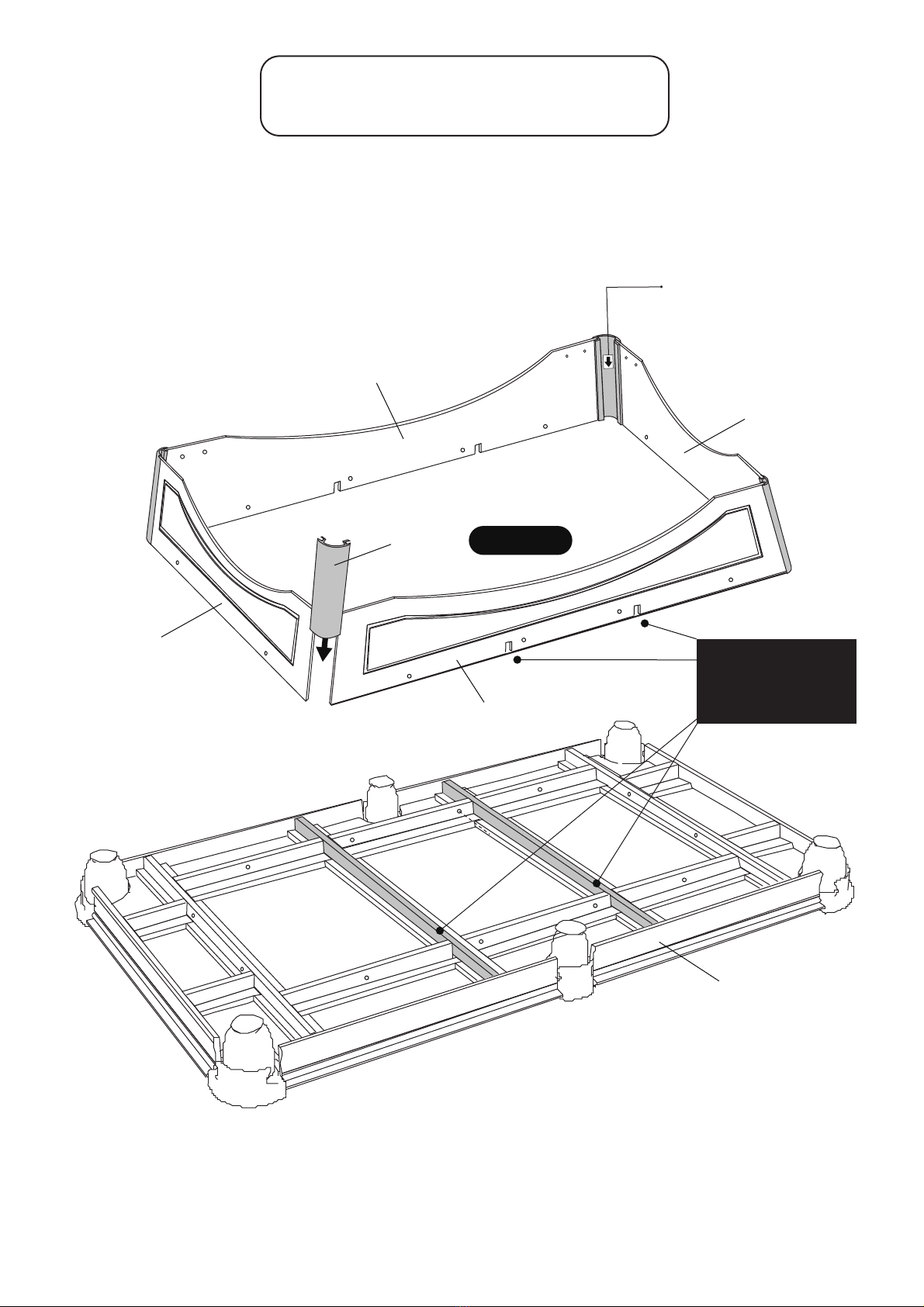

STEP 1:
With the help of another adult, install P2 Side Aprons and P3 End Aprons onto P1R Pool Table Cabinet with
P4 Corner Posts attach as shown in FIGURE 1.
IMPORTANT NOTE: SLIDE P4 CORNER POSTS WITH ARROW POINTING DOWN.
PARTS REQUIRED:
1 pc - P1R Pool Table Cabinet 2 pcs - P3 End Apron
2 pcs - P2R Side Apron 4 pcs - P4 Corner Post
IMPORTANT NOTE:
Install P2R Side Aprons
with grooves fit to the P1R
Pool Table playfield support
braces as shown.
P2R
P3
P1R
FIGURE 1
P2R
P3
P4
NOTE: Slide P4 Corner
Posts with arrow
pointing down.
