Mirage NANOSAT User manual

NANOSAT
OMNIPOLAR SPEAKER SYSTEM
own e r s rna n ua I

INTRODUCTION
WHAT EXACTLY IS OMNIPOLAR'"?
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
The lightning flash with arrowhead symbol. Within an
equilateral triangle is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons
OMNIPOLAR'" technology uses natural room reflections to create
a greater sense of realism. This realism is accomplished by recreating the same
ratio of direct to reflected sound found in nature, 70% reflected and 30% direct. A
traditional speaker can only produce 30% reflected sound. It is the required
additional reflected sound provided by an OMNIPOLAR'" speaker that creates the
OMNIPOLAR'" three-dimensional sound experience.
Please take the time to read all of the instructions contained in this manual to make
certain your system is properly installed and functioning correctly.
Please retain the carton and packing materials for this MIRAGEI!> product to
protect it in the event it ever has to be shipped to a service center for repairs.
Product received damaged by a service center that has been shipped by an end
user in anything other than the original packaging will be repaired, refurbished,
and properly packaged for return shipment at the end user's expense.
We are proud to welcome you as a new owner of a MIRAGE speaker. The finest
components and materials are manufactured to exacting standards and tested with
sophi sticated manufacturing and qua lity control techniques to ensure exceptiona I
performance that is superior to systems costing several times their price. This
approach to the development of the MIRAGE system has resulted in a significant
improvement over other system designs in terms of performance and aesthetics.
The main goal of this series was to provide a product with the most natural,
accurate performance and seamless, home theater blending. This was
accomplished by using MIRAGE'S proprietary OMNIPOLAR'" technology.
OMNIPOLAR'" technology produces the same amount of direct and reflected sound
as live events for the most realistic experience of either music or home theater.
MIRAGE NANOSAT SERIES
THE NANOSAT SERIES
Caution: To prevent the risk of electrical shock, match wide blades of plug to wide
slot, fully insert.
Read Instructions: All safety and operating instructions should be read before
the product is operated.
Retain instructions: Safety and operating instructions should be retained for
future reference.
Heed Warnings: All warnings on the product & operation instructions should be
adhered to.
Follow Instructions: All operating and use instructions should
be followed.
Cleaning: Unplug the product from the wall before cleaning. Do not use aerosol
or liquid cleaners, just a damp cloth.
Attachments: Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
Water and moisture: Do not use this product near water.
Ventilation: Openings in the cabinet are provided for ventilation and to ensure
reliable operation and protect it from overheating so they must not be blocked or
covered by placing the product on a bed, sofa or other similar surface. This product
should not be placed in a built-in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer's instructions have been
adhered to.
Power Sources: This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the type of power
supply in your home, call your local power company.
Grounding or Polarization: This product may be equipped with a polarized
alternating current line plug. This plug will fit the power outlet in only one way as a
safety feature. If you are unable to insert the plug, try reversing it. If the plug
should still fail to fit, contact your electrician to replace your outlet. Do not defeat
the safety purpose of the plug.
Power Cord Protection: Power supply cords should be routed
so that they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs, convenience
receptacles and the point where they exit from the product.
Overloading: Do not overload wall outlets or extension cords, as this can result in
a risk of electrical shock.
Object and Liquid Entry: Never push objects of any kind into this product
through openings as they may touch dangerous voltage points or short out parts
that can result in a fire or electrical shock. Never spill liquid of any kind on the
product.
Servicing: Do not attempt to service this product yourself as openings or
removing covers may expose you to dangerous voltage or other hazards. Refer all
servicing to qualified personnel.
Heat: This product should be situated away from heat sources such as radiators,
heat registers, stoves, or other appliances (including amplifiers) that produce heat.
Non-Use Periods: The power cord of the product should be unplugged from the
outlet when left unused for a long period of time.
Damage Requiring Service: The product should be serviced by qualified
personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
C. The product has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a marked change in
performance; or
E. Product has been dropped, or the enclosure damaged.
F. If the product does not operate normally by following the operating instructions.
2

QUICK SET-UP GUIDE
RECOMMENDED CONNECTION FOR DOLBY
DIGITAL/DTS/DOLBY PRO LOGIC II SYSTEMS
1. Arrange the NANOSAT satellites, the optional center channel and subwoofer in a
Home Theater configuration. See Diagrams 4 and 5.
2. Connect all five speakers with speaker wire to their respective speaker outputs in
back of the amplifier/receiver. Be sure to respect the polarity of the wire. Connect
the speaker wire from the positive (RED +) terminal on the receiver/amplifier to the
positive (RED+) terminal on the satellite. Connect the negative (BLACK-) terminal
on the receiver/amplifier to the negative (BLACK-) terminal on the satellite. See
Diagram 1.
3. Connect the subwoofer from the Subwoofer Output on the back of the AN Receiver
or processor to the input on the subwoofer. Note: if your AlV Receiver is not
equipped with a Subwoofer Output, run an additional set of speaker wires from
your AN receiver's Left and Right Front speaker outputs to the High Level Inputs on
the back of the subwoofer.
4. MIRAGE suggests using the Small setting in the bass management set-up of your
Dolby Digital system for all speakers.
5. MIRAGE suggests setting the bass management crossover of your AN Receiver or
processor to 120Hz. (Or as close to 120Hz as possible). If your AN Receiver or
processor does not have a variable crossover, please proceed to the next step.
6. Balance the sound output of the speakers by using the pink noise test pattern
generated by your AlV Receiver or processor, adjusting the system so all speakers
produce the same output level.
7. When setting your subwoofer level, be sure that the setting on your AN Receiver or
processor remains as close to flat as possible. Boosting or cutting the subwoofer
output on your AN Receiver or processor may produce poor sound quality. Instead,
use volume control on the back of the MIRAGE Subwoofer for fine tuning.
You are now ready to enjoy your MIRAGE NANOSAT System.
NANOSAT IN-DEPTH INSTRUCTIONS
STAND MOUNT OPTIONS
This series provides a large choice of installation options to integrate into any
decor.
The bottom of the NANOSAT is designed to clip onto the optional MS-STB-1 stand.
Please refer to the MS-STB-1 owners' manual for more detailed instructions.
WALL MOUNT OPTIONS
For wall mount installations, the NANOSAT is eqUipped with a mounting bracket
that can be used to mount the speaker securely to a vertical surface. The bracket is
shipped already attached to the speaker.
Carefully drive a #8 screw into a stud in the wall, leaving approximately 1/4 inch of
the screw exposed, then mount the NANOSAT like you would a picture.
NOTE: Failure to attach the screw safely to a secure spot on the wall can result in
damage or injury. See Diagram 2.
When mounting the speaker at a height of under six feet, orient the NANOSAT in
an upright position. Slide the head of the screw into the wide portion of the
channel opening and slide the NANOSAT downward until it sits in position.
See Diagrams 2 and 3.
When mounting the speaker at a height of over six feet, orient the NANOSAT in an
upside down position so the gri II is facing the floor and use the bottom key-way
channel. Slide the head of the screw into the wide portion of the channel opening
and slide the NANOSAT downward until it sits in position. See Diagrams 2 and 3.
The speaker can also be angled by slightly loosening the screw on the bottom of
the NANOSAT and swiveling the speaker into the desired position.
OPTIONAL NANO CC CENTER
CHANNEL
(not included in all packages)
1. Choose the desired mounting position. If possible, find a position on the wall that
allows the NANO CC to be mounted directly to a wall stud. Attach the mounting
template (included in the box) to the desired position by using tape or small nails.
See Diagram 6.
IMPORTANT: The arrows on the template should point in the same direction as the
grille. If the NANO CC is mounted below 6 feet, the grille should face upwards and
therefore the arrows on the template should also point upwards. If the NANO CC is
mounted above 6 feet, the grille should face downwards, and similarly the arrows on
the template should also point downwards.
2. Using a level, ensure the template is attached level to the wall. It is critical that the
template is level as a mistake at this stage will result in uneven mounting of the
NANO cc. See Diagram 7.
3. Outline the two rectangular boxes. Mark the smaller box with an X. The smaller box
is needed for the wire management outlining the recommended wall cut-out. See
Diagram 8.
4. After the template has been removed, use a drywall saw to cut out the smaller
rectangular box marked with an X. Please note that this step is only required if the
wires will be fed through the wall. If a different wire management system is being
used, please ignore this step. See Diagram 9.
5. Mount the wall bracket into position. The use of proper anchors for all screws is
required to ensure a secure installation. Please note that screws and anchors are
not included in the NANO CC package. See Diagram 10.
6. Feed the wires through the hole cut out. See Diagram 11.
7. Connect the wires to the appropriate binding posts at the back of the NANO Cc.
IMPORTANT: Connect the speaker wire from the positive (RED +) terminal on the
amplifier to the positive (RED+) terminal on the speaker. Connect the negative
(BLACK-) terminal on the amplifier to the negative (BLACK-) terminal on the speaker.
8. After the wires are connected, hang the NANO CC on the wall bracket. Center the
NANO CC and push down lightly on the speaker to achieve a tight fit between the
speaker and the bracket. If the speaker is not centered, repeat this step. See
Diagram 12.
SPEAKER PLACEMENT
The MIRAGE NANOSAT System has been designed for high performance in a wide
variety of settings, but here are a few helpful hints that will help to maximize
performance and your enjoyment.
LEFT AND RIGHT CHANNElS
A general guideline for speaker placement is to set up the space between speaker
and listener at approximately 1.5 times the distance between the speakers. For
example, if the speakers were ideally placed a minimum of 6 feet apart, the best
seating position would be 9 feet away.
Ideal height would position the speaker at approximately ear level when the
listener is in a seated position. This can be accomplished by using the
recommended optional MS-STB-1 stand.
CENTER CHANNEl
A center channel can be expected to reproduce as much as 60% of a movie's
soundtrack, most of which is dialogue. In order to maintain the effect of voices
emanating from the actor's mouth, the center channel should be centrally located
between the left and right NANOSAT and be placed above or below the television.
SURROUND CHANNEl
When using the NANOSAT as a surround speaker it should be positioned adjacent
to and slightly in front or behind the primary listening area. A general guideline for
the recommended height would be approximately 6 feet.
3

· ;:.~;~. 0Wner5 man ua /
BOOKSHElF/ENTERTAINMENT UNIT PLACEMENT
The small size and OMNIPOLAR'· dispersion of the versatile NANOSAT permits
them to be easily placed, among other places, in a bookshelf. To maximize the
OMNIPOLAR'· dispersion potential, bring the speaker as close to the front of the
cabinet as possible.
CONNECfIONS
@
The MIRAGE NANOSAT Series is equipped with high quality binding posts that
permit the use of banana plugs, spades, or a bare wire connection.
Connect the speaker wire from the positive (RED +) terminal on the amp to the
positive (RED+) terminal on the speaker. Connect the negative (BLACK-) terminal
on the amplifier to the negative (BLACK-) terminal on the speaker. See Diagram 1.
SUBWOOFER PLACEMENT
The placement of your new MIRAGE subwoofer is critical to its performance. The
three most common locations include: in the corner of the room (which can result
in a boomy or exaggerated low frequency response), placement along one wall but
out of the corner (moderate bass performance with increased fidelity over corner
placement), or alongside a front speaker (creating a better blend with the front
speaker, but sacrificing overall volume). Experimentation with subwoofer placement
is highly encouraged, as slight adjustments can create large benefits in sound
reproduction. To further test subwoofer placement, install the subwoofer
temporarily in your main listening position and while playing a familiar piece of
music, walk around the listening room until you find the best sounding position.
This is a possible location for the subwoofer to be placed.
TERMINOLOGY AND CONTROLS
METHOD 1 - RCA - SUB IN FOR HOME THEATER OR LFE
APPLICATIONS
CONNECTING YOUR MIRAGE
SUBWOOFER
CAUTION: All power should be turned off to your system before any
connections are made. Careful attention should be taken to ensure that all
electronic components are not connected to an AC source. Not doing so could
result in potential damage to the system.
On the rear of the receiver/pre-amp there should be a single RCA type jack
marked "Subwoofer/Pre-Amp Out". Connect a single RCA cable from that
jack to the 0 LINE IN/SUB IN on the rear of the subwoofer. A standard male
to male RCA cable is needed.
2 After connecting the single e LINE IN/SUB IN connection, plug your
MIRAGE subwoofer into an AC outlet. Do not use the AC outlet on the rear
of your receiver. After plugging in the unit, switch the Main Power to On.
3 See Final System Adjustments, below.
o
o
o CE: II ! @) ()
o
O,(l J 0'
t. r. _
~. ,
lAPWAI
i')·~-
I
o STATUS INDICATOR - The LED found on the front panel will illuminate in blue
when the subwoofer in functioning. If the unit is in Auto mode and is not
receiving a signal, the light will remain off.
e VOLUME LEVEL- This knob can be adjusted to control the level of output
from your subwoofer. The level chosen should allow the subwoofer to blend
its output with that of the rest of your audio system.
e LOW-PASS FILTER - This control allows for the adjustment of the low-pass
filter. Adjustments can infinitely be made from 40Hz to 150Hz. This will
determine the highest frequency that the subwoofer will reproduce.
o PHASE - This switch allows for the adjustment of the phase of the
subwoofer, in relation to the speakers used in your system, from 0 to 180
degrees.
e POWER MODE - This switch can be set to either On, Off or Auto. If the
switch is in the Off position, the subwoofer will not power up. If the switch is
in the On position, it will constantly remain on. If the switch is set to the Auto
position, when a signal is present the subwoofer will turn on and will
automatically turn off several minutes after a signal is no longer present.
o LINE IN/SUB IN - These inputs are an RCA type LFE/stereo/mono input. If you
are connecting your subwoofer to a pre-amp/processor with a LFE or
Subwoofer pre-amp output, connect a single RCA cable to the LFE/Left input.
If you are connecting your subwoofer to a stereo pre-amp or processor, such
as in a stereo music system, use stereo RCA cables and connect to both the
LFE/Left and Right inputs.
G SPEAKER LEVEL IN - The Speaker Level inputs are designed to be used on
receivers or amplifiers that do not incorporate any RCA type subwoofer
outputs. If your receiver is equipped with an RCA type subwoofer output,
these speaker level inputs should not be utilized.
NOTE: Subwoofer may not be exactly as shown. The following instructions are
for the NANO S8 subwoofer. Please refer to your subwoofer's owner's manual
for additional information.
4

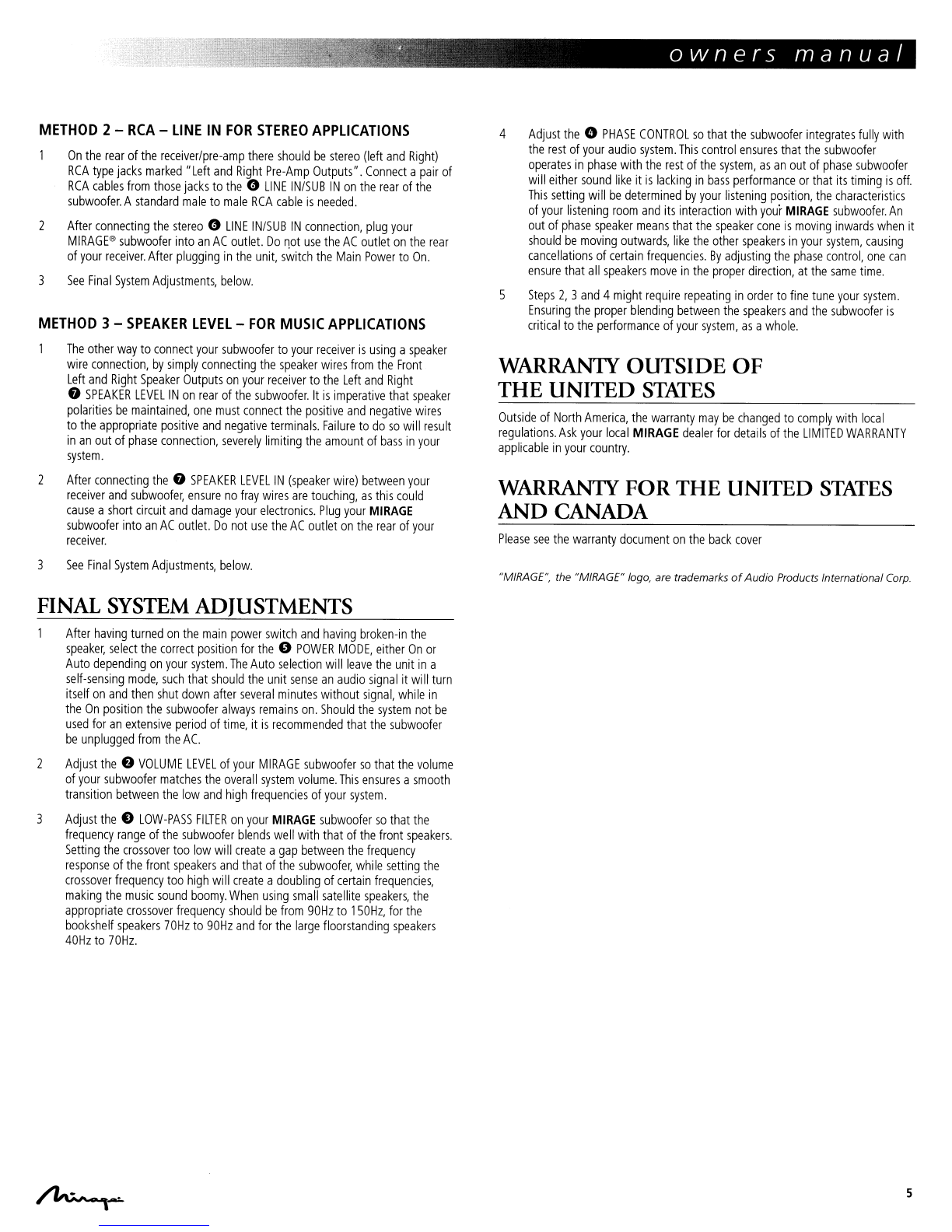

METHOD 2 - RCA - LINE IN FOR STEREO APPLICATIONS
On the rear of the receiver/pre-amp there should be stereo (left and Right)
RCA type jacks marked "Left and Right Pre-Amp Outputs". Connect a pair of
RCA cables from those jacks to the 0 LINE IN/SUB IN on the rear of the
subwoofer. A standard male to male RCA cable is needed.
After connecting the stereo e LINE IN/SUB IN connection, plug your
MIRAGE® subwoofer into an AC outlet. Do 110t use the AC outlet on the rear
of your receiver. After plugging in the unit, switch the Main Power to On.
3 See Final System Adjustments, below.
METHOD 3 - SPEAKER LEVEl- FOR MUSIC APPLICATIONS
The other way to connect your subwoofer to your receiver is using a speaker
wire connection, by simply connecting the speaker wires from the Front
Left and Right Speaker Outputs on your receiver to the Left and Right
G SPEAKER LEVEL IN on rear of the subwoofer. It is imperative that speaker
polarities be maintained, one must connect the positive and negative wires
to the appropriate positive and negative terminals. Failure to do so will result
in an out of phase connection, severely limiting the amount of bass in your
system.
2 After connecting the G SPEAKER LEVEL IN (speaker wire) between your
receiver and subwoofer, ensure no fray wires are touching, as this could
cause a short circuit and damage your electronics. Plug your MIRAGE
subwoofer into an AC outlet. Do not use the AC outlet on the rear of your
receiver.
3 See Final System Adjustments, below.
FINAL SYSTEM ADJUSTMENTS
After haVing turned on the main power switch and having broken-in the
speaker, select the correct position for the" POWER MODE, either On or
Auto depending on your system. The Auto selection will leave the unit in a
self-sensing mode, such that should the unit sense an audio signal it will turn
itself on and then shut down after several minutes without signal, while in
the On position the subwoofer always remains on. Should the system not be
used for an extensive period of time, it is recommended that the subwoofer
be unplugged from the AC.
2 Adjust the f) VOLUME LEVEL of your MIRAGE subwoofer so that the volume
of your subwoofer matches the overall system volume. This ensures a smooth
transition between the low and high frequencies of your system.
3 Adjust the e LOW-PASS FILTER on your MIRAGE subwoofer so that the
frequency range of the subwoofer blends well with that of the front speakers.
Setting the crossover too low will create a gap between the frequency
response of the front speakers and that of the subwoofer, while setting the
crossover frequency too high will create a doubling of certain frequencies,
making the music sound boomy. When using small satellite speakers, the
appropriate crossover frequency should be from 90Hz to 150Hz, for the
bookshelf speakers 70Hz to 90Hz and for the large floorstanding speakers
40Hz to 70Hz.
4 Adjust the e PHASE CONTROL so that the subwoofer integrates fully with
the rest of your audio system. This control ensures that the subwoofer
operates in phase with the rest of the system, as an out of phase subwoofer
will either sound like it is lacking in bass performance or that its timing is off.
This setting will be determined by your listening position, the characteristics
of your listening room and its interaction with your MIRAGE subwoofer. An
out of phase speaker means that the speaker cone is moving inwards when it
should be moving outwards, like the other speakers in your system, causing
cancellations of certain frequencies. By adjusting the phase control, one can
ensure that all speakers move in the proper direction, at the same time.
5 Steps 2, 3 and 4 might require repeating in order to fine tune your system.
Ensuring the proper blending between the speakers and the subwoofer is
critical to the performance of your system, as a whole.
WARRANlY OUTSIDE OF
THE UNITED STATES
Outside of North America, the warranty may be changed to comply with local
regulations. Ask your local MIRAGE dealer for details of the LIMITED WARRANTY
applicable in your country.
WARRANlY FOR THE UNITED STATES
AND CANADA
Please see the warranty document on the back cover
"MIRAGE". the "MIRAGE" logo, are trademarks of Audio Products International Corp.
5

Diagram 1Diagram 2
--
,,'
"
I
I
I
I
I
,\\\,,
" ","
.... __ ...
Diagram 3Diagram 4
{-'j
I
I
I
RI
I
I
cI
I
'I
I
I
!
!I
I
(-
Ii $L
I'
I!
38

lagrams
Diagram 5Diagram 6
C>,
SR
OSBR
/ .. - .. -
.- '"
\i?J
C]SBl
I·
7.1 Setup
U
(J
Sub
liR
C
Diagram 7Diagram 8
Diagram 9Diagram 10
•
39

Diagram 11
Diagram 13
'-. _ .. ~; .;- dia9 ram 5
Diagram 12
Diagram 14
40

Diagram 15
, " >~f':j diagrams
NANO cc wall Spacer Kit InstNctions: (optionaO
/
CIJ
//
x~x@
41

WARRANTY
LIMITED WARRANTY POLICY
IN THE UNITED
STATES AND CANADA
MIRAGE«> warrants this product to the retail purchaser against
any failure resulting from original manufacturing defects in workmanship or
materials. The warranty is in effect for a period of: Passive Speakers: five (5) years,
Powered Subwoofers including the speaker - one (1) year from date of purchase from
an authorized MIRAGE«> dealer and is valid only if the original dated bill of sale is
presented when service is required.
The warranty does not cover damage caused during shipment, by accident, misuse,
abuse, neglect, unauthorized product modification, failure to follow the instructions
outlined in the owner's manual, failure to perform routine maintenance, damage
resulting from unauthorized repairs or claims based upon misrepresentations of the
warranty by the seller.
WARRANTY SERVICE
If you require service for your MIRAGEIll Speaker Systems speaker(s) at any time
during the warranty period, please contact:
1) the dea ler from whom you purchased the product(s), or
2) MIRAGE«> Speaker Systems SERVICE - Tel: [phone].
3) Additional service centers can be found by checking the MIRAGE«> Speaker
Systems website: www.miragespeakers.com.
You will be responsible for transporting the speakers in adequate packaging to
protect them from damage in transit and for the shipping costs to an authorized
MIRAGE«> Speaker Systems service center or to MIRAGE«> Speaker Systems. If the
product is returned for repair to MIRAGEIll Speaker Systems the costs of the return
shipment to you will be paid by MIRAGE«> Speaker Systems, provided the repairs
concerned fall within the Limited Warranty. The MIRAGEIll Speaker Systems Warranty
is limited to repair or replacement of MIRAGE«> Speaker Systems products. It does
not cover any incidental or consequential damage of any kind. If the provisions in
any advertisement, packing cartons or literature differ from those specified in this
warranty, the terms of the Limited Warranty prevail.
GARANTIE
GARANTIE
AUX
ETATS-UNIS ET AU CANADA
La societe MIRAGEIll garantit cet appareil contre toute defectuosite attribuable aux
pieces d'origine et ala maind'oeuvre. Cette garantie est valide pendant une periode
de cinq (5) ans (enceinte passif) et de un (1) an (extremes-graves) a partir de la date
d'achat aupres d'un revendeur MIRAGEIll agree; la garantie ne sera honoree que
sur presentation d'une piece justificative de la date d'achat.
La garantie ne couvre aucun dommage subi pendant Ie transport ou imputable a un
accident, a une utilisation impropre ou abusive, a la negligence, a une modification
non autorisee, a la non-observance des instructions decrites dans Ie manuel de
I'utilisateur ou des directives d'entretien, ni aucun dommage subi par suite de
reparations non autorisees ou de reclamations fondees sur une mauvaise
interpretation des conditions de la presente garantie par Ie revendeur.
SERVICE SOUS GARANTIE
Dans I'eventualite ou une reparation deviendrait necessaire pendant la periode de
couverture de la garantie, communiquez avec:
1) Ie revendeur au pres de qui I' apparei Ia ete achete, ou
2) Service MIRAGE«> Speaker Systems - Tel.: [phone].
3) Pour connaitre I'adresse de tous nos centres de service, consultez Ie site web
d'MIRAGE«> Speaker Systems a www.miragespeakers.com.
Le proprietaire de I'appareil est responsable de son emballage et de tous frais
d'expedition a un centre de service MIRAGE«> Speaker Systems agree. Si I'appareil
est expedie a MIRAGE«> Speaker Systems aux fins de reparation, les frais de
reexpedition seront assumes par MIRAGE«> Speaker Systems a la condition que les
reparations effectuees soient couvertes par la garantie. La garantie est limitee a la
reparation ou au remplacement des appareils fabriques et distribues par MIRAGEIll
Speaker Systems. Elle ne couvre aucun dommage indirect ou consecutif de quelque
nature que ce soit. Si les conditions accompagnant toute publicite, emballage ou
documentation divergent de celles de la presente garantie, les conditions de la
presente garantie prevaudront.
