MISS LIGHTING ML-M10 User manual

280W Beam Wash Spot Moving Head Light
User Manual
ML-M10

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
1
Contents
Contents........................................................................................................................ 1
1. Production Introduction....................................................................................... 2
2. Fixture Size............................................................................................................ 3
3. Fixture Annotation................................................................................................ 4
4. Security Warning.................................................................................................. 5
5. Packing and Transportation................................................................................ 6
6. A C Power supply.................................................................................................. 7
7. Lamp and Replacement........................................................................................7
8. Colour wheel and gobo wheel...............................................................................9
9. Display Screen..................................................................................................... 10
10. Display description..............................................................................................10
11. Channel................................................................................................................ 13
12. Technical Support .............................................................................................. 18

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
2
1. Production Introduction
Thanks for choosing 280 Beam Moving Head Spot light. This is our latest developed
smart beam spot light with up-to-date technology,advanced electronic control technology
and hunanized design . It is more high-efficient, more beautiful surface compared with its
peers.. It is in compliance with CE standards and DMX512
Our 280 Beam spot light adopts OSRAM lamp with short foci focusing system,
High quality lens and wide input volt which generate bright and even light distribution and
Excellent pictures. Smart LED screen display, with English language and easy to use.
Parameters:
Lighting source: Original Osram 280W
Input Volt: 100~240V/50-60Hz
Lighting source: Osram 280W
Luminous Flux: 140,000LM at 10M distance
Color Temperature:8000K
Color Wheel: 13 colors + blank
Gobo: 14 gobos + blank, 9 rotating gobos
Control: DMX512,Master/Slave,Sound and Auto
Channel: 16/24 Channel
Prism: 6-facet prism and 8-facet prism
Dimming: 0-100% linear dimming
Beam Angle: 2.8-38°linear zooming
Focus: linear focus
Pan scan: 540°(16bit) electric correction
Tilt scan: 270°(16bit) electric correction
Colorful touch screen,180° reversed display
Lens: High precision optical lens
Wash effect: adjustable wash effect angle
Bent design for color wheel which decrease the lamp temperature and prolong lifetime

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
3
With Voltage stabilizer inside, can work with unstable input volt.
Fixture size: 380MM（L）×330（W）×590（H）MM
N.W.: 17.5KG
G.W (Paper CTN): 18.5kgs
G.W(Flight case/1pc): 38kgs
G.W(Flight case/2pcs): 68kgs
Paper CTN Size: 465*450*685MM
Flight case/1pc: 460*380*71MM
Flight case/2pcs: 950*510*740MM
2. Fixture Size

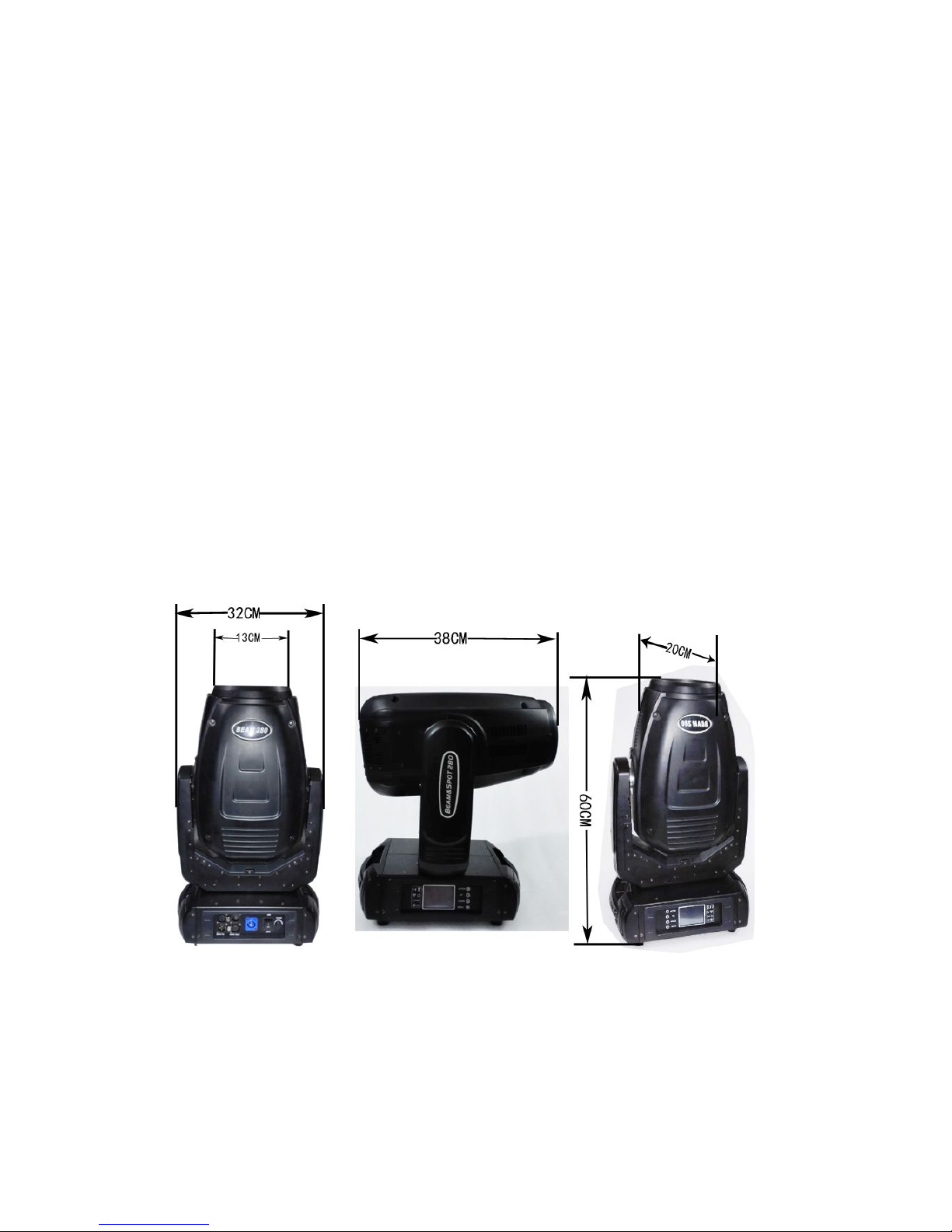

Size：380MM（L）×330（W）×590（H）MM

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
4
3. Fixture Annotation
1 2
1 2 3 4 5
01 Display Screen
02 Set key
01 — Lens
02 — Body
03 — Y axis lock
04 — Arm
05 — X axis
06 — Holder
07 — Base
01 — 3 Pin interface
02 — 5 Pin interface
03 — Power socket
04 —Power
05 — Fuse

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
5
4. Security Warning
This item is only used in professional application, not for others. Please check the product
to see if there is damage during transportation. Please contact local agents or
manufacture for repair or replacement.
IP 20, only for indoor use or outdoor use with good weather. Fixture should be kept at dry
place and forbidden use in wet, dusty and high temperature environment. Fire, heat,
electric shock, ultro-violet, should be noticed in operation. Please read instructions before
operation and operate in accordance with operation specifications and notice the
warnings. If you have any question, please contact our agents or customer service.
4.1 High Temperature 。
ta=45°C
No operation when embient temperare is beyond 45°C
4.2 Bulb explosion
If there is little damage or crack on Lens，Please stop using and replace it
immediately.。
No authorized lens are forbidden。
Lens size：￠74×30 mm
4.3 Operation
Please don’t handle alone when carry and open the package.
before amounting fixtures, Please confirm the hanger can hold 10 times weight of
fixture itself and devices are in good shape and use safety rope to enhance security.
Please make pulleys’ position lower than
4.4 Prevention of Ultro-violet
Looking in the lamp directly is forbidden in case the ultro violet hurt eyes.
The fixtures without lens and surface covers are forbidden to use.
If there is crack or damage on lens or other parts, please replace immediately.
4.5 Prevention of Electric Shock
The staff who make electric connection must be trained or experienced.
Before mounting, please confirm the input volt is in compliance with our
specification.
And over voltage protection and leak protection are available.
Electrical installation must be done as regulations and every fixture much be earthed
correctly. Please unplug before install or uninstall lamp or replace diffuse.
No Using in stormy weather or wet environment

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
6
4.6 Prevention of flame
No installation on Flammable products
No wire with temperature control switch or fuse. Use the right fuse.
Keep Lighting equipment away from flammable
No projection on products within 3 meters. And the temperature must be below
60 Celsius
No obstacles obstruct fans or ventilation within 0.5M
Keep equipment cooling for at 20 minutes before moving
Replacement of original parts are forbidden.
4.7 Protection lock
Lock the X,Y axis during transportation and keep fixture body vertical
4.8 Packing
1. Switch off power and keep fixture cool for at least 20 minutes
2. Clean fixture body and keep X, Y axis locked
3. Put fixture in pocket and make it headstand and put it in flying case
4. Flying cases can be stacked two layers at most and headstand is forbidden
5. For paper packing, put fixture in foam and use carton to cover foam
Make foam headstand.
5. Packing and Transportation
Packing: Paper carton with foam
Flying case: 1pc/case or 2pcs/case
Accessories
Accessories
QTY
Unit
User Manual
1
pc
Security Rope
1
pc
Clamp
2
pcs
Signal cable
1
pc
Power cable
1
pc
F
3M

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
7
6. A C Power supply
HOT BEAM Input volt、Power, Fuse
Input volt
Power consumption
Frequency
110~240V
470W
50/60HZ
Fuse Volt
Current
Model
250V
6A
5×20
Notice!! Only qualified staff are allowed to connect lighting equipment with power
Confirm the power supply is in compliance with our fixture and with overload
Production and earth leakage protection
L
N
Earth
RED
B
Yellow green
7. Lamp and Replacement
BEAM 280 Lamp
Brand
Power
Lifetime
CCT
OSRMA
280W
2200Hrs
9300K
Warning！Using other lamp will generate hidden danger or damage
Fixture. To reduce the risk of damaging fixture, please replace
Lamp when work time is 25% longer than rated lifetime.
BEAM 280 Lamp replace
Notice！No touch with filament with naked hands when replacing lamp to avoid greasy dirt
sticking to filament.keep filament clean. Switch off and wait at least
20 minutes to cool fixture. Lock Y axil at position of 60° angle.
The replacement procedures are as below

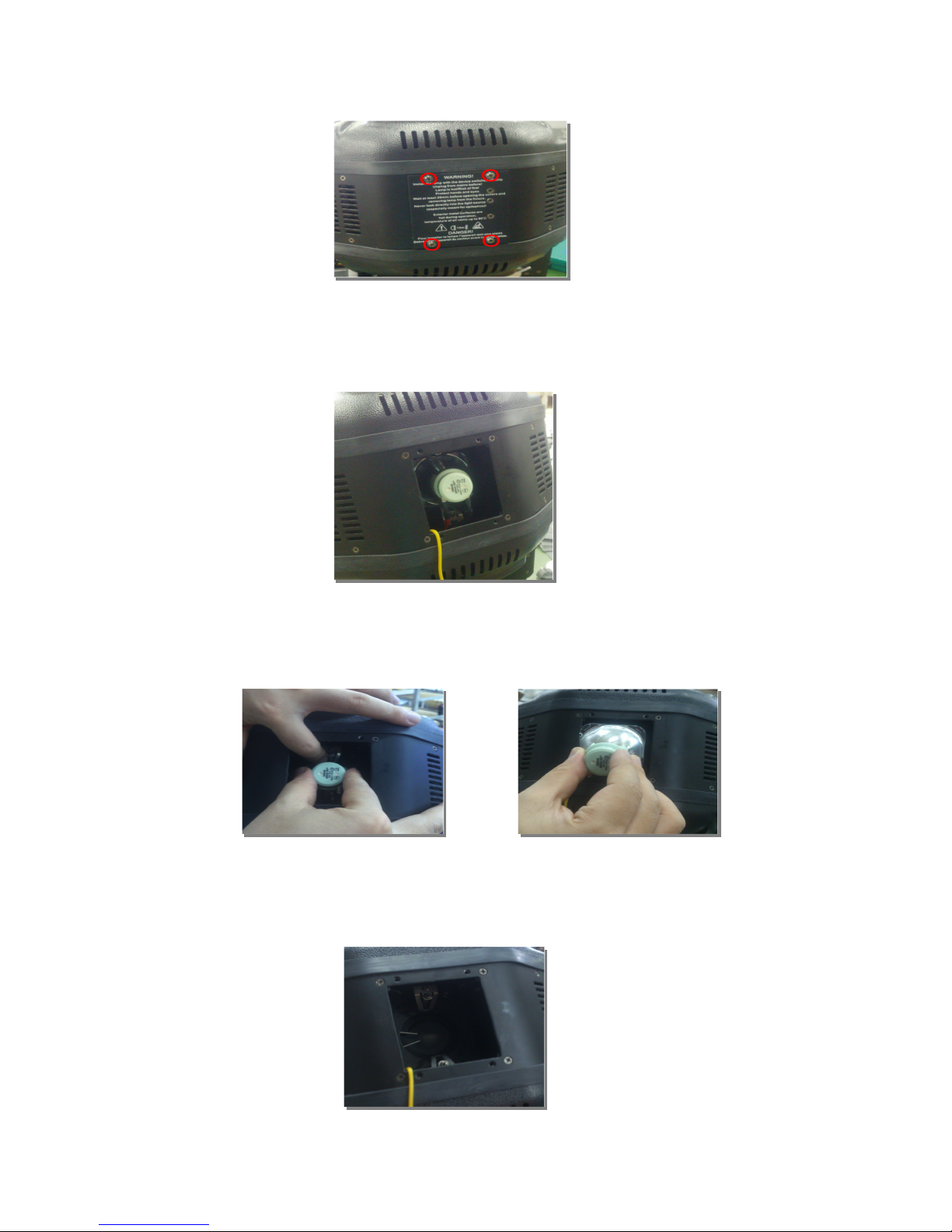

1. As Y axil locked, unscrew the plate at back of fixture body (PIC1)

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
8
(PIC1)
2. As taking off the plate, you can see the lamp, don’t take off lamp untill
The fixture keep cooling for at least 20 minutes, then take off lamp.(PIC2)
(PIC2)
3.Hold the clip with one hand and take lamp with the other hand. (PIC3),plug out
Wire and take lamp out after clip loose.(PIC4)
(PIC3) (PIC4)
4. Check the glass inside and keep it clean (PIC5)
(PIC5

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
9
5. To install lamp, do it reversely.
8. Color wheel and gobo wheel

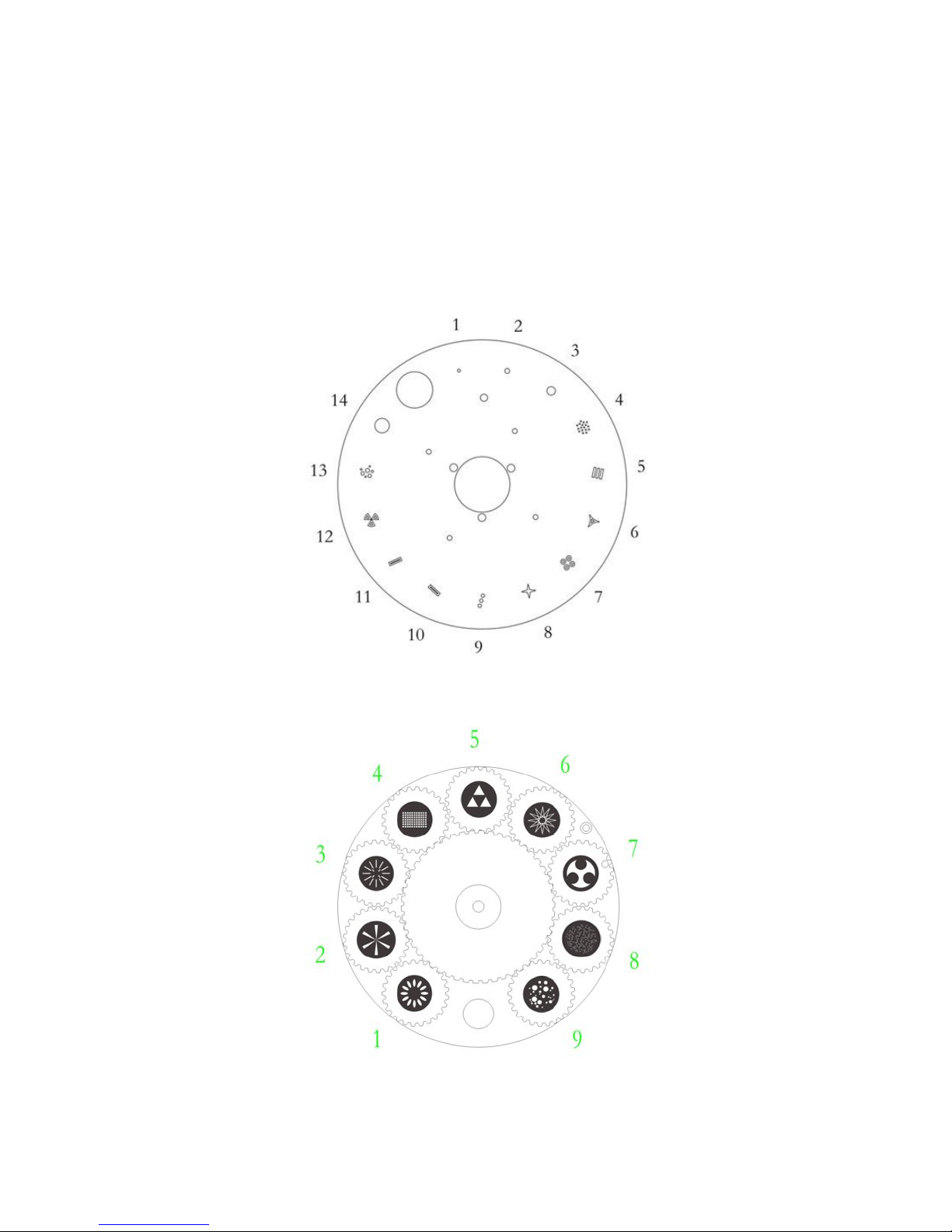

Color Wheel：13 colors + blank
Gobo：14 gobos + blank, working with prism produce fantastic effect.
9 Bidirectional rotating Gobos + blank, gobos can be customized.
Double Prisms (8-facet prism + 6-facet prism)
The prisms has focus, rotation, zooming and shaking function, rotating speed is adjustable

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
10

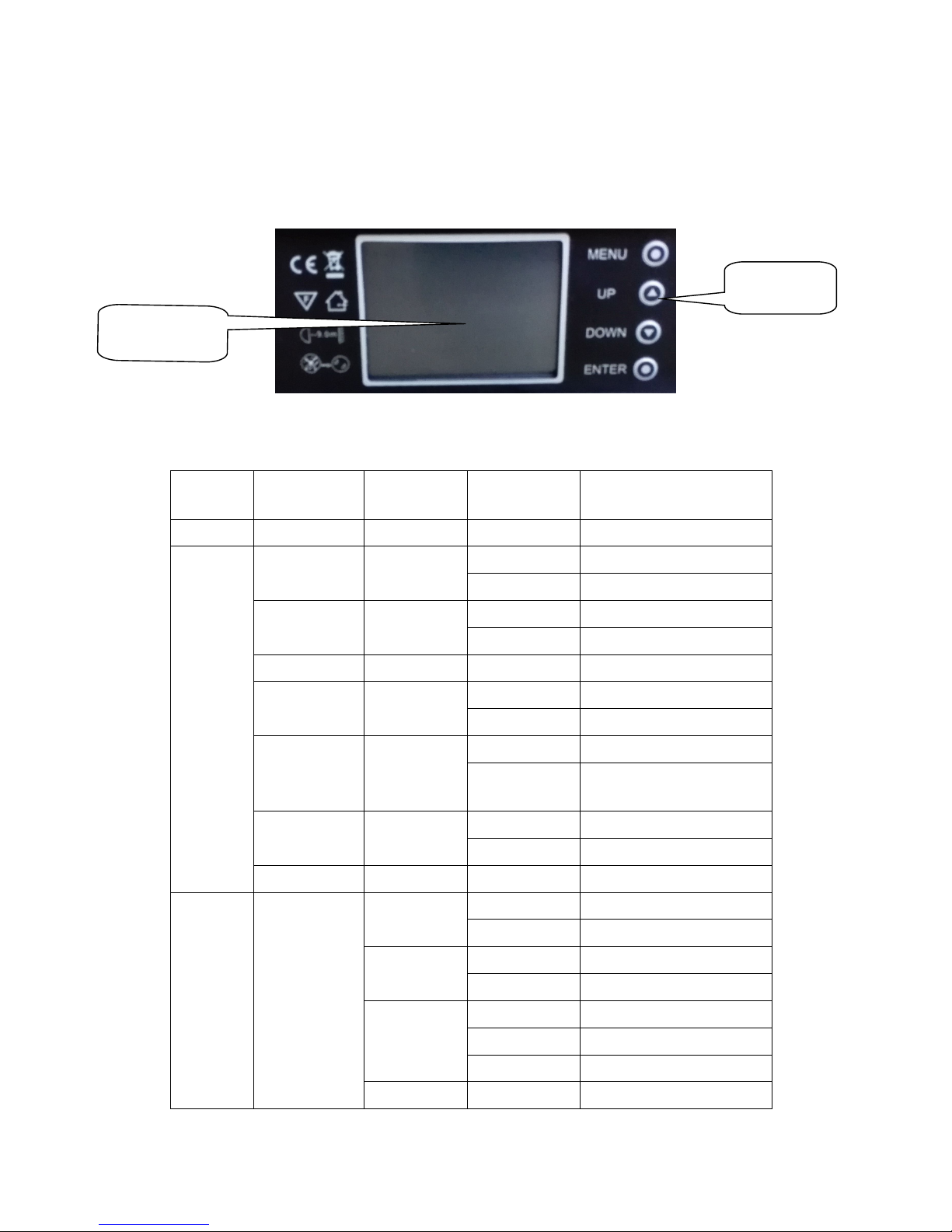

9. Display Screen
10. Display description
Main
menu
Menu1
Menu2
Function
function introduce
Address
001-512
Address
Display
Reverse display
Normal
Display normally
Reverse
180° reverse display
Language
Chinese
Chinese
English
English
Brightness
000-007
Brightness set
Backlight delay
60S
off time is delayed by 60s
Normal
Backlight Normal
Menu Back
90S
Menu back is delayed by 90s
OFF
menu don't back
automatically
Backlight strobe
ON
Strobe at no signal
OFF
No strobe at no signal
Back
▲
Back to main menu
Feature Set
X/Y
Anti-colockwise
pan scan
OFF
Pan Scan
ON
Anti-clockwise pan scan
Anti-colockwise
Tilt scan
OFF
Tilt scan
ON
Anti-clockwise Tilt scan
X/Y speed
Fast
Pan/Tile fast
Normal
Pan/Tile Normal
slow
Pan/Tile Slow
X axis angle
360°
Pan 360°
Color
Touch Screen
Keys

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
11
540°
Pan 540°
630°
Pan 630°
optocoupler
detection
OFF
Pan/Tilt optocoupler
detection off
ON
Pan/Tilt optocoupler
detection on
Back
▲
Back to feature set
shortest way
OFF
Color wheel and gobo wheel
running in shortest way
ON
Color wheel and gobo wheel
no running in shortest way
Full color
OFF
Half color
ON
Full color
Channel mode
Simple
Simple
Standard
Standard
expended mode
expended mode
Define
Channel arranged randomly
Receive mode
DMX
Fixture receive DMX signal
Wireless
Fixture receive wireless
signal
Auto
Fixture run automatically
Running mode
Master-Slave
Fixture receive outside signal
Sound
Fixture receive
controlling sound
Auto
Fixture run automatically
Signal reset
OFF
Save signal information
ON
Remove signal information
Signal reset
OFF
don't receive console
signal to reset
ON
receive console signal to
reset
Back
▲
Back to main menu
Lamp
Lamp
OFF
keep lamp off while power off
ON
keep lamp on while power off
Manual control
OFF
Manually control lamp off
ON
Manually control lamp on

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
12
Electric-light up
OFF
Forbidden outside signal
controlling lamp
ON
Outside signal control lamp
working time
0000-9999
record lamp working
time(hours)
time reset
★
password
reset
remove lamp working time
Lamp
off
lamp off
on
lamp on
Back
▲
Back to main menu
Information
services
on-current time
0000-9999
record the display
board working time
on-current times
0000-9999
record the display
board working times
Fan1
0000-9999
Show fan1 turning speed
Fan2
0000-9999
Show fan2 turning speed
Software version
V0.0
display board version
Time left
limitless
no limit for time
Times left
limitless
no limit for times
Back
▲
Back to main menu
Channel
CH00-CH40
Manually control channel
Tools
Factory setting
★
password
调出
Fixture recover
factory setting
Save
Save factory setting
Default setting
★
password
调出
Fixture recover
default setting
zero set
★
password
zero set
01-10
set the start position of
motors
Channel
Color wheel
rotation 001
Channel arranged randomly
…… 040
Channel arranged randomly
Factory set
★
password
Time limit
0000-9999
Running time limit
times limit
0000-9999
Times limit
time reset
reset
remove accumulated
running time

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
13
times reset
reset
remove accumulated
running times
password 1
000-255
password revise1
password 2
000-255
password revise2
password 3
000-255
password revise3
password 4
000-255
password revise4
X driving wheel
000-255
Pan driving wheels
X driven wheel
000-255
Pan Driven wheels
Y driving wheel
000-255
Tilt driving wheels
Y driven wheel
000-255
Tilt driven wheels
Igniter
connect earth
Bulb & Ballast
Total 5V
Bulb & Ballast
Y Angle
000-255
Y angle setting
Back
000-255
Back to tools
Verified code
Verified code
01-10
Verified code
01……10
Data verification setting
Back
▲
Back to main menu
Channel
level
CH 01..40
Show DMX number
Fixture
reset
Cancel
No reset
Yes
Fixture reset
Exit
▲
Exit
11. Channel
Channel
Simple
Mode
Value
Description
1
1
0－255
X-axis
2
*
0－255
X-axisfine tuning
3
2
0－255
Y-axis
4
*
0－255
Y-axis fine tuning
5
3
0－255
X Y-axis speed governing
6
4
0－19
blank
20－24
energy saving mode（230W）
25－129
blank
130－139
on

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
14
140－149
X/Y axis reset
150－159
blank
160－169
Effect reset
170－199
blank
200－209
Fixture reset
210－229
blank
230－239
off
240－255
blank
7
5
Color wheel
0－8
white
9－17
deep red
18－26
deep blue
27－35
yellow
36－44
green
45－53
magenta
54－62
sky blue
63－71
red
72－80
deep green
81－89
amber
90－98
blue
99－107
yellow
108－116
cool color
117－127
Fluorescent blue
128－129
white
130－134
Fluorescent blue+cool color
135－138
cool color+orange
139－143
orange+blue
144－147
blue+amber
148－152
amber+deep green
153－157
deep green + red
158－161
red+sky blue
162－166
sky blue+magenta
167－171
magenta+green
172－176
green+yellow

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
15
177－180
yellow+deep blue
181－185
deep blue+deep red
186－189
deep red+white
190－220
from fast to slow
221－250
from slow to fast
251－255
8
*
blank
9
6
blank
10
7
static gobo
0－3
blank
4－9
gobo1
10－15
gobo2
16－21
gobo3
22－27
gobo4
28－33
gobo5
34－39
gobo6
40－45
gobo7
46－51
gobo8
52－57
gobo9
58－63
gobo10
64－69
Penlight1
70－75
Penlight2
76－87
Penlight3
Gobo shaking from slow to fast
88－95
gobo1
96－103
gobo2
104－111
gobo3
112－119
gobo4
120－127
gobo5
128－135
gobo6
136－143
gobo7
144－151
gobo8
152－159
gobo9
160－167
gobo10

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
16
168－175
Penlight1
176－183
Penlight2
184－199
Penlight3
200－255
gobo from slow to fast
11
8
Ratating gobo
0－8
blank
9－17
gobo1
18－26
gobo2
27－35
gobo3
36－44
gobo4
45－53
gobo5
54－62
gobo6
63－71
gobo7
72－80
gobo8
81－89
gobo9
Gobo shaking from slow to fast
90－97
gobo1
98－106
gobo2
107－115
gobo3
116－124
gobo4
125－133
gobo5
134－142
gobo6
143－151
gobo7
152－160
gobo8
161－169
gobo9
171－179
gobo9 blackout
180－217
from fast to slow
218－255
from slow to fast
12
9
gobo auto-rotate
0－127
index
128－177
anti-clockwise from slow to fast
178－203
blackout
204－255
anti-clockwise from fast to slow
13
*
0－255
blank

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
17
14
10
Prism
0－19
blank
20－75
6-facet prism
76－255
8-facet prism
15
11
prism auto-rotate
0－127
Index
128－191
clockwise from fast to slow
192－193
blank
194－255
anti-clockwise from slow to fast
16
12
Frost
0－64
blank
65－255
Linear frost
17
13
zoom
0－255
Linear zoom
18
*
0－255
zooming fine tuning
19
14
0－255
Focus
20
*
0－255
zooming fine tuning
21
*
0－255
blank
22
15
strobe
0－31
strobe close
32－63
strobe
64－95
strobe from slow to fast
96－127
strobe
128－143
from fast to slow slow off/fast on
144－159
from slow to fast fast off/slow on
160－191
strobe
192－223
random strobe/from slow to fast
224－255
strobe
23
16
dimming
0－255
Linear dimming
24
*
blank

Guangzhou Miss Lighting Technology Co.,Ltd
280W Moving Head Light, Standard version
18
12. Technical Support
Support Telephone: [phone]
Support Email: s[email protected]om
Website: www.gzmisslighting.com / www.misslighting.net
Working Time: (BeiJing Time)
Monday to Friday 08:00~12:00 14:00~18:00 19:00~21:00
Saturday 09:00~12:00 14:00~18:00
Note: all the rest of China's holidays
