Mitel TELink 700 FLASH User manual

Mitel TELink 700 FLASH 06/2009
TELink 700 FLASH
INSTALLATION AND OPERATION MANUAL
Attention:
A telco line surge protector
should be used in series with
the line connected to this unit.
Please leave this manual with the unit after installation
Important warranty information enclosed
Mitel On Hold
720 Brooker Creek Blvd., Ste. 215
Oldsmar, FL 34677
888.664.3366
Fax: [phone]
http://mitelonhold.com
[email protected]m

Mitel TELink 700 FLASH 206/2009
FCC Notice
WARNING: This equipment has been tested and found to comply with the limits for a Class A digital device
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when this equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequencyenergyand, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the interference at his/her
own expense.
This digitalapparatusdoes not exceedthe Class Alimitsfor radionoise emissionsfromdigitalapparatus
set out in the Radio Interference Regulations of the Canadian Department of Communications.
Le présent appareil numériquen'émet pasde bruitsradioélectriques dépassantleslimitesapplicablesaux
appareils numériques de la Class A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le
ministère des Communications du Canada.
Limited Warranty{tc \l1 "LIMITED WARRANTY}
TERMS: Mitel warrants to the originalpurchaser ("Buyer") that theProductsold is free from defects in
material and workmanship at the time of purchase. The warranty extends five (5) yearsfrom the date
of original purchase and covers parts and labor. Buyer must provide written notice to Mitel within the
warranty period of any defective part or conditions. If the defect is not the result of improper use,
service, maintenance or installation, andif theequipment hasnotbeenotherwise damagedor modified
aftershipment,Mitelor its authorized representative shall either replaceorrepairthedefectiveProduct
at Mitel‘s option. NocreditshallbeallowedforworkperformedbyBuyerorunauthorizedparties. Out-
of-warranty repairs will be invoiced at the current Nel-Tech hourlyrate plus the cost of parts, shipping
and handling. IN THE EVENT THAT THE PRODUCT SERIAL NUMBER IS MISSING ORHASBEEN
TAMPERED WITH IN ANY WAY, THE FOREGOING WARRANTY ISVOIDANDWITHOUT EFFECT
AND MITEL SHALL HAVE NO LIABILITY WHATSOEVER ON ACCOUNT OF DEFECTS TO SUCH
PRODUCT.
LIMITATIONS: EXCEPT AS STATED ABOVE, THERE ARE NO WARRANTIES, EXPRESS OR
IMPLIED, THAT EXTEND BEYOND THE SPECIFICATIONS FOR THE PRODUCT. MITEL
EXPRESSLY DISCLAIMS ANY WARRANTY, EXPRESS OR IMPLIED, THAT EQUIPMENT SOLD
HEREUNDER IS OF MERCHANTIABLE QUALITY OR THAT IT CAN BE USED, ORIS FITFORANY
PARTICULAR PURPOSE. BUYER PURCHASES AND ACCEPTS EQUIPMENT SOLELY ON THE
BASISOFTHEWARRANTYHEREINABOVEEXPRESSED. UNDERNO CIRCUMSTANCESSHALL
MITEL BE LIABLE BY VIRTUE OF THIS WARRANTY OR OTHERWISE FOR ANY SPECIAL,
INDIRECT, SECONDARY OR CONSEQUENTIAL DAMAGES TO ANY PERSON OR PROPERTY
ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT.
REPAIRING OR REPLACING PRODUCT: Buyermayobtaintherepairorreplacementofanyeligible
partorequipmentcoveredunderthiswarrantythroughMitel only. Buyerisresponsibleforallshipping
and handlingcharges in connection with the performance of this warranty. Products returned to Mitel
must be securely packaged to prevent damage in transit, freight prepaid,and insured forreplacement
value. A return authorization number assigned by Mitel must be clearly marked on the outside of the
shipping container. Proof of purchase must accompany shipment. Items delivered to Mitel without a
return authorization clearly marked on the outside of the shipping container, and/or without proof of
purchase will be refused. Please contact Mitel at the address and phone number below to receive a
return authorization number and to arrange for the repair or replacement of a flawed part covered by
this warranty. Please indicate the Product's serial number in all correspondence. An authorization
number will not be issued in the absence of a serial number.
Copyright Notice
This manual copyright 1993-2009 All rights reserved. No part of it may be copied, photocopied,
reproduced,translated, orreduced to anyelectronic medium ormachine-readable formwithoutMitel’s
prior written consent.
Information contained herein is subjectto change without prior notification. Mitel provides this manual
without warranty of any kind, express or implied. This user's manual may contain technical and/or
typographical errors.
Printed in the U.S.A

Mitel TELink 700 FLASH 306/2009
TABLE OF CONTENTS
FCC NOTICE....................................................................................................... 2
LIMITED WARRANTY......................................................................................... 2
1. SYSTEM DESCRIPTION ............................................................................... 4
2. INSTALLATION.............................................................................................. 5
VOICE LINE AND/OR NIGHT ANSWER INSTALL PROCEDURE........... 6
DEDICATED LINE INSTALL PROCEDURE.............................................. 7
FAX SHARE INSTALL PROCEDURE....................................................... 9
FINAL INSTALLATION............................................................................. 11
3. OPTIONAL FEATURES ............................................................................... 12
4. TROUBLESHOOTING ................................................................................. 14
LIST OF TABLES
TABLE 1—STATUS LIGHT INDICATIONS....................................................... 11
TABLE 2—NIGHT LIGHT INDICATIONS.......................................................... 13
TABLE 3—TROUBLESHOOTING .................................................................... 14

Mitel TELink 700 FLASH 406/2009
1. SYSTEM DESCRIPTION{tc \l1 "1. SYSTEM DESCRIPTION}
The TELink FLASH is a powerful, simple to use messaging system intended for
telephone Messaging On Hold (MOH). Once properly installed, no further interaction
fromtheuserisrequired. UnlikeotherMOHproducts,theTELinkFLASHisdesignedto
be operated remotely by the MOH provider using a central PC Controller. This feature
eliminatestheneedfortapedistributionbecauseallaudio informationand configuration
settings are downloaded over telephone lines.
Because the unit uses non-volatile FLASH memory, your audio program is safe from
erasure due to power loss for up to 10 years. If power is lost, audio playback resumes
automatically once power is restored. This feature eliminates the need for a battery
backup system.
The TELink FLASH has been designed to accommodate several different installation
needs. The standard installation method allows normal access to the telephone line
while automatically preventing an unintentional disruption of a communication session
between the TELink and the PC Controller.

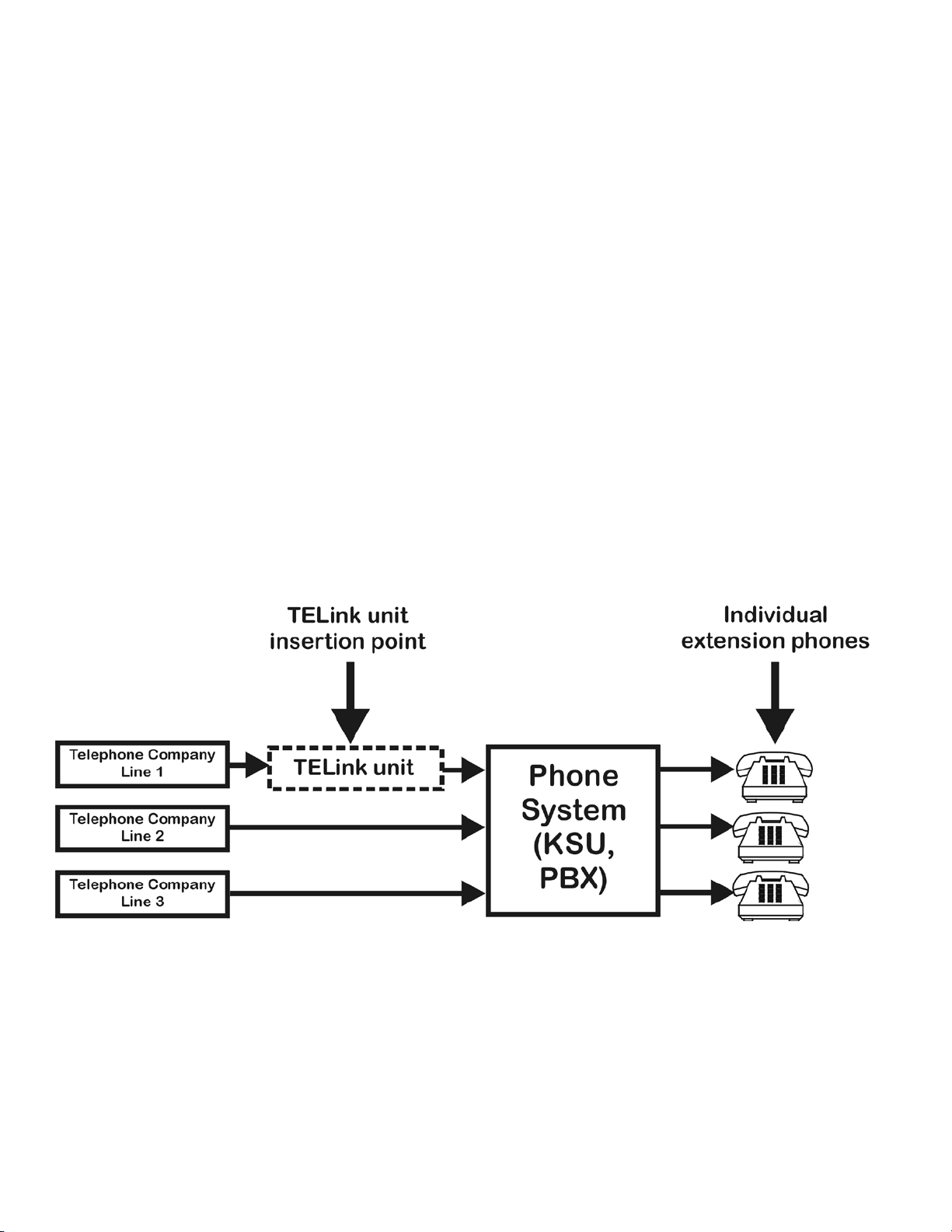

Inatypicalinstallation,the unitisinstalleddirectlytotheincomingtelephoneline withno
other telephone equipment connected prior to the TELink. An installation involving a
KSU or PBX may look like what is illustrated below:

Mitel TELink 700 FLASH 506/2009
2. INSTALLATION{tc \l1 "2. INSTALLATION}
If other installation instructions were included, those instructions should be
followed first.
There are three installation procedures available, depending on the phone line used.
Keep in mind that whichever installation procedure is used, the TELink must always be
connected directly to the telephone company input, ahead of any other devices using
that line.
If you have any questions or require assistance installing the TELink, please
contact Mitel.

Mitel TELink 700 FLASH 606/2009
VOICE LINE AND/OR NIGHT ANSWER INSTALL
PROCEDURE{tc \l2 "INSTALLATION PROCEDURE A}
1. Make sure the power switch on the back of the TELink is in the OFF position.
2. Connect one end of the included modular telephone cable directly to the phone
company box for the installation phone number. It is important that this cable is
attached to a directline,priorto anyothertelephoneequipment.The user mayneed
to adapt one end of the modular cable to mate to the incoming phone line.
If the TELink is equipped with the Night Answer option, the installation line must be
the firstline answered bythe telephone system. Ifyou are not sure whichlinethisis,
check with your local phone company.
3. Connect the other end of the modular cable to the TELCO jack on the back of the
TELink.
4. Usinganothermodulartelephonecable,connectthePHONEjackonthebackofthe
TELink to the installation phone line's original destination (KSU, PBX, telephone,
etc).
5. Set the HI/LO switch on the back of the TELink to the proper position for the
telephone system (LO=8 Ω, HI=1K Ω).
6. Connect the TELink's AUDIO OUTPUT jack to the telephone system's MOH input
usingtheincludedRCAcable. Theusermayneed toadaptthephonesystemendof
this cable to match the MOH input connection on the phone system.
7. Plug the included 12VDC power supply into a normal 110VAC wall outlet. Connect
the other end to the 12VDC jack on the back of the TELink.
8. Turn the power switch ON. Turn to page 9 for further instructions.

Mitel TELink 700 FLASH 706/2009

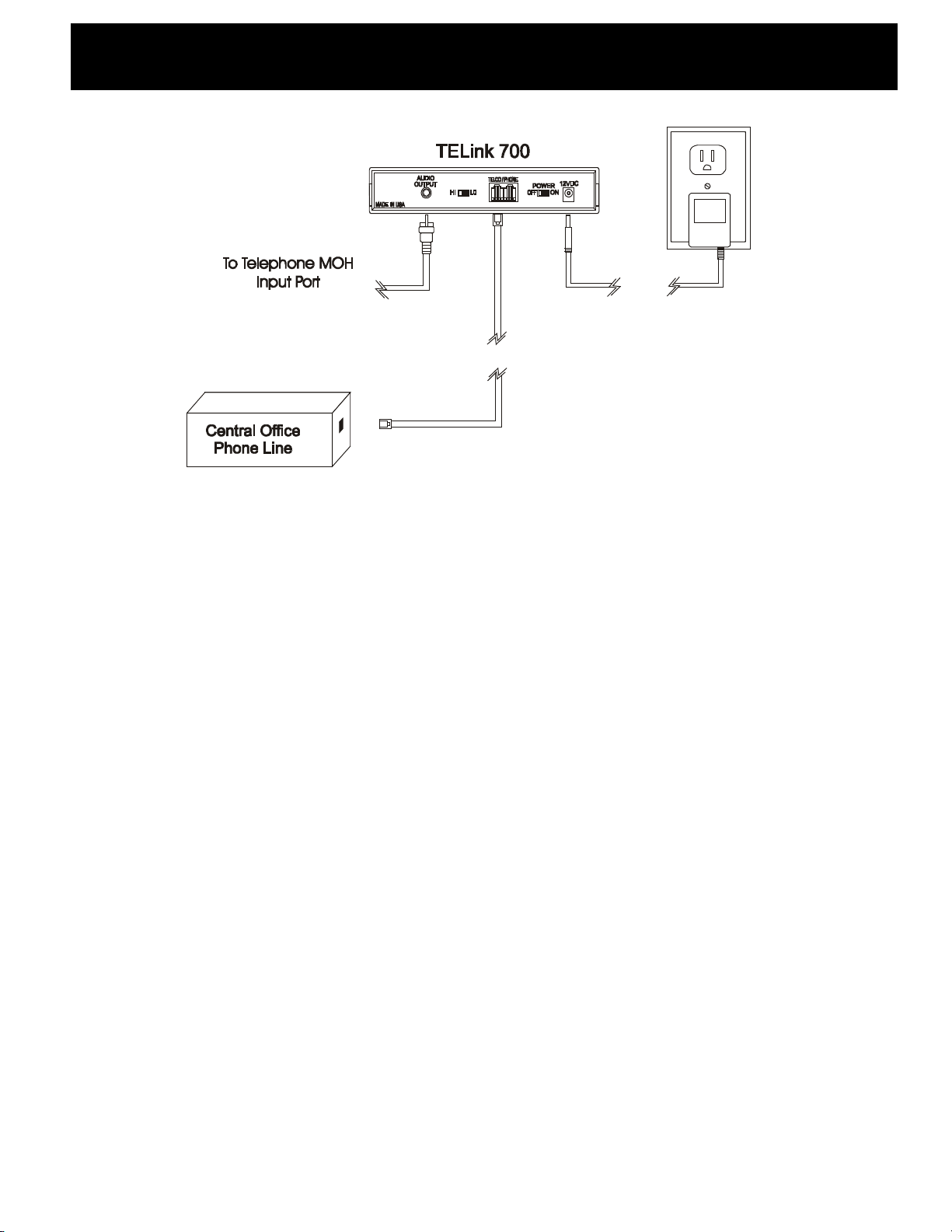

DEDICATED LINE INSTALL PROCEDURE{tc \l2
"INSTALLATION PROCEDURE B}
1. Make sure the power switch on the back of the TELink is in the OFF position.
2. Connect one end of the included modular telephone cable directly to the phone
company box for the installation phone number. The user may need to adapt one
end of the modular cable to mate to the incoming phone line.
3. Connect the other end of the modular cable to the TELCO jack on the back of the
TELink.
4. Usinganothermodulartelephonecable,connectthePHONEjackonthebackofthe
TELink to the installation phone line's original destination (KSU, PBX, telephone,
etc).
5. Set the HI/LO switch on the back of the TELink to the proper position for the
telephone system (LO=8 Ω, HI=1K Ω).
6. Connect the TELink's AUDIO OUTPUT jack to the telephone system's MOH input
usingtheincludedRCAcable. Theusermayneed toadaptthephonesystemendof
this cable to match the MOH input connection on the phone system.
7. Plug the included 12VDC power supply into a normal 110VAC wall outlet. Connect
the other end to the 12VDC jack on the back of the TELink.
8. Turn the power switch ON. Turn to page 9 for further instructions.

Mitel TELink 700 FLASH 806/2009

Mitel TELink 700 FLASH 906/2009
FAX SHARE INSTALL PROCEDURE{tc \l2 "INSTALLATION
PROCEDURE C}
1. Make sure the power switch on the back of the TELink is in the OFF position.
2. Connect one end of the included modular telephone cable directly to the phone
company box for the installation phone number. The TELink must be connected
before the fax machine. The user may need to adapt one end of the modular cable
to mate to the incoming phone line.
3. Connect the other end of the modular cable to the TELCO jack on the back of the
TELink.
4. Usinganothermodulartelephonecable,connect the PHONE jack on the backofthe
TELink to the fax machine.
5. Set the HI/LO switch on the back of the TELink to the proper position for the
telephone system (LO=8 Ω, HI=1K Ω).
6. Connect the TELink's AUDIO OUTPUT jack to the telephone system's MOH input
usingtheincludedRCAcable. Theusermayneed toadaptthephonesystemendof
this cable to match the MOH input connection on the phone system.
7. Plug the included 12VDC power supply into a normal 110VAC wall outlet. Connect
the other end to the 12VDC jack on the back of the TELink.
8. Set the fax machine to answer on the fewest rings possible (but a minimum of two
rings).

Mitel TELink 700 FLASH 10 06/2009
9. Turn the power switch ON. Turn to page 9 for further instructions.

Mitel TELink 700 FLASH 11 06/2009
FINAL INSTALLATION{tc \l2 "FINAL INSTALLATION}
After installation is complete, a download maybe required. Check the STATUSlight on
the front panel (note: on some units this light is labeled ACTIVE):
IF IT IS ON (STEADY):An audio file is present in memory and is currently playing.
Download is not required.
IF IT IS FLASHING SLOWLY: No audio file is present. Contact Mitel. They must
call the unit and download audio.
IF IT IS FLASHING FAST: The unit is automatically calling the callback number
stored in memory to download audio from the PC Controller. This first
callback to the PC Controller must be successful in order to validate the
callback number. If the first call does not result in contact with the PC
Controller, then callback validation has failed and the unit will not callagain.
In this case, the STATUS light will alternate between a flash fast for one
second and no flash for one second. Contact Mitel. They may then call the
unit and download audio.
During communications sessions between the TELink and the PC Controller, the
STATUS light flashes fast and the phone line becomes unavailable for incoming and
outgoing calls (no dial tone will be present).
After a successful download the STATUS light remains on (steady). At this point, call
into the phone system and ask to be placed on hold. While listening to the on-hold
audio,adjustthevolume(ifnecessary) usingthevolumeUP/DOWN buttonsonthefront
panel.
Ifthereisnoon-hold audio, verify all connections against the installationprocedure used
and try again. If there is still no on-hold audio, contact Mitel.
STATUS (or ACTIVE) Light
Indication
On
Audio file in memory, currently playing
Off
No power to unit or an error has occurred
Flashing Slowly
No audio file in memory, phone line free
Flashing Fast
Data session with PC Controller is being
attempted or is in progress
Alternating – Fast Flash / No
Flash
The TELink failed to validate the callback
number. Contact Mitel.
Table 1—Status Light Indications

Mitel TELink 700 FLASH 12 06/2009
3. OPTIONAL FEATURES{tc \l1 "3. OPTIONAL FEATURES}
Your TELink may have optional features which provide additional convenience and
functionality. The serial number label on the bottom ofthe unitindicates whichfeatures
the unit has. Note that the unit may be equipped with optional features that have not
been activated by Mitel.
CALL ON SCHEDULE (CS) allows the TELink to be programmed to call the PC
Controller at a future date and time to automatically download a new audio
program. The scheduled callback can be set to a specific time, month, day, and
year.
The STATUS (or ACTIVE) light flashes fast during a callback. If the unit cannot
connecttothePCController(forinstance,ifthelineisbusy), itwillcontinuecalling
at seven minute intervals until a connection is made, or until the preprogrammed
number of retries has been exhausted.
Before CS can operate automatically, the callback telephone number must be
validated during initial installation and whenever the callback number is changed
bythe MOH provider. During validation, the TELink makesone call attempting to
establish communications with the PC Controller. If it is successful, the callback
features become fully operational. If validation fails, contact Mitel.
FAX SHARE (FS) allows the TELink to share a phone line with a fax machine, saving
the expense of having to install a separate line. In a Fax Share installation, the
TELink only answers calls from the PC Controller and does not interfere with
incoming or outgoing fax transmissions. The fax machine must be set to answer
on two or more rings. Fax Share is standard on most units, although the FS
designation may not appear on the serial number label. Fax Share cannot be
used together with Night Answer.
NIGHT ANSWER (N) provides the capability to store a separate 15, 30, 45, or 60
secondnightanswer message,inadditiontothestandardMOHmessage. Before
using Night Answer, Mitel must enable the feature from the PC Controller and
download a standard MOH message and a Night Answer message. When
activated (ON), the TELink answers incoming calls, plays the Night Answer
message, then hangs up the call. Two Night Answer modes are available:
Scheduled - The Night Answer message can be scheduled from the PC
Controller to turn on and off automatically once per day, on a seven-
daycalendar. Sampleschedule: NightAnswerturnsOFFat9amand
ON at 5pm Monday-Friday, with no ON or OFF time scheduled for
Saturday and Sunday. Under this schedule, Night Answer is active
during non-business hours (5pm-9am) and all weekend long.

Mitel TELink 700 FLASH 13 06/2009
Manual - Night Answer can be turned ON or OFF on demand by pressing
the NIGHT button on the front panel. If a Night Answer schedule is
present, this will preempt it. If you manually turn Night Answer ON or
OFF, it will remain in that state until you cancel Manual mode (press
the NIGHT button again). Then, Night Answer operation will return to
Scheduled (if a schedule is present).
IMPORTANT: If Night Answer is turned ON manually, you
must remember to turn it OFF when you want calls to ring
through normally. Until Night Answer is turned OFF, the
TELink willcontinue to answer calls, play the Night Answer
message, then hang up. DO NOT forget to turn Night
Answer OFF at the desired time.
When using Night Answer, it is extremelyimportant that the TELinkis installed on
the first phone number that the phone system answers. However, because this
lineislikelytobe the mostheavilyused,thePCControllermayencounterdifficulty
(busy line) when trying to call the unit. For the same reason, the unit may also
have difficulty calling the PC Controller. Therefore, it is recommended that the
initialinstallationandsubsequentdownloads bescheduledduringtimeswhenthe
line is not likely to be in use (during non-business hours).
Note that when the TELink answers a call in Night Answer mode, any other calls
that come in will not hear the Night Answer message, but will instead be handled
normally by the phone system.
The NIGHT light on the front of the TELink indicates the currentON/OFF status of
the Night Answer feature:
NIGHT Light
Indication
On
Night Answer ON
Off
Night Answer OFF
Flashing
Slow flash – Night Answer OFF
Fast flash – Night Answer ON
Table 2—Night Light Indications

Mitel TELink 700 FLASH 14 06/2009
4. TROUBLESHOOTING{tc \l1 "4. TROUBLESHOOTING}
Problem / Symptom
Possible Solution(s)
Audio output level is too low
or too high.
•Adjust the volume by pressing the UP/DOWN
volume switches on the front panel. If the
volume level does not change, contact Mitel.
•Possible impedance mismatch between
phone system’s MOH port and the TELink. Try
switching the HI/LO switch on the back of the
TELink.
TELink does not answer
when called by the PC
Controller.
•The TELink is not connected directly to the
telephone company input.
•Other telephone devices are connected prior
to the TELink. The TELink must be the first
device connected to where the telephone line
enters the building.
The telephone line to which
the TELink is attached does
not work.
•The TELink may be communication with the
PC controller. The unit automatically locks its
phone line during communications to protect
data integrity. Check the STATUS led. If it is
flashing fast, the unit is in a data session.
STATUS (or ACTIVE) light
alternates between 1 second
flash flash, and 1 second no
flash.
•First attempt to call the callback phone
number has failed.
•If the initial callback validation has failed you
will need to contact Mitel for further instruction.
Table 3—Troubleshooting
