OWNER’S MANUAL
PETROL CHAIN SAW 6220 AND 6224
USER MANUAL, MAINTENANCE INSTRUCTIONS
AND SPARE PARTS
READ THIS MANUAL CAREFULLY BEFORE OPERATING THE MACHINE
WARNING:
THIS SYMBOL INDICATES IMPORTANT SAFETY PRECAUTIONS

Component Location
1. Chain brake
2. Recoil handle
3. Air cleaner cover
4. Choke knob
5. Throttle interlock
6. Rear handle
7. Throttle lever
8. Decompressor button
9. Engine switch
10. Fuel tank
11. Oil tank
12. Front handle
13. Saw chain
14. Guide Bar
15. Primer Bulb
1.
2.
3.
4.
5.
6.
7.
9.
10.
11.
12.
13.
14.
8.
15.

Safety Precautions
INTRODUCTION
• Read this Owner/Operator Manual carefully. Be sure you understand how to operate this chain saw
properly before you use it. Failure to do so could result in serious injury.
• Always keep this manual so that you may refer to it later whenever any
questions arise. Also note that you are able to contact the dealer from
whom you purchased the product for assistance.
• Always include this manual when selling, lending, or otherwise transferring
the ownership of this product.
• This product has been designed to be used as a chain saw
and it should never be used for any other purpose, doing so could result in
unforeseen accidents and injuries occurring.
• This chain saw is equipped with extremely sharp saw chain, and when used incorrectly the saw
chain can be dangerous
• When using this chain saw for the first time, take the chain saw to a wide, clear, open space, start
the engine, and practice handling the chain saw until you are sure that you will be able to handle it
properly in actual operation.
• You should never use this chain saw when under the influence of alcohol, suffering from exhaustion
or lack of sleep, suffering from drowsiness as a result of having taken medicine, or at any other time
when your judgement might be impaired or that you might not be able to operate the chain saw
properly and in a safe manner.
• Never allow children or anyone unable to fully understand the directions given in this manual to use
this chain saw.
• When planning your work schedule, allow plenty of time to perform the work and allow plenty of time
for rest. Limit the amount of time you continuously use the chain saw to 30~40 minutes per session,
and take 10~20 minutes of rest between work sessions. Also try to keep the total amount of work
performed in a single day to less than 2 hours.
• Do not climb the tree and operate the chain saw unless you are specially trained to do so.
• Avoid running the engine indoors. The exhaust gases contain harmful carbon monoxide.
■Never use the chain saw in conditions as described below:
• When the ground is slippery or when other conditions exist which might make it difficult to maintain a
steady posture while using the chain saw.
• At night, at times of heavy fog, or at any other times when your field of vision is limited and it would
be difficult to gain a clear view of the area where the chain saw is to be used.
• In heavy rain, during lightning storms, at times of strong or gale-force winds, or at any other times
when weather conditions might make it unsafe to use this product.
• Lack of sleep, tiredness, or physical exhaustion results in lower attention spans, and this in turn can
lead to accidents and injury.
■WORK CLOTHING AND SAFETY EQUIPMENT
• When using the chain saw, we recommend using
clothing with chain saw protection:
• Helmet, face protector visor and ear defenders
• Gloves with chain saw protection.
• Trousers with chain saw protection.
• Boots with chain saw protection, steel toe caps and non slip
sole.
Boots With
Chain saw Protection
Chain saw
Protection
Trousers
Helmet with face protector &
ear defenders
Chainsaw
Protection Gloves


■SAFETY AND OPERATION
• This chain saw is equipped with a very sharp saw chain, and when used incorrectly the saw chain
can be extremely dangerous.
• Improper handling can cause accidents which may in turn lead to serious injury or death. For this
reason, you should always be careful to adhere to the following instructions when using your chain
saw.
• Never hold the chain saw in a way in which the saw chain is pointed towards someone else.
• Never allow the saw chain to come into contact with your body while the engine is in operation.
• Always turn off the engine before adjusting the chain saw, removing branches which have become
stuck in the saw chain, or at any other time when coming into close proximity with the saw chain.
• Always wear chain saw safety gloves when adjusting the chain saw.
• Always place the guide bar cover provided over the saw chain when not in use.
• Falling branches may fall onto the operator’s body or head, resulting in injuries, scratches, and cuts,
and for this reason you should always wear a chain saw helmet and chain saw safety clothing when
operating the chain saw.
■SAFE HANDLING OF FUEL
• The engine of the chain saw is designed to run on a two-stroke oil/fuel mixture. This fuel is highly
flammable, never store cans of fuel or refill the fuel tank in any place where there is a source of heat
or fire which might ignite the fuel.
• Do not smoke whilst operating the chain saw or refilling, keep lit cigarettes away
from the chain saw at all times.
• When refilling the fuel tank always stop the engine first and carefully make sure
that there are no sparks or open flames anywhere nearby before refuelling.
• If any fuel spillage occurs during refuelling, use a dry rag to wipe any fuel which has
been spilled onto the chain saw before starting the engine.
• After refuelling, screw the fuel cap back tightly onto the fuel tank and carry the chain saw to a spot 5
metres or more away from where it was refuelled before starting the engine.
■BEFORE OPERATING THE CHAIN SAW
• Before beginning work, carefully check the work area and remove any obstacles and clear a retreat
path from falling trees.
• Within a perimeter of 15 metres of the work area should be considered a hazardous area into which
no-one should enter while the chain saw is being used, and when necessary this area should be
marked with a warning rope, warning signs, or other forms of warning. When work is to be performed
simultaneously by two or more operators, care should also be taken to constantly look around to
check the presence and locations of other operators within the work area to maintain a safe distance
between each operator.
• Before beginning work, each component of the chain saw should be checked to make sure that it is
in proper working order, make sure that there are no loose screws or bolts, fuel leaks, ruptures,
dents, or any other problems which might interfere with safe operation. Be especially careful to
check that there is no damage to the saw chain or chain brake.
• Never use the chain saw when the saw chain, guide bar, or sprocket are excessively worn, or blunt,
or when any sort of damage has occurred.
• Keep all parts of your body away from the chain saw chain when the engine is running.
■BEFORE STARTING THE ENGINE
• Carefully check the work area to make sure that no obstacles exist within a perimeter of 15 metres
around the chain saw before starting the engine.
• To start the engine, place the chain saw onto the ground in a flat clear area and hold it firmly in place
to ensure that neither the saw chain or the throttle come into contact with any obstacles when the
engine starts.
• After starting the engine, make sure that the saw chain stops moving when the throttle trigger is
released (idle). If the saw chain continues to move when the engine is at idle, adjust the idle screw
on the carburettor to a point where the saw chain stops moving, if this cannot be achieved, take the
chain saw to your authorised servicing dealer for adjustment.



■AVOID NOISE PROBLEMS
• Check and follow the local regulations for sound levels and hours of operation for garden machinery.
• In general, operate chain saws between 8 am, and 5 pm on week days and 9 am to 5 pm at
weekends.
• Avoid using the chain saw late at night and/or early in the morning.
■SAFETY WHEN USING THE CHAIN SAW
• When using the chain saw, grip the handles firmly with both hands, place your feet slightly apart so
your weight is distributed evenly across both legs, and always maintain a steady even posture while
working.
• Maintain full engine speed when cutting.
• Never allow other persons to come within the work area as doing so might expose them to danger.
• Keep work area clear of all persons, particularly small children and pets. Injury may result from flying
debris.
• If a branch or other object gets caught in the saw chain during operation, always stop
the engine before removing the object.
• To protect yourself against injury from falling branches, wear the required safety
equipment.
• Never touch the spark plug or plug HT cable while the engine is in operation, doing so
may result in an electrical shock.
• Never touch the exhaust, spark plug, or other parts of the engine while the engine is in
operation or immediately after shutting down the engine. These parts reach high
temperatures during operation and doing so could result in serious burns.
• When you finish cutting in one location and wish to continue work in another area, stop
the engine, place the protective cover over the guide bar, and turn the chain saw so that
the saw chain faces behind your body before carrying it to the new location.
• Always remove fuel from the fuel tank before transportation to prevent fuel spillage.
• Never leave the chain saw exposed to direct sunlight as this can heat the fuel tank and
may cause a discharge of fuel, and flood the engine.

■KICKBACK AND PINCHING SAFETY PRECAUTIONS
■ BEWARE OF KICKBACK
• Kickback can occur whenever the tip of the guide bar touches an object when the
chain saw is operating. Kickback may force the guide bar up and back towards the
operator at speed.
■BEWARE OF PINCHING
• Pinching the saw chain along the tip of the guide bar may force the guide bar back
rapidly toward the operator. Pinching can occur whenever wood closes around the
moving saw chain.
• Both kickback and pinching may cause the operator to lose control of the chain saw,
which could result in serious personal injury.
• Understand kickback and pinching.
• Keep a firm grip on the chain saw with both hands whenever the engine is running.
• A firm grip will help you reduce the affects of kickback and pinching as well as
maintaining safe control of the chain saw.
• Cut at full engine speeds.

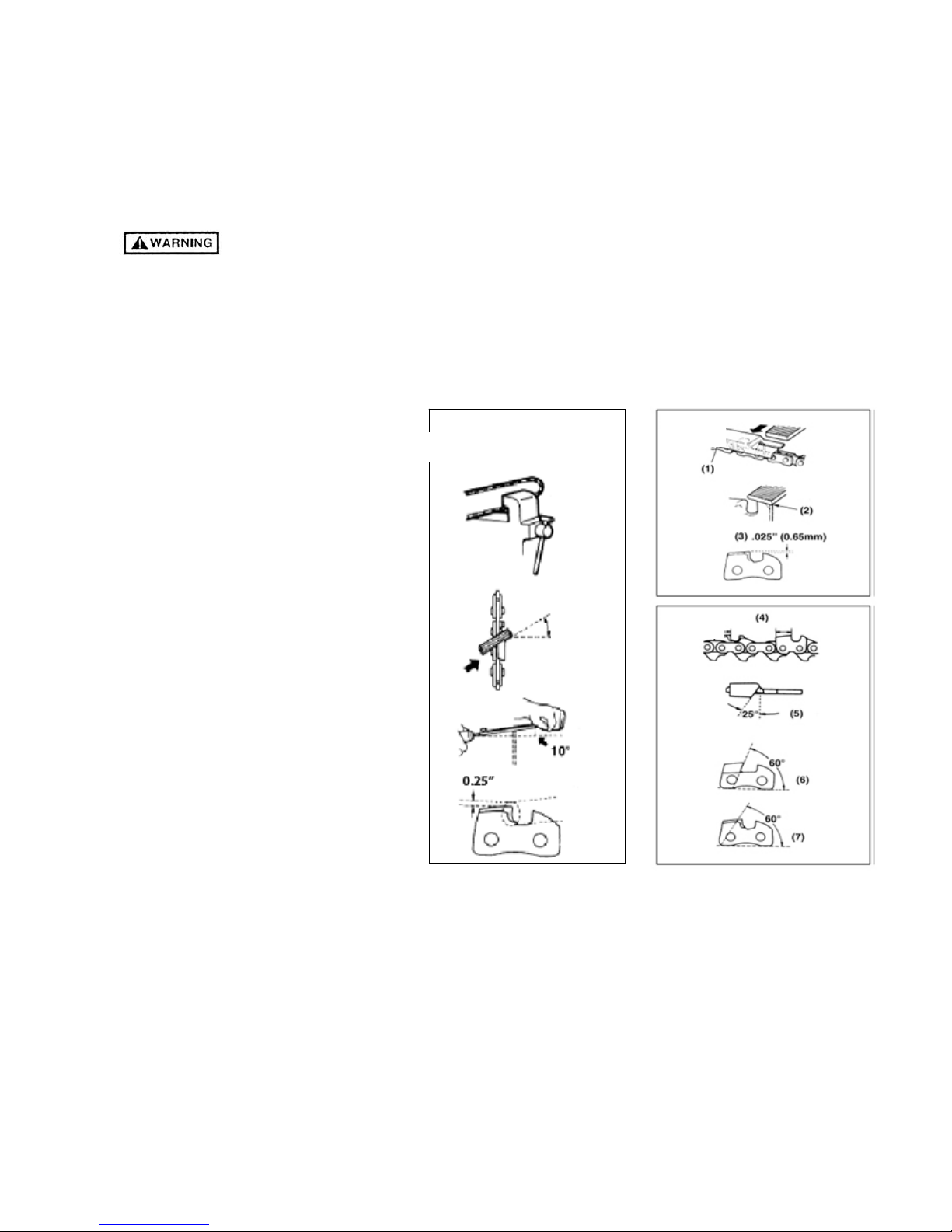

• Follow the manufacturer's instructions for sharpening and maintaining the chain.
• Use only genuine spare parts.

■SAFETY SYMBOLS
1. Warning, Danger, Caution
2. Read the documentation and safety
instructions which are provided in this
user manual.


3. When operating the chain saw, use
protective equipment, helmet, visor, ear
defenders, and chain saw safety
clothing.
4. Use the chain saw with two hands.
5. Keep hands and feet away from moving
parts. Always keep a safe distance from
the saw chain.
6. Beware of objects being thrown from
the operating zone.
7. Warning! Danger of kickback
8. Directive 2000-14/CE. Guaranteed noise
levels.
9. Danger: risk of exhaust fumes
intoxication.
10. Danger: risk of fire or explosion.
11. Hot surface, risk of burn.
■Taking care of warning labels
• Always keep warning labels clean and free of scratches, which might make them illegible or difficult to
read. If the warning labels provided with your chain saw become damaged, peel off, or otherwise become
illegible or difficult to read, order new labels from the authorised servicing dealer and replace the damaged
labels. When applying new labels, first wipe away any dirt and dry the surface before applying the new
label in the same place as the original label.

■EXPLANATION OF SYMBOLS ON THE MACHINE
For safe operation and maintenance, symbols are carved in relief on the machine:
FUEL TANK
Fuel tank 2 stroke mix
Position: Fuel cap
CHAIN OIL
Chain oil tank
Position: oil cap
IGNITION SWITCH
Setting the switch to the “O” position, the engine stops immediately.
Position: Left of the rear handle.
CHOKE OPERATION
Starting mode when the engine is hot. (choke off)
Position: Air cleaner cover.
Starting mode when the engine is cold. (choke on)
Position: Air cleaner cover.
CARBURETTOR ADJUSTMENTS
The screw under the “H” stamp is the High-speed adjustment screw.
Position: Left side of top cover
The screw under the “L” stamp is the Slow-speed adjustment screw.
Position: Left side of top cover
The screw under the “T” stamp is the Idle adjustment screw.
Position: Left side of top cover
CHAIN BRAKE OPERATION
Shows the directions that the chain brake is Released (white arrow) and
Activated (black arrow).
Position: Front of chain brake cover

■INSTALLING THE GUIDE BAR AND CHAIN
■The chain saw package contains the items as illustrated.
1. Power unit
2. Plug wrench
3. Guide bar cover
4. Guide bar
5. Saw chain
6. Owner’s manual.
Open the box and install the guide bar and saw chain on the power unit as follows:
The saw chain is very sharp. Use chain saw protective gloves for safety.
1. Pull the chain brake lever towards the front handle to check that the
chain brake is off.
2. Loosen the nuts and remove the chain cover.
3. Remove and discard the plastic packer located on the bar studs.
4. Fit the guide bar over the bar bolts.
5. Fit the saw chain to the drive sprocket and while fitting the saw chain around
the guide bar, adjust the position of the chain tensioner to fit into the tension
adjustment hole in the guide bar.
6. Fit the chain cover to the power unit and fasten the nuts finger tight.
7. While holding up the tip of the guide bar, adjust the chain tension by turning
the tensioner screw until the chain does not sag from the underside of the
guide bar.
8. Tighten the bar nuts securely to 12/15N.M with the bar held upwards, then
check the chain for smooth rotation and proper tension by rotating the
chain by hand in a clockwise direction when viewed from the chain
cover side.
A new chain will expand in length at the beginning of use.
Check and readjust the tension frequently, as a loose saw chain can
easily derail or cause rapid wear to itself and the guide bar and sprocket.
chain tensioner
hi t i i
1.
2.
3.
4.
5.

■TWO-STROKE FUEL
■WARNING
• Fuel is very flammable. Do not smoke or bring any flame or sparks near fuel.
Always stop the engine and allow it to cool before refuelling. Refuel outdoors on
bare ground, restart engine at least 5m away from the refuelling stop.
• The engine is lubricated by oil mixed into petrol. Prepare a mixture of unleaded petrol and semi-synthetic two-
stroke oil that meets the specifications of: API TC, ISO-L-EGC, JASO FC (Low Smoke) oil.
Recommended mixing ratio is 32:1.
• FUEL WITH NO OIL (RAW PETROL) will cause severe damage to the engine which is not covered by
Manufacturer’s warranty.
• Use fresh, unleaded petrol (95 RON) and semi-synthetic oil specially made for high performance two-stroke
engines. Mix in a ratio of 32 parts petrol to 1 part of oil.
• By using two-stroke oil specially made for two-stroke engines you will reduce the formation of ash and carbon
deposits on the spark plug, piston, exhaust muffler and cylinder as well as reducing emissions of harmful
exhaust gases.
• Oil FOR 4-CYCLE ENGINES should not be used as two-stroke lubrication oil as it can cause fouling of
the spark plug, exhaust port blocking, piston ring sticking and other internal engine damage.
■FUEL STORAGE
• Mixed two-stroke fuel which has been left unused for a period of one month or more may damage the
carburettor and result in the engine failing to start or operate correctly.
• When storing the chain saw for a period of more than one month, empty the fuel tank, and run the engine to
empty the carburettor of fuel.
• Two-stroke fuel can cause deterioration of rubber and/or plastic components during prolonged storage.
• It is important to only use good quality, fresh fuel mix.
■FUELLING
• Shake the fuel container to thoroughly mix the two-stroke oil and petrol.
• Clean dirt and sawdust from around the fuel cap before removing.
• Pour two-stroke fuel into the fuel tank with a filtered funnel, up to 80% of the fuel tanks capacity.
• Replace the fuel cap and tighten securely. Spilled fuel must be wiped away from the chain saw before
starting the engine.
• Move at least 5m away from the refuelling area before restarting the engine.
■CHAIN OIL, GUIDE BAR AND SAW CHAIN LUBRICATION
• Chain oil lubricates the saw chain and guide bar during operation.
• We recommend the use of special chain oil with good adhesion (anti-fling) characteristics.
• Fill the chain oil tank every time you fill the fuel tank.
• Failure to lubricate the guide bar and saw chain will result in overheating of these components resulting in
premature wear or permanent damage.
• Do not use waste or regenerated oil that can cause damage to the oil pump and harm the
environment.

■STARTING THE ENGINE
• Keep clear of the saw chain as it will start rotating when engine starts.
• Fill fuel and chain oil tanks respectively, and tighten the caps securely.
z
• Set the ignition switch to “I” position (a).
• Pull out the choke lever to the closed position (b). The choke will close and the throttle will be set to the
starting position.
• Press the primer button up to 6 times when starting from cold.
• Push in the decompressor button (d).
• Place the saw on the ground, grip the front handle, place your right foot through the rear
handle. Pull the starter handle.
• CAUTION do not pull the starter cord all the way out and do not let go of the starter
handle when the cord is extended, this can damage the starter mechanism.
• When the engine has fired, push in the choke lever in (c) and then pull the starter
handle again to start the engine.
• Allow the engine to warm up; pulling the throttle lever slightly will reset the throttle
control and allow the engine to idle.
■Starting hot engine
• Set the ignition switch to “I” position (a).
• Pull the choke lever to closed position (b), then push the choke lever in to the open position (c), this will set the
throttle to the hot start position.
• Push in the decompressor button (d).
• Pull the starter handle until the engine runs.
• Pulling the throttle lever slightly will reset the throttle control allowing the engine to idle.
Two-stroke fuelSaw chain Oil
(b) Choke closed (c) Choke open (d) Decompressor
(a) Ignition switch

■ Overchoking
Should the engine become flooded due to overchoking, turn the ignition switch off, unscrew the spark plug, wipe
it dry or replace, pull the recoil starter several times without the spark plug in place and with choke in the open
position (c). This will help clean and ventilate the combustion chamber.
■CHAIN BRAKE
• The chain saw is equipped with an automatic chain brake to stop the saw chain rotating when activated, e.g .
kickback during saw cutting. The brake is automatically operated by inertial force, which acts on the weight
fitted inside the chain brake handle. The brake can also be operated manually when the brake handle is
pushed forward towards the guide bar.
• To release the chain brake, pull back the brake handle toward the front handle until a “click” sound is heard.
• The chain brake is now reset and the saw chain is able to rotate.
■How to check:
• You must check the chain brake operation before each usage by running the chain saw at full throttle and
pushing the chain brake handle forward (b).
• The saw chain should stop immediately with the engine at full speed.
• If the saw chain is slow to stop or does not stop, replace the chain brake band or chain brake assembly before
use.
• Disengage the chain brake after testing. (a)







■KICKBACK SAFETY PRECAUTIONS FOR CHAIN SAW USERS
• Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood being cut
closes in and pinches the saw chain. Top contact of the guide bar may cause a fast reverse reaction, kicking
the guide bar up and back towards the operator. Pinching the saw chain along the top of the guide bar may
push the guide bar rapidly back towards the operator. Either of these reactions may cause the operator to lose
control of the chain saw which could result in serious personal injury.
• Do not rely exclusively on the safety devices built into the chain saw. As a chain saw user you should take
several steps to keep the cutting work free from accident or injury.
• With a basic understanding of kickback you can reduce or eliminate the element of surprise. Sudden surprise
contributes to accidents.
• Keep a good grip on the chain saw with both hands, the right hand on the rear handle, and the left hand on the
front handle, when the engine is running. Use a firm grip with thumbs and fingers encircling the chain saw
handles. A firm grip will help you reduce kickback and maintain control of the chain saw.
• Make certain that the area in which you are cutting is free from obstructions. Do not let the nose of the guide
bar contact a log, branch, or any other obstruction which could be hit while you are operating the chain saw.
• Cut at high engine speeds.
• Do not overreach or cut above shoulder height.
• Follow manufacturers sharpening and maintenance instructions for sharpening saw chain.
• Only use replacement guide bars and saw chains specified by the manufacturer or the equivalent.
■BEFORE STARTING WORK
Always follow the safety regulations:
• Before starting work we recommended to first practice sawing easy logs. This also helps you get accustomed
to your chain saw’s operation.
• The chain saw must only be used for cutting wood. It must not be used to cut other types of material.
• The chain saw should cut easily without force. When cutting apply only light pressure while running the engine
at full throttle.
• When the saw chain is caught in the cut, do not attempt to pull it out by force, turn off the engine and use a
wedge or a lever to release the saw chain and guide bar.
(a) (b)
(a) Chain brake disengaged
(b) Chain brake engaged

■RUNNING IN
• During the first ten hours of work, avoid running the engine at maximum speed for a prolonged period until all
the components have bedded in. After the engine has been run in, it will reach its maximum power.
After two hours of work, check that all nuts bolts and screws are securely fastened and tighten if
necessary.
■CHECKING THE SAW CHAIN LUBRICATION SUPPLY
• After starting the engine, run the chain saw at medium speed and see if
chain oil is sprayed as shown in the figure.
■STOPPING ENGINE
• Release the throttle lever and allow the engine to run at idle for half a minute.
• Shift the ignition switch to the STOP position (“0”).
• Except for an emergency, avoid stopping the engine while at full throttle.
■CARE AND MAINTENANCE OF YOUR CHAIN SAW
• In order to maintain the chain saw in good working order, perform the maintenance and checking operations
described in this manual at regular intervals. In the event that any part needs to be replaced, please contact
the nearest authorised service dealer for assistance.
• Always stop the engine and allow to cool before performing any maintenance or checking procedures.
• When sharpening, removing, or reattaching the saw chain always wear chain saw safety gloves and use only
appropriate tools and equipment to prevent injury.
• When replacing saw chain or any other parts, use only genuine spare parts and approved lubricants.
• Disconnect the spark plug to prevent accidental starting when carrying out routine maintenance.
■
MAINTENANCE AFTER EACH USE
■AIR FILTER
• To clean dirt in the air filter, split the air filter and wash with warm soapy water. When using
compressed air, blow from the inside.
• To assemble the air filter halves, press until they click together.
■ OILING PORT
• Dismount the guide bar and check the oiling port for clogging and clean as necessary.
■GUIDE BAR
• When the guide bar is dismounted, remove sawdust from the bar groove and the oiling
port.
Oiling port
A
B
4
12

• Grease the nose sprocket with a sprocket grease gun (Oregon part number 21939)
1. Guide bar grove (A-1)
2. Oil hole (A-2)
3. Drive sprocket (B-3)
4. Grease point (B-4)
■OTHERS
• Check for fuel leakage, loose fastenings and damage to major parts, especially handle joints, guide bar
mountings and chain brake. If any defects are found, make sure they are repaired before operating the
chain saw. Check guide bar and saw chain for excessive wear or damage, and replace as necessary. Never fit
a new chain on a worn sprocket, or a worn chain on a new sprocket.

■PERIODICAL SERVICE POINTS
■CYLINDER FINS
• Chain saw dust clogging between the cylinder fins will cause overheating of the engine.
• Periodically check and clean the cylinder fins after removing the cylinder cover.
• When installing the cylinder cover, make sure that switch wires and grommets are fitted
correctly.
■FUEL FILTER
• Using a wire hook, take the fuel filter from the fuel tank and clean or replace with
new fuel filter.
■SPARK PLUG
• Reset the gap to 0.65 mm, or replace the spark plug with NGK: BPRM7A as necessary.
■ SPROCKET
• Check for cracks and for excessive wear interfering with the chain drive. If the wear is
considerable, replace sprocket and saw chain. Never fit a new chain on a worn sprocket,
or a worn chain on a new sprocket.
■ADJUSTING SAW CHAIN LUBRICATION FLOW RATE
Never fill the oil tank or adjust the saw chain oiler with the engine running.
• An increase in the oil flow rate will increase oil consumption, requiring more frequent checks of the oil tank. To
ensure sufficient lubrication, it may be necessary to check the oil level more frequently than at fuel tank refills.
• The guide bar and saw chain are lubricated automatically by a pump that operates whenever the saw chain
rotates. The pump is set at the factory to deliver a minimum flow rate, but it can be adjusted to deliver more oil.
• A temporary increase in oil flow is recommended when cutting hardwood.
■OIL PUMP ADJUSTMENT
• Stop the engine and make sure the ignition switch is in the OFF
position.
• Place the chain saw on a flat surface.
• Adjust the oil flow rate adjusting screw on the top cover of the
machine by turning in the required direction.
• Clockwise decrease lubrication
• Counter clockwise increase lubrication.
Please note, the adjuster only moves ¼ off a turn.
3
0.65mm

■SAW CHAIN SHARPENING:
Always wear safety gloves.
■THE SAW CHAIN NEEDS TO BE SHARPENED WHEN:
• Sawdust becomes like powder.
• You need extra force to cut.
• The cut path does not go straight.
• Vibration increases.
• Fuel consumption increases.
■SAW CHAIN SHARPENING
• Clamp chain saw guide bar in a vice to
secure. (Dia 1)
• Sharpen chain with a 7/32 file and holder
(Oregon part number 13252)
• Place file on the cutter and push straight
forward. Keep the file position as illustrated
(Dia 1). After every cutter has been set,
check the depth gauge and file it to the
proper level as illustrated (Dia 2).
• Make sure every cutter has the same length
and edge angles as Illustrated (Dia 3).
(Dia 1) Filing saw chain cutters
(Dia 2) File saw chain with depth gauge
(Dia 3) Recommended sharpening angles

















Dia 2
Dia 3
Dia 1
25O






■ADJUSTING THE CARBURETTOR
• The carburettor has been factory adjusted, but may require fine tuning due to a change in operating conditions.
Carburettor adjustments should be made by the supplying dealer using specialist tools as follows.
• Make sure that the air filter and fuel filter are clean, and the fuel is freshly mixed.
• Stop the engine and screw in both the H and L needles until they stop. Never force them. Then set them back
the initial number of turns as shown below.
Hscrew: 1 +or- ¼
Lscrew: 1 ¼ +or- ¼
1. Start the engine and allow it to warm up at half-throttle with saw chain and guide bar fitted.
2. Turn the Lscrew slowly to find a position where idling speed is at maximum, then set the L adjusting screw
back a quarter (1/4) turn (counter clockwise).
3. Turn the idle adjusting screw Tcounter clockwise so that the saw chain does not turn. If the idling speed is
too slow, turn the screw clockwise.
4. To check the low speed adjustment pull the throttle fully and the engine should not die, if it tries to die, open
the Lscrew slightly and re-adjust idle if necessary.
5. Set the engine to full throttle, the Hadjusting screw is turned clockwise to reduce fuel, as the fuel mixture is
reduced, the engine will run faster until it sounds as if it is screaming, at this point, turn the H screw counter
clockwise by quarter (1/4) turn to allow more fuel.
A two-stroke engine relies on the fuel mixture to cool the engine; a lean fuelled engine will run fast but can
overheat and lead to engine seizure.
Component Procedure Before
use
Every
25
Hours
use
Every
50
Hours
use
Every
100
Hours
use
note
Fuel leaks / spillage Wipe out
X
Fuel tank, filter Inspect / clean
X
Replace if necessary
Idle adjust screw See paragraph 3 above
X
Adjust carburettor if
necessary
Spark plug BPMR7A Clean and readjust
plug gap
X
GAP .025” (0.6-0.7mm)
Replace, if necessary
Cylinder fins, Intake air
cooling vent
Clean
X
Muffler, Spark arrestor,
cylinder exhaust port
Clean
X
Throttle lever, ignition
switch
Check operation
X
Air filter Clean
X
Screws, nuts, bolts
Tighten / replace
X X
Not adjusting screws
Oiling port Clean
X
Guide bar Clean
X
Tidle adjust screw
Llow speed ad
j
ust screw
Hhi
g
h speed ad
j
ust screw

TROUBLESHOOTING
Engine will not start, power loss.
-Check that the fuel tank is not empty. Fill with mixed fuel.
-The fuel does not reach the carburettor. Change the fuel filter in the fuel tank.
-There is water in the fuel. Drain and clean the fuel system .
-The air filter is dirty. Clean the air filter.
-There are carbon deposits in the exhaust muffler restricting the engine. Clean or change the muffler.
-Spark plug is worn. Replace spark plug.
-Saw chain will not rotate. Chain brake is activated. Deactivate chain brake.
■Specifications
MITOX 6220 / 6224
Power unit: 6220 / 6224
Displacement (cm3): ..………………………………62.0
Fuel: …32:1….....Mixture (petrol 32: two-stroke oil 1)
Fuel tank capacity (ml): ......……………….……….550
Oil tank capacity (ml):....…….………….…………..350
Carburettor: .……………....Diaphragm type (Walbro)
Ignition system: ……………………...Electronic (CDI)
Spark plug: ...………………………….,NGK:BPRM7A
Guide bar: 6220
Type: ………………….…………...……Sprocket nose
Size (in): ………………….………………….……….20”
Saw chain: ……………..……………………………20”
Type: ......…..…………..…Oregon 72V, 72 Drive links
Pitch (in): ....……………….……….………………..3/8”
Gauge (in): ..........………..…………….……......0.050”
Peak power (kw): …………………..……………3.0kw
Idling speed (r/min): …..………………………….3200
Max cutting speed (r/min): ....…………………..10000
Weight Power unit + 24” bar & chain (kg): ……….8.3
Dimensions: power unit (LxWxH)mm)..430x270x300
Chain Oil: ..………………………....SAE 30 Anti-fling
Chain lubrication system: ....….……Automatic pump
Guide bar: 6224
Type: ……………………….……...……Sprocket nose
Size (in): ………………….………………………….24”
Saw chain: ……………….…………………………24”
Type: ......….…….…..…...Oregon 72V, 84Drive links
Pitch (in): ....……………………….……….……….3/8”
Gauge (in): ..........…………………….………....0.050”
Specifications are subject to change without notice.
Sprocket Inspect / replace
X
Saw chain Inspect / sharpen
X

CONDITIONS OF WARRANTY
The manufacturer warrants the product against faulty materials and workmanship for a period of 2 years
from the date of first purchase to the original purchaser. The warranty is applicable when the product is
used in a “home owner” application. If products are used for commercial or professional purposes, the
warranty period is for 3 months from the date of first purchase. Warranty does not extend to failure due to
fair wear and tear.
The manufacturer undertakes to replace any spare parts that are classified as defective by an appointed
Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either
partially or wholly, and/or consequential damages.
Warranty does not cover failure due to:
Insufficient maintenance.
Incorrect fuel mixture and stale fuel.
Abnormal use or accidental damage.
Incorrect assembly, adjustment or operation of the product, including saw chain, guide bar and
sprocket.
Spare parts that are subject to wear e.g. safety parts, saw chain, guide bar, sprocket, guards,
deflectors, spark plugs, filters etc.
Neither does warranty extend to:
Freight and packing costs.
Use of non-genuine spare parts i.e. those from another manufacturer.
Use of the machine for any other purpose than that for which it was designed.
Use and maintenance of the machine in a manner not described in the owner’s manual.
As part of our policy of continuous product improvement, we reserve the right to alter or amend this
specification without notice. As a result, the product may differ from the information contained herein,
but any alteration will only be implemented without notice if it is classified as an improvement to the
above specification.
READ THE MANUAL CAREFULLY BEFORE OPERATING THE MACHINE
When ordering spare parts, please quote the part number, this can be found in the parts list included in this
manual
Retain the receipt of purchase without which no warranty can be offered.
Distributed by Mitox Garden Machinery
Wincanton Business Park
Wincanton
Somerset
BA9 9RS
www.mitoxgm.co.uk
