Mitre10 Number 8 EZY BARROW Parts list manual

NUMBER
Good to Go. 8
TM
Manufactured for
Mitre 10 (New Zealand) Limited
46 View Road, Gleneld,
North Shore, Aucland 0745
Made in China
www.mitre10.co.nz
EZY BARROW
Assembly Instructions
& Parts Identier

1
x1
# 52410-01QT
Tool Holder
For use in step 11
1
x1
# 52410-02QT N
End Support Bar - B
For use in step 8
2
x1
# 52410-03QT N
End Support Bar - A
For use in step 8
3
x2
# 52410-04QT N
Rear Bumper
For use in step 11
4
x1
# 52410-08QT
Front Cover
For use in step 2
8
x1
# 52410-05QT
Handle Bar - A
For use in step 6
5
x1
# 52410-06QT
Handle Bar - B
For use in step 6
6
x2
# 52410-07QT N
Front Support Bar
For use in step 2
7
x1
# 52410-09QT
Wheel Axle
For use in step 3
9
x2
# 52410-10QT
Wheel
For use in step 12
10
x1
# 52410-11QT
Molded Tub
For use in step 4
11
x1
# 52410-12QT N
Linkage Tube
12
HARDWARE
x18
# 52410-15QT
Small Washer - 8mm
For use in step 2, 3, 5, 7, 9, 10
15
x8
# 52410-22QT
Medium Washer
For use in step 4
22
x4
# 52410-20QT
Axle Washer
For use in step 12, 13
20
x18
# 52410-16QT N
Lock Nut
For use in step 2, 3, 5, 7, 9, 10
16
x4
# 52410-13QT N
Round Head Bolt
For use in step 11
13
x2
# 52410-14QT
Long Carriage Bolt
For use in step 9
14
x4
# 52410-17QT
Short Carriage Bolt
For use in step 2
17
x8
# 52410-21QT
Medium Carriage Bolt
For use in step 4
21
x4
# 52410-19QT
Cotter Pin
For use in step 12, 13
19
x2
# 52410-18QT
U-Bolt
For use in step 3
18
For use in step 10
x8
# 52410-23QT
Molded Lock Washer
For use in step 4
23
PARTS IDENTIFIER

2
Front Support
Poles are
identical
DO NOT
TIGHTEN
BOLTS UNTIL
STEP 13.
Front Support Bar x2
7
Front Cover x1
8
Small Washer - 8mm x4
15
Lock Nut x4
16
Short Carriage Bolt x4
17
7
8
15
16
15
18
16
17
STEP 2
Indents on top
and bottom of
Axles align
with U-Bolts.
NOTE:
IN THIS STEP
TIGHTEN
BOLTS ALL
THE WAY.
16 Lock Nut x4
15 Small Washer - 8mm x4
9
9
Wheel Axle x1
18 U-Bolt x2
STEP 3
BEFORE BUILDING - Please inspectand layout all your PARTS
STEP 1
Please review
the Parts
Identier and
make sure that
you have all
parts before
beginning
assembly.
All parts are listed inthe Parts
Identier and Hardware.
NOTE : ALL BOLTS SHOULD NOT BE
TIGHTENED UNTIL THE END, EXCEPT
FOR THE U BOLTS.
NOTE : TWO OR MORE ADULTS REQUIRED
NOTE: Indents on Top and
Bottom of Axles - align with
U-Bolts
ASSEMBLY INSTRUCTIONS
COMPONENTS QTY. NOTE:
COMPONENTS QTY. NOTE:

3
For easier
assembly
tip Molded
Tub on its side.
21 Medium Carriage Bolt x8
11 Molded Tub x1
22 Medium Washer x8
23
23
23
11
22
21
Molded Lock Washer x8
STEP 4
Place Step 3
Assembly on
Tub as shown.
Add Washers
and Lock Nuts.
ONLY PLACE
NUTS ON A
FEW TURNS
DO NOT
TIGHTEN
BOLTS UNTIL
STEP 13.
15 Small Washer - 8mm x2
Step 3 Assembly
Step 3 Assembly
x1
16 Lock Nut x2
STEP 5
Please make
sure to put
Handles on
the correct
sides.
6Handle Bar - B x1
5Handle Bar - A
6- B
5- A
x1
STEP 6
15
16
NOTE: Push down
Molded Lock Washers
Tight to the Bottom
COMPONENTS QTY. NOTE:
COMPONENTS QTY. NOTE:
COMPONENTS QTY. NOTE:

4
STEP 9
Lower Handle
Bars down as
shown.
Then add
Washers and
Lock Nuts
16 Lock Nut x4
15
15
16 Small Washer - 8mm x4
STEP 7
Guide Support
Bars into
place as
Shown.
3End Support Bar - A
3- A x1
2End Support Bar - B
2- B
x1
16 Lock Nut x2
15 Small Washer - 8mm x2
STEP 8
A
AB
B
14
16
15
14
Long Carriage Bolt x2
NOTE:
dimples on
outside of
poles
NOTE:
Guide Support Bars into
place as Shown
COMPONENTS QTY. NOTE:
COMPONENTS QTY. NOTE:
COMPONENTS QTY. NOTE:

5

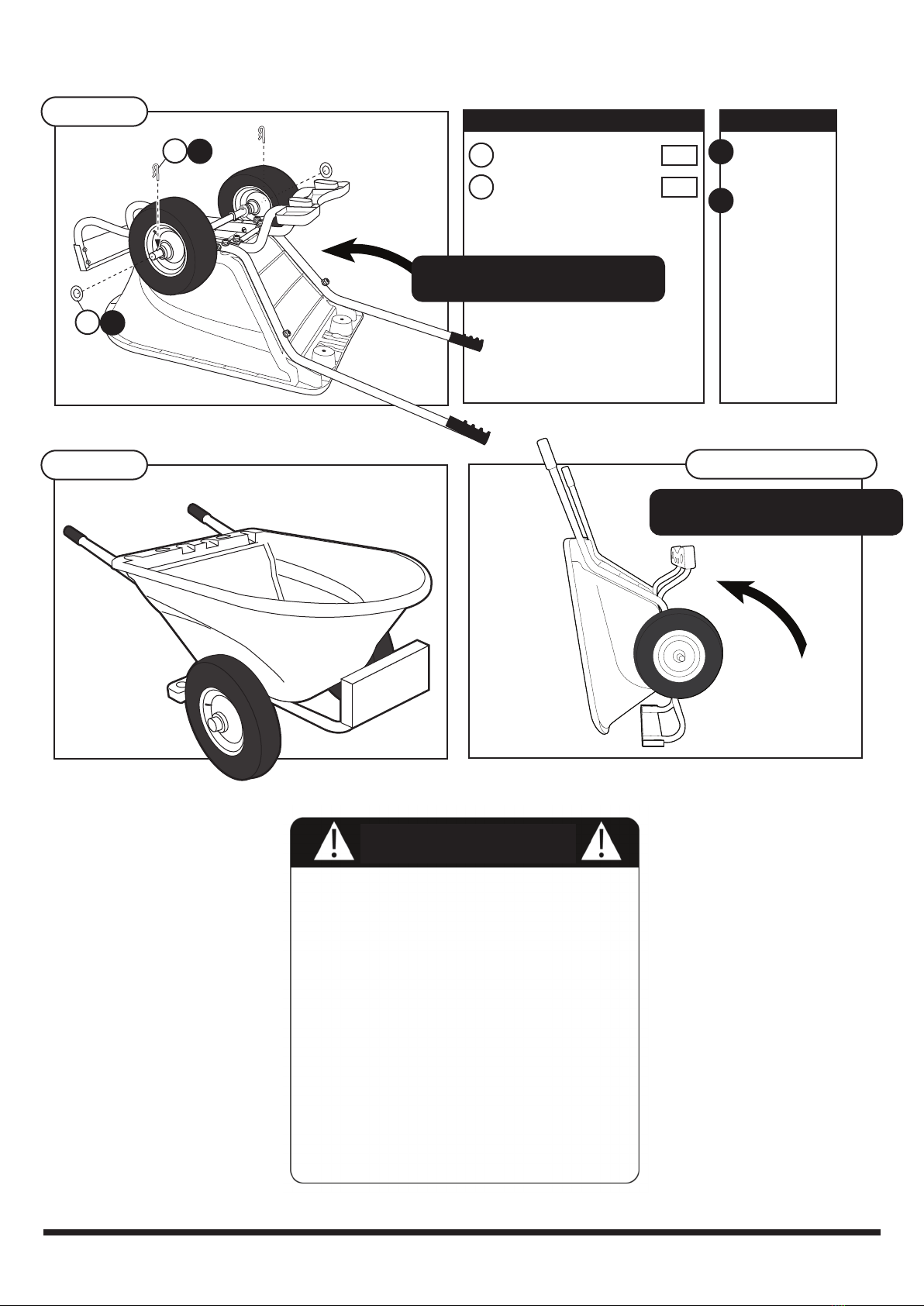

STEP 11
STEP 10
Attach Linkage
Tube as shown.
12 Linkage Tube x1
15 Small Washer - 8mm x2
16 Lock Nut x2
4Rear Bumper x2
13 Round Head Bolt x4
1
4
13
1
Tool Holder x1
Insert Cotter
Pins.
Slide on Axle
Washers.
Slide on
Wheels.
19
Cotter Pin
x2
20
Axle Washer
x2
10
19
10
Wheel
x2
STEP 12
15
12
16
A
B
C
A
B
C
20
NOTE: Valve should face out
COMPONENTS QTY. NOTE:
COMPONENTS QTY. NOTE:
COMPONENTS QTY. NOTE:

6
STEP 13
Insert
Washers.
Lock on
Wheels
with Cotter
Pin.
TIGHTEN
ALL SCREWS
19
Cotter Pin
x2
20
19
20
Axle Washer
x2
A
B
B
A
IMPORTANT: Now go back and securely
tighten ALL bolts.
NOTE:
In order to operate this Ezybarrow safely
be sure to observe the following safety precautions:
• Never carry a person or allow anyone to ride in the Ezybarrow as it
can tip over causing a person to fall, resulting in serious potential injury.
• Do not overload the Ezybarrow –the maximum load is 550 lbs.
• When working on hills or slippery surfaces use smaller loads to make
the Ezybarrow easier to control with less strain.
• Never exceed a comfortable walking speed –the heavier the load the more
difcult it will be to stop.
• When lling the Ezybarrow, always place the load in the rear of the
tub rst. If load or a heavy item is thrown into the front of the
Ezybarrow this can cause it to tip forward quickly-possibly injuring
anyone in the path of the handles as they jerk upward.
• Because this Ezybarrow has dual wheels mounted directly beneath
the tub, it is easier to use than traditional Ezybarrows-however do not
allow this advantage cause you to overload the tub.
STEP 14
NOTE: This wheelbarrow stands in the
upright position for space saving storage.
STORAGE POSITION
COMPONENTS QTY. NOTE:
WARNING
