1
Contents
1. Safety Precautions
Before installing the unit, make sure you read all the “Safety
Precautions”.
The“SafetyPrecautions”provideveryimportantpointsregard-
ing safety. Make sure you follow them.
Please report to or take consent by the supply authority before
connection to the system.
Symbols used in the text
Warning:
Describes precautions that should be observed to prevent danger of
injury or death to the user.
Caution:
Describes precautions that should be observed to prevent damage to the
unit.
Symbols used in the illustrations
: Indicates a part which must be grounded.
Warning:
• For appliances not accessible to the general public.
• The unit must not be installed by the user. Ask the dealer or an
authorized company to install the unit. If the unit is installed im-
properly, water leakage, electric shock or fire may result.
• Do not alter the unit. It may cause fire, electric shock, injury or water
leakage.
• Do not stand on, or place any items on the unit.
• Do not splash water over the unit and do not touch the unit with
wet hands. An electric shock may result.
• Do not spray combustible gas close to the unit. Fire may result.
• Do not place a gas heater or any other open-flame appliance where
it will be exposed to the air discharged from the unit. Incomplete
combustion may result.
• Do not remove the front panel or the fan guard from the outdoor
unit when it is running.
• Never repair the unit or transfer it to another site by yourself.
• When you notice exceptionally abnormal noise or vibration, stop
operation, turn offthe power switch, and contact your dealer.
• Never insert fingers, sticks etc. into the intakes or outlets.
• If you detect odd smells, stop using the unit, turn offthe power
switch and consult your dealer. Otherwise, a breakdown, electric
shock or fire may result.
• This air conditioner is NOT intended for use by children or infirm
persons without supervision.
• This appliance is intended to be used by expert or trained users in
shops, in light industry and on farms, or for commercial use by lay
persons.
• This appliance is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Young children must be supervised to ensure that they do not play
with the air conditioner.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Caution:
• Do not use any sharp object to push the buttons, as this may dam-
age the remote controller.
• Never block or cover the indoor or outdoor unit’s intakes or outlets.
• Never wipe the remote controller with benzene, thinner chemical
rags, etc.
• Do not operate the unit for a long time in high humidity, e.g. leaving
a door or window open. In the cooling mode, if the unit is operated
in a room with high humidity (80% RH or more) for a long time, wa-
ter condensed in the air conditioner may drop and wet or damage
furniture, etc.
• Do not touch the upper air outlet vane or the lower air outlet damper
during operation. Otherwise, condensation may form and the unit
may stop operating.
Disposing of the unit
When you need to dispose of the unit, consult your dealer.
Notes:
The phrase “Wired remote controller” in this operation manual refers only to the PAR-41MAA.
The phrase “Simple MA Remote Controller” in this operation manual refers to the PAC-YT53CRAU.
If you need any information for the other remote controller, please refer to the instruction book included in these box.
1. Safety Precautions ............................................................................ 1
2. Parts Names...................................................................................... 2
3. Operation .......................................................................................... 7
4. Timer................................................................................................ 19
5. Emergency Operation for Wireless Remote-controller..................... 19
6. Care and Cleaning........................................................................... 20
7. Trouble Shooting ............................................................................. 21
8. Specifications .................................................................................. 23
en

2
2. Parts Names
MENU ON
OFF
RETURN SELECT
HOLD
■Wired Remote Controller
The functions of the function buttons change depending on the
screen.
Refer to the button function guide that appears at the bottom of the
LCD for the functions they serve on a given screen.
When the system is centrally controlled, the button function guide
that corresponds to the locked button will not appear.
▌1[ON/OFF] button
Press to turn ON/OFF the indoor unit.
▌2[SELECT/HOLD] button
Press to save the setting.
When the Main menu is displayed, pressing this button will enable/dis-
able the HOLD function.
▌3[RETURN] button
Press to return to the previous screen.
▌4[MENU] button
Press to bring up the Main menu.
▌5Backlit LCD
Operation settings will appear.
When the backlight is off, pressing any button turns the backlight on
and it will stay lit for a certain period of time depending on the screen.
When the backlight is off, pressing any button turns the backlight on
and does not perform its function. (except for the [ON/OFF] button)
▌6ON/OFF lamp
This lamp lights up in green while the unit is in operation. It blinks while
the remote controller is starting up or when there is an error.
▌7Function button [F1]
Main display: Press to change the operation mode.
Menu screen: The button function varies with the screen.
▌8Function button [F2]
Main display: Press to decrease temperature.
Main menu: Press to move the cursor left.
Menu screen: The button function varies with the screen.
▌9Function button [F3]
Main display: Press to increase temperature.
Main menu: Press to move the cursor right.
Menu screen: The button function varies with the screen.
▌0Function button [F4]
Main display: Press to change the fan speed.
Menu screen: The button function varies with the screen.
Controller interface
Main display
Menu screen Function guide
Main menu
83
83
Fri
Room
Set temp.
Mode Temp. Fan
Cool Auto
Main Main menu
Energy saving
Main display:
Cursor
Operation
Vane·Louver·Vent. (Lossnay)
High power
Comfort
RETURN
7890
7890
7890
4 32 1
5
6
7890
Function buttons
■Indoor Unit
PLFY-WL·NEMU-E
Fan steps 4 steps + Auto
Vane Steps 5 steps
Auto Swing Available
Louver Not available
Filter Long-life
Filter cleaning indication 2,500 hr
Enter the model setting number for
the indoor unit you want to operate. 065 (001)
* For systems that are capable of simultaneous cooling and heating operation, use
the setting indicated in parentheses ( ). For details on the setting procedure, refer
to the Installation Manual.
Air outlet Filter
Air intake
Vane
en

3
Fri
Cool
Mode Temp. Fan
Set temp. Auto
83
Fri
Mode Temp. Fan
Room
Cool Set temp. Auto
83
83
2. Parts Names
The main display can be displayed in two different modes: “Full” and “Basic”. The factory setting is “Full”. To switch to the “Basic” mode, change the
setting on the Main display setting. (Refer to operation manual included with remote controller.)
▌1Operation mode
▌2Preset temperature
▌3Clock
▌4Fan speed
▌5Button function guide
Functions of the corresponding buttons appear here.
▌6
Appears when the ON/OFF operation is centrally controlled.
▌7
Appears when the operation mode is centrally controlled.
▌8
Appears when the preset temperature is centrally controlled.
▌9
Appears when the filter reset function is centrally controlled.
▌0
Indicates when filter needs maintenance.
▌1Room temperature
▌2
Appears when the buttons are locked.
▌3
Appears when the On/Offtimer or Auto-offtimer function is enabled.
appears when the timer is disabled by the centralized control
system.
appears when the HOLD function is enabled.
<Full mode>
* All icons are displayed for explanation. <Basic mode>
4
3
2!
1
5
6
#
7
8
90
1
3
9
4
)
@
$2
1
#
5
▌4
Appears when the Weekly timer is enabled.
▌5
Appears while the units are operated in the energy-save mode. (Will
not appear on some models of indoor units)
▌6
Appears while the outdoor units are operated in the silent mode.
▌7
Appears when the built-in thermistor on the remote controller is acti-
vated to monitor the room temperature (1).
appears when the thermistor on the indoor unit is activated to
monitor the room temperature.
▌8
Indicates the vane setting.
▌9
Indicates the louver setting.
▌)
Indicates the ventilation setting.
▌!
Appears when the preset temperature range is restricted.
▌@
Appears when an energy-saving operation is performed using a “3D i-
See sensor” function.
▌#Centrally controlled
Appears for a certain period of time when a centrally-controlled item is
operated.
▌$Preliminary error display
An error code appears during the preliminary error.
Display
Most settings (except ON/OFF, mode, fan speed, temperature)
can be made from the Main menu. (Refer to Page 9.)
32$ 45 6 7 8
en

4
2. Parts Names
Simple MA Remote Controller
.
ON/OFF lamp
The lamp will light up in green when turned on, and blink during startup and when an error occurs.
Backlit LCD
button
buttonTEMP.
MODE
buttonON/OFF
Pressing this button starts and stops the operation.
buttonFAN buttonVANE
* To set the functions that are not available on this controller (PAC-YT53CRAU) such as Louver, use MA remote controller or the centralized controller.
* All icons are displayed for explanation.
CENTRAL icon *1
CHECK icon *2
Preset temperature *3 icon appears while the unit is operated in the energy-save mode
icon appears when Operation lock setting is effective.
icon appears when indoor unit functions are set up. (Refer to the Installation Manual.)
Fan speed icon
Vane icon
icon appears when the power is on.
Operation modes
Indoor temperature
*1
CENTRAL
icon
Appears when one of the following local operations is prohibited: ON/OFF; operation mode; preset temperature; fan speed; vane.
*2 icon
When an error occurs, power indicator will blink, and unit address (three digits) and error code (four digits) will blink.
Check the error status, stop the operation, and consult your dealer.
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
Unit address
blinks. Error code blinks.
When only error code blinks, air conditioning units stay in operation, but an error may have occurred.
Check the error code, and consult your dealer.
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
Error code blinks.
*3 Preset temperature
* Centigrade or Fahrenheit is selectable. Refer to the Installation Manual for details.
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
Preset temperature
In COOL, DRYING, HEAT, or
AUTO (single set point) modes
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
Heating preset temperature
In AUTO (dual set point) or
SETBACK modes
Cooling preset temperature
Controller interface
Display
en

5
2. Parts Names
Wireless Remote-Controller (Optional parts)
Temperature setting
The units of temperature can be changed. For
details, refer to the Installation manual.
Not available
Appears when a non-supported func-
tion is selected.
Battery replacement indicator
Appears when the remaining battery
power is low.
Vane setting
Step 1 Step 2 Step 3 Step 4 Step 5 Swing Auto
Set Temperature buttons
Set Time button (Sets the time)
Airflow button (Changes up/down airflow direction)
Mode button (Changes operation mode)
Timer ON button
Timer OFF button
OFF/ON button
Fan Speed button (Changes fan speed)
SET/SEND button
CANCEL button
Up/Down buttons
Menu button
i-see button
Reset button
Remote controller display
Battery replacement indicator
Transmission area
Not available
Weekly timer ON/OFF button
(not available)
3D i-see sensor (Air distribution)
Default Direct Indirect When Direct or Indirect
is selected, the vane
setting is set to “Auto”.
Operation mode
Cool Dry
Fan Auto
(single set
point)
Heat Auto*
(dual set
point)
* The initial setting is necessary.
Refer to Installation manual.
Fan speed setting
Auto en

6
Notes (Only for wireless remote controller):
When using the wireless remote controller, point it towards the receiver on the indoor unit.
If the remote controller is operated within approximately 3 minutes after power is supplied to the
indoor unit, the indoor unit may beep twice as the unit is performing the initial automatic check.
The indoor unit beeps to confirm that the signal transmitted from the remote controller has
been received. Signals can be received up to approximately 7 meters in a direct line from the
indoor unit in an area 45° to the left and right of the unit. However, illumination such as fluores-
cent lights and strong light can affect the ability of the indoor unit to receive signals.
If the operation lamp near the receiver on the indoor unit is blinking, the unit needs to be in-
spected. Consult your dealer for service.
Handle the remote controller carefully! Do not drop the remote controller or subject it to strong
shocks. In addition, do not get the remote controller wet or leave it in a location with high humid-
ity.
To avoid misplacing the remote controller, install the holder included with the remote controller
on a wall and be sure to always place the remote controller in the holder after use.
If the indoor unit beeps 4 times when you are using the wireless remote controller, switch the
auto mode setting to the AUTO (single set point) mode or AUTO (dual set point) mode.
For details, refer to the included Notice (A5 sheet) or the Installation Manual.
Battery installation/replacement
1. Remove the top cover, insert two LR6AAbat-
teries, and then install the top cover.
2. Press the Reset button.
12
3
Press the Reset button with an
object that has a narrow end.
Top cover
Two LR6 AA batteries
Insert the negative (–) end of each
battery first. Install the batteries in
the correct directions
(+, –)!
After battery installation/replacement,
please set clock.
Without setting clock, you cannot use a
part of function of remote controller.
2. Parts Names
en

7
3. Operation
■About the operation method, refer to the operation manual that comes with each remote controller.
3.1. Turning ON/OFF
[ON] [OFF]
Press the [ON/OFF] button.
TheON/OFF lamp willlightup in green,
and the operation will start.
When “LED lighting” is set to “No”, the
ON/OFF lamp will not light up.
Press the [ON/OFF] button again.
The ON/OFF lamp will come off, and
the operation will stop.
■Operation at the time of restart Wired remote controller Wireless remote controller
Operation mode Operation mode before the power was turned off
Operation mode when the wireless remote controller is turned on.
Preset temperature Preset temperature before the power was turned off Preset temperature when the wireless remote controller is turned on.
Fan speed Fan speed before the power was turned offFan speed when the wireless remote controller is turned on.
Airflow direction Airflow direction before the power was turned off
Airflow direction when the wireless remote controller is turned on.
■Settable preset temperature range
Operation mode Preset temperature range
COOL/DRYING 67 - 87 (95) °F/19 - 30 (35) °C
HEAT 63 (40) - 83 °F/17 (4.5) - 28 °C
AUTO (single set point) 67 - 83 °F/19 - 28 °C
AUTO (dual set point) [COOL] Preset temperature range for COOL mode.
[HEAT] Preset temperature range for HEAT mode. *1, *2
SETBACK [COOL] Preset temperature range for COOL mode.
[HEAT] Preset temperature range for HEAT mode. *2
FAN, VENTI. Unsettable
*1 The preset temperatures for cooling and heating for AUTO (dual set point) mode will be used for those for COOL/DRYING and HEAT mode.
*2 The preset temperatures for cooling and heating can be set under the following conditions.
• The cooling preset temperature is greater than the heating preset temperature.
• The difference between the cooling and heating preset temperatures is equal or greater than the minimum temperature difference that varies depending on the indoor
unit model to be connected.
The settable temperature range varies with the model of outdoor units and remote controller.
Note:
Even if you press the ON/OFF button immediately after shutting down the operation is progress, the air conditioner will not start for about 3 minutes.
This is to prevent the internal components from being damaged.
3.2. Operation mode
Each pressing of the [F1] button cycles
through the following operation modes.
Select the desired operation mode.
• Operation modes that are not available
to the connected outdoor unit models will
not appear on the display.
What the blinking mode icon means
The mode icon will blink when other indoor units in the same refrigerant
system (connected to the same outdoor unit) are already operated in a
different mode. In this case, the rest of the unit in the same group can
only be operated in the same mode.
3.3. Temperature setting
<Cool, Drying, Heat, and Auto (Single set point)>
Cool
Auto
Drying
Heat
Fan
Press the [F2] button to decrease the preset temperature, and press the
[F3] button to increase.
•Refer to the table on page 7 for the settable temperature range for dif-
ferent operation modes.
• Preset temperature range cannot be set for Fan/Ventilation operation.
•Preset temperature will be displayed either in Centigrade in 0.5- or
1-degree increments, or in Fahrenheit, depending on the indoor unit
model and the display mode setting on the remote controller.
Cool Room AutoSet temp.
Mode Temp. Fan
Fri
83
83
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Operation mode
Room temperature (Refer to the Installation Manual.)
Cool Room AutoSet temp.
Mode Temp. Fan
Fri
83
83
MENU ON
OFF
RETURN
F1 F2 F3 F4
SELECT
HOLD
ON
OFF
Setback
ON
OFF
en

8
3. Operation
Automatic operation (Dual set point)
When the operation mode is set to the “ Auto ” (dual set point) mode, two
preset temperatures (one each for cooling and heating) can be set. De-
pending on the room temperature, indoor unit will automatically operate
in either the “ Cool ” or “ Heat ” mode and keep the room temperature within
the preset range.
The graph below shows the operation pattern of indoor unit operated in
the
“ Auto ” (dual set point) mode.
Operation pattern during Auto (dual set point) mode
HEAT COOL HEAT COOL
Preset temp.
(COOL)
Preset temp.
(HEAT)
Room
temperature
The room temperature
changes corresponding
to the change in the
outside temperature.
Setback mode
Room temperature is controlled to stay within the set temperature range
that is specified for the Setback mode. By leaving sufficient temperature
differentialbetweenthesettemperature for cooling (upper limit)andheating
(lowerlimit), it ispossibleto keep the roomtemperaturewithin the specified
range without overworking the air conditioners.
This setting will be especially effective during periods of non-occupancy.
Operation pattern during Setback mode
HEAT COOL HEAT COOL
Set temp.
(
SETBACK_COOL )
Set temp.
(
SETBACK_HEAT )
Room
temperature
The room temperature
changes corresponding
to the change in the
outside temperature.
3.4. Fan speed setting
F1 F2 F3 F4
MENU ON
OFF
RETURN SELECT
HOLD
83
83
Cool Room AutoSet temp.
Mode Temp. Fan
Fri
Each pressing of the [F4] button cycles through the following fan speeds.
Auto
Auto
•The available fan speeds depend on the models of connected indoor
units.
Notes:
●The number of available fan speeds depends on the type of unit
connected. Note also that some units do not provide an “Auto”
setting.
●In the following cases, the actual fan speed generated by the unit
will differ from the speed shown the remote controller display.
1. While the display is showing “STAND BY” or “DEFROST”.
2. When the temperature of the heat exchanger is low in the heat
mode. (e.g. immediately after heat operation starts)
3. In HEAT mode, when room temperature is higher than the
temperature setting.
4. In COOL mode, when room temperature is lower than the
temperature setting.
5. When the unit is in Drying mode.
Automatic operation (Single set point)
According to a set temperature, cooling operation starts if the room tem-
perature is too hot and heating operation starts if the room temperature
is too cold.
During automatic operation, if the room temperature changes and
remains 1.5 °C, 3 °F or more above the set temperature for 3 minutes,
the air conditioner switches to cool mode. In the same way, if the room
temperature remains 1.5 °C, 3 °F or more below the set temperature for
3 minutes, the air conditioner switches to heat mode.
Cool mode 3 minutes (switches from
heating to cooling)
Settemperature+1.5°C,+3°F
Set temperature
Set temperature -1.5 °C, -3 °F
3 minutes (switches from
cooling to heating)
Because the room temperature is automatically adjusted in order to
maintain a fixed effective temperature, cooling operation is performed a
few degrees warmer and heating operation is performed a few degrees
cooler than the set room temperature once the temperature is reached
(automatic energy-saving operation).
<Auto (dual set point) mode>
68
83
79
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Preset temperature
for cooling
Preset temperature
for heating
1 The current preset temperatures will appear. Press the [F2] or [F3]
button to display the setting screen.
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
68
83
RETURN
Preset temperature
for cooling
Preset temperature
for heating
8
6
6
6
6
6
6
6
6
6
6
6
6
2Press the [F1] or [F2] button to move the cursor to the desired
temperature setting (cooling or heating).
Press the [F3] button to decrease the selected temperature, and
press the [F4] button to increase.
• Refer to the table on page 7 for the settable temperature range for
different operation modes.
• The preset temperature settings for cooling and heating in the Auto
(dual set point) mode are also used by the Cool/Drying and Heat
modes.
• The preset temperatures for cooling and heating in the Auto (dual
set point) mode must meet the conditions below:
• Preset cooling temperature is higher than preset heating temperature.
• The minimum temperature difference requirement between cooling and
heating preset temperatures (varies with the models of indoor units
connected) is met.
* If preset temperatures are set in a way that does not meet the minimum
temperature difference requirement, both preset temperatures will
automatically be changed within the allowable setting ranges.
Navigating through the screens
• To return to the Main screen ...... [RETURN] button
en

9
3.5. Airflow direction setting
3.5.1 Navigating through the Main menu
<Accessing the Main menu>
Main Main menu
Operation
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
<Item selection>
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Main Main menu
Initial setting
3. Operation
3.5.2 Vane·Vent. (Lossnay)
<Accessing the menu>
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Main Main menu
Operation
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Main menu: RETURN
Cursor
Operation
Vane·Louver·Vent. (Lossnay)
High power
Comfort
<Vane setting>
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Fri
Off
Vent.Vane Louver
Swing Off
(Sample screen on CITY MULTI)
Press the [MENU] button on the
Main display.
The Main menu will appear.
Press [F2] to move the cursor left.
Press [F3] to move the cursor right.
Cursor
Select “Operation” from the Main
menu (refer to 3.5.1), and press the
[SELECT/HOLD] button.
Select “Vane·Louver·Vent. (Loss-
nay)” from the Operation menu, and
press the [SELECT/HOLD] button.
Press the [F1] or [F2] button to go
through the vane setting options:
“Auto”, “Step 1”, “Step 2”, “Step 3”,
“Step 4”, “Step 5” and “Swing”.
Select the desired setting.
Auto
Swing
Select “Swing” to move the vanes
up and down automatically.
When set to “Step 1” through “Step
5”, the vane will be fixed at the se-
lected angle.
• under the vane setting icon
This icon will appear when the vane
is set to “Step 5” and the fan oper-
ates at low speed during cooling or
drying operation (depends on the
model).
The icon will go offin an hour, and
the vane setting will automatically
change.
Auto
Step 3
Swing
Step 1
Step 4
Step 2
Step 5
<Exiting the Main menu screen>
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
83
83
Cool Room AutoSet temp.
Mode Temp. Fan
Fri
<Display of unsupported functions>
F1 F2 F3 F4
Title
Not available
Unsupported function
Return: RETURN
MENU ON
OFF
RETURN SELECT
HOLD
The message at left will appear if
the user selects a function not sup-
ported by the corresponding indoor
unit model.
If no buttons are touched for 10
minutes, the screen will automati-
callyreturnto the Maindisplay.Any
settings that have not been saved
will be lost.
Press the [RETURN] button to exit
the Main menu and return to the
Main display.
83
83
Fri
Room
Set temp.
Mode Temp. Fan
Cool Auto
en

10
3. Operation
Horizontal airflow
Downward
Remote controller setting
The airflow direction of this outlet
is controlled by the airflow direc-
tion setting of remote controller.
Fixed
The airflow direction of this outlet is fixed
in particular direction.
* When it is cold because of direct air-
flow, the airflow direction can be fixed
horizontally to avoid direct airflow.
< How to set the fixed up/down air direction (Only for
wired remote controller) >
Note:
●This function cannot be set depending on the outdoor unit to be
connected.
• For PLFY-WL·NEMU-E series, only the particular outlet can be fixed
to certain direction with the procedures below. Once fixed, only the
set outlet is fixed every time air conditioner is turned on. (Other outlets
follow UP/DOWN air direction setting of remote controller.)
■Explanation of word
• “Refrigerant address No.” and “Unit No.” are the numbers given to
each air conditioner.
• “Outlet No.” is the number given to each outlet of air conditioner.
(Refer to the illustration below.)
• “Up/Down air direction” is the direction (angle) to fix.
12345
Reset horizontal
Notes:
●During swing operation, the directional indication on the screen
does not change in sync with the directional vanes on the unit.
●Available directions depend on the type of unit connected.
●In the following cases, the actual air direction will differ from the
direction indicated on the remote controller display.
1. While the display is in “STAND BY” or “DEFROST” states.
2. Immediately after starting heat mode (while the system is wait-
ing for the mode change to take effect).
3. In heat mode, when room temperature is higher than the tem-
perature setting.
<Ventilation setting>
F1 F2 F3 F4
Fri
Low
Vent.
MENU ON
OFF
RETURN SELECT
HOLD
<Returning to the Operation menu>
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Main menu: RETURN
Cursor
Operation
Vane·Louver·Vent. (Lossnay)
High power
Comfort
Press the [F3] button to go through
the ventilation setting options in the
order of “Off”, “Low”, and “High”.
* Settable only when Lossnay unit is
connected.
Off Low High
OffLow High
• The fan on some models of indoor
units may be interlocked with certain
models of ventilation units.
Press the [RETURN] button to go
back to the Operation menu.
MITSUBISHI
ELECTRIC
label
Outlet No. 2 Outlet No. 3
Outlet No. 1 Outlet No. 4
Note:
The outlet No. is indicated by the number of grooves on both
ends of each air outlet. Set the air direction while checking the
information shown on the remote controller display.
Air outlet identification marks
en

11
3. Operation
■Confirmation procedure of the target unit
F1 F2 F3 F4
Manual vane angle
Input display: SELECT
Address Check
M-NET address
Identify unit Check button
1Select the “M-NET address” for
the units to whose vanes are
to be fixed, with the [F2] or [F3]
button. Press the [F4] button to
confirm the unit.
■Manual vane angle (Wired remote controller)
■Vane setting
Step 1 Step 2
Step 3
No setting
Draft
reduction* All outlets
Step 5Step 4
Press the [SELECT/HOLD] button to save the settings.
A screen will appear that indicates the setting information is being trans-
mitted.
The setting changes will be made to the selected outlet.
The screen will automatically return to the one shown above (step 5)
when the transmission is completed.
Make the settings for other outlets, following the same procedures.
If all outlets are selected, will be displayed the next time
the unit goes into operation.
Navigating through the screens
• To return to the previous screen .......... [RETURN] button
3Select the “M-NET address” for
the units to whose vanes are
to be fixed, with the [F2] or [F3]
button, and press the [SELECT/
HOLD] button.
Press the [F4] button to confirm
the unit.
The vane of only the target indoor
unit is pointing downward.
5The current vane setting will
appear.
Select the desired outlets from
1 through 4 with the [F1] or [F2]
button.
• Outlet: “1”, “2”, “3”, “4” and “1, 2,
3, 4, (all outlets)”
Press the [F3] or [F4] button to
go through the option in the order
of “No setting (reset)”, “Step 1”,
“Step 2”, “Step 3”, “Step 4”, “Step
5” and “Draft reduction*”.
Select the desired setting.
* Draft reduction
The airflow direction for this set-
ting is more horizontal than the
airflow direction for the “Step 1”
setting in order to reduce a drafty
feeling. The draft reduction can
be set for only 1 vane.
1Select “Comfort” from the
Operation menu, and press the
[SELECT/HOLD] button.
2Select “Manual vane angle” with
the [F1] or [F2] button, and press
the [SELECT/HOLD] button.
Main menu: RETURN
Cursor
Operation
Vane·Louver·Vent. (Lossnay)
High power
Comfort
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Setting display: SELECT
Cursor
Comfort
Manual vane angle
3D i-See sensor
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Note:
Do not set the draft reduction in an environment with high humidity.
Otherwise, condensation may form and drip.
F1 F2 F3 F4
MENU ON
OFF
RETURN SELECT
HOLD
Manual vane angle
Input display:
Address Check
SELECT
M-NET address
Identify unit Check button
Manual vane angle
Manual vane angle
F1 F2 F3 F4
MENU ON
OFF
RETURN SELECT
HOLD
Select:
Setting
Outlet Angle
SELECT
Manual vane angle
Cur. Angle
M-NET address
Vane 4-way/2-way
Cursor
F1 F2 F3 F4
MENU ON
OFF
RETURN SELECT
HOLD
Input display:Angle button
4Select “Vane” with the [F1] button.
Select “4-way” or “2-way” with the
[F2] or [F3] button, and press the
[F4] button.
en

12
■Manual vane angle (Wireless remote controller)
Fig. 3-1
A
Fig. 3-2
B
Fig. 3-3
1Going to the Manual vane setting
mode
Press the button.
(Startthisoperationfromthestatus
of remote controller display turned
off.)
“FUNCTION” is lighted and “1”
blinks. (Fig. 3-1)
Press the button to select “2”,
and then press the button.
2Selecting the vane number (Fig.
3-2)
Press the buttons to select the
vane number A, and then press
the button.
3Setting the vane angle (Fig. 3-3)
Press the buttons to select the
vane angle B.
Pointthewirelessremotecontroller
toward the receiver on the indoor
unit, and then press the
button.
4Press the button to
complete the settings.
Display
Setting Step 1 Step 2 Step 3 Step 4
Display No display
Setting Step 5 No setting Draft reduction*
* The draft reduction can be set for only 1 vane.
The setting is enabled only for the last vane that was set.
2After pressing the [F4] button,
wait approximately 15 seconds,
and then check the current state
of the air conditioner.
→Thevane is pointing downward.
→Thisair conditioner isdisplayed
on the remote controller.
→All outlets are closed. →Press
the[RETURN]button and continue
the operation from the beginning.
→Themessages shown to theleft
aredisplayed. →The target device
does not exist at this refrigerant
address.
• Press the [RETURN] button to
return to the initial screen.
3Change the “M-NET address” to
the next number.
• Refer to step 1to change the “M-
NET address” and continue with
the confirmation.
F1 F2 F3
MENU ON
OFF
RETURN SELECT
HOLD
F4
RETURN
Manual vane angle
Return:
M-NET address
Function setting for unit
with vane fully open.
F1 F2 F3 F4
Manual vane angle
Return: RETURN
No communication
Check Unit state.
3. Operation
3.6. 3D i-see Sensor setting
3.6.1 3D i-see Sensor setting
F1 F2 F3 F4
Main Main menu
Operation
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Main menu: RETURN
Cursor
Operation
Vane·Louver·Vent. (Lossnay)
High power
Comfort
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Setting display: SELECT
Cursor
Comfort
Manual vane angle
3D i-See sensor
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
MENU ON
OFF
RETURN SELECT
HOLD
Setting display: SELECT
Cursor
3D i-See sensor
Air distribution
Energy saving option
Seasonal airflow
2Select “Comfort” from the
Operation menu, and press the
[SELECT/HOLD] button.
3Select “3D i-See sensor” with the
[F1] or [F2] button, and press the
[SELECT/HOLD] button.
4Select the desired menu with the
[F1] or [F2] button, and press the
[SELECT/HOLD] button.
• Air distribution
Select the airflow direction control
method when the airflow direction
is set to “Auto”.
• Energy saving option
Operates the energy-save mode
according to whether persons are
detected in the room by the 3D
i-see Sensor.
• Seasonal airflow
When the thermostat turns off, the
fanand the vanesoperate accord-
ing to the control settings.
1Select “Operation” from the Main
menu, and press the [SELECT/
HOLD] button.
en

13
3. Operation
1Select the M-NET address for the
units to whose vanes are to be
fixed, with the [F2] or [F3] button,
and press the [SELECT/HOLD]
button.
Pressthe[F4]buttonto confirmthe
unit.
The vane of only the target indoor
unit is pointing downward.
2Select the menu with the [F4] but-
ton.
Default →Area →Direct/Indirect
→Default…
Default:Thevanesmovethe same
as during normal operation.
During cooling mode, all of the
vanes move to the horizontal air-
flow direction.
During heating mode, all of the
vanes move to the down airflow
direction.
Area:Thevanesmovetothe down
airflow direction toward areas with
a high floor temperature during
cooling mode and toward areas
with a low floor temperature dur-
ing heating mode. Otherwise,
the vanes move to the horizontal
airflow direction.
Direct/Indirect: The vanes auto-
maticallymoverelativetotheareas
where persons are detected.
The vanes operate as indicated in
the following table.
3.6.2 Air distribution
F1 F2 F3 F4
Air distribution
Input display: SELECT
Address Check
M-NET address
Identify unit Check button
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Air distribution
Select: SELECT
Cur.
M-NET address
Auto vane
Direct/Indirect setting
Direct/Indirect
MENU ON
OFF
RETURN SELECT
HOLD
Vane setting
Direct Indirect
Cooling horizontal →swing keep horizontal
Heating keep downward downward →horizontal
■i-See button (Wireless remote controller)
1Each time is pressed during operation, the setting changes in
the following order: OFF →Direct →Indirect.
Display
Setting OFF Direct Indirect
Whenthe setting is changedfromOFFto Direct or Indirect,thevane setting
changes to “Auto”. This setting is applied collectively to all of the vanes.
3When Direct/Indirect is selected,
set each air outlet.
Selectthe air outletwiththe [F1] or
[F2]button,and change the setting
with the [F4] button.
Afterchangingthesettingsforall of
theair outlets, press the[SELECT/
HOLD]button to savethesettings.
* In order to enable this function,
the airflow direction must be set
to “Auto”.
F1 F2 F3 F4
MENU ON
OFF
RETURN SELECT
HOLD
Direct/Indirect setting
: Direct
: Indirect
: Indirect
: Direct
Select: SELECT
Outlet Angle
en

14
3. Operation

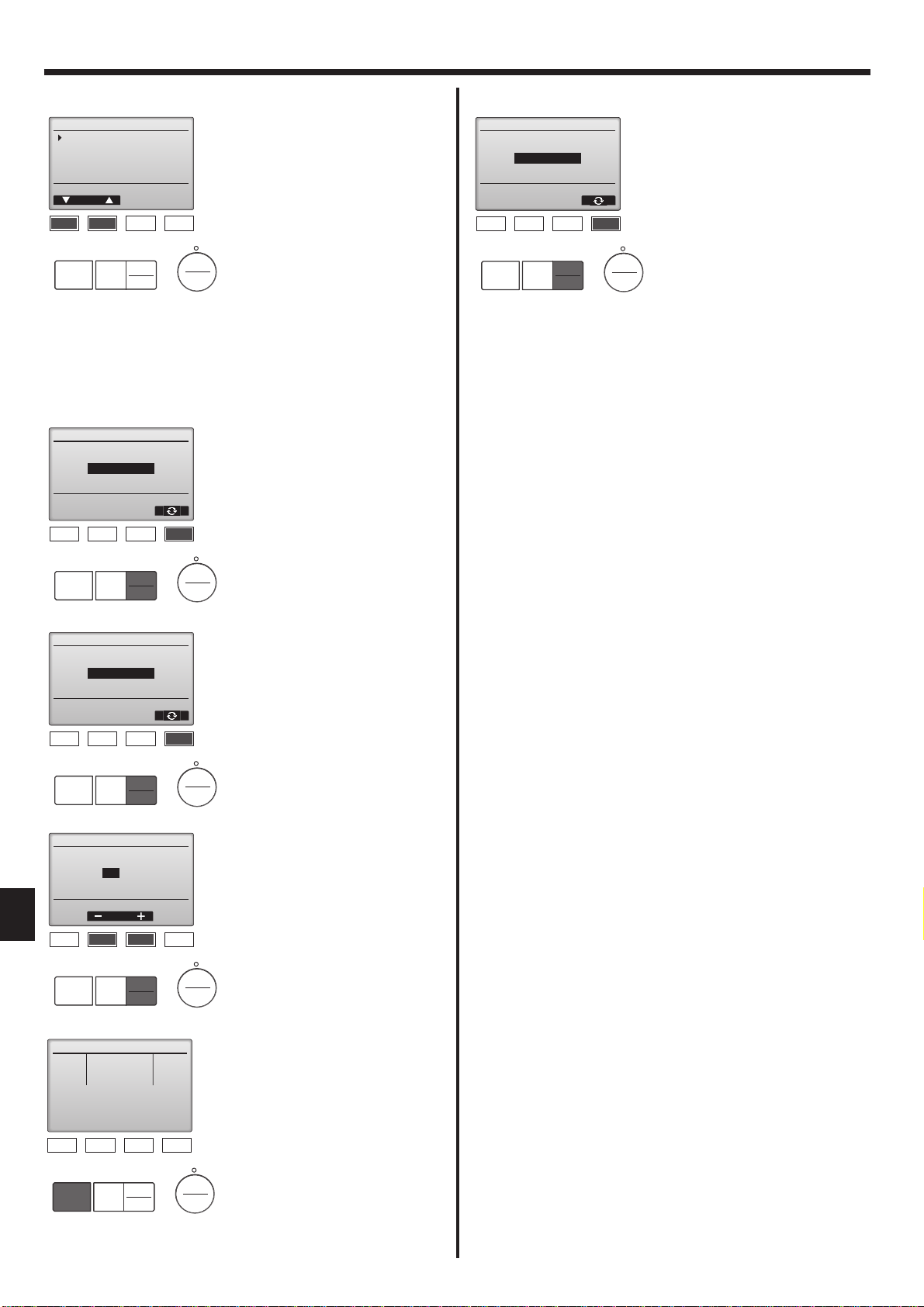

3.6.3 Energy saving option
F1 F2 F3 F4
Energy saving option
Cursor
Setting display: SELECT
No occupancy energy save
Room occupancy energy save
No occupancy Auto-OFF
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Energy saving option
Select: SELECT
No occupancy energy save
Cooling/Heating
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Energy saving option
Select: SELECT
Room occupancy energy save
Cooling/Heating
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
Energy saving option
Select: SELECT
Time
No occupancy Auto-OFF
120 min.
MENU ON
OFF
RETURN SELECT
HOLD
F1 F2 F3 F4
MENU ON
OFF
RETURN SELECT
HOLD
18:47 Thu
Shut down by
No Occupancy Auto-OFF
31/Dec 12:59
Notes:
Any person at the following places cannot be detected.
●Along the wall on which the air conditioner is installed
●Directly under the air conditioner
●Where any obstacle, such as furniture, is between the person and
the air conditioner
A person may not be detected in the following situations.
●Room temperature is high.
●A person wears heavy clothes and his/her skin is not exposed.
●A heating element of which temperature changes significantly is
present.
●Some heat sources, such as a small child or pet, may not be sensed.
●A heat source does not move for a long time.
The 3D i-see Sensor operates once approximately every 3 minutes
to measure the floor temperature and detect persons in the room.
●The intermittent operating sound is a normal sound produced when
the 3D i-see Sensor is moving.
Notes:
●During swing operation, the directional indication on the screen
does not change in sync with the directional vanes on the unit.
●Available directions depend on the type of unit connected.
●In the following cases, the actual air direction will differ from the
direction indicated on the remote controller display.
1. While the display is in “STAND BY” or “DEFROST” states.
2. Immediately after starting heat mode (while the system is wait-
ing for the mode change to take effect).
3. In heat mode, when room temperature is higher than the tem-
perature setting.
3.7. Ventilation
For LOSSNAY combination
■The following 2 patterns of operation is available.
• Run the ventilator together with indoor unit.
• Run the ventilator independently.
Notes: (for wireless remote controller)
●Running the ventilator independently is not available.
●No indication on the remote controller.
3.6.4 Seasonal airflow function
F1 F2 F3 F4
Seasonal airflow
Select: SELECT
Seasonal airflow
Cooling/Heating
MENU ON
OFF
RETURN SELECT
HOLD
Seasonal airflow
Select: SELECT
Seasonal airflow
Cooling/Heating
1Select the setting with the [F4]
button.
OFF →Cooling only →Heating
only →Cooling/Heating →OFF…
After changing the setting, press
the [SELECT/HOLD] button to
save the setting.
OFF: The function is disabled.
Coolingonly:When the thermostat
turns offduring cooling mode, the
vanes move up and down.
Heatingonly: When the thermostat
turns off during heating mode,
the vanes move to the horizontal
airflowdirection to circulate theair.
Cooling/Heating: The function is
enabled during both cooling mode
and heating mode.
* In order to enable this function,
the airflow direction must be set
to “Auto”.
1Select the desired menu with the
[F1] or [F2] button.
No occupancy energy save
If there are no persons in the room
for 60 minutes or more, energy-
saving operation equal to 2 °C,
4 °F is performed.
Room occupancy energy save
If the occupancy rate decreases
to approximately 30% of the maxi-
mum occupancy rate, energy-
saving operation equal to 1 °C,
2 °F is performed.
No occupancy Auto-OFF
If there are no persons in the
room for the set amount of time
(60–180 minutes), the operation
is automatically stopped.
2When No occupancy energy save
or Room occupancy energy save
is selected
Select the setting with the [F4]
button.
OFF →Cooling only →Heating
only →Cooling/Heating →OFF…
After changing the setting, press
the [SELECT/HOLD] button to
save the setting.
OFF: The function is disabled.
Cooling only: The function is ena-
bled only during cooling mode.
Heating only: The function is ena-
bled only during heating mode.
Cooling/Heating: The function is
enabled during both cooling mode
and heating mode.
3When No occupancy Auto-OFF is
selected
Set the time with the [F2] or [F3]
button.
―: The setting is disabled (the op-
erationwill not stop automatically).
60 – 180: The time can be set in
10-minute increments.
4The message at left will appear
if the operation was stopped
automaticallybytheNooccupancy
Auto-OFF setting.
en

15
3.8. Mode Selection (For Simple MA remote controller)
Pressing the MODE button will change the operation mode in the following order.
COOL HEATAUTOFANDRYING SETBACK
*1 *1 *1 *1*1, *2
*1: Not all functions are available on all models of indoor units. Functions that are not available will not appear on the display.
*2: The preset temperature forAUTO (either single or dual set point) mode will appear depending on the indoor unit model.
AUTO (dual set point) mode:
In AUTO (dual set point) mode, the preset temperatures can be set for cooling and heating, and operation can be switched automatically between
cooling and heating depending on the room temperature.
The preset temperatures for cooling and heating set in AUTO (dual set point) mode will be reflected to the temperature setting for COOL/DRYING
and HEAT modes.
SETBACK mode:
The SETBACK function automatically switches the operation mode between cooling and heating to maintain the room temperature within the set
temperature range.
The preset temperatures for cooling and heating set in SETBACK mode can be different from the preset temperatures for other modes.
The room temperature
changes corresponding
to the change in the
outside temperature.
The room temperature
changes corresponding
to the change in the
outside temperature.
Preset temp.
(COOL)
Preset temp.
(HEAT)
Room
temperature
Preset temp.
(COOL)
Preset temp.
(HEAT)
Room
temperature
During operation in SETBACK mode
HEAT COOL HEAT COOL
HEAT COOL HEAT COOL
During operation in AUTO (dual set point) mode
3. Operation
en

16
3. Operation
3.9. Temperature setting (For Simple MA remote controller)
In COOL, DRYING, HEAT, and AUTO (single set point) modes
Pressing the TEMP. button increases the preset temperature.
Pressing the TEMP. button decreases the preset temperature.
In AUTO (dual set point) and SETBACK modes
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
When the TEMP. or TEMP. button is pressed, the preset temperature (cooling/heating) display blinks.
Cooling preset temperature
Current preset temperature (cooling/heating) appears.
* The example shows the display inAUTO (dual set point) mode.
Heating preset temperature
Current operation mode
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
While the preset temperature (cooling/heating) display blinks, pressing the TEMP. button increases the preset temperatures for both
cooling and heating, and pressing the TEMP. button decreases the preset temperatures for both cooling and heating.
When the MODE button is pressed, only the cooling preset temperature display blinks.
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
While the cooling preset temperature display blinks, pressing the TEMP. button increases the cooling preset temperature, and pressing the
TEMP. button decreases the cooling preset temperature.
When the MODE button is pressed, only the heating preset temperature display blinks.
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
While the heating preset temperature display blinks, pressing the TEMP. button increases the heating preset temperature, and pressing
the TEMP. button decreases the heating preset temperature.
Pressing the MODE button completes the preset temperature setting.
* During the preset temperature setting, the setting will automatically turn offif the TEMP. or TEMP. button is left untouched for a certain period of
time.
en

17
Preset temperature range is as follows.
Operation mode Preset temperature range
COOL/DRYING 67 - 87 (95)°F/19 - 30 (35)°C
HEAT 63 (40) - 83°F/17 (5) - 28°C
AUTO (single set point) 67 - 83°F/19 - 28°C
AUTO (dual set point) [COOL] Preset temperature range for COOL mode.
[HEAT] Preset temperature range for HEAT mode. *1, *2
SETBACK [COOL] Preset temperature range for COOL mode.
[HEAT] Preset temperature range for HEAT mode. *2
FAN, VENTI. Unsettable
*1 The preset temperatures for cooling and heating forAUTO (dual set point) mode will be used for those for COOL/DRYING and HEAT mode.
*2 The preset temperatures for cooling and heating can be set under the following conditions.
• The cooling preset temperature is greater than the heating preset temperature.
• The difference between the cooling and heating preset temperatures is equal or greater than the minimum temperature difference that varies depending on the
indoor unit model to be connected.
3.10. Fan speed setting (For Simple MA remote controller)
Pressing the FAN button will change the fan speed in the following order.
* The settable fan speed varies depending on the indoor unit model to be connected.
* If the unit has no fan setting function, the fan speed cannot be set.
In this case, the fan icon blinks when the FAN button is pressed.
3.11. Vane setting (For Simple MA remote controller)
Pressing the VANE button will switch the vane directions.
* The settable vane direction varies depending on the indoor unit model to be connected.
* If the unit has no vane function, the vane direction cannot be set.
In this case, the vane icon blinks when the VANE button is pressed.
AUTO
Setting 1AUTO SwingSetting 5Setting 4Setting 3Setting 2
3. Operation
en

18
3. Operation
3.12. Temperature range restriction (For Simple MA remote controller)
The preset temperature range for each operation mode can be restricted.
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
(1)ON/OFF
(3)MODE
(3)
(3)
(3)
(2)FAN (6)FAN
(4)FAN
(5)TEMP. /
(5)TEMP. /
(5)TEMP. /
(4)FAN
(4)FAN
MODE
MODE
MODE
Press the ON/OFF button to stop the air conditioning unit.
Press and hold the FAN button for three seconds or longer to bring up the temperature range restriction setting display. (A or B appears.)
Press the MODE button to select from A through D.
* When the AUTO (single set point) mode is not available on the indoor unit, or when the AUTO mode is set to OFF in the Mode skip setting, D will
not be displayed.
A. No temperature range restriction:
The temperature range restriction will not be executed for all modes.
B. Temperature range restriction for COOL/DRYING mode:
The preset temperature range for COOL/DRYING,AUTO (dual set point), and SETBACK mode can be changed.
C. Temperature range restriction for HEAT mode:
The preset temperature range for HEAT, AUTO (dual set point), and SETBACK mode can be changed.
D. Temperature range restriction for AUTO (single set point) mode:
The preset temperature range for AUTO (single set point) mode can be changed.
Press the FAN button to switch between the upper limit (Hi) and lower limit (Lo) settings.
The air conditioning unit stops.
A. No temperature
range restriction
(Press the button for three seconds or longer.)
(Press the button for three
seconds or longer.)
B. Temperature range restriction for COOL/DRYING mode
C. Temperature range restriction for HEAT mode
D. Temperature range restriction for AUTO (single set point) mode
Upper limit
Lower limit
Upper limit
Upper limit Lower limit
Lower limit
en
