Mitsubishi Electric TN810 ATX User manual

166036UG April 1999
User Guide
TN810 ATX Motherboard
www.trimond.com

 
MITSUBISHI ELECTRIC MOTHERBOARD DIVISION PAGE 2 OF 46
Document History
  
1.0 First release April 99
Trademarks mentioned within this document are the properties of their respective
owners. Details available on request.
Information contained in this document is subject to change without notice and does not
represent a commitment on the part of Mitsubishi Electric Motherboard Division.
No part of this manual may be reproduced or transmitted in any form or by any means
electronic or mechanical including photocopying and recording, for any purpose, without
the express written permission of the publishers.
Published by:
Mitsubishi Electric
Motherboard Division
3500 Parkside
Birmingham Business Park
Birmingham, England
B37 7YS

 
MITSUBISHI ELECTRIC MOTHERBOARD DIVISION PAGE 3 OF 46



This product contains a lithium battery.
Do not use a metal or other conductive implement to remove the battery. If a short-circuit is
made between its positive and negative terminals the battery may explode.
Replace a discharged battery with one of the same type; another type may explode or ignite.
Follow the instructions contained in section 3 of this document to replace the battery. Dispose of
a discharged battery promptly and in accordance with the battery manufacturer’s recommended
instructions. Do not recharge, disassemble or incinerate the discharged battery. Keep discharged
batteries away from children.
 
Warning
Static electricity can cause permanent damage to electronic components. You should be
aware of this risk, and take precautions against the discharge of static electricity.
This product is at risk from static discharge because the electronic components of the
motherboard are exposed. Memory modules and replacement processors are examples of
electrostatic sensitive devices (ESSDs).
All work that involves contact with the TN810 ATX Motherboard should be done in an area
completely free of static electricity. We recommend using a Special Handling Area (SHA) as
defined by EN 100015-1: 1992. This means that working surfaces, floor coverings and chairs
must be connected to a common earth reference point, and you should wear an earthed wrist
strap and anti-static clothing. It is also a good idea to use an ionizer or humidifier to remove
static from the air.
Handle static-sensitive items with extreme care. Hold add-on components only by their edges,
avoiding their electrical contacts. In general, do not handle static-sensitive items unnecessarily.
Keep all conductive material, and food and drink, away from your work area and the TN810
ATX Motherboard.

This product complies with the relevant clauses of the following European Directives (and all
subsequent amendments):
Low Voltage Directive 73/23/EEC
EMC Directive 89/336/EEC
CE Marking Directive 93/68/EEC
Important
This product, when supplied, complies with the CE Marking Directive and its strict legal
requirements. Use only parts tested and approved by Mitsubishi Electric Motherboard
Division.

 
MITSUBISHI ELECTRIC MOTHERBOARD DIVISION PAGE 4 OF 46


This product complies with the American Safety Standard UL1950.
  
This product complies with the following European EMC standards:
Emissions EN55022 Class B
Immunity EN55024
This product also complies with the following American EMC standard:
FCC Class B
  
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

Consult the dealer or an experienced radio/TV technician for help.
Important
You are cautioned that any change or modification to the product not expressly approved by
the manufacturer could void the approvals held by this product.

 
MITSUBISHI ELECTRIC MOTHERBOARD DIVISION PAGE 5 OF 46

1 Overview 8
Motherboard Features...................................................................................................................... 9
Configuration Options................................................................................................................... 10
Build-time................................................................................................................................ 10
User Configurable.................................................................................................................... 10
Block Diagram .............................................................................................................................. 11
2 Installation guide 12
3 Upgrading the motherboard 14
Adding more memory.................................................................................................................... 14
Fitting and removing DIMMs.................................................................................................. 14
Fitting a DIMM........................................................................................................................ 15
Removing a DIMM.................................................................................................................. 15
The processor assembly................................................................................................................. 15
To fit a new processor.............................................................................................................. 16
Replacing the battery for the configuration CMOS....................................................................... 16
4 Electronics 17
Processor ....................................................................................................................................... 17
Core Logic..................................................................................................................................... 17
PCI TO ISA BRIDGE ................................................................................................................... 18
Level 2 Cache................................................................................................................................ 18
Memory......................................................................................................................................... 18
DIMM...................................................................................................................................... 18
BIOS........................................................................................................................................ 19
Video............................................................................................................................................. 19
Audio............................................................................................................................................. 19
AC’97 CODEC........................................................................................................................ 19
Real Time Clock............................................................................................................................ 20
network.......................................................................................................................................... 20
Standard I/O .................................................................................................................................. 20
Keyboard and Mouse............................................................................................................... 20
Floppy Disk Interface .............................................................................................................. 20
Serial Ports............................................................................................................................... 20

 
MITSUBISHI ELECTRIC MOTHERBOARD DIVISION PAGE 6 OF 46
Parallel Port ............................................................................................................................. 21
Additional I/O................................................................................................................................ 21
IDE Disk Controller................................................................................................................. 21
Universal Serial Bus (USB)..................................................................................................... 21
Security.......................................................................................................................................... 21
Motherboard Power....................................................................................................................... 21
Processor Power....................................................................................................................... 21
Battery...................................................................................................................................... 21
Power Management....................................................................................................................... 22
Standby Switch........................................................................................................................ 22
Behaviour After AC-Disconnect.............................................................................................. 22
Sleep State Indication .............................................................................................................. 22
System Management ..................................................................................................................... 23
MAX1617................................................................................................................................ 23
PC87366 System Monitoring................................................................................................... 23
Fan Control.................................................................................................................................... 23
Expansion Slots............................................................................................................................. 23
Industry Standard Architecture (ISA)...................................................................................... 23
Peripheral Component Interconnect (PCI)............................................................................... 23
Bus Resource Utilisation............................................................................................................... 24
ISA DMA Channels................................................................................................................. 24
ISA Interrupts .......................................................................................................................... 24
PCI Interrupts........................................................................................................................... 25
PCI Device Selection (motherboard devices).......................................................................... 25
PCI Arbitration ........................................................................................................................ 26
5 BIOS Setup & POST 27
BIOS Setup.................................................................................................................................... 27
Control keys............................................................................................................................. 27
Getting help in BIOS Setup ..................................................................................................... 28
Reserving ISA legacy resources .............................................................................................. 28
Multi-boot facility ......................................................................................................................... 28
Power-on self-test.......................................................................................................................... 29
Recoverable POST errors ........................................................................................................ 29
Terminal POST errors and beep codes .................................................................................... 30
6 Electrical 37
Power Requirements...................................................................................................................... 37

 
MITSUBISHI ELECTRIC MOTHERBOARD DIVISION PAGE 7 OF 46
PCB ............................................................................................................................................... 37
7 Connector Assignments 38
Keyboard and Mouse (PS/2 Mini-DIN)................................................................................... 38
LAN (RJ45)............................................................................................................................. 38
USB Ports 0 and 1.................................................................................................................... 39
Serial Port 1 (9 way D-type)....................................................................................................39
VGA (15 way D-type) .............................................................................................................40
Parallel Port (25 way D-type) .................................................................................................. 41
Line Input and Output (3.5mm stereo jack)............................................................................. 42
Microphone Input (3.5mm stereo jack).................................................................................... 42
MIDI/Joystick (15 way D-type)............................................................................................... 42
Chassis Intrusion Switch (2 pin single row 0.1” header)......................................................... 43
Primary and Secondary IDE Disk (40 way dual row 0.1” header) .......................................... 43
Front panel connectors (single row 0.1” header)..................................................................... 44
Floppy Disk (34 way dual row 0.1” header)............................................................................ 45
Processor and System Fan (3 way header with locking ramp)................................................. 45
Internal LINE in (4 way natural colour ATAPI header).......................................................... 46
Internal CD audio (4 way green ATAPI header) ..................................................................... 46
Internal telephony (4 way black ATAPI header)..................................................................... 46

 
MITSUBISHI ELECTRIC MOTHERBOARD DIVISION PAGE 8 OF 46


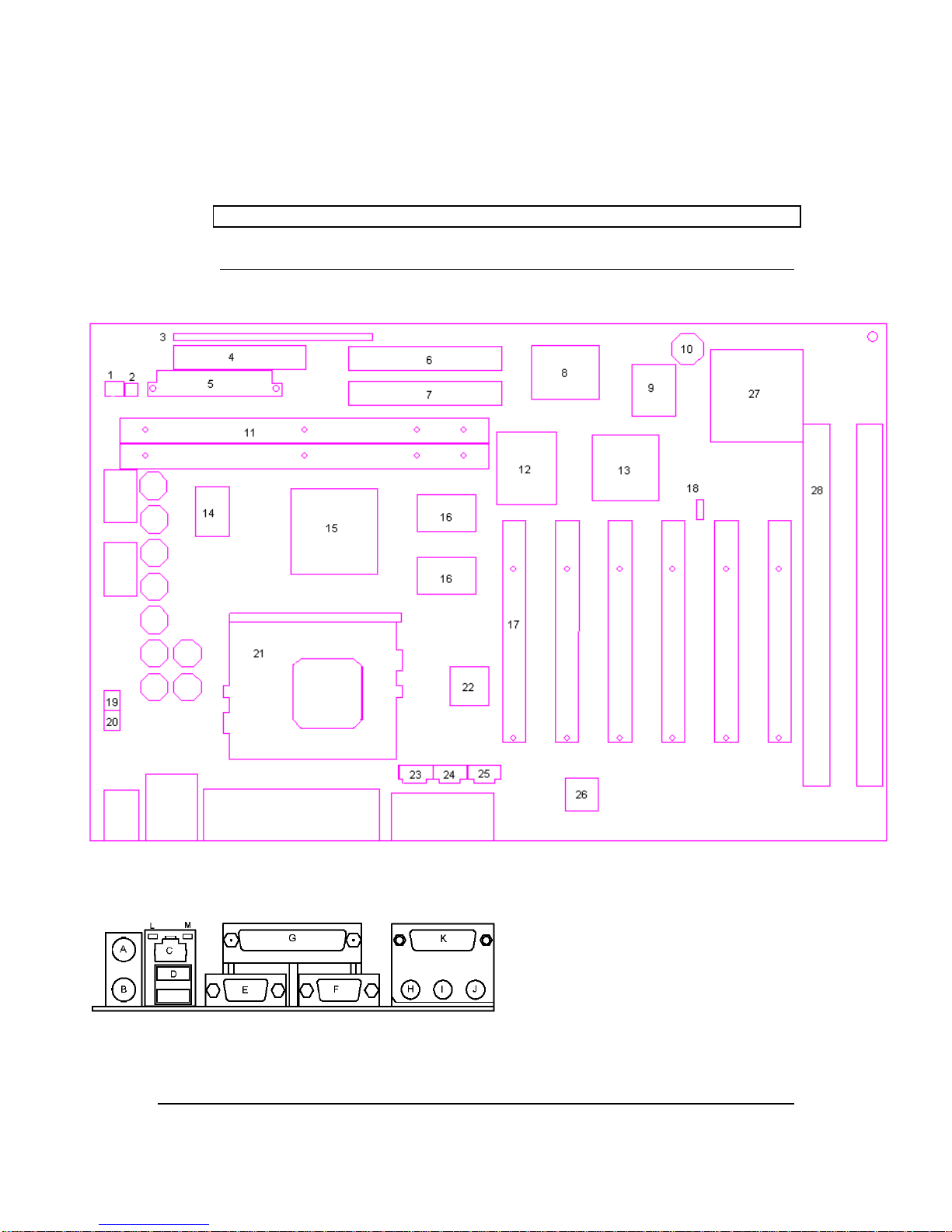

TN810 ATX is a Celeron™ processor-based ATX profile motherboard.
The design of TN810 ATX is based around the following components.

Intel Celeron™ processor in Socket 370

Intel 810 Chipset consisting of :-

Graphics and Memory Controller Hub (GMCH)

I/O Controller Hub (ICH)

Firmware Hub (FWH)

AC’97 audio controller

Intel 82559 IEE802.3 10BASE-T / 100BASE-TX compatible LAN controller

The Celeron™ processor is based on the P6 micro-architecture and includes MMX technology.
Two package styles are available – cartridge (slot 1) and pin-grid array (socket 370). TN810
requires the pin-grid array version.
     
The GMCH connects the processor to the main system memory and other system logic. It has an
integrated graphics controller with optional 4MB Display Cache. Supports both 66Mhz and
100Mhz system bus.
   
The ICH contains a PCI 2.2 interface, a bus master IDE controller - Ultra ATA 33/66, AC’97
2.1 interface and all the general purpose I/O ports.
 !"  
The AC’97 CODEC is the analogue part of the audio system. It is connected to the ICH by a
digital link.
#$%%! &' 
The 82559 is Intel’s second generation integrated 10BASE-T/100BASE-TX LAN solution. It
consists of both the Media Access Controller (MAC) and the physical layer (PHY) interface
combined into a single component solution. It contains a 32 bit PCI bus master interface

 
MITSUBISHI ELECTRIC MOTHERBOARD DIVISION PAGE 9 OF 46

Form factor ATX, 12.0" wide x 7.8" deep. ATX 2.01 compliant.
Processor Socket370 with the VRM8.2 regulator on motherboard.
Accepts 66/100Mhz Celeron™ processors
Core logic Intel 810
Cache L2 cache included on processor module.
Memory –
RAM Memory sockets accept 168 pin un-buffered PC100 SDRAM modules.
Memory -
Flash ROM 4Mb Firmware Hub
Buses 5 PCI bus master slots, 1 shared PCI/ ISA slot, 1 ISA (No LAN fitted)
5 PCI bus master slots, 2 ISA slots ( LAN fitted)
VGA Integrated Graphics controller (82810) with 2D/3D acceleration, 230Mhz
RAMDAC and optional 4Mb Display Cache (82810-DC100)
Audio –
controller AC’97 2.1 compliant CODEC (Optional)
Hard Disk &
CD-ROM Dual UltraATA33/66 interfaces for hard disk and CD-ROM.
Floppy Disk 720kB, 1.2MB (3-mode), 1.44MB 3½ drives, 1.2MB 5¼ drives.
Support for 120MB drives via ATA port.
Parallel Port IEEE 1284 (ECP & standard) on 25-way D-type
Serial Ports Single 16550. One 9-way D-types on rear edge of motherboard.
USB Two ports.
Ethernet 1x RJ45 port
Keyboard &
Mouse PS/2-style connectors.
Security Chassis intrusion detection. (optional)
Power
Management Green and deep green via system management mode.
ACPI compatible.
Wake-on LAN
Standby option with wake-up on interrupt, serial port activity or button.
System
Management Hardware monitoring – Fan monitor (standard), Voltage/ Thermal monitor (optional - PC87366 I/O)
Plug & Play PC98 and PC99 compliant
Battery back-
up On-board lithium coin cell with 5 years typical life.
PCB 4-layer ATX form-factor.
All components on top side

 
MITSUBISHI ELECTRIC MOTHERBOARD DIVISION PAGE 10 OF 46


The following items can be configured at build-time and cannot be modified by the user.

Integrated Graphics Controller 4Mb Display Cache

Ethernet controller/ connector

MIDI / Game Port features

AC’97 Audio

Hardware monitoring functions (Super I/O)

ISA Bridge / slots
Please contact Mitsubishi Electric Motherboard Division to determine available configurations.
 
The user can configure the following items.

Processor (Intel boxed products)

Main memory DIMMs
