INDUSTRIAL SEWING MACHINE
CC-Link IE FIELD BASIC Communication Equipment
MODEL
PLK-J-LAN
TECHNICAL MANUAL
A180E805P01

I
contents
[1] For safe use __________________________________________________1
[2] Precautions for use ____________________________________________2
[3] Use__________________________________________________________3
[4] Name of each part _____________________________________________4
[5] Pin number of connectors_______________________________________5
[6] External dimensions ___________________________________________7
[7] Connection method ____________________________________________7
1. How to XC-G.........................................................................................................8
2. How to PLK-G .......................................................................................................8
[8] Installation and setting__________________________________________9
[9] How to use ___________________________________________________10
[10] Confirmation_________________________________________________11
[11] Error indication_______________________________________________12
[12] Specification _________________________________________________13

II
Thank you for purchasing the Mitsubishi industrial sewing machine PLK-J Series.
Please read this technical manual before starting to ensure correct and long-term use.
* The contents of this manual may not be reproduced in part or whole.
* The contents of this manual are subject to change without notice.
* An utmost effort has been made to cover all points of operation in this manual. Contact
Mitsubishi if you have any questions regarding the contents.
COPYRIGHT(C)2018 MITSUBISHI ELECTRIC CORPORATION

1
[1] For safe use
■For safe use
Always observe the following matters to safely use this product.
Before starting
Before using this product, read all of the technical manuals carefully, and correctly use the unit following
the manual. Also read the instruction manual of the sewing machine to be installed.
Application and purpose
This product is designed as a communication device with the Mitsubishi industrial sewing machine.
Do not use this product for other applications or purposes
Working environment
Please use this product in the industrial setting only. And do not use this product in the following type of
environment.
(1) Power voltage
･Where the voltage fluctuation exceeds ±10% of the rated voltage.
･Where the specified power capacity cannot be ensured.
(2) Magnetic noise
･Where strong fields or magnetic fields are generated, such as near a high-output high frequency
oscillating machine or high frequency welder.
(3) Temperature and humidity
･Where the ambient temperature is 35°C or more and 5°C or less.
･Where the unit will be subject to direct sunlight, or outdoors.
･Near sources of heat, such as heating appliances.
･Where the relative humidity is 45% or less, or 85% or more, and where dew may condense.
(4) Atmosphere
･In an atmosphere containing dust or corrosive gases, etc.
･In a flammable gas or explosive environment.
(5) Vibration
･Where the Excessive vibration (2G or more) or many shocks.
■Installation
Please install it correctly according to this manual.
Cable
Lay the connection cables so that excessive force will not be applied during operation. Do not
excessively bend the cables.
Remove
(1) Always turn the power switch OFF of the sewing machine and disconnect the plug from the socket
(power supply line) before removing this product.
(2) Do not pull out the cord when disconnecting the plug. Always hold the plug receptacle when
disconnecting the plug. It may cause cable breakage or poor contact.
■Maintenance, inspection and repairs
(1) Follow this manual when carrying out maintenance or inspections related to this product.
(2) This product must be repaired, serviced and inspected only by a worker that has received special
training.
(3) Use genuine replacement parts for repairs and maintenance.
If you use other than genuine parts will be out of warranty.
■Other safety measures
(1) Never drop this product, or place objects in the clearances.
(2) If any damage is observed in this product, if the unit does not operate correctly, or if the operation is
suspicious, always suspend using. Please replace this product.
(3) The user must not make improvements or changes without instruction from Mitsubishi
(4) Please also read related manuals of the connected devices carefully and correctly use the unit
following the manual.

2
[2] Precautions for use
1. Do not inspect the control circuit with a tester.
The tester voltage could be applied on the semiconductor parts, and cause damage.
2. Always align the connector shape and direction, and securely insert the connector.
3. Use the machine away from strong noise sources such as high frequency welders.
4. Please never open the case.
Adjust the tightening of the case screws with the torque.
Above the specified torque, the screw may run idly and the case may be damaged.
5. Do not unplug the RS232C cable of the PLK-J-LAN with the power on.
It may cause malfunction and failure.
6. In order to reduce the influence of high frequency noise, attach the ferrite core to the RS232C cable of
PLK-J-LAN.
7. Notes on turning on the power again
Please make sure not to turn on the power supply switch until after the LED on the front panel of the control
box has completely turned off.
*Please note that if power supply is turned on again while LED still turns on, the data in the PLK-J-LAN
may be damaged.
8. If you need to maintain the safety of the system that uses GOT against unauthorized access from external
devices via the network incorporate measures taken by the user.
Also, if you need to keep the system secure against unauthorized access from external devices via the
Internet, please include measures such as firewall.
* Always deliver this manual to the end user.
* Store this manual nearby where it can be referred to when necessary.

3
[3] Use
This is a communication device that enables network communication for Mitsubishi RIMI Servo
XC-G Series and Mitsubishi Electronic Pattern Stitch Sewing Machine PLK-G Series.
1. What you can do by connecting the PLK-J-LAN.
CC-Link communication connection
-> Communication equipment that makes XC-G and PLK-G series sewing machines
compatible with CC-Link IE Field Basic network.
We learn information such as sewing time from the sewing machine and perform
Ethernet communication with the master station as slave station.
Required network equipment
Equipment of the master station: Mitsubishi Electric PLC (MELSEC iQ-F、iQ-R series)
Equipment for display: PC, Mitsubishi Electric Display etc.
Other equipment: HUB etc.

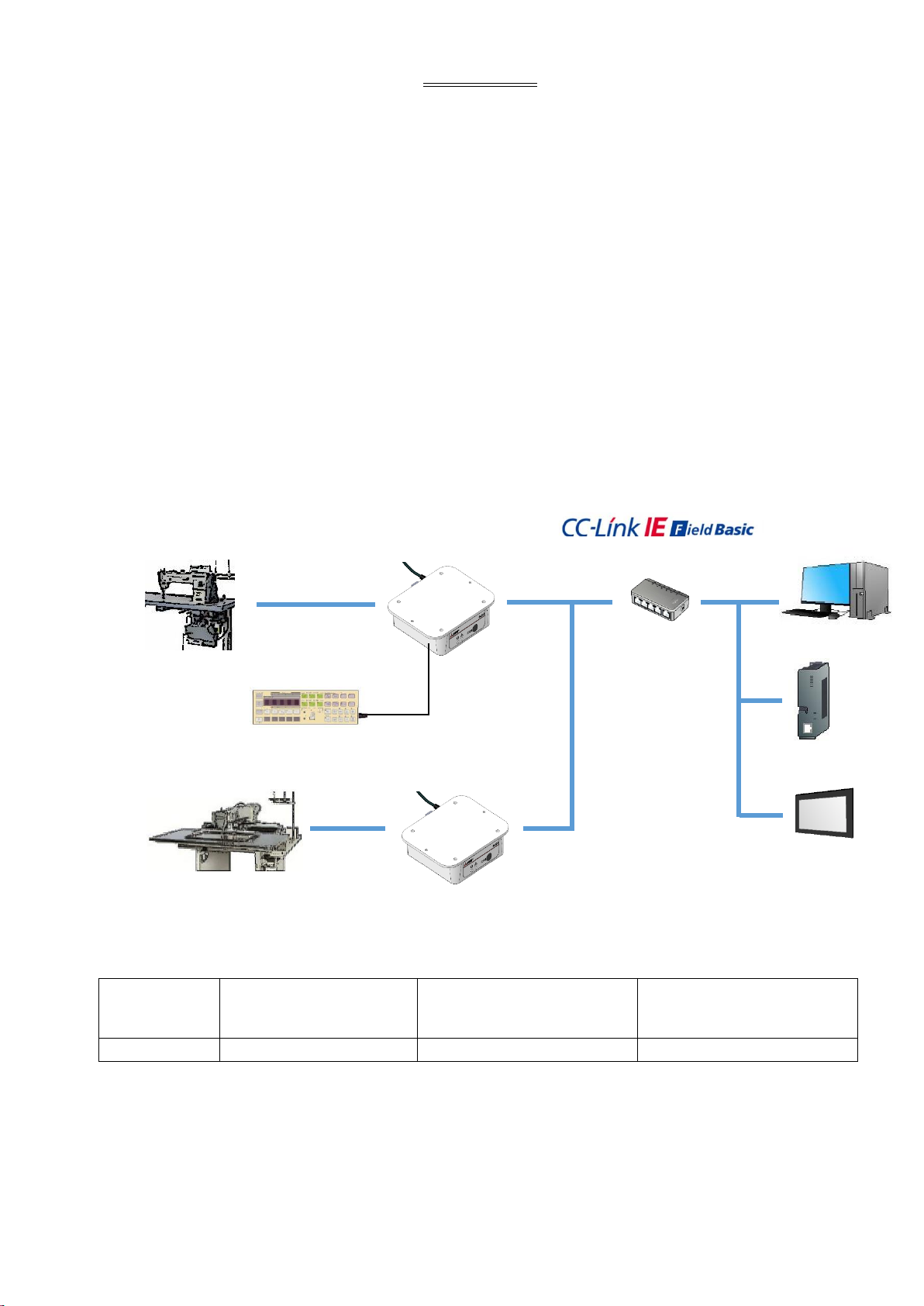

2. Simplified drawing
CC-Link communication connection
Compatible models
Mitsubishi RIMI Servo
XC-G series
Electronic pattern stitch
sewing machine
PLK-G series
Electronic pattern stitch
sewing machine
PLK-J series
PLK-J-LAN
○
○‡
-
‡: Some models are not eligible.
For details, please contact the dealer.
○: Compatible with PLK-J-LAN
‐: Not compatible with LK-J-LAN, but CC-Link IE Field Basic communication is possible
XC-G10 / XC-G500
XC-G
本製品
HUB
PLC
PC
PLK-J-LAN
PLK-G
Display

4

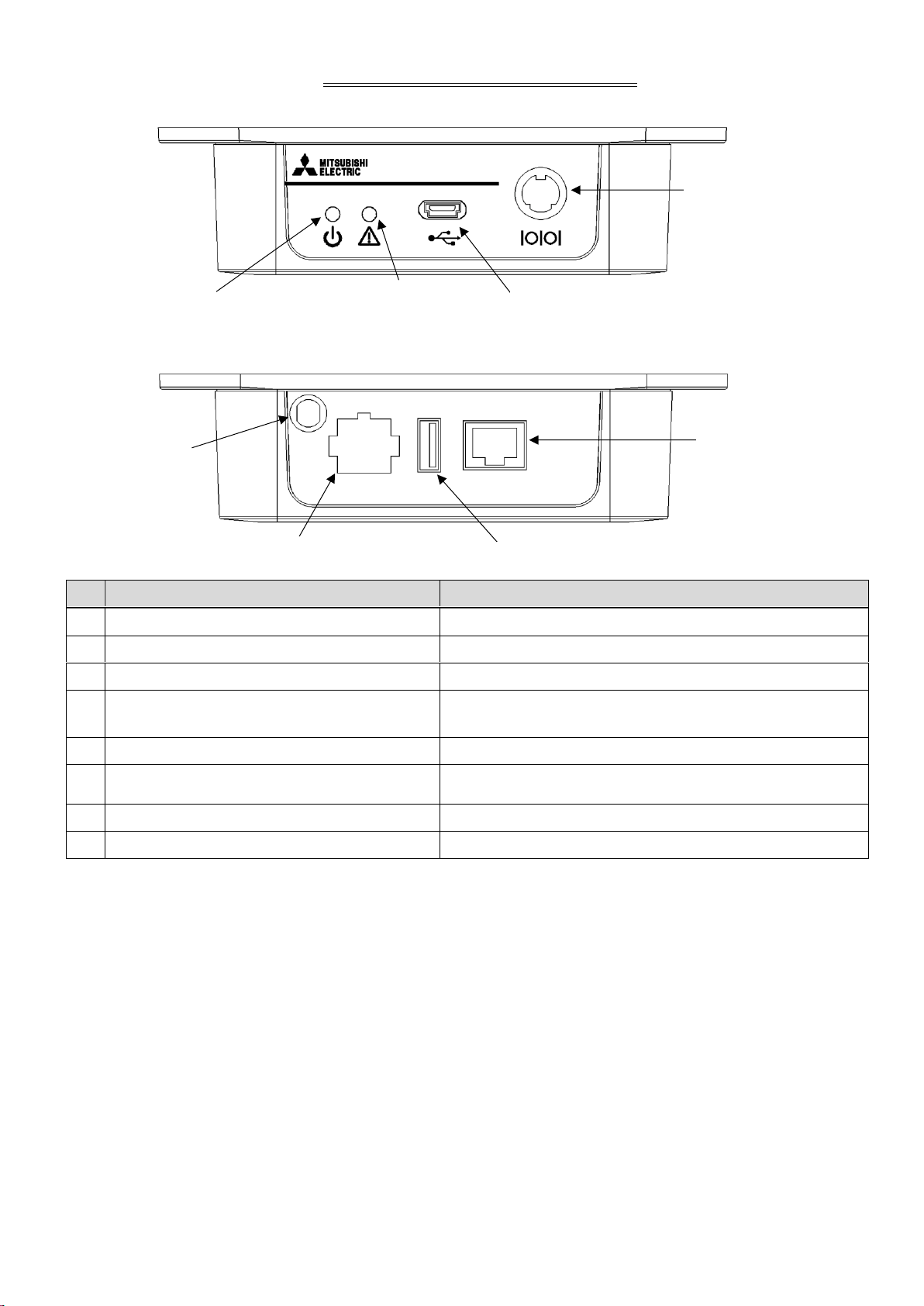

[4] Name of each part
1. Front side
2. Back side
No
Name
Function
1)
LED (green)
POWER LED
2)
LED (red)
Warning LED
3)
CON A (USB-Mini B connector)
Do not use
4)
CON B (MINI-DIN connector)
Connect the operation box (XC - G10 / XC - G 500).
Please do not use when connecting with PLK-G series.
5)
RS232C cable (product accessories)
Connect to the control box of XC-G or PLK-G.
6)
CON C
(General purpose input / output connector)
Option port for I / O function.
7)
CON D (USB-A connector)
USB flash drive and barcode reader can used.
8)
CON E (LAN connector)
Connect the LAN cable.
USB-A connector of this product
Applicable condition
*USB flash drive ･････ USB1.1 or USB2.0 or USB3.0 compatible USB flash drive
*Barcode reader (HID type)
Inapplicable devices
･USB device requiring an external power supply (including Computer devices)
･USB hard disk drive, keyboard, mouse
･USB flash drive with fingerprint authentication function or with security function
･USB flash drive with hub function
･Media reader
･USB device without data storage function
2)
1)
3)
4)
8)
7)
6)
5)

5
[5] Pin number of connectors
1. CON C
CON C (External input / output connector)
signal
Pin number
I1
1
I2
2
GND
3
O1
4
O2
5
12V
6
AN0
7
AN1
8
DA0
9
2. Ratings value of input /output
(1) Output (open collector)
output
Connector pin
ratings current
ratings voltage
O1
CON C 4PIN
100mA less
DC 24V less
O2
CON C 5PIN
100mA less
DC 24V less
Example of use
(2) Input
Example of use
Inside the
PLK-J-LAN
External power supply
load
Used connector : TE Connectivity 172161-1
Used terminal : TE Connectivity 170362-1
* Please use external power supply as the
power source of the connected equipment.
I1
I2
GND
* Please use GND of PLK-J-LAN for GND.

6

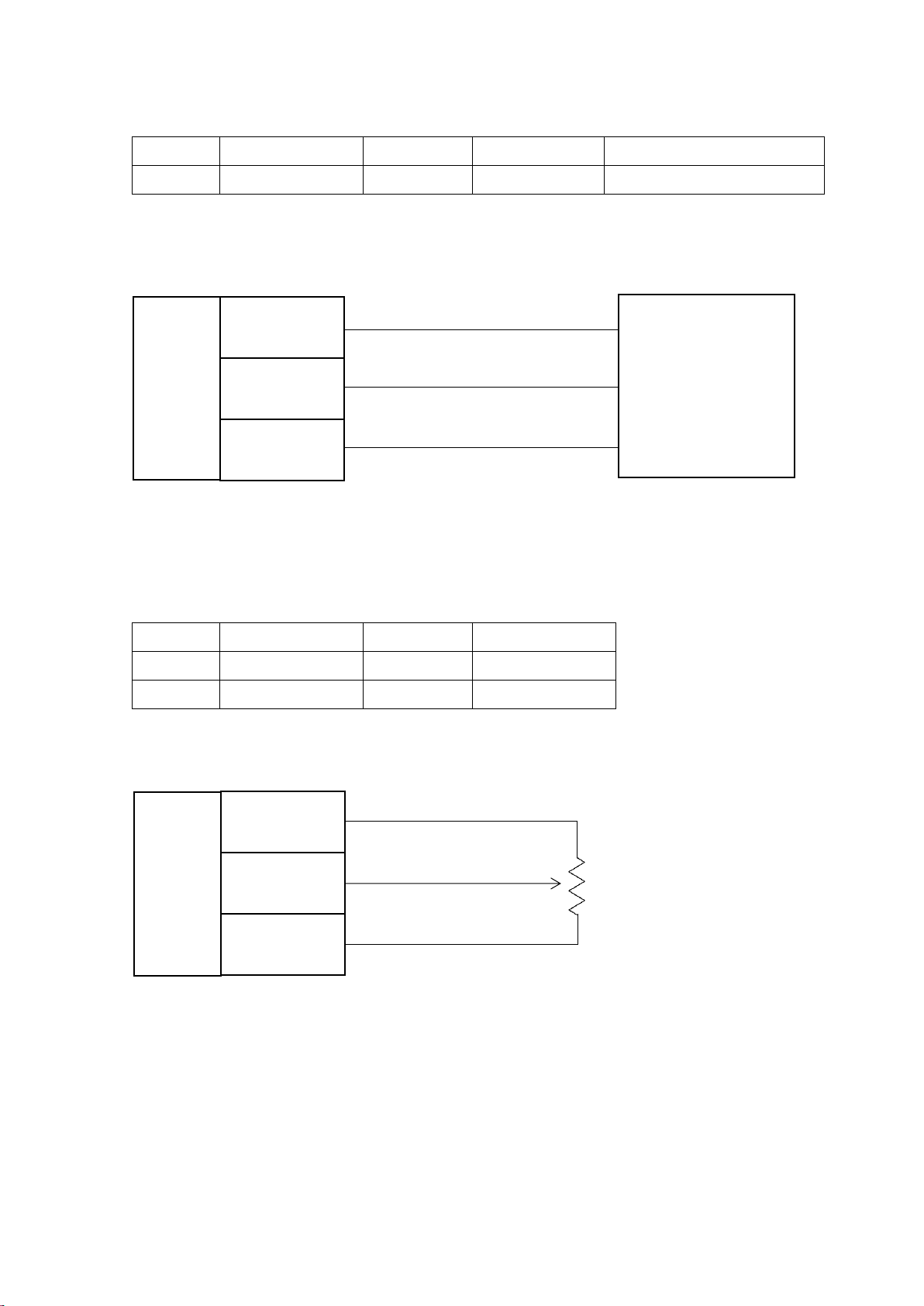

(3) Analog output
output
Connector pin
Power
Output voltage
Maximum ratings current
DA0
CON C 9PIN
DC12V
DC 0~10V
0.01A less
* Use the input resistance of the connection destination at 1kΩ or more
Example of use
(4) Analog input
input
Connector pin
power
Output voltage
AN0
CON C 7PIN
DC12V
DC 0~12V
AN1
CON C 8PIN
DC12V
DC 0~12V
Example of use
PLK-J-
LAN
Power
Input（0~10V）(*1)
GND
(*1): Input resistance 1kΩor more
* Output total 0.1A or less
PLK-J-
LAN
External volume
resistor 10kΩ
Input devise
DC12V
DA0
GND
DC12V
AN0
AN1
GND

7
[6] External dimensions
[7] Connection method
Back
side
Front
side
Operation box
XC-G10 / XC-G500
XC-G control box
PLK-G control box
PC
PLC
HUB
Network equipment
CON B
CON E
RS232C cable
4.5㎜
125.3 ㎜
155.3 ㎜
139 ㎜
40 ㎜
125 ㎜
φ4.5

- 8 -

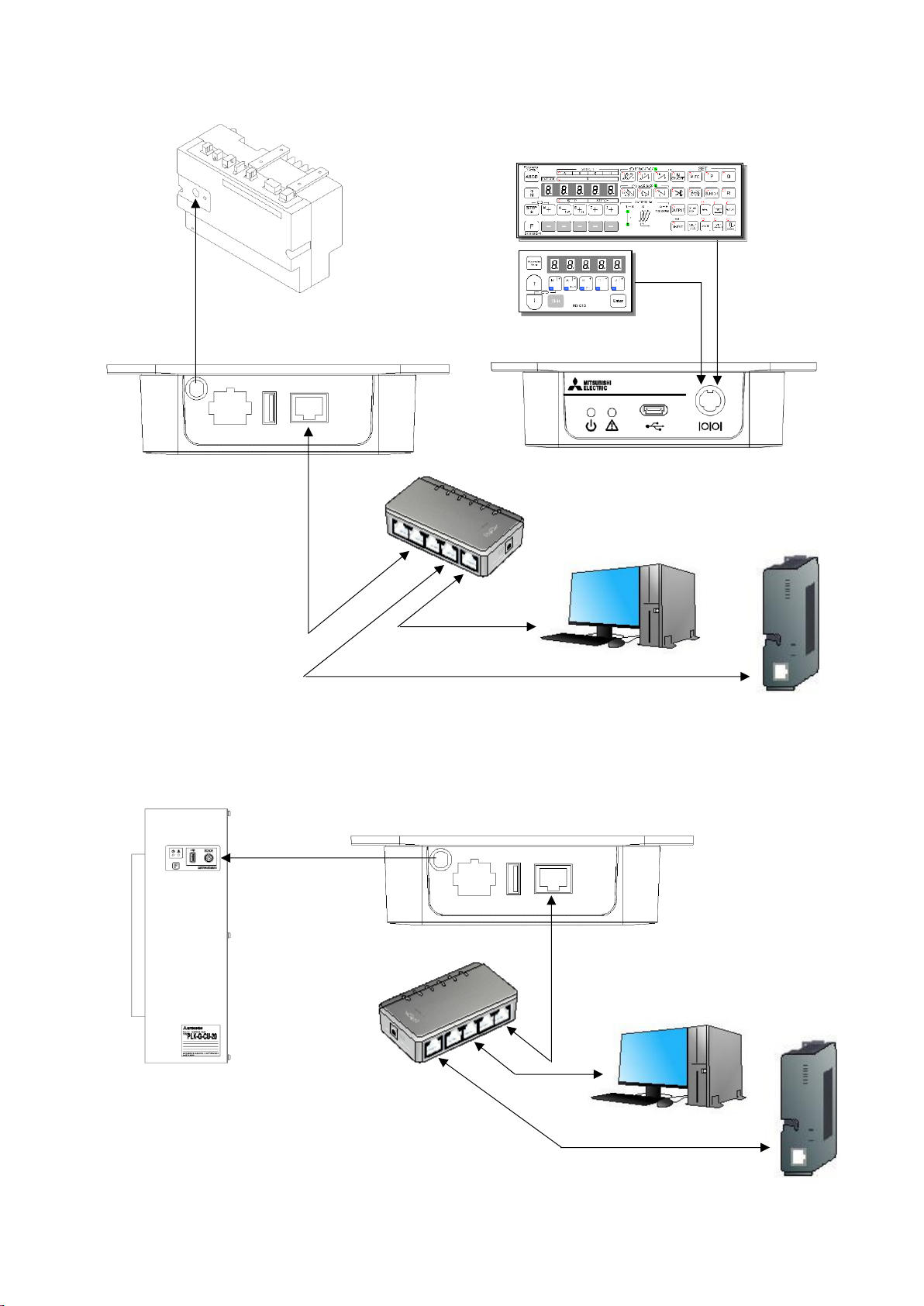

Example of XC-G connection method
Example of PLK-G connection method
RS232C cable
Operation box
Cable
XC-G10
XC-G500
Operation box
XC-G
Control
box
PC
PLC
HUB
LAN cable
LAN cable
RS232C cable
PLK-J-LAN
Back side
PLK-J-LAN 前面
PLK-G
Control box
PC
PLK-J-LAN back side
* Connect the RS233C cable of PLK-J-LAN to the front panel of the control box.
PLC
LAN cable
LAN cable
HUB
PLK-J-LAN front side

- 9 -
[8] Install and setting
In order to use PLK-J-LAN, it is necessary to use USB flash drive, install LAN system data,
and set IP address etc.
* When setting only the IP address etc. please put the setting data in the USB flash drive.
(LAN system data is unnecessary.)
What the user needs to prepare
･Please create a folder of "LAN_SYSTEM" in the USB flash drive and enter the LAN system data file.
* For LAN system data, please consult with the dealer.
Please use the latest LAN system data.
･Please create a folder of "MAKER" in the USB flash drive and enter the file “IP.PLK”of the setting data
which set the IP address, subnet mask, default gateway.
* Please prepare the setting data with arbitrary IP address etc set up.
Setting data can be created by dedicated PC application “IPEdit”.
For dedicated PC applications, please contact the dealer.
USB flash devise configuration
Folder name Required data
USB flash devise PLKJ_SYSTEM APP_DATA (LAN system data)
MAKER IP.PLK (setting data)
(IP address, subnet mask, default gateway)
* For necessary settings such as PLC, refer to the owner's manual of the used equipment.
(1) Installation and setup method
Connect USB to the PLK-J-LAN, including LAN system
data and setup data, and install and configure
automatically when power is turned on.

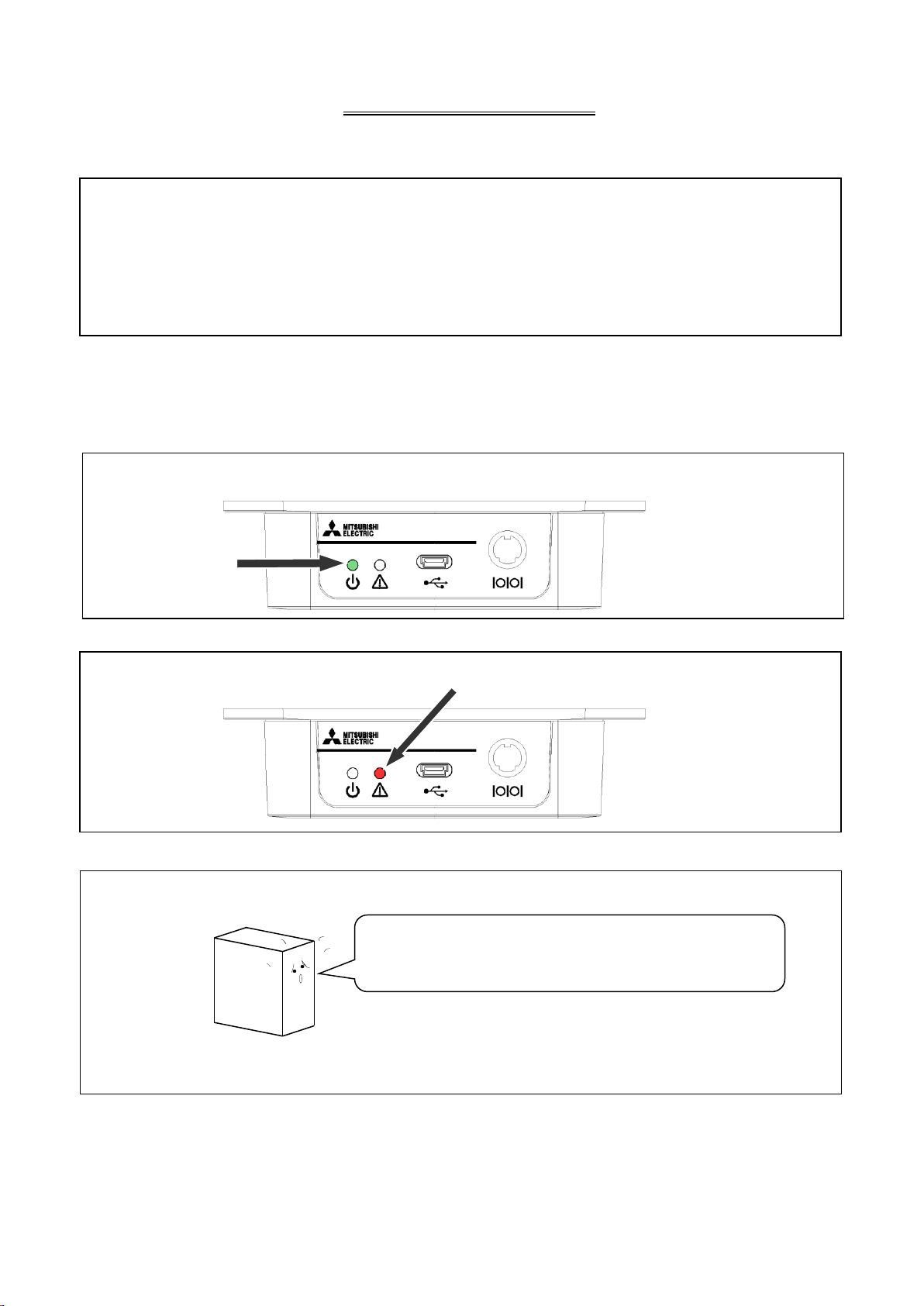

The front panel LED (red) lights up during installation.
(2) PLK-J-LAN information
The system and setting of PLK-J-LAN can be confirmed from the file of "LAN-UNIT.TXT" in the
USB flash drive. Please confirm after installing and setting LK-J-LAN.
After connecting the USB flash drive to the PLK-J-LAN and turning on the power,
the file of "LAN-UNIT.TXT" is automatically saved in the USB flash drive.
Back of PLK-J-LAN

- 10 -
[9] How to use
It is a communication device enabling network communication for XC-G and PLK-G series.
By connecting using PLK-J-LAN, you can collect data of the sewing machine and so on.
XC-G (Initial setting)
1. Connect the wiring before turning on the power.
･Connect the RS232C cable of PLK-J-LAN to the MINI-DIN connector on the front of the XC-G.
･Connect the cable of the operation box (XC-G10 / XC-G500) to the CON B on the front of the
PLK-J-LAN.
･Connect the network equipment to the CON E on the back of the PLK-J-LAN with a LAN cable.
2. Please prepare the LAN system data etc. in the USB flash drive. (Refer to [8] install and setting)
3. Please connect USB flash drive to CON D on the back of PLK-J-LAN.
4. Please turn on the power supply.
Setting of PLK-J-LAN is completed.
5. Set program mode - mode B [UPC = ON] in the operation box.
(Setting of sewing machine is necessary.)
6. Please make necessary settings such as PLC.
(Please refer to the instruction manual of other equipment you use.)
PLK-G (Initial setting)
1. Connect the wiring before turning on the power.
･Connect the RS232C cable of PLK-J-LAN to the MINI - DIN connector on the PLK-G front panel.
･Connect the network equipment to the CON E on the back of the PLK-J-LAN with a LAN cable.
2. Please prepare the LAN system data etc. in the USB flash drive. (Refer to [8] install and setting)
3. Please connect USB flash drive to CON D of PLK-J-LAN.
4. Please turn on the power supply.
Setting of PLK-J-LAN is completed.
5. If you set it to 5 V with CON S (jumper pin) of PLK-G3-CPU, please return it to 12 V.
6. Set PAL to program mode - other [CCEN = ON]. “(*1) Setting of sewing machine is necessary”
7. Please make necessary settings such as PLC.
(Please refer to the instruction manual of other equipment you use.)
(*1) PLK-G only supports system version S100W018 or later of the sewing machine main unit. After
confirming the version of the sewing machine main body, in case of sewing machines of S100W017
or earlier, install the latest system.

- 11 -
[10] Confirmation
1. Before turning the switch on
(1) Are the cable correctly inserted ?
･Cable for connection with sewing machine.
･Cable for connection with HUB.
･Cable for connection with operation box.
2. After turning switch on
(1) Is the front panel power LED (green) on. ?
(2) Is the front panel warning LED (red) on or flickering. ?
(3) Is there an heating, odors or abnormal noise from the motor or control box. ?
･When you turn on the power, a click noise comes from inside the control box.
This noises are not abnormal.
Turn the sewing machine off and contact your dealer
if there is any heating, odors or abnormal noise.

- 12 -
[11] Error indication
When an error occurs, the error display LED (red) on the front panel blinks. Please deal with the
reference below.
PLK-J-LAN front panel error display LED (red) is blinking
[ Red LED ] Blink pattern
☼: ON -: OFF
Blink pattern 1
☼- - - ☼- - - ☼- - - ☼- - - ☼- - - ☼
Blink pattern 2
☼- ☼- - - ☼- ☼- - - ☼- ☼- - - ☼- ☼
Blink pattern 3
☼- ☼- ☼- - - ☼- ☼- ☼- - - ☼- ☼- ☼- - -
Blink pattern 4
☼- ☼- ☼- ☼- ☼- ☼- ☼- ☼- ☼- ☼- ☼-
Blink pattern 5
☼- ☼- ☼- ☼- - - - - ☼- ☼- ☼- ☼- - - - -
[Confirmation and cope]
Error display
LED (red)
Confirmation and cope
LAN communication error
Blink pattern 1
Check the LAN cable connection.
Please exchange the LAN cable.
Please reinstall LAN system data.
Ethernet initialization error
Blink pattern 2
Please reinstall LAN system data.
Installation error
Blink pattern 4
Please check the installation file and reinstall.
RS232C communication error
Blink pattern 5
Check the RS232C cable connection.
Please reinstall LAN system data.
USB over current
Blink pattern 5
Please replace the USB device to be used.
SPI-ROM error
Blink pattern 5
Please reinstall LAN system data.
Please exchange the PLK-J-LAN.
Other errors
Blink pattern 3
Please consult your sewing machine store.

- 13 -
[12] Specification
Basic specifications
access point
MITSUBISHI RIMI Servo
XC-G series
Mitsubishi electronic pattern sewing
machine PLK-G series
Connected equipment
XC-G series control box
Operation box
PLK-G series control box
power supply
DC12V
(Supplied from the control box)
DC12V
(Supplied from the control box)
Main function
Serial communication <- -> Ethernet communication exchange
Communication interface
Ethernet communication (1 port)
RS232C serial communication (2 port)
USB communication (2 port)
External storage medium
USB flash drive
External input / output
CON C
Input 4 point (analog 2 point), Output 3 point (analog 1 point), total 7 point
External dimensions
125mm(W) ×155mm(W) ×40mm(H)
mass
300ｇ
Ethernet communication
Communication standard
10BASE-T/100BASE-TX
interface
RJ-45 connector 1 port
Communication speed
100Mbps
Supported protocol
CC-Link IE Field Basic
IP address
Write from USB flash drive
･Ethernet is a trademark of Xerox Corporation in the United States.
･Other company names and product names are trademarks or registered trademarks of each company.

MITSUBISHI ELECTRIC CORPORATION Printed in Japan
